Philips MasterColor CDM-MR16 User manual

Philips MasterColor®
Ceramic Metal Halide
CDM-MR16 Lamps
Accent with sparkling,
energy efficient light
Philips MasterColor®CDM-MR16 combines the
familiar compact shape of MR-16 halogen lamps with the
performance of ceramic metal halide MasterColor lamps.
MasterColor®technology
• Energy savings—up to 2 times less energy consumed than
standard 50W halogen MR-16 lamps with comparable light output
• Long life—12,000 hours rated average life1, 4 times longer than
standard 3000 hour 50W halogen MR-16 lamps
• Sparkling light—85+ CRI with crisp white light (3000 )
• Lamp-to-lamp color consistency
Easy to install, easy to replace
• GX10 twist-and-lock design locks base into place
• 100% compatible with existing HID systems in market today
• Miniturized reflector eliminates need for optical design
Excellent choice for today’s lighting designs
• Compact size suitable for open fixtures
• Beam spreads available in 10˚, 25˚ and 40˚
(1, See back page for footnotes)
MASTERCOLOR®
Ideal for accent/decorative
lighting, general lighting
and downlighting in
retail applications; or for
outdoor landscaping and
architectural effects.
MC CDM MR16 Prod ct B lletin:Layo t 1 1/6/09 1:24 PM Page 1

CDM-MR16
Philips MasterColor®Ceramic Metal Halide CDM-MR16 Lamps
Ordering Data
Approx. Approx.
Product Nom. Beam Initial Mean
Number Ordering Code Watt. MBCP2Angle3Lumens4Lumens5
40496-1 CDM-MR16 20W/830 10D 22 11,000 10˚ 1080 750
40497-9 CDM-MR16 20W/830 25D 22 3500 25˚ 1080 750
40498-7 CDM-MR16 20W/830 40D 22 1700 40˚ 1080 750
WARNING , CAUTION AND OPERATING IN TRUCTION
R“WARNING: These lamps can cause serious skin burn and
eye inflammation from short wave ultraviolet radiation if
outer envelope of the lamp is broken or punctured. Do not use
where people will remain for more than a few minutes unless
adequate shielding or other safety precautions are used. Certain
lamps that will automatically extinguish when the outer envelope
is broken or punctured are commercially available.” This lamp
complies with FDA radiation performance standard 21 CFR
subchapter J. (USA:21CFR 1040.30 Canada: SOR/DORS/80-381)
If the outer bulb is broken or punctured, turn off at
once and replace the lamp to avoid possible injury from
hazardous short wave ultraviolet radiation. Do not scratch
the outer bulb or subject it to pressure as this could cause
the outer bulb to crack or shatter. A partial vacuum in the
outer bulb may cause glass to fly if the envelope is struck.
WARNING: The arc-tube of metal halide lamps are designed to
operate under high pressure and at temperatures up to 1000˚ C and
can unexpectedly rupture due to internal or external factors such as
a ballast failure or misapplication. If the arc-tube ruptures for any
reason, the outer bulb may break and pieces of extremely hot glass
might be discharged into the surrounding environment. If such a
rupture were to happen, THERE I A RI K OF PER ONAL
INJURY, PROPERTY DAMAGE, BURN AND FIRE.These
lamps are designed to retain all the glass particles should an
arc tube rupture occur.The following operating instructions
are recommended to minimize these occurrences.
RELAMP FIXTURE AT OR BEFORE THE END OF
RATED LIFE.Allowing lamps to operate until they fail is
not advised and may increase the possibility of inner arc
tube rupture.
This lamp contains an arc tube with a filling gas containing
less than 10 nCi of Kr-85 and is distributed by Philips Lighting
Company, a division of Philips Electronics North America
Corporation, omerset, New Jersey, 08875.
CAUTION: TO REDUCE THE RISK OF PERSONA INJURY,
PROPERTY DAMAGE, BURNS AND FIRE RESU TING FROM AN
ARC-TUBE RUPTURE THE FO OWING LAMP OPERATING
IN TRUCTION MUST BE FO OWED:
LAMP OPERATING IN TRUCTION :
1. RE AMP FIXTURES AT OR BEFORE THE END OF RATED IFE.
Allowing lamps to operate until they fail is not advised and may
increase the possibility of inner arc tube rupture.
2. Before lamp installation/replacement, shut power off and allow lamp
and fixture to cool to avoid electrical shock and potential burn hazards.
3. Use only auxiliary equipment meeting Philips and/or ANSI standards.
Use within voltage limits recommended by ballast manufacturer.
A. Operate lamp only within specified limits of operation.
B. For total supply load refer to ballast manufacturers electrical data.
C. Operate lamps only on thermally protected
electronic ballast.
4. Periodically inspect the outer envelope. Replace any lamps that
show scratches, cracks or damage.
5. If a lamp bulb support is used, be sure to insulate the support
electrically to avoid possible decomposition of the bulb glass.
6. Protect lamp base, socket and wiring against moisture, corrosive
atmospheres and excessive heat.
7. Time should be allowed for lamps to stabilize in color when turned
on for the first time.This may require several hours of operation,
with more than one start. amp color is also subject to change
under conditions of excess vibration or shock, and color appearance
may vary between individual lamps.
8. amps may require up to 15 minutes to re-light if there is
a power interruption.
9. Take care in handling and disposing of lamps. If an arc tube is
broken, avoid skin contact with any of the contents or fragments.
10. For proper installation and removal, lamp should be handled by the
sides of the reflector and not by the aluminum front anti-glare cap.
Electrical and Technical Data
Lamp Operating Volt. (rms)(Nom.)6––––––––––––103
Initial Lamp Volt. Range (rms)7–––––––––––––97–109
Lamp Operating
Current (Amps) Nominal (rms) –––––––––––––0.215
Lamp Current Crest Factor (Maximum)–––––––––1.8
Warm-up to 80% Full Brightness –––––––––2 minutes
RestrikeTime for Hot Lamps –––––––––– 15 minutes
Ballast Open CircuitVoltage –––––––––198 RMS Min.
Pulse Peak Volts––––––––––––––––––––––3000–4000
Pulse Width @ 90% Peak –––––2 Micro Sec. Minimum
Pulse Repetition Rate (Minimum)8–––1 per Half Cycle
Minimum Operating Temp.––––––––––– -30˚C (-22˚F)
Ordering Information
ANSI Designation –––––––––––––––––C156/C175/O
Package Quantity ––––––––––––––––––––––––––––6
Physical Characteristics
Bulb Size–––––––––––––––––––––––––––––––MR-16
Bulb Finish ––––––––––––––––––––––––––––––Clear
Base ––––––––––––––––––––––––––––––––––GX-10
Max. Overall Length (MOL) –––––––––2.6'' (65.4mm)
Max. Permissible Temperatures:
Bulb––––––––––––––––––––––––––300˚C (572˚F)
Base –––––––––––––––––––––––––200˚C (392˚F)
Lens-to-Reflector Rim –––––––––––160˚C (320˚F)
Arc Tube Material ––––––––––Polycrystalline Alumina
Operating Characteristics
Rated Average Life, Hours1––––––––––––––––12,000
CRI ––––––––––––––––––––––––––––––––––––––85
Correlated Color Temp. (CCT)9––––––––––––3000
CIE Chromaticity Approx.9–––––––––––x-.438, y-.394
Efficacy (lpw)–––––––––––––––––––––––––––––––49
Operating Position
Universal—Open or Enclosed Luminaire
Note: Use on thermally protected
electronic ballast only.
1) Rated average life is the life obtained, on the average, from large
representative groups of lamps in laboratory tests under
controlled conditions at 10 or more operating hours per start.
It is based on survival of at least 50% of the lamps and allows
for individual lamps or groups of lamps to vary considerably
from the average.
2) Maximum Beam Candlepower
3) Beam Angle at 50% of MBCP
4) Measured at 100 hrs. life. Approximate lumen values listed are
for vertical operation of the lamp.
5) Approximate lumen output at 40% of lamp rated average life.
6) Measured at rated lamp watts on a linear reactor.
7) Measured with the lamp operating at rated watts.
8) Option-Pulse Width @ 90% Peak, 1 micro second minimum
with 2 pulses per half cycle.
9) Measured at 100 hours life.
Above specifications subject to change without notice.

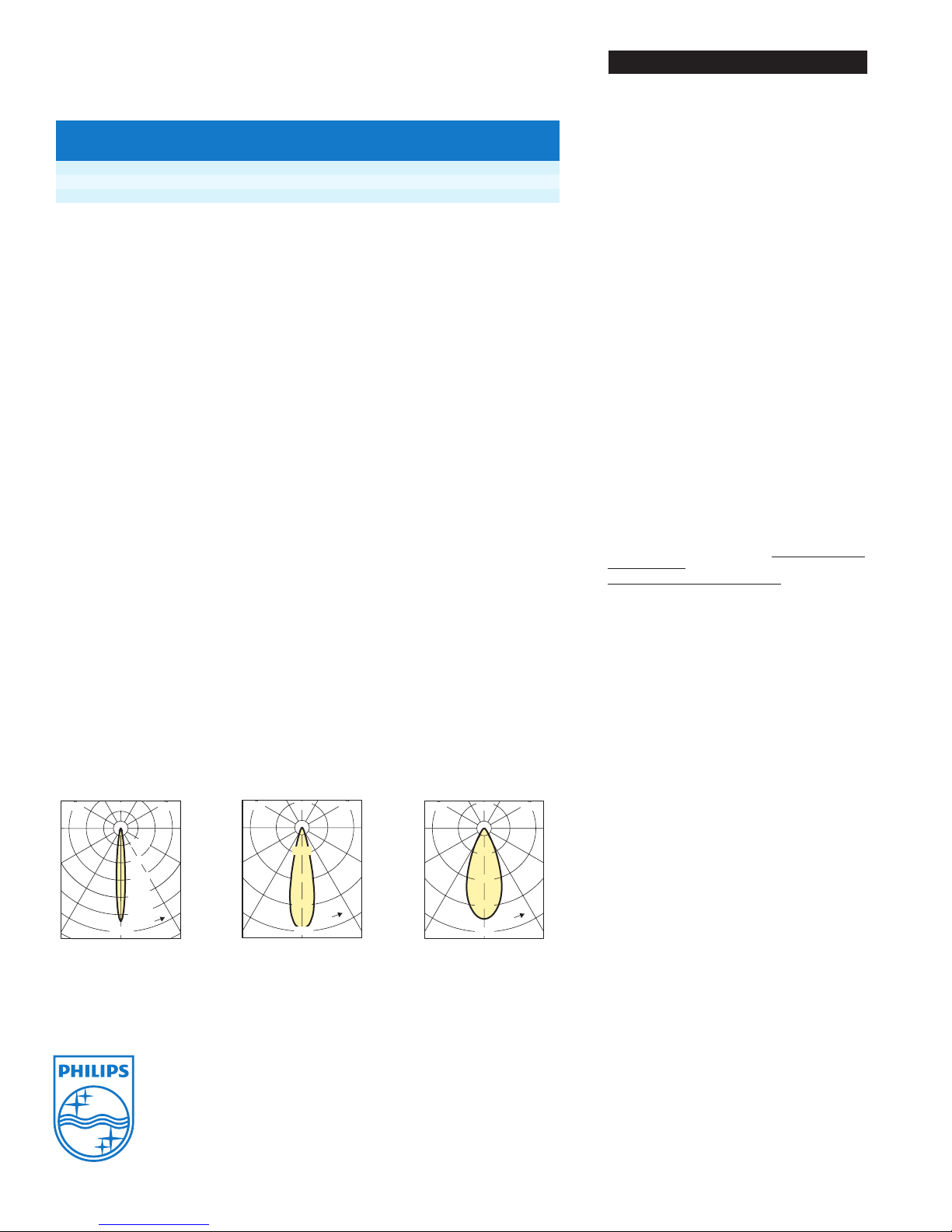

CDM-MR16 20W 10˚ CDM-MR16 20W 25˚ CDM-MR16 20W 40˚
Polar Intensity Diagram
Beam spread at 50% Maximum Beam
Candlepower—0˚ Primary Angle
© 2008 Philips Lighting Company. All rights reserved.
Printed in USA 12/08
P-5986
www. philips.com
Philips Lighting Company
200 Franklin Square Drive
P.O. Box 6800
Somerset, NJ 08875-6800
1-800-555-0050
A Division of Philips Electronics North America Corporation
Philips Lighting
281 Hillmount Road
Markham, Ontario
Canada L6C 2S3
1-800-555-0050
A Division of Philips Electronics Ltd.
0°
30°
30°
60°
90°
60°
90°
(cd)
120° 120°180°
10000
12500
g
5000
2500
7500
15000
0°
30°
30°
60°
90°
60°
90°
(cd)
g
4000
2000
1000
3000
120° 120°180°
0°
30°
30°
60°
90°
60°
90°
(cd)
g
2000
1000
500
1500
120° 120°180°
