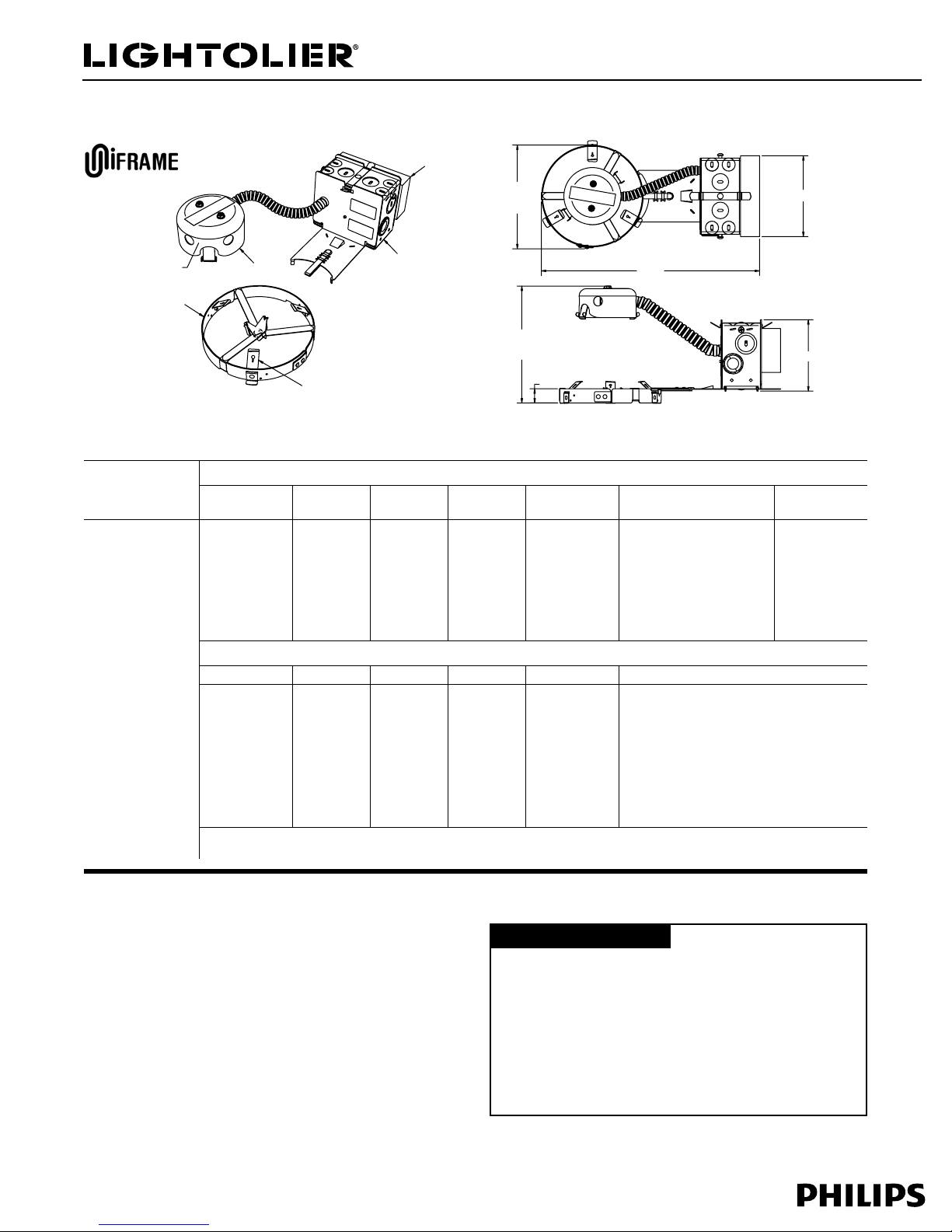

Performance Recessed CFL Downlighting 1001FR
Page 1 of 1 5" Aperture, 1 Light, Compact Fluorescent, Non-IC, Remodeler, Frame-In Kit
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • F0708
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier is a Philips group brand
Features
1. UniFrame™ Mounting Ring: .032" (#22ga.) thick Galvanized Steel.
Accommodates existing ceilings up to 2" thick. Attaches securely to any type
of ceiling material without tools using (3) mounting straps provided. Includes
adhesive backed aperture template.
2. Trim Clips: “Push In / Twist Out” clips hold reflector flush to ceiling.
3. Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel.
UL Listed for 90˚ C supply wire. Attaches to mounting ring without tools.
4. Ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life
protection, class “P” thermally protected, class “A” sound rating.
5. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18
AWM leads to ballast.
6. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to
reflector trim by spring clip for precise optic alignment.
Labels
cULus Listed. Suitable for Damp Locations.
3 3/4"
3/4"
FOR O.A. HEIGHT
SEE TRIM
SPECIFICATION
1
2
3
4
6
5 INSIDE
11 1/2"
4 1/4"
5 1/2"
CEILING
CUTOUT
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe™
Frame-In Kit
Uniframe™Compact Fluorescent Performance Series Reflector Trims
Vertical Open Vertical Wall
Wash - Single
Vertical Wall
Wash - Double
Horizontal
Open
Horizontal Wall
Wash - Single
Horizontal Wet Location
Lensed / Diffused
Horizontal Cross
Blade
1001FR18U
18w Triple
GX24q-2 Base
120v – 0.17amp max
277v – 0.08amp max
1001FR26U
26w Triple
GX24q-3 Base
120v – 0.24amp max
277v – 0.11amp max
1001CL
1001CD
1001WH
1001CLSW
1001CDSW
1001WHSW
1001CLDW
1001CDDW
1001WHDW
1001HCL
1001HCD
1001HWH
1001HCLSW
1001HCDSW
1001HWHSW
Clear Lens Fresnel
1001HCLC 1001HCLF
1001HCDC 1001HCDF
1001HWHC 1001HWHF
Opal Lens
1001HCLO
1001HCDO
1001HWHO
1001HACB
1001HWHCB
Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)
Performance Cone Cone Satin Cone Baffle Wall Wash Wet Location
1013CFL
1013CDCFL
1012*
1013*
1013BK*
1013WH
1013CD*
1071
1045
1046
1046CD
1008*
1010*
1005*
1005BNM
1005WH
1076
1076WH
1035
1035WH
1085
1095
1096
1096CD
1021**
1024
1078
*Add NM sufx to catalog number for Natural Metal ange and nish.
**Only compatible with 18W Quad lamp.
