Lytespan®Track Lighting System 23S20MR
Page 1 of 2 Alcyon HID 20W CMH MR16 Step Spot
Ordering Information
Catalog No. Finish Mounting Lamps
23S20MRAL Aluminum For use with Lytespan Radius, Basic and Advent 20W MR16 GX10 Base Ceramic Metal Halide
23S20MRBK Black Track. Not compatible with extension wands or
23S20MRWH White slope ceiling adapters. For monopoint
applications refer to spec sheet 6171.

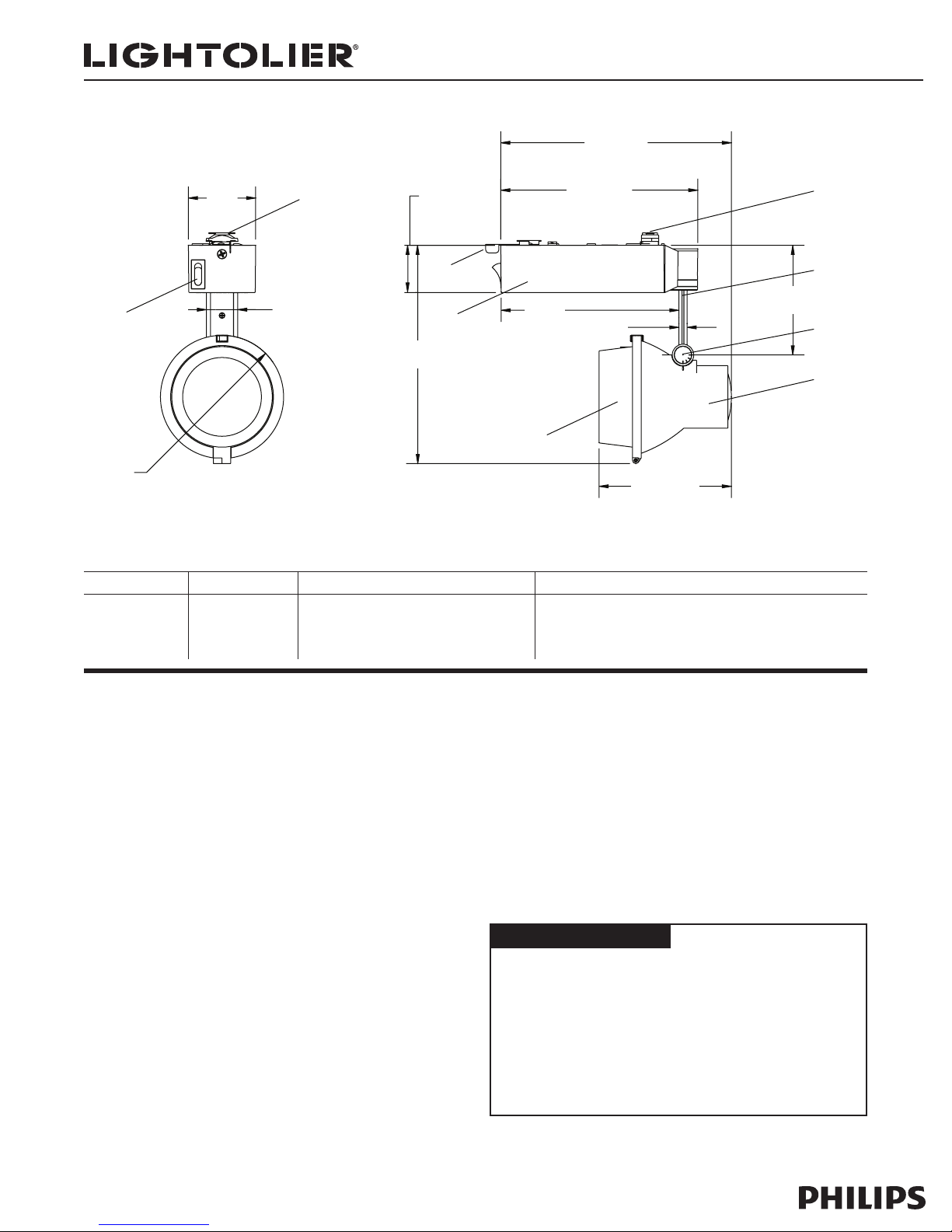

Features
1. Track Attachment Fitting: Locking lever for mechanical/
electrical connection.
2. Brass Contact: Extends for connection to second circuit
(Advent track only).
3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.
Position may be locked using an allen key.
4. Vertical Pivot: 0-90° vertical adjustment with aiming indicator. Position
may be locked using an allen key.
5. Fixture Housing: Die cast aluminum
6. Ballast Housing: Molded polycarbonate
7. On/Off Switch: Rocker switch to disconnect power to the ballast.
8. Accessory Cartridge: Hinged and captive; retaining ring included. Inside
painted black to reduce glare.
9. Safety Locking Lever: Locks ballast housing to track.
Finish
All Painted finishes are baked enamel.
Accessories
Accessory Holder: Integral
Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens.
Louver can be used without lens.
Lens: AF25, ADF25 Series
Louver: AL25HC
Electrical
Electronic Ballast
Input Voltage: 120V,50/60Hz
Power Factor: High
Input Power: 24W
Max. Input Current: 0.20A
ANSI Code: M156
Do not use on dimming circuit.
Labels
UL, cUL
1
3
4
5
3 3/16"
[80 mm]
2
8
76
9
7/8 "
[23 mm]
1 15/16 "
[49 mm]
6 5/8"
[169 mm]
5 11/16"
[144 mm]
1 3/8"
[35 mm]
6 5/16"
[160 mm]
5 1/8"
[130 mm]
3 13/16"
[97 mm]
3 9/16 "
[90 mm]
1/4"
[6 mm]

Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • B0908
Lytespan®Track Lighting System 23S20MR
Page 2 of 2 Alcyon HID 20W CMH MR16 Step Spot
9000 9000
GE CMH20MR16/SP
12°
2900 9000
GE CMH20MR16/FL
25°
1500 9000
GE CMH20MR16/WFL
40°
D FC L W D C FC L W D C FC L W D C FC L W
Lamp
Beam Spread CBCP Rated
(To 50% CBCP) Life (Hrs.)
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length D Distance
W Beam Width AAiming Angle
C Distance to center beam FC Footcandles
Land W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp manu-
facturers for availability and performance.
CBCP = Center Beam Candle Power.
8' 4.6' 91 2.3' 1.9'
10' 5.8' 58 2.8' 2.4'
12' 6.9' 41 3.4' 2.9'
14' 8.1' 30 3.9' 3.4'
3' 5.2' 125 2.6' 1.3'
4' 6.9' 70 3.5' 1.7'
5' 8.7' 45 4.3' 2.1'
6' 10.4' 31 5.2' 2.5'
4' 4.0' 199 1.7' 1.2'
5' 5.0' 127 2.1' 1.5'
6' 6.0' 88 2.6' 1.8'
7' 7.0' 65 3.0' 2.1'
8' 141 1.7' 1.7'
10' 90 2.1' 2.1'
12' 63 2.5' 2.5'
14' 46 2.9' 2.9'
6' 3.5' 52 3.6' 3.1'
8' 4.6' 29 4.8' 4.1'
10' 5.8' 19 6.0' 5.1'
12' 6.9' 13 7.2' 6.1'
2' 3.5' 91 4.2' 1.8'
3' 5.2' 40 6.2' 2.7'
4' 6.9' 23 8.3' 3.5'
5' 8.7' 15 10.4' 4.4'
3' 3.0' 114 2.8' 1.9'
4' 4.0' 64 3.7' 2.5'
5' 5.0' 41 4.7' 3.1'
6' 6.0' 28 5.6' 3.8'
6' 81 2.7' 2.7'
8' 45 3.5' 3.5'
10' 29 4.4' 4.4'
12' 20 5.3' 5.3'
4' 2.3' 61 4.1' 3.4'
6' 3.5' 27 6.1' 5.0'
8' 4.6' 15 8.1' 6.7'
10' 5.8' 10 10.2' 8.4'
2' 3.5' 47 9.7' 2.9'
3' 5.2' 21 14.5' 4.4'
4' 6.9' 12 19.3' 5.8'
5' 8.7' 8 24.2' 7.3'
2' 2.0' 133 3.4' 2.1'
3' 3.0' 59 5.0' 3.1'
4' 4.0' 33 6.7' 4.1'
5' 5.0' 21 8.4' 5.1'
6' 42 4.4' 4.4'
8' 23 5.8' 5.8'
10' 15 7.3' 7.3'
12' 10 8.7' 8.7'
