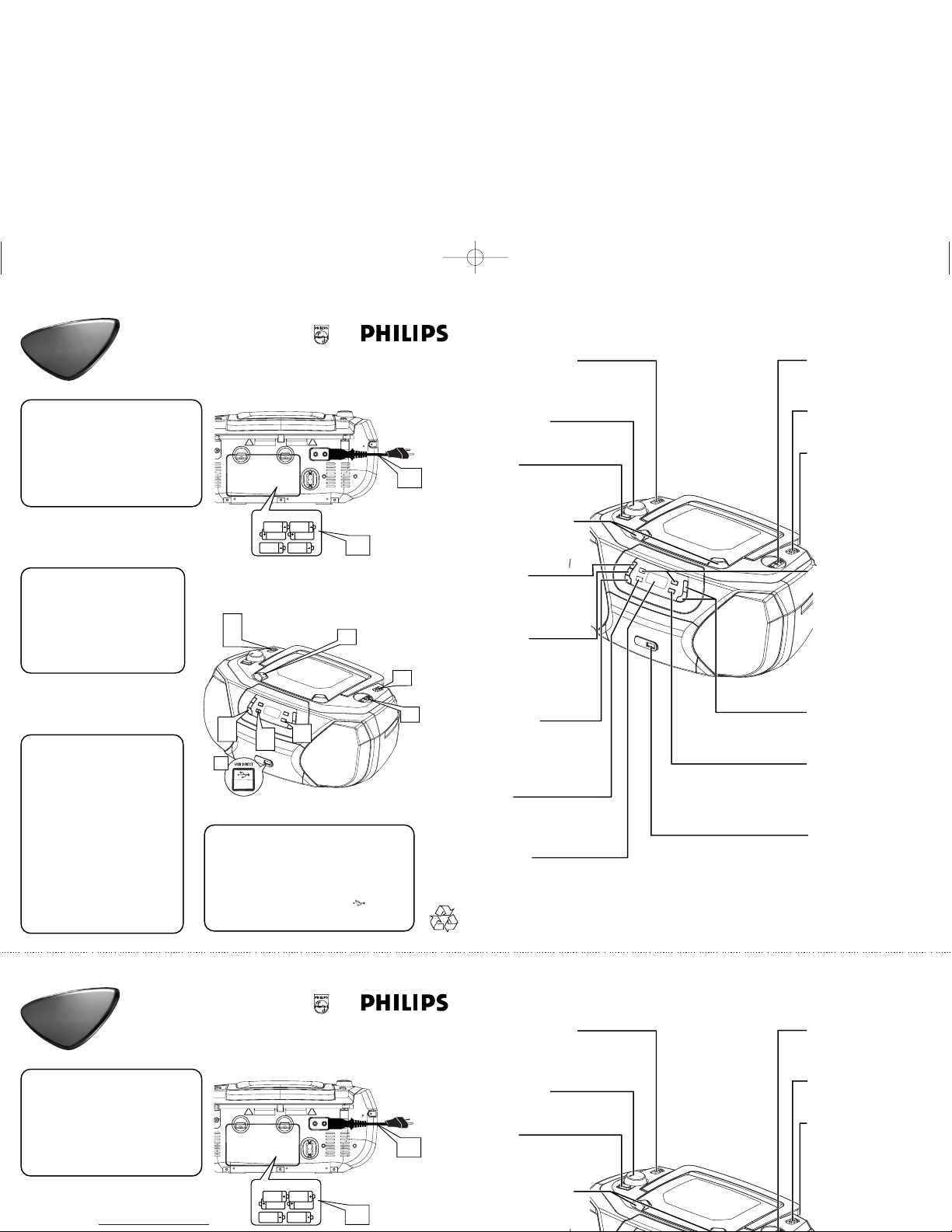

1 Choosing Power Supply
aConnect the AC power cord to the
AC~ Mains inlet and the wall socket.
-OR-
bOpen the battery door and insert 6
x C batteries (not included).
38
Press to start or pause
disc/USB playback
Source selector
Slide to select
function: CD/MP3
(or USB mode), or radio
VOLUME
Turn to adjust volume level
Quick Use
Guide
Quick Use
Guide
6xR14•UM-2•C-CELLS
1b
1a
2a
3a
4a 3c
2b
2c
3b
4b
4d
3e 3f
4c
2 Listening to the Radio
aPush the source selector to
TUNER.
b Adjust
BAND
to
MW
or
FM
.
cTurn TUNING to tune to a
station.
3 Playing a disc
This player plays Audio Discs
including CD-R/CD-RW, MP3-CD
and WMA.
aAdjust the source selector to
CD/USB.
bPress CD/USB to enter CD
mode if USB DIRECT is displayed.
cOpen the disc door.
dInsert a disc with the printed side
facing up and close the door.
ePress 38 to start playback.
fTo stop disc playback, press 9.
TUNING
Turn to tune to a
station
AZ1816
LIFT TO OPEN
Lift to open the disc
door
9
Press to stop disc/USB
playback, or erase a disc
program
ALBUM+/-
For MP3-CD/WMA/USB:
Press to select albums
R-14,UM-2 or C-cells
(not included)
USB Port
Connects an external
USB mass storage device
CD/USB
Press to enter disc or
USB mode
DBB
T
urns the bass
enhancement on/off
∞,§
Briefly press to skip to
the beginning of the
current/previous/
later disc track;
During disc playback,
press and hold to find a
particular passage
backward/forward.
MODE
Press to
select different
play modes, such as
REPEAT or SHUFFLE
(random order)
BAND
Slide to select waveband
Telescopic antenna
Improves FM reception
PROG
Use to program disc
tracks and review a disc
program.
Display
Shows disc/USB functions
4 Playing a USB device
aPush the source selector to CD/USB.
bPress CD/USB to enter USB mode if USB
DIRECT is NOT displayed.
cPlug a compatible USB mass storage device
to AZ1816’s USB port marked .
dPress
2; on your AZ1816 to start play.
1 Choosing Power Supply
aConnect the AC power cord to the
AC~ Mains inlet and the wall socket.
-OR-
bOpen the battery door and insert 6
x C batteries (not included).
Quick Use
Guide
Quick Use
Guide
6xR14•UM-2•C-CELLS
1b
1a
2 Listening to the Radio
aPush the source selector to
TUNER.
b Adjust
BAND
to
MW
or
FM
.
cTurn TUNING to tune to a
station.
3 Playing a disc
This player plays Audio Discs
including CD-R/CD-RW, MP3-CD
and WMA.
aAdjust the source selector to
CD/USB.
bPress CD/USB to enter CD
mode if USB DIRECT is displayed.
cOpen the disc door.
dInsert a disc with the printed side
facing up and close the door.
ePress 38 to start playback.
fTo stop disc playback, press 9.
AZ1816
R-14,UM-2 or C-cells
(not included)
4 Playing a USB device
aPush the source selector to CD/USB.
bPress CD/USB to enter USB mode if USB
DIRECT is NOT displayed.
cPlug a compatible USB mass storage device
to AZ1816’s USB port marked .
dPress
2; on your AZ1816 to start play.
2a
3a
4a 3c
2b
2c
3b
4b
4d
3e 3f
4c
38
Press to start or pause
disc/USB playback
Source selector
Slide to select
function: CD/MP3
(or USB mode), or radio
VOLUME
Turn to adjust volume level
TUNING
Turn to tune to a
station
LIFT TO OPEN
Lift to open the disc
door
9
Press to stop disc/USB
playback, or erase a disc
program
ALBUM+/-
For MP3-CD/WMA/USB:
Press to select albums
USB Port
Connects an external
USB mass storage device
CD/USB
Press to enter disc or
USB mode
DBB
T
urns the bass
enhancement on/off
∞,§
Briefly press to skip to
the beginning of the
current/previous/
later disc track;
During disc playback,
press and hold to find a
particular passage
backward/forward.
MODE
Press to
select different
play modes, such as
REPEAT or SHUFFLE
(random order)
BAND
Slide to select waveband
Telescopic antenna
Improves FM reception
PROG
Use to program disc
tracks and review a disc
program.
Display
Shows disc/USB functions
AZ1816_QSG_55 12/10/06 16:05 Page 1
