Philips Exp 501 User manual

Portable MP3-CD player Audio
Audio
EXP 501
EXP 503

2

3
PROGRAM
OFF
•RESUME
•HOLD
L
INEO
UT/
OPE
N
VO
L.
MODE
ESP
DBB
DISPLAY
ALBUM• TITLESEARCH
ALBUM • TITLE
SEARCH
3
4
5
7
9
0
@
)
1
2
!
#
^
6
8
$
%
&
*(

4

English ––––––––––––––––––––––––––––––––––––––––––– 6
Français ––––––––––––––––––––––––––––––––––––––––– 31
Español –––––––––––––––––––––––––––––––––––––––––– 56
Deutsch ––––––––––––––––––––––––––––––––––––––––– 81
5
English
FrançaisEspañolDeutsch

Quick start ––––––––––––––––––––––––––––––––––––––––––– 7
Controls –––––––––––––––––––––––––––––––––––––––––––––– 8
General Information
Maintenance ––––––––––––––––––––––––––––––––––––––––– 9
Environmental information –––––––––––––––––––––––––––––– 9
MP3 and AAC music files –––––––––––––––––––––––––––––– 10
Power supply
Batteries ––––––––––––––––––––––––––––––––––––––––––– 13
ECO-PLUS NiMH batteries –––––––––––––––––––––––––––– 14
Mains adapter ––––––––––––––––––––––––––––––––––––––– 15
Headphones ––––––––––––––––––––––––––––––––––––––––– 15
Basic functions
Playing a disc ––––––––––––––––––––––––––––––––––––––– 16
Playing Enhanced Music CDs and Mixed Mode CDs ––––––––– 17
Pause ––––––––––––––––––––––––––––––––––––––––––––– 17
Volume and sound ––––––––––––––––––––––––––––––––––– 18
Selecting and searching ––––––––––––––––––––––––––––––– 19
Selecting an album ––––––––––––––––––––––––––––––––––– 20
Features
Programming track numbers ––––––––––––––––––––––––––– 21
Clearing the programme –––––––––––––––––––––––––––––– 21
Storing the last position played – RESUME –––––––––––––––– 22
Locking all buttons – HOLD ––––––––––––––––––––––––––– 22
Selecting different playback possibilities – MODE ––––––––––– 23
Display of information –––––––––––––––––––––––––––––––– 24
ESP – Electronic Skip Protection –––––––––––––––––––––––– 25
Acoustic feedback ––––––––––––––––––––––––––––––––––– 25
Accessories
In-car connections ––––––––––––––––––––––––––––––––––– 26
Remote control ––––––––––––––––––––––––––––––––––––– 27
Belt clip ––––––––––––––––––––––––––––––––––––––––––– 27
Troubleshooting –––––––––––––––––––––––––––––––––––––– 28
6
Contents
English

7
Quick start
English
!!!
12p
OFF
•RESUME
•HOLD
L
INEO
UT/
OPE
N
VO
L.
3#
4HOLD ➠OFF 5PLAY 2; 6VOL E
OG
RAM
OPE
N
VO
L.
MODE
ESP
DBB
OFF
•RESUME
•HOLD
L
INEO
UT/
OPE
N
VO
L.
OFF
•RESUME
•HOLD
L
INEO
UT/
OPE
N
VO
L.
PR
OGRAM
MODE
ESP
DBB
DISPLAY
ALBUM•TITLESEARCH
OFF
•RE
SUM
E•
HOL
D
PROGRAM
MODE
SEARCHALBUM•TITLE
TIT
LESEARCH
DISPLAY
OPE
N
VOL
This set complies with the radio interference requirements of the
European Community.

1OPEN 2
opens the CD lid
2VOL E
adjusts the volume
32;
switches the set on, starts playback
and interrupts playback
4ESP
Electronic Skip Protection
prevents music interruptions
caused by shocks or vibrations
5DBB
Dynamical Bass Boost, selects the
bass enhancement
6§
skips forward and
searches forward
7+
MP3-CD only: selects the next
album or skips forward
8DISPLAY
selects the track and album
information for MP3-CDs
9display
0−
MP3-CD only: selects the previous
album or skips backward
!∞
skips backward and
searches backward
@OFF·RESUME·HOLD
OFF switches RESUME and HOLD
off
RESUME stores the last position
played
HOLD locks all buttons
#9
stops playback, clears a programme
and switches the set off
$PROGRAM
programs tracks and lets you
review the programme
%MODE
selects the different playing
possibilities such as SHUFFLE or
REPEAT
^LINE OUT/p
3.5 mm line out to connect
– the headphones
– this set to the audio input
of your stereo equipment
– the remote control
&4.5V DC
to connect the external power
supply
*battery compartment
(type plate
)belt clip hole
8
Controls, refer to the illustrations on page 3
English

Maintenance
Do not touch the lens Aof the set.
Do not expose the set, batteries or discs to
humidity, rain, sand or excessive heat (caused
by heating equipment or direct sunlight).
The lens may cloud over when the set is
suddenly moved from cold to warm
surroundings. Playing is not possible then.
Leave the set in a warm environment until the moisture evaporates.
Active mobile phones in the vicinity of this set may cause malfunctions.
Avoid dropping the set as this may cause damage.
Clean the set with a soft, slightly dampened lint-free cloth. Do not use any
cleaning agents as they may have a corrosive effect.
To clean a disc, wipe it in a straight line from the centre towards the edge
using a soft, lint-free cloth. Cleaning agents may damage the disc.
Environmental information
All redundant packing material has been omitted.We have done our utmost
to make the packaging easily separable into three mono materials: cardboard
(box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the disposal
of packing materials, exhausted batteries and old equipment.
9
General information
English

MP3 and AAC music files
The music compression technologies MP3 (MPEG Audio Layer 3) and AAC
(Advanced Audio Coding) reduce the digital data of an audio CD significantly
while maintaining CD-like sound quality.With MP3, for example, you can
record up to 10 hours of CD-like music on a single CD-ROM.This set plays
MP3 and AAC music files.
How to get music files
Either download legal music files from the internet to your computer
harddisc or create them from your own audio CDs. For this, insert an audio
CD into your computer´s CD-ROM drive and convert the music using an
appropriate encoder software.To achieve a good sound quality, a bit rate of
128 kbps or higher is recommended for MP3 music files.
Some encoder software offers an option to protect music files, i. e. the files
can only be played on the computer which created them. If you burn such
files on a CD-ROM, you cannot play them on this set. Make sure to
deactivate the protection option in the encoder software before creating
the music files. In this case you are responsible for adherence to all local or
international copyrights.
How to organize music files
In order to easily handle the large number of music files on a CD-ROM,
you can organize them in folders (“albums”).
The tracks of an album will be played in alphabetical order. If you want to
arrange them in a certain order, let the file names start with numbers.
For example:
001-ONEWORLD.MP3
002-FIRESTARTER.MP3
003-DEEP.MP3
10
General information
English

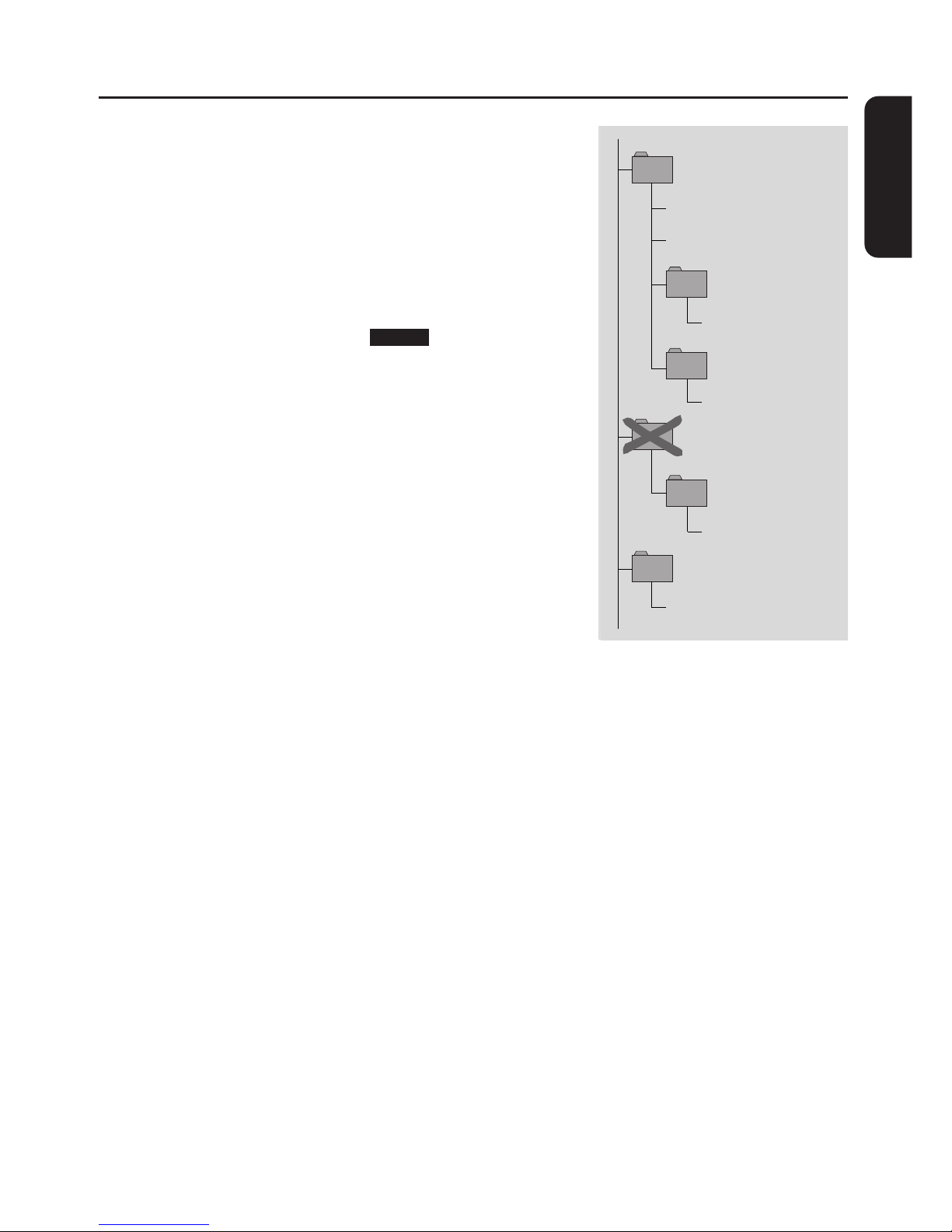

This set will play all albums in alphabetical
order.An album name includes all folders in
which the album is located, e. g. the album
VERDI in CLASSIC has the album name
CLASSIC\VERDI.
The albums in the illustration will be played
in the following way:
CLASSIC 1
CLASSIC\MOZART 2
CLASSIC\VERDI 3
POP\BLUR 4
REGGAE 5
In POP there are no MP3 or AAC files.
POP is therefore skipped.
There may be an album VARIOUS with album
number 0which will be played before all other
albums. VARIOUS contains all tracks which
you did not put into an album.
How to make a CD-ROM with MP3 or AAC files
Record (“burn”) the music files from your harddisc on a CD-ROM
with your computer´s CD burner.
Make sure that the file names of the MP3 and AAC files end with .mp3
and .aac respectively.
When burning your MP3-CDs, use either ISO 9660 disc format or UDF.
CD burning software like “DirectCD” or others support the UDF format.
ALBUM
11
General information
English
5REGGAE
.mp3
4BLUR
.mp3
3VERDI
.mp3
POP
2MOZART
.mp3
1CLASSIC
.mp3
.mp3

Supported formats
This set supports:
–Disc format: ISO 9660, Joliet, Multisession, UDF, Enhanced Music CD,
Mixed Mode CD
–Music file formats: MP3, AAC
MP3 bit rate (data rate): 32–320 kbps and variable bit rate
AAC format: ISO 13818-7 MPEG-2 (low complexity profile), stereo,
ADTS and ADIF header,AAC bit rate ≤160 kbps
–Total number of music files and albums: around 350
(with a typical file name length of 20 characters)
Note:The number of music files that can be played depends on the length of
the file names.With short file names more files will be supported.
Visit the EXPANIUM homepage
http://www.expanium.philips.com
All trademarks used are owned by their respective owners.
CAUTION
Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
12
General information
English

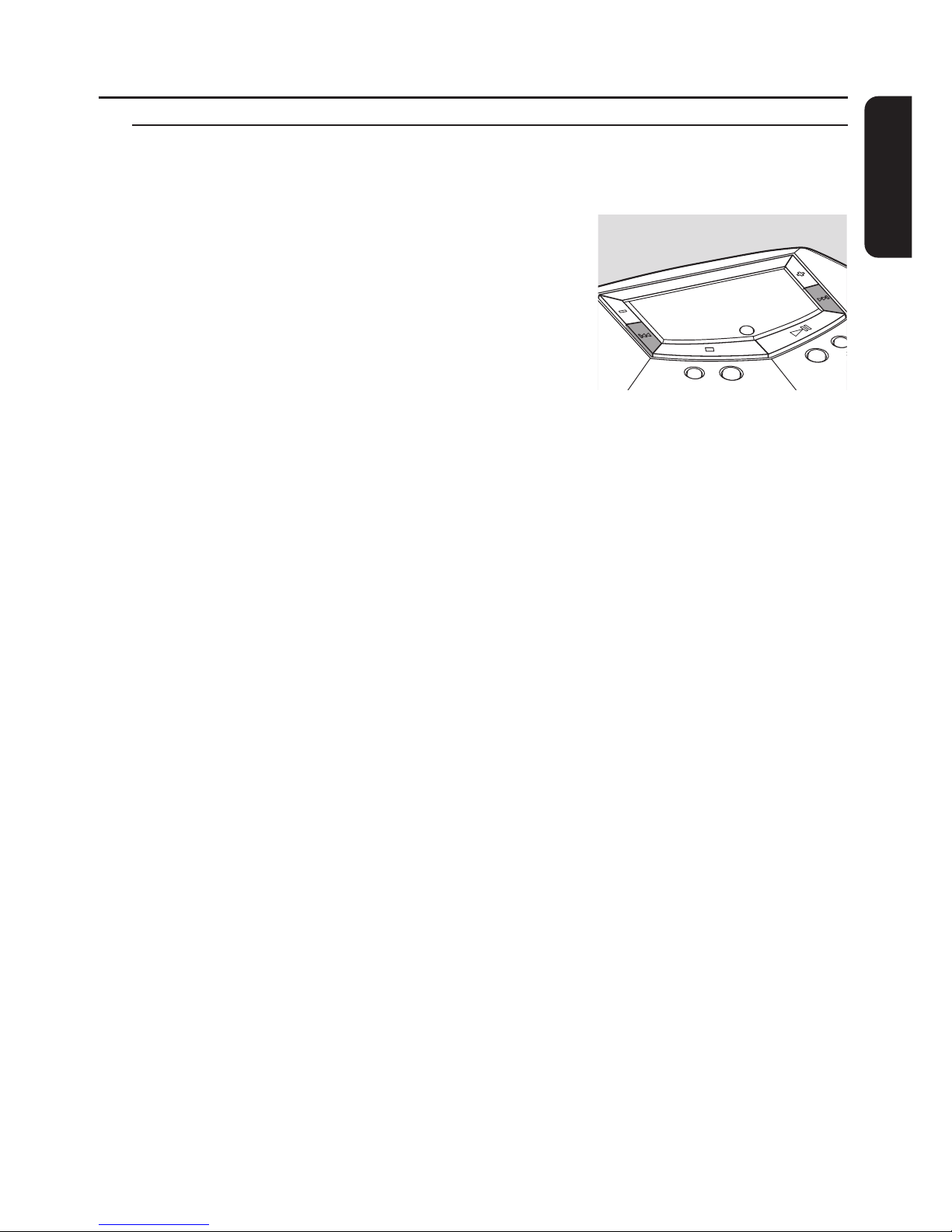

Batteries (supplied or optionally available)
Inserting batteries
Open the battery compartment and insert
2 alkaline batteries of type AA (LR6,UM3).
Do not use old and new or different types of
batteries in combination.
Remove batteries if they are empty or if the
set will not be used for a long time.
Indication of empty batteries
●Replace the batteries or connect the
mains adapter as soon as Ablinks and
REPLACE BATTERIES is scrolled.
Batteries contain chemical substances,
so they should be disposed of properly.
Average playing time of batteries under normal conditions:
Alkaline ECO-PLUS
batteries NiMH batteries
Audio disc 20 hours 10 hours
MP3-CD, ESP off 20 hours 10 hours
MP3-CD, ESP on 13 hours 6 hours
Note: 20 seconds after pressing 9the display switches off.
After 90 seconds the set switches off automatically.
13
Power supply
English
TITLE

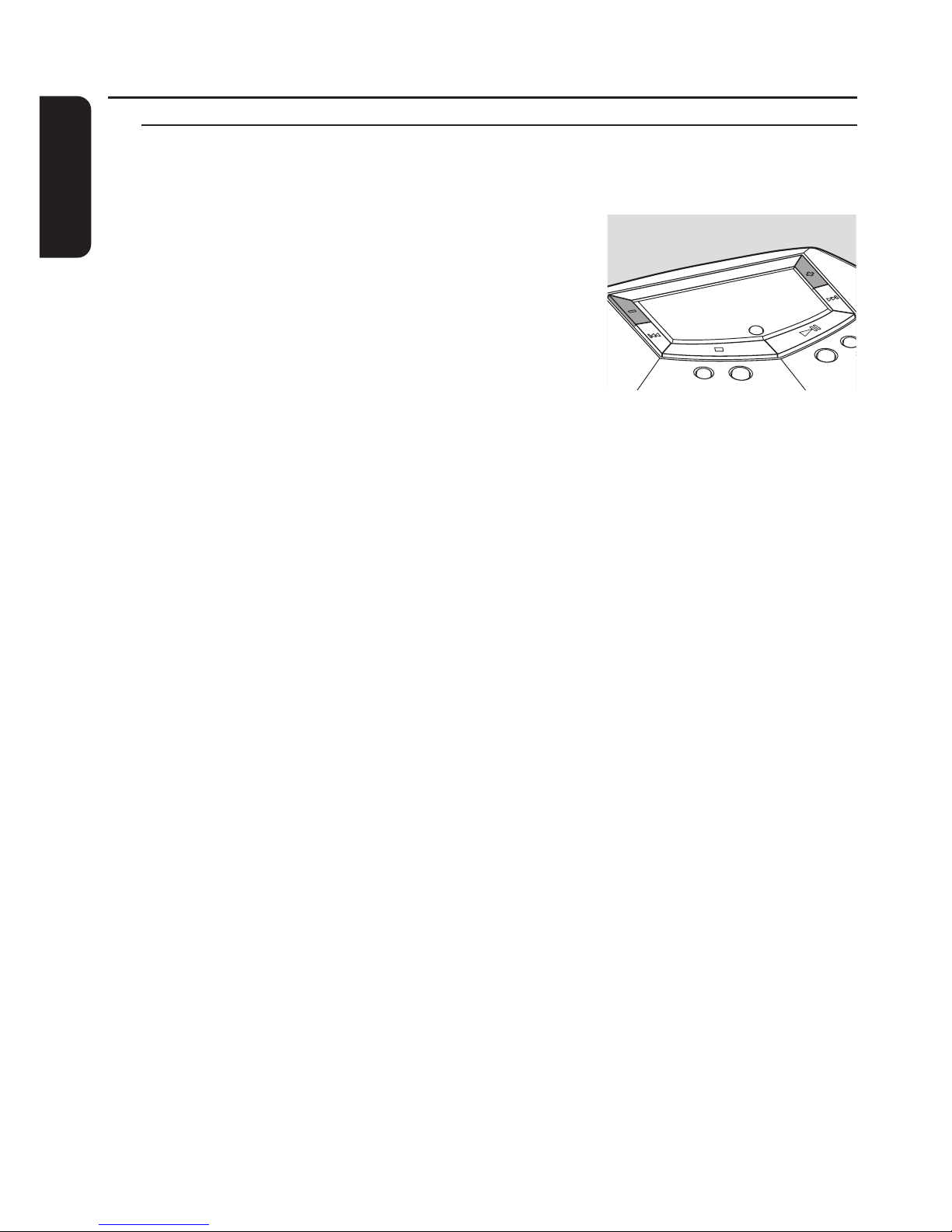

ECO-PLUS NiMH batteries (for versions supplied with
ECO-PLUS NiMH batteries AY 3362 only)
Recharging works only on a set with supplied rechargeable ECO-PLUS NiMH
batteries AY 3362.
Recharging the ECO-PLUS NiMH
batteries
1Insert the 2 rechargeable ECO-PLUS NiMH
batteries AY 3362.
2Connect the mains adapter to 4.5V DC
on the set and to the wall socket.
➜CHARGING BATTERIES is scrolled
once and the changing battery symbol
indicates that charging is in progress.
3When the batteries are fully recharged,
is shown and FULL is scrolled.
Rechargeable ECO-PLUS NiMH battery information
Recharge only the supplied NiMH batteries AY 3362. Do not recharge any
other type of batteries.
Batteries become warm during recharging. If the batteries become too hot,
recharging will be interrupted for approximately 30 minutes and HOT is
displayed.
Recharging takes approximately 7 hours. Recharging stops during playback.
Recharging full or half-full batteries will shorten the battery lifetime.
Therefore, after using the rechargeable ECO-PLUS NiMH batteries a few
times, discharge them completely before recharging.
To avoid a short circuit, the batteries should not touch any metal objects.
When the batteries quickly become empty after recharging, the contacts
are dirty or the end of the battery lifetime has been reached.
14
Power supply
English

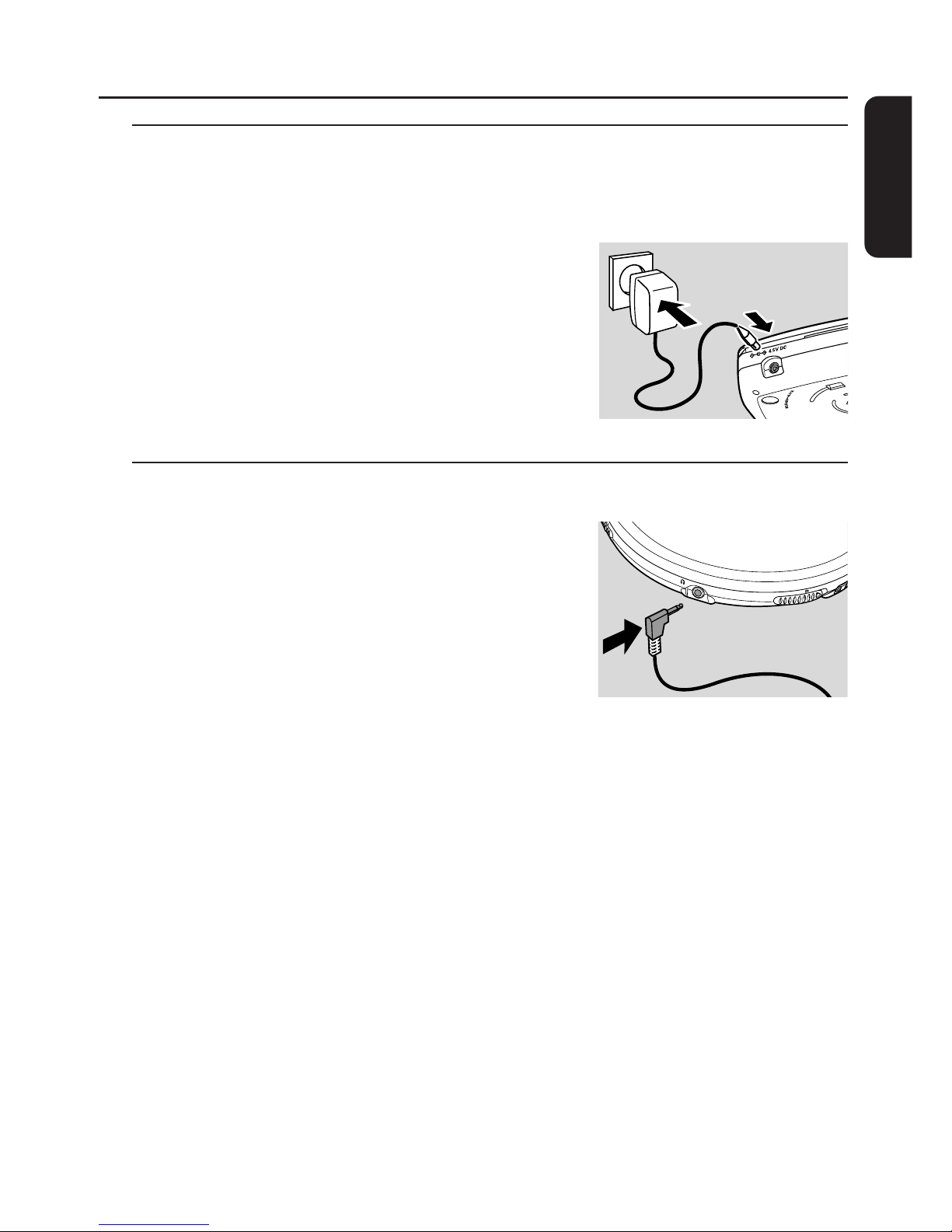

Mains adapter
Only use the AY 3160 mains adapter (4.5 V/400 mA direct current, positive
pole to the centre pin).Any other product may damage the set.
1Make sure the local voltage corresponds to
the adapter´s voltage.
2Connect the mains adapter to 4.5V DC on
the set and to the wall socket.
Note:Always disconnect the adapter if you are
not using it.
Headphones (SBC HE 545)
●Connect the supplied headphones to
LINE OUT/p.
Note: LINE OUT/pcan also be used for
connecting this set to your HiFi system. Set
VOL Eon this set to position 8 and adjust
volume and sound with your HiFi system.
Use your head when using headphones
Hearing safety
Do not play your headphones at a high volume. Hearing experts advise that
continuous use at high volume can permanently damage your hearing.
Traffic safety
Do not use headphones while driving a vehicle. It may create a hazard and it
is illegal in many countries. Even if your headphones are an open-air type
designed to let you hear outside sounds, do not turn up the volume so high
that you cannot hear what is going on around you.
15
Power supply/Headphones
English
OFF
•RESUME
•HOLD
L
INEO
UT/
OPE
N
VO
L.

Playing a disc
With this set you can play
–all pre-recorded audio CDs
–all finalized audio CDR(W)s
–MP3-CDs (CD-ROMs with MP3 or
AAC files)

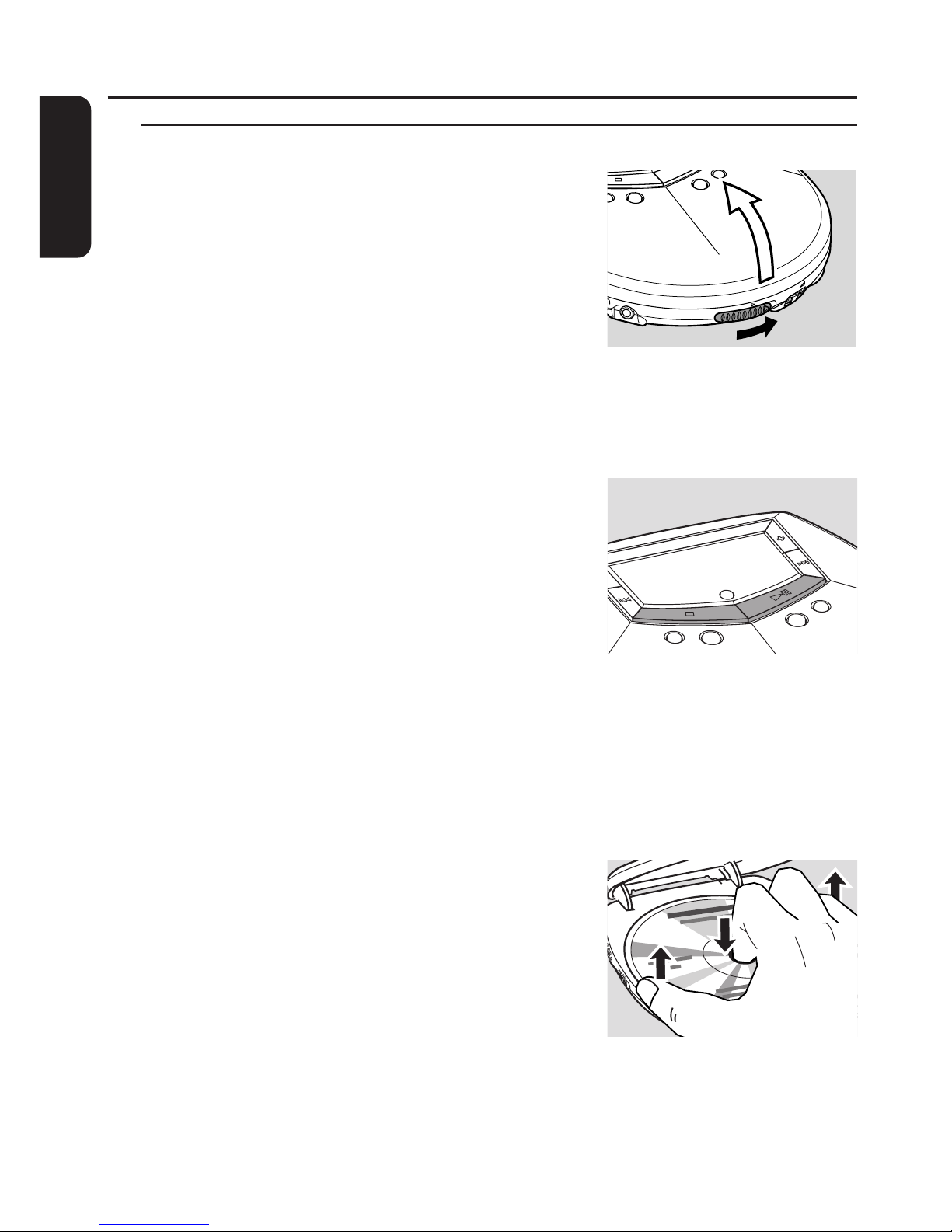

1Push the OPEN2slider to open the CD lid.
2Insert a disc, printed side up, by pressing gently
on the disc´s centre so that it fits onto the hub.
Close the lid by pressing it down.
3Press 2; to start playback.
➜READING CD is displayed. Playback starts.
Audio disc:The current track number and
the elapsed playing time are displayed.
MP3-CD: MP3 or AAC is shown.
The current album number, track number
and the elapsed playing time are displayed.
The track title is scrolled once.
4Press 9to stop playback.
➜Audio disc: The total number of tracks
and the total playing time of the disc are
displayed.
MP3-CD:The total number of albums
and tracks are displayed.
5To remove the disc, hold it by its edge and
press the hub gently while lifting the disc.
Note:After pressing 2; it may take some time
until the first MP3 or AAC track is played.
16
Basic functions
English
PR
OGRAM
MODE
ESP
DBB
DISPLAY
ALBUM •TITLE SEARCH
ALBUM•TITLE
SEARCH
OG
RAM
OPE
N
VO
L.
MODE
ESP
DBB
OFF
•RESUME
•HOLD
L
INEO
UT/
O
PE
N
VO
L.

Playing Enhanced Music CDs and Mixed Mode CDs
On Enhanced Music CDs and Mixed Mode CDs there are audio CD tracks
as well as computer data (e. g. text files, pictures, MP3 files,…).
1Insert the disc and press 2; to start playback.
➜READING CD is displayed. Playback starts.All audio CD tracks will be played.
2If there are MP3 and AAC files on the disc,
MP3 or AAC is blinking. Keep MODE pressed
for 2 seconds to select MP3 and AAC playback.
➜READING CD is displayed. Playback starts
with the first track of the first album.
All MP3 and AAC tracks will be played.
3To return to audio CD playback, keep MODE
pressed for 2 seconds.
Note:To protect your headphones and your Hi-Fi
system from damage, you will hear no sound when
a computer (data) file is played. Press §to skip
to the next track.
Pause
1Press 2; to interrupt playback.
➜The time where playback was interrupted
will blink.
2To resume playback press 2; again.
17
Basic functions
English
TITLE
OG
RAM
MODE
ESP
DB
B
DISPLAY
T
ITLE SEARCH
TITLE
MP3
AAC

Volume and sound
Volume adjustment
●Adjust the volume by using VOL E.
Sound adjustment

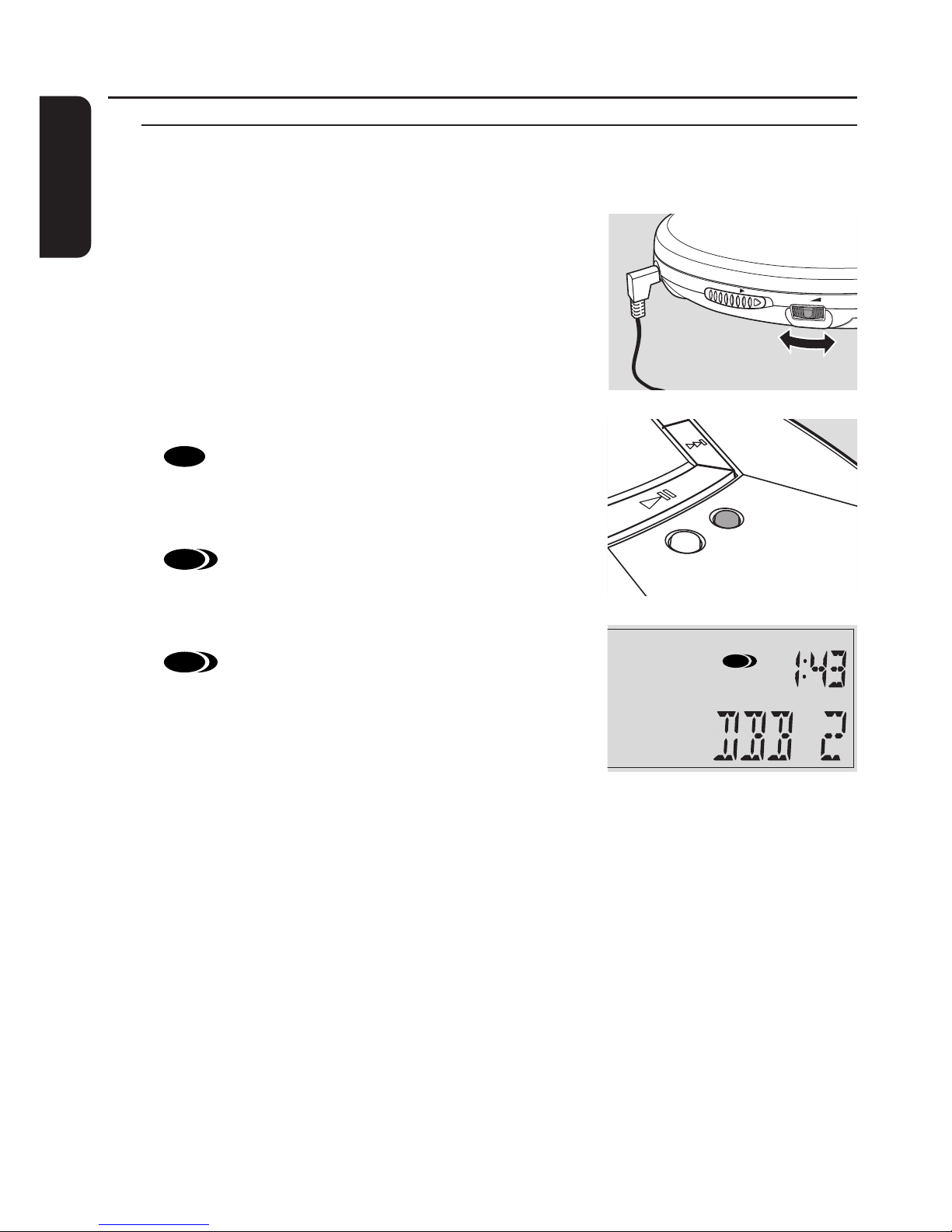

1Press DBB for a moderate bass enhancement.
➜is shown and DBB 1 is displayed.
2Press DBB again for a strong bass
enhancement.
➜is shown and DBB 2 is displayed.
3Press DBB again to switch the bass
enhancement off.
➜disappears.
DBB
DBB
DBB
18
Basic functions
English
OPE
N
VOL
ESP
DBB
T
ITLESEARCH
DBB

Selecting and searching (on all discs)
Selecting a track during playback
●Briefly press ∞or §once or several times to
skip to the beginning of the current, previous
or subsequent track.
➜Playback continues with the selected track.
Searching for a passage during playback
1Keep ∞or §pressed to find a particular
passage in backward or forward direction.
➜Searching is started and playback continues
at a low volume.After 2 seconds the search
speeds up.
2Release the button at the desired passage.
➜Normal playback continues.
Note: During REPEAT,SHUFFLE,SHUFFLE ALL,
MP3,AAC or while playing a programme, searching
is only possible within the current track.
19
Basic functions
English
PR
OGRAM
MODE
ESP
D
DISPLAY
ALBUM •TITLE SEARCH
ALBUM•TITLE
SEARCH

Selecting an album (on MP3-CDs only)
Selecting an album during playback
●Briefly press −or +once or several times to
skip to the first track of the current, previous
or subsequent album.
➜The first track of the selected album is
played.
Selecting a track during playback
1Keep −or +pressed to skip quickly to previous
or subsequent MP3 or AAC tracks.
➜Skipping starts and speeds up after 2 seconds.
2Release the button at the desired track.
➜Playback continues with the selected track.
Note:To skip from track to track at low speed,
use ∞or §.
20
Basic functions
English
PR
OGRAM
MODE
ESP
D
DISPLAY
ALBUM •TITLE SEARCH
ALBUM•TITLE
SEARCH
