Philips 411EXP User manual

Technical Specification......................................................1-1
Instructions For Use ..................................................1-2...1-6
Service Aids.......................................................................1-7
Handling Chip Components...............................................1-7
Safety & Warnings.............................................................1-8
Service Test Program................................................2-1...2-3
Features List..............................................................2-4...2-5
IC BlockDiagram .......................................................3-1...3-9
BlockDiagram ..................................................................3-10
Printed Circuit Board .................................................4-1...4-2
Circuit Diagrams
Power block...................................................................4-3
CD block........................................................................4-4
CD-Rom block...............................................................4-5
CPU block .....................................................................4-6
ESP block......................................................................4-7
Audio block....................................................................4-8
Display block.................................................................4-9
Exploded view ...................................................................5-1
Mechanical partslist...........................................................5-1
Accessories.......................................................................5-1
Electrical partslist ......................................................6-1...6-6
©3140 785 32100
Published by YT 0220 Service Audio Printed in The Netherlands Subject to modification
8cm Portable MP3-CD player
CLASS 1
LASER PRODUCT
TABLE OF CONTENTS
©Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission of Philips.
EXP 411
all versions

1-1
TECHNICAL SPECIFICATIONS
General
Dimensions (W x H x D)
With boxes.......................................................................................................... 178.0 x 65.0 x 139.0 mm
Without boxes....................................................................................................... 92.0 x 31.5 x 119.5 mm
Weight without battery.......................................................................................................................188 g
Output (CD-DA and MP3)
Output level ........................................................................................................................3 mW +1/-2 dB
Frequency response.........................................................................16 Hz – 20 kHz +/- 3.0 dB (16 ohms)
S/N ratio (A-weight)...................................................................................................................>= 100 dB
THD (1 kHz, 0dB)...........................................................................................................................<= 1 %
Channel crosstalk (1kHz, 0dB).....................................................................................................>=30 dB
Power supply modes
Ext. DC-in socket.................................................................................................. 4.5 V nom. (2.8 – 5.0 V)
Battery.................................................................................................................. 1.5 V nom. (0.9 – 1.6 V)
Current consumption (Ext. DC = 4.5V,W/O earphone)
PLAY-mode CD ESP off.................................................................................................................150 mA
PLAY-mode CD ESP on.................................................................................................................150 mA
PLAY-mode MP3............................................................................................................................230 mA
JUMP-mode CD ESP off...............................................................................................................300 mA
JUMP-mode CD ESP on...............................................................................................................300 mA
JUMP-mode MP3..........................................................................................................................450 mA
Battery life time
Disc Battery type ESP on ESP off
CD LR6(AA) 6 h 30 m 6 h 30 m
MP3 LR6(AA) 3 h 00 m 6 h 00 m

1-2
1 2
3
4
5
6
7
9
0
!
@
#
$
8
^
%
1
1OPEN 2
1.
2.
3CD 5 HOLD➟OFF 4
6
!!!
PLAY 7VOLUME
2
AA
LR6
UM3
QUICK START MISE EN SERVICE RAPIDE
C ONTROLS (see figure 1 )
1VOL E..............adjusts the volume
2LINE OUT/p.........3.5 mm line out to connect
–the headphones
–this set to the audio input of your stereo equipment
39...........................
stops playback, clears a programme and switches the set off
4OFF·RESUME·HOLD
OFF .............................switches RESUME and HOLD off
RESUME ....................stores the last position played
HOLD..........................locks all buttons
5..............................battery compartment
6ESP .......................Electronic Skip Protection prevents music interruptions
caused by shocks or vibrations
7DBB......................Dynamic Bass Boost, selects the bass enhancement
8..............................display
9MODE ..................selects the different playing possibilities such as
SHUFFLE or REPEAT
0PROGRAM............programs tracks and lets you review the programme
!2;.........................switches the set on, starts playback and interrupts playback
@+/−.......................MP3-CD only: selects the next/previous album or skips
forward/backward
#§/∞..................skips forward/backward and searches forward/backward
$OPEN 2...............opens the CD lid
C ONTROLS (see figure 1 )
%..............................type plate
^4.5V DC ................to connect the external power supply
GENERAL INFORMATION
Maintenance
• Do not touch the lens Aof the set.
•Do not expose the set, battery or discs to humidity, rain, sand or excessive
heat (caused by heating
equipment or direct sunlight).
• The lens may cloud over when the set is suddenly moved from cold to warm
surroundings. Playing is not possible then. Leave the set in a warm environ-
ment until the moisture evaporates.
• Active mobile phones in the vicinity of this set may cause malfunctions.
•Avoid dropping the set as this may cause damage.
• Clean the set with a soft, lint-free cloth. Do not use any cleaning agents as
they may have a corrosive effect.
• To clean a disc, wipe it in a straight line from the centre towards the edge
using a soft, lint-free cloth. Cleaning agents may damage the disc.
Environmental information
• All redundant packing material has been omitted. We have done our utmost to
make the packaging easily separable into three mono materials: cardboard
(box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
• Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the disposal
of packing materials, exhausted batter
y and old equipment.
INSTRUCTIONS FOR USE

1-3
GENERAL INFORMATION
MP3 music files
The music compression technology MP3 (MPEG Audio Layer 3) reduce the
digital data of an audio CD significantly while maintaining CD-like sound
quality. With MP3, for example, you can record up to 3 hours of CD-like music
on a single CD-ROM. This set plays MP3 music files.
How to get music files
Either download legal music files from the Internet to your computer disk
or buy pre-recorded music CD. For this, insert an audio CD into
your computer´s CD-ROM drive and convert the music using an appropriate
encoder software. To achieve a good sound quality, a bit rate of 128 kbps or
higher is recommended for MP3 music files.
Some encoder software offers an option to protect music files, i. e. the files
can only be played on the computer which created them. If you burn such files
on a CD-ROM, you cannot play them on this set. Make sure to deactivate the
protection option in the encoder software before creating the music files. In
this case you are responsible for adherence to all local or international
copyrights.
How to organize music files
In order to easily handle the large number of music files on a CD-ROM, you
can organize them in folders (“albums”).
The tracks of an album will be played in alphabetical order. If you want to
arrange them in a certain order, let the file names start with numbers.
For example:
001-ONEWORLD.MP3
002-FIRESTARTER.MP3
003-DEEP.MP3
GENERAL INFORMATION
This set will play all albums in
alphabetical order. An album name
includes all folders in which the album is
located, e. g. the album VERDI in
CLASSIC has the album name
CLASSIC\VERDI.
The albums in the illustration will be
played in the following way:
CLASSIC 1
CLASSIC\MOZART 2
CLASSIC\VERDI 3
POP\BLUR 4
REGGAE 5
In POP there are no MP3 files. POP is
therefore skipped.
There may be an album 0which will be
played before all other albums. Album 0
contains all tracks which you did not put
into an album.
How to make a CD-ROM with MP3
Record (“burn”) the music files from your hard disc on a CD-ROM
with your computer´s CD burner.
Make sure that the file names of the MP3 files end with mp3 .
When burning your MP3-CDs, use either ISO 9660 disc format or UDF.
CD burning software like “DirectCD”or others support the UDF format.
ALBUM
POWER SUPPLY/HEADPHONES
Average battery lifetime of 1 alkaline battery ,type AA (LR6, UM3):
Playback of Audio disc MP3-CD
ESP off (power-saving mode) 6 hours 5 hours
ESP on 6 hours 3 hours
Notes:
–Power-saving mode doubles your playtime.
–20 seconds after pressing 9 , the display switches off. After 90 seconds
the set switches off automatically.
POWER SUPPLY
Mains adapter
Only use the AY 3170 mains adapter (4.5 V/300 mA
direct current, positive pole to the center pin). Any
other product may damage the set.
1Make sure the local voltage corresponds to the
adapter´s voltage. If your mains adapter is equipped
with a voltage selector, set this selector to the local
mains voltage if necessary.
2Connect the mains adapter to 4.5V DC on the set and to the wall outlet.
Note: Always disconnect the adapter if you are not using it.
HEADPHONES
Headphones (SBC HE205)
•Connect the supplied headphones to LINE OUT/p.
Note: LINE OUT / p can also be used for
connecting this set to your HiFi system.To adjust the
sound and volume, use the controls on the connected
audio equipment and on the CD player.
5REGGAE
.mp3
4BLUR
.mp3
3VERDI
.mp3
POP
2MOZART
.mp3
1CLASSIC
.mp3
.mp3
GENERAL INFORMATION
Supported formats
This set supports:
– Disc format: ISO 9660, Joliet, Multisession, UDF, Enhanced Music CD,
Mixed Mode CD
– Music file format: MP3
MP3 bit rate (data rate): 32–320 kbps and variable bit rate
– Total number of music files and albums: around 350
(with a typical file name length of 20 characters)
Note: The number of music files that can be played depends on the
length of the file names. With short file names more files will be
supported.
Visit the EXPANIUM homepage
http://www.expanium.philips.com
All trademarks used are owned by their respective owners.
POWER SUPPLY
Battery (not supplied)
Inserting battery
•Open the battery compartment and
insert 1 alkaline battery of type AA (LR6, UM3).
•Remove battery if it is empty or if the set will not
be used for a long time.
Indication of empty battery
•Replace the battery or connect the mains adapter as
soon as blinks and battis displayed.
Batteries contain chemical substances, so they
should be disposed of properly.
A
INSTRUCTIONS FOR USE

1-4
POWER SUPPLY/HEADPHONES
IMPORTANT!
•Hearing safety : Do not play your headphones at a high volume. Hearing
experts advise that continuous use at high volume can permanently damage
your hearing.
•Traffic safety : Do not use headphones while driving a vehicle. It may create
a hazard and it is illegal in many countries. Even if your headphones are an
open-air type designed to let you hear outside sounds, do not turn up the
volume so high that you cannot hear what is going on around you.

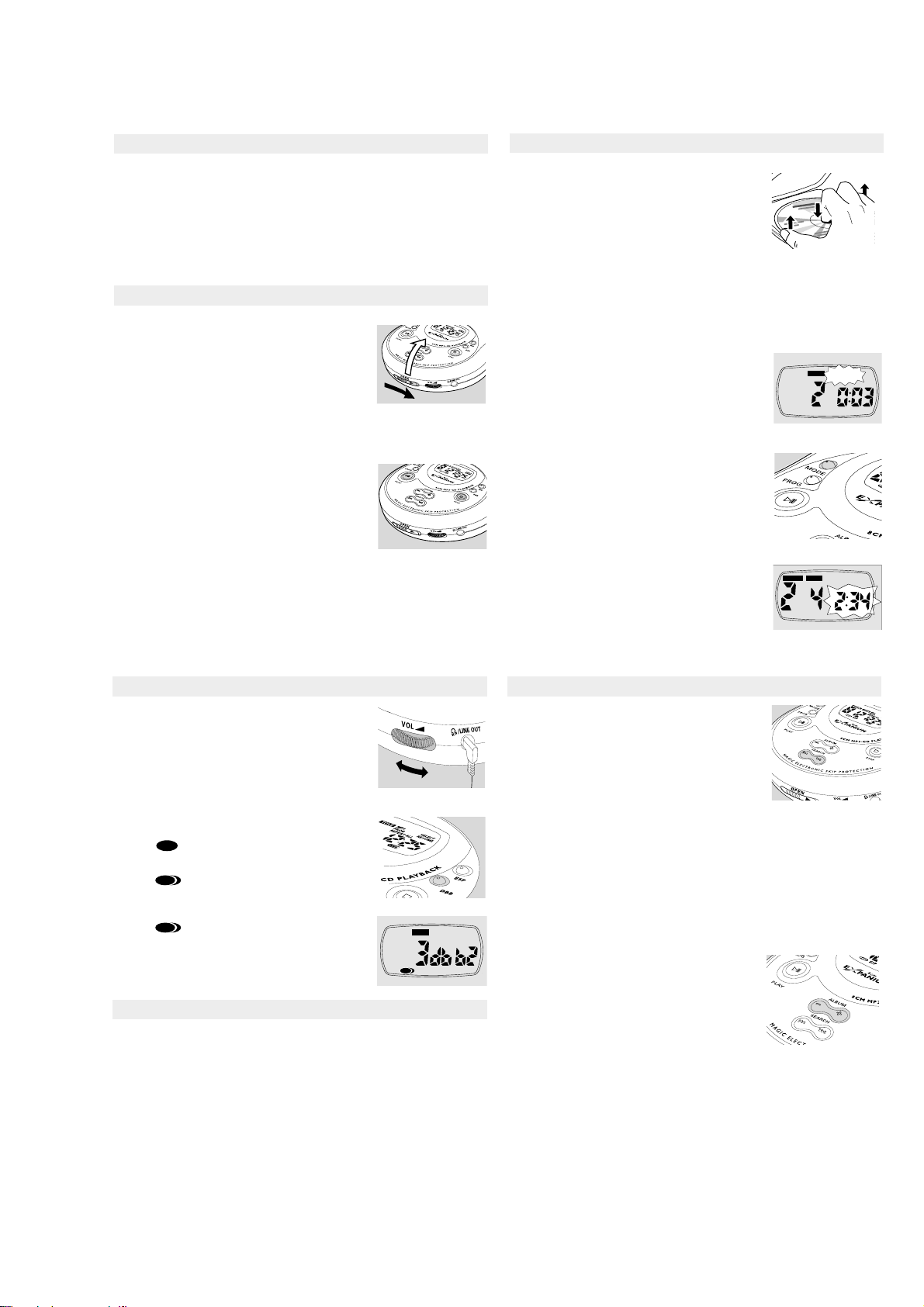

BASIC FUNCTIONS
Playing a disc
With this set you can play
–all pre-recorded audio CDs
–all finalized audio CDR(W)s
–MP3-CDs (CD-ROMs with MP3 )
1Push the OPEN 2slider to open the CD lid.
2Insert a disc, printed side up, by pressing gently on
the disc´s centre so that it fits onto the hub. Close
the lid by pressing it down.
3Press 2; to start playback.
.yCd rEAd is displayed. Playback starts.
Audio disc: The current track number and the
elapsed playing time are displayed.
MP3-CD: MP3 is shown. The current album number,
track number and the elapsed playing time are dis-
played.
4Press 9to stop playback.
yAudio disc: The total number of tracks and the total playing time of the
disc are displayed.
yMP3-CD: The total number of albums and tracks are displayed.
Note : If the total number of album is more than 9, the display will show “
−
”;
if the total number of tracks is more than 99, the display will show “
− −
”.
BASIC FUNCTIONS
5To remove the disc, hold it by its edge and press
the hub gently while lifting the disc.
Note: After pressing 2; it may take some time
until the first MP3 track is played.
Playing Enhanced Music CDs and Mixed Mode
CDs
On Enhanced Music CDs and Mixed Mode CDs there are audio CD tracks as
well as computer data (e. g. text files, pictures, MP3 files,…).
1Insert the disc and press 2; to start playback.
yCd rEAd is displayed. Playback starts. All audio CD tracks will be
played.
2If there are MP3 and AAC files on the disc, MP3
blinks. Keep MODE pressed for 2 seconds to
select MP3 playback.
yCd rEAd is displayed. Playback starts
with the first track of the first album. All MP3
will be played.
3To return to audio CD playback, keep MODE
pressed for 2 seconds.
Note:To protect your headphones and your Hi-Fi
system from damage, you will hear no sound
when a computer (data) file is played. Press
§
to skip to the next track.
Pause
1Press 2; to interrupt playback.
yThe time where playback was interrupted will
blink.
2To resume playback press 2; again.
TITLE
ALBUM
TITLE MP3
BASIC FUNCTIONS
Volume and sound
Volume adjustment
•Adjust the volume by using VOL E.
Sound adjustment
1Press DBB for a moderate bass enhancement .
yis shown and dbb1 is displayed.
2Press DBB again for a strong bass enhancement.
yis shown and dbb2 is displayed.
3Press DBB again to switch the bass enhancement
off.
.ydisappears.
REMOTE CONTROL (SUPPLIED OR OPTIONALLY AVAILABLE)
Use the AY 3767 or AY 3768 cord remote control.The buttons on the
remote control have the same functions as the corresponding buttons
on the set.
1Press 9twice to switch off the set.
2Firmly connect the remote control to LINE OUT/pon the set.
3Adjust the volume VOL Eon the CD player and remote control.
DBB
DBB
DBB
TITLE
DBB
BASIC FUNCTIONS
Selecting and searching (on all discs)
Selecting a track during playback
•Briefly press ∞ or §once or several times to
skip to the beginning of the current, previous or
subsequent track.
yPlayback continues with the selected track .
Searching for a passage during playback
1Keep ∞ or §pressed to find a particular
passage in a backward or forward direction.
ySearching is started and playback continues at a low volume. After 2 sec-
onds the search speeds up.
2Release the button at the desired passage.
yNormal playback continues.
Notes: During REPEAT, SHUFFLE, SHUFFLE ALL, MP3 or while playing a
programme, searching is only possible within the current track.
Selecting an album (on MP3-CDs only)
Selecting an album during playback
•Briefly press −or + once or several times to skip
to the first track of the current, previous or
subsequent album.
yThe first track of the selected album is
played.
Selecting a track during playback
1Keep -or + pressed to skip quickly to previous or
subsequent MP3 tracks.
ySkipping starts and speeds up after 2 seconds.
2Release the button at the desired track.
yPlayback continues with the selected track.
Note: To skip from track to track at low speed, use ∞
or
§.
INSTRUCTIONS FOR USE

1-5
FEATURES
Programming track numbers
You can select up to 50 tracks and store them in the memory in a desired
sequence. You can store any track more than once.
1Select a track with ∞or §.
2Press PROGRAM to store the track.
yPROGRAM is shown and Pwith the number of
stored tracks is displayed.
3Select and store all desired tracks in this way.
4If necessary, press 9to stop normal playback.
Press 2; to start playback of the programme.
.yPlayback of the programme starts.
•To add additional tracks to your programme,
press 9to stop playing the programme and
continue with step 1.
•You can review the programme by pressing PROGRAM for more than 3 sec-
onds.
yAll stored tracks are displayed in sequence.
Clearing the programme
1If necessary, press 9 to stop playback.
2Press 9 to clear the programme.
yCLr is displayed, PROGRAM disappears and
the programme is cleared.
•If you press PROGRAM and there is no track
selected, SEL is displayed
Notes:
The programme will also be cleared if you interrupt the power supply
or open the CD lid or if the set switches off automatically.
After storing 50 tracks,
FULL is displayed.
PROG
TITLE
PROG
FEATURES
Storing the last position played-RESUME
You can store the last position played. When restarting, playback continues
from where you have stopped.
1Switch the slider to RESUME during playback to
activate RESUME.
yRESUME is shown.
2Press 9whenever you want to stop playback.
3Press 2; to resume playback.
yPlayback continues from where you have
stopped.
•To deactivate RESUME, switch the slider to OFF.
yRESUME disappears.
Locking all buttons-HOLD
You can lock all buttons of the set. When you press any key, no action will be
executed then.
•Switch the slider to HOLD to activate HOLD.
yHOLD is shown and all buttons are locked.
When pressing any key, HoLd is
displayed.
•To deactivate HOLD, switch the slider to OFF.
yHOLD disappears.
OFF
•RE
SUM
E•
HOL
D
TITLE
RESUME
HOLD
TITLE
FEATURES
Selecting different playback possibilities-MODE
It is possible to play tracks in random order or to repeat a track, an album or
an entire disc.
1Press MODE repeatedly during playback to select
either:
– SHUFFLE (with MP3-CDs only):
All tracks of the current album are played in
random order until all of them have been played
once.
– SHUFFLE ALL:All tracks of the disc are played in
random order until all of them have been played
once.
– SHUFFLE REPEAT (with MP3-CDs only):
All tracks of the current album are played
repeatedly in random order.
– SHUFFLE REPEAT ALL:All tracks of the disc are
played repeatedly in random order.
– REPEAT:
Audio disc: The current track is played repeatedly.
MP3-CD: The current album is played repeatedly.
– REPEAT ALL:The entire disc is played repeatedly.
`When playing a programme, you can select either:
– SHUFFLE PROGRAM:All tracks of the programme are played in random order
until all of them have been played once.
– SHUFFLE REPEAT PROGRAM:All tracks of the programme are played repeatedly
in random order.
– REPEAT PROGRAM:All tracks of the programme are played repeatedly.
2Playback starts in the chosen mode after 2 seconds.
3To return to normal playback, press MODE repeatedly until the display
indication disappears.
SHUFFLE
REPEAT ALL
TITLE
FEATURES
ESP-Electronic Skip Protection
With a conventional portable disc player the
music may stop e.g. while you are jogging.The
ELECTRONIC SKIP PROTECTION protects this set
against loss of sound caused by light vibrations
or shocks. Continuous playback is ensured. ESP
does not protect the set against damage
caused by dropping !
•Press ESP during playback to activate the skip
protection.
yESP is shown and the protection is
activated.
•To deactivate the skip protection, press ESP
again.
yESP disappears and the protection is deactivated.
Beep sound
A beep sound accompanies various key
operations. Keep DBB pressed for more than 2
seconds to select your beep option.
•If the beep sound has been activated :
ybEEP is display
•If the beep sound has been deactivated :
yno bEEP
is display
ESP
TITLE
INSTRUCTIONS FOR USE

1-6
TROUBLESHOOTING
WARNING: Under no circumstances should you try to repair the set yourself as
this will invalidate the guarantee.
If a fault occurs, first check the points listed before taking the set for repair. If you
are unable to solve a problem by following these hints, consult your dealer or
service centre.
No power, or playback does not start
•Insert the battery correctly.
•Replace the battery.
.•Connect the mains adapter securely.
HoLd indication and/or no reaction to controls
•Deactivate HOLD.
No sound or bad sound quality
•Press 2; to resume playback.
•Adjust the volume.
•The track is a data file. Press §to skip to the next audio CD track.
•Check and clean the LINE OUT/p connections.
•Keep this set away from active mobile phones or strong magnetic fields.
no cd indication
•Insert a disc, label upwards.
•Clean or replace the disc.
•Wait until the steamed up lens has cleared.
nF dISC indication
•Make sure the inserted CDR(W) is finalized.
dAtA indication
•Make sure you have inserted an audio disc or an MP3-CD.
TROUBLESHOOTING
Prot indication and music file is not played
•The music file is protected. Make sure the protection option in your encoder
software is deactivated when creating a music file.
•In this case you are responsible for adherenceto all local or international
copyrights.
SELECt indication
•Select tracks for programming before you play your program.
Music file is not played
•Wrong format used eg. VCD, word. Make sure the music file names end with
mp3
Missing directories on MP3-CD
•Make sure the total number of files and albums on your MP3-CD does not
exceed 350.
•Only albums with MP3 files are shown.
The disc skips tracks
•Clean or replace the disc
•Make sure REPEAT, REPEAT ALL,SHUFFLE, SHUFFLE ALL or PROGRAM is switched
off.
Music is skipped or popping sound when playing an MP3 file
•If the problem persists, encode the audio track again and make a new CD-
ROM.
•CD damaged or dirty. Replace or clean CD.
Music is interrupted and OOPS indication
•Switch ESP on.
CAUTION
Use of controls or adjustments or performance of procedures other than
herein may result in hazardous radiation exposure or other unsafe
operation.
INSTRUCTIONS FOR USE

1-7
SERVICE AIDS
ServiceTool:
Universal Torx driver holder ........................4822 395 91019
Torx bit T10 150mm ....................................4822 395 50456
Torx driver set T6-T20.................................4822 395 50145
Torx driver T10 extended ............................4822 395 50423
Compact Disc:
ECC. 200 8cm........................................... 7104 099 32821
SUB8A 8cm ..............................................7104 099 32841
ESD Equipment:
Anti-static table mat-large
1200x650x1.25mm .....................................4822 466 10953
Anti-static table mat-small
600x650x1.25mm .......................................4822 466 10958
Anti-static wrist band ..................................4822 395 10223
Connector box (1MW) .................................4822 320 11307
Extension cable
(to connect wrist band to conn. box) ..........4822 320 11305
Connecting cable
(to connect table mat to conn. box) ............4822 320 11306
Earth cable
(to connect product to conn. box) ...............4822 320 11308
Complete kit ESD3
(Combining all above products)..................4822 320 10671
Wrist band tester ........................................4822 344 13999
HANDLING CHIP COMPONENTS
_
_
MP3_8cm....................................................7104 099 32851
SKEW Disc_8cm........................................ 7104 099 28262
Music Disc_8cm ........................................ 7104 099 28252
Audio Test Disc TCD783 (ABEX)

1 - 8
© WARNING
All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD). Careless handling during
repair can reduce life drastically.
When repairing, make sure that you are connected with the
same potential as the mass of the set via a wristband with
resistance. Keep components and tools at this potential.
f ATTENTION
Tous les IC et beaucoup d´autres semi-conducteurs sont
sensibles aux décharges statiques (ESD). Leur longévite
pourrait être considérablement écourtée par le fait qu´aucune
précaution nést prise àleur manipulation.
Lors de réparations, s´assurer de bien être reliéau même
potentiel que la masse de l´appareil et enfileer le bracelet
serti d´une résistance de sécurité.
Veiller àce que les composants ainsi que les outils que l´on
utilise soient également àce potentiel.
d WARNUNG
Alle ICs und viele andere Halbleiter sind empfindlich
gegenüber elektrostatischen Entladungen (ESD).
Unsorgfältige Behandlung im Reparaturfall kann die
Lebensdauer drastisch reduzieren.
Sorgen Sie dafür, daßSie im Reparaturfall über ein Puls-
armband mit Widerstand mit dem Massepotential des
Gerätes verbunden sind.
Halten Sie Bauteile und Hilfsmittel ebenfalls auf diesem
Potential.
ñ WAARSCHUWING
Alle IC´s en vele andere halfgeleiders zijn gevoelig voor
electrostatische ontladingen (ESD).
Onzorgvuldig behandelen tijdens reparatie kan de levensduur
drastisch doen vermindern. Zorg ervoor dat u tijdens reparatie
via een polsband met weerstand verbonden bent met hetzelfde
potentiaal als de massa van het apparaat.
Houd componenten en hulpmiddelen ook op ditzelfde potentiaal.
i AVVERTIMENTO
Tutti IC e parecchi semi-conduttori sono sensibili alle scariche
statiche (ESD).
La loro longevitàpotrebbe essere fortemente ridatta in caso di
non osservazione della piùgrande cauzione alla loro
manipolazione. Durante le riparationi occorre quindi essere
collegato allo stesso potenziale che quello della massa
delápparecchio tramite un braccialetto a resistenza.
Assicurarsi che i componenti e anche gli utensili con quali si
lavora siano anche a questo potenziale.
©
Safety regulations require that the set be restored to its
original condition and that parts which are identical with
those specified be used.
Safety components are marked by the symbol
i
Le norme di sicurezza estigono che l´apparecchio venga
rimesso nelle condizioni originali e che siano utilizzati i
pezzi di ricambiago identici a quelli specificati.
Componenty di sicurezza sono marcati con
ñ
Veiligheidsbepalingen vereisen, dat het apparaat in zijn
oorspronkeliijke toestand wordt teruggebracht en dat
onderdelen, identiek aan de gespecificeerde, worden toegepast.
De Veiligheidsonderdelen zijn aangeduid met het symbool
sVarning !
Osynlig laserstrålning när apparaten är öppnad och
spärren är urkopplad. Betrakta ej strålen.
∂Advarsel !
Usynlig laserstråling ved åbning når sikkerhedsafbrydere
er ude af funktion. Undgåudsaettelse for stråling.
ßVaroitus !
Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
näkymättömälle laserisäteilylle. Äläkatso säteeseen !
f
"Pour votre sécurite, ces documents doivent être utilisés par
des spécialistes agréés, seuls habilités àréparer votre
appareil en panne".
ESD
SAFETY
d
Bei jeder Reparatur sind die geltenden Sicherheitsvor-
schriften zu beachten. Der Originalzustand des Gerätes
darf nicht verändert werden. Für Reparaturen sind Original-
ersatzteile zu verwenden.
Sicherheitsbauteile sind durch das Symbol markiert.
f
Les normes de sécuritéexigent que l`appareil soit remis
àl`état d`origine et que soient utilisées les pièces de
rechange identiques àcelles spécifiées.
Les composants de sécuritésont marqués
CLASS 1
LASER PRODUCT
© DANGER: Invisible laser radiation when open.
©
After servicing and before returning the set to customer
perform a leakage current measurement test from all
exposed metal parts to earth ground, to assure no
shock hazard exists.
The leakage current must not exceed 0.5mA.
AVOID DIRECT EXPOSURE TO BEAM.
© AVAILABLE ESD PROTECTION EQUIPMENT :
anti-static table mat large 1200x650x1.25mm 4822 466 10953
small 600x650x1.25mm 4822 466 10958
anti-static wristband 4822 395 10223
connection box (3 press stud connections, 1MΩ) 4822 320 11307
extendible cable (2m, 2MΩ, to connect wristband to connection box) 4822 320 11305
connecting cable (3m, 2MΩ, to connect table mat to connection box) 4822 320 11306
earth cable (1MΩ, to connect any product to mat or to connection box) 4822 320 11308
KIT ESD3 (combining all 6 prior products - small table mat) 4822 310 10671
wristband tester 4822 344 13999
SAFETY & WARNINGS

2-1
SERVICE TEST PROGRAM
Introduction
Purpose: Used for maintenance or to allow the service department to control
separately and in a special way the various parts or devices of the set.
Inputs Keys: MODE PROG
Condition:Door must beopen in order to enter servicemode.
Processes
Function Key Servicemode
Display test Next
Key test Mode
CD test Play
Exit Stop
Push and at same time and plug in the DC cord during the door is
open.
Push to go back to normal mode while“Sxxxx” is showing on theLCD.
Indicate “Sxxxx” on the LCD when it goes to Service Mode.(xxxx is the Software
build number.)
Outputs
Build number
Exampleof ServiceMode Display
1. DisplayTest
Introduction
Used for display test
Inputs Keys:
Processes Sxx
Next
LCDAll lights on Stop
Next
LCDSomelights off
Next
Goes to next test by pushing
Goes back to previous test by pushing
Outputs See the Display column of Key test table.

2-2
2.KeyTest
Key Commands Display
Non Min. --
Play Min. 05
Next Min. 06
Prev Min. 07
Mode Min. 03
P
ALBUM +
ALBUM -
EXP
DBB
rogram Min. 02
Min. 09
Min. 10
Min. 08
Min. 01
Play of Remote control Min. 05 Sec. rc
Stop of Remotecontrol Min. 04 Sec. rc
N
Prev. of Remote control
ext of Remotecontrol Min. 06
Min. 07 Sec. r
rc
Sec. c
Stop Exit to "S xx"
3. CDTest
Introduction
Tests themotor or servo ( Don't use MP3 disc. ).
Inputs Keys:
Processes Sxx
Play
Motor test
Play Stop
Focus servo test
Play
Motor control test
Play
Radial servo test
Goes to next test by pushing
Goes back to previous test by pushing

2-3
3-1. MotorTest Display
Key Function Tr. Min Sec
Next Slide moves outside
Prev Slide moves inside
Mode Disc motor turns
clockwise
Cd Image of door SW
(On=0,Off=1) Image of CDM inner SW (On=0,Off=1
0
)
0
1
2
Stop Exit to main menu
Play Enter focus servo test
3-2. Focus ServoTest Display
Key Function Tr. Min Sec
Next Slide moves outside
Prev Slide moves inside
Mode Disc motor turns
clockwise
DBB Toggle between normal
and CD-R/W
F (in focus)
-F (seek focus)
Flag ESPindicated CD-R/Wsetting
Stop Exit to main menu
Play If focus point is found then enter motor control
test
3-3. Motor ControlTest Display
Key Function Tr. Min Sec
Next Slide moves outside
Prev Slide moves inside d (speed correct)
-d (out of speed) F (in focus) -F (seek focus)
Stop Exit to main menu
Play If speed correct and in
focus then enter radial
servo test
Flag ESP indicated CD-R/Wsetting
3-4. Radial ServoTest Display
Key Function Tr. Min Sec
Next Jump 16 tracks outside
(with sound)
Prev Jump 16tracks inside
(with sound)
r (on track)
-r (off track) d (speed correct) -d (out of speed) F (in focus) -F (seek focus)
Stop Exit to main menu Flag ESPindicated CD-R/Wsetting

2-4
FEATURES LIST
MP3 Decoder Characteristics
MPEGVersions
Support
[Y/N]
MPEGVersion 1 (ISO/IEC 11172-3) Y
MPEGVersion 2 (ISO/IEC 13818-3) N
MPEGVersion 2.5 (Ext. for low Bitrates) N
MPEG Layers
Support
[Y/N]
Layer I N
Layer II N
Layer III Y
Sample rates [kHz]
Support
[Y/N]
MPEG 1 44.1 Y
MPEG 1 48 Y
MPEG 1 32 Y
MPEG 2 22.05 N
MPEG 2 24 N
MPEG 2 16 N
MPEG 2.5 11.025 N
MPEG 2.5 12 N
MPEG 2.5 8 N
File system
Support Remarks
[Y/N]
ISO9660 Y Mandatory
Joliet (Long Filename extension) Y Not shown on
the Display
M
UDF (Packet Writing)
ulti-Session Y
Directory nesting (max.levels) 8 level
Max.Nr.of Files 350
Playlist Files (.m3u, .pls) handled as Dir.(Albums) N
Y
File Formats
Support Remarks
[Y/N]
.mp3 Y
Y
Mandatory
.wav (containing mp3 compressed Audio) N
.wav (uncompressed Audio) N
.w
.WMA (Windows Media Audio)
.AAC (Advanced Audio Coding)
av (ADPCM compressed Audio) N
N

2-5
Available function
item
CD type
Repeat Repeat
All Shuffle Shuffle
Repeat
All Program Music
Search
MP3
Track
Search
Album
Search
CD
mode
MP3
mode
COMMON 1 COMMON 2 COMMON 3 COMMON 4
(1 PIN) (2 PIN) (3 PIN) (4 PIN)
SEGMENT 1 (5 PIN) 2A 2F 2E 2D
SEGMENT 2 (6 PIN) 1A 1F 1E 1D
SEGMENT 3 (7 PIN) 1B 1G 1C DBB
SEGMENT 4 (8 PIN) 2B 2G 2C > (DBB)
SEGMENT 5 (9 PIN) 3A 3F 3E 3D
SEGMENT 6 (10 PIN) 3B 3G 3C ESP
SEGMENT 7 (11 PIN) ALBUM 4F 4E
SEGMENT 8 (12 PIN) TITLE 4A 4G 4D
SEGMENT 9 (13 PIN) HOLD REPEAT 4B 4C
SEGMENT 10 (14 PIN) MP3 PROG 5F 5E
SEGMENT 11 (15 PIN) 5A 5G 5D
SEGMENT 12 (16 PIN) Batt. (Frame) ALL 5B 5C
SEGMENT 13 (17 PIN) Batt. (Left) : 6F 6E
SEGMENT 14 (18 PIN) Batt. (Middle) 6A 6G 6D
SEGMENT 15 (19 PIN) Batt. (Right) AAC 6B 6C
SEGMENT 16 (20 PIN) WMA SHUFFLE 7F 7E
SEGMENT 17 (21 PIN) 7A 7G 7D
SEGMENT 18 (22 PIN) SELECT RESUME 7B 7C
AB
C
D
E
FG
12345 67

3-1
IC BLOCK DIAGRAMS
CV
HDS1
A18
A17
DVSS
A16
D5
D4
D3
D2
D1
D0
RS
X2/CLKIN
X1
HD3
CLKOUT
DVSS
HPIENA
CVDD
CVSS
TMS
TCK
TRST
TDI
TDO
EMU1/OFF
EMU0
TOUT
HD2
HPI16
CLKMD3
CLKMD2
CLKMD1
DVSS
DVDD
BDX1
BFSX1
CVSS
A22
CVSS
DVDD
A10
HD7
A11
A12
A13
A14
A15
CVDD
HAS
DVSS
CVSS
CVDD
HCS
HR/W
READY
PS
DS
IS
R/W
MSTRB
IOSTRB
MSC
XF
HOLDA
IAQ
HOLD
BIO
MP/MC
DVDD
CVSS
BDR1
BFSR1
SS
DV
144 A21
CV
143 142 141 A8 140 A7 139 A6 138 A5 137 A4 136 HD6 135 A3 134 A2 133 A1 132 A0 131 DV 130 129 128 127 CV 126 125 HD5 124 D15 123 D14 122 D13 121 HD4 120 D12
119 D11 118 117 D9 116 D8 115 D7 114 D6 113 112
37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
SS
CV
BCLKR1
HCNTL0
SS
BCLKR0
BCLKR2
BFSR0 BFSR2
BDR0
HCNTL1
BDR2
BCLKX0 BCLKX2
SS
DD
SS
HD0
BDX0 BDX2
IACK
HBIL
NMI
INT0 INT1 INT2 INT3
DD
HD1
SS
HRDY
HINT
111 CV
110 A19
109
70 71 72
BCLKX1
SS
DV
D10
BFSX2 SS
A20 DV
DD
CV HDS2
SS
DV
DV
CV
DV DV
CV
CV
DD
DD
DD
DD
SS
BFSX0
A9
NOTE A: DVDDisthepowersupplyfortheI/OpinswhileCVDDisthepowersupplyforthecore CPU. VSS
is the ground for both the I/O pins and the core CPU.
GPIO
MBus
64K RAM
Dual Access
Program/Data
McBSP1
McBSP2
McBSP3
RHEA Bus
APLL
TIMER
JTAG
Clocks
RHEAbus
RHEA
Bridge
TI BUS
xDMA
logic
16K Program
ROM
Pbus
Cbus
Dbus
Ebus
RHEA bus
MBus
64K RAM
Single Access
Data
Cbus
Dbus
Ebus
Pbus
Cbus
Dbus
Ebus
Pbus
Enhanced XIO
P, C, D, E Buses and Control Signals
XIO
16HPI
54X cLEAD
16 HPI
7480 : TMS320VC5416

3-2
23
19
18
21
20
EFM
DEMODULATOR
MICROCONTROLLER
INTERFACE
CONTROL
PART
Vref
GENERATOR
VRIN
ADC PRE-
PROCESSING CONTROL FUNCTION
OUTPUT
STAGES
R1
R2
12
D1 D2 D3 D4
SCL
SDA
FRONT
END
HFIN
HFREF
ISLICE
Iref
13
7
40
39
2
1
3
6
TEST
TEST1 25
TEST2 31
TEST3 44
TIMING
SELPLL 24
CRIN 16
CROUT 15
CL16 26
CL11/4 49
8910
VSSA1
VSSA2
VDDA1
VDDA2
VSSD1 VSSD3
VSSD2 VDDD1(P) VDDD2(C)
4 14 5 17 33 50 58 52 57
RA
FO
SL
54
55
56
LDON
64
DIGITAL
PLL
SRAM
RAM
ADDRESSER
SUBCODE
PROCESSOR
SBSY 48
SFSY 47
SUB 46
RCK 45
STATUS 43 DECODER
MICRO-
CONTROLLER
INTERFACE
RESET 38
VERSATILE PINS
INTERFACE KILL
BITSTREAM
DAC
RP
RN
22 LP
LN
Vpos
Vneg
36 SDI
35 WCLI
37 SCLI
SERIAL
DATA
(LOOPBACK)
INTERFACE
30 EF
27 DATA
28 WCLK
29 SCLK
SERIAL
DATA
INTERFACE
PEAK
DETECT
EBU
INTERFACE
AUDIO
PROCESSOR
ERROR
CORRECTOR
FLAGS
MOTOR
CONTROL
51 DOBM
53 CFLG
MOTO1
59
MOTO2
60
V1 V2/
V3 V4 V5 KILL
63 34 61 62 32
SILD 42
RAB 41
11
SYMBOL PIN DESCRIPTION
HFREF 1 comparator common mode input
HFIN 2 comparator signal input
ISLICE 3 current feedback output from data slicer
V
SSA1
4
(1)
analog ground 1
V
DDA1
5
(1)
analog supply voltage 1
I
ref
6 reference current output pin
V
RIN
7 reference voltage for servo ADC’s
D1 8 unipolar current input (central diode signal input)
D2 9 unipolar current input (central diode signal input)
D3 10 unipolar current input (central diode signal input)
D4 11 unipolar current input (central diode signal input)
R1 12 unipolar current input (satellite diode signal input)
R2 13 unipolar current input (satellite diode signal input)
V
SSA2
14
(1)
analog ground 2
CROUT 15 crystal/resonator output
CRIN 16 crystal/resonator input
V
DDA2
17
(1)
analog supply voltage 2
LN 18 DAC left channel differential output - negative
LP 19 DAC left channel differential output - positive
V
neg
20
(1)
DAC negative reference supply (equivalent to DAC V
SS)
V
pos
21
(1)
DAC positive reference supply (equivalent to DAC V
DD
)
RN 22 DAC right channel differential output - negative
RP 23 DAC right channel differential output - positive
SELPLL 24 selects whether internal clock multiplier PLL is used
TEST1 25 test control input 1; this pin should be tied LOW
CL16 26 16.9344 MHz system clock output
DATA 27 serial d4(1)ata output (3-state)
WCLK 28 word clock output (3-state)
SCLK 29 serial bit clock output (3-state)
EF 30 C2 error flag output (3-state)
TEST2 31 test control input 2; this pin should be tied LOW
KILL 32 kill output (programmable; open-drain)
V
SSD1
33
(1)
digital ground 2
V2/V3 34 versatile I/O: input versatile pin 2 or output versatile pin 3 (open-drain)
WCLI 35 word clock input (for data loopback to DAC)
SDI 36 serial data input (for data loopback to DAC)
SCLI 37 serial bit clock input (for data loopback to DAC)
RESET 38 power-on reset input (active LOW)
SDA 39 microcontroller interface data I/O line (open-drain output)
SCL 40 microcontroller interface clock line input
Note
1. All supply pins must be connected to the same external power supply voltage
RAB 41 microcontroller interface R/W and load control line input (4-wire bus mode)
SILD 42 microcontroller interface R/W and load control line input (4-wire bus mode)
STATUS 43 servo interrupt request line/decoder status register output (open-drain)
TEST3 44 test control input 3; this pin should be tied LOW
RCK 45 subcode clock input
SUB 46 P-to-W subcode bits output (3-state)
SFSY 47 subcode frame sync output (3-state)
SBSY 48 subcode block sync output (3-state)
CL11/4 49 11.2896 MHz or 4.2336 MHz (for microcontroller) clock output
V
SSD2
50
(1)
digital ground 3
DOBM 51 bi-phase mark output (externally buffered; 3-state)
V
DDD1(P)
52
(1)
digital supply voltage 2 for periphery
CFLG 53 correction flag output (open-drain)
RA 54 radial actuator output
FO 55 focus actuator output
SL 56 sledge control output
V
DDD2(C)
57
(1)
digital supply voltage 3 for core
V
SSD3
58
(1)
digital ground 4
MOTO1 59 motor output 1; versatile (3-state)
MOTO2 60 motor output 2; versatile (3-state)
V4 61 versatile output pin 4
V5 62 versatile output pin 5
V1 63 versatile input pin 1
LDON 64 laser drive on output (open-drain)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
51 49 50 52 53 54 55 56 57 58 59 60 61 62 63 64
HFREF
HFIN
ISLICE
VSSA1
VDDA1
Iref
VRIN
D1
D2
D3
D4
R1
R2
VSSA2
CROUT
CRIN
VDDA2
LN
LP
Vneg
Vpos
RN
RP
SELPLL
TEST1
CL16
RA FO SL DOBM
SAA7324 M2
VSSD3 MOTO1
SFSY
SBSY
RCK
SUB
VSSD1
V5 V4
V2/V3
KILL
EF
DATA
WCLK
VDDD1(P)
SCLK
TEST3
CL11/4
RAB
SCLI
TEST2
SDI
WCLI
VSSD2
SILD
MOTO2
STATUS
VDDD2(C) CFLG V1
RESET
LDON
SDA
SCL
7850 : SAA7324H/M2B

3-3
25
26
27
28
29
30
31
32
33
34
35
36
12
11
10
9
8
7
6
5
4
3
2
1
37 38 39 40 41 42 43 44 45 46 47 48
DCIN VDET VREF DTC VOUT VC CGND RF1 INM1 CLK OE CHGON
OUT4A
VG
C2H
C1H
C1L
C2L
VIN
RSTB
CHGSW
RS
INM2
RF2
OUT1A
ERR1
CF1
CF2
ERR2
ERR3
CF3
CF4
ERR4
VR
WAKE
SLEEP
24 23 22 21 20 19 18 17 16 15 14 13
PGND4
OUT4B
VIN34
OUT3B
PGND3
OUT2A
PGND2
OUT2B
VIN12
OUT1B
PGND1
OUT3A
SC111259A
Motor Driver
CH1
SAWTOOTH RSTB
CF1
ERR1
VR
OE
VC VG VIN12
Motor Driver
CH2
SAWTOOTH RSTB
CF2
ERR2
VR
OE
VC VG VIN12
Motor Driver
CH3
SAWTOOTH RSTB
CF3
ERR3
VR
OE
VC VG VIN34
Motor Driver
CH4
SAWTOOTH RSTB
CF4
ERR4
VR
OE
VC VG VIN34
SAW
GEN
SAW
GEN2 RF1
INM1
VC
DTC
VOUT
VDET
RS
CHGSW
VIN
RF2
INM2
DCIN
PGND4
OUT4B
OUT4A
PGND3
OUT3B
OUT3A
VIN34
PGND2
OUT2B
OUT2A
PGND1
OUT1B
OUT1A
VIN12
VREF
RSTB
OE
SLEEP
CLK
CHGON
WAKE
C2L
C1L
C1H
C2H
VG
CGND
ERR4
CF4
ERR3
CF3
ERR2
CF2
CF1
ERR1
VR
CHARGE
PUMP
CONTROL
BANDGAP
REFERENCE
DCIN
DETECT
STARTUP
OSC1
VG VC VIN
VIN
VIN
VC
VC VC VIN
DCIN DCIN VC
DCIN
VC
VIN
VIN
Pin# Symbol Pin Description
1 SLEEP Sleep input
2 WAKE Wake input
3 VR Reference Voltage Input(Motor driver)
4 ERR4 Control signal input(CH4)
5 CF4 Phase correction capacitor connect (CH4)
6 CF3 Phase correction capacitor connect (CH3)
7 ERR3 Control signal input(CH3)
8 ERR2 Control signal input(CH2)
9 CF2 Phase correction capacitor connect (CH2)
10 CF1 Phase correction capacitor connect (CH1)
11 ERR1 Control signal input(CH1)
12 OUT1A Positive drive output(CH1)
13 GND H-bridge driver ground
14 OUT1B Negative drive output(CH2)
15 VIN12 H-bridge driver voltage supply(CH1,CH2)
16 OUT2B Negative drive output(CH2)
17 GND H-bridge driver ground
18 OUT2A Positive drive output(CH2)
19 OUT3A Positive drive output(CH3)
20 GND H-bridge driver ground
21 OUT3B Negative drive output(CH3)
22 VIN34 H-bridge driver voltage supply(CH3,CH4)
23 OUT4B Negative drive output(CH4)
24 GND H-bridge driver ground
25 OUT4A Positive drive output(CH4)
26 VG Charge pump output
27 C2H Charge pump capactitor connect
28 C1H Charge pump capactitor connect
29 C1L Charge pump capactitor connect
30 C2L Charge pump capactitor connect
31 VIN Battery voltage supply
32 RSTB Reset block output
33 CHGSW Transistor drive output for battery charger
34 RS OP-Amp non-inverting input for battery charger
35 INM2 Error amplifier inverting input for battery charger
36 RF2 Error amplifier output for battery charger
37 DCIN DC power supply from AC adaptor
38 VDET DCIN over voltage and VIN low voltage detect putput
39 VREF Voltage reference circuit output
40 DTC Max duty control voltage input for power management
41 VOUT PWM output for power managenent
42 VC Power management power supply
43 CGND Internal ground
44 RF1 OP-Amp output for power management
45 INM1 OP-Amp inverting input for power management
46 CLK Clock input
47 OE Output enable for motor driver
48 CHGON Charge enable for battery charger
7250 : SC111259AFTA

3-4
7400 : TMP86CS25F
7400 : TMP86CS25F

3-5
Pin PORT Signals I/O Description
1 VSS GND
2 XIN 4.233MHz X’tal
3XOUT
4 TEST TEST Pin Low
5 VDD +UP DC Supply
6 P21 (XTIN) F435 monitor
7 P22 (XTOUT) MUTE O Headpho ne Mute
8 RESET RESET I RESET of CPU Active reset Low (PULL UP)
9 P20 (INT5/STOP) DC_IN I DC Detect
10 P60 (AIN0) +RCREF I Headpho ne Ref. supply
11 P61 (AIN1/ECIN) SFSY I Frame Sync of Servo
12 P62 (AIN2/ECNT) F433 monitor
13 P63 (AIN3/INT0) BATT_LEVEL I Battery level
14 P64 (AIN4/STOP2) F432 monitor
15 P65 (AIN5/STOP3) RC I Headpho ne
16 P66 (AIN6/STOP4) KEY2 I Key input
17 P67 (AIN7/STOP5) KEY1 I Key input
18 VAREF +AVDD DC Supply (Analog)
19 P17 (SEG59/SCK0) SCL O Serial signal to ESP/Servo
20 P16
(SEG58/TXD/SO0) SDA1 O Serial signal to ESP/Servo
21 P15
(SEG57/RXD/SI0) SDA2 I Serial signal to ESP/Servo
22 P14 (SEG56/MUL6) SILD O Serial latch to Servo
23 P13 (SEG55/MUL5) RAB O Read/Write of Servo
24 P12 (SEG54/MUL4) TMS_IRQ O DSP Interrupt
25 P11 (SEG53) YMLD O Serial latch to ESP
26 P10 (SEG52) P0RES O Servo RESET
27 P33 (SEG51/MUL3) SLEEP O Driver Sleep mode
28 P32 (SEG50/MUL2) DM_PWM O Disc Motor Drive
29 P31 (SEG49/MUL1) S_MUTE O ESP MUTE
30 P30 (SEG48/MUL0) BEEP O Headpho ne Beep
31 P57 (SEG47) DOOR I Slide SW Input
32 P56 (SEG46) HOLD I Slide SW Input
33 P55 (SEG45) RESUME I Slide SW Input
34 P54 (SEG44) NC
35 P53 (SEG43)
36 P52 (SEG42) LF_POW O Headpho ne Power on
37 P51 (SEG41) DBB_STEP O Headpho ne DBB step
38 P50 (SEG40) DBB_ON O Headpho ne DBB on
39 SEG39 NC
40 SEG38 NC
41 SEG37 NC
42 SEG36 NC
43 SEG35 NC
44 SEG34 NC
45 SEG33 NC
46 SEG32 NC
47 SEG31 NC
48 SEG30 NC
49 SEG29 NC
50 SEG28 NC
51 SEG27 NC
52 SEG26 NC
53 SEG25 NC
54 SEG24 NC
55 SEG23 NC
56 SEG22 NC
57 SEG21 S21 O Segment
58 SEG20 S20 O Segment
59 SEG19 S19 O Segment
60 SEG18 S18 O Segment
61 SEG17 S17 O Segment
62 SEG16 S16 O Segment
63 SEG15 S15 O Segment
64 SEG14 S14 O Segment
65 SEG13 S13 O Segment
66 SEG12 S12 O Segment
67 SEG11 S11 O Segment
68 SEG10 S10 O Segment
69 SEG9 S9 O Segment
70 SEG8 S8 O Segment
71 SEG7 S7 O Segment
72 SEG6 S6 O Segment
73 SEG5 S5 O Segment
74 SEG4 S4 O Segment
75 SEG3 S3 O Segment
76 SEG2 S2 O Segment
77 SEG1 S1 O Segment
78 SEG0 S0 O Segment
79 COM0 C0 O Common
80 COM1 C1 O Common
81 COM2 C2 O Common
82 COM3 C3 O Common
83 COM4 NC
84 P34 (COM5/MUL4) NC
85 P35 (COM6/MUL5) NC
86 P36 (COM7/MUL6) NC
87 P70 (COM8) PWR_MGT O Driver Power Management
88 P71 (COM9/MUL0) WAKE O Driver Wakeup mode
89 P72 (COM10/MUL1) NPC_RESET O ESP RESET Output
90 P73 (COM11/MUL2) TMS_SUP_ON O DSP supply control
91 P74 (COM12/MUL3) TMS_RESET O DSP RESET Output
92 P75 (COM13/SI1) TMS_DATA1 I Serial signal to DSP
93 P76 (COM14/SO1) TMS_DATA2 O Serial signal to DSP
94 P77 (COM15/SCK1) TMS_CLK O Serial signal to DSP
95 V4 Volt4 LCD Power Supply
96 V3 Volt3 LCD Power Supply
97 V2 Volt2 LCD Power Supply
98 V1 Volt1 LCD Power Supply
99 C1 Cap1
100 C0 Cap0
7400 : TMP86CS25F

3-6
1
2
3
4
5
6
7
8
9
10
11
12 13 14 15 16 17 18 19 20 21 22
23
24
25
26
27
28
29
30
31
32
33
34 35 36 37 38 39 40 41 42 43 44
VDD2
UC1
UC2
UC3
UC4
UC5
N.C
NTEST
CLK
VSS
YSRDATA
NWE
D1
D0
D3
D2
NCAS
A10/ NCAS2
YMCLK
YMDATA
YMLD
YDMUTE
YLRCK
YSCK
ZSCK
ZLRCK
ZSRDATA
YFLAG YFCLK
YBLKCK
NRESET
ZSENSE
VDD1
A3 A2 A1 A0 A4 A5 A6 A7 A8 A9
NRAS
SM5903BF
Pin number Pin name I/O Function Setting
HL
1 VDD2 - VDD supply pin
2 UC1 Ip/O Microcontroller interface extension I/O 1
3 UC2 Ip/O Microcontroller interface extension I/O 2
4 UC3 Ip/O Microcontroller interface extension I/O 3
5 UC4 Ip/O Microcontroller interface extension I/O 4
6 UC5 Ip/O Microcontroller interface extension I/O 5
7N.C-
8 NTEST Ip Test pin Test
9 CLK I 16.9344 MHz clock input
10 VSS - Ground
11 YSRDATA I Audio serial input data
12 YLRCK I Audio serial input LR clock Left channel
Right channel
13 YSCK I Audio serial input bit clock
14 ZSCK O Audio serial output bit clock
15 ZLRCK O Audio serial output LR clock Left channel
Right channel
16 ZSRDATA O Audio serial output data
17 YFLAG I Signal processor IC RAM overflow flag Overflow
18 YFCLK I Crystal-controlled frame clock
19 YBLKCK I Subcode block clock signal
20 NRESET I System reset pin Reset
21 ZSENSE O Microcontroller interface status output
22 VDD1 - VDD supply pin
23 YDMUTE I Forced mute pin Mute
24 YMLD I Microcontroller interface latch clock
25 YMDATA I Microcontroller interface serial data
26 YMCLK I Microcontroller interface shift clock
27 A10 O DRAM address 10
(NCAS2) O DRAM2 CAS control (with 2 DRAMs)
28 NCAS O DRAM CAS control
29 D2 I/O DRAM data input/output 2
30 D3 I/O DRAM data input/output 3
31 D0 I/O DRAM data input/output 0
32 D1 I/O DRAM data input/output 1
33 NWE O DRAM WE control
34 NRAS O DRAM RAS control
35 A9 O DRAM address 9
36 A8 O DRAM address 8
37 A7 O DRAM address 7
38 A6 O DRAM address 6
39 A5 O DRAM address 5
40 A4 O DRAM address 4
41 A0 O DRAM address 0
42 A1 O DRAM address 1
43 A2 O DRAM address 2
44 A3 O DRAM address 3
Ip : Input pin with pull-up resistor Ip/O : Input/Output pin (With pull-up resistor when in input mode)
Control
Input 1
Control
Input 2
Micro-
controller
Interface
General
Port
Output Interface Input Interface
Input Buffer
Decoder Encoder
DRAM Interface
YBLKCK
YFCLK
YFLAG
YMDATA
YMCLK
YMLD
ZSENSE
UC1 to UC5
YDMUTE
NRESET
NTEST
CLK
NRAS
NCAS
NCAS2
NWE
A0 to A10
D0 to D3
Through
Mode
Compression
Mode
ZLRCK ZSCK
ZSRDATA YLRCK
YSCK
YSRDATA
7800 : SM5903BF
