Philips PD9122/05 User manual

Register your product and get support at
www.philips.com/welcome
PD9122
EN User manual
PD9122_05_UM_V1.0.indd 1 2010-9-29 16:23:31

3
English
EN
Contents
1 Important 4
Important Safety Instructions 4
Notice 7
2 Your portable DVD player 10
Introduction 10
What’s in the box 10
Overview of the main unit 11
Overview of the second screen 13
3 Get started 14
Preparation 14

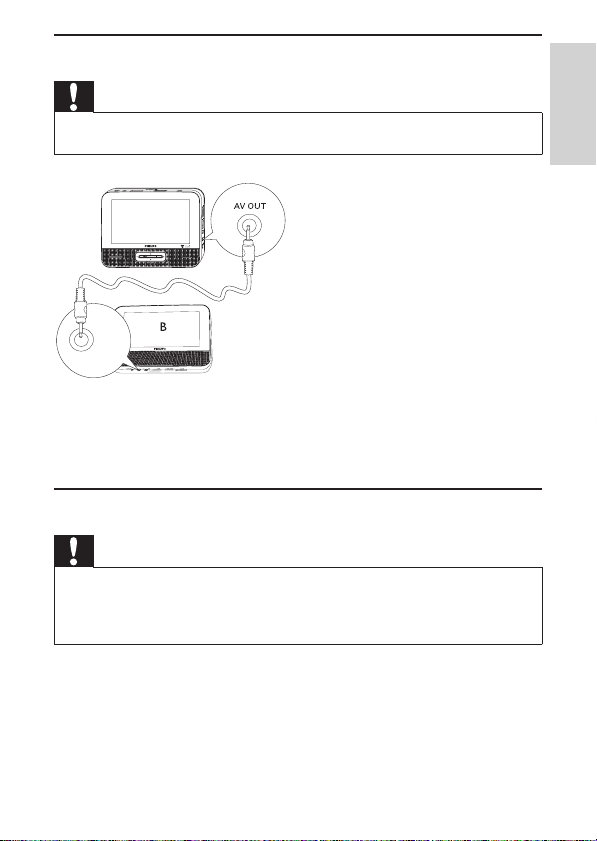

Connect the second screen 15

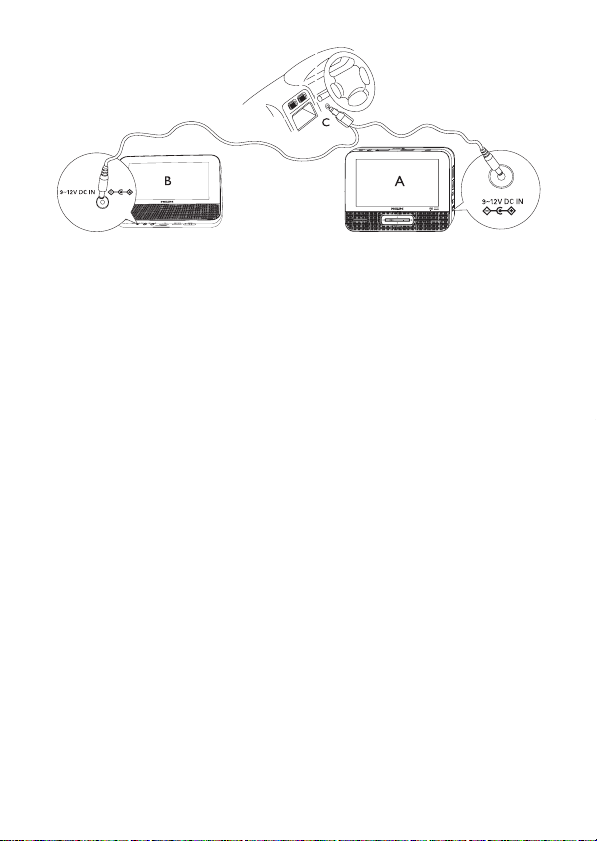

Connect power 15
4 Use your player 17
Turn on 17
Select OSD language 17
Play discs 17
Play options 17
5 Adjust settings 19
Set the main unit 19
Set the second screen 19
6 Use more of your player 21

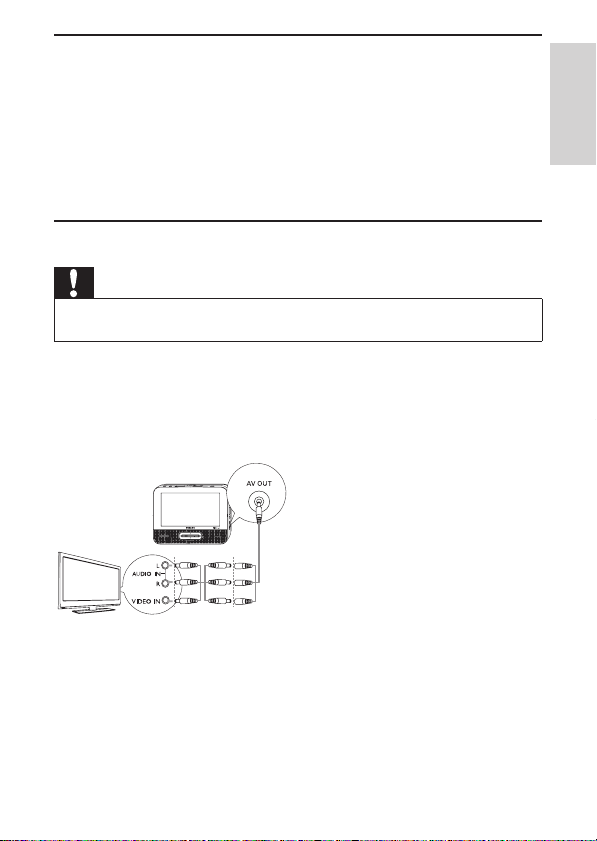

Connect additional equipment 21
Connect power from household source 22
7 Product information 23
8 Troubleshooting 24
PD9122_05_UM_V1.0.indd 3 2010-9-29 16:23:32

4EN
1 Important
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
iFor countries with a polarized mains, do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug
does not t into your outlet, consult an electrician for replacement
of the obsolete outlet.
Caution: To prevent electric shock, match the wide blade of the plug
to the wide slot, fully insert.
jProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
k Only use attachments/accessories specied by the manufacturer.
l Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
PD9122_05_UM_V1.0.indd 4 2010-9-29 16:23:32

5
English
EN
mUnplug this apparatus during lightning storms or when unused for
long periods of time.
n Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
o Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, re or the like.
pApparatus shall not be exposed to dripping or splashing.
qDo not place any sources of danger on the apparatus (e.g. liquid
lled objects, lighted candles).
rThis product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org.
sWhere the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked ames or heat. •
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
PD9122_05_UM_V1.0.indd 5 2010-9-29 16:23:32

6
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
Be sure to observe the following guidelines when using your
headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a trafc
hazard and is illegal in many areas.
EN
PD9122_05_UM_V1.0.indd 6 2010-9-29 16:23:32

7
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Notice
Any changes or modications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
English
EN
PD9122_05_UM_V1.0.indd 7 2010-9-29 16:23:33

8
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical
and electronic products. The correct disposal of your old product helps
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
The making of unauthorized copies of copy-protected material, including
computer programs, les, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
This item incorporates copy protection technology that is protected by
U.S. patents and other intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
“DivX, DivX” Certied, and associated logos are trademarks of DivX, Inc.
and are used under license.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
EN
PD9122_05_UM_V1.0.indd 8 2010-9-29 16:23:34

9
This apparatus includes this label:
English
EN
PD9122_05_UM_V1.0.indd 9 2010-9-29 16:23:34

10
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benet
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-
RW, DVD±R and DVD±RW):
DVD-Video•
Video CD•
Audio CD•
MP3 CD•
DivX•
Discs with JPEG les•
What’s in the box
Check and identify the contents of your package:
Main unit x 1•
Second screen x 1•
AC power adaptor x 1, ASUC12B-090080 (Philips)•
Car adaptor x 1•
AV cable x 1•
Fastening strap x 2•
User Manual x 1•
Quick Start Guide x 1•
EN
PD9122_05_UM_V1.0.indd 10 2010-9-29 16:23:34

11
Overview of the main unit
aBRIGHTNESS
Adjusts screen brightness.•
bSETUP
Accesses or exits the setup menu.•
c,
Skips to the previous or next title, chapter, or track.•
dOPEN
Opens the disc compartment.•
eDISC MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
English
EN
PD9122_05_UM_V1.0.indd 11 2010-9-29 16:23:35

12
fOPTIONS
Accesses options relating to the current activity or selection.•
gAV MODE
Switches between PAL and NTSC mode.•
hPOWER ON/OFF
Turns on/off DVD player.•
iVOL +/-
Increases or decreases volume.•
j
Headphone jack.•
kAV OUT
Audio/video output jack.•
lDC IN
Power supply socket.•
m, , ,
Navigates through the menus.•
,
Searches backward/forward at different speeds.•
/OK
Conrms an entry or selection.•
Starts, pauses or resumes disc play.•
Stops disc play.•
EN
PD9122_05_UM_V1.0.indd 12 2010-9-29 16:23:36

13

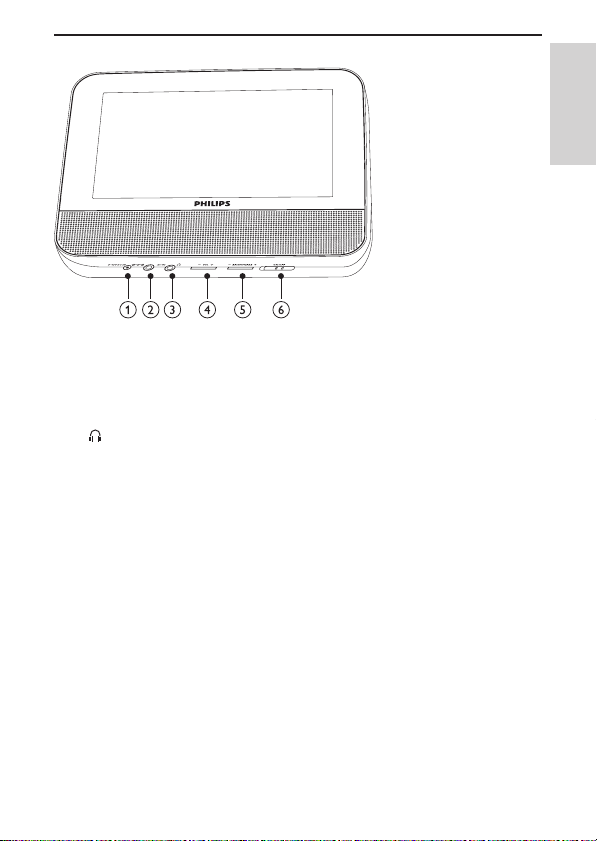

Overview of the second screen
aDC IN
Power supply socket.•
bAV IN
Audio/video input jack.•
c
Headphone jack.•
dVOL -/+
Decreases or increases volume.•
eBRIGHTNESS -/+
Adjusts screen brightness.•
fPOWER ON/OFF
Turns off/on the second screen.•
English
EN
PD9122_05_UM_V1.0.indd 13 2010-9-29 16:23:37

14
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your apparatus.The model number and serial number are on the back of the
apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Preparation

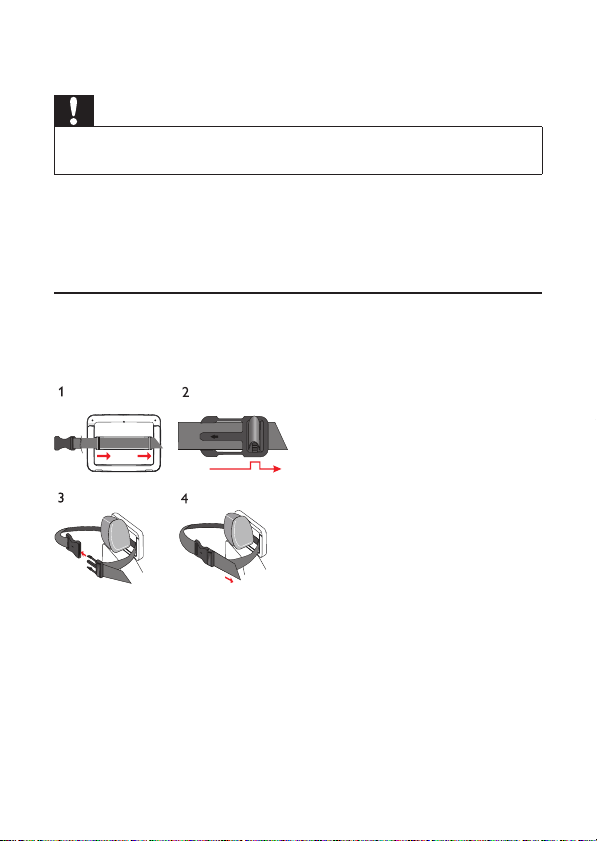

To use the player in a car, attach the main unit and the second screen to the
back of the front seat headrests.
1Pull the strap through the loops on the back of the main unit.
2Hold the buckle with the marked arrow facing you, then attach the
buckle to the strap.
3Position the main unit at the back of the headrest, then fasten the
buckle.
4Pull the strap to secure the main unit to the headrest.
To attach the second screen, repeat the above steps.•
EN
PD9122_05_UM_V1.0.indd 14 2010-9-29 16:23:38

15
Connect the second screen
Caution
Turn off your player before you connect the second screen.•
A: main unit; B: second screen
1Connect the supplied AV cable to:
the• AV OUT jack on the main unit.
the• AV IN jack on the second screen.
Connect power
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage pointed on the back or the underside of the player.
Risk of electric shock! When you unplug the AC adapter, always pull the plug from•
the socket. Never pull the cable.
AV IN
A
English
EN
PD9122_05_UM_V1.0.indd 15 2010-9-29 16:23:39

16
A: main unit; B: second screen; C: car cigarette lighter
1Connect one end of the double-connector end of the AC cable to
the DC IN jack on the main unit.
2Connect the other end of the double-connector end of the AC cable
to the DC IN jack on the second screen.
3Connect the one-connector end to the car cigarette lighter socket.
EN
PD9122_05_UM_V1.0.indd 16 2010-9-29 16:23:40

17
4 Use your player
Turn on
1Slide the POWER ON/OFF switch on the main unit to the ON
position.
To turn on the second screen, slide the• POWER ON/OFF
switch on the second screen to the ON position.
Select OSD language
You can choose a diffrent language for the on-screen display text.
1Press SETUP.
The setup menu appears.»
2Select [General] > [Language].
3Press to select an option.
4Press /OK to conrm.
5Press SETUP to exit.
Play discs
1Slide OPEN on the main unit.
2Insert the disc with label side facing up.
3Push down to close the disc compartment.
Play starts automatically. If not, press»/OK.
If a menu appears, select an item, then press• /OK to start
play.
To pause, press• /OK. Press again to resume play.
To stop, press• twice.
To select the previous/next item, press• or .
To start search within video/audio, press• or once or
more.
Play options
1During play, press OPTIONS to select some play options.
2Follow the on-screen instructions.
English
EN
PD9122_05_UM_V1.0.indd 17 2010-9-29 16:23:40

18
5 Adjust settings
Set the main unit
To maximize your play experience, use SETUP to ne tune your settings.
1Press SETUP.
The setup menu is displayed.»
2Press to select an option and press /OK to conrm.
[General]
[Language] Select on-screen display language
[PBC settings] Set playback control function on/off.
[Power save] Set power saving mode.
[DivX (VOD)] Get DivX registration code.
[DivX subtitles] Select DivX subtitle language.
[Parental(DVD)] Select parental options.
[Set password] Change existing password.
[Factory settings] Restore factory settings.
[Video]
[LCD Display] Set screen display aspect ratio.
[TV standard] Set video output format to TV
system.
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[ Audio]
[Dolby] Set Dolby output.
[Version] Check the version information.
3Press to go back to previous menu level.
4Press SETUP to exit.
EN
PD9122_05_UM_V1.0.indd 18 2010-9-29 16:23:41

19
Set the second screen
You can:
Turn the• VOL -/+ control on the second screen to adjust volume.
Turn the• BRIGHTNESS -/+ control on the second screen to adjust
the brightness.
6 Use more of your player
Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.•
You can connect the player to a TV or an amplier to enjoy DVDs or
Karaoke.
Match the color of the AV cables (the AV cable connected to TV is not
supplied) with the jacks: the yellow cable is for the yellow video jack, the red/
white cable is for the red/white audio jacks.
TV
not supplied
English
EN
PD9122_05_UM_V1.0.indd 19 2010-9-29 16:23:41

20
Connect power from household source
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage pointed on the back or the underside of the player.
Risk of electric shock! When you unplug the AC adaptor, always pull the plug from•
the socket. Never pull the cable.
1Connect the AC adaptor to:
the• DC IN jack on the main unit.
the power outlet.•
EN
PD9122_05_UM_V1.0.indd 20 2010-9-29 16:23:42

21
7 Product information
Note
Product information is subject to change without prior notice.•
Dimensions
- Main unit
- Second screen
239.8 x 182.3 x 40.0 mm
239.8 x 182.3 x 23.3 mm
Weight
- Main unit
- Second screen
0.85 kg
0.50 kg
Power supply Input: 100-240V~ 50/60Hz 0.3A
Output: DC 9V 0.8 A
Power consumption 9 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
Video output
Format PAL & NTSC
Output level 1Vp - p ± 20%
Load impedance 75
Audio line out
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
Audio distortion + noise -80 (1KHz)
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio 80 dB
Channel separation 80 dB
Dynamic range 80 dB
English
EN
PD9122_05_UM_V1.0.indd 21 2010-9-29 16:23:43
