Contents
1 Important 4
Important Safety Instructions 4
Notice 6
2 Your portable DVD player 9
Introduction 9
What’s in the box 9
Overview of the main unit 10
Overview of the second screen 12
3 Get started 13
Preparation 13
Connect the second screen 15
Connect power 16
Charge the battery 17
4 Use your player 18
Turn on 18
Select OSD language 18
Play discs 18
Play options 18
5 Adjust settings 19
Set the main unit 19
Set the second screen 20
6 Use more of your player 21
Connect additional equipment 21
Connect power from household source 21
7 Product information 23
8 T
roubleshooting 24

4
1 Important
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
hProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
iOnly use attachments/accessories specified by the manufacturer.
jUnplug this apparatus during lightning storms or when unused for
long periods of time.
kRefer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
lBattery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the unit:
Install all batteries correctly, + and - as marked on the unit.•
Do not mix batteries (old and new or carbon and alkaline, etc.).•
Remove batteries when the unit is not used for a long time.•
mBatteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
nApparatus shall not be exposed to dripping or splashing.
EN

5
oDo not place any sources of danger on the apparatus (e.g. liquid
filled objects, lighted candles).
pWhere the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked flames or heat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
English
EN

6
Be sure to observe the following guidelines when using your
headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Notice
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
EN

7
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical and
electronic products. The correct disposal of your old product helps prevent
potentially negative consequences on the environment and human health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
English
EN

8
“DivX, DivX” Certified, and associated logos are trademarks of DivX, Inc.
and are used under license.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
This apparatus includes this label:
EN

9
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips!To fully benefit
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-
RW, DVD±R and DVD±RW):
DVD-Video•
Video CD•
Audio CD•
MP3 CD•
DivX•
Discs with JPEG files•
What’s in the box
Check and identify the contents of your package:
Main unit x 1•
Second screen x 1•
AC power adaptor x 1, ASUC12C-090080 (Philips)•
Car adaptor x 1•
AV cable x 2•
Carry bag x 1•
Car mounting bracket x 2•
User Manual x 1•
Quick Start Guide x 1•
English
EN

10
Overview of the main unit
aBRIGHTNESS
Adjusts screen brightness.•
bSETUP
Accesses or exits the setup menu.•
c,
Skips to the previous or next title, chapter, or track.•
dOPEN
Opens the disc compartment.•
eDISC MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
EN

11
fOPTION
Accesses options relating to the current activity or selection.•
gAV MODE
Switches between PAL and NTSC mode.•
hON/OFF
Turns on/off DVD player.•
iVOL +/-
Increases or decreases volume.•
j
Headphone jack.•
kAV OUT
Audio/video output jack.•
lDC IN
Power supply socket.•
m, , ,
Navigates menus.•
,
Searches backward/forward at different speeds.•
/OK
Confirms an entry or selection.•
Starts, pauses or resumes disc play.•
Stops disc play.•
English
EN

12
Overview of the second screen
aDC IN
Power supply socket.•
bAV IN
Audio/video input jack.•
c
Headphone jack.•
dVOL -/+
Decreases or increases volume.•
eBRIGHTNESS -/+
Adjusts screen brightness.•
fOFF/ON
Turns off/on the second screen.•
EN

13
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your player.The model number and serial number are on the bottom of your
player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Preparation
Warning
Remove the mounting kit and the DVD player from the seat when the DVD player•
is not in use.
To use the player in a car, attach the main unit and the second screen to the
back of the front seat headrests.

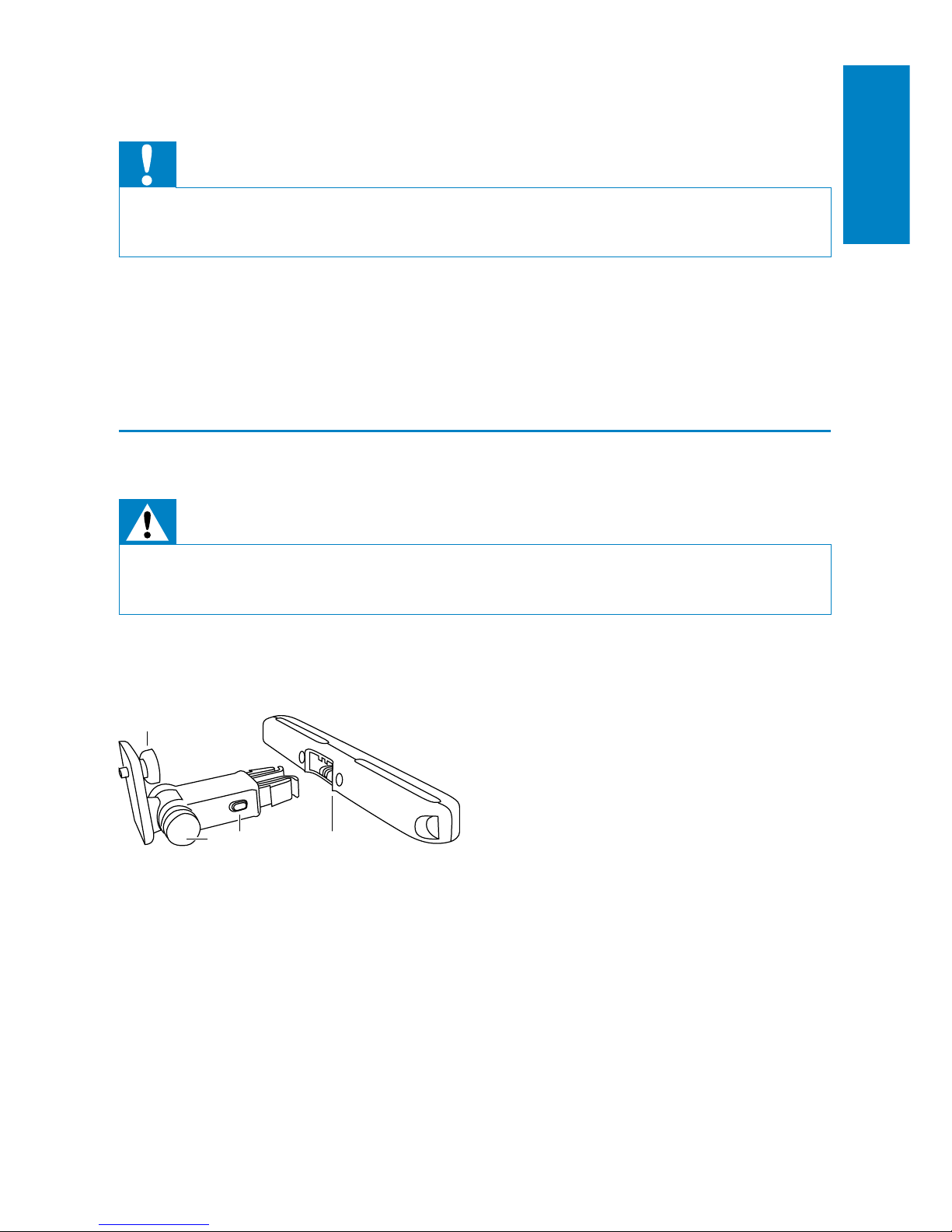

A. DVD player fastening screw node
B.Viewing angle adjustment node
C. Buckle release button
D. Headrest mount bracket
1Fix the headrest mount bracket on to the front seat headrest.
A
DCB
English
EN

14
aPosition the bracket on the bars of the headrest.
bFasten the screw to fix the bracket firmly on the bars.
2Fix the DVD mount bracket to the portable DVD player.
Note
There are three holes on the bracket. Use any one as you like.•
3Aim the screw of the bracket to the screw nut on the back of the
DVD player.
Screw tight the bracket onto the DVD player.•
4Install the DVD player to the headrest.
Buckle DVD bracket into the headrest mount bracket.•
5Adjust the viewing angle.
EN

15
aRelease the node.
bAdjust the viewing angle as desired.
cFasten the node.
6Press the release button to release the DVD player from headrest.
To attach the second screen, repeat the above steps.•
Connect the second screen
Caution
Turn off your player before you connect the second screen.•
English
EN

16
A: main unit; B: second screen
1Connect the supplied AV cable to:
the• AV OUT jack on the main unit.
the• AV IN jack on the second screen.
Connect power
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage pointed on the back or the underside of the player.
Risk of electric shock! When you unplug the AC adapter, always pull the plug from
•
the socket. Never pull the cable.
A: main unit; B: second screen; C: car cigarette lighter
EN

17
1Connect one end of the double-connector end of the AC cable to
the DC IN jack on the main unit.
2Connect the other end of the double-connector end of the AC cable
to the DC IN jack on the second screen.
3Connect the one-connector end to the car cigarette lighter socket.

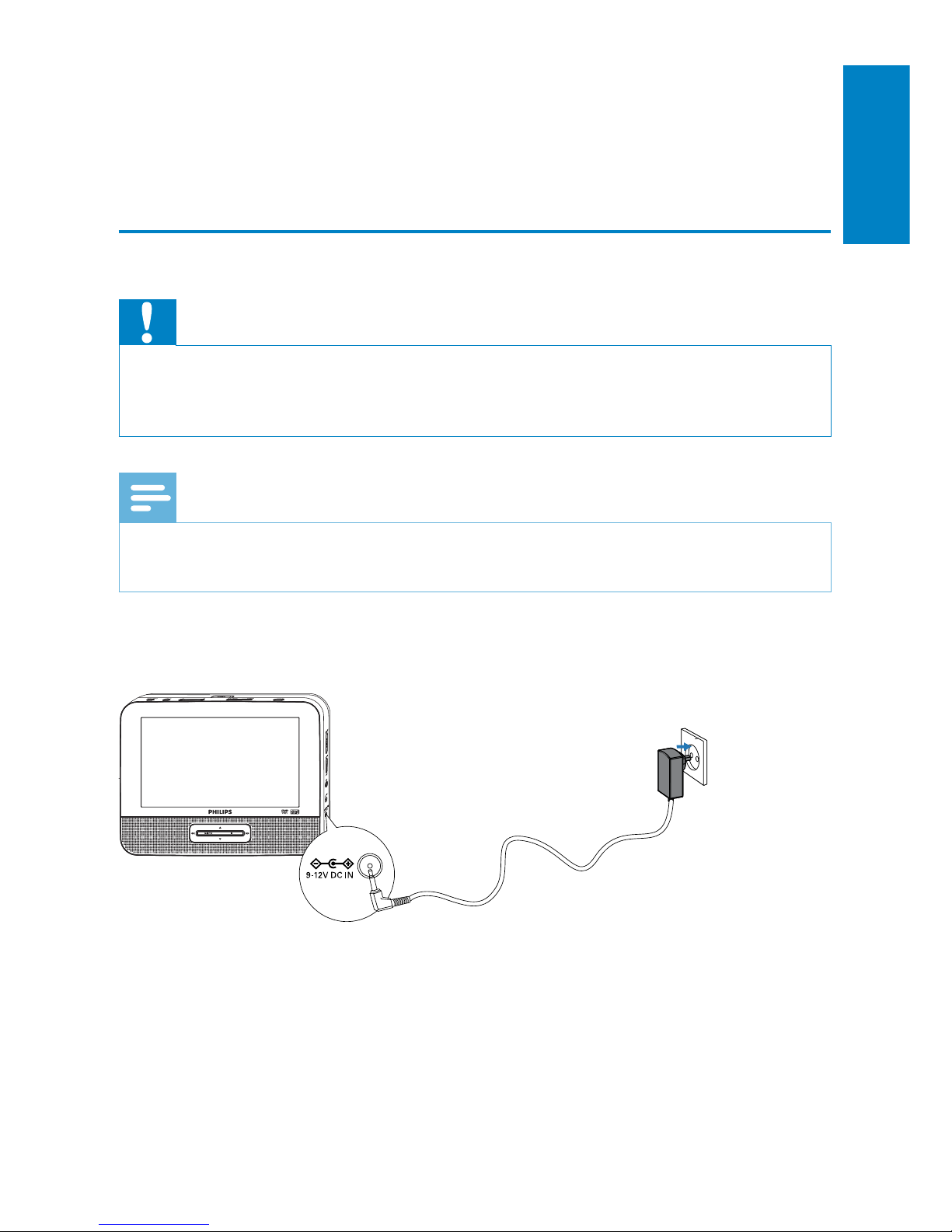

Charge the battery
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
Note
The type plate is located on the bottom of the player.•
You can only charge the player when it is in power-off mode.•
1Slide the ON/OFF switch to OFF position.
2Connect the supplied AC adaptor to the player and to the AC outlet.
The charge indicator turns on. It takes about 4 hours to fully charge»
the battery.
When the battery is fully charged, the charge indicator turns off.»
English
EN

18
4 Use your player
Turn on
1Slide the ON/OFF switch on the main unit to the ON position.
To turn on the second screen, slide the• OFF/ON switch on the
second screen to the ON position.
Select OSD language
You can choose a different language for the on-screen display text.
1Press SETUP.
The setup menu appears.»
2Select [General] > [Language].
3Press to select an option.
4Press OK to confirm.
5Press SETUP to exit.
Play discs
1Slide OPEN on the main unit.
2Insert the disc with label side facing up.
3Push down to close the disc compartment.
Play starts automatically. If not, press»/OK.
If a menu appears, select an item, then press»/OK to start play.
To pause, press»/OK. Press again to resume play.
To stop, press»twice.
To select the previous/next item, press»or .
To start search within video/audio, press»or once or more.
Play options
1During play, press OPTIONS to select some play options.
2Follow the on-screen instructions.
EN

19
5 Adjust settings
Set the main unit
To maximize your play experience, use SETUP to fine tune your settings.
1Press SETUP.
The setup menu is displayed.»
2Use navigation keys to select an option and press OK to confirm.
[General]
[Language] Select on-screen display language
[PBC settings] Set playback control function on/off.
[DivX (VOD)] Get DivX registration code.
[DivX subtitles] Select DivX subtitle language.
[Power save] Set power saving mode.
[Parental(DVD)] Select parental options.
[Set password] Change existing password.
[Factory settings] Restore factory settings.
[Video]
[LCD Display] Set screen display aspect ratio.
[TV standard] Set video output format to TV
system.
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[ Audio]
[Dolby] Set Dolby output.
[Version] Check the version information.
3Press to go back to the previous menu.
English
EN

20
4Press SETUP to exit.
Set the second screen
You can also set the second screen.
To adjust volume level for the second screen, press• VOL -/+ on the
second screen.
To adjust the brightness of the second screen, press• BRIGHTNESS
-/+ on the second screen.
EN
