Philips PD7020 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
RU Руководство пользователя
UK Посібник користувача
PD7020

3
English
EN
Contents
1 Important 4
Important Safety Instructions 4
Notice 7
2 Your portable DVD player 10
Introduction 10
What’s in the box 10
Overview of the main unit 11
3 Get started 13
Charge the battery 13
Connect additional equipment 14
4 Use your player 14
Turn on 14
Select OSD language 15
Play discs 15
Play options 15
Adjust brightness of screen backlight 15
5 Adjust settings 16
6 Product information 17
7 Troubleshooting 18

4
1 Important
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
iFor countries with a polarized mains, do not defeat the safety
purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug
does not t into your outlet, consult an electrician for replacement
of the obsolete outlet.
Caution: To prevent electric shock, match the wide blade of the plug
to the wide slot, fully insert.
jProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
k Only use attachments/accessories specied by the manufacturer.
l Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
EN

5
mUnplug this apparatus during lightning storms or when unused for
long periods of time.
n Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
o Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, re or the like.
pApparatus shall not be exposed to dripping or splashing.
qDo not place any sources of danger on the apparatus (e.g. liquid
lled objects, lighted candles).
rThis product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org.
sWhere the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked ames or heat. •
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
English
EN

6
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
Be sure to observe the following guidelines when using your
headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a trafc
hazard and is illegal in many areas.
EN

7
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Notice
Any changes or modications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
English
EN

8
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical
and electronic products. The correct disposal of your old product helps
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
The making of unauthorized copies of copy-protected material, including
computer programs, les, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
EN

9
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
“DivX, DivX” Certied, and associated logos are trademarks of DivX, Inc.
and are used under license.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
This apparatus includes this label:
English
EN

10
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benet
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and some play options.
Besides, you can restrict the play of discs that are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-
RW, DVD±R and DVD±RW):
DVD-Video•
Video CD•
Audio CD•
MP3 CD•
DivX•
Discs with JPEG les•
What’s in the box
Check and identify the contents of your package:
Portable DVD player•
AC power adaptor, ASUC12E-090080 (Philips)•
Car adaptor•
Mounting bag•
User Manual•
Quick Start Guide•
EN

11

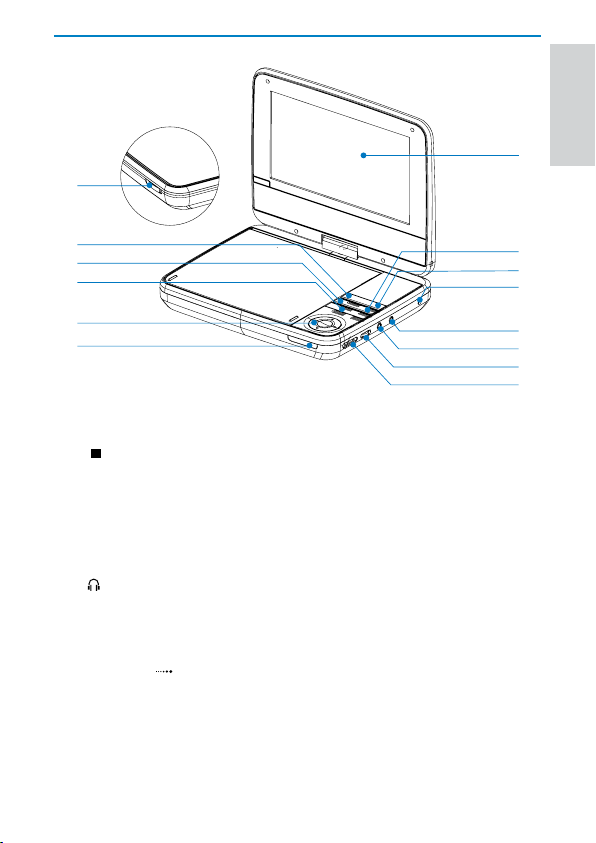

Overview of the main unit
aDisplay panel
b
Stops disc play.•
cOPTIONS
Accesses options relating to the current activity or selection.•
dDC IN
Power supply socket.•
e
Headphone jack.•
fAV OUT
Audio/video output jack.•
gVOLUME
Increases or decreases volume.•
h POWER ON/OFF (CHR)
Turns on/off DVD player.•
n
j
i
m
l
k
a
d
c
b
e
f
g
h
English
EN

12
iCHR/
Charging indicator/Power indicator.•
j, , ,
Navigates menus.•
,
Searches backward/forward at different speeds.•
/OK
Conrms an entry or selection.•
Starts, pauses or resumes disc play.•
k,
Skips to the previous or next title, chapter, or track.•
lDISC MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
mSETUP
Accesses or exits the setup menu.•
nOPEN
Opens the disc compartment.•
EN

13
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your player.The model number and serial number are on the bottom of your
player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge the battery
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
Note
The type plate is located on the bottom of the player.•
You can only charge the player when it is in power-off mode.•
1Slide the POWER ON/OFF (CHR) switch to OFF position.
2Connect the supplied AC adaptor to the player and to the AC outlet.
English
EN

14
The charge indicator turns on. It takes about 7.0 hours to fully»
charge the battery.
When the battery is fully charged, the charge indicator turns off.»

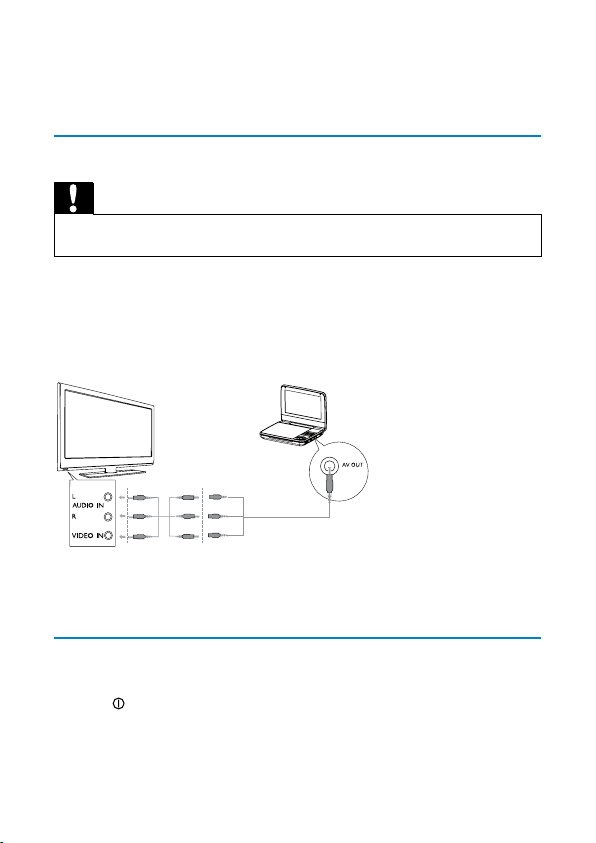

Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.•
You can connect the player to a TV or an amplier to enjoy DVDs or
Karaoke.
Match the color of the AV cables (not supplied) with the jacks:
the yellow cable is for the yellow video jack.•
the red/white cables are for the red/white audio jacks.•
4 Use your player
Turn on
Slide the POWER ON/OFF (CHR) switch to the ON position.
The»indicator turns on.
TV
EN
not supplied

15
Select OSD language
You can choose a different language for the on-screen display text.
1Press SETUP.
The setup menu appears.»
2Select [General] > [Language].
3Press to select an option.
4Press OK to conrm.
5Press SETUP to exit.
Play discs
1Slide OPEN on the player.
2Insert the disc with label side facing up.
3Push down to close the disc compartment.
Play starts automatically. If not, press»/OK.
If a menu appears, select an item, then press• /OK to start
play.
To pause, press• /OK. Press again to resume play.
To stop, press• STOP twice.
To select the previous/next item, press• or .
To start search within video/audio, press• or once or more.
Play options
1During play, press OPTIONS to select some play options.
2Follow the on-screen instructions.
Adjust brightness of screen backlight
Note
You can adjusts brightness of the screen backlight to match lighting conditions.•
During play, press repeatedly to select an option.
• [Bright]
• [Normal]
English
EN

16
• [Dim]
Tip
To achieve the longest playtime, select•[Dim].
To achieve the best view, select
•[Bright].
5 Adjust settings
To maximize your play experience, use SETUP to ne tune your settings.
1Press SETUP.
The setup menu is displayed.»
2Use navigation keys to select an option and press OK to conrm.
[General]
[Language] Select on-screen display language
[PBC settings] Set playback control function on/off.
[DivX (VOD)] Get DivX registration code.
[DivX subtitles] Select DivX subtitle language.
[Parental(DVD)] Select parental options.
[Set password] Change existing password.
[Factory settings] Restore factory settings.
[Video]
[LCD Display] Set screen display aspect ratio.
[TV standard] Set video output format to TV
system.
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[ Audio]
[Dolby] Set Dolby output.
[Version] Check the version information.
3Press to go back to the previous menu.
EN

17
4Press SETUP to exit.
6 Product information
Note
Product information is subject to change without prior notice.•
Dimensions 210 x 41 x 160 mm
Weight 0.73 kg
Power supply Input: 100-240V~ 50/60Hz
Output: DC 9V 0.8A
Power consumption 9 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
Video output
Format PAL & NTSC
Output level 1Vp - p ± 20%
Load impedance 75
Audio line out
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
Audio distortion + noise -80 (1KHz)
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio 80 dB
Channel separation 80 dB
Dynamic range 80 dB
English
EN

18
7 Troubleshooting
Warning
Risk of electric shock. Never remove the casing of the player.•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using the player, check the following points
before requesting service. If the problem remains unsolved, register your
player and get support at www.philips.com/welcome.
No power
Ensure that both plugs of the mains cord are properly connected.•
Ensure that there is power at the AC outlet.•
Check if the built-in battery is drained.•
No sound
Ensure that the AV cable is connected correctly.•
Distorted picture
Clean the disc. With a clean, soft, lint-free cloth, wipe the disc•
outwards from the center.
Make sure that the video output format of the disc is compatible with•
the TV.
Change the video output format to match your TV or program.•
The LCD is manufactured using high precision technology. You may,•
however, see tiny black points and/or bright points(red, blue, green)
that continuously appear on the LCD. This is a normal result of the
manufacturing process and does not indicate a malfunction.
Cannot play disc
Ensure the disc label is upwards.•
Clean the disc. With a clean, soft, lint-free cloth, wipe the disc•
outwards from the center.
Check if the disc is defective by trying another disc.•
The player feels warm
When the player is in use for a long period of time, its surface will be•
heated. This is normal.
EN

© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
PD7020_51_UM_Sunplus_V1.0
