3EN
Contents
1 Important 5
Safety and notice 5
Safety 5
Compliance 6
Care of the environment 7
Copyright 8
Warranty 9
2 Your portable DVD player 10
What's in the box 10
Overview of the main unit 11
3 Get started 13
Prepare 13
Switch on/off 17
Select OSD language 18
4 Play music or movies 19
Play discs 19
Connect additional equipment 21
5 Adjust settings 23
Adjust settings 23
English
PD7042_12_UM_Book1_V2.0.indb.indb 3 8/17/2012 2:54:07 PM
Downloaded From Disc-Player.com Philips Manuals

4EN
6 Product information 25
7 Troubleshooting 26
PD7042_12_UM_Book1_V2.0.indb.indb 4 8/17/2012 2:54:07 PM
Downloaded From Disc-Player.com Philips Manuals

5EN
1 Important
Safety and notice
Read and understand all instructions before you use this product. If damage is
caused by failure to follow the instructions, the warranty does not apply.
Safety
Only use attachments/accessories specied by the manufacturer.
The product shall not be exposed to dripping or splashing.
Do not place any sources of danger on the product (e.g. liquid lled objects,
lighted candles).
Batteries (battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
Modication of the product could result in hazardous radiation of EMC or
other unsafe operation.
Warning
•Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
English
PD7042_12_UM_Book1_V2.0.indb.indb 5 8/17/2012 2:54:07 PM
Downloaded From Disc-Player.com Philips Manuals

6EN
Warning
•Never remove the casing of this product.
•Never lubricate any part of this product.
•Never place this product on other electrical equipment.
•Keep this product away from direct sunlight, naked ames or heat.
•Never look into the laser beam inside this product.
•Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the
product from the power.
Hearing safety
A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille
de l’utilisateur.
Warning
•To prevent possible hearing damage, do not listen at high volume levels for long periods.
The maximum output voltage of the player is not greater than 150 mV.
Compliance
This product complies with the radio interference requirements of the European
Community.
PD7042_12_UM_Book1_V2.0.indb.indb 6 8/17/2012 2:54:08 PM
Downloaded From Disc-Player.com Philips Manuals

7EN
This apparatus includes this label:
Note
•The type plate is located on the bottom of the product.
Care of the environment
Environmental information
All unnecessary packaging has been omitted.We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
regarding the disposal of packaging materials, and old equipment.
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that
the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and
electronic products.
English
PD7042_12_UM_Book1_V2.0.indb.indb 7 8/17/2012 2:54:09 PM
Downloaded From Disc-Player.com Philips Manuals

8EN
Please act according to your local rules and do not dispose of your old products
with your normal household waste. Correct disposal of your old product helps to
prevent potential negative consequences for the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC,
which cannot be disposed with normal household waste.Please inform yourself
about the local rules on separate collection of batteries because correct disposal
helps to prevent negative consequences for the environmental and human health.

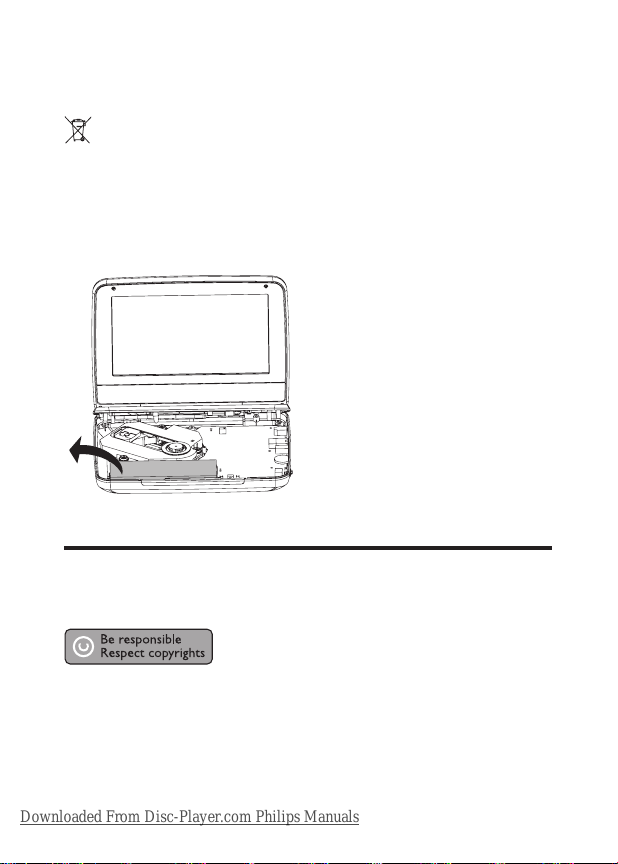

Always bring your product to a professional to remove the built-in battery.
Copyright
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
PD7042_12_UM_Book1_V2.0.indb.indb 8 8/17/2012 2:54:09 PM
Downloaded From Disc-Player.com Philips Manuals

9EN
Specications are subject to change without notice. Trademarks are the property
of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves
the right to change products at any time without being obliged to adjust earlier
supplies accordingly.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
ABOUT DIVXVIDEO: DivX®is a digital video format created by DivX.LLC, a
subsidiary of Rovi Corporation. This is an ofcial DivX Certied®device that plays
DivX video.Visit divx.com for more information and software tools to convert
your les into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied®device must be
registered in order to play purchased DivXVideo-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete your
registration.
Warranty
• Never attempt to repair the product, this could lead to the risk of injury,
damage to the product and will void your warranty.
• Use the product and accessories only as intended by the manufacturer.The
caution sign printed on the back of the product indicates risk of electric
shock.
• Never remove the cover of the product.Always contact Philips Customer
Support for service or repairs.
• Any operation expressly prohibited in this manual, or any adjustments and
assembly procedures not recommended or authorized in this manual shall
void the warranty.
English
PD7042_12_UM_Book1_V2.0.indb.indb 9 8/17/2012 2:54:10 PM
Downloaded From Disc-Player.com Philips Manuals

10 EN
2 Your portable DVD player
You can play the following discs on the DVD player (including CD-R, CD-RW,
DVD±R and DVD±RW):
• DVD-Video
• Video CD
• Audio CD
• MP3 CD
• DivX
• Discs with JPEG les
What's in the box
Check and identify the contents of your package:
• Main unit x 2
• AC power adaptor x 2,ASUC12E-090080 (Philips)
• Car adaptor x 1
• AV cable x 2
• Car mounting bracket x 2 (AY4246)
• Carry bag x 1
• Headphone x 2 (3822)
• User Manual x 1
PD7042_12_UM_Book1_V2.0.indb.indb 10 8/17/2012 2:54:10 PM
Downloaded From Disc-Player.com Philips Manuals

11EN
Overview of the main unit
a
• Turns on/off DVD player.
b OPTIONS
• Accesses options relating to the current activity or selection.
c DISC MENU
• For DVD, accesses or exits disc menu.
• ForVCD, turns on or off PBC (Playback Control) mode.
• ForVCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
d OPEN
• Opens the disc compartment.
e ,
• Skips to the previous or next title, chapter, or track.
gf edcb a
n
m
l
k
j
i
h
English
PD7042_12_UM_Book1_V2.0.indb.indb 11 8/17/2012 2:54:11 PM
Downloaded From Disc-Player.com Philips Manuals

12 EN
f SETUP
• Accesses or exits the setup menu.
g AV MODE
• Switches between the PAL and NTSC mode.
h , , ,
• Navigates menus.
,
• Searches backward/forward at different speeds.
/OK
• Conrms an entry or selection.
• Starts, pauses or resumes disc play.
• Stops disc play.
i DC IN
• Power supply socket.
j AV OUT
• Audio/video output jack.
k
• Headphone jack.
l VOL +/-
• Increases or decreases volume.
m RESET
• When the player hangs up, press it with a ball-point pen or similar tool
to reset the player.
n DVD/AV IN
• Switches between the DVD and audio/video (AV) input mode.
PD7042_12_UM_Book1_V2.0.indb.indb 12 8/17/2012 2:54:13 PM
Downloaded From Disc-Player.com Philips Manuals

13EN
3 Get started
Caution
•Use the controls only as stated in this user manual.
•Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of your
apparatus.The model number and serial number are on the back of the apparatus.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Prepare
Charge power
Charge through the AC adaptor
1 Press to switch off the player.
2 Connect the supplied AC adaptor to the player and to the AC outlet.
English
PD7042_12_UM_Book1_V2.0.indb.indb 13 8/17/2012 2:54:14 PM
Downloaded From Disc-Player.com Philips Manuals

14 EN
» The CHR indicator turns on (red).
» When the battery is fully charged, the CHR indicator turns off.
Note
•You can only charge the player when it is in power-off mode.
•To maximize battery life, recharge the battery immediately once the battery is fully discharged. If
you do not use the player for a long time, recharge the battery once every two months.
Connect power through the car adaptor
1 Press to switch off the player.
2 Use the supplied car adaptor to connect the player to the cigarette lighter
socket in your car.
Mount the player in your car (for in-car use)
Use the car mounting kit to mount the player onto the seat headrest in your car.
A. Fastening screw node for DVD player
B. Adjustment node for viewing angles
A
DCB
PD7042_12_UM_Book1_V2.0.indb.indb 14 8/17/2012 2:54:14 PM
Downloaded From Disc-Player.com Philips Manuals

15EN
C. Buckle release button
D. Headrest mount bracket
Warning
•Remove the mounting kit and the DVD player from the seat when the DVD player is not in use.
To mount the DVD player onto the headrest
1 Fix the headrest mount bracket on to the front seat headrest.
a Position the bracket on the bars of the headrest.
b Fasten the screw to x the bracket rmly on the bars.
2 Fix the DVD mount bracket to the portable DVD player:
a Aim the fastening screw of the bracket to the screw nut on the back
of the DVD player.
b Screw tight the bracket onto the DVD player.
English
PD7042_12_UM_Book1_V2.0.indb.indb 15 8/17/2012 2:54:15 PM
Downloaded From Disc-Player.com Philips Manuals

16 EN
There are three holes on the bracket. Use any one as you like.
3 Install the DVD player to the headrest.
• Buckle DVD bracket into the headrest mount bracket.
4 Adjust the viewing angle.
a Release the adjustment node.
b Adjust the viewing angle as desired.
c Fasten the node.
To release the DVD player from the headrest
• Press the release button
PD7042_12_UM_Book1_V2.0.indb.indb 16 8/17/2012 2:54:16 PM
Downloaded From Disc-Player.com Philips Manuals

17EN
Use a player as dual screen
To have the two players play the same content, use one player as dual screen:
1 Through AV OUT, use the supplied AV cable to connect the two players.
2 To use a player as dual screen:
• On the player, slide DVD/AV IN to AV IN.
» You can watch the disc play on another player.
Switch on/off
1 Press to switch on the player.
» The power indicator turns on.
2 To switch off the player, press .
» The power indicator turns off.
English
PD7042_12_UM_Book1_V2.0.indb.indb 17 8/17/2012 2:54:16 PM
Downloaded From Disc-Player.com Philips Manuals

18 EN
Select OSD language
You can choose a different language for the on-screen display text.
1 Slide the DVD/AV IN switch to DVD.
2 Press SETUP.
» The setup menu is displayed.
3 Go to [-- General Setup Page --] > [OSD Language] (on-screen display
language).
4 Press / to select a language.
5 Press /OK to conrm.
6 Press SETUP to exit.
Video Batt. Life
Last Memory Deutsch
Set OSD Language
Italiano
Espanol
PD7042_12_UM_Book1_V2.0.indb.indb 18 8/17/2012 2:54:17 PM
Downloaded From Disc-Player.com Philips Manuals

19EN
4 Play music or movies
Play discs
1 Slide the DVD/AV IN switch to DVD.
2 Slide OPEN on the main unit.
3 Insert the disc with label side facing you.
4 Push down to close the disc compartment.
» Play starts automatically. If not, press /OK.
• If a menu is displayed, select an item, and then press /OK to start
play.
• To pause, press /OK. Press again to resume play.
• To stop, press twice.
• To select the previous/next item, press or .
• To start search within video/audio, press or once or more.
Play options
Select subtitle language
For DVDs that contain two or more subtitle languages,
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Subtitle].
3 Press / to select a subtitle.
4 Press /OK to conrm.
Select audio language
For DVDs that contain two or more subtitle languages,
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Audio].
3 Press / to select a language.
English
PD7042_12_UM_Book1_V2.0.indb.indb 19 8/17/2012 2:54:18 PM
Downloaded From Disc-Player.com Philips Manuals

20 EN
4 Press /OK to conrm.
Repeat
During play, you can select different repeat options.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Repeat], then press navigation keys to select a repeat option.
For DVD
• [Repeat Off]: switch off the repeat mode
• [Chapter]: repeat the current chapter
• [Title]: repeat the current title or track
• [All]: repeat all titles on the disc
ForVCD/MP3/CD/DivX
• [Repeat Off]: switch off the repeat mode
• [Track]: repeat the current track
• [All]: repeat all the tracks
3 Select an option, then press /OK to conrm.
4 Press OPTIONS to exit.
Tip
•ForVCDs, if PBC is on, you cannot repeat items.
Display play time
During play, press OPTIONS.
» The option menu is displayed.
1 Select [Time Disp.], then press / to select a display option.
» The display options are different depending on the disc type.
Option Action
[Title Elapsed] / [Chapter
Elapsed]
Displays DVD title or chapter elapsed play
time.
[Title Remain] / [Chapter
Remain]
Displays DVD title or chapter remaining
play time.
PD7042_12_UM_Book1_V2.0.indb.indb 20 8/17/2012 2:54:18 PM
Downloaded From Disc-Player.com Philips Manuals

21EN
[Total Elapsed] / [Single Elapsed] DisplaysVCD/SVCD disc or track elapsed
play time.
[Total Remain] / [Single Remain] DisplaysVCD/SVCD disc or track remaining
play time.
2 Select an option, then press /OK.
Select audio mode
When you play VCDs, you can select an audio mode.
1 Press OPTIONS.
» The option menu is displayed.
2 Select [Audio].
3 Press / to select audio channel: [Stereo], [Mono Left] or [Mono
Right].
Rotate pictures
For JPEG CDs only.While the JPEG is displayed:
• Press to ip up/down.
• Press to ip left/right.
Connect additional equipment
You can connect the player to a TV or an amplier to enjoy DVDs.
Connect to a TV
Caution
•Turn off your player before connecting to any additional equipment.
Match the color of the AV cables (the AV cable connected toTV is not supplied)
with the jacks:
• the yellow cable is for the yellow video jack
• the red/white cable is for the red/white audio jacks.
English
PD7042_12_UM_Book1_V2.0.indb.indb 21 8/17/2012 2:54:19 PM
Downloaded From Disc-Player.com Philips Manuals
