Philips PD7030/77 User manual

Register your product and get support at
www.philips.com/welcome
PD7030
EN User manual

Contents
1 Important 4
Important Safety Instructions 4
Hearing safety 5
Notice 6
2 Your portable DVD player 10
Introduction 10
What’s in the box 10
Overview of the main unit 11
Overview of the remote control 13
3 Get started 15
Preparation (for in-car use) 15
Charge the battery 17
Connect additional equipment 18
4 Use your player 20
Turn on 20
Select OSD language 20
Play discs 20
Play from USB 21
Play options 21
5 Adjust settings 22
6 Product information 23
7 Troubleshooting 24

4
1 Important
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
j Only use attachments/accessories specied by the manufacturer.
k Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
lUnplug this apparatus during lightning storms or when unused for
long periods of time.
m Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
EN

5
nBattery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the unit:
Install all batteries correctly, + and - as marked on the unit.•
Do not mix batteries (old and new or carbon and alkaline, etc.).•
Remove batteries when the unit is not used for a long time.•
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g. liquid
lled objects, lighted candles).
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keepthisapparatusawayfromdirectsunlight,nakedamesorheat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
English
EN

6
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorizedvehicle,cycling,skateboarding,etc.;itmaycreateatrafc
hazard and is illegal in many areas.
Notice
This product complies with the radio interference requirements of the
European Community.
Anychangesormodicationsmadetothisdevicethatarenotexpressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
EN

7
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical
and electronic products. The correct disposal of your old product helps
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.

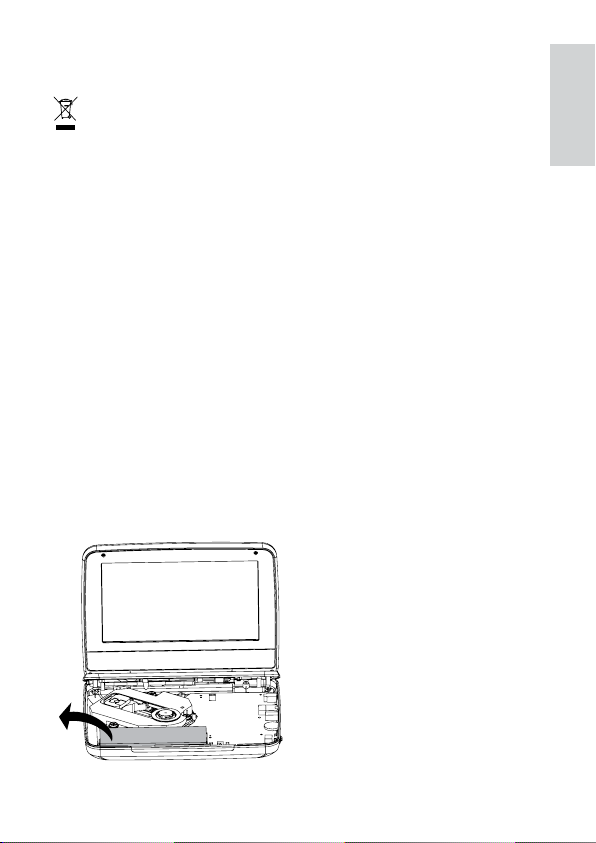

Always bring your product to a professional to remove the built-in battery.
English
EN

8
The making of unauthorized copies of copy-protected material, including
computerprograms,les,broadcastsandsoundrecordings,maybe
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
This item incorporates copy protection technology that is protected by
U.S. patents and other intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
DivX®,DivXCertied®and associated logos are trademarks of DivX, Inc.
and are used under license.
ABOUT DIVX VIDEO: DivX®is a digital video format created by DivX,
Inc.ThisisanofcialDivXCertied®device that plays DivX video. Visit
divx.comformoreinformationandsoftwaretoolstoconvertyourles
into DivX video.
ABOUTDIVXVIDEO-ON-DEMAND:ThisDivXCertied®device must
be registered in order to play purchased DivX Video-on-Demand (VOD)
movies. To obtain your registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com for more information on
how to complete your registration.
Covered by one or more of the following U.S. patents: 7,295,673;
7,460,668; 7,515,710; 7,519,274
Norge
Typeskiltnnespå apparatens underside.
Observer: Nettbryteren er sekundert innkoplet. Den innebygde
netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet
nettkontakten.
EN

9
For å redusere faren for brann eller elektrisk støt, skal apparatet ikke
utsettes for regn eller fuktighet.
This apparatus includes this label:
English
EN

10
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benet
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-
RW, DVD±R and DVD±RW):
DVD-Video•
Video CD•
Audio CD•
MP3 CD•
DivX•
Discs with JPEG les•
What’s in the box
Check and identify the contents of your package:
Portable DVD player•
Remote control•
AC power adaptor, ASUC12D-090080•
Car adaptor•
AV cable•
Car mounting bracket•
User manual•
EN

11

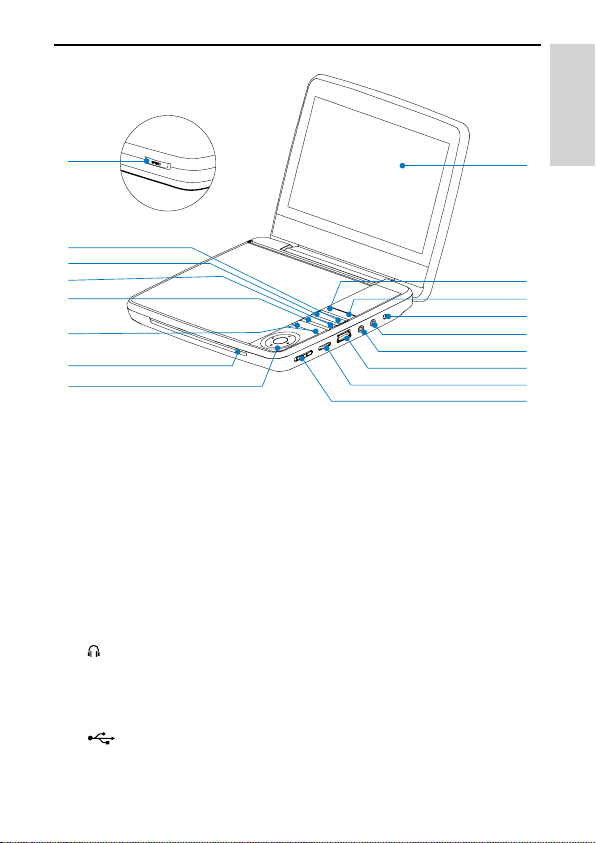

Overview of the main unit
aDisplay panel
bSOURCE
Switches between DVD and USB.•
cDISC MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
dDC IN
Power supply socket.•
e
Headphone jack.•
fAV OUT
Audio/video output jack.•
g
Connects a USB storage device.•
m
n
o
p
j
k
qa
c
b
d
e
f
g
h
i
l
English
EN

12
hVOLUME
Increases or decreases volume.•
i (CHR)OFF•POWER•ON
Turns on/off DVD player.•
j, , ,
Navigates menus.•
,
Searches backward/forward at different speeds.•
/OK
Conrmsanentryorselection.•
Starts, pauses or resumes disc play.•
kCHR/IR/
Charging indicator/Remote control sensor/Power indicator.•
l,
Skips to the previous or next title, chapter, or track.•
m
Accesses options relating to the current activity or selection.•
Accesses or exits the setup menu.•
n
Stops disc play.•
oAUDIO
For DVD, selects an audio language.•
For VCD, selects an audio mode.•
pSUBTITLE
Selects DVD subtitle language.•
qOPEN
Opens the disc compartment.•
EN

13

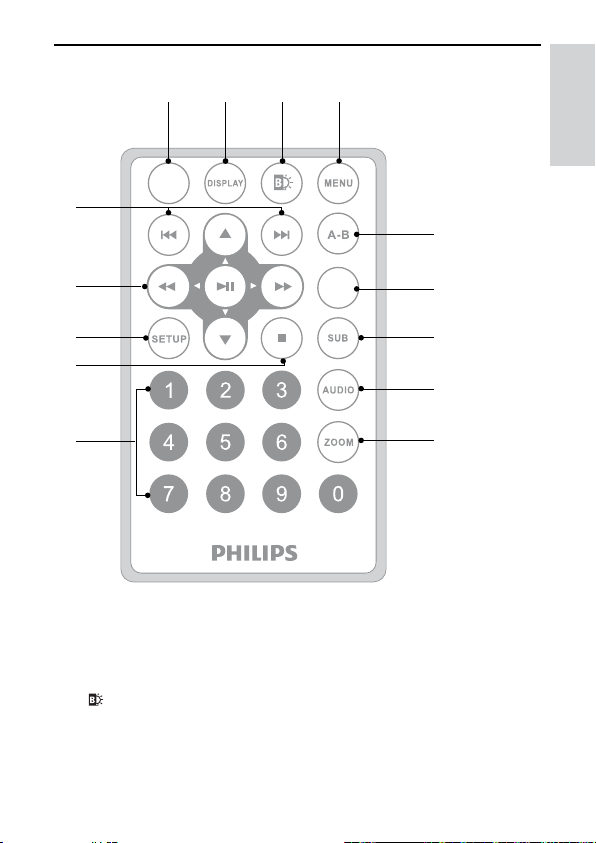

Overview of the remote control
aSOURCE
Switches between DVD and USB.•
bDISPL AY
Displays play information.•
c
Adjusts brightness of the screen backlight.•
j
k
l
m
n
g
i
abcd
h
OPTIONS
SOURCE
f
e
English
EN

14
dMENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
ForaUSBdevice,accessesorexitsthelemenu.•
eA-B
Marks the section for repeat play.•
fOPTION
Accesses options relating to the current activity or selection.•
gSUB
Selects a DVD subtitle language.•
hAUDIO
For DVD, selects an audio language.•
For VCD, selects an audio mode.•
iZOOM
Zooms into a video scene or picture.•
j0-9
Inputs numbers.•
k
Stops disc play.•
lSETUP
Accesses or exits the setup menu.•
m, , ,
Navigates menus.•
,
Searches backward/forward at different speeds.•
/OK
Conrmsanentryorselection.•
Starts, pauses or resumes disc play.•
n/
Skips to the previous or next title, chapter, or track.•
EN

15
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your player.The model number and serial number are on the bottom of your
player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Preparation (for in-car use)
Warning
Remove the mounting kit and the DVD player from the seat when the DVD player•
is not in use.
To use the player in a car, attach the player to the back of the front seat
headrest.

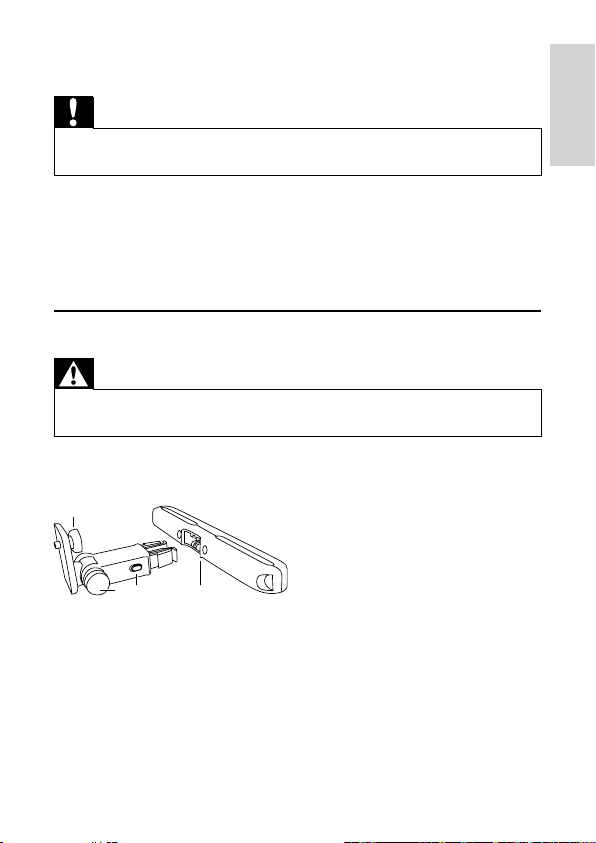

A. DVD player fastening screw node
B.Viewing angle adjustment node
C. Buckle release button
D. Headrest mount bracket

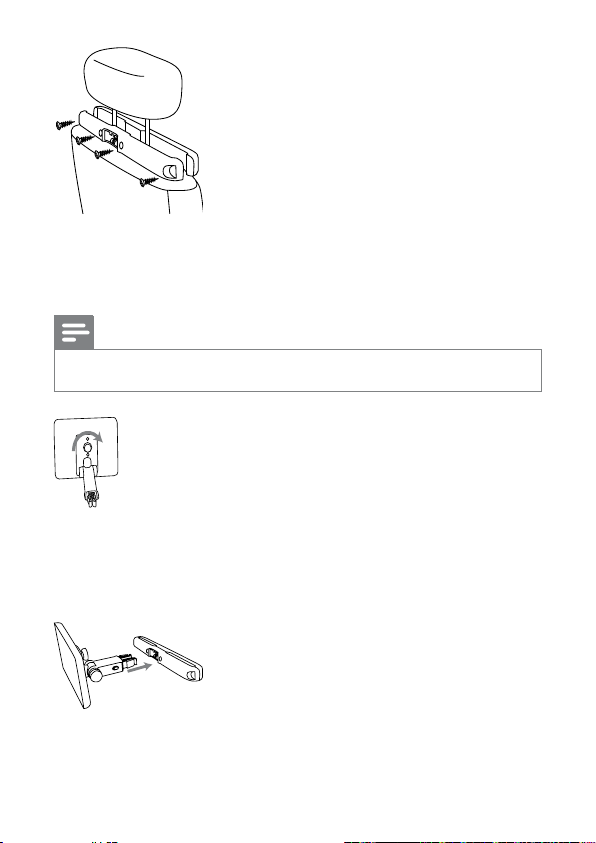

1Fix the headrest mount bracket on to the front seat headrest.
A
DCB
English
EN

16
aPosition the bracket on the bars of the headrest.
b Fasten the screw to x the bracket rmly on the bars.
2Fix the DVD mount bracket to the portable DVD player.
Note
There are three holes on the bracket. Use any one as you like.•
3Aim the screw of the bracket to the screw nut on the back of the
DVD player.
Screw tight the bracket onto the DVD player.•
4Install the DVD player to the headrest.
Buckle DVD bracket into the headrest mount bracket.•
5Adjust the viewing angle.
EN

17

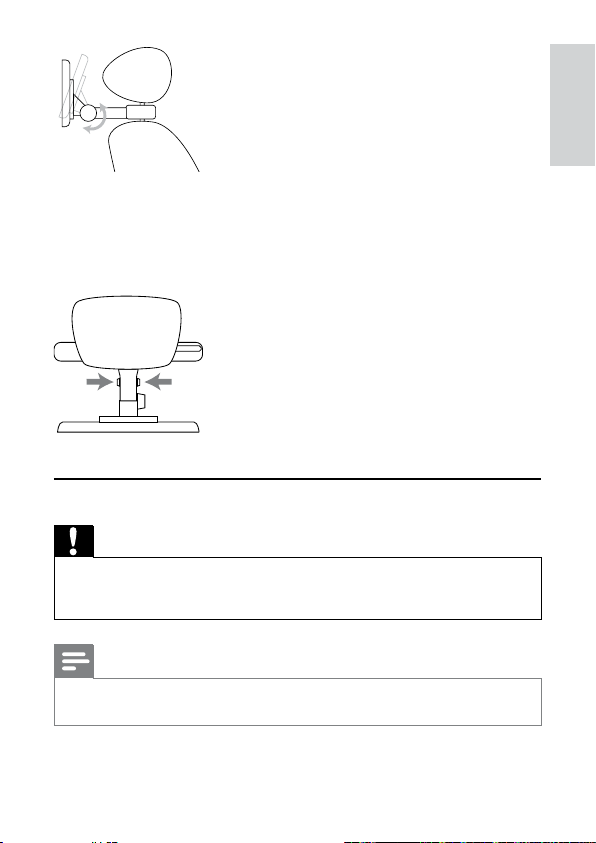

aRelease the node.
bAdjust the viewing angle as desired.
cFasten the node.
6Press the release button to release the DVD player from headrest.
Charge the battery
Caution
Risk of product damage. Ensure that the power supply voltage corresponds to the•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
Note
The type plate is located on the bottom of the player.•
You can only charge the player when it is in power-off mode.•
English
EN

18
To fast charge the battery,
1Slide the OFF•POWER•ON switch to OFF position.
2Connect the supplied AC adaptor to the player and to the AC outlet.
The»CHR indicator turns on (red).
When the battery is fully charged, the»CHR indicator turns off.
Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.•
YoucanconnecttheplayertoaTVoranampliertoenjoyDVDs.
EN

19

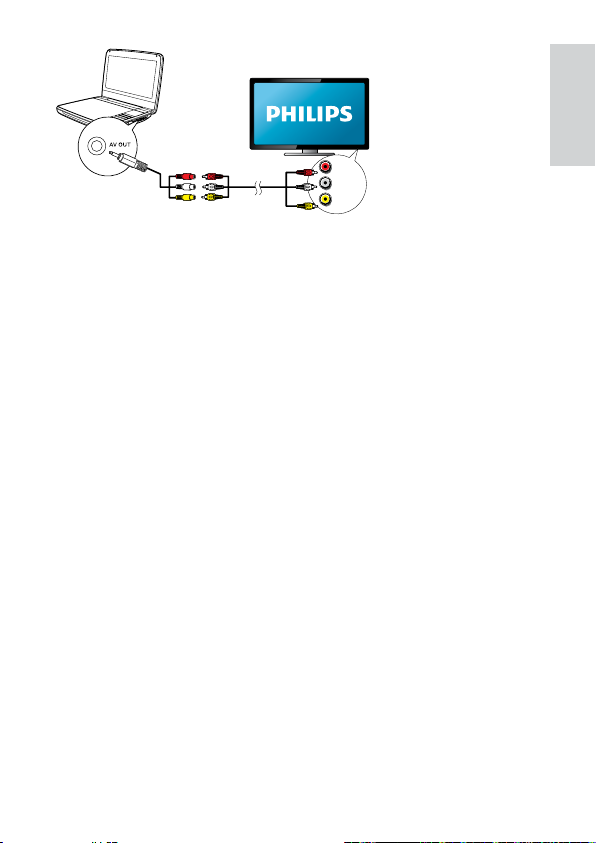

Match the color of the AV cables (the AV cable connected to TV is not
supplied) with the jacks:
the yellow cable is for the yellow video jack•
the red/white cable is for the red/white audio jacks.•
L
R
VIDEO IN
English
EN

20
4 Use your player
Turn on
Slide the OFF•POWER•ON switch to the ON position.
The»indicator turns on (green).
Select OSD language
You can choose a different language for the on-screen display text.
1Press OPTIONS .
The options menu is displayed.»
2Select [Setup] > [General] > [Language].
3Press / to select an option.
4Press /OKtoconrm.
5Press OPTIONS to exit.
Play discs
1Slide OPEN on the player.
2Insert the disc with label side facing up.
3Push down to close the disc compartment.
Play starts automatically. If not, press»/OK.
EN

21
If a menu is displayed, select an item, then press• /OK to
start play.
To pause, press• /OK. Press again to resume play.
To stop, press• STOP twice.
To select the previous/next item, press• or .
To start search within video/audio, press• or once or more.
Play from USB
YoucanplayDivX,VOB,MP3,orJPEGlesthatarestoredonaUSBstorage
device.
1Connect the USB device to the player.
The content menu is displayed.»
2Press SOURCE to switch to USB mode.
3 Selectale,thenpress .
Play starts.»
4To stop play, press .
Play options
1During play, press to select some play options.
2Follow the on-screen instructions.
English
EN
