1 Important
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
h Do not install near any heat sources such as radiators, heat registers,

i Protect the power cord from being walked on or pinched, particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
j 
k 
manufacturer or sold with the apparatus.When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
PD7030B_12_UM_V1.0.indd 4 2012/2/10 17:55:29

5EN
l Unplug this apparatus during lightning storms or when unused for long
periods of time.
m 
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
n Battery usage CAUTION – To prevent battery leakage which may result in
bodily injury, property damage, or damage to the unit:
 Install all batteries correctly, + and - as marked on the unit.
 Do not mix batteries (old and new or carbon and alkaline, etc.).
 Remove batteries when the unit is not used for a long time.
o Apparatus shall not be exposed to dripping or splashing.
p 

Caution
 Use of controls or adjustments or performance of procedures other than herein may result in
hazardous radiation exposure or other unsafe operation.
Warning

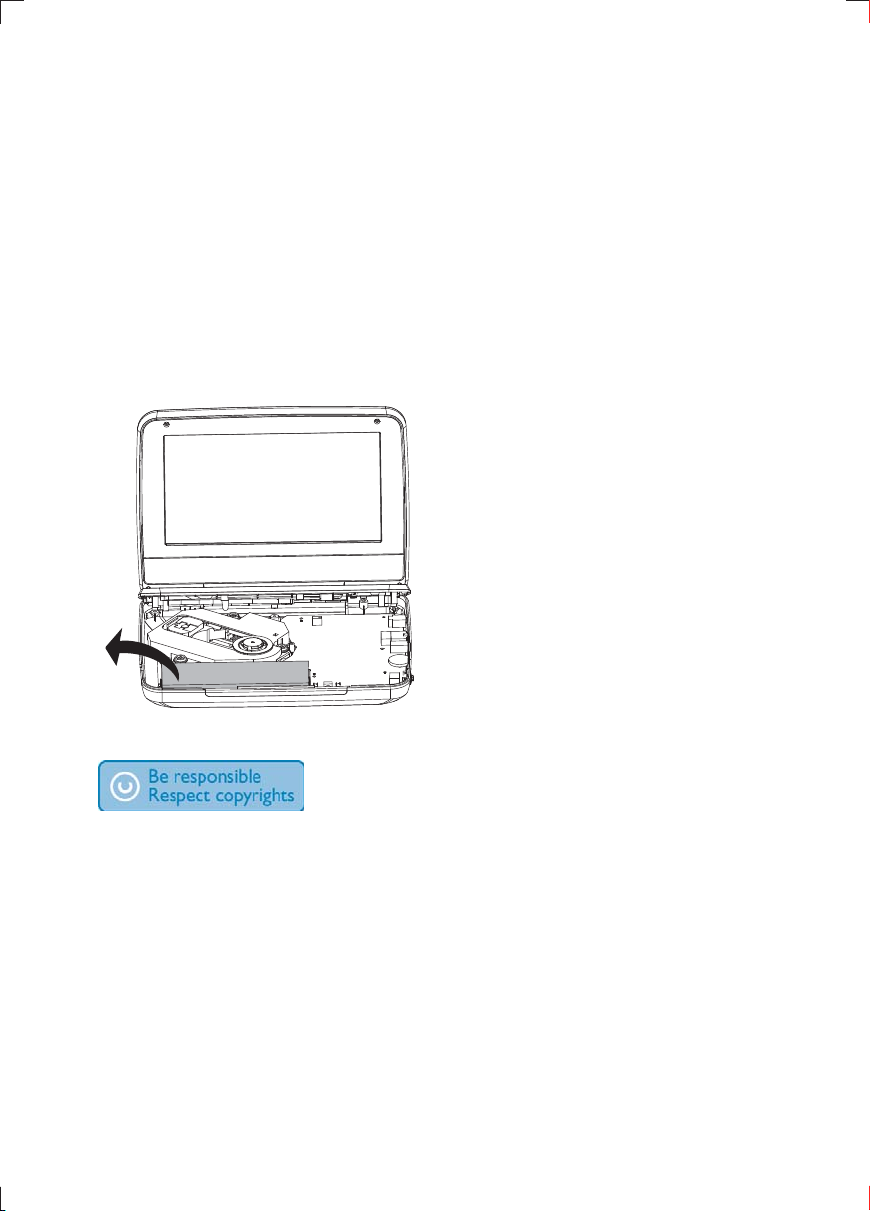

 Never remove the casing of this apparatus.
 Never lubricate any part of this apparatus.
 Never place this apparatus on other electrical equipment.
 
 Never look into the laser beam inside this apparatus.
 Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this
apparatus from the power.
PD7030B_12_UM_V1.0.indd 5 2012/2/10 17:55:29

6EN
Hearing safety
Listen at a moderate volume.
 Using headphones at a high volume can impair your hearing.This product can
produce sounds in decibel ranges that may cause hearing loss for a normal
person, even for exposure less than a minute.The higher decibel ranges are
offered for those that may have already experienced some hearing loss.
 Sound can be deceiving. Over time your hearing 'comfort level' adapts to
higher volumes of sound. So after prolonged listening, what sounds 'normal'
can actually be loud and harmful to your hearing.To guard against this, set
your volume to a safe level before your hearing adapts and leave it there.
To establish a safe volume level:
 Set your volume control at a low setting.
 Slowly increase the sound until you can hear it comfortably and clearly,
without distortion.
Listen for reasonable periods of time:
 Prolonged exposure to sound, even at normally 'safe' levels, can also cause
hearing loss.
 Be sure to use your equipment reasonably and take appropriate breaks.
Be sure to observe the following guidelines when using your headphones.
 Listen at reasonable volumes for reasonable periods of time.
 Be careful not to adjust the volume as your hearing adapts.
 Do not turn up the volume so high that you can't hear what's around you.
 You should use caution or temporarily discontinue use in potentially
hazardous situations. Do not use headphones while operating a motorized

in many areas.
PD7030B_12_UM_V1.0.indd 6 2012/2/10 17:55:29

7EN
Notice
This product complies with the radio interference requirements of the European
Community.

by Philips Consumer Lifestyle may void the user’s authority to operate the
equipment.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it means
the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical and electronic
products.The correct disposal of your old product helps prevent potentially
negative consequences on the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC,
which cannot be disposed of with normal household waste.
PD7030B_12_UM_V1.0.indd 7 2012/2/10 17:55:29

8EN
Please inform yourself about the local rules on separate collection of batteries.The
correct disposal of batteries helps prevent potentially negative consequences on
the environment and human health.
Environmental information
All unnecessary packaging has been omitted.We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if disassembled
by a specialized company. Please observe the local regulations regarding the
disposal of packaging materials, exhausted batteries and old equipment.
Always bring your product to a professional to remove the built-in battery.
The making of unauthorized copies of copy-protected material, including computer

copyrights and constitute a criminal offence.This equipment should not be used
for such purposes.
Recording and playback of material might require consent. See Copyright Act 1956
and The Performer’s Protection Acts 1958 to 1972.
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
PD7030B_12_UM_V1.0.indd 8 2012/2/10 17:55:30

9EN
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

are used under license.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc.This is



registered in order to play purchased DivXVideo-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete your
registration.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
This apparatus includes this label:
PD7030B_12_UM_V1.0.indd 9 2012/2/10 17:55:30

10 EN
2 Your portable DVD player

the support that Philips offers, register your product at www.philips.com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the universal
DVD Video standard.With it, you can play movies with true cinema picture quality
and stereo or multi-channel sound (depending on disc and playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that are
not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-RW,
DVD±R and DVD±RW):
 DVD-Video
 Video CD
 Audio CD
 MP3 CD
 DivX
 
What's in the box
Check and identify the contents of your package:
 Portable DVD player
 AC power adaptor, ASUC12E-090080 (Philips)
 Car adaptor
 User manual
PD7030B_12_UM_V1.0.indd 10 2012/2/10 17:55:30

11EN

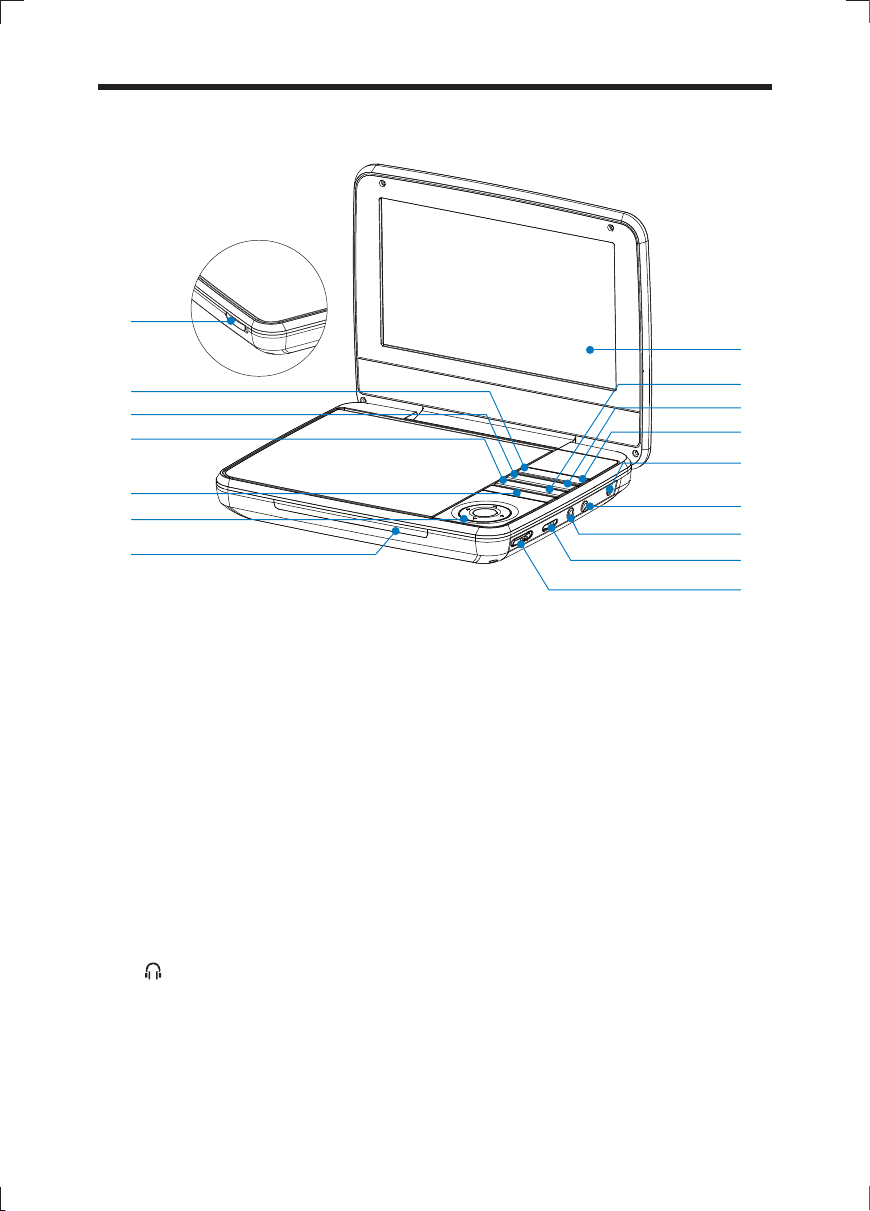

Overview of the main unit
a Display panel
b STOP
 Stops disc play.
c SUBTITLE
 Selects DVD subtitle language.
d OPTIONS
 Accesses options relating to the current activity or selection.
e DC IN
 Power supply socket.
f
 Headphone jack.
g AV OUT
 Audio/video output jack.
p
o
n
m
j
k
l
a
e
d
c
b
g
h
i
f
PD7030B_12_UM_V1.0.indd 11 2012/2/10 17:55:30

12 EN
h VOLUME
 Increases or decreases volume.
i 
 Turns on/off DVD player.
j CHR/
 Charging indicator/Power indicator.
k , , ,
 Navigates menus.
,
 Searches backward/forward at different speeds.
/OK
 
 Starts, pauses or resumes disc play.
l ,
 Skips to the previous or next title, chapter, or track.
m DISC MENU
 For DVD, accesses or exits disc menu.
 For VCD, turns on or off PBC (Playback Control) mode.
 For VCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
n AUDIO
 For DVD, select an audio language.
 For VCD, select an audio mode.
o SETUP
 Accesses or exits the setup menu.
p OPEN
 Opens the disc compartment.
PD7030B_12_UM_V1.0.indd 12 2012/2/10 17:55:32

13EN
3 Get started
Caution
 Use the controls only as stated in this user manual.
 Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of your
player.The model number and serial number are on the bottom of your player.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge the battery
Caution
 Risk of product damage. Ensure that the power supply voltage corresponds to the voltage printed
on the bottom of the player.
 Use only the supplied AC adaptor to charge the battery.
Note
 The type plate is located on the bottom of the player.
 You can only charge the player when it is in power-off mode.
1 Slide the  switch to OFF position.
PD7030B_12_UM_V1.0.indd 13 2012/2/10 17:55:32

14 EN
2 Connect the supplied AC adaptor to the player and to the AC outlet.
» The CHR indicator turns on (red).
» When the battery is fully charged, the CHR indicator turns off.

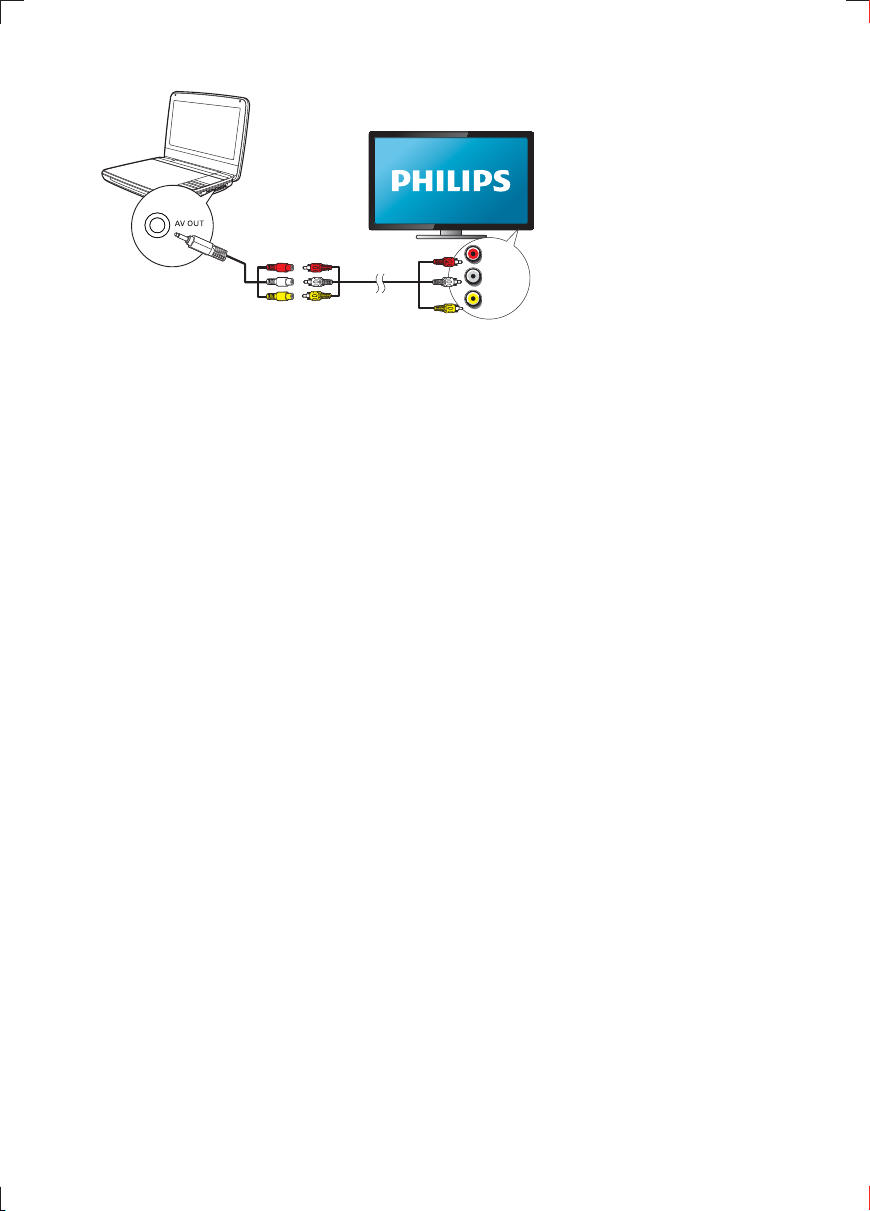

Connect additional equipment
Caution
 Turn off your player before connecting to any additional equipment.

PD7030B_12_UM_V1.0.indd 14 2012/2/10 17:55:32

15EN
Match the color of the AV cables (the AV cable connected to TV is not supplied)
with the jacks:
 the yellow cable is for the yellow video jack
 the red/white cable is for the red/white audio jacks.
L
R
VIDEO IN
PD7030B_12_UM_V1.0.indd 15 2012/2/10 17:55:32

16 EN
4 Use your player
Turn on
Slide the  switch to the ON position.
» The indicator turns on (green).
Select OSD language
You can choose a different language for the on-screen display text.
1 Press OPTIONS .
» The options menu is displayed.
2 Select [Setup] > [General] > [Language].
3 Press / to select an option.
4 Press /OK
5 Press OPTIONS to exit.
PD7030B_12_UM_V1.0.indd 16 2012/2/10 17:55:33

17EN
Play discs
1 Slide OPEN on the player.
2 Insert the disc with label side facing up.
3 Push down to close the disc compartment.
» Play starts automatically. If not, press /OK.
 If a menu is displayed, select an item, then press /OK to start play.
 To pause, press /OK. Press again to resume play.
 To stop, press STOP twice.
 To select the previous/next item, press or .
 To start search within video/audio, press or once or more.
Play options
1 During play, press to select some play options.
2 Follow the on-screen instructions.
PD7030B_12_UM_V1.0.indd 17 2012/2/10 17:55:33

18 EN
5 Adjust settings

1 Press .
» The options menu is displayed.
2 Select [Setup].
» The setup menu is displayed.
3 Use navigation keys to select an option and press /OK
[General]
[Language] Select on-screen display language
[PBC settings] Set playback control function on/off.
[Power save] Select power save mode.
 Get DivX registration code.
[DivX subtitles] Select DivX subtitle language.
 Select parental options.
[Set password] Change existing password (3308 by default).
[Factory settings] Restore factory settings.
[Video]
[LCD Display] Set screen display aspect ratio.
[TV standard] Set video output format to TV system.
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[ Audio]
[Dolby] Set Dolby output.
[Version] Check the version information.
4 Press to go back to the previous menu.
5 Press to exit.
PD7030B_12_UM_V1.0.indd 18 2012/2/10 17:55:33

19EN
6 Product information
Note
 Product information is subject to change without prior notice.
Dimensions 195 x 154 x 37 mm
Weight 0.675 kg
Power supply Input: 100-240V~ 50/60Hz
Output: DC 9V 0.8A
Power consumption 7.2 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
Video output
Format PAL & NTSC
Output level 1Vp - p ± 20%
Load impedance 75
Audio line out
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
Audio distortion + noise -80 (1KHz)
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio 80 dB
Channel separation 80 dB
Dynamic range 80 dB
PD7030B_12_UM_V1.0.indd 19 2012/2/10 17:55:34

20 EN
7 Troubleshooting
Warning
 Risk of electric shock. Never remove the casing of the player.
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using the player, check the following points
before requesting service. If the problem remains unsolved, register your player
and get support at www.philips.com/welcome.
No power
Ensure that both plugs of the mains cord are properly connected.
Ensure that there is power at the AC outlet.
Check if the built-in battery is drained.
No sound
 Ensure that the AV cable is connected correctly.
Distorted picture
Clean the disc.With a clean, soft, lint-free cloth, wipe the disc outwards from
the center.
Make sure that the video output format of the disc is compatible with theTV.
Change the video output format to match your TV or program.
The LCD is manufactured using high precision technology.You may, however,
see tiny black points and/or bright points(red, blue, green) that continuously
appear on the LCD.This is a normal result of the manufacturing process and
does not indicate a malfunction.
Cannot play disc
Ensure the disc label is upwards.
Clean the disc.With a clean, soft, lint-free cloth, wipe the disc outwards from
the center.
Check if the disc is defective by trying another disc.
The player feels warm
 When the player is in use for a long period of time, its surface will be heated.
This is normal.
PD7030B_12_UM_V1.0.indd 20 2012/2/10 17:55:34

Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
PD7030B_12_UM_V1.0
PD7030B_12_UM_V1.0.indd 24 2012/2/10 17:55:34
