1EN
Contents
1 Important 3
Safety and notice 3
Safety 3
Compliance 4
Care of the environment 4
Copyright 5
Warranty 6
2 Your portable DVD player 7
What's in the box 7
Overview 8
Use the remote control 12
3 Get started 13
Charge power 13
Switch the player on or off 15
Select the language for onscreen instructions 15
4 Play music or movies 17
Play from discs 17
Play from USB 20
Connect additional equipment 20

2EN
5 Watch TV 22
Connect TV antenna 22
Tune in to TV channels 22
6 Adjust settings 25
7 Specications 26
8 Troubleshooting 28

3EN
1 Important
Safety and notice
Read and understand all instructions before you use this product. If damage is
caused by failure to follow the instructions, the warranty does not apply.
Safety
Only use attachments/accessories specied by the manufacturer.
Use only power supplies listed in the user manual.
The product shall not be exposed to dripping or splashing.
Do not place any sources of danger on the product (e.g. liquid lled objects,
lighted candles).
Batteries (battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
Where the plug of the Direct Plug-in Adapter is used as the disconnect device, the
disconnect device shall remain readily operable.
Risk of swallowing batteries!
• The product or remote control may contain a button cell battery, which is
possible to be swallowed. Keep the battery out of reach of children at all
times! If swallowed, the battery can cause serious injury or death. Severe
internal burns can occur within two hours of ingestion.
• If you suspect that a battery has been swallowed or placed inside any part of
the body, seek immediate medical attention.
• When you change the batteries, always keep all new and used batteries out
of reach of children. Ensure that the battery compartment is completely
secure after you replace the battery.
• If the battery compartment cannot be completely secured, discontinue use
of the product. Keep out of reach of children and contact the manufacturer.

4EN
Warning
•Never remove the casing of this product.
•Never lubricate any part of this product.
•Never place this product on other electrical equipment.
•Keep this product away from direct sunlight, naked ames or heat.
•Never look into the laser beam inside this product.
•Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the
product from the power.
Compliance
This apparatus includes this label:
Note
•The type plate is located on the bottom of the product.
Care of the environment
Recycling the product and the built-in battery
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical and electronic
products and batteries.
The correct disposal of these products helps prevent potentially negative
consequences on the environment and human health.

5EN
Please visit www.recycle.philips.com for additional information on a recycling
center in your area.
Caution
•Removal of the built-in battery invalidates the warranty and can destroy the product.
Environmental information
All unnecessary packaging has been omitted.We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
regarding the disposal of packaging materials, and old equipment.
Always bring your product to a professional to remove the built-in battery.
Copyright

6EN
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc, a
subsidiary of Rovi Corporation. This is an ofcial DivX Certied® device that plays
DivX video.Visit divx.com for more information and software tools to convert
your les into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be
registered in order to play purchased DivXVideo-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete your
registration.
Warranty
• Never attempt to repair the product, this could lead to the risk of injury,
damage to the product and will void your warranty.
• Use the product and accessories only as intended by the manufacturer.The
caution sign printed on the back of the product indicates risk of electric
shock.
• Never remove the cover of the product. Always contact Customer Support
for service or repairs.
• Any operation expressly prohibited in this manual, or any adjustments and
assembly procedures not recommended or authorized in this manual shall
void the warranty.

7EN
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benet from
the support that Philips offers, register your product at www.philips.com/welcome.
What's in the box
Check and identify the contents of your package:
• Portable DVD player
• Remote control
• AC power adaptor - ASCU12E-090080
• Car adaptor
• AV cable
• Antenna
• Mounting bag
• Short user manual

8EN
Overview
Main unit
a Display panel
b STOP
• Stops disc play.
• Press and hold to exit theTV search menu
c
• Adjusts brightness of the screen backlight.
d SETUP
• Accesses or exits the setup menu.
e ANTENNA
• Antenna jack.
o
p
n
m
r
s
l
k
i
j
h
g
f
e
a
d
c
b
q

9EN
f
• Connects USB device.
g AV OUT
• Audio/video output jack.
h
• Headphone jack.
i + VOL -
• Increases or decreases volume.
j (CHR)OFF•POWER•ON
• Turns on/off DVD player.
k CHR/
• Charging indicator/Power indicator.
l (CH+), (CH-), ,
• Navigates menus.
(CH+), (CH-)
• Switches to the next or previous channel.
,
• Searches backward/forward at different speeds.
/OK
• Conrms an entry or selection.
• Starts, pauses or resumes disc play.
m PREV/NEXT
• Skips to the previous or next title, chapter, or track.
n DISC MENU
• For DVD, accesses or exits disc menu.
• ForVCD, turns on or off PBC (Playback Control) mode.
• ForVCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
• For data discs, goes to the le manager screen.
o OPTIONS
• Accesses options relating to the current activity or selection.
p SOURCE
• Switches between DVD, USB and TV.

10 EN
q IR
• Remote control sensor.
r OPEN
• Opens the disc compartment.
s DC IN
• Power supply socket.
Remote control
a
• Adjusts brightness of the screen backlight.
b DISC MENU
• For DVD, accesses or exits disc menu.
• ForVCD, turns on or off PBC (Playback Control) mode.
• ForVCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
• For a USB device, accesses or exits the le menu.
OPTIONS
SOURCE
DISC
MENU
SUBTITLE
m
k
j
h
b
c
d
e
f
g
na
i
l

11EN
c A-B
• Marks the section for repeat play.
d OPTIONS
• Accesses options relating to the current activity or selection.
e SUBTITLE
• Selects a DVD subtitle language.
f AUDIO
• For DVD, selects an audio language.
• ForVCD, selects an audio mode.
g ZOOM
• Zooms into a video scene or picture.
h 0-9
• Inputs numbers.
i
• Stops disc play.
• Press and hold to exit theTV search menu.
j SETUP
• Accesses or exits the setup menu.
k , , ,
• Navigates menus.
,
• Searches backward/forward at different speeds.
/OK
• Conrms an entry or selection.
• Starts, pauses or resumes disc play.
l /
• Skips to the previous or next title, chapter, or track.
m SOURCE
• Switches between DVD, USB and TV.
n DISPLAY
• Displays play information.

12 EN
Use the remote control
Forrst-timeuse:
• Remove the protective tab to activate the remote control battery.
To replace the remote control battery:
1 Open the battery compartment.
2 Insert one CR2025 battery with correct polarity (+/-) as indicated.
3 Close the battery compartment.
1
2
3

13EN
3 Get started
Caution
•Use the controls only as stated in this user manual.
•Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of your
player.The model number and serial number are on the bottom of your player.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge power
Charge through the AC power adaptor
Caution
•Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed
on the bottom of the player.
Note
•The type plate is located on the bottom of the player.
•You can only charge the player when it is in power-off mode.

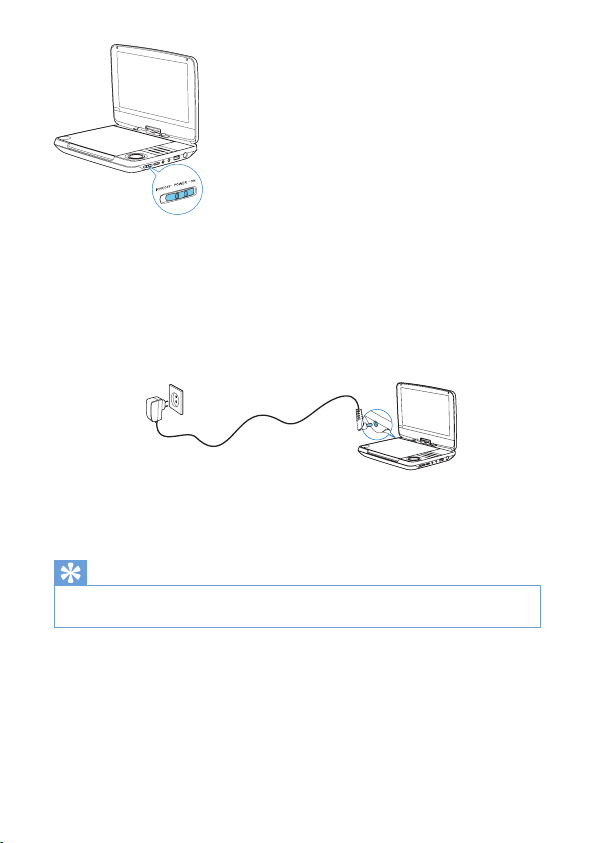

1 Push the (CHR)OFF•POWER•ON slider to (CHR)OFF.

14 EN
2 Connect the supplied AC adaptor to the player and to the AC outlet.
» The charge indicator turns on.
» When the battery is fully charged, the charge indicator turns off.
Tip
•To maximize battery life, recharge the battery immediately once the battery is fully discharged. If
you do not use the player for a long time, recharge the battery once every two months.

15EN
Charge through car adaptor
Connect the supplied car adaptor to the player and car cigarette lighter.
Switch the player on or off
1 To switch on, push the (CHR)OFF•POWER•ON slider to ON.
» The indicator turns on.
2 To switch off, push the slider to (CHR)OFF.
Select the language for onscreen instructions
You can choose a different language for the on-screen display text.
1 Press SETUP.
» The setup menu appears.

16 EN

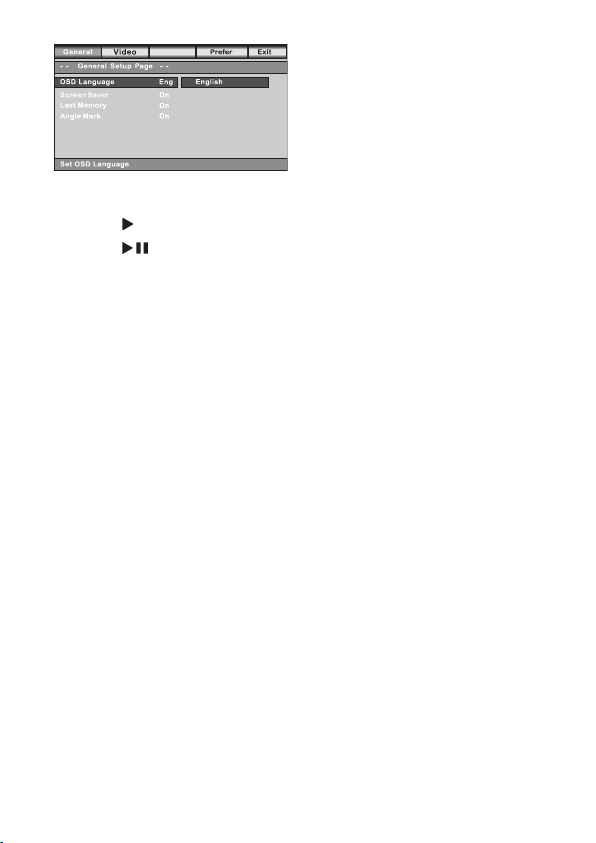

2 Go to [-- General Setup Page --] > [OSD Language].
3 Press to select an option.
4 Press /OK to conrm.
5 Press SETUP to exit.
TV
Русский
Українська

17EN
4 Play music or movies
Play from discs
1 Press SOURCE repeatedly to switch to the disc mode.
2 Press OPEN on the main unit to open the disc compartment.
3 Insert a disc with the label side facing up.
4 Push down to close the disc compartment.
» Play starts automatically.
• If a menu appears, select an item, then press /OKto start play.
• To pause, press /OK. Press again to resume play.
• To stop, press STOP twice.
• To select the previous/next item, press PREVorNEXT.
• To start search within video/audio, press or once or more.
Play options
Select audio language
You can select an audio language on DVDs or DivX discs.
1 Press OPTIONS.
» The option menu is displayed.
2 Press / to select an audio language.
3 Press /OK to conrm.
Alternatively,
• During disc play, press AUDIO repeatedly on the remote control to select
a language.
Select subtitle language
For DVDs that contain two or more subtitle languages.
1 Press OPTIONS.
» The option menu is displayed.
2 Press navigation keys to select a subtitle.
3 Press /OK to conrm.

18 EN
Alternatively,
• During disc play, press SUBTITLE repeatedly on the remote control to
select a language.
Repeat
During play, you can select different repeat options.
1 Press OPTIONS.
» The option menu is displayed.
2 Press navigation keys to select a repeat option.
For DVD
• Repeat Off: switch off the repeat mode
• Chapter: repeat the current chapter
• Title: repeat the current title or track
• All: repeat all titles on the disc
For VCD/MP3/CD/DivX
• Repeat Off: switch off the repeat mode
• Repeat One: repeat the current track
• Repeat Folder: repeat all the tracks in current folder
3 Press /OK to conrm.
4 Press OPTIONS to exit.
Tip
•For VCDs, if PBC is on, you cannot repeat items.
Repeat a section (on the remote control)
You can repeat a specic section of audio/video within a title/chapter/track (repeat
A-B).
1 During play, at the chosen start point, press A-B on the remote control.
» [ A] is displayed.
2 At the chosen end point, press A-B on the remote control again.
» [ AB] is displayed.
» The selected section plays repeatedly.
3 Press A-B on the remote control to cancel.
Zoom (on the remote control)
For DVDs,VCDs and JPEG CDs, you can zoom in and out for video images or
pictures.
