Contents
1 Important 4
Important Safety Instructions 4
Notice 6
2 Your portable DVD player 10
Introduction 10
What’s in the box 10
Overview of the main unit 11
Overview of the remote control 13
3 Get started 15
Charge the battery 15
Install remote control battery 16
Connect additional equipment 17
4 Use your player 18
Turn on 18
Select OSD language 18
Play discs 18
Play options 19
5 Adjust settings 19
6 Product information 20
7 Troubleshooting 21

4
1 Important
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
jOnly use attachments/accessories specified by the manufacturer.
kUse only with the cart, stand, tripod, bracket, or table specified by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
lUnplug this apparatus during lightning storms or when unused for
long periods of time.
mRefer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
EN

5
nBatteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g. liquid
filled objects, lighted candles).
qWhere the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked flames or heat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
English
EN

6
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
Be sure to observe the following guidelines when using your
headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Notice
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
EN

7
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical
and electronic products. The correct disposal of your old product helps
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
English
EN

8
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
This item incorporates copy protection technology that is protected by
U.S. patents and other intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
“DivX, DivX” Certified, and associated logos are trademarks of DivX, Inc.
and are used under license.
EN

9
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
This apparatus includes this label:
English
EN

10
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips!To fully benefit
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-
RW, DVD±R and DVD±RW):
DVD-Video•
Video CD•
Audio CD•
MP3 CD•
DivX•
Discs with JPEG files•
What’s in the box
Check and identify the contents of your package:
Portable DVD player•
Remote control•
AC power adaptor, ASUC12C-090080 (Philips)•
Car adaptor•
AV cables•
Car mounting pouch•
User Manual•
Quick Start Guide•
EN

11

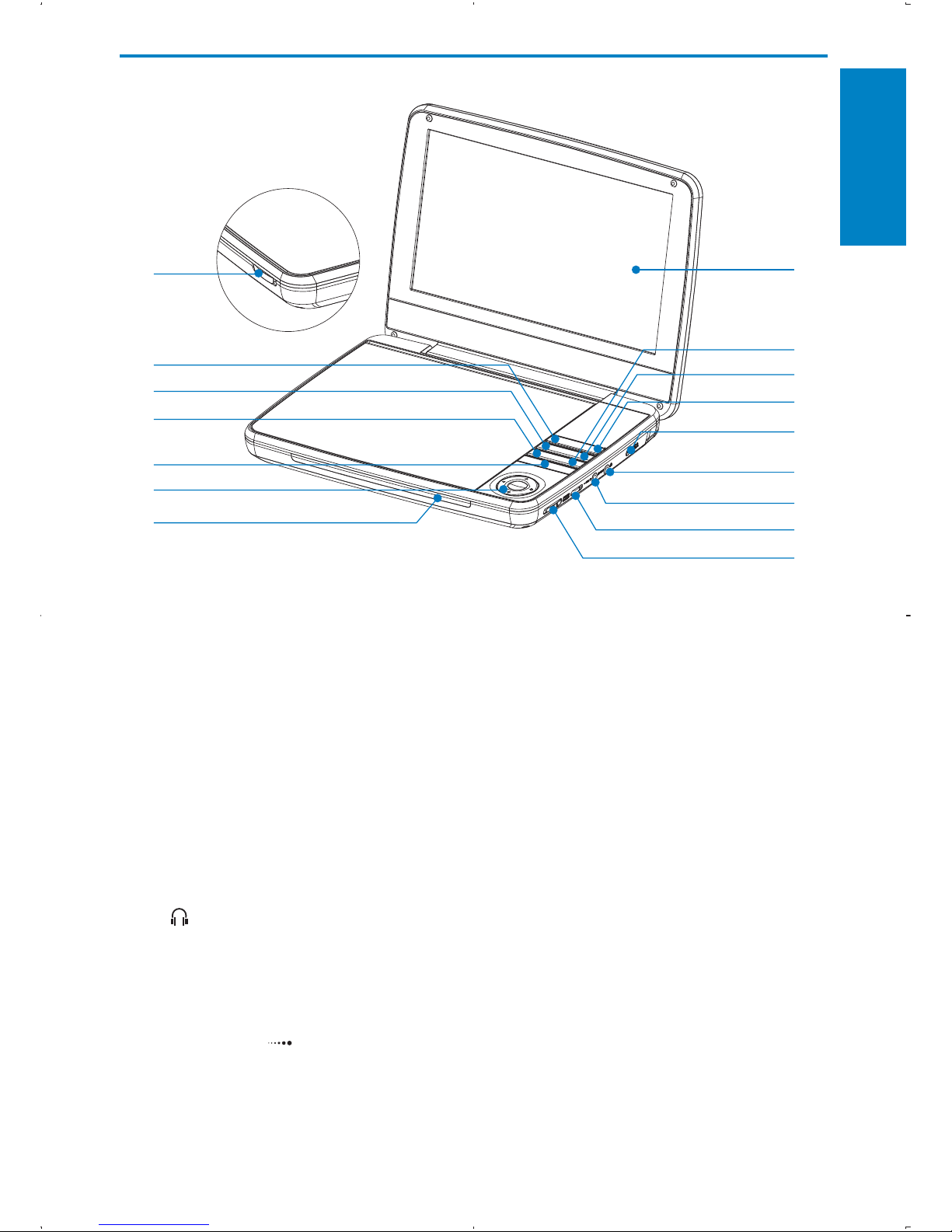

Overview of the main unit
aDisplay panel
bSTOP
Stops disc play.•
cSUBTITLE
Selects DVD subtitle language.•
dOPTIONS
Accesses options relating to the current activity or selection.•
eDC IN
Power supply socket.•
f
Headphone jack.•
gAV OUT
Audio/video output jack.•
hVOLUME
Increases or decreases volume.•
p
o
n
m
j
k
l
a
e
d
c
b
g
h
i
f
English
EN

12
iPOWER ON/OFF (CHR)
Turns on/off DVD player.•
jCHR/IR/
Charging indicator/Remote control sensor/Power indicator.•
k, , ,
Navigates menus.•
,
Searches backward/forward at different speeds.•
/OK
Confirms an entry or selection.•
Starts, pauses or resumes disc play.•
l,
Skips to the previous or next title, chapter, or track.•
mDISC MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
nAUDIO
For DVD, selects an audio language.•
For VCD, selects an audio mode.•
oSETUP
Accesses or exits the setup menu.•
pOPEN
Opens the disc compartment.•
EN

13

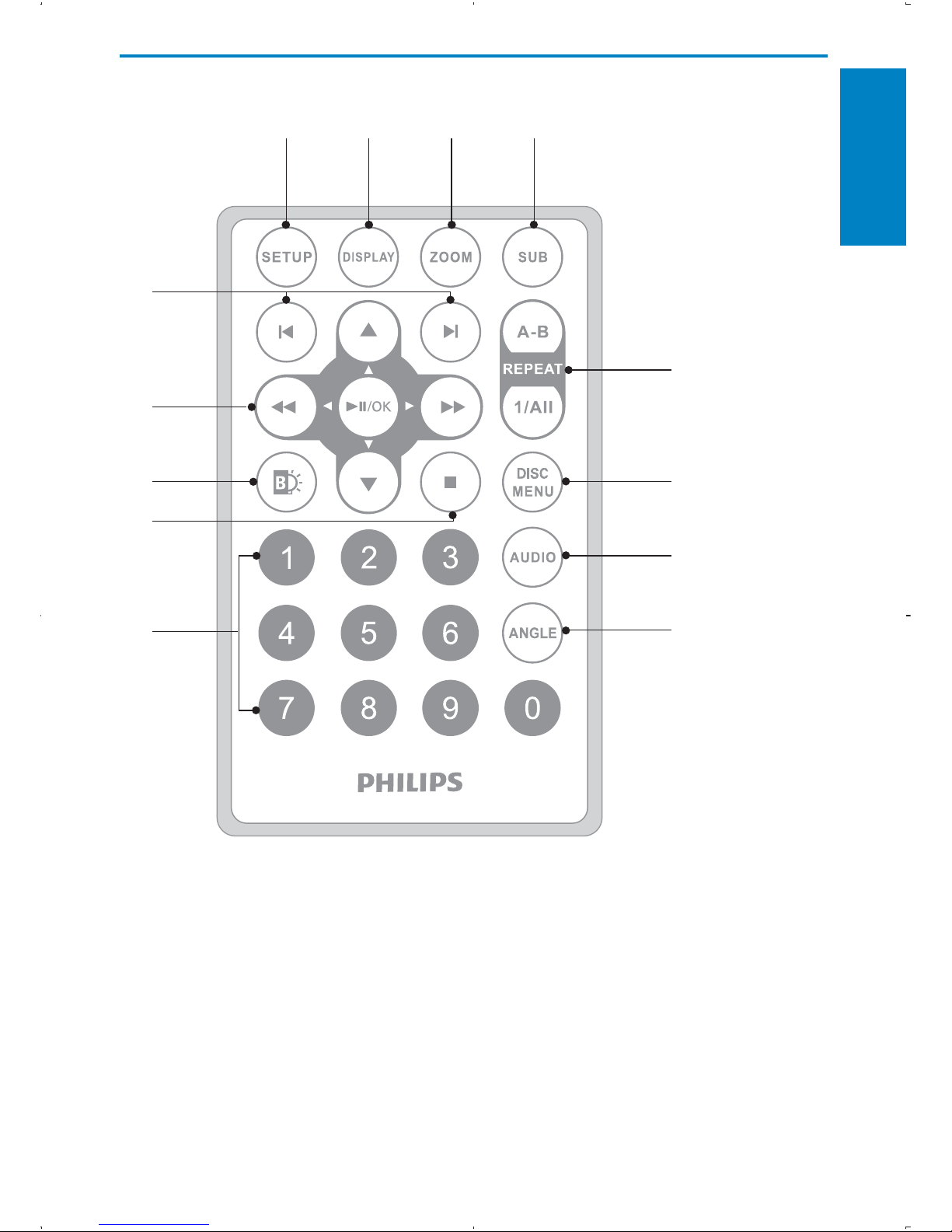

Overview of the remote control
aSETUP
Access or exit the setup menu.•
bDISPLAY
Display play information.•
cZOOM
Zoom in or out.•
dSUB
Select DVD subtitle language.•
i
j
k
l
m
e
f
h
abcd
g
English
EN

14
eA-B REPEAT
Mark the section for repeat play.•
REPEAT 1/ALL
Repeat a chapter/track/title.•
fDISC MENU
For DVD, access or exit disc menu.•
For VCD, turn on or off PBC (Playback Control) mode.•
gAUDIO
For DVD, select an audio language.•
For VCD, select an audio mode.•
hANGLE
Select a different viewing angle of a DVD.•
iNumeric Keypad 0 - 9
Input numbers.•
j
Stop disc play.•
k
Adjust brightness of the screen backlight.•
l, , ,
Move cursor up/down/left/right.•
,
Search backward or forward at different speeds.•
/OK
Start, pause or resume disc play.•
Confirm an entry or selection.•
m,
Skip to previous/next chapter, track or title.•
EN

15
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your player.The model number and serial number are on the bottom of your
player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge the battery
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
Note
The type plate is located on the bottom of the player.•
You can only charge the player when it is in power-off mode.•

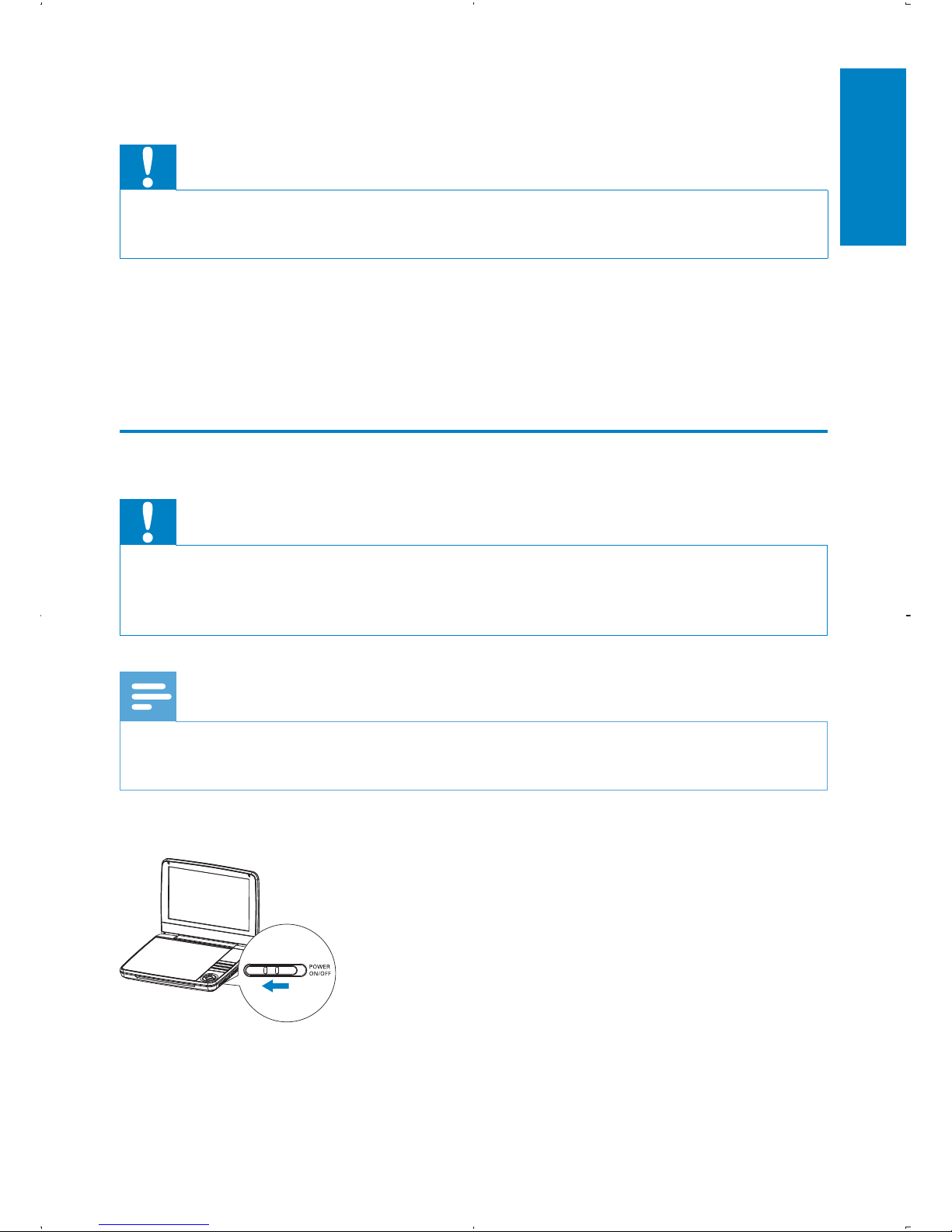

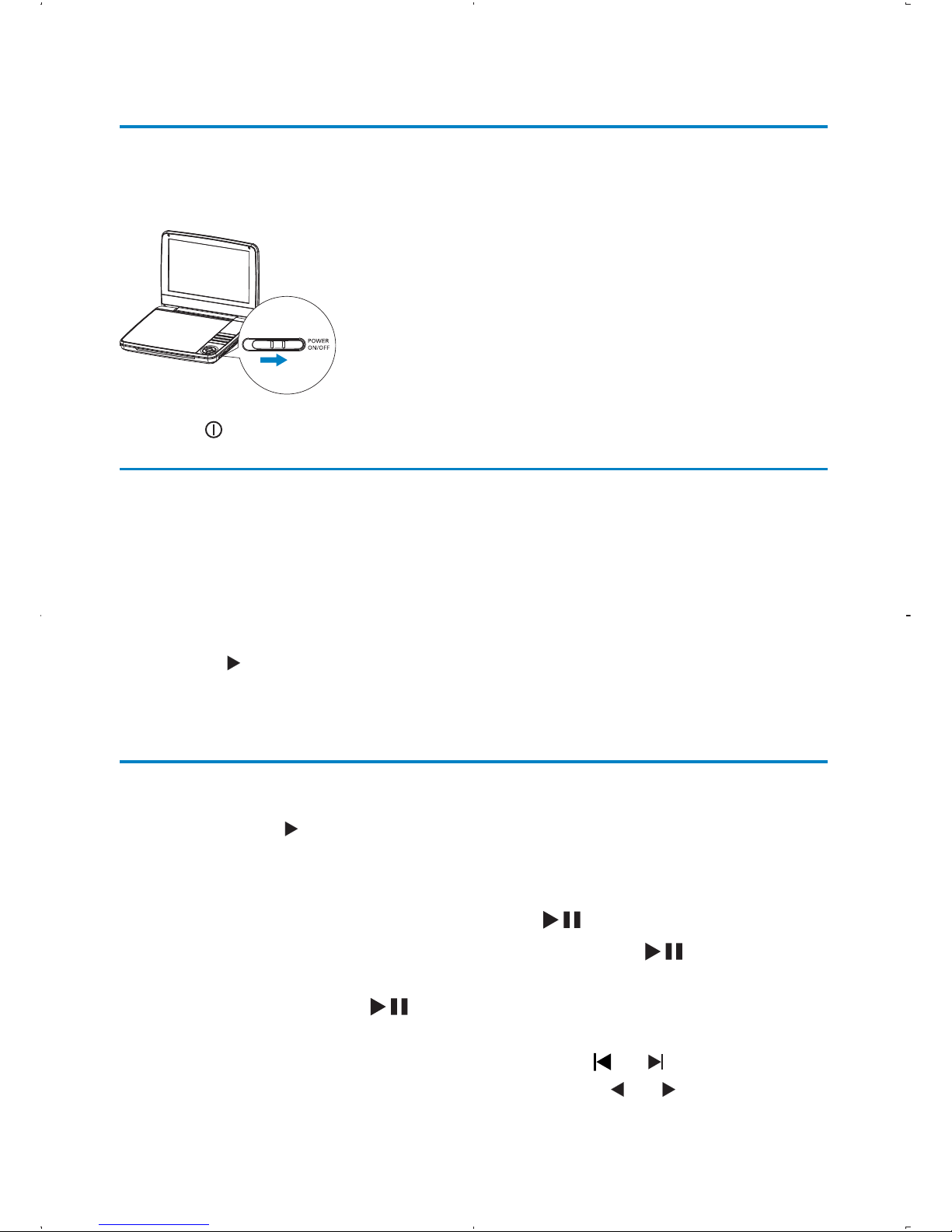

1Slide the POWER ON/OFF (CHR) switch to OFF position.

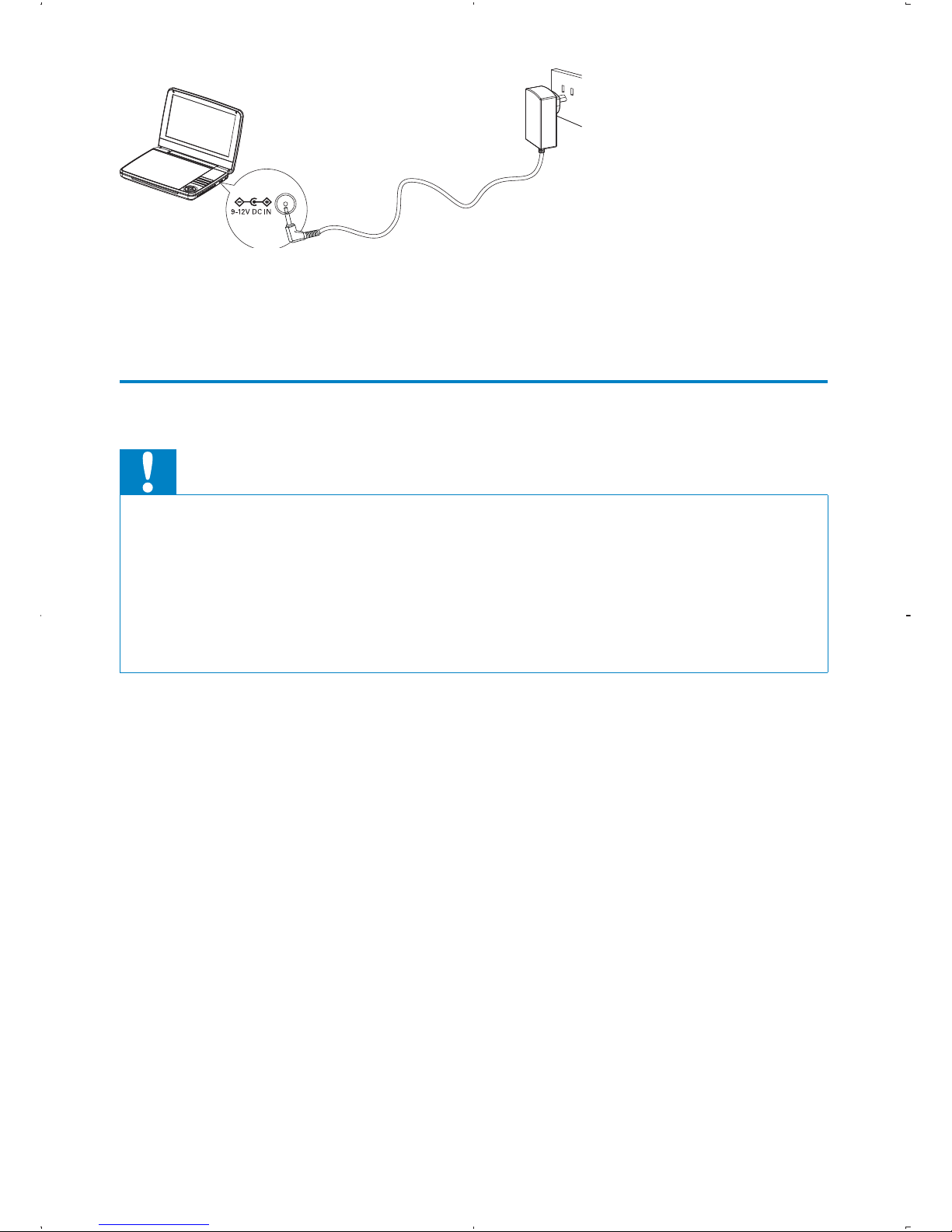

2Connect the supplied AC adaptor to the player and to the AC outlet.
English
EN

16
The»CHR indicator turns on (red). It takes about 7 hours to fully
charge the battery.
When the battery is fully charged, the»CHR indicator turns off.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard•
batteries in fire.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
•
equivalent type.
Batteries contain chemical substances, they should be disposed of properly.
•
Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/•
hazardouswaste/perchlorate.
For first-time use:
1Remove the protective tab to activate the remote control battery.
To replace the remote control battery:
1Open the battery compartment.
2Insert 1 CR2025 battery with correct polarity (+/-) as indicated.
3Close the battery compartment.
EN

17

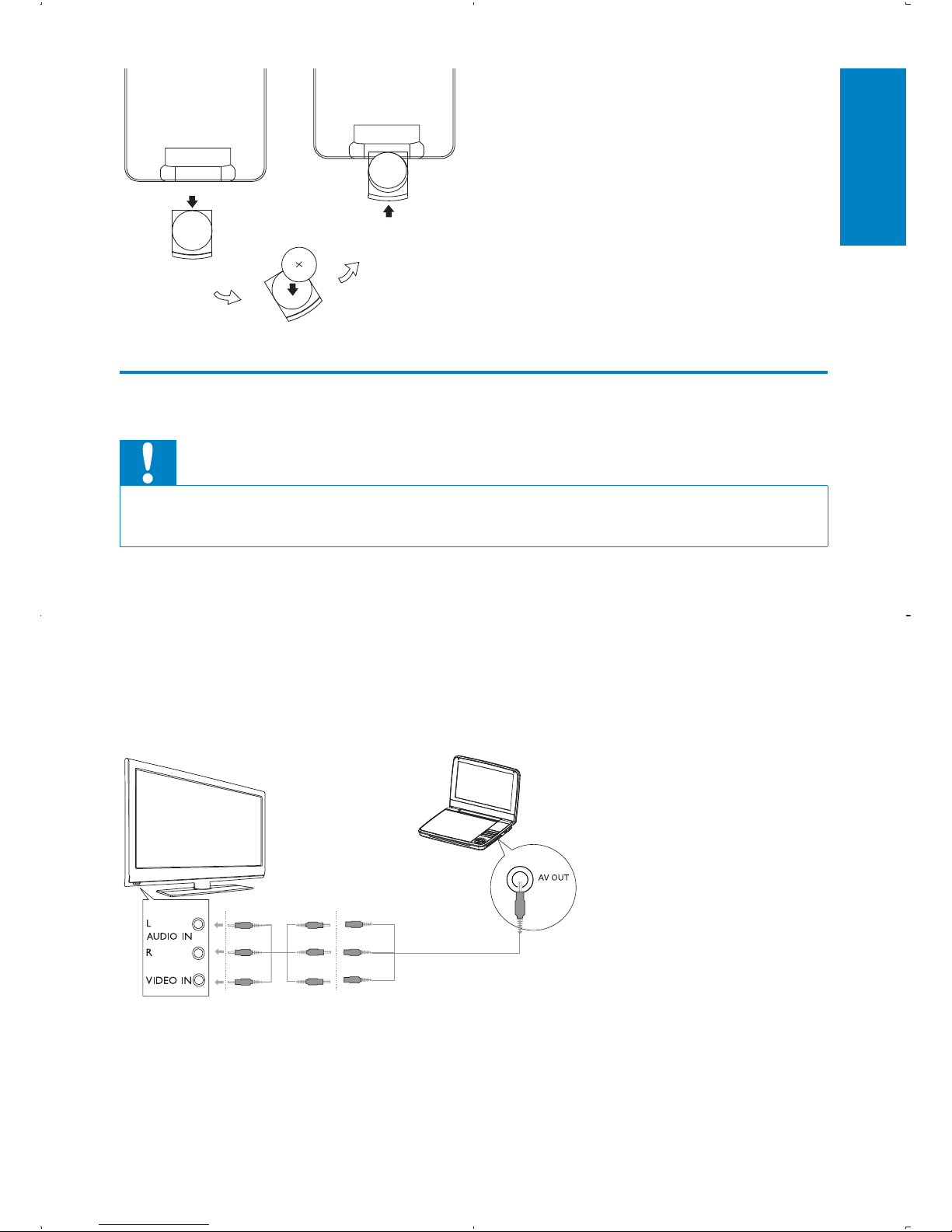

Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.•
You can connect the player to a TV or an amplifier to enjoy DVDs or
Karaoke.
Match the color of the AV cables (the AV cable connected to TV is not
supplied) with the jacks:
the yellow cable is for the yellow video jack•
the red/white cable is for the red/white audio jacks.•
TV
English
EN

18
4 Use your player
Turn on
Slide the POWER ON/OFF (CHR) switch to the ON position.
The»indicator turns on (green).
Select OSD language
You can choose a different language for the on-screen display text.
1Press SETUP.
The setup menu appears.»
2Select [-- General Setup Page --] > [OSD Lang].
3Press to select an option.
4Press OK to confirm.
5Press SETUP to exit.
Play discs
1Slide OPEN on the player.
2Insert the disc with label side facing up.
3Push down to close the disc compartment.
Play starts automatically. If not, press»/OK.
If a menu appears, select an item, then press• /OK to start
play.
To pause, press• /OK. Press again to resume play.
To stop, press• STOP twice.
To select the previous/next item, press• or .
To start search within video/audio, press• or once or more.
EN

19
Play options
1During play, press OPTIONS to select some play options.
2Follow the on-screen instructions.
5 Adjust settings
To maximize your play experience, use SETUP to fine tune your settings.
1Press SETUP.
The setup menu is displayed.»
2Use navigation keys to select an option and press OK to confirm.
[-- General Setup Page --]
[OSD Language] Select on-screen display language.
[Screen Saver] Activate/deactivate screen saver.
[Last Memory] Select whether to start play from
the point where it was last stopped.
[Angle Mark] select angle mark display options.
[-- Video Setup Page --]
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[TV Display] Select display ratio.
[TV Type] Set video output format to TV
system.
[-- Battery Life Setup Page --]
[LCD Backlight] Adjust the default brightness level
of screen backlight.
[-- Preference Page --]
[Audio] Select audio language.
[Subtitle] Select DVD subtitle language.
[Disc Menu] Select disc menu language.
[Parental] Select parental level.
[DivX Subtitle] Select DivX subtitle language.
English
EN

20
[Password] Change password (3308 by default).
[DivX VOD] Get DivX registration code.
[Default] Restore original settings.
3Press to go back to the previous menu.
4Press SETUP to exit.
6 Product information
Note
Product information is subject to change without prior notice.•
Dimensions 239 x 39 x 178 mm
Weight 1.1 kg
Power supply Input: 100-240V~ 50/60Hz
Output: DC 9V 0.8A
Power consumption 9 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
Video output
Format PAL & NTSC
Output level 1Vp - p ± 20%
Load impedance 75
Audio line out
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
Audio distortion + noise -80 (1KHz)
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio 80 dB
EN
