Philips PET736/77 User manual

Register your product and get support at
www.philips.com/welcome
PET736/98
EN User manual
EN.indd Sec3:1EN.indd Sec3:1 2009-6-25 11:32:462009-6-25 11:32:46

3
English
EN
Contents
1 Important 4
Important safety instructions 4
Notice 6
2 Your portable DVD player 9
Introduction 9
What’s in the box 10
Overview of the main unit 10
Overview of the remote control 13
3 Get started 15
Charge the battery 15
Install remote control battery 16
Connect additional equipment 17
4 Use your player 17
Turn on 17
Select OSD language 17
Play discs 18
Play from USB 18
Play options 19
Adjust brightness of screen backlight 20
5 Adjust settings 20
6 Product information 22
7 Troubleshooting 22
EN.indd Sec1:3EN.indd Sec1:3 2009-6-25 11:32:492009-6-25 11:32:49

4
1 Important
Important safety instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
i Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
j Only use attachments/accessories specified by the manufacturer.
k Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
l Unplug this apparatus during lightning storms or when unused for
long periods of time.
EN
EN.indd Sec1:4EN.indd Sec1:4 2009-6-25 11:32:502009-6-25 11:32:50

5
m Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
n Apparatus shall not be exposed to dripping or splashing.
o Do not place any sources of danger on the apparatus (e.g. liquid
filled objects, lighted candles).
p This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked flames or heat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
English
EN
EN.indd Sec1:5EN.indd Sec1:5 2009-6-25 11:32:502009-6-25 11:32:50

6
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
Be sure to observe the following guidelines when using your
headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Notice
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
This product complies with the requirements of the following directives
and guidelines: 2004/108/EC + 2006/95/EC
EN
EN.indd Sec1:6EN.indd Sec1:6 2009-6-25 11:32:502009-6-25 11:32:50

7
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical
and electronic products. The correct disposal of your old product helps
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
When you see the crossed-out wheel bin symbol with the chemical
symbol ‘Pb’, it means that the batteries comply with the requirement set
by the directive for lead:
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.

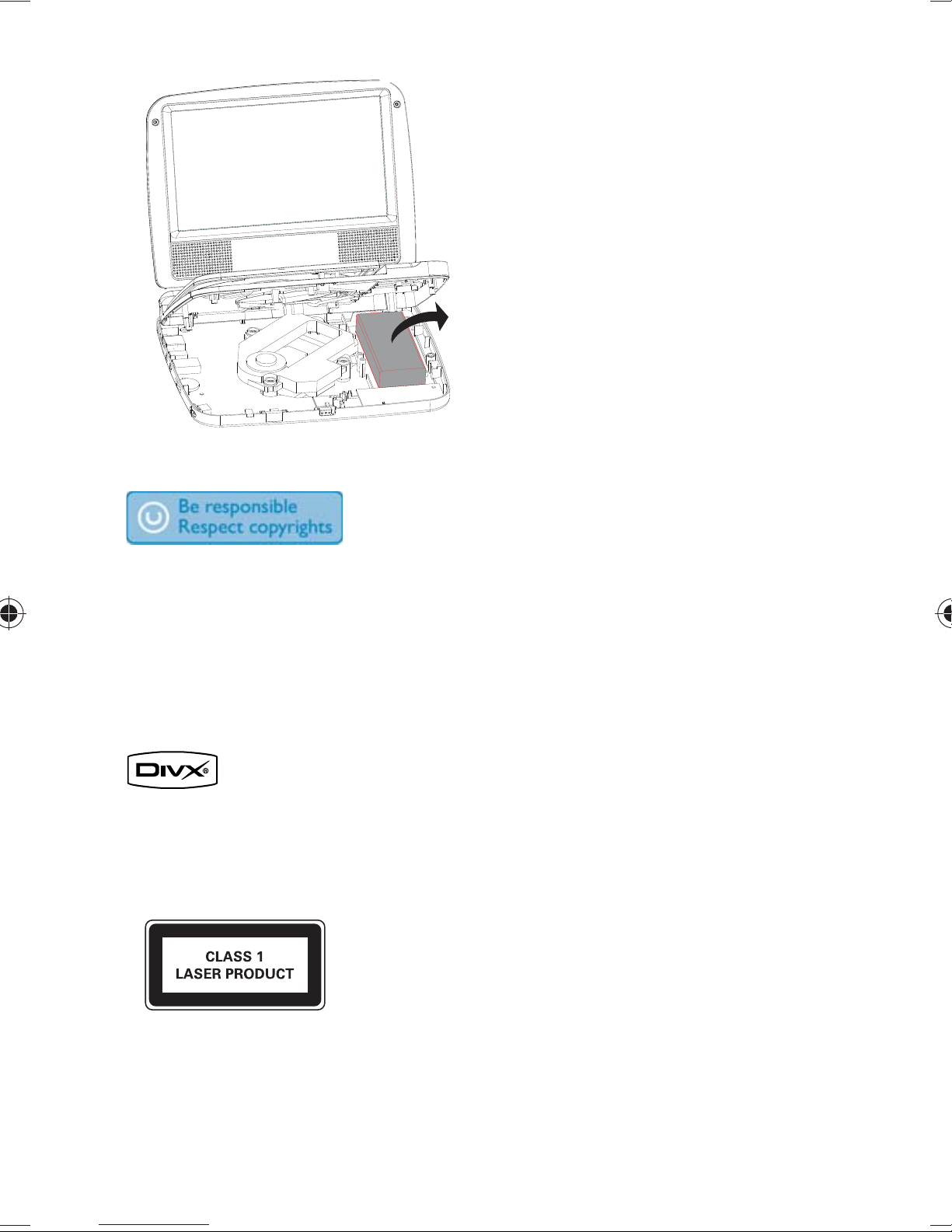

Always bring your product to a professional to remove the built-in battery.
English
EN
EN.indd Sec1:7EN.indd Sec1:7 2009-6-25 11:32:512009-6-25 11:32:51

8
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
“DivX, DivX” Certified, and associated logos are trademarks of DivX, Inc.
and are used under license.
This apparatus includes this label:
EN
EN.indd Sec1:8EN.indd Sec1:8 2009-6-25 11:32:512009-6-25 11:32:51

9
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benefit
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-
RW, DVD±R and DVD±RW):
DVD-Video
Video CD
Audio CD
MP3 CD
English
EN
EN.indd Sec1:9EN.indd Sec1:9 2009-6-25 11:32:522009-6-25 11:32:52

10
JPEG files
What’s in the box
Check and identify the contents of your package:
Portable DVD player•
AC power adaptor, DSA-9W-09 F (DVE) or AY4132 (Philips)•
AV cable•
Car adaptor•
User Manual•
Quick Start Guide•
Overview of the main unit
a SOURCE
Switches between DVD, and USB.•
a
e
b
c
f
d
gh
EN
EN.indd Sec1:10EN.indd Sec1:10 2009-6-25 11:32:532009-6-25 11:32:53

11
b AV OUT
Selects AV out mode.•
c
Adjusts brightness of the screen backlight.•
d
Stops disc play.•
e MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
f , , ,
Navigates through the menus.•
,
Selects a different viewing angle of a DVD.•
,
Searches backward/forward at different speeds.•
Skips to the previous or next title, chapter, or track.•
/OK
Confirms an entry or selection.•
Starts, pauses or resumes disc play.•
g OPEN
Opens the disc compartment.•
h POWER
Power indicator.•
i (CHR)OFF ON
Turns on/off DVD player.•
ijkmlno
English
EN
EN.indd Sec1:11EN.indd Sec1:11 2009-6-25 11:32:542009-6-25 11:32:54

12
j VOL +/-
Increases or decreases volume.•
k
Headphone jack.•
l AV OUT
Audio/video output jack.•
m
Connects USB device.•
n CHR
Charging indicator.•
o DC IN 9-12V
Power supply socket.•
EN
EN.indd Sec1:12EN.indd Sec1:12 2009-6-25 11:32:552009-6-25 11:32:55

13
Overview of the remote control
a SOURCE
Switches between DVD, and USB.•
b DISPLAY
Displays play information.•
c
Adjusts brightness of the screen backlight.•
i
j
k
l
m
e
f
h
abcd
g
English
EN
EN.indd Sec1:13EN.indd Sec1:13 2009-6-25 11:32:552009-6-25 11:32:55

14
d MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
e A-B REPEAT
Marks the section for repeat play.•
REPEAT 1/ALL
Repeats a chapter/track/title.•
f SUB
Selects DVD subtitle language.•
g AUDIO
For DVD, selects an audio language.•
For VCD, selects an audio mode.•
h ZOOM
Zooms in or out of the picture.•
i 0-9
Inputs numbers.•
j
Stops disc play.•
k SETUP
Accesses or exits the setup menu.•
l
, , ,
Navigates through the menus.•
,
Selects a different viewing angle of a DVD.•
,
Searches backward/forward at different speeds.•
Confirms an entry or selection.•
Starts, pauses or resumes disc play.•
m /
Skips to the previous or next title, chapter, or track.•
EN
EN.indd Sec1:14EN.indd Sec1:14 2009-6-25 11:32:562009-6-25 11:32:56

15
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your player.The model number and serial number are on the bottom of your
player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge the battery
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
Note
The type plate is located on the bottom of the player.•
You can only charge the player when it is in power-off mode.•
1 Slide the (CHR)OFF ON switch to (CHR)OFF position.
2 Connect the supplied AC adaptor to the player and to the AC outlet.
English
EN
EN.indd Sec1:15EN.indd Sec1:15 2009-6-25 11:32:572009-6-25 11:32:57

16
The charge indicator turns on. It takes about 4.5 hours to fully»
charge the battery.
When the battery is fully charged, the charge indicator turns off.»
Install remote control battery
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard•
batteries in fire.
Risk of decreased battery life! Never mix different brands or types of batteries.
•
Risk of product damage! When the remote control is not used for long periods,•
remove the batteries.
Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/
•
hazardouswaste/perchlorate.
For first-time use:
1 Remove the protective tab to activate the remote control battery.
To replace the remote control battery:
1 Open the battery compartment.
2 Insert 1 CR2025 battery with correct polarity (+/-) as indicated.
3 Close the battery compartment.
EN
EN.indd Sec1:16EN.indd Sec1:16 2009-6-25 11:32:572009-6-25 11:32:57

17
Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.•
You can connect the player to a TV or an amplifier to enjoy DVDs or
Karaoke.
Match the color of the AV cables (the AV cable connected to TV is not
supplied) with the jacks: the yellow cable is for the yellow video jack, the red/
white cable is for the red/white audio jacks.
4 Use your player
Turn on
Slide the (CHR)OFF ON switch to the ON position.
The»POWER indicator turns on.
Select OSD language
You can choose a different language for the on-screen display text.
1 Press SETUP.
The setup menu appears.»
TV
English
EN
EN.indd Sec1:17EN.indd Sec1:17 2009-6-25 11:32:572009-6-25 11:32:57

18
2 Go to [-- General Setup Page --] > [OSD Language].
3 Press to select an option.
4 Press to confirm.
5 Press SETUP to exit.
Play discs
1 Slide OPEN on the player.
2 Insert the disc with label side facing up.
3 Push down to close the disc compartment.
Play starts automatically. If not, press».
If a menu appears, select an item, then press• to start play.
To pause, press• . Press again to resume play.
To stop, press• twice.
To select the previous/next item, press• or .
To start search within video/audio, press• or once or
more.
Play from USB
This player plays/views VOB, MP3, or JPEG files that are stored on USB
devices.
1 Connect the USB device to the player.
2 Press SOURCE to switch to USB mode.
The content menu appears.»
3 Select a file, then press .
Play starts.»
4 To stop play, press or remove the USB device.
EN
EN.indd Sec1:18EN.indd Sec1:18 2009-6-25 11:32:582009-6-25 11:32:58

19
Play options
Select audio language
For DVDs that contain two or more audio languages.
During play, press• AUDIO repeatedly until the language is selected.
Select subtitle language
For DVDs that contain two or more subtitle languages.
During play, press• SUB repeatedly until the language is selected.
Repeat
During play, press• REPEAT 1/ALL repeatedly to select different
repeat options.
Tip
For VCDs, if PBC is on, you cannot repeat items.•
Repeat a section
You can repeat a specific section of audio/video within a title/chapter/track
(repeat A-B).
1 During play, at the chosen start point, press A-B.
»[A] is displayed.
2 At the chosen end point, press A-B again.
»[AB] is displayed.
The selected section plays repeatedly.»
3 Press A-B to cancel.
Zoom
For DVDs, VCDs and JPEG CDs, you can zoom in and out for video
images or pictures.
1 Press ZOOM repeatedly to zoom in and out.
2 When the video image or picture is enlarged, press , , , to
pan through it.
English
EN
EN.indd Sec1:19EN.indd Sec1:19 2009-6-25 11:32:592009-6-25 11:32:59

20
Rotate pictures
For JPEG CDs only. While the JPEG is displayed:
Press• to rotate counter-clockwise.
Press• to rotate clockwise.
Press• to flip up/down.
Press• to flip left/right.
Adjust brightness of screen backlight
Note
You can adjusts brightness of the screen backlight to match lighting conditions.•
During play, press repeatedly to select an option.
• [Bright]
• [Normal]
• [Dim]
Tip
To achieve the longest playtime, select• [Dim].
To achieve the best view, select
• [Bright].
5 Adjust settings
To maximize your play experience, use SETUP to fine tune your settings.
1 Press SETUP.
The setup menu is displayed.»
2 Press to select an option and press to confirm.
[-- General Setup Page --]
[OSD Language] Select on-screen display language.
[Screen Saver] Activate/deactivate screen saver.
EN
EN.indd Sec1:20EN.indd Sec1:20 2009-6-25 11:33:002009-6-25 11:33:00

21
[Resume] Select whether to start play from the
point where it was last stopped.
[Angle Mark] Select angle mark display options.
[Display Setup Page]
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[Screen Display] Select display ratio.
[Battery Life Setup Page]
[LCD Backlight] Adjust the default brightness level of
screen backlight.
[-- Preference Page --]
[Audio] Select audio language.
[DVD Subtitle] Select DVD subtitle language.
[DivX Subtitle]*Select DivX subtitle language.
[Disc Menu] Select disc menu language.
[Parental] Select parental level.
[Password] Change password (3308 by default).
[DivX VOD] Get DivX registration code.
[Default] Restore original settings.
3 Press to go back to previous menu level.
4 Press SETUP to exit.
Note
*There are 3 options for• [DivX Subtitle].
Latin: Albanian, Breton, Catalan, Danish, Dutch, English, Faroese, Finnish, French,
•
Gaelic, German, Icelandic, Irish, Italian, Norwegian, Portuguese, Spanish and
Swedish.
Central Europe: Albanian, Croat, Czech, Dutch, English, German, Hungarian, Irish,
•
Polish, Romanian, Slovak, Slovene and Sorbian.
Turkish: Albanian, Danish, Dutch, English, Finnish, French, Gaelic, German, Italian,
•
Kurdish (Latin), Norwegian, Portuguese, Spanish, Swedish and Turkish.
English
EN
EN.indd Sec1:21EN.indd Sec1:21 2009-6-25 11:33:012009-6-25 11:33:01
