Philips PET736C User manual

Register your product and get support at
www.philips.com/welcome
PET736
EN User manual

3
English
EN
Contents
1 Important 4
Important safety instructions 4
Notice 6
2 Your portable DVD player 9
Introduction 9
What’s in the box 10
Overview of the main unit 10
Overview of the remote control 12
3 Get started 14
Charge the battery 14
Install remote control battery 15
Connect additional equipment 16
4 Use your player 17
Turn on 17
Select OSD language 17
Play discs 17
Play from USB 18
Play options 18
Adjust brightness of screen backlight 19
5 Adjust settings 20
6 Product information 21
7 Troubleshooting 22

4
1 Important
Important safety instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
jOnly use attachments/accessories specified by the manufacturer.
kUse only with the cart, stand, tripod, bracket, or table specified by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
lUnplug this apparatus during lightning storms or when unused for
long periods of time.
mRefer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
EN

5
exposed to rain or moisture, does not operate normally, or has
been dropped.
nApparatus shall not be exposed to dripping or splashing.
oDo not place any sources of danger on the apparatus (e.g. liquid
filled objects, lighted candles).
pThis product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org.
qWhere the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked flames or heat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
English
EN

6
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
Be sure to observe the following guidelines when using your
headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Notice
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
This product complies with the requirements of the following directives
and guidelines: 2004/108/EC + 2006/95/EC
EN

7
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical
and electronic products. The correct disposal of your old product helps
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
When you see the crossed-out wheel bin symbol with the chemical
symbol ‘Pb’, it means that the batteries comply with the requirement set
by the directive for lead:
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.

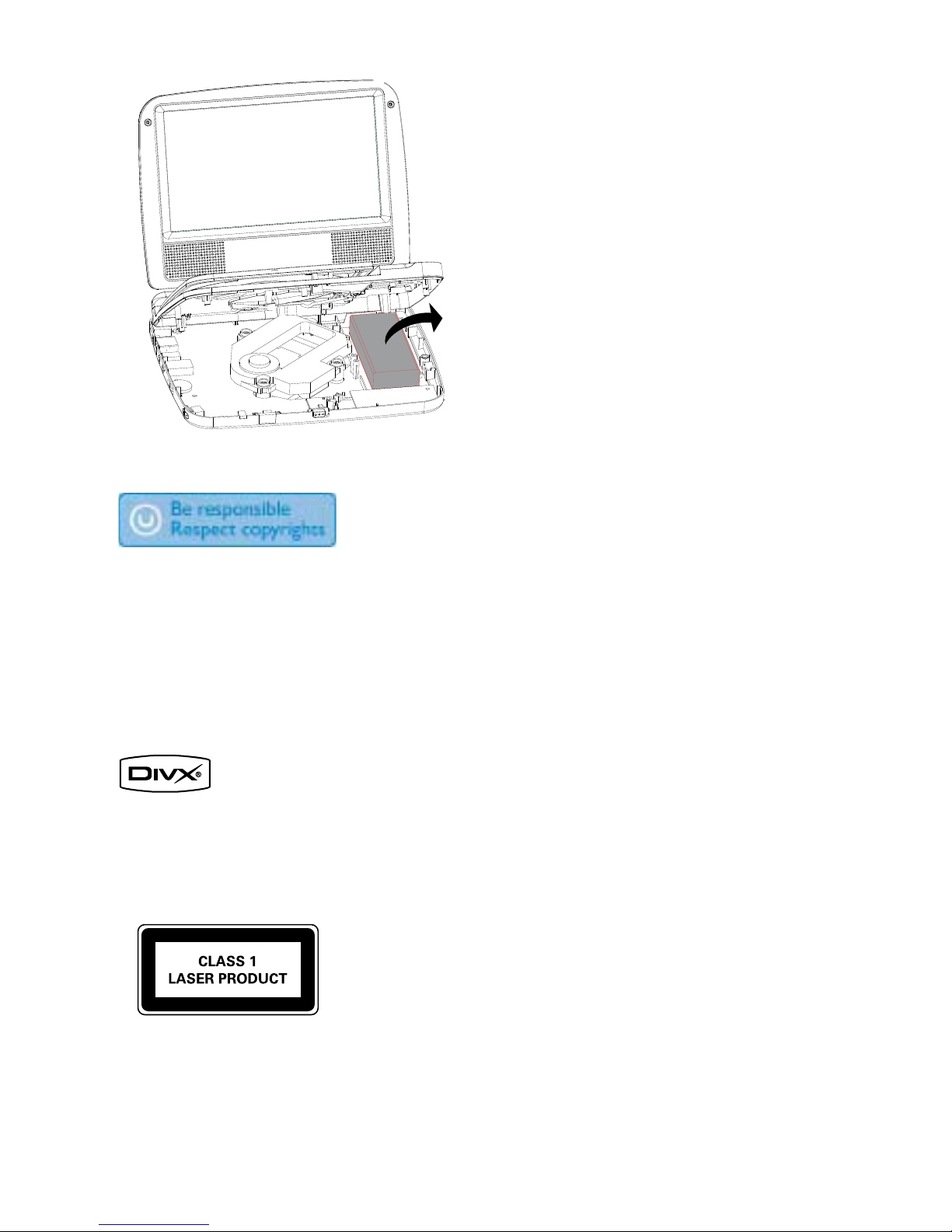

Always bring your product to a professional to remove the built-in battery.
English
EN

8
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
“DivX, DivX” Certified, and associated logos are trademarks of DivX, Inc.
and are used under license.
This apparatus includes this label:
EN

9
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips!To fully benefit
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-
RW, DVD±R and DVD±RW):
DVD-Video
Video CD
Audio CD
MP3 CD
JPEG files
English
EN

10
What’s in the box
Check and identify the contents of your package:
Portable DVD player•
AC power adaptor, DSA-9W-09 F (DVE) or AY4132 (Philips)•
AV cable•
Car adaptor•
Remote control•
Smart car mount•
User Manual•
Quick Start Guide•
Overview of the main unit
aSOURCE
Switches between DVD, and USB.•
bAV OUT
Selects AV out mode.•
c
Adjusts brightness of the screen backlight.•
a
e
b
c
f
d
gh
EN

11
d
Stops disc play.•
eMENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
f, , ,
Navigates through the menus.•
,
Selects a different viewing angle of a DVD.•
,
Searches backward/forward at different speeds.•
Skips to the previous or next title, chapter, or track.•
/OK
Confirms an entry or selection.•
Starts, pauses or resumes disc play.•
gOPEN
Opens the disc compartment.•
hPOWER
Power indicator.•
i(CHR)OFF ON
Turns on/off DVD player.•
jVOL +/-
Increases or decreases volume.•
k
Headphone jack.•
ijkmlno
English
EN

12
lAV OUT
Audio/video output jack.•
m
Connects USB device.•
nCHR
Charging indicator.•
oDC IN 9-12V
Power supply socket.•
Overview of the remote control
i
j
k
l
m
e
f
h
abcd
g
EN

13
aSOURCE
Switches between DVD, and USB.•
bDISPLAY
Displays play information.•
c
Adjusts brightness of the screen backlight.•
dMENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
eA-B REPEAT
Marks the section for repeat play.•
REPEAT 1/ALL
Repeats a chapter/track/title.•
fSUB
Selects DVD subtitle language.•
gAUDIO
For DVD, selects an audio language.•
For VCD, selects an audio mode.•
hZOOM
Zooms in or out of the picture.•
i0-9
Inputs numbers.•
j
Stops disc play.•
kSETUP
Accesses or exits the setup menu.•
English
EN

14
l, , ,
Navigates through the menus.•
,
Selects a different viewing angle of a DVD.•
,
Searches backward/forward at different speeds.•
Confirms an entry or selection.•
Starts, pauses or resumes disc play.•
m/
Skips to the previous or next title, chapter, or track.•
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your player.The model number and serial number are on the bottom of your
player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge the battery
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
EN

15
Note
The type plate is located on the bottom of the player.•
You can only charge the player when it is in power-off mode.•
1Slide the (CHR)OFF ON switch to (CHR)OFF position.
2Connect the supplied AC adaptor to the player and to the AC outlet.
The charge indicator turns on. It takes about 4.5 hours to fully»
charge the battery.
When the battery is fully charged, the charge indicator turns off.»
Install remote control battery
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard•
batteries in fire.
Risk of decreased battery life! Never mix different brands or types of batteries.
•
Risk of product damage! When the remote control is not used for long periods,•
remove the batteries.
Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/
•
hazardouswaste/perchlorate.
For first-time use:
1Remove the protective tab to activate the remote control battery.
To replace the remote control battery:
1Open the battery compartment.
2Insert 1 CR2025 battery with correct polarity (+/-) as indicated.
3Close the battery compartment.
English
EN

16
Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.•
You can connect the player to a TV or an amplifier to enjoy DVDs or
Karaoke.
Match the color of the AV cables (the AV cable connected to TV is not
supplied) with the jacks: the yellow cable is for the yellow video jack, the red/
white cable is for the red/white audio jacks.
TV
EN

17
4 Use your player
Turn on
Slide the (CHR)OFF ON switch to the ON position.
The»POWER indicator turns on.
Select OSD language
You can choose a different language for the on-screen display text.
1Press SETUP.
The setup menu appears.»
2Go to [-- General Setup Page --] > [OSD Language].
3Press to select an option.
4Press to confirm.
5Press SETUP to exit.
Play discs
1Slide OPEN on the player.
2Insert the disc with label side facing up.
3Push down to close the disc compartment.
Play starts automatically. If not, press».
If a menu appears, select an item, then press• to start play.
To pause, press• . Press again to resume play.
To stop, press• twice.
To select the previous/next item, press• or .
English
EN

18
To start search within video/audio, press• or once or
more.
Play from USB
This player plays/views DivX,VOB, MP3, or JPEG files that are stored on USB
devices.
1Connect the USB device to the player.
2Press SOURCE to switch to USB mode.
The content menu appears.»
3Select a file, then press .
Play starts.»
4To stop play, press or remove the USB device.
Play options
Select audio language
For DVDs that contain two or more audio languages.
During play, press• AUDIO repeatedly until the language is selected.
Select subtitle language
For DVDs that contain two or more subtitle languages.
During play, press• SUB repeatedly until the language is selected.
Repeat
During play, press• REPEAT 1/ALL repeatedly to select different
repeat options.
Tip
For VCDs, if PBC is on, you cannot repeat items.•
Repeat a section
You can repeat a specific section of audio/video within a title/chapter/track
(repeat A-B).
EN

19
1During play, at the chosen start point, press A-B.
»[A] is displayed.
2At the chosen end point, press A-B again.
»[AB] is displayed.
The selected section plays repeatedly.»
3Press A-B to cancel.
Zoom
For DVDs, VCDs and JPEG CDs, you can zoom in and out for video
images or pictures.
1Press ZOOM repeatedly to zoom in and out.
2When the video image or picture is enlarged, press , , , to
pan through it.
Rotate pictures
For JPEG CDs only. While the JPEG is displayed:
Press• to rotate counter-clockwise.
Press• to rotate clockwise.
Press• to flip up/down.
Press• to flip left/right.
Adjust brightness of screen backlight
Note
You can adjusts brightness of the screen backlight to match lighting conditions.•
During play, press repeatedly to select an option.
• [Bright]
• [Normal]
• [Dim]
Tip
To achieve the longest playtime, select• [Dim].
To achieve the best view, select
• [Bright].
English
EN

20
5 Adjust settings
To maximize your play experience, use SETUP to fine tune your settings.
1Press SETUP.
The setup menu is displayed.»
2Press to select an option and press to confirm.
[-- General Setup Page --]
[OSD Language] Select on-screen display language.
[Screen Saver] Activate/deactivate screen saver.
[Resume] Select whether to start play from the
point where it was last stopped.
[Angle Mark] Select angle mark display options.
[Display Setup Page]
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[Screen Display] Select display ratio.
[Battery Life Setup Page]
[LCD Backlight] Adjust the default brightness level of
screen backlight.
[-- Preference Page --]
[Audio] Select audio language.
[DVD Subtitle] Select DVD subtitle language.
[DivX Subtitle]* Select DivX subtitle language.
[Disc Menu] Select disc menu language.
[Parental] Select parental level.
[Password] Change password (3308 by default).
[DivX VOD] Get DivX registration code.
[Default] Restore original settings.
3Press to go back to previous menu level.
4Press SETUP to exit.
EN

21
Note
*There are 3 options for• [DivX Subtitle].
Latin: Albanian, Breton, Catalan, Danish, Dutch, English, Faroese, Finnish, French,
•
Gaelic, German, Icelandic, Irish, Italian, Norwegian, Portuguese, Spanish and
Swedish.
Central Europe: Albanian, Croat, Czech, Dutch, English, German, Hungarian, Irish,
•
Polish, Romanian, Slovak, Slovene and Sorbian.
Turkish: Albanian, Danish, Dutch, English, Finnish, French, Gaelic, German, Italian,
•
Kurdish (Latin), Norwegian, Portuguese, Spanish, Swedish and Turkish.
6 Product information
Note
Product information is subject to change without prior notice.•
Dimensions 195 x 154 x 38 mm
Weight 0.7 kg
Power supply Input: 100-240V 50/60Hz
Output: DC 9V 1A
Power consumption 9 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
Video system NTSC & PAL
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio 80 dB
Audio distortion + noise -80 (1KHz)
Channel separation 80 dB
Dynamic range 80 dB
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
English
EN
