1 Important
Safety
• Read these instructions.
• Follow all instructions.
• Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or
otherapparatus(includingampliers)that
produce heat.
• Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the unit.
• Onlyuseattachments/accessoriesspecied
by the manufacturer.
• Unplug this unit during lightning storms or
when unused for long periods of time.
• Recording is permissible insofar as
copyright or other rights of third parties
are not infringed upon.
• Referallservicingtoqualiedservice
personnel. Servicing is required when the
unit has been damaged in any way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have
fallen into the apparatus, the unit has been
exposed to rain or moisture, does not
operate normally, or has been dropped.
• Battery usage CAUTION –To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
• Install all batteries correctly, + and - as
marked on the unit.
• Do not mix batteries (old and new or
carbonandalkaline,etc.).
• Remove batteries when the unit is not
used for a long time.
• Batteries (battery pack or batteries
installed)shallnotbeexposedtoexcessive
heatsuchassunshine,reorthelike.
• CAUTION: Danger of explosion if battery
is incorrectly replaced. Replace only with
the same or equivalent type.
• The unit shall not be exposed to dripping
or splashing.
• Do not place any sources of danger on
theunit(e.g.liquidlledobjects,lighted
candles).
• Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Warning
•Never remove the casing of this apparatus.
•Never place this apparatus on other electrical
equipment.
•Never look into the laser beam inside this apparatus.
Caution
•Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Notice
Anychangesormodicationsmadetothis
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Compliance
Anychangesormodicationsmadetothis
device that are not expressly approved by

3EN
WOOX Innovations may void the user’s
authority to operate the equipment. Hereby,
WOOX Innovation declares that this product is
compliance with the essential requirements and
other relevant provisions of Directive 1999/5/
EC.YoucanndtheDeclarationofConformity
on www.philips.com/support.
Care of the environment
Disposal of your old product
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
This symbol on a product means that the
product is covered by European Directive
2012/19/EU. Inform yourself about the local
separate collection system for electrical and
electronic products. Follow local rules and never
dispose of the product with normal household
waste. Correct disposal of old products
helps prevent negative consequences for the
environment and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separateintothreematerials:cardboard(box),
paperpulp(buffer)andpolyethylene(bags,
protectivefoamsheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Trademark notice
The making of unauthorized copies of copy-
protected material, including computer
programs,les,broadcastsandsound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
The USB-IF Logos are trademarks of Universal
Serial Bus Implementers Forum, Inc.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by WOOX
Innovations is under license.
This apparatus includes these labels:
Class II equipment symbol
This symbol indicates that the apparatus has a
double insulation system.
Note
•The type plate is located on the bottom of the
apparatus.

4EN
2 Your CD
Soundmachine
Introduction
With this CD Soundmachine, you can:
• Listen to FM radio;
• Enjoy audio from discs, USB device,
Bluetooth devices, and other external
audio devices;
• Program the play sequence of tracks.
What's in the box
Check and identify the contents of the package:
• Main unit
• Power cord
• Short User Manual
• Safety sheet

5EN
Overview of the main unit
a CD/USB source selector
• Press to select CD or USB source.
b
• Stop playing.
c - ALBUM +
• Skip to the previous or next album.
a
b
c
dj
k
h
g
i
e
f
l
nm o
p
BT FM OFF
CD/USB
q
d /
• Skip to the previous or next track.
• Search within a track.
e OPEN•CLOSE
• Open or close the disc compartment.

6EN
f Bluetooth indicator
• Indicate the status of Bluetooth
connection.
g /PAIRING
• Start or pause play.
• Press to wake up the unit from
standby mode.
• Press and hold to disconnect the
connected Bluetooth device and enter
pairing mode.
h PROG
• Program the play sequence of tracks.
i MODE
• Select a play mode.
j Display panel
• Display current status.
k FM antenna
• Improve FM reception.
l + TUNING -
• Tune to FM radio stations.
m
• USB socket.
n Source selector
• Select a source.
o + VOLUME -
• Adjust volume.

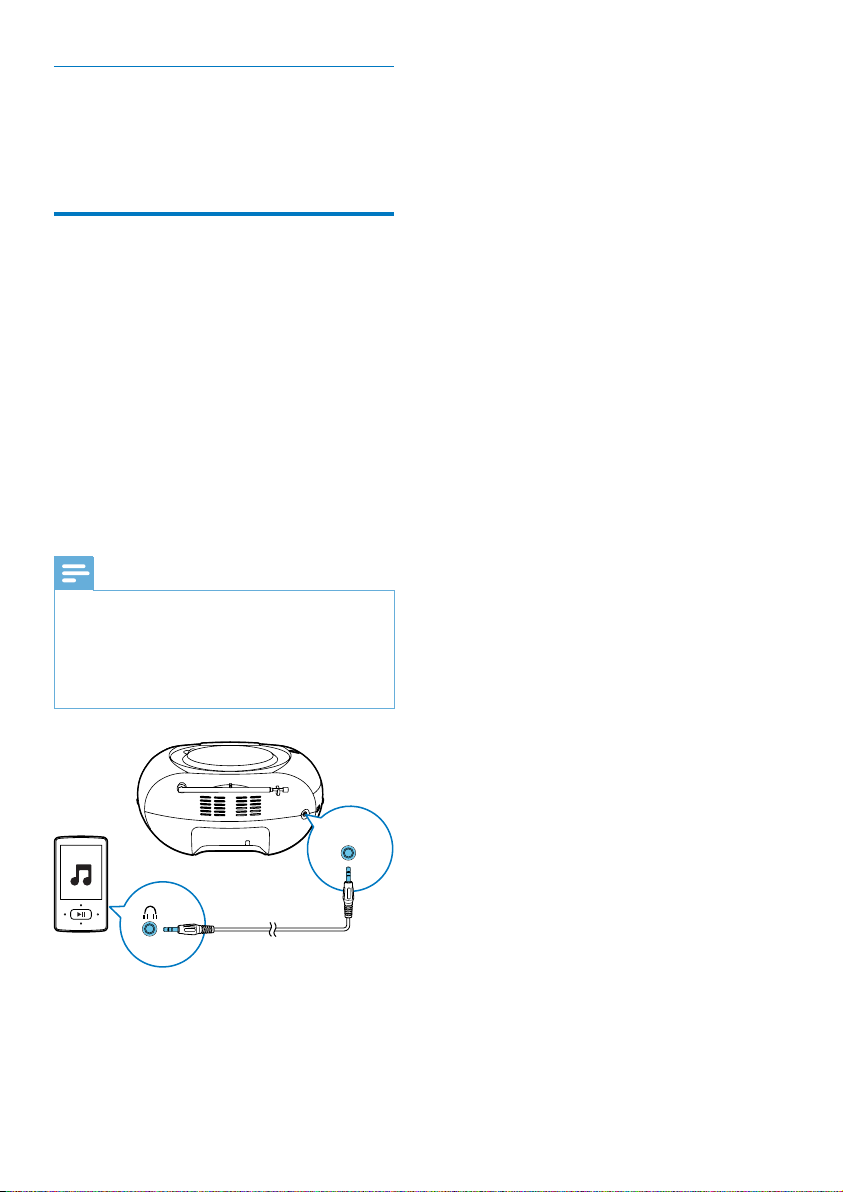

p AUDIO-IN
• Connect an external audio device.
q AC MAINS

7EN
3 Get started
Caution
•Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of your apparatus.The
model number and serial number are on the
bottom of your apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Connect power
The unit can be powered by either AC power
or batteries.
Option 1:AC power
Warning
•Risk of product damage! Make sure that the power
supply voltage corresponds to the voltage printed on
the back or the underside of the unit.
•Risk of electric shock! When you disconnect the AC
power, always pull the plug from the socket. Never pull
the cord.
Connect the AC power cord to the wall socket.
Tip
•To save energy, turn the unit off after use.
Option 2: Battery power
Caution
•Batteries contain chemical substances, so they should
be disposed of properly.
Note
•Batteries are not supplied with the accessories.
1 Open the battery compartment.
2 Insert 6 batteries (type: 1.5V R14/UM2/C
CELL)withcorrectpolarity(+/-)as
indicated.
3 Close the battery compartment.
AC~MAINS

8EN
Turn on
Switch the source selector to CD/USB/BT/FM.
Switch to standby mode
• The product switches to standby mode
automatically when there is no audio
detected for over 15 minutes.
• Press to wake up the product from
standby mode.
Turn off
Switch the source selector on the product to
OFF.

9EN
4 Play
Play a CD
Note
•You cannot play CDs encoded with copyright
protection technologies.
•When an audio-in cable is plugged, CD/USB playback
stops, and the unit switches to audio in mode
automatically.
You can play commercially available audio CDs:
• CD-Recordables(CD-R)
• CD-Rewritables(CD-RW)
• MP3-CDs
1 Switch the source selector to CD/USB .
2 Press the CD/USB button on the top
of the CD sound machine repeatedly to
select USB source.
» [CD] displays on the LCD screen.
3 Open the CD compartment.
4 Insert a CD with the printed side facing up
and close the CD lid gently.
» Your CD sound machine starts to play
automatically.
• To select a track,press / .
• To pause CD play, press .
» [ ]andtracknumberash.
• To resume CD play, press again.
• To stop CD play, press .
Play from USB devices
Note
•Make sure that the USB device contains playable audio
content.
1 Switch the source selector to CD/USB .
2 Press the CD/USB button on the top
of the CD sound machine repeatedly to
select USB source.
» [USB] displays on the LCD screen.
3 Insert the USB device into the socket.
» Play starts automatically. If not, press
.
BT FM OFF CD/USB
USBCD
USBCD
BT FM OFFCD/USB

10 EN
Tune to FM radio stations
Note
•For optimal reception, fully extend and adjust the
position of the FM antenna.
1 Switch the source selector to FM.
2 Rotate + TUNING - to select a station.
3 Repeat step 2 to tune to more stations.
BT FM OFFCD/USB
Play from Bluetooth-enabled
devices
With this product, you can listen to audio from
Bluetooth-enabled devices.
Connect a device
Note
•The operational range between this product and a
Bluetoothdeviceisapproximately10meters(30feet).
1 Switch the source selector to BT.
» Thebluetoothindicatorashesblue.
2 On your Bluetooth device, enable
Bluetooth and search for Bluetooth devices
(refertotheusermanualofthedevice).
3 Select [Philips AZ330T] on your device for
pairing. If necessary, enter default password
“0000”.
» After successful pairing and connection,
the product beeps twice, and the LED
indicator turns solid blue.
Play from Bluetooth device
After successful Bluetooth connection, play
audio on the Bluetooth device.
» Audio streams from your Bluetooth
device to the product.
Disconnect the Bluetooth-enabled
device
• Press and hold PAIRING for 2 seconds;
• Disable Bluetooth on your device; or
• Move the device beyond the
communication range.

11EN
Connect another Bluetooth-enabled
device
Disable Bluetooth on the current device, and
then connect another device.
Play from an external device
You can also listen to an external audio device
through this unit.
1 Switch the source selector to CD/
USB/BT/FM.
2 Connect an audio cable (3.5mm, not
supplied)to:
• the AUDIO-IN socket on the unit.
• the headphone socket on an external
device.
3 Play the external device (see the device's
usermanual).
Note
•The AUDIO-IN socket is not for headphones.
•In any working mode, the CD sound machine switches
to AUDIO IN mode automatically when the audio-in
cable is connected.
•The display panel lights off when the unit plays from the
external device and "ÄU" displays on the screen.
AUDIO-IN

12 EN
5 Play options
Control play
In CD and USB mode, you can control play
through the following operations.
/ Press:skip to the previous/next
track
Hold:search within play, then
release to resume play.
Start or pause play.
Stop play.
PROG Program tracks.
+ VOLUME - Adjust volume.
- ALBUM + Skip the the previous or next
album.
MODE Select a play mode.
[ ]: Play the current track
repeatedly.
[ ]: Play all tracks
repeatedly.
[ ]: Repeat all tracks
randomly.
To return to normal play, press
MODE repeatedly until the
repeat icons disappear.
Tip
•Only[ ] and [ ] can be selected when you
play the programmed tracks.
Program tracks
In CD and USB mode, you can program a
maximum of 20 tracks.
1 Press to stop playback.
2 Press PROG to activate the program
mode.
» [PROG] (program)begintoblink.
3 Press / to select a track number,
then press PROGtoconrm.
4 Repeat steps 3 to program more tracks.
5 Press to play the programmed tracks.
» During play, [PROG] (program)is
displayed.
• To erase the program, press twice.
Adjust sound
During play, you can adjust volume.
Key Function
+ VOLUME - Increase or decrease volume.

13EN
6 Product
information
Note
•Product information is subject to change without prior
notice.
Specications
Amplier
Rated Output Power 2 x 2 W RMS
Frequency Response 125 -16000 Hz,
-3dB
Signal to Noise Ratio >57 dBA
Total Harmonic Distortion <1 %
Audio-in Input 650 mV RMS
Disc
Laser Type Semiconductor
Disc Diameter 12cm/8cm
Support Disc CD-DA, CD-R, CD-
RW, MP3-CD
Audio DAC 24Bits / 44.1kHz
Total Harmonic
Distortion
<1%
Frequency Response 125 -16000 Hz, -3dB
S/N Ratio >55 dBA
Tuner
Tuning Range FM: 87.5 - 108MHz
Sensitivity:
Mono, 26dB S/N Ratio
Stereo, 46dB S/N Ratio
<22 dBf
<43 dBf
Total Harmonic
Distortion
<3%
Signal to Noise Ratio >50 dBA
Bluetooth
Bluetooth Version V3.0
SupportedProles A2DP, AVRCP
Range 10m(Freespace)
Bluetooth Frequency
Band
2.4GHz ~ 2.48GHz
ISM Band
General
Power supply
- AC Power
- Battery
220-240V~, 50/60 Hz;
DC 9 V, 6 x 1.5 V type:
R14/UM2/C CELL
Operation Power
Consumption
15 W
Standby Power
Consumption
<0.5 W
Dimensions
- Main Unit
(WxHxD) 300 x 134 x 240 mm
Weight(MainUnit) 1.4 kg

14 EN
Supported MP3 disc formats
• ISO9660, Joliet
• Maximum title number: 512 (depending on
lenamelength)
• Maximum album number: 255
• Supported sampling frequencies: 32 kHz,
44.1kHz, 48 kHz
• SupportedBit-rates:32~256(kbps),
variable bit rates
USB playability informatio
Compatible USB devices:
• USBashmemory(USB2.0or
USB1.1)
• USBashplayers(USB2.0orUSB1.1)
• memory cards (requires an additional
card reader to work with this
apparatus)
Supported formats:
• USBormemoryleformatFAT12,
FAT16,FAT32(sectorsize:512bytes)
• MP3bitrate(datarate):32-320Kbps
and variable bit rate
• Directory nesting up to a maximum of
8 levels
• Number of albums/ folders: maximum
99
• Number of tracks/titles: maximum 999
• ID3 tag v2.0 or later
• File name in Unicode UTF8 (maximum
length:128bytes)
Unsupported formats:
• Empty albums: an empty album is an
album that does not contain MP3/
WMAles,andisnotbeshowninthe
display.
• Unsupportedleformatsareskipped.
Forexample,Worddocuments(.doc)
orMP3leswithextension.dlfare
ignored and not played.
• AAC,WAV,PCM,WMAaudioles
Maintenance
Clean the cabinet
• Use a soft cloth slightly moistened with
a mild detergent solution. Do not use a
solution containing alcohol, spirits, ammonia
or abrasives.
Clean discs
• When a disc becomes dirty, clean it with
a cleaning cloth.Wipe the disc from the
centre out.
• Do not use solvents such as benzene,
thinner, commercially available cleaners,
or antistatic spray intended for analogue
records.
Clean the disc lens
• After prolonged use, dirt or dust may
accumulate at the disc lens.To ensure good
play quality, clean the disc lens with Philips
CD lens cleaner or any commercially
available cleaner. Follow the instructions
supplied with cleaner.

15EN
7 Troubleshooting
Warning
•Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support).WhenyoucontactPhilips,
make sure that the device is nearby and the
model number and serial number are available.
No power
• Ensure that the Mains cord is connected
securely.
• Ensure that there is power at the AC
Mains.
• Ensure that the batteries are inserted
correctly.
No sound or poor sound
•Adjust the volume.
No response from the unit
•Disconnect and reconnect the AC power
plug, then turn on the system again.
•As a power-saving feature, the unit
switches off automatically 15 minutes after
track play reaches the end and no control
is operated.
No disc detected
•Insert a disc.
•Check if the disc is inserted upside down.
•Wait until the moisture condensation at
the lens has cleared.
•Replace or clean the disc.
•UseanalizedCDorcorrectformatdisc.
Poor radio reception
•Increase the distance between the unit and
your TV or VCR.
•Fully extend the FM antenna.
About Bluetooth device
The audio quality is poor after connection
with a Bluetooth-enabled device.
•The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
Cannot connect with the device.
•The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
•This product is already connected with
another Bluetooth-enabled device.
Disconnect that device and then try again.
The paired device connects and disconnects
constantly.
•The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
•For some devices, Bluetooth connection
may be deactivated automatically as a
power-saving feature.This does not indicate
any malfunction of this product.

Specifications are subject to change without notice.
2014 © WOOX Innovations Limited.
All rights reserved.
Philips and the Philips’ Shield Emblem are registered
trademarks of Koninklijke Philips N.V. and are used by WOOX
Innovations Limited under license from Koninklijke Philips N.V.
AZ330T_12_UM_V1.0
