Philips FC 9012 User manual

ServiceManual
Philips Domestic Appliances and Personal Care
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
Universe Vacuum cleaner
FC 9012
PRODUCT INFORMATION
- Colour : Fresh blue
- Maximum air displacement : 37 l/sec.
- Maximum vacuum water column : 310 cm
- Power consumption (IEC) 230 V : 1400 W
- Duststorage capacity : 3 L
- Type number dustbag : FC 8021
- Cord length (depends on version) : 7 metres
- Filter system : Paper dustbag
: Exhaust AFS air filter
: Motor inlet filter
- Dimensions of cleaner : 460 x 315 x 270 mm
- Dimensions of packaging : 595 x 395 x 295 mm
- Net weight : 5.88 kg
- Gross weight : 9.135 kg
OPTIONAL
- FC 8021 S-bags
- FC 8030 AFS-filter
- FC 8031 HEPA Air Filter
- FC 8034 Upgrate kit Active Carbon Filter
- HR 6988 Turbo brush nozzle
- HR 8040 Polishing nozzle
SERVICE INFORMATION
- Open the appliance, first remove the exhaust filter grille
(item 20), and then remove the 2 screws - Cof the switch
control panel (item 15).
4322 277 00617
01/04
- To remove the the panel, pos 14a + b must be removed by using
a screwdriver to separate the two covers from the panel as shown
in the picture.
- Undo and remove the 9 screws - Cin the upper housing (item 8).
You will require a screwdriver with a 14.5 cm-long shank for this.
Srewdriver 9965 000 08332 can be used.
- The component configuration shown in the exploded view
may differ in case of specific versions. The components are
distinguished by means of code numbers.
- When the repair is finished, check whether all functions of the
appliance work properly.
- Item 4, cotton dustbag, is used in countries in which paper
dustbags are not available.
- To disassemble the cord winder, use TORX screwdriver no.T15,
which is one of a set consisting of T20; T15; T10; T9; T8; T7 and T6
(code number 4822 395 50145).
- If the reel half spring unit is replaced, shaft Amust be lubricated
with silicone grease. Do not apply any silicone grease to or spill
any grease on terminals (43) or conductors (42).
- Item 40 is provided with a long cord-winder spring, but both long
and short cords can be used in combination with this spring.
(L = 9.3 m)
- Depending on the original cord, the spare cord must be shortened
to the length of the original cord.
- The cord winder spring must be tensioned to the maximum level
and then be rewound approx. 1.5 turn
- Item 13, air valve, opens to cool the motor if the air displacement
is too low or if the airflow is blocked.
- If the function of the electronic control unit (item 12) is not
required, the Triac must be short-circuited in the manner shown
in the circuit diagram.
- When the vacuum cleaner is used to suck up fine dust the pores
of the dustbag may become clogged, causing the passage of
air through the dustbag to become obstructed. As a result, the
dustbag-full indicator will indicate that the dustbag needs to be
replaced, eventhough the dustbag is not full at all.
C2x
C9x 14a + b

Pos. Order code Description
1 4322 005 13450 Dust cover Fresh blue
2 4322 003 18290 Dust cover lock m.grey
3 4322 003 18160 Dustbag holder
4 4822 480 10113 S-paper dustbags FC 8021
4322 004 93290 Cotton dustbag
5 4322 003 18300 Cordwinder lever
6 4322 001 73310 Sealing rim
7 4322 005 12550 Dustbag detector
8 4322 003 18060 Upper housing m.grey
8a 4322 003 20410 Clamp upper/lower housing
9 4322 000 37300 Triple filter
10 4322 009 07040 Grill + triple filter
11 4322 006 21480 Switch soldered version
11a 4322 009 08420 Switch lever assy
12 4322 006 22560 PCB slide turn 230V
13a 4322 005 12200 Dustbag full indicator
13b 4322 005 12210 Air valve
14a 4322 003 19950 Cover R
14b 4322 003 19940 Cover L
15 4322 009 08310 Panel assy turn Fresh blue
16 4322 003 17900 Lower housing m.grey
18 4322 000 37450 Silencer 4 wall
19 4322 005 12190 Caster assy m.grey
20 4322 009 08320 Exhaust grille
21 4322 000 37460 Exhaust diffusor
22 4322 004 92910 Electr.static filter FC 8030
23 4322 001 73280 Filter sealing
24 4322 003 18000 S-class sealing
25 4322 000 37420 Silencer 1 wall
26 4322 000 37430 Silencer 2 bottom
27 4322 003 18080 Cord outlet m.grey
28 4322 003 18910 Rear wheel lock red
29 4322 003 20390 Receipt. housing A.C.
30 4322 003 17960 Rear wheel m.grey
31 4322 001 73300 Motor buffer back
32 4322 003 18040 Inlet sealing
33 4322 003 18010 Motor cap top
34 4322 003 18020 ANS disc
35 4322 001 73290 Motor bufferring front
36 4322 009 06430 Motor A 1441 230V
37 4322 000 37440 Silencer 3 ans
38 4322 003 18030 Motor cap bottom
Pos. Order code Description
40 4322 009 07940 Reel half spring unit (L = 9m)
41 4322 001 72360 Brake tyre
42 4322 009 07950 Reel half contact unit
43 4322 009 07970 Contact ring plate
44 4322 006 01440 Argentina L = 9.3 m
4322 006 01760 Australia L = 9.3 m
45 4322 006 01680 Taiwan L = 6.3 m
46 4322 006 01720 U.K. / H.K. L = 9.3 m
47 4322 006 01410 Euro 4.8 mm pins L = 9.3 m
48 4322 006 01670 Swiss L = 9.3 m
49 4322 006 01460 Italy L = 9.3 m
50 4322 003 18850 C-bend B1
51 4322 005 13510 C-bend B1 hose assy
54 4322 007 16000 Leaf spring assy
55 4322 004 22570 Plumeau assy (opt.)
56 4322 003 18870 Crevice nozzle
57 4322 005 13410 Acc. bridge assy
58 4322 004 41140 Metal tube (opt.)
59 4322 004 22610 Telesc. tube
60 4322 001 99120 Tube bush
61 4322 007 45550 Tube spring
62 4322 004 22560 Small nozzle
63 4322 004 22740 Nozzle RD262
64 4322 004 22900 Polishing nozzle
65 4322 005 11040 Polishing disc
66 8838 041 01010 Polishing brushes
67 9965 000 03349 Coupl. piece (standard) (opt.)
68 4822 358 10205 Drive belt (opt.)
69 4822 479 20201 Brush assy (opt.)
70 4322 004 22590 Turbo nozzle (opt.)
A 5322 390 20011 Silicon grease for shaft
B 4322 002 82550 Screw 3.5 x 12 T10
C 4322 002 82080 Screw 3.5 x 19
This product meets the requirements regard-
ing interference suppression on radio and TV.
After the product has been repaired, it should
function properly and has to meet the safety
requirements as officially laid down at this
moment.

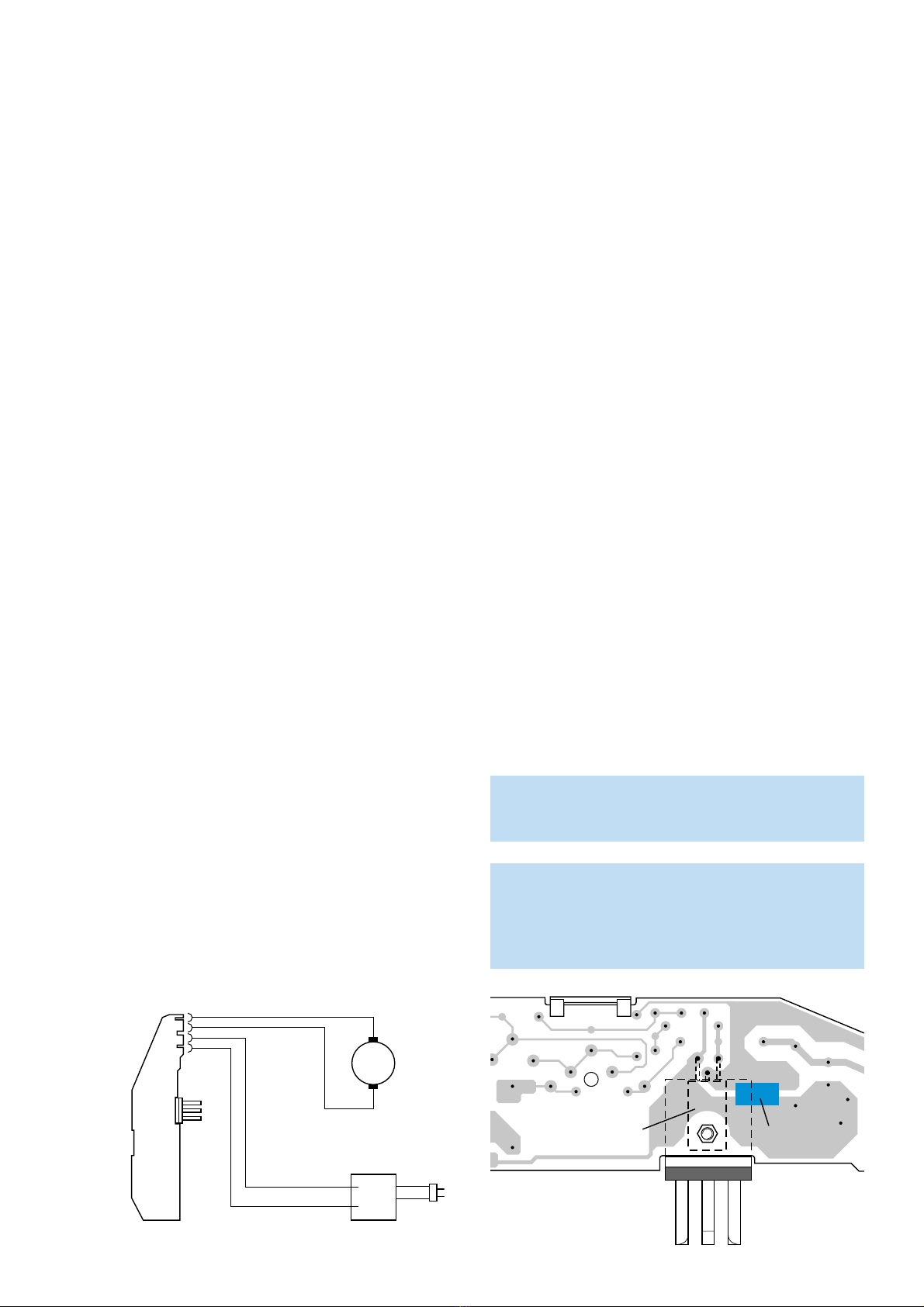

Short-circuit
Triac
M
MOTOR
POWER
MODULE
Black
Black
Blue
Brown
CORD WINDER

ZY
40
1
3
2
4
5
16
15
14a
14b
11
9
10
12
13a
13b
18
20
21
22
23
19
11a
C
8a
6
8
7

DAP1627
Y
black
Z
brownblue
43
44÷49
33
34
35
36
37
38
28
24
25
26
27
32
42
B
A
40 41
B
20
21
22
23
30
29
31

59
60
61
62
56
55 57
54
58
60
61
44
Argentina
Australia
Taiwan 45
Europe Ø 4.8mm 47
Swiss 48
Italy 49
46U. . / H. .
51
50
63

DAP1662
65
66
64
68
69
67
70
