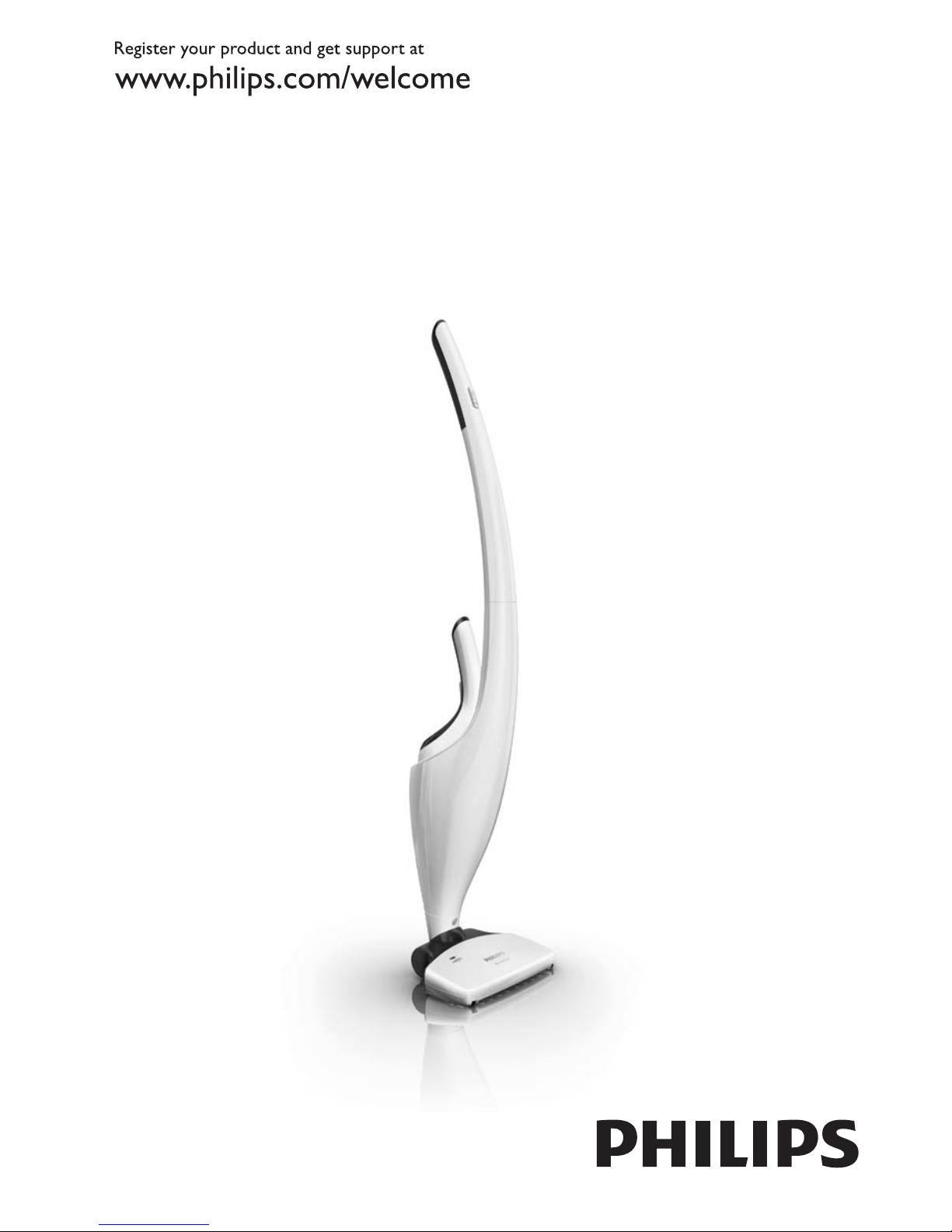

Philips FC6161 User manual

FC6161

1

2 3 4 5
6 7 8 9
10 11 12 13
14 15 16 17
18 19 20 21

FC6161
ENGLISH 6
简体中文 16
Table of contents

6
Introduction
Congratulations on your purchase and welcome to Philips! To fully benet from the support that
Philips offers, register your product at www.philips.com/welcome.
General description (Fig. 1)
A Stick
1 On/off button
2 MAX button for maximum power
3 Upper stick part
4 Screw to attach upper stick part to lower stick part
5 Lower stick part
6 Floor nozzle joint
7 Floor nozzle release button
8 ’Brush blocked’ light
9 Floor nozzle
10 Retainer
11 Front wheels
12 Roller brush
13 Cutting groove
14 Rear wheels
B Handheld vacuum cleaner
15 On/off button
16 Dust compartment release button
17 Dust compartment
18 Nozzle release button
19 Handheld vacuum cleaner release button
20 Exhaust air openings
21 Filter unit
22 Detachable nozzle
23 Outer lter
24 Inner lter
25 Filter holder
26 Filter rattle mechanism
C Accessories
27 Charging base
28 Charging light
29 Storage compartment
30 Cord storage facility
31 Adapter
32 Back support of charging base
33 Wall mounting screw
34 Crevice tool
35 Brush tool
Important
Read this user manual carefully before you use the appliance and save it for future reference.
Danger
- Never suck up water or any other liquid. Never suck up ammable substances and do not suck
up ashes until they are cold.
- Never immerse the appliance, the charging base or the adapter in water or any other liquid, nor
rinse it under the tap.
ENGLISH

Warning
- Check if the voltage indicated on the adapter corresponds to the local mains voltage before you
connect the appliance.
- Do not use the vacuum cleaner, the charging base or the adapter if it is damaged.
- If the adapter or charging base is damaged, always have it replaced with one of the original type
in order to avoid a hazard.
- The adapter contains a transformer. Do not cut off the adapter to replace with another plug, as
this causes a hazardous situation.
- This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for
their safety.
- Children should be supervised to ensure that they do not play with the appliance.
Caution
- Remove the adapter from the wall socket before you clean the charging base.
- Only charge the vacuum cleaner with the adapter and charging base supplied. During charging,
the adapter feels warm to the touch.This is normal.
- Always switch off the vacuum cleaner after use.
- The voltage on the contact strips in the charging base is low and therefore not dangerous.
- Never block the exhaust air openings during vacuuming.
- Switch off the appliance when you charge it.
- Always use the vacuum cleaner with the lter unit assembled.
Electromagnetic elds (EMF)
This Philips appliance complies with all standards regarding electromagnetic elds (EMF). If handled
properly and according to the instructions in this user manual, the appliance is safe to use based on
scientic evidence available today.
Before rst use
1 Remove any protective foil or plastic from the appliance.
2 Attach the back support to the back of the charging base (‘click’) (Fig. 2).
Note:You only have to do this once. Never disassemble the back support from the charging base.
3 For better stability, you must mount the charging base to the wall.To do so, drive the screw
supplied through the hole in the back support into the wall.
4 Place the upper stick part on the lower stick part (‘click’) (Fig. 3).
Note: Make sure that the recesses of the upper stick t exactly on the projections of the lower stick.
Note: You only have to do this once. Never disassemble the upper stick from the lower stick.
5 Fasten the screw with a screwdriver or coin.
6 Placethestickontheoornozzle(‘click’)(Fig.4).
Preparing for use
Charging the batteries
It takes approx. 7 hours to fully charge the batteries.
1 Put the adapter of the charging base in the wall socket.
2 Place the handheld vacuum cleaner in the stick (‘click’) (Fig. 5).
Note: Make sure the handheld vacuum cleaner is switched off when you place it in the stick.
ENGLISH 7

3 Place the appliance on the charging base (Fig. 6).
,The charging light goes on to indicate that the appliance is charging. (Fig. 7)
Note:The charging light does not give any information about the battery charge level.
,When the batteries are fully charged, the charging process stops and the charging light goes
out to save energy.
Note: You can leave the appliance on the charging base, even when the batteries are fully charged. Every
5 minutes, the charging light lights up for 3 seconds.This indicates that the charging base checks if the
batteries are still fully charged.
Note: If you place the appliance on the charging base while it is switched on, the appliance switches
off automatically after 2 seconds and the batteries do not charge.
Saving energy
If you are not going to use the appliance for a longer period of time, remove the adapter from the
wall socket to save energy.
Using the appliance
The power of this cordless stick vacuum cleaner cannot be compared with that of a full-size
standard vacuum cleaner. Its cleaning performance on soft oors may not entirely match that of a
standard vacuum cleaner, but its cleaning performance on hard oors is just as good.
Using the stick
You can use the stick to clean oors and carpets.
When you use the stick, always make sure the dust compartment is attached to the handheld
vacuum cleaner, to prevent damage to the handheld vacuum cleaner.
1 Place the handheld vacuum cleaner properly in the stick (‘click’). (Fig. 5)
2 Press the on/off button on the stick to switch on the appliance (Fig. 8).
,The appliance starts to operate at normal speed. Use this speed for optimal operating
time and minimal noise.The operating time at this speed is more than 20 minutes.
- Press the MAX button if you want to operate the appliance at maximum speed. Use this speed
for optimal cleaning performance.The operating time at this speed is 11 minutes (Fig. 9).
- If you want to switch back to normal speed, press the MAX button again.
Note: During use, the ‘brush blocked’ light may ash red to indicate that the roller brush is blocked. If this
happens, you have to remove the item that is blocking the brush or clean the brush (see chapter
‘Cleaning’).
3 If you want to leave the appliance for a while or if you want to remove the handheld vacuum
cleaner from the stick during use, you can use the parking position. Push the stick towards
theoornozzletoputitinparkingposition(Fig.10).
4 After use, press the on/off button to switch off the appliance.
Using the handheld vacuum cleaner
You can use the handheld vacuum cleaner without the stick to vacuum small and hard-to-reach
areas, such as tables, furniture, car seats etc.
When the handheld vacuum cleaner is fully charged, it has an operating time of 12 minutes.
1 If the handheld vacuum cleaner is placed in the stick, press the on/off button on the stick to
switch off the appliance before you remove the handheld vacuum cleaner from the stick.
ENGLISH8

Note: If you remove the handheld vacuum cleaner when the appliance is switched on at normal speed,
the handheld vacuum cleaner operates at reduced power when you take it out. To make sure the
handheld vacuum cleaner operates at full power, switch it off and back on again.
2 Press the handheld vacuum cleaner release button (1) and remove the handheld vacuum
cleaner from the stick (2) (Fig. 11).
3 Press the on/off button to switch on the handheld vacuum cleaner (Fig. 12).
4 After use, press the on/off button again to switch off the handheld vacuum cleaner.
Note: Make sure you switch off the handheld vacuum cleaner before you put it back into the stick.
Note: If you put the handheld vacuum cleaner back into the stick when it is still switched on, the roller
brush does not work and the cleaning performance is not optimal. To make the roller brush operate,
press the on/off button on the stick to switch off the appliance and then press the on/off button again to
switch the appliance back on again.
Accessories
The handheld vacuum cleaner comes with the following accessories:
- a crevice tool to vacuum corners or narrow gaps.
- a brush tool to clean delicate surfaces.
1 Take the accessory you want to use from the storage compartment of the charging base.
2 Attachtheaccessorytothedetachablenozzle(Fig.13).
Cleaning
Always remove the adapter from the wall socket before you clean the charging base.
1 Clean the outside of the handheld vacuum cleaner, the outside of the stick and the outside of
the charging base with a damp cloth.
2 Ifyouwanttoemptyandcleanthedustcompartmentorcleanthelterunit,followthe
instructionsinsections‘Emptyingandcleaningthedustcompartment’and‘Cleaningthelter
unit’ below.
Emptying and cleaning the dust compartment
Make sure you empty and clean the dust compartment of the handheld vacuum cleaner regularly.
Note: It is not necessary to hold the handheld vacuum cleaner over a dustbin when you open it.
Quick emptying
You can empty the dust compartment quickly in the following way:
1 Pressthenozzlereleasebutton(1)andtakethedetachablenozzleoffthehandheldvacuum
cleaner (2) (Fig. 14).
2 Shake the contents of the dust compartment into a dustbin (Fig. 15).
3 Firstattachthebottomofthedetachablenozzleandthenpushthetopofthedetachable
nozzletowardsthevacuumcleaneruntilitlocksintoplace(‘click’).(Fig.16)
Thorough cleaning
You can empty and clean the dust compartment thoroughly in the following way:
1 Hold the handheld vacuum cleaner over a dustbin, press the dust compartment release
button (1) and remove the dust compartment (2) (Fig. 17).
2 Removethelterunitfromthedustcompartment(Fig.18).
ENGLISH 9

3 Shake the dust compartment with your free hand to empty the contents into a
dustbin (Fig. 19).
4 If necessary, clean the dust compartment with a damp cloth.
5 Ifnecessary,cleanthelterunit.Seesection‘Cleaningthelterunit’below.
6 Putthelterunitbackintothedustcompartment.
7 To reattach the dust compartment, align the slot on the dust compartment with the
projection on the handheld vacuum cleaner. First attach the bottom of the dust
compartment (1) and then push the top of the dust compartment towards the vacuum
cleaner (2) until it locks into place (‘click’). (Fig. 20)
Cleaning the lter unit
Make sure you clean the lter unit regularly.
Quick cleaning
You can clean the lter unit quickly in the following way:
1 Hold the handheld vacuum cleaner over a dustbin, press the dust compartment release
button (1) and remove the dust compartment (2) (Fig. 17).
2 Turntherattlemechanisminsidethelterholderafewtimes.(Fig.21)
,Therattlemechanismloosensthedustfromtheinnerlter.
3 To reattach the dust compartment, align the slot on the dust compartment with the
projection on the handheld vacuum cleaner. First attach the bottom of the dust
compartment (1) and then push the top of the dust compartment towards the vacuum
cleaner (2) until it locks into place (‘click’). (Fig. 20)
Thorough cleaning
You can clean the lter unit thoroughly in the following way:
1 Hold the appliance over a dustbin, press the dust compartment release button (1) and
remove the dust compartment (2) (Fig. 17).
2 Removethelterunitfromthedustcompartment(Fig.18).
3 Turntheouterlterclockwise(1)andremoveitfromthelterholder(2)(Fig.22).
4 Turntheinnerlterclockwise(1)andremoveitfromthelterholder(2)(Fig.23).
5 Cleantheinnerlterandtheouterlterwithabrushorwithastandardvacuumcleanerif
they are very dirty.
Note: If necessary you can clean the inner lter and the outer lter in cold or lukewarm water. Dry the
inner and outer lter thoroughly before you use the lter unit again.
6 Placetheinnerlterbackontothelterholder(1)andturnitanticlockwisetoattach
it (2). (Fig. 24)
7 Placetheouterlterbackontothelterholder(1)andturnitanticlockwisetoattach
it (2). (Fig. 25)
8 Putthelterunitbackintothedustcompartment(Fig.26).
Note: Make sure you insert the lter unit in the correct way. The word ‘up’ must point towards the top of
the dust compartment.
9 To reattach the dust compartment, align the slot on the dust compartment with the
projection on the handheld vacuum cleaner. First attach the bottom of the dust
ENGLISH10

compartment (1) and then push the top of the dust compartment towards the vacuum
cleaner (2) until it locks into place (‘click’). (Fig. 20)
Cleaning the oor nozzle joint
The joint of the oor nozzle may get blocked by large dirt particles. Follow the steps below to clean
the joint.
1 Press the on/off button on the stick to switch off the appliance.
2 Press the handheld vacuum cleaner release button (1) and remove the handheld vacuum
cleaner from the stick (2) (Fig. 11).
3 Presstheoornozzlereleasebutton(1)todetachthestickfromtheoor
nozzle(2)(Fig.27).
4 Remove the large dirt particles from the joint.
5 Placethestickbackontotheoornozzle(‘click’).
Cleaning the roller brush
When the ‘brush blocked’ light starts to ash red, the roller brush is blocked. If this happens, follow
the steps below to clean the roller brush.
1 Press the on/off button on the stick to switch off the appliance.
2 Press the handheld vacuum cleaner release button (1) and remove the handheld vacuum
cleaner from the stick (2) (Fig. 11).
3 Presstheoornozzlereleasebutton(1)todetachthestickfromtheoornozzle(2).
4 Turntheoornozzleupsidedown.
5 Move the roller brush until the cutting groove faces you. (Fig. 28)
6 Use a pair of scissors to cut the hairs, threads etc. that have collected around the roller
brush. (Fig. 29)
7 Removeuff,hairsandotherdirtfromtherollerbrush.
Note:You can also remove the roller brush for easier cleaning.
Removing the roller brush
1 Switch off the appliance.
2 Turntheoornozzleupsidedownandopentheretainer.(Fig.30)
3 Lifttherollerbrushoutoftheoornozzle (Fig. 31).
4 Removeuff,hairsandotherdirtfromtherollerbrushandthegroove.
Reinserting the roller brush
1 Firstinserttheendoftherollerbrushfurthestfromtheretainerintothenozzle,theninsert
theendoftherollerbrushclosesttotheretainerintothenozzle.(Fig.32)
2 Close the retainer (‘click’). (Fig. 33)
Note: If the roller brush is not properly inserted, you cannot close the retainer.
ENGLISH 11

Storage
1 Put the accessories in the storage compartment of the charging base (Fig. 34).
2 Pushthesticktowardstheoornozzletoputitintoparkingposition(Fig.10).
3 You can store the appliance on the charging base with the handheld vacuum cleaner placed in
the stick (Fig. 6).
Replacement
We advise you to replace the inner lter and the outer lter after a prolonged period of use or if
you can no longer clean them properly.
New inner lters are available under type number 4322 004 93471. Contact your Philips dealer.
Replacing the inner and outer lter
1 Removethelterunitfromthedustcompartment(Fig.18).
2 Turntheouterlterclockwise(1)andremoveitfromthelterholder(2)(Fig.22).
3 Turntheinnerlterclockwise(1)andremoveitfromthelterholder(2)(Fig.23).
4 Placeanewinnerlteronthelterholder(1)andturnitanticlockwisetoattach
it (2) (Fig. 24).
5 Placeanewouterlteronthelterholder(1)andturnitanticlockwisetoattach
it (2) (Fig. 25).
6 Putthelterunitbackintothedustcompartment(Fig.26).
Note: Make sure you insert the lter unit in the correct way. The word ‘up’ must point towards the top of
the dust compartment.
Accessories
New inner lters are available under type number 4322 004 93471 . Contact your Philips dealer.
Environment
- Do not throw away the appliance with the normal household waste at the end of its life, but
hand it in at an ofcial collection point for recycling. By doing this, you help to preserve the
environment (Fig. 35).
- The built-in rechargeable batteries contain substances that may pollute the environment.
Remove the batteries when you discard the appliance. Do not throw away the batteries with
the normal household waste, but hand them in at an ofcial collection point. You can also take
the appliance to a Philips service centre.The staff of this centre will remove the batteries for you
and will dispose of them in an environmentally safe way (Fig. 36).
Removing the rechargeable batteries
NiMHbatteriesmayexplodewhenexposedtohightemperaturesorre.
Only remove the rechargeable batteries if they are completely empty.
You can remove the rechargeable batteries in the following way.
1 Let the handheld vacuum cleaner run until it stops.
2 Remove the panel with the exhaust air openings from the handheld vacuum cleaner with a
screwdriver (Fig. 37).
3 Removethepanelonthehandlewithyourngernail.(Fig.38)
ENGLISH12

4 Undo the screws on the side of the handheld vacuum cleaner. (Fig. 39)
5 Press the dust compartment release button and separate the two housing parts.
6 Cut the wires connected to the rechargeable batteries one by one (Fig. 40).
7 Remove the rechargeable batteries (Fig. 41).
Guarantee and service
If you need service or information or if you have a problem, please visit the Philips website at
www.philips.com or contact the Philips Consumer Care Centre in your country (you nd its
phone number in the worldwide guarantee leaet). If there is no Consumer Care Centre in your
country, go to your local Philips dealer.
Troubleshooting
This chapter summarises the most common problems you could encounter with your appliance.
Please read the different sections for more details. If you are unable to solve the problem, please
contact the Philips Consumer Care Centre in your country.
Problem Cause Solution
The appliance does
not work.
The batteries may be low. Recharge the batteries.
If you are using the stick, the
contact strips on the stick
and/or on the handheld
vacuum cleaner may be dirty
or may not make proper
contact.
Wipe the contact strips on the stick and
on the handheld vacuum cleaner clean
with a dry cloth and then place the
handheld vacuum cleaner in the stick.
Move the handheld vacuum
cleaner slightly to the left and right a few
times until you hear a click.
The charging light
does not go on and/
or the appliance
does not charge.
You may not have placed the
appliance on the charging
base properly.
Place the appliance on the charging base
properly.The charging light goes on to
indicate that the appliance is charging.
You may not have put the
adapter in the wall socket
properly.
Put the adapter in the wall socket
properly.
You may have put the
appliance on the charging
base with the handheld
vacuum cleaner switched on.
If you place the appliance on the charging
base with the handheld vacuum cleaner
switched on, the appliance switches off
automatically after two seconds and the
batteries do not charge.
The contact strips on the stick
and/or on the handheld
vacuum cleaner may be dirty
or may not make proper
contact.
Wipe the contact strips on the stick and
the handheld vacuum cleaner clean with a
dry cloth and then place the handheld
vacuum cleaner in the stick. Move the
handheld vacuum cleaner slightly to the
left and right a few times until you hear a
click.
ENGLISH 13

Problem Cause Solution
If you can switch on the
appliance after a few hours
charging, the charging light is
defective.
Take the appliance to your dealer or a
service centre authorised by Philips for
repair.
If the appliance still does not
charge, it may be defective.
Take the appliance to your dealer or a
service centre authorised by Philips for
examination or repair
The handheld
vacuum cleaner does
not vacuum properly.
The dust compartment may
not be attached properly.
Attach the dust compartment to the
handheld vacuum cleaner properly.
The dust compartment may
be full.
Empty the dust compartment.
If you are using the stick,
the contact strips on the stick
and/or on the handheld
vacuum cleaner may be dirty
or may not make proper
contact.
Wipe the contact strips on the stick and
the handheld vacuum cleaner clean with a
dry cloth.Then place the handheld
vacuum cleaner in the stick. Move the
handheld vacuum cleaner slightly to the
left and right a few times until you hear a
click.
The oor nozzle joint may be
blocked by large dirt particles.
Clean the oor nozzle joint (see chapter
‘Cleaning’).
Dust escapes from
the handheld
vacuum cleaner.
The dust compartment may
be full.
Empty the dust compartment.
The dust compartment may
not be attached properly.
Attach the dust compartment to the
handheld vacuum cleaner properly.
The lter unit may not be
placed in the dust
compartment properly.
Place the lter unit in the dust
compartment properly.
The handheld
vacuum cleaner does
not work properly
when one of the
accessories is
attached to the
detachable nozzle.
The dust compartment may
be full.
Empty the dust compartment.
The accessory may be
obstructed.
Remove the obstruction from the
accessory.
The lter unit may be clogged. Clean the inner lter and the outer lter
(see chapter ‘Cleaning’).
The ‘brush blocked’
light ashes red.
The roller brush is blocked. Clean the roller brush (see chapter
‘Cleaning’).
ENGLISH14

Problem Cause Solution
The ‘brush blocked’ light may
ash red because you use the
stick on deep-pile carpet.
In this case the roller brush is not blocked
and the suction power does not decrease.
You can continue to use the stick to clean
the carpet.
The appliance
produces a lot of
noise.
There may be solid particles
in the dust compartment.
Empty the dust compartment and clean
the lter unit (see chapter ‘Cleaning’).
The oor nozzle joint may be
blocked by large dirt particles.
Clean the oor nozzle joint (see chapter
‘Cleaning’).
The appliance does
not pick up dirt
effectively.
The roller brush is clogged. Clean the roller brush (see chapter
‘Cleaning’).
ENGLISH 15

16
简介
感谢您的惠顾，欢迎光临飞利浦！为了您能充分享受飞利浦提供的支持，请在
www.philips.com/welcome 上注册您的产品。
一般说明 (图 1)
A 握柄
1 开/关按钮
2 最大吸力 MAX 按钮
3 把杆上半部分
4 将握柄上半部分旋接到握柄下半部分
5 把杆下半部分
6 吸嘴接合点
7 吸嘴拆卸按钮
8 “滚刷阻塞”指示灯
9 吸嘴
10 固定器
11 前轮
12 滚刷
13 切割沟槽
14 后轮
B 手持式吸尘器
15 开/关按钮
16 集尘桶拆卸按钮
17 集尘桶
18 吸嘴拆卸按钮
19 手持式吸尘器拆卸按钮
20 排气口
21 过滤器部件
22 可拆卸式吸嘴
23 外层过滤网
24 内层过滤网
25 滤芯固定架
26 滤网装置
C 附件
27 充电座
28 充电指示灯
29 储藏空间
30 电源线存储装置
31 适配器
32 充电座靠背
33 壁挂式螺钉
34 缝隙吸嘴
35 毛刷
注意事项
使用本产品之前，请仔细阅读本使用说明书，并妥善保管以备日后参考。
危险
-切勿吸入水或其它液体。切勿吸入易燃物质，也不要吸入未冷却的灰烬。
-切勿将本产品、充电座或适配器浸入水或任何其它液体中，也不要将它们放在水龙头
下冲洗。
简体中文

警告
-在将本产品连接电源前，务必检查当地的电压是否与电源适配器所标电压一致。
-如果吸尘器、充电座或适配器已损坏，请勿再使用。
-如果适配器或充电座损坏，必须用原装型号更换，以免发生危险。
-电源适配器内含有一个变压器。切勿自行更换插头，否则将导致严重后果。
-本产品不打算由肢体不健全、感觉或精神上有障碍或缺乏相关经验和知识的人（包括
儿童）使用，除非有负责他们安全的人对他们使用本产品进行监督或指导。
-应照看好儿童，避免他们将产品当作玩具。
注意
-清洁充电座之前，务必将适配器从墙上的电源插座中拔出。
-只能用本产品随附的适配器和充电座为吸尘器充电。充电期间，适配器会有微热，这
是正常现象。
-使用后，请务必关闭吸尘器。
-充电座接触片上的电压为低电压，因此没有危险。
-吸尘时切勿阻塞排气口。
-充电前请关闭产品。
-使用吸尘器时，请确保装上过滤部件。
电磁场 (EMF)
这款飞利浦产品符合关于电磁场 (EMF) 的相关标准。据目前的科学证明，如果正确使用并
按照本用户手册中的说明进行操作，本产品是安全的。
首次使用之前
1 撕掉产品上的保护膜或塑料保护罩。
2 将靠背装到充电座背面（可听到“咔哒”一声）。(图2)
注意：您只需要安装一次。不需再拆下充电器靠背。
3 为了获得更好的稳定性，必须把充电座安装在墙壁上。将螺丝穿过靠背上的孔固定于
墙上。
4 将握柄上半部分装到握柄下半部分（可听到“咔哒”一声）。(图3)
注意：确保握柄上半部分的凹陷部位正好卡入握柄下半部分的凸起部位。
注意：您只需要按装一次。不需要再把握柄上半部分拆下。
5 用螺丝刀或硬币固定螺钉。
6 将握柄卡入吸嘴（可听到“咔哒”一声）。(图4)
使用准备
为电池充电
电池充满电大约需要 7 小时。
1 将充电座的适配器插入电源插座。
2 将手持式吸尘器插接到握柄上（可听到“咔哒”一声）。(图5)
注意：将手持式吸尘器插接到握柄时，确保关闭产品的电源。
3 将产品插接到充电座。(图6)
,充电指示灯亮起，表示吸尘器正在充电。(图7)
注意：充电指示灯无法指示电池的充电量。
,电池充满电后，充电过程停止，然后充电指示灯熄灭以节约能源。
简体中文 17

注意：您可以将产品留在充电座中，即使电池已完全充电。每隔5分钟，充电指示灯就
会亮起3秒。这表示充电座正在检查电池是否仍然充满电。
注意：如果您将启动状态下的产品放在充电座上，产品会在2秒钟后自动关闭，并且电
池不充电。
节约能源
如果在较长一段时间内不再使用本产品，请将适配器从插座中拔下，以节约能源。
使用本产品
不要将本款无线立式吸尘器的吸力与全尺寸标准吸尘器的吸力比较。它在软地板上的清洁
效果可能与标准吸尘器不完全相同，但在硬地板上则完全一样。
使用握柄
您可以使用握柄来清洁地板和地毯。
使用握柄时，务必确保手持式吸尘器上装了集尘桶，以免损坏手持式吸尘器。
1 将手持式吸尘器正确插接到握柄上（可听到“咔哒”一声）。(图5)
2 按下握柄上的开/关按钮打开产品电源。(图8)
,产品开始以正常速度工作。使用这种速度可以优化操作时间并减少噪音。这种速度下
的工作时间可超过20分钟。
-如果要以最高速度工作，请按 MAX（最大）按钮。使用这种速度可以优化清洁效能。
这种速度下的工作时间为 11 分钟。 (图 9)
-如果您要切换回正常速度，请再次按 MAX（最大）按钮。
注意：在使用期间，“滚刷阻塞”指示灯可能闪烁，以表示滚刷被阻塞。如果出现这种情
况，您必须清除阻塞滚刷的物品或清洁滚刷（见“清洁”一章）。
3 如果您想将产品放置一段时间，或者要在使用期间从握柄取下手持式吸尘器，您可以
使用摆放固定位置。将握柄向吸嘴推动，使其进入摆放固定位置。(图10)
4 使用后，按开关按钮关闭产品。
使用手持式吸尘器
您可以将不带握柄的手持式吸尘器用于清洁小面积和难以触及的区域，例如桌面、家私、
汽车座椅等等。
当手持式吸尘器充满电时，可持续工作 12 分钟。
1 如果手持式吸尘器插接在握柄上，在从握柄上取下手持式吸尘器之前，请按下握柄上
的开/关按钮关闭产品。
注意：如果在产品以常速运转时取下手持式吸尘器，则手持式吸尘器吸力更低。为确保以
全部吸力使用手持式吸尘器，请将其关闭再重新打开。
2 按手持式吸尘器释放按钮(1)并从握柄取下手持式吸尘器(2)。(图11)
3 按开/关按钮启动手持式吸尘器。(图12)
4 使用后，再次按开/关按钮关闭手持式吸尘器。
注意：确保您先关闭手持式吸尘器再将其插回握柄。
注意：如果在手持式吸尘器仍然开启的情况下将其插回握柄，滚刷将无法工作，并且清洁
效能不是最佳。要使滚刷运转，请按握柄上的开/关按钮关闭产品，然后再次按开/关按钮
打开产品。
简体中文18

附件
手持式吸尘器随附有以下附件：
-一个用于角落或狭窄缝隙吸尘的缝隙吸嘴。
-一把用于清洁细致表面的毛刷。
1 从充电座的储藏空间取出您要使用的附件。
2 将附件安装到可拆卸式吸嘴上。(图13)
清洁
清洁充电座之前，将适配器从墙上的电源插座中拔出。
1 用湿布清洁手持式吸尘器的表面、握柄的表面以及充电座的表面。
2 如果您要倒空和清洁集尘桶，或清洁过滤器，请按照下面“倒空并清洁集尘
桶”和“清洁过滤器”部分中的说明执行操作。
倒空并清洁集尘桶
确保定期倒空并清洁手持式吸尘器的集尘桶。
注意：打开垃圾箱时，无需将手持式吸尘器放在垃圾箱上面。
快速倒空
您可以按照以下方法快速倒空集尘桶：
1 按吸嘴拆卸按钮(1)，从手持式吸尘器(2)上取下可拆卸式吸嘴。(图14)
2 抖动集尘桶中的尘垢以将其倒入垃圾桶。(图15)
3 先装可拆卸式吸嘴的底部，然后将可拆卸式吸嘴的顶部推向吸尘器，直到其锁入到位
（可听到“咔哒”一声）。(图16)
彻底清洁
您可以按照以下方法彻底倒空集尘桶：
1 将手持式吸尘器拿到垃圾桶的上方，按下集尘桶拆卸按钮(1)然后卸下集尘桶
(2)。(图17)
2 将过滤器从集尘桶中取出。(图18)
3 用另一只手抖动集尘桶，将尘垢倒入垃圾桶。(图19)
4 如果必要，可用湿布清洁集尘桶。
5 如果必要，应清洁过滤器。见下面“清洁过滤器”部分。
6 将过滤网重新装回集尘桶。
7要重新安装集尘桶，可以将集尘桶的槽与手持式吸尘器的突出部分对齐。首先连接集
尘桶的底部(1)，然后将集尘桶的顶部推向吸尘器(2)，直到其锁定到位（可听到“咔
哒”一声）。(图20)
清洁过滤器
确保定期清洁过滤器。
快速清洁
您可以按照以下方法快速清洁过滤器：
1 将手持式吸尘器拿到垃圾桶的上方，按下集尘桶拆卸按钮(1)然后卸下集尘桶
(2)。(图17)
2 转几次过滤器架内的震动装置。(图21)
简体中文 19

,震动装置会使过滤器内部的灰尘松动。
3 要重新安装集尘桶，可以将集尘桶的槽与手持式吸尘器的突出部分对齐。首先连接集
尘桶的底部(1)，然后将集尘桶的顶部推向吸尘器(2)，直到其锁定到位（可听到“咔
哒”一声）。(图20)
彻底清洁
您可以按照以下方法彻底清洁过滤器：
1 将吸尘器拿到垃圾箱上方，按下集尘桶拆卸按钮(1)，然后卸下集尘桶(2)。(图17)
2 将过滤器从集尘桶中取出。(图18)
3 顺时针旋转外层过滤器(1)，将其从过滤器架上取下(2)。(图22)
4 顺时针旋转内层过滤器(1)，将其从过滤器架上取下(2)。(图23)
5 如果过滤网很脏，请用毛刷或标准吸尘器清洁内层过滤网和外层过滤网。
注意：如果必要，还可以用冷水或温水清洁内层和外层过滤器。在您再次使用过滤器之
前，务必将内层和外层过滤器彻底擦干。
6 将外层过滤器放回过滤器架(1)，然后逆时针旋转将其安装好(2)。(图24)
7将内层过滤器放回过滤器架(1)，然后逆时针旋转将其安装好(2)。(图25)
8将过滤网重新装回集尘桶。(图26)
注意：确保正确插入过滤器。“up”字样必须指向集尘桶的顶部。
9要重新安装集尘桶，可以将集尘桶的槽与手持式吸尘器的突出部分对齐。首先连接集
尘桶的底部(1)，然后将集尘桶的顶部推向吸尘器(2)，直到其锁定到位（可听到“咔
哒”一声）。(图20)
清洁吸嘴接合点
吸嘴的接合点可能被大块污垢阻塞。请按照下面的步骤清洁接合点。
1 按下握柄上的开/关按钮关闭产品电源。
2 按手持式吸尘器释放按钮(1)并从握柄取下手持式吸尘器(2)。(图11)
3 按吸嘴拆卸按钮(1)将握柄从吸嘴取下(2)。(图27)
4 清理接合点处的大块污垢。
5 将握柄插回吸嘴（可听到“咔哒”一声）。
清洁滚刷
当“滚刷阻塞”指示灯开始闪烁红色时，即表示滚刷阻塞。如果发生这种情况，请按照下
面的步骤清洁滚刷。
1 按下握柄上的开/关按钮关闭产品电源。
2 按手持式吸尘器释放按钮(1)并从握柄取下手持式吸尘器(2)。(图11)
3 按吸嘴拆卸按钮(1)将握柄从吸嘴取下(2)。
4 将两用吸尘嘴倒转。
5 移动滚刷，直到切割沟槽朝向您。(图28)
6 使用一把剪刀剪掉缠住滚刷的毛发、线头等等。(图29)
7从滚刷上摘下绒毛、毛发及其他污物。
注意：您也可以拆下滚刷以便于清洁。
简体中文20
