ServiceManual
Philips Consumer Lifestyle

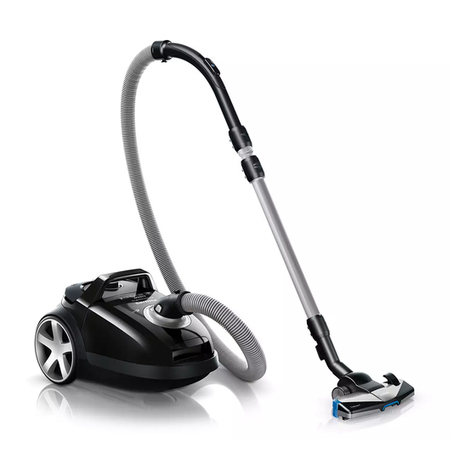

Vacuum cleaner
FC8523/09
FC8523/19
16/05 Version 1.7
PRODUCT INFORMATION
•This product meets the requirements regarding
interference suppression on radio and TV.
•After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
•Colour : Titanium
•Input Power : 750 W
•Suction Power : 190 W
•Noise level : 79 dB
•Dustcapacity : 4 L
•Filtration : EPA 10 Filter
•Cord length : 6 m
•Action Radius : 9 m
•Connection : Conical
•Dimensions : 44 x 30 x 20 cm
•Weight : 5 kg
ACCESSORIES
•Standard nozzle : TriActive+ nozzle
•Additional nozzle : Alma HF nozzle
•Tube : Metal 2-pieces telescopic tube
•Accessories : Crevice nozzle and Small nozzle
REPAIR INSTRUCTION
•No specific issues
OPTIONAL (accessories)
•Smart Cleaning Kit 4322 004 25481
•Filter assy FC8059/01

FC8523/09 / FC8523/19
2-8
•First remove the dust bag.
•To replace the Valve assy (10), turn the appliance
upside down and remove bottom plate (16) by removing
screw D. Now by using a screwdriver the valve assy can
be removed (see picture).
D
•Remove the dustcover assy (1) using a screwdriver
(see picture).
•To disassemble the Back housing (9):
Remove the 4 screws B. (see exploded view).
To reach the 2 screws on the back, rst remove the
On/O button (12) and the small panel, which has 4
snap locks! (see pictures).
1
2
•Disconnect the connector from the potmeter PCBA (31).
•To remove the Turning knob (8) & Potmeter PCBA:
Turn the Back housing upside down and remove the 2
screws C. The potmeter PCBA can now be removed and
replaced.
•Turning knob (8) can be pushed to the outside with a
screwdriver.
•The On/Off switch (20) can be replaced by unplugging
the two wires.
•To replace the main PCBA (19) remove the small 2
screws E(see exploded view)
•The Cordwinder (17) can be removed by pulling it
in upwards direction and unplugging the two wires,
the Cordwinder can replaced by placing it back in the
opposite direction.
•To replace the Motor assy (22):
Disassemble the Motor housing (21) by removing the 4
screws F(see exploded view).
DISASSEMBLY- AND RE-ASSEMBLY ADVISE

FC8523/09 / FC8523/19
3-8
M
AC
220 - 240V
50Hz
R5
27-¼W
U1
TR1
Motor
TMP
R3
10M-¼W
R4
10M-¼W
L
N
C1
0.47F
275V
C3
100nF
C4
100nF
ZD1
4.7V
½ W
C2
330F
16V
D1
1N4007
R2
10k-1W
R1
10k-1W
RW
47k
K
4
1
3
2
12 13
14
R7
1k
PARTS LIST
ELECTRICAL DIAGRAM
Pos Service code Description Remark
1
2
3
4
5
9965 100 71519
9965 100 71518
9965 100 68376
4322 005 28301
4322 004 93931
Dust cover assy
Dust cover lock
Dustbag holder
DBFI assy (Red)
Motor inlet lter
Beluga spray paint
Beluga spray paint
Basic blue 61192
Atlas Low power
Atlas
6
7
8
9
10
9965 100 68372
9965 100 68381
9965 100 68373
9965 100 71517
9965 100 71511
Motor inlet lter frame
Cordwinder button
Turning knob
Back housing
Valve assy
Deep black 80231
Deep black 80231
Deep black 80231
Beluga spray paint
11
12
13
14
15
9965 100 68357
9965 100 68379
9965 100 68374
4322 004 93941
9965 100 62294
Casterdish assy
On/O button
Exhaust lter frame
EPA 10 lter
Wheel assy
Deep black 80231
Deep black 80231
Deep black 80231
Atlas
16
17
17
18
19
9965 100 68378
4322 005 36261
4322 005 19011
9965 100 68377
4322 006 25481
Bottom housing plate
Cordwinder Performer active
Cordwinder Performer active
Bottom housing
PCBA 220 - 230 V
Deep black 80231
0.75 / 6 m / Euro / Black
0.75 / 6 m / Swiss / Black
Deep black 80231
Atlas low power
20
21
22
23
24
9965 100 60949
9965 100 68371
4322 009 00951
4322 004 25422
4322 004 25061
Switch
Motor housing
Service assy motor
Hose assembly
Telescopic tube Conical 35 mm
800 W IEC
Atlas
Metal
25
26
28
29
30
4322 004 25121
4322 004 25111
4322 004 25431
4322 004 25201
4322 004 26061
Small nozzle Conical 35 mm
Crevice nozzle Conical 35 mm
TriActive+ nozzle Conical 35 mm KC
Accessory holder EasyLive
Alma HF nozzle Conical 35 mm KC
Deep black 80231
Deep black 80231
Deep black 80231
Deep black 80231
Deep black
31 9965 100 75319 PCBA switch

FC8523/09 / FC8523/19
4-8
4
5
1
3
6
A
A
2
EXPLODED VIEW

FC8523/09 / FC8523/19
5-8
C
D
C
B
B
B
B
8
12
13
14
15
7
9
10
11
16
31
EXPLODED VIEW

FC8523/09 / FC8523/19
6-8
E
E
F
F
F
F
19
22
20
17
18
21
EXPLODED VIEW

FC8523/09 / FC8523/19
7-8
23
24
29
28
25
26
30
EXPLODED VIEW

FC8523/09 / FC8523/19
8-8
Version history
14/09 Version 1.1 : FC8523/09 initial release.
14/12 Version 1.2 : Added new version: FC8523/19.
In Parts List and Exploded view: Added Pos. 17: 4322 005 19011 Cordwinder Performer active
0.75 / 6 m / Swiss / Black.
15/02 Version 1.3 : On page 1 under Accessories Added Alma HF nozzle.
In Parts List and Exploded view: Added Pos. 30:
4322 004 26061 Alma HF nozzle Conical 35 mm KC Deep black.
15/05 Version 1.4 : In Parts List and Exploded view: Added Pos. 31: 9965 100 73194 PCBA switch.
15/06 Version 1.5 : In Parts List: Changed Pos. 19: 4322 006 25051 PCBA 220 - 230 V Atlas into
4322 006 25481 PCBA 220 - 230 V Atlas low power.
15/11 Version 1.6 : In Parts List: Changed Pos. 15: 9965 100 68375 Rear wheel assy Cashmere grey 11418 into
9965 100 62294 Wheel assy.
16/05 Version 1.7 : In Parts List: Changed Pos. 31: 9965 100 73194 PCBA switch into 9965 100 75319.
