Philips LFH 7780 User manual

Digital Voice Tracer
www.philips.com/dictation
EN User manual 3
DE Benutzerhandbuch 23
FR Manuel de l‘utilisateur 43
LFH 7780 / LFH 7790 / LFH7890
ES Manual del usuario 63
IT Manuale di istruzioni 83
NL Gebruikershandleiding 103
www.philips.com/dictation
Digital Voice Tracer
User manual 3
ES
dvt7780_7790_7890_ifu_en-de-fr-e1 1 04/07/2007 10:53:25

dvt7780_7790_7890_ifu_en-de-fr-e2 2 04/07/2007 10:53:25

3User manual
1 Your Digital Voice Tracer 3
1.1 What’s in the box 3
1.2 Overview 4
1.3 LCD indicators and symbols 4
1.4 Features and benefits 5
2 Get Started 7
2.1 Replace the Batteries 7
2.2 Switch the Voice Tracer On 7
2.3 Set the Clock 7
2.4 Switch the Voice Tracer O 7
2.5 Hold Function 7
3 Record 8
3.1 Record With the Built-in
Microphone 8
3.2 Record With an External
Microphone 9
3.3 Record From an External Device
(7890 only) 9
3.4 FM Radio Recording (7890 only) 9
4 Playback 9
4.1 Normal Playback 9
4.2 Slow Playback 10
User manual
Batteries
Stereo earphones
USB cable
Lapel microphone
Neck strap
CD
Voice Tracer
1 Your Digital Voice Tracer
1.1 What’s in the box4.3 Search 10
4.4 Repeat Playback 10
5 FM Radio Reception (7890 only) 11
5.1 Program up to 20 Radio Stations 11
5.2 Delete Programmed Stations 12
5.3 Radio Playback Through the
Built-in Speaker 12
5.4 Button function overview -
FM radio mode 12
6 MP3 Player Function 13
7 Menu 13
8 Warnings 20
9 Troubleshooting 21
10 Specifications 22
User manual
E N G LI S H
dvt7780_7790_7890_ifu_en-de-fr-e3 3 04/07/2007 10:53:27

4User manual
1.2 Overview
Earphone socket
Microphone socket, line-in socket
Built-in microphone
Record/Pause/Power on
STOP/MENU
Stop recording, menu entry
Volume up
NEXT
Fast forward, file selection,
menu selection
Repeat/Folder
Battery compartment
Speaker
Record/playback indicator LED
LC display
BACK
Fast rewind, file selection, menu selection
POWER/PLAY/SPEED/PAUSE
Power on/o, normal play, slow playback
Volume down
Mini-USB socket for PC download
Hold
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
123
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1.3 LCD indicators and symbols
Folder indicator: A, B, C, D, M
Battery indicator (Replace the
batteries if the display alternates
between status 3 and 4.)
Stereo mode indicator:
FM stereo/mono,
recording stereo/mono
FM radio reception indicator
(7890 only)
External input indicator (7890 only)
File number, menu value, FM channel (7890 only)
Recording quality indicator
Alarm enabled indicator
Voice-activated recording indicator
Slow-speed playback indicator
Timer recording enabled indicator
Repeat mode indicator
Shue mode indicator
Play/recording time indicator, menu entries
Remaining play/recording time indicator
Recording time indicator
dvt7780_7790_7890_ifu_en-de-fr-e4 4 04/07/2007 10:53:36

5User manual
1.4 Features and benefits
Recording
Recording sensitivity: To record sounds from all directions
(record conferences, for example), switch to high sensitivity mode.
When recording personal notes and you want to avoid recording
noises from around you, switch to low sensitivity mode.
Super HQ recording mode: Outstanding recording quality for
brilliant, clear playback.
Choice of recording modes: Select your choice of recording
modes; you have the freedom of choice between long-lasting
recording capacity and outstanding sound quality. Choose according
to your needs, or switch to lower recording quality modes when you
want to conserve memory capacity.
Large voice recording capacity: Ample internal memory allows
the recording and storage of long voice recordings. There is no need
to download or delete files to free up space.
Voice-activated recording mode: Use this convenient feature
when you want to dictate hands-free. When enabled, recording will
start automatically when the input level exceeds a certain threshold
- usually when you start speaking. Recording stops automatically
after you stop speaking and restarts automatically when you start
speaking again.
Auto divide: Automatically divide long recordings into separate
files (30 or 60 minutes in length each). This makes it much easier to
find, edit and archive long recordings of meetings or lectures.
External source recording (line recording): With this feature,
record directly from an external audio source such as an audio CD
player in good sound quality. Available with DVT 7890.
Recording while powered through USB: To record long
conferences, power the Digital Voice Tracer through a USB port.
Connect the USB cable to a notebook computer, then press and hold
the record button until REC is displayed. Record the conference or
meeting without draining the battery.
Playback
File preview / intro scan: This function scans through all
recordings by playing back the first few seconds of each file. This
makes it easier to search for a specific file or to browse through all
recordings.
E N G LI S H
dvt7780_7790_7890_ifu_en-de-fr-e5 5 04/07/2007 10:53:36

6User manual
Slow playback: Recordings will be played back at slower speed, for
example to make it easier to take notes.
A-B repeat playback: Let the DVT repeat a voice section between
two points (A <> B). For example, make it easier to note a telephone
number, an address or a remark made in a recorded conversation.
File repeat playback: Let the DVT play your recording over and
over. For example, replay your favorite song.
Alarm playback: Schedule a voice alarm to remind you of an
important meeting or event, or a telephone call you need to make.
Convenience
Large backlit LCD display: View all relevant information at a
glance, even in low-light conditions.
Hold: Lock and protect the current state of the DVT to avoid
unintentionally switching the device on or o during recording,
playback or when carrying the DVT in your pocket.
Time stamp: The time stamp feature assigns a date and time to
every recording. This makes it more convenient to locate and verify
the recordings later on.
File split: With this feature, split a long recording into two separate
files so they can be more easily archived or e-mailed, or so that part
of a file can be deleted.
Timer recording: With timer recording, program the DVT to
record an important event in advance. Once timer is set, the event
will be recorded automatically at the scheduled time and date. There
is no need to switch the Digital Voice Tracer to Record mode when
the meeting begins.
USB drive: The DVT can also be used as a standard Microsoft
Windows USB storage device, oering the convenient storage and
sharing of files (letters, presentations or spreadsheets).
With USB mass storage support, the DVT is automatically displayed
as an external drive when it is connected to the computer. It can
then be easily accessed with any Microsoft Windows program as
a regular drive. Since the Microsoft Windows operating system
contains the generic mass storage-class driver, no separate driver
needs to be installed for the device to be recognized.
dvt7780_7790_7890_ifu_en-de-fr-e6 6 04/07/2007 10:53:36

7User manual
2 Get Started
2.1 Replace the Batteries
Switch the Voice Tracer o by pressing the PLAY/PAUSE button
for a few moments in Stop mode. Do not replace the batteries
while the Voice Tracer is switched on, as this may cause the
device to malfunction.
Open the battery cover.
Insert the batteries. Make sure that the batteries are inserted
properly (size “AAA”) and close the cover.
Press the PLAY/PAUSE button for a few moments to switch the
Voice Tracer on.
D Remove the batteries if you will not be using the Voice Tracer
for an extended period. Leaking batteries may damage the Voice
Tracer. If the Voice Tracer malfunctions, remove the batteries
and re-insert them.
2.2 Switch the Voice Tracer On
Press and hold the PLAY/PAUSE button for a
few moments to switch the Voice Tracer on.
The Voice Tracer is in Stop mode 1or Clock
Set mode 2. The Voice Tracer switches on in the same mode that
it was in when it was switched o.
1�
2�
3�
4�
1� 1 2
D If the time is not set, the Voice Tracer will switch on in Clock Set
mode. The Voice Tracer will change to Stop mode when the time
is set or when the STOP/MENU button is pressed. Press and
hold the REC button for a few moments to skip setting the clock
and to begin recording immediately.
E If the HOLD switch is in the Hold position, On Hold will
be shown briefly on the display, and the display will turn
o 3. Unlock the Voice Tracer by moving the HOLD
switch to the O position.
2.3 Set the Clock
Put the Voice Tracer in Stop mode.
Press and hold the STOP/MENU button for a few moments to enter
Menu mode. Follow the instructions in the chapter Menu.
2.4 Switch the Voice Tracer O
In STOP or FM Radio mode, you can switch o the Voice Tracer by
pressing and holding the PLAY/PAUSE button for a few moments.
Switch o your Voice Tracer when you are finished using it for
recording or playback for maximum battery life.
2.5 Hold Function
When the HOLD switch (on the left side of the Voice Tracer) is in
the Hold position, all buttons on the device are inactive.
1�
2�
3
E N G LI S H
dvt7780_7790_7890_ifu_en-de-fr-e7 7 04/07/2007 10:53:37

8User manual
Slide the HOLD switch to the O position to enable the buttons
on the Voice Tracer.
3 Record
Press the REPEAT/FOLDER button to select the desired folder.
The Voice Tracer will move to the next folder each time you press
the button.
Set the desired voice activation function and quality (Super HQ,
HQ, SP, LP, SLP) before you start recording (see the Menu chapter
for more details).
Make a test recording to make sure that the Voice Tracer settings
are correct.
Press and hold the PLAY/PAUSE button during recording for a few
moments to display the remaining recording capacity.
The maximum number of files in each folder is 99, for a total
capacity of 396 files (99 files x 4 folders).
If the recording time exceeds the available capacity or
the number of files reaches 396, “FULL” will be displayed
and recording cannot be continued 12. If this happens,
delete a few recordings or move them to an external
device (audio or computer).
Do not remove the batteries during recording. This may
1�
•
•
•
•
•
•
•
cause the Voice Tracer to malfunction.
If recording for a prolonged period of time, replace the
batteries before beginning.
When the Voice Tracer is in voice activation mode 3, recording
will stop automatically when no sound is detected. Disable the
function when recording important conversations.
Press the REC button while playing back an MP3 or WMA file in
the M (Music) folder to enable the equalizer.
3.1 Record With the Built-in Microphone
Press and hold the REC/PAUSE button for a moment to switch
the Voice Tracer on and start recording 12. The red LED will
light.
Point the Voice Tracer’s built-in microphone towards the sound
source. Press and hold the PLAY/PAUSE button during recording
to display the remaining recording capacity.
Press the REC/PAUSE button to pause the recording. The
red LED will blink, and “Pause” will flash on the display.
Press the REC/PAUSE button again to resume
recording. The red LED will light again.
Press the NEXT button to create a new file during
recording (file separation function).
The total time of the recording is displayed when you
stop recording by pressing the STOP/MENU button 3.
•
•
•
1�
2�
3�
4�
5�
6�
1
2
3
3
1
2
dvt7780_7790_7890_ifu_en-de-fr-e8 8 04/07/2007 10:53:38

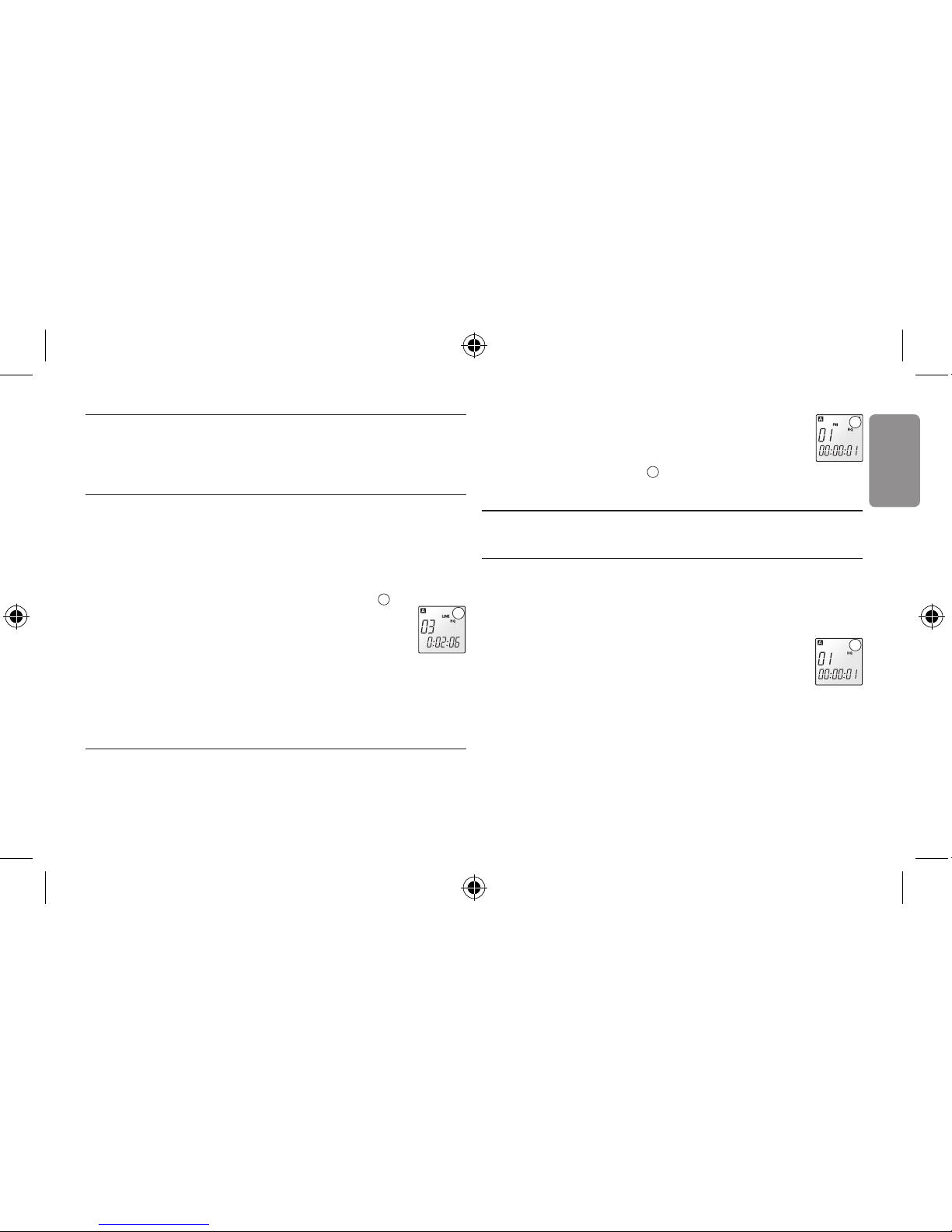

9User manual
3.2 Record With an External Microphone
To record with an external microphone, connect the microphone
to the microphone socket and follow the same procedure as for the
built-in microphone.
3.3 Record From an External Device (7890 only)
Switch the Voice Tracer on. If the Voice Tracer is in FM Radio
mode, press the REPEAT/FOLDER button for a few moments to
exit this mode.
Go to Menu mode and set up the input source line (L). For
details, read the explanation under Menu Entry – Recording
Input Setup. “LINE” will be shown on the display 1.
Connect the line-in socket with the audio source by
means of an audio cable.
Press the REPEAT/FOLDER button to select the folder
you want to record to.
Press the REC/PAUSE button to begin recording.
D To pause or stop recording, follow the same procedure as for
recording with the built-in microphone.
3.4 FM Radio Recording (7890 only)
Switch the Voice Tracer on.
If not in FM Radio mode, press the REPEAT/FOLDER button for
a few moments to enter this mode.
1�
2�
3�
4�
5�
1�
2�
1
Select the station to be recorded. For details, read the
FM Radio Reception chapter.
Press the RECORD button to record the currently
selected FM radio station 1.
4 Playback
4.1 Normal Playback
Press the PLAY/PAUSE button for a few moments to switch the
Voice Tracer on. If the Voice Tracer is in FM Radio mode (7890
only), press the REPEAT/FOLDER button for a few moments to
exit this mode.
Press the REPEAT/FOLDER button to locate the folder
where the desired file is stored.
Press the PLAY button. The playback time will be
shown on the display, and the green LED will light.
Adjust the volume using the Volume Up and Down buttons.
Press the STOP/MENU button during playback to stop. The total
playback time of the current file will be shown on the display.
Press the PLAY button again to continue playback from the
previous position.
3�
4�
1�
2�
3�
4�
5�
6�
1
1
E N G LI S H
dvt7780_7790_7890_ifu_en-de-fr-e9 9 04/07/2007 10:53:38

10 User manual
4.2 Slow Playback
D Available for voice file playback only.
Press the PLAY button for a few moments to switch
from normal playback to slow playback 1.
Press the PLAY button again for a few moments to
return to normal playback.
4.3 Search
Press and hold the NEXT or BACK button for a few moments
during playback to scan forward or backward in the current file
at a fast speed.
When the NEXT or BACK button is released, playback will
resume at the selected speed (normal or slow) from the point
where the button was released.
D Press and hold the NEXT button until the end of the current file.
The Voice Tracer will continue scanning through the next file.
4.4 Repeat Playback
4.4.1 Repeat a Section
During playback, press the REPEAT/FOLDER button at the
beginning of the section to be repeated. The A B indicator will
1�
2�
1�
2�
1�
blink on the display 1.
Press the REPEAT/FOLDER button again at the end of
the section to be repeated 2.
The selected section will repeat continuously until the
STOP/MENU button is pressed.
Press the REPEAT/FOLDER button to stop Section
Repeat mode and return to normal playback.
4.4.2 Repeat a File
Press the REPEAT/FOLDER button for a few moments
during playback. The repeat indicator will be shown on
the display.
The current file will be repeated when the repeat indicator is
shown on the display 1.
Press the STOP/MENU button to stop playback. The Voice
Tracer will remain in File Repeat mode.
4.4.3 Repeat a Folder
With the Voice Tracer in File Repeat mode, press the
REPEAT/FOLDER button for a few moments.
“FOLD” will be shown on the display inside the repeat
arrow, and the current folder will repeat 1.
4.4.4 Shue Mode
With the Voice Tracer in Stop mode, press the REPEAT/FOLDER
2�
3�
4�
1�
2�
3�
1�
2�
1�
1
1
2
1
1
dvt7780_7790_7890_ifu_en-de-fr-e10 10 04/07/2007 10:53:39

11User manual
button to select the M (Music) folder.
While the Voice Tracer is playing a song file, press the REPEAT/
FOLDER button three times for a few moments each.
“SHUF” will be shown on the display, and the files in the M
(Music) folder will play in random order 1.
Shue mode is only available in the M (Music) folder.
Press and hold the REPEAT/FOLDER button for a few moments
during playback to exit Shue mode. When the STOP/
MENU button is pressed to stop playback, the Voice
Tracer will remain in Shue mode.
5 FM Radio Reception (7890 only)
With the Voice Tracer in Stop mode,
press the REPEAT/FOLDER button for
a few moments to activate the FM Radio
mode.
Connect the earphones. FM reception
is not possible if the earphones are not
connected because they function as the
antenna.
2�
3�
4�
1�
2�
1
5.1 Program up to 20 Radio Stations
5.1.1 Frequency Scanning
Press the NEXT button for a few moments.
The Voice Tracer will scan the FM frequency band automatically,
stopping at the first station it finds.
Press the PLAY button briefly to save the current station. Then
repeat step 1.
5.1.2 Manual Programming
Press the NEXT button once. The frequency will increase by 50 khz.
Continue pressing the NEXT button briefly until the desired
frequency is reached.
Press the PLAY button briefly to save the selected station.
D Use the BACK button to search in the opposite direction.
5.1.3 Automatic Programming
Select the menu entry “AUTO” to enable Automatic
Programming mode. See Menu Entry – Automatic Programming
for more details.
Press the STOP/MENU button to exit Automatic Programming mode.
D Undesired or weak stations may be saved depending on the
reception conditions.
1�
2�
3�
1�
2�
3�
1�
2�
E N G LI S H
dvt7780_7790_7890_ifu_en-de-fr-e11 11 04/07/2007 10:53:40

12 User manual
5.2 Delete Programmed Stations
Complete the following steps to delete undesired stations after
Automatic Programming.
Press the REPEAT/FOLDER button briefly to change to
Preset mode 1.
Press the NEXT button to select the station you want
to delete.
Press the PLAY button briefly to delete the selected station.
Press the NEXT button to go to the next station.
5.3 Radio Playback Through the Built-in Speaker
Complete the following steps to switch between earphone and
speaker output.
Connect the earphones. The earphones must be connected to
use the FM Radio mode because they function as the antenna.
Press the STOP/MENU button for a few moments to change the
FM radio output to the speaker.
D The Voice Tracer will automatically return to earphone output
when the FM Radio mode is exited.
1�
2�
3�
4�
1�
2�
1
Button function FM radio reception mode FM scanning mode
+, - Volume Up, Volume Down No function
PLAY
short press
Channel memory (Frequency mode),
Delete channel (Preset mode)
No function
PLAY
long press
Power o Power o
NEXT
short press
Increase frequency one step
(Frequency mode), Next channel up
(Preset mode)
No function
NEXT
long press
Scan up (Frequency mode),
Increase channel number continuously
(Preset mode)
No function
BACK
short press
Decrease frequency one step
(Frequency mode),
Next channel down (Preset mode)
Stop at frequency
BACK
long press
Scan down (Frequency mode),
Decrease channel number
continuously (Preset mode)
Stop after finding
next station
REC Record FM broadcast No function
STOP/MENU
short press
Switch between stereo and mono Exit FM searching
mode
STOP/MENU
long press
Menu entry Exit FM searching
mode
REPEAT/FOLDER
short press
Switch between Frequency and
Preset mode
No function
REPEAT/FOLDER
long press
Exit FM Radio Reception mode No function
5.4 Button function overview - FM radio mode
dvt7780_7790_7890_ifu_en-de-fr-e12 12 04/07/2007 10:53:41

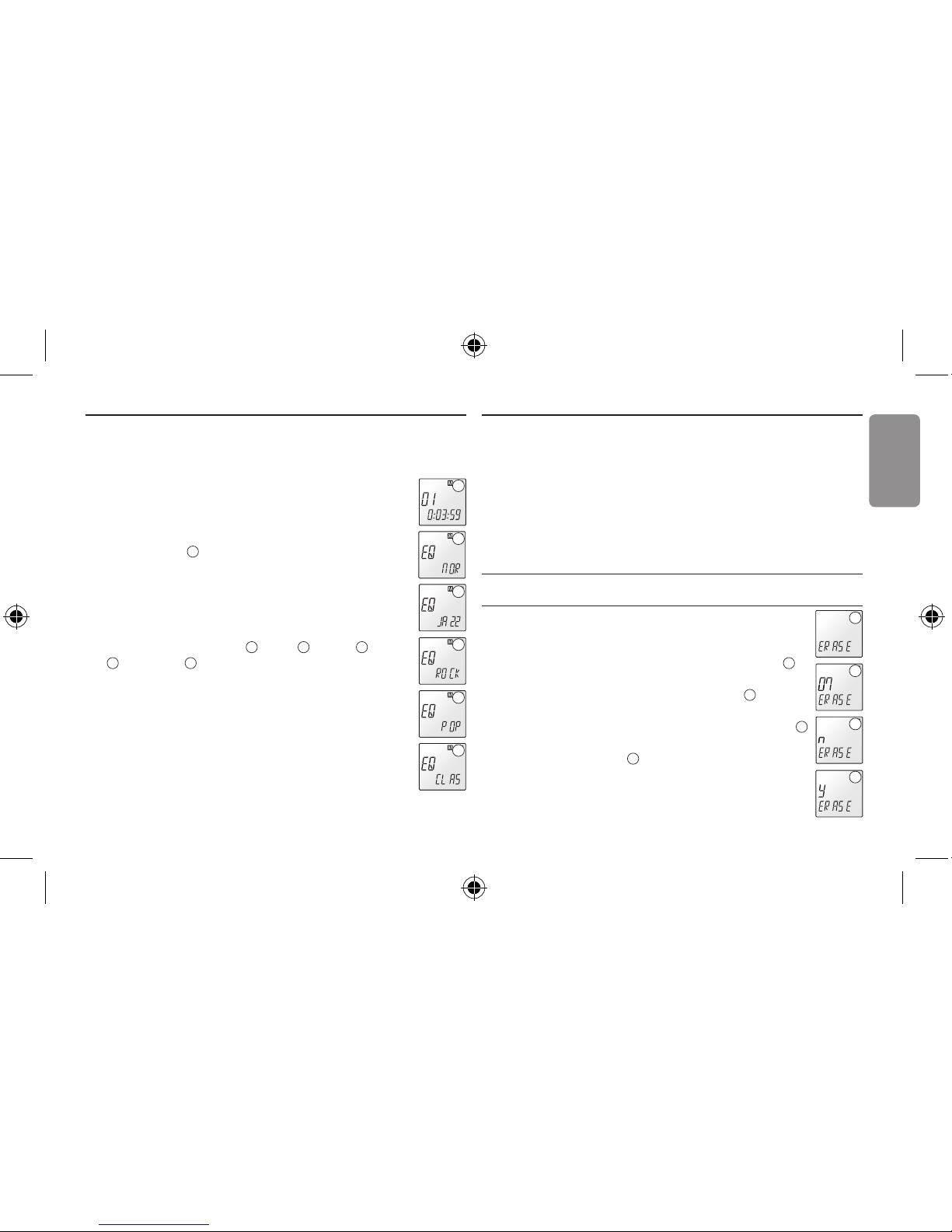

13User manual
6 MP3 Player Function
Copy MP3 or WMA files from your computer to the
Voice Tracer. Consult the separate Download Manager
program user manual for further details.
Press the REPEAT/FOLDER button to select the M
(Music) folder 1.
Press the NEXT button to select the desired file, then
press the PLAY button.
Press the REPEAT/FOLDER button to enable Repeat
mode (File Repeat > Folder Repeat > Shue > Normal).
During playback, press the REC button to change the
Equalizer mode (Normal 2> Jazz 3> Rock 4> Pop
5> Classical 6> Normal).
DSlow Playback mode is not available for MP3 or WMA
files saved in the M (Music) folder.
C Attention: Adjust the sound level with the volume
control. Listening to music at high volumes can
permanently damage hearing.
1�
2�
3�
4�
5�
7 Menu
Menu mode is available in Stop mode or FM Radio mode. The
available menu items dier depending on whether you are in a
voice folder, a music folder or in FM Radio mode. The following
description is based on Stop mode in a voice folder.
7.1 Delete a Single File or All Files in a Folder
7.1.1 Delete a file
With the Voice Tracer in Stop mode, select the file to
be deleted.
Press the STOP/MENU button for a few moments 1.
Press the PLAY button briefly. The file number (7) will
blink, and “ERASE” is shown on the display 2.
Press the Play button again briefly. The file number
indicator will be replaced with “n” (no) and will blink 3.
Press the NEXT button to change the confirmation
indicator to “Y” (Yes) 4.
Press the PLAY button briefly to delete the selected
file.
1�
2�
3�
4�
5�
6�
1
2
3
4
1
2
3
4
5
6
E N G LI S H
dvt7780_7790_7890_ifu_en-de-fr-e13 13 04/07/2007 10:53:42

14 User manual
7.1.2 Delete the Files in a Single Folder or All Files
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the PLAY button briefly and the NEXT button
to select the folder from which you want to delete all
files. (A > B > C > D > M > A B C D M [all folders] > A).
“ERASE” is shown on the display, and the indicator is
shown for the chosen folder 12.
Press the PLAY button briefly. The confirmation
indicator “n” (no) will blink on the display 3.
Press the NEXT button to change the confirmation
indicator to “Y” (Yes) 4.
Press the PLAY button to delete all files in the selected
folder or folders.
7.2 Recording Quality Selection
D This function is available only in voice folders.
With the Voice Tracer in Stop mode, press
the STOP/MENU button for a few moments.
Press the NEXT button briefly and then press
the PLAY button 1. “REC” is shown and
“SUPER HQ” blinks on the display 2.
1�
2�
3�
4�
5�
1�
2�
Press the NEXT button to select the desired
recording quality 3456.
Press the PLAY button to save the setting,
then the STOP/MENU button to exit Menu mode.

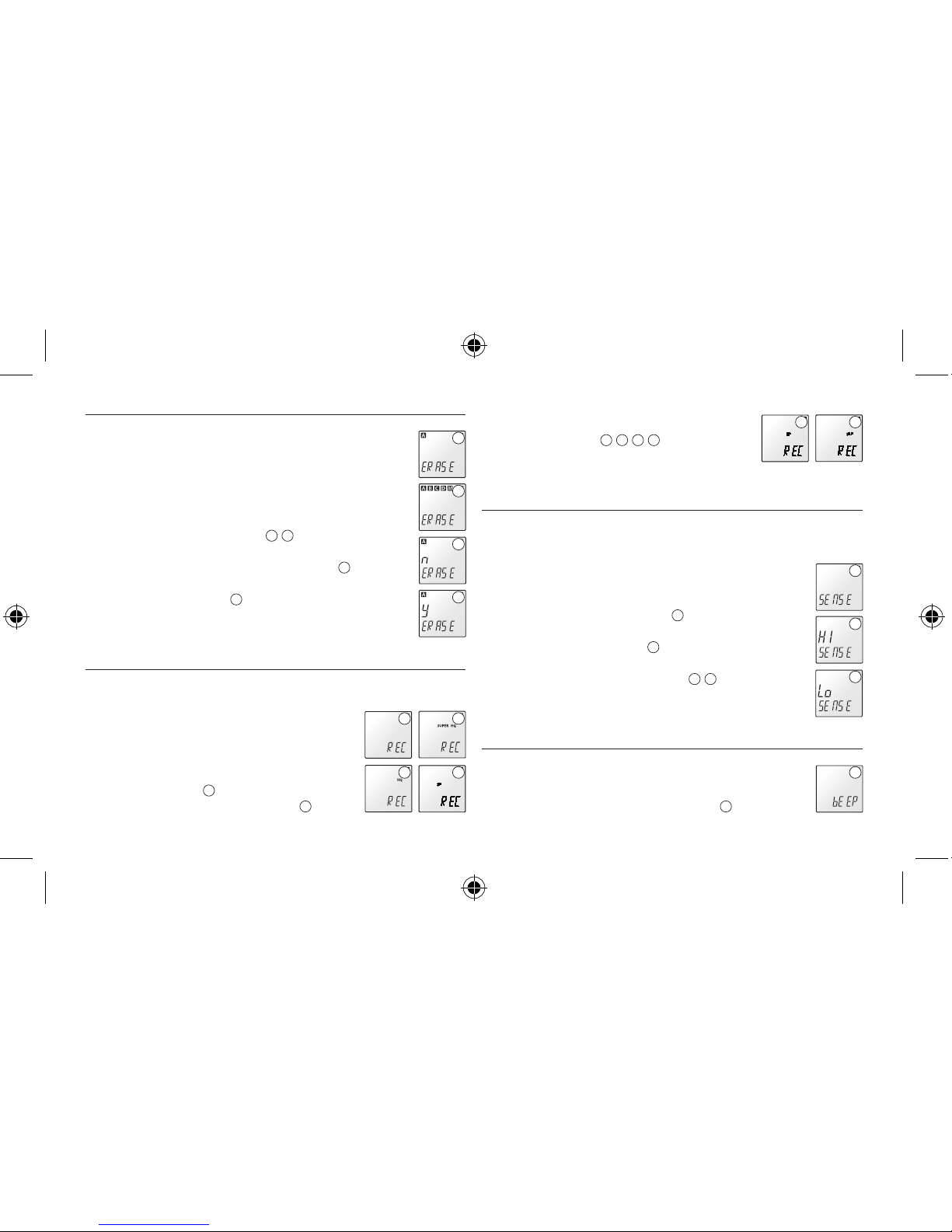

7.3 Microphone Recording Sensitivity
D This function is available only in voice folders.
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the NEXT button twice 1.
Press the PLAY button briefly. “SENSE” is shown and
“HI” blinks on the display 2.
Press the NEXT button to select the desired
microphone recording sensitivity 32.
Press the PLAY button to save the setting, then the
STOP/MENU button to exit Menu mode.
7.4 Beep Setting
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the NEXT button briefly 3 times 1.
3�
4�
1�
2�
3�
4�
5�
1�
2�
1 2
3 4
5 6
1
2
3
4
1
2
3
1
dvt7780_7790_7890_ifu_en-de-fr-e14 14 04/07/2007 10:53:44

15User manual
“OF” blinks on the display 2.
Press the NEXT button to select “OF” (o) or “On”
3.
Press the PLAY button to save the setting, then the
STOP/MENU button to exit Menu mode.
7.7 Record From an External Device (7890 only)
D This function is available only in voice folders.
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the NEXT button briefly 6 times 1.
Press the PLAY button briefly. “INPUT” is shown and
“V” blinks on the display 2.
Press the NEXT button to select “L” (line-in) or “V”
(voice) 3.
Press the PLAY button to save the setting, then the
STOP/MENU button to exit Menu mode.

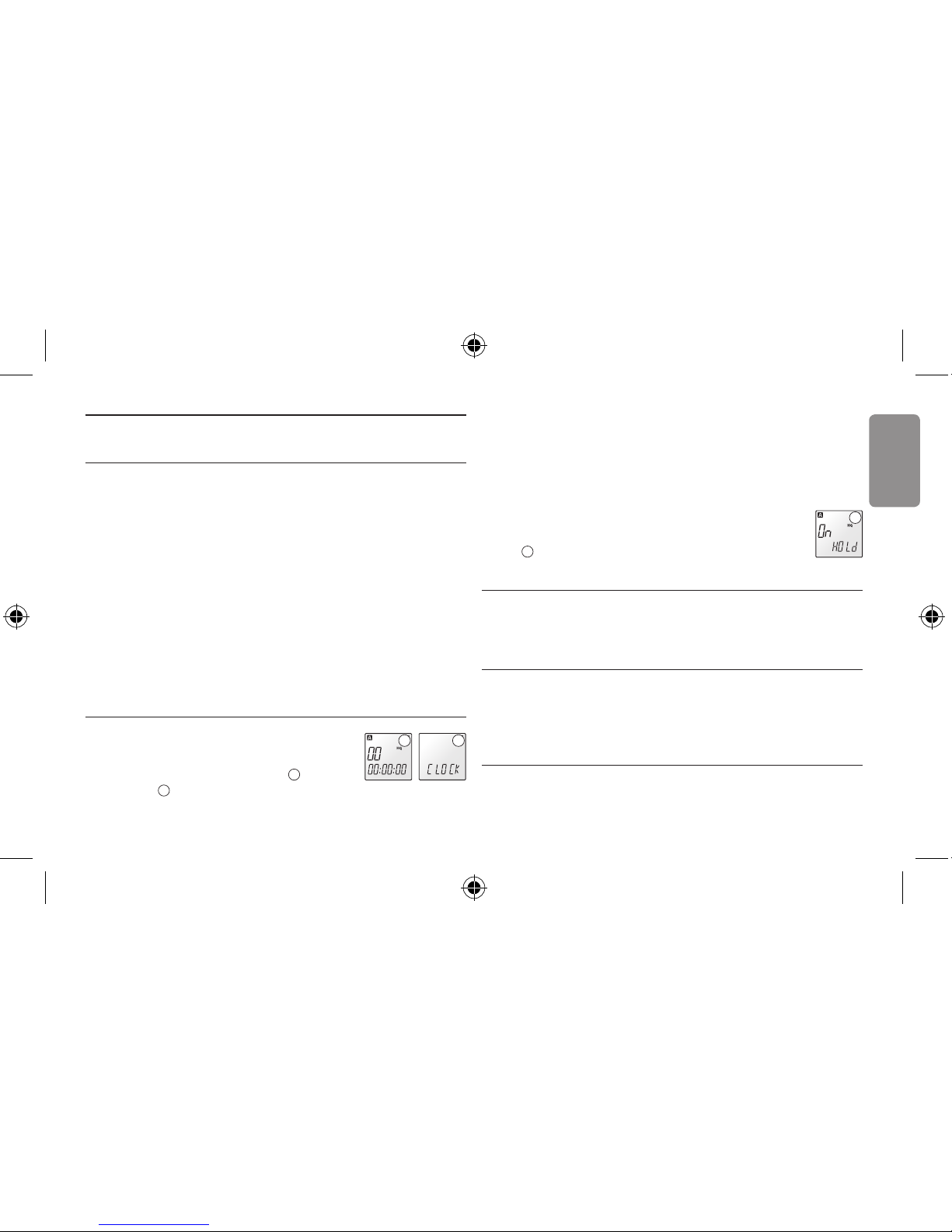

7.8 Clock Set Mode
With the Voice Tracer in Stop mode, press the STOP/MENU
button for a few moments.
Press the NEXT button repeatedly until “CLOCK” is shown on
4�
5�
1�
2�
3�
4�
5�
1�
2�
Press the PLAY button briefly. “BEEP” is shown and
“On” blinks on the display 2.
Press the NEXT button to select “OF” (o) or “On”
3.
Press the PLAY button to save the setting, then the
STOP/MENU button to exit Menu mode.
7.5 Enabling Voice Activated Recording (VA)
D This function is available only in voice folders.
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the NEXT button briefly 4 times 1.
Press the PLAY button briefly. “VA” is shown and “OF”
blinks on the display 2.
Press the NEXT button to select “OF” (o) or “On” 3.
Press the PLAY button to save the setting, then the
STOP/MENU button to exit Menu mode.
7.6 Backlight Setting
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the NEXT button briefly 5 times 1.
Press the PLAY button briefly. “LIGHT” is shown and
3�
4�
5�
1�
2�
3�
4�
5�
1�
2�
3�
3
1
2
3
2
1
2
3
1
2
3
E N G LI S H
dvt7780_7790_7890_ifu_en-de-fr-e15 15 04/07/2007 10:53:46

16 User manual
the display 1.
Press the PLAY button briefly. The default system date
is shown as “01” for the day and month, and “05” for
the year 2.
Press the NEXT button to set the desired year, then
press the PLAY button.
The month will now blink “01”. Press the NEXT button
to select the desired month and press the PLAY button.
The day will now blink “01”. Press the NEXT button to
select the desired day and press the PLAY button.
The time will now blink. Set the time in the same manner the
date was set, using the NEXT and BACK buttons to select the
desired values 3.
After the minutes are set, press the PLAY button to save the
settings, then the STOP/MENU button to exit Menu mode. The
clock will begin running when the time setting is saved.
7.9 Timer Set-up
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the NEXT button repeatedly until “TIMER” is
shown on the display 1.
Press the PLAY button briefly. “OF” (timer setup o)
blinks on the display 2.
3�
4�
5�
6�
7�
8�
1�
2�
3�
Press the NEXT button to select “ON” (timer setup)
3.
Press the PLAY button briefly, then press the NEXT
and BACK buttons to enter the desired hours 4. Once
the hours have been set, press the PLAY button and
then set the minutes.
Press the PLAY button to set up the recording interval
5.
Press the NEXT button to set the interval time.
Press the PLAY button, then press the NEXT button to
select the folder to record to 6.
Press the PLAY button to save your settings, then the
STOP/MENU button to exit Menu mode.

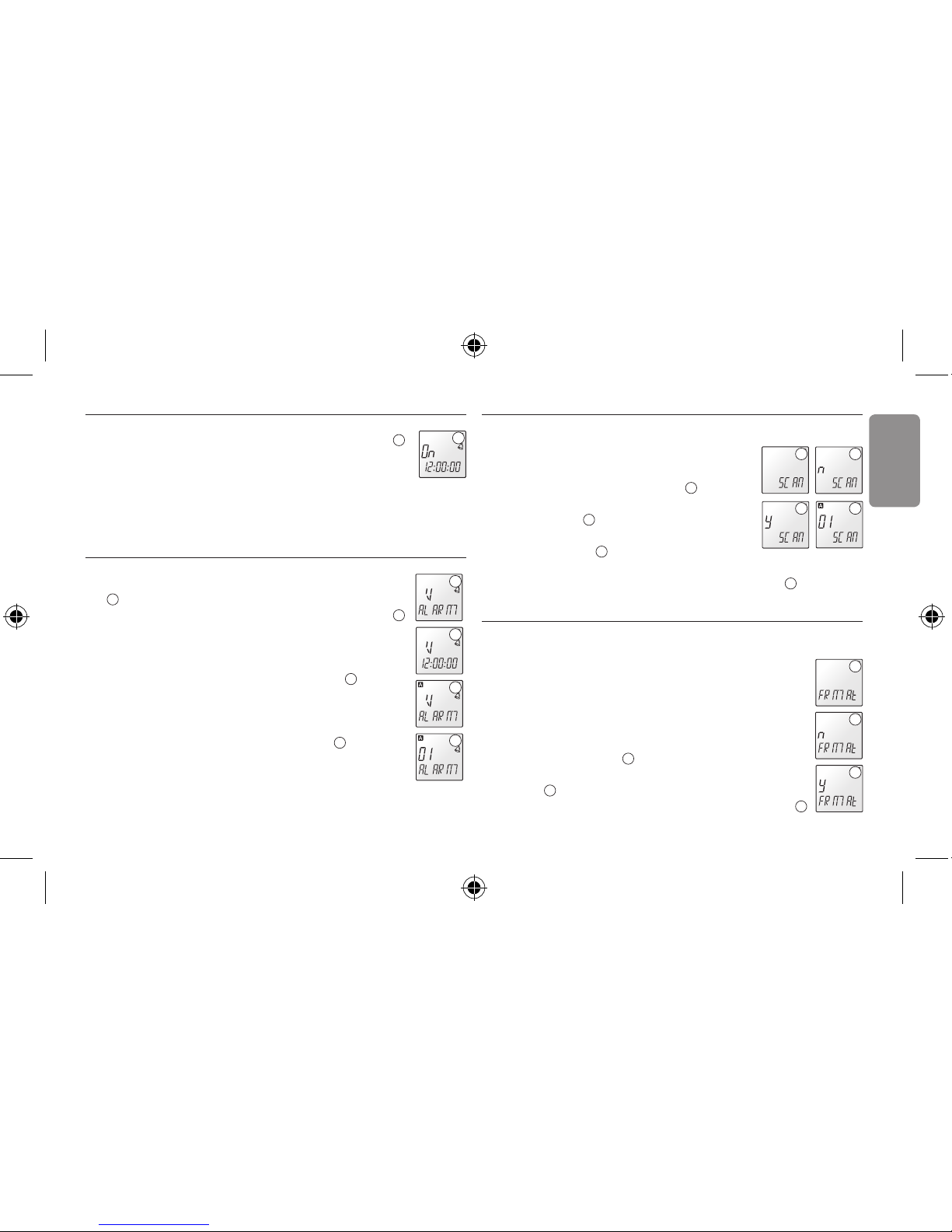

7.10 Alarm Setup
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the NEXT button repeatedly until “ALARM” is
shown on the display 1.
Press the PLAY button briefly. “OF” (alarm setup o)
blinks on the display 2.
Press the NEXT button to select “ON” or “V” (Voice).
Select “ON” to use the beep tone as alarm or “V”
(Voice) to use a recorded file or music file as alarm 3.
4�
5�
6�
7�
8�
9�
1�
2�
3�
4�
1
2
3
1
2
3
4
5
6
1
2
3
dvt7780_7790_7890_ifu_en-de-fr-e16 16 04/07/2007 10:53:48

17User manual
7.10.1 Set the alarm with a beep signal
Press the PLAY button briefly to set the alarm time 4.
Press the NEXT button to select the desired hour, then
press the PLAY button to select the desired minutes in
the same manner.
Press the PLAY button to save the settings, then the STOP/
MENU button to exit Menu mode.
7.10.2 Set the alarm with a voice or music file
Press the NEXT or BACK button to select “V” (Voice)
5.
Press the PLAY button briefly to set the alarm time 6.
Press the NEXT button to select the desired hour,
then press the PLAY button to select the desired
minutes in the same manner.
Press the PLAY button to select the folder 7.
Press the NEXT button to select the folder that
contains the desired file.
⑩ Press the PLAY button to save the settings, then the
STOP/MENU button to exit Menu mode 8.
5�
6�
7�
5�
6�
7�
8�
9�
4
5
6
7
8
7.11 File Preview: Play the First Seconds of Each File
With the Voice Tracer in Stop mode, press
the STOP/MENU button for a few moments.
Press the NEXT button repeatedly until
“SCAN” is shown on the display 1.
Press the PLAY button briefly and “N” blinks
on the display 2.
Press the NEXT button to change the
indicator to “Y” 3.
Press the PLAY/PAUSE button to play the first seconds of each
file, starting with the first file of the current folder 4.
7.12 Format: Delete All Files
D This function deletes all files on the Voice Tracer,
including all programmed FM radio stations!
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the NEXT button repeatedly until “FRMAT” is
shown on the display 1.
Press the PLAY button briefly and “N” blinks on the
display 2.
Press the NEXT button to change the indicator to “Y” 3.
1�
2�
3�
4�
5�
1�
2�
3�
4�
1 2
3 4
1
2
3
E N G LI S H
dvt7780_7790_7890_ifu_en-de-fr-e17 17 04/07/2007 10:53:50

18 User manual
Press the PLAY button to format the Voice Tracer and
to delete all files 4.
7.13 Display the Firmware Version and Release Date
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the NEXT button repeatedly until “VER” is
shown on the display 1.
Press the PLAY button briefly to display the version
number 2.
Press the NEXT button to display the firmware release
date 3.
Press the PLAY button, then the STOP/MENU button
to exit Menu mode.

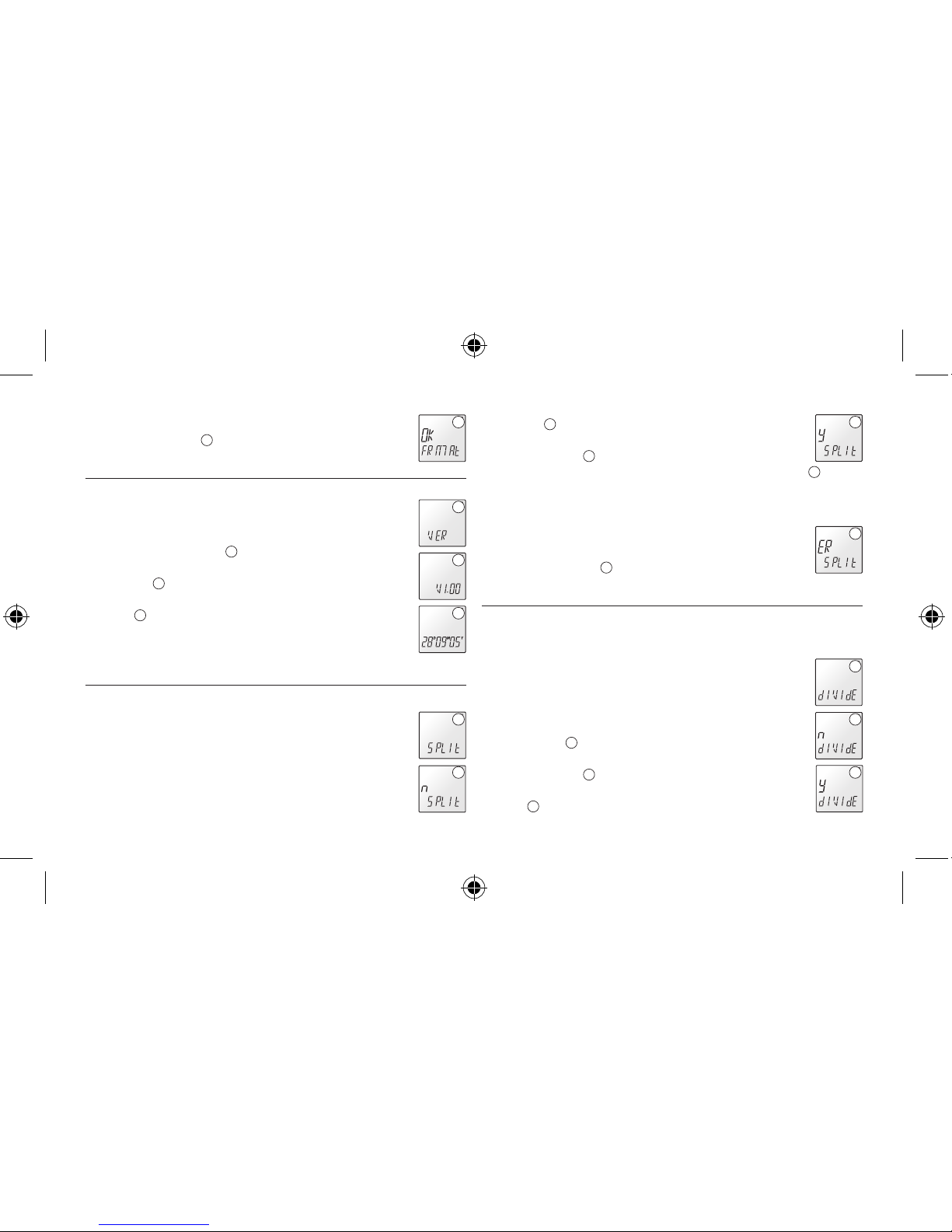

7.14 Split: Splitting a File Into Two Files
D This function is available only in voice folders.
Stop at the point where you want to split the file.
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the BACK button twice. “SPLIT” is shown on the
5�
1�
2�
3�
4�
5�
1�
2�
3�
display 1.
Press the PLAY button briefly. The indicator “n” blinks
on the display 2.
Press the NEXT button to change the indicator to “Y” 3.
Press the PLAY button, then the STOP/MENU button to exit
Menu mode.
D It is not possible to split a file when the Voice Tracer
memory is full or when there are 99 files in the
respective folder 4.
7.15 Automatically Record to a New File Every 30/60
Minutes
D This function is available only in voice folders.
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the BACK button once. “DIVIDE” is shown on
the display 1.
Press the PLAY button briefly. The indicator “n” blinks
on the display 2.
Press the NEXT button to change the indicator to
“Y” 3.
4�
5�
6�
1�
2�
3�
4�
1
2
3
1
2
3
1
2
3
4
4
dvt7780_7790_7890_ifu_en-de-fr-e18 18 04/07/2007 10:53:51

19User manual
7.17 Automatic Programming (7890 only)
D This function is available only in FM Radio mode.
With the Voice Tracer in FM Radio mode, press the
STOP/MENU button for a few moments.
Press the BACK button briefly twice. “AUTO” and
“FM” are shown on the display 1.
Press the PLAY button briefly. The indicator “n” blinks
on the display 2.
Press the NEXT button to change the indicator to
“Y” 3.
Press the PLAY button to begin automatically saving FM
radio channels.
D Once the entire FM band has been scanned, the Voice Tracer will
return to FM Radio mode. Press the STOP/MENU button to exit
Automatic Programming mode.
7.18 Select FM Radio Output Through Earphone or
Speaker (7890 only)
D This function is available only in FM Radio mode.
The earphone must be connected even when using the speaker.
1�
2�
3�
4�
5�
Press the PLAY button to set the automatic division
settings 4.
Press the NEXT button to select 30 or 60 minutes.
Press the PLAY button to save the settings, then the STOP/
MENU button to exit Menu mode.
7.16 Stereo/Mono Radio Sound Selection (7890 only)
D This function is available only in FM Radio mode.
With the Voice Tracer in FM Radio mode, press the
STOP/MENU button for a few moments.
Press the BACK button briefly 3 times. “STEREO” is
shown on the display.
Press the PLAY button briefly. “STEREO” blinks on the
display 2.
Press the NEXT button to select “MNO” (mono) 3or
“STEREO” 2.
Press the PLAY button to save the settings, then the
STOP/MENU button to exit Menu mode.
5�
6�
7�
1�
2�
3�
4�
5�
4
1
2
3
1
2
3
E N G LI S H
dvt7780_7790_7890_ifu_en-de-fr-e19 19 04/07/2007 10:53:52

20 User manual
With the Voice Tracer in FM Radio mode, press the
STOP/MENU button for a few moments.
Press the BACK button briefly once. “OUTPUT” and
“FM” are shown on the display 1.
Press the PLAY button briefly. “EP” blinks on the
display 2.
Press the NEXT button to select “SP” 3.
Press the PLAY button to save the settings, then the
STOP/MENU button to exit Menu mode.
7.19 Firmware Upgrade
Download the firmware update for your Voice Tracer
model number from www.philips.com/dictation >
Support Center > Software Downloads. Extract the file
and place it in the Digital Voice Tracer root directory.
With the Voice Tracer in Stop mode, press the STOP/
MENU button for a few moments.
Press the BACK button once. “UPGRAD” is shown on
the display 1.
Press the PLAY button briefly. The indicator “n” blinks
on the display 2.
Press the NEXT button to change the indicator to “Y” 3.
Press the PLAY button. The Digital Voice Tracer will
install the new firmware file 4and then switch o.
1�
2�
3�
4�
5�
1�
2�
3�
4�
5�
6�
1
2
3
4
8 Warnings
Do not attempt to open, repair, or modify the Voice Tracer.
Do not use the Voice Tracer where the use of electronic devices is
prohibited (such as in aircraft, etc.).
Do not put the Voice Tracer or its accessories in your mouth.
Do not immerse the Voice Tracer or spill liquids on it.
Do not expose the Voice Tracer or its accessories to shocks, as
this may cause malfunctions.
Do not apply excessive force to the LCD display, as this may
damage the display or cause malfunctions.
Do not expose the Voice Tracer to direct sunlight or any source of
heat for a prolonged period.
Remove the batteries if the Voice Tracer will not be used for a long
period of time.
Do not pull attached earphone, micro-phone, or USB cables with
excessive force.
•
•
•
•
•
•
•
•
•
1
2
3
dvt7780_7790_7890_ifu_en-de-fr-e20 20 04/07/2007 10:53:53
