MICROWAVE MULTIPLEXER MODULE 40-785
pickering
Issue 3.2 August 2019
User Manual
PXI Microwave
Multiplexer Module
(Model No. 40-785)
pickeringtest.com pickering

Page (II) MICROWAVE MULTIPLEXER MODULE 40-785
pickering
Page (II) REED RELAY MODULE 40-110/115/120/125
pickering
© COPYRIGHT (2019) PICKERING INTERFACES. ALL RIGHTS RESERVED.
No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by
any means without the written permission of Pickering Interfaces.
Technical details contained within this publication are subject to change without notice.
ISO 9001
Reg No. FM38792

Page (III)
MICROWAVE MULTIPLEXER MODULE 40-785
pickering
Page (III)
REED RELAY MODULE 40-110/115/120/125
pickering
TECHNICAL SUPPORT
For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.
WARRANTY
All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of
three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be
defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.
Products serviced and repaired outside of the warranty period are warranted for ninety days.
Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.
ENVIRONMENTAL POLICY
Pickering Interfaces operates under an environmental management system similar to ISO 14001.
Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the
environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and
safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can
be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
Worldwide Technical Support and Product Information
pickeringtest.com
Germany
Tel: [phone]
E-mail: [email protected]
Sweden
Tel: [phone]
E-mail: [email protected]
USA
Tel: (West) [phone]
Tel: (East) [phone]
E-mail: [email protected]
Czech Republic
Tel: [phone]
E-mail: [email protected]
France
Tel [phone]
E-mail [email protected]
Pickering Interfaces Headquarters
Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom
Tel: [phone]
E-Mail: [email protected]
China
Tel: [phone]
E-mail: [email protected]

Page (IV) MICROWAVE MULTIPLEXER MODULE 40-785
pickering
Page (IV) REED RELAY MODULE 40-110/115/120/125
pickering

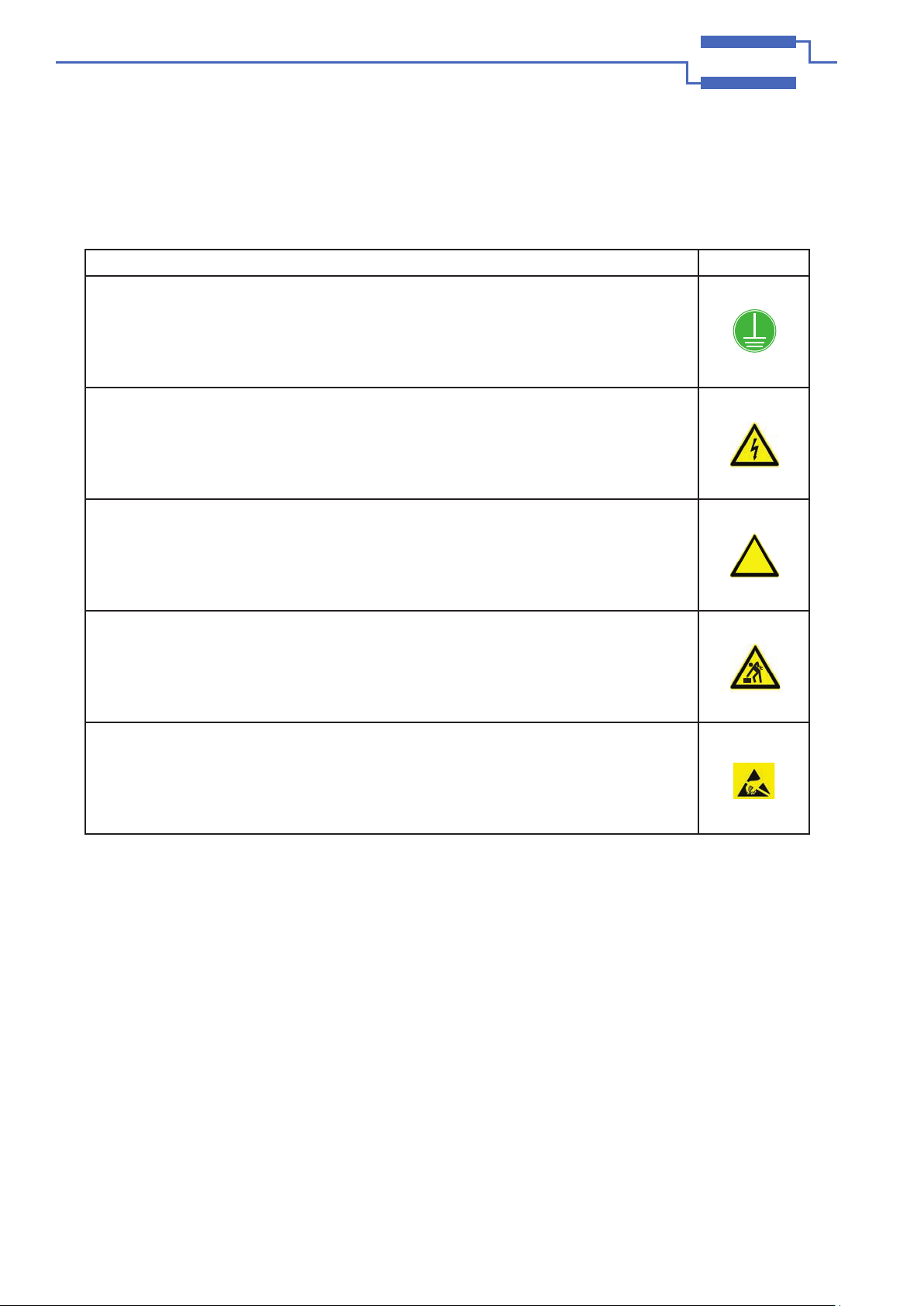

MEANING / DESCRIPTION SYMBOL
PROTECTIVE EARTH (GROUND)
To identify any terminal which is intended for connection to an external conductor for
protection against electric shock in case of a fault, or the terminal of a protective earth
(ground) electrode.
DANGEROUS VOLTAGE
To indicate hazards arising from dangerous voltages.
WARNING / CAUTION
An appropriate safety instruction should be followed or caution to a potential hazard
exists.
Refer to the relevant instructions detailed within the product manual.
HEAVY
If this product is heavy reference should be made to the safety instructions for
provisions of lifting and moving.
STATIC SENSITIVE
To indicate that static sensitive devices are present and handling precautions should
be followed.
!
kg
SAFETY SYMBOLS
PRODUCT SAFETY
The following safety symbols may be used on the product and throughout the product documentation.

Page (V)
MICROWAVE MULTIPLEXER MODULE 40-785
pickering
Copyright Statement ...................................................................II
Technical Support and Warranty................................................III
Product Safety .............................................................................IV
Contents (this page)....................................................................V
Warnings and Cautions ..............................................................VII
Section 1
Technical Specication...............................................................1.1
Section 2
Technical Description .................................................................2.1
Functional Description..........................................................2.1
Section 3
Installation....................................................................................3.1
Pre Operation Checks...........................................................3.1
Hardware Installation ............................................................3.2
Software Installation .............................................................3.2
Testing Operation ..................................................................3.3
Section 4
Programming Guide....................................................................4.1
Programming Options For Pickering PXI Cards.................4.1
Section 5
Connector Information................................................................5.1
Section 6
Trouble Shooting.........................................................................6.1
Section 7
Maintenance Information............................................................7.1
Component Layout................................................................7.2
CONTENTS

Page (VI) MICROWAVE MULTIPLEXER MODULE 40-785
pickering
THIS PAGE INTENTIONALLY BLANK

Page (VII)
MICROWAVE MULTIPLEXER MODULE 40-785
pickering
Page (VII)
2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579
pickering

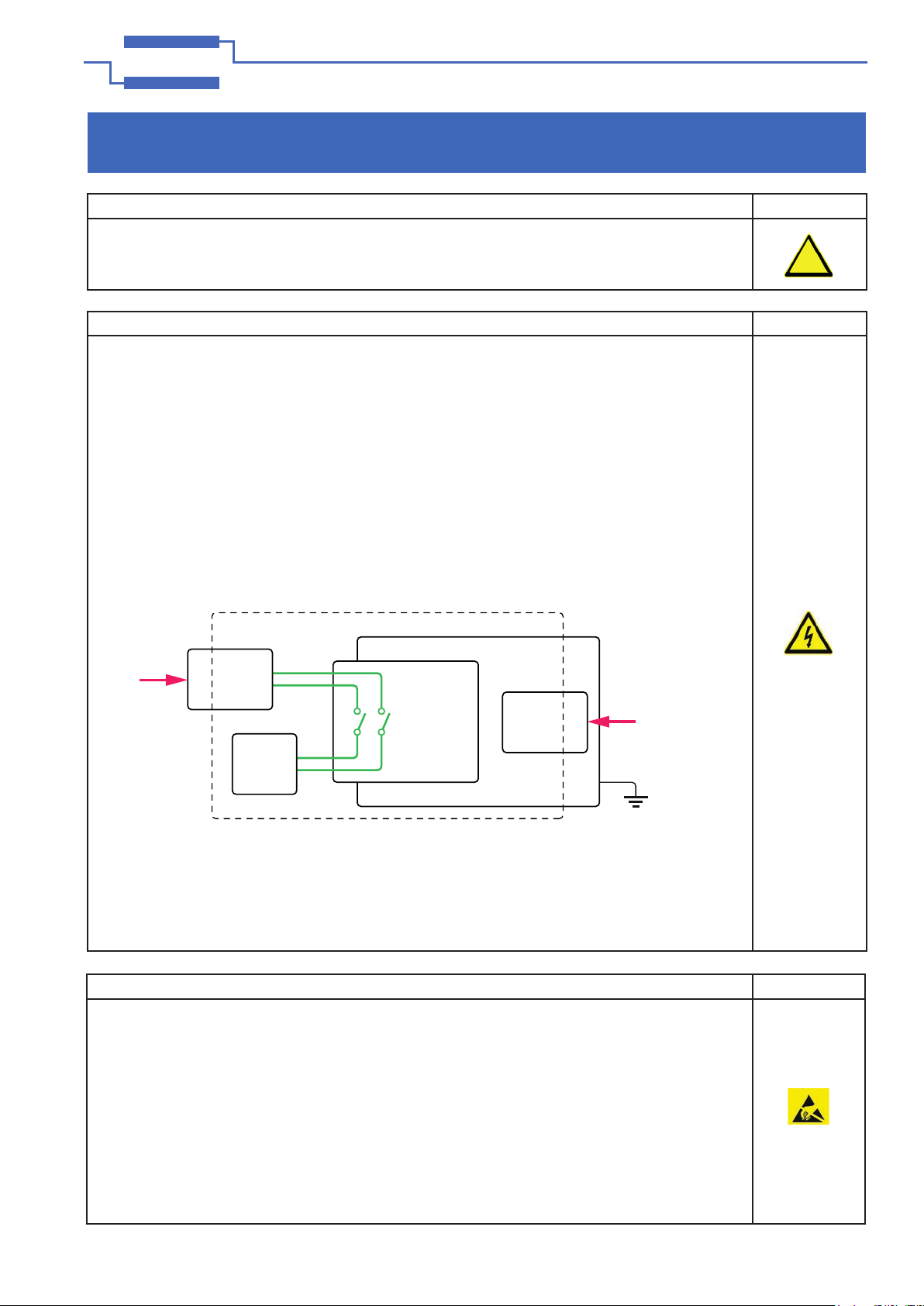

WARNINGS AND CAUTIONS
WARNING - HAZARDOUS ENVIRONMENTS SYMBOL
This product is not specically designed for use in hazardous environments, for example in explosive
atmospheres. If the product is to be used in hazardous environments we recommend that the user
ensures suitable protective measures are taken.
!
WARNING - DANGER OF ELECTRIC SHOCK SYMBOL
This module may contain hazardous voltages. Before removing the module from the rack remove all
supplies and disconnect user I/O signals.
Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O
signals that may be present. Blanking panels are available to order from Pickering in a variety of
slot widths. If the product is not used in this manner for example by using an extender card then
additional care must be taken to avoid contact with exposed signals.
Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.
This module must not be used for the switching of Mains Circuits. For the switching of voltages up
to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must
be fully isolated from the Mains Circuit and the safety earth.
The host chassis must be correctly installed and be connected to mains or factory safety ground,
please refer to your chassis installation manual.
Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT
For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage
Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved
by a transformer in which the primary windings are separated from the secondary windings by
reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.
CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL
Certain semiconductor devices used in this equipment are liable to damage due to static voltage.
Observe the following precautions when handling these devices in their unterminated state, or
sub-assemblies containing these devices:
1. Persons removing sub-assemblies from equipment using these devices must be earthed by a
wrist strap and a resistor at the point provided on the equipment.
2. Soldering irons used during the repair operations must be low voltage types with earthed tips and
isolated from the mains voltage by a double insulated transformer.
3. Outer clothing worn must be unable to generate static charges.
4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in
anti-static bags.
PXI Switching
Module
Device
Under Test
Power
Supply
Power
Supply
Host Chassis
Secondary Circuit
Mains
Circuit
Mains
Circuit
Mains/Factory
Safety Ground

Page (VIII) MICROWAVE MULTIPLEXER MODULE 40-785
pickering
WARNING
Only the correct SMA connector series should be mated with these modules. The 40-785 range uses
SMA-3.5, SMA-2.9 & SMA-1.8 connectors for 40, 50 & 65GHz respectively, and the user should only mate
the correct type to the module, failure to do so may result in damage to the connector.
Also, it is important that the SMA connector’s nut is properly tightened to the correct torque with a
5/16 inch wrench. This should be 3-5 in·lbs (0.3 to 0.6 N·m) for brass, and 7-10 in·lbs (0.8–1.1 N·m) for
stainless steel connectors.
!
Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579
pickering
CAUTION - PRODUCT DOCUMENTATION SYMBOL
Suitably qualied & trained users should ensure that the accompanying documentation is fully read
and understood before attempting to install or operate the product.
!
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O
signals (refer to the Maintenance Section).
• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or
the combined weight of the modules & chassis.
• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the
chassis and the user I/O signals.
• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.
• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on
the front of the unit.

Page 1.1
MICROWAVE MULTIPLEXER MODULE 40-785
pickering SECTION 1 - TECHNICAL SPECIFICATION
SECTION 1 - TECHNICAL SPECIFICATION
pickeringtest.com
PXI Microwave Multiplexer 40-785
ISSUE 8.1 AUG 2019
• Single or Dual 6 Channel Panel Mounted
Multiplexer
• Up To 3 Remote Multiplexers From Single Slot
Version
• 18GHz, 26.5GHz and 40GHz Versions
• 50Ω SMA Style Connectors
• 50Ω Terminated Versions
• 75Ω Version With 4GHz Bandwidth
• VISA, IVI & Kernel Drivers Supplied for Windows
• Supported by PXI or LXI Chassis
• 3 Year Warranty
3
4Com
MUX Bank 1
5
6
1
2
off
3
4Com
5
6
1
2
off
MUX Bank 2
Model 40-785-522
Features 2 Separate
6 Channel Microwave
Multiplexers (model
40-785-521 has 1
multiplexer bank)
Default State Shown
Single slot version controls up to
3 remotely mounted microwave
multiplexers via interface cables
The 40-785 is suitable
for constructing complex
microwave switching networks
and provides a range of
switching congurations to suit
most applications. Connection
is by high performance front
panel mounted SMA style
connectors for 50Ωversions.
The 40-785 range of PXI microwave multiplexers are suitable for
switching 50Ω signals up to 40GHz. They are available in single
or dual 6 channel congurations, with relays mounted on the front
panel. Remote versions are also available which can support up to
three multiplexers in a single slot.
The remote multiplexer versions, as well as occupying less PXI
panel space, allow the microwave relays to be placed closer to
the UUT and RF test equipment. This can shorten the length of
cables and improve system performance. Remote multiplexers are
supplied with a 1.5m interface cable.
The panel mounted 50Ω terminated version occupies 4 slots for the
single version or 6 slots for the dual version.
A 75Ω version is available with a bandwidth of 4GHz and uses
Siemens 1.6/5.6 style connectors.
These modules give you the highest RF and microwave switching
performance available within a Pickering switching system.
Although designed for microwave applications, they have many
uses in the RF spectrum where extremely low insertion loss and
ultra high isolation are critical.
Easy Repair
To allow fast in eld repair, any relay may be replaced without
removing the module from the PXI chassis.

Page 1.2 MICROWAVE MULTIPLEXER MODULE 40-785
pickering
SECTION 1 - TECHNICAL SPECIFICATION
Microwave Multiplexer – 40-785
pickeringtest.com
Specifications
Specification - 18GHz Version
Characteristic Impedance: 50Ω
Maximum Frequency:
Rise Time:
Insertion Loss:
VSWR:
Isolation:
18GHz
<3ps
0.2dB (0-3GHz)
0.3dB (3-8GHz)
0.4dB (8-12.4GHz)
0.5dB (12.4-18GHz)
1:1.2 (0-3GHz)
1:1.3 (3-8GHz)
1:1.4 (8-12.4GHz)
1:1.5 (12.4-18GHz)
80dB (0-3GHz)
70dB (3-8GHz)
60dB (8-12.4GHz)
60dB (12.4-18GHz)
Non-Terminated Option
Maximum Power Rating:
Expected Life (Low Power):
Expected Life (Max Power):
240W (0-3GHz)
150W (3-8GHz)
120W (8-12.4GHz)
100W (12.4-18GHz)
5x106ops. per position
3x105 ops. per position
Terminated Option
Maximum Power Rating:
Termination Power Rating:
Expected Life (Low Power):
Expected Life (Max Power):
120W (0-3GHz)
80W (3-8GHz)
60W (8-12.4GHz)
50W (12.4-18GHz)
1W per termination,
3W total per 6
channel multiplexer.
2x106ops. per position
3x105 ops. per position
Maximum Voltage:
Maximum Switch Current:
100VDC*
1A
Initial On Path Resistance:
Off Path Resistance:
<200mΩ
>1010Ω(unterminated)
Vibration: Sine 1mm, 5 - 60Hz
Sine 10g 60 - 2000Hz
Switching Time: 15ms
* For full voltage rating, signal sources to be switched must be fully
isolated from mains supply and safety earth.
Power Requirements
+3.3V +5V +12V -12V
0 0.2A 0.75A 0
Operating/Storage Conditions
Operating Conditions
Operating Temperature:
Humidity:
Altitude:
0°C to +55°C
Up to 90% non-condensing
5000m
Storage and Transport Conditions
Storage Temperature:
Humidity:
Altitude:
-20°C to +75°C
Up to 90% non-condensing
15000m
PXI & CompactPCI Compliance
The module is compliant with the PXI Specication 2.2. Local Bus,
Trigger Bus and Star Trigger are not implemented.
Uses a 33MHz 32-bit backplane interface.
Safety & CE Compliance
All modules are fully CE compliant and meet applicable EU
directives: Low-voltage safety EN61010-1:2010, EMC Immunity
EN61326-1:2013, Emissions EN55011:2009+A1:2010.
Connectors
PXI bus via 32-bit P1/J1 backplane connector.
Signals via coaxial connectors on microwave switches:
• 20GHz & 26.5GHz versions - SMA
• 40GHz versions - SMA-2.9
• 75Ω versions - 1.6/5.6 75Ω connectors
Switching Specification - Un-terminated 26.5GHz Version
Insertion Loss:
VSWR:
Isolation:
<0.7dB
<1:1.7
>50dB
Expected Life: 5x106operations
Additional Specification - 40GHz Version
Insertion Loss:
VSWR:
Isolation:
<1.1dB
<1:2.2
>50dB
Expected Life: 2x106operations
Additional Specification - 75Ω Version
Insertion Loss:
VSWR:
Isolation:
<0.3dB to 2.5GHz, typically <1.5dB to 4GHz
<1:1.3 to 2.5GHz typically <1:1.3 at 4GHz
>70dB to 2.5GHz
Expected Life: 2x106operations
Mechanical Characteristics
Front panel mounted versions occupy 3 slots, terminated front
panel mounted versions occupy 4 (single) or 6 (dual versions)
slots.
Remote multiplexer versions occupy one slot and are supplied with
a 1.5m interface cable for each of the supplied microwave relays.
3D models for all versions in a variety of popular le formats are
available on request.
Switching Specification - Terminated 26.5GHz Version
Insertion Loss:
VSWR:
Isolation:
<0.7dB
<1:1.7
>55dB
Expected Life: >2x106operations

Page 1.3
MICROWAVE MULTIPLEXER MODULE 40-785
pickering SECTION 1 - TECHNICAL SPECIFICATION
Microwave Multiplexer – 40-785
pickeringtest.com
Ordering Information
Mating Connectors & Cabling
For connection accessories for the 40-785 range please refer to
the 90-011D RF Cable Assemblies data sheet where a complete
list and documentation can be found for accessories, or refer to
the Connection Solutions catalog.
Product Order Codes
18GHz Multiplexer Versions - 50Ω
Single 6 Chan, Panel mount, 50Ω SMA
Dual 6 Chan, Panel mount, 50Ω SMA
40-785-521
40-785-522
Single 6 Chan, Panel mt, 50Ω SMA, Term.
Dual 6 Chan, Panel mt, 50Ω SMA, Term
40-785-521-T
40-785-522-T
Single 6 Chan, Remote mount, 50Ω SMA
Dual 6 Chan, Remote mount, 50Ω SMA
Triple 6 Chan, Remote mount, 50Ω SMA
40-785-521-E
40-785-522-E
40-785-523-E
Single 6 Chan, Remote, 50Ω SMA, Term.
Dual 6 Chan, Remote, 50Ω SMA, Term
Triple 6 Chan, Remote, 50Ω SMA, Term
40-785-521-TE
40-785-522-TE
40-785-523-TE
26.5GHz Multiplexer Versions - 50Ω
Single 6 Chan, Panel mount, 50Ω SMA
Dual 6 Chan, Panel mount, 50Ω SMA
40-785-531
40-785-532
Single 6 Chan, Panel mt, 50Ω SMA, Term.
Dual 6 Chan, Panel mt, 50Ω SMA, Term
40-785-531-T
40-785-532-T
Single 6 Chan, Remote mount, 50Ω SMA
Dual 6 Chan, Remote mount, 50Ω SMA
Triple 6 Chan, Remote mount, 50Ω SMA-
40-785-531-E
40-785-532-E
40-785-533-E
Single 6 Chan, Remote, 50Ω SMA, Term.
Dual 6 Chan, Remote, 50Ω SMA, Term
Triple 6 Chan, Remote, 50Ω SMA, Term
40-785-531-TE
40-785-532-TE
40-785-533-TE
40GHz Multiplexer Versions - 50Ω
Single 6 Chan, Panel mount, 50Ω SMA-2.9
Dual 6 Chan, Panel mount, 50Ω SMA-2.9
40-785-541
40-785-542
Single 6 Chan, Panel mt, 50Ω SMA-2.9, Term
Dual 6 Chan, Panel mt, 50Ω SMA-2.9, Term
40-785-541-T
40-785-542-T
Single 6 Chan, Remote mount, 50Ω SMA-2.9
Dual 6 Chan, Remote mount, 50Ω SMA-2.9
Triple 6 Chan, Remote mount, 50Ω SMA-2.9
40-785-541-E
40-785-542-E
40-785-543-E
Single 6 Chan, Remote, 50Ω SMA-2.9, Term
Dual 6 Chan, Remote, 50Ω SMA-2.9, Term
Triple 6 Chan, Remote, 50Ω SMA-2.9, Term
40-785-541-TE
40-785-542-TE
40-785-543-TE
4GHz Multiplexer Versions - 75Ω
Single 6 Chan, Panel mount, 75Ω 1.6/5.6
Dual 6 Chan, Panel mount, 75Ω 1.6/5.6
40-785-751
40-785-752
Single 6 Chan, Remote mount, 75Ω 1.6/5.6
Dual 6 Chan, Remote mount, 75Ω
1.6/5.6
Triple 6 Chan, Remote mount, 75Ω
1.6/5.6
40-785-751-E
40-785-752-E
40-785-753-E
Accessories:
Microwave relay bracket for remote mounting
- Contact Pickering Interfaces for information.
pickering
1
2
3
Remotely Mounted Microwave Multiplexers
40-785
Single Slot
Version
3 off Interface
Cables
1.5m Length
Interconnection
between the
40-785 single slot
version and the
remotely mounted
microwave
multiplexers
Product Customization
Pickering PXI modules are designed and manufactured on our own
exible manufacturing lines, giving complete product control and
enabling simple customization to meet very specic requirements.
Customization can include:
• Alternative relay types
• Mixture of relay types
• Alternative number of relays
• Different performance specications
All customized products are given a unique part number, fully
documented and may be ordered at any time in the future. Please
contact your local sales ofce to discuss.

Page 1.4 MICROWAVE MULTIPLEXER MODULE 40-785
pickering
SECTION 1 - TECHNICAL SPECIFICATION
Microwave Multiplexer – 40-785
pickeringtest.com

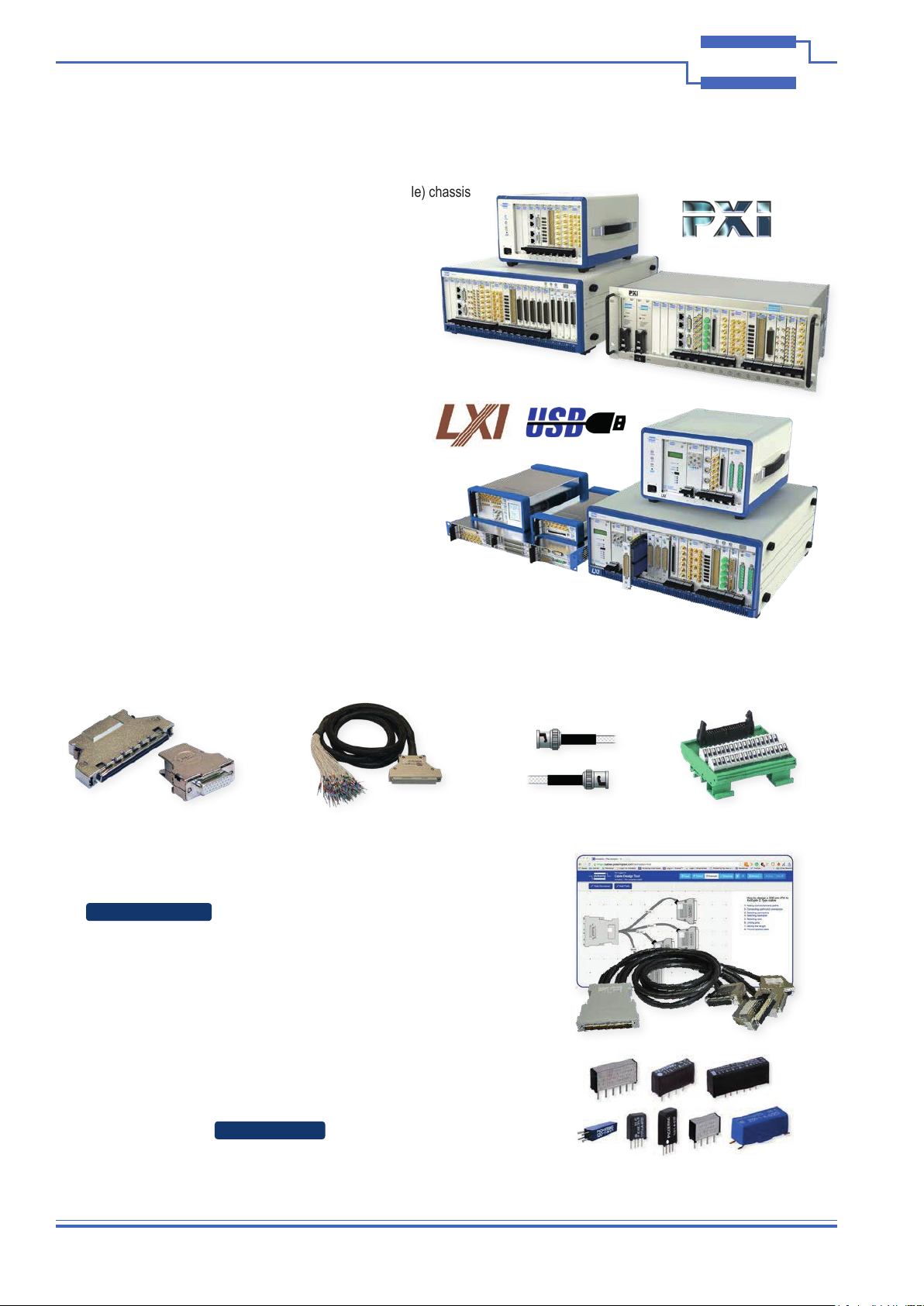

Supporting Products & Software
We also offer customized cabling and have a free online Cable Design Tool that can
be used to create custom cable solutions for many applications.
Visit: pickeringtest.com/cdt to start your design.
Mass Interconnect
We recommend the use of a mass interconnect solution when an Interchangeable
Test Adapter (ITA) is required for a PXI or LXI based test system. Our modules are
fully supported by both Virginia Panel and MacPanel.
Pickering Reed Relays
We are the only switch provider with in-house reed relay manufacturing capability
via our sister company, Pickering Electronics. These instrument grade reed relays
feature SoftCenter® technology, ensuring long service life and repeatable contact
performance
To learn more, please go to: pickeringrelay.com
Chassis Compatibility
This PXI module must be used in a suitable chassis. It is compatible with the following chassis types:
• All chassis conforming to the 3U PXI and 3U Compact PCI (cPCI) specication
• Legacy and Hybrid Peripheral slots in a 3U PXI Express (PXIe) chassis
• Pickering Interfaces LXI or LXI/USB Modular Chassis
Chassis Selection Guide
Standard PXI or hybrid PXIe Chassis from any Vendor:
• Mix our 1000+ PXI switching & simulation modules with any
vendor’s PXI instrumentation
• Embedded or remote Windows PC control
• Real-time Operating System Support
• High data bandwidths, especially with PXI Express
• Integrated module timing and synchronization
Pickering LXI or LXI/USB Modular Chassis—only accept
our 1000+ PXI Switching & Simulation Modules:
• Ethernet or USB control enables remote operation
• Low-cost control from practically any controller
• LXI provides manual control via Web browsers
• Driverless software support
• Power sequencing immunity
• Ethernet provides chassis/controller voltage isolation
• Independence from Windows operating system
Connectivity Solutions
We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+
products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are
manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules.
Connectors & Backshells Multiway Cable Assemblies RF Cable Assemblies Connector Blocks

Page 1.5
MICROWAVE MULTIPLEXER MODULE 40-785
pickering SECTION 1 - TECHNICAL SPECIFICATION
Microwave Multiplexer – 40-785
pickeringtest.com
Supporting Products & Software
© Copyright (2019) Pickering Interfaces. All Rights Reserved Pickering Interfaces maintains a commitment to continuous product development, consequently we reserve the right to vary from the description given in this data sheet.
Programming
Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and
popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os
The VISA driver is also compatible with Real-Time Operating Systems such as LabVIEW RT. For other RTOS support contact Pickering.
These drivers may be used with a variety of programming environments and applications including:
• Pickering Interfaces Switch Path Manager
• National Instruments products (LabVIEW, LabWindows/CVI, Switch Executive, MAX, TestStand, VeriStand, etc.)
• Microsoft Visual Studio products (Visual Basic, Visual C+)
• Keysight VEE
• Mathworks Matlab
• Marvin ATEasy
• MTQ Testsolutions Tecap Test & Measurement Suite
Drivers for popular Linux distributions are available, other environments are also supported, please contact Pickering with specic enquiries.

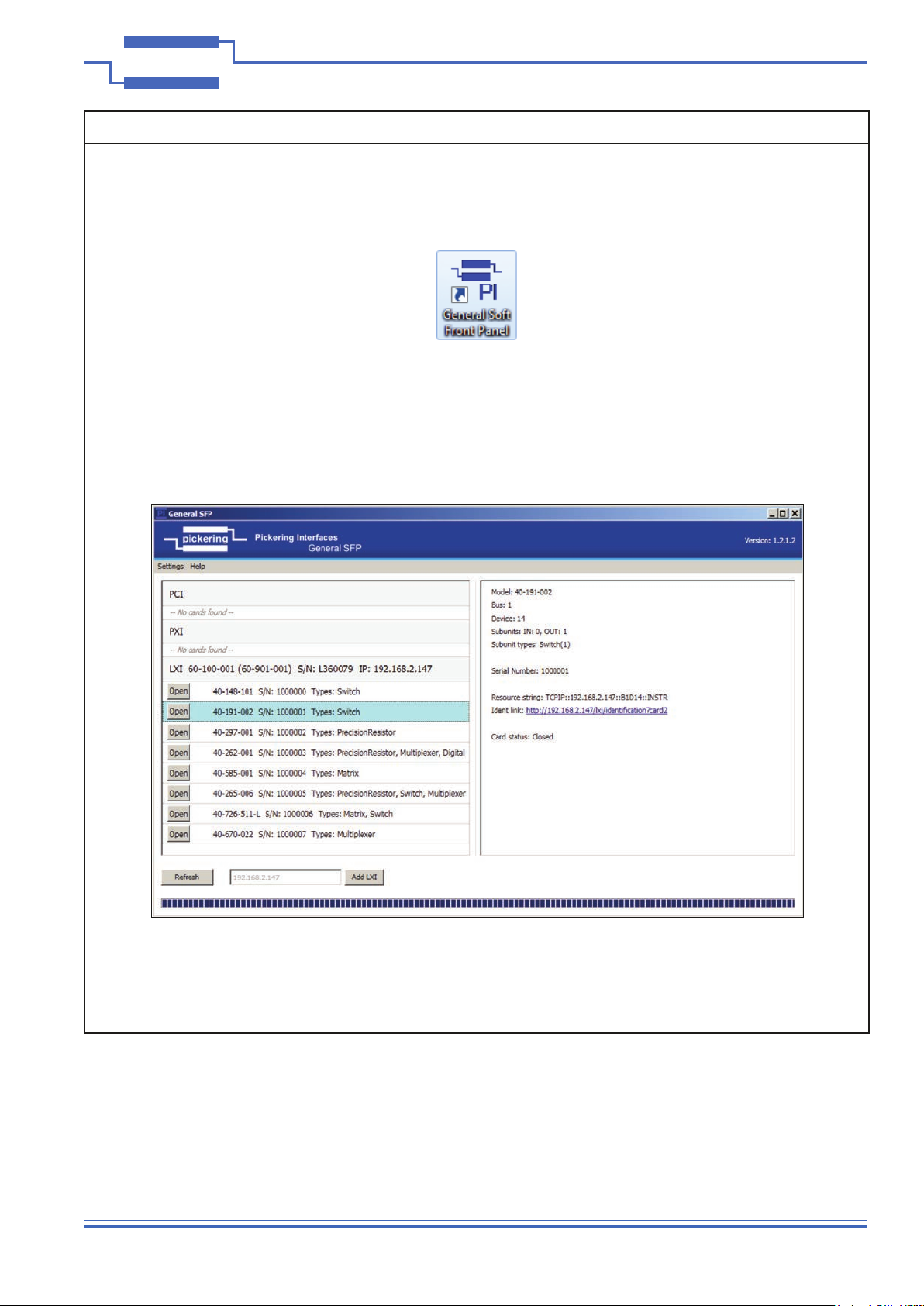

We provide Soft Front Panels (SFPs) for our products for familiarity and manual control, as well as comprehensive documentation and
example programs to help you develop test routines with ease.
To learn more about software drivers and development environments, please go to: pickeringtest.com/software
Signal Routing Software
Our signal routing software, Switch Path Manager, automatically selects and energizes switch
paths through Pickering switching systems. Signal routing is performed by simply dening
test system endpoints to be connected together, greatly accelerating Test System software
development.
To learn more, please go to: pickeringtest.com/spm
Diagnostic Relay Test Tools
eBIRST Switching System Test Tools are designed specically for our PXI, PCI or LXI
products, these tools simplify switching system fault-nding by quickly testing the system
and graphically identifying the faulty relay.
To learn more, please go to: pickeringtest.com/ebirst
Three Year Warranty & Guaranteed Long-Term Support
All standard products manufactured by Pickering Interfaces are warranted against
defective materials and workmanship for a period of three years from the date of delivery
to the original purchaser. Extended warranty and service agreements are available for all our modules and systems with various levels to
suit your requirements. Although we offer a 3-year warranty as standard, we also include guaranteed long-term support—with a history of
supporting our products for typically 15-20 years. To learn more, please go to: pickeringtest.com/support
Available Product Resources
We have a large library of product resources including success stories, product and support videos, articles, as well as complete product
catalogs and product reference maps to assist when looking for the switching, simulation and cable and connector solutions you need.
We have also published handy reference books for the PXI and LXI standards.
To view, download or request any of our product resources, please visit: pickeringtest.com/resources

Page 1.6 MICROWAVE MULTIPLEXER MODULE 40-785
pickering
SECTION 1 - TECHNICAL SPECIFICATION
THIS PAGE INTENTIONALLY BLANK

Page 2.1
MICROWAVE MULTIPLEXER MODULE 40-785
pickering SECTION 2 - TECHNICAL DESCRIPTION
SECTION 2 - TECHNICAL DESCRIPTION
MECHANICAL DESCRIPTION
The Microwave Multiplexer Module conforms to the 3U height (128mm) Eurocard standard and comprises the
following:
•CPCI Ejector Handle
•Three, four or six slot width Front Panel (single slot for the remote -E option)
•One or two Front Panel mounted Microwave Multiplexers (remotely located via cable with the -E option)
•50ΩSMA signal connectors, or 75Ω1.6/5.6 signal connectors
•Compact PCI backplane connector
•PCI Bridge (U1)
•Control Logic
The front panel is secured to the PCB by two M2.5 x 6mm pan-head posi-drive screws.
Figure 2.1 - Microwave Multiplexer Module: 40-785

Page 2.2 MICROWAVE MULTIPLEXER MODULE 40-785
pickering
SECTION 2 - TECHNICAL DESCRIPTION
FUNCTIONAL DESCRIPTION
A functional block diagram is provided in Figure 2.2. The Microwave Multiplexer Module is powered by +12V and
+5V inputs via Compact PCI connector J1. The interface to the user test equipment is via the front panel mounted
SMA connectors. The module comprises a PCB which provides mounting for control logic, and a front panel which
provides mounting for the microwave relays (the remote -E option controls the relays via a 1.5m screened cable).
The relays are energised via control signals from relay drivers U10 and U11. The relay drivers are addressed by
PCI bridge U1, via output register U8, to output the required signal. PCI Bridge U1 is congured by EEPROM U2.
Figure 2.2 - Microwave Multiplexer Module: Functional Block Diagram
RELAY
DRIVER
U10
MODULE
CONFIGURATION
U5, U6 AND U7
PCI BRIDGE
U1
TERMINATING
RESISTORS
R4 TO R15
COMPACT PCI
BUS
CONNECTOR
J1
+12V
0V
OUTPUT
REGISTER
U8
+5V
RELAY
DRIVER
U11
1
2
3
4
5
6
C
1
2
3
4
5
6
C
MUX
BANK 1
MUX
BANK 2
PCI BRIDGE
CONFIGURATION
U2

Page 3.1
MICROWAVE MULTIPLEXER MODULE 40-785
pickering SECTION 3 - INSTALLATION
Page 3.1
REED RELAY MODULE 40-110/115/120/125
pickering SECTION 3 - INSTALLATION
kg
PREOPERATION CHECKS (UNPACKING)
1. Check the module for transport damage and report any damage immediately to Pickering Interfaces.
Do not attempt to install the product if any damage is evident.
2. Position the chassis relative to any other equipment the module(s) will connect with. Ensure the chassis is not
connected to the electrical supply.
3. Ensure that the designated area for the chassis containing the module is of at and solid construction to
withstand and support the combined weight of the module(s) and chassis.
SECTION 3 - INSTALLATION
!
Refer to the Warnings and Cautions at the front of this manual
Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only.
Figure 3.1 - Installing the Module into a PXI/cPCI/LXI Chassis
PXI / LXI Chassis

Page 3.2 MICROWAVE MULTIPLEXER MODULE 40-785
pickering
SECTION 3 - INSTALLATION
Page 3.2 REED RELAY MODULE 40-110/115/120/125
pickering
SECTION 3 - INSTALLATION
SOFTWARE INSTALLATION
First install the appropriate Pickering PXI switch card drivers by running the installer program Setup.exe (provided
in a compressed zip le), either from the CD-ROM supplied, or by downloading the latest version from our website
pickeringtest.com - the recommended method. Setup is accompanied by a ReadMe le containing
additional installation information. A single installation covers all cards in the System 40, System 45 and System
50 ranges.
When installation completes, the installed drivers’ ReadMe le is offered for display. It can also be displayed
later using a shortcut on the Programs>>Pickering menu.
If you are not a LabVIEW user you should choose the “full” version, and once that has been installed run
the LabVIEW Runtime Engine installer via the shortcut on the Programs>>Pickering menu. In the absence of
LabVIEW the Runtime Engine is required to support the Pickering Test Panels application.
!
HARDWARE INSTALLATION
ELECTRICAL CONNECTION (CHASSIS)
1. The chassis must be electrically installed in accordance with local regional electrical codes by a qualied
engineer.
2. The chassis must be grounded.
Electrostatic discharge can damage the components on the module. To avoid such damage in handling the
board refer to page VII.
Ensure that there is adequate ventilation.
The module should be installed in accordance with the following procedure:
1. Ensure that the system is turned OFF but still connected to mains so that it remains grounded.
2. Choose an appropriate slot in the rack.
3. Remove the blanking plate for the chosen slot.
4. Ensure that the injector/ejector handle is in its downward position. Align the module with the card guides on
the top and bottom of the slot.
Do not raise the injector/ejector handle whilst inserting the module as the module will not insert properly.
5. Hold the handle whilst slowly sliding the module into the card guides until the handle catches on the injector/
ejector rail (refer to Figure 3.1).
6. Raise the injector/ejector handle until the module rmly seats into the backplane. The front panel of the
module should be ush with the front panel of the chassis.
7. Secure the front panel of the module using both screws to the chassis front panel mounting rails.
8. In a system employing a remote control interface to connect an external controller to a PXI chassis or to link
multiple chassis, power-up the system as follows:
a. For a system comprising an external controller and one chassis, power up the chassis before powering up
the external controller.
b. For a system comprising more than one chassis, turn ON the last chassis in the system followed by the
penultimate, etc, and nally turn ON the external controller or chassis containing the system controller.
9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up
sequence.

Page 3.3
MICROWAVE MULTIPLEXER MODULE 40-785
pickering SECTION 3 - INSTALLATION
Page 3.3
REED RELAY MODULE 40-110/115/120/125
pickering SECTION 3 - INSTALLATION
Figure 3.3 - General Soft Front Panel Selector
TESTING OPERATION
After installation of the hardware and Pickering PXI Driver software package start the General Soft Front
Panel (GSFP) using the desktop icon or via the Start menu (Start Menu-> Pickering Interfaces Ltd ->
General Soft Front Panel).
A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click
on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
Panels can be opened simultaneously for all the installed cards.
More details how to use the GSFP can be found in the manual, via menu Help\Manual
Figure 3.2 - General Soft Front Panel Icon
