Issue 2.2 July 2022

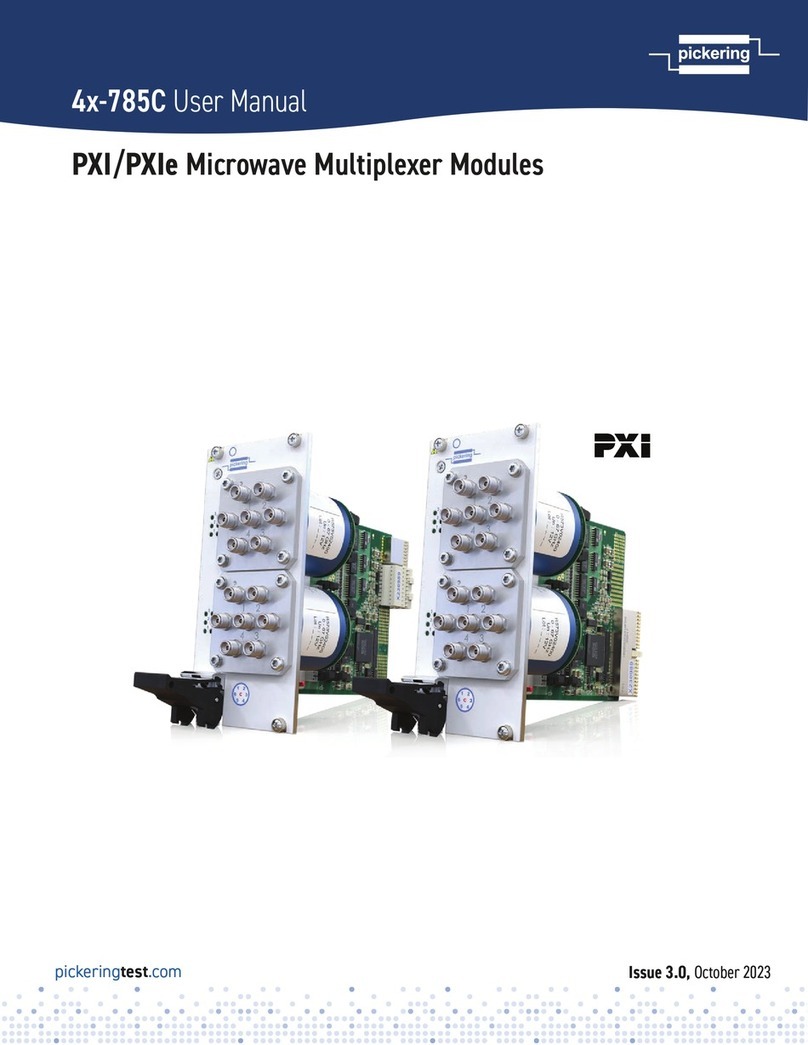

40/42-785C User Manual
PXI/PXIe Microwave Multiplexer Modules

Page (II) PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
Page (II) REED RELAY MODULE 40-110/115/120/125
pickering
© COPYRIGHT (2022) PICKERING INTERFACES. ALL RIGHTS RESERVED.
No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by
any means without the written permission of Pickering Interfaces.
Technical details contained within this publication are subject to change without notice.
ISO 9001
Reg No. FM38792

Page (III)
PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
WARNING
For versions with SMA connectors, only the correct connector series should be mated with these
modules. The 40/42-785C range uses SMA, SMA-2.9, SMA-2.4 & SMA1.85 connectors depending upon
the module’s frequency range, and the user should only mate the correct type to the module, failure to
do so may result in damage to the connector.
Also, it is important that the connector’s nut is properly tightened to the correct torque. For SMA
connectors, this should be with a 5/16 inch wrench and be 3-5 in·lbs (0.3 to 0.6 N·m) for brass, or 7-10
in·lbs (0.8–1.1 N·m) for stainless steel. For N-type connectors, this should be with an 18mm wrench and
be 15 in·lbs (1.7 N·m).
Page (III)
REED RELAY MODULE 40-110/115/120/125
pickering
TECHNICAL SUPPORT
For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.
WARRANTY
All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of
three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be
defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.
Products serviced and repaired outside of the warranty period are warranted for ninety days.
Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.
ENVIRONMENTAL POLICY
Pickering Interfaces operates under an environmental management system similar to ISO 14001.
Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the
environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and
safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can
be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
Worldwide Technical Support and Product Information
pickeringtest.com
Germany
Tel: [phone]
E-mail: [email protected]
Sweden
Tel: [phone]
E-mail: [email protected]
USA
Tel: (West) [phone]
Tel: (East) [phone]
E-mail: [email protected]
Czech Republic
Tel: [phone]
E-mail: [email protected]
France
Tel [phone]
E-mail [email protected]
Pickering Interfaces Headquarters
Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom
Tel: [phone]
E-Mail: [email protected]
China
Tel: [phone]
E-mail: [email protected]

Page (IV) PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
Page (IV) REED RELAY MODULE 40-110/115/120/125
pickering
MEANING / DESCRIPTION SYMBOL
PROTECTIVE EARTH (GROUND)
To identify any terminal which is intended for connection to an external conductor for
protection against electric shock in case of a fault, or the terminal of a protective earth
(ground) electrode.
DANGEROUS VOLTAGE
To indicate hazards arising from dangerous voltages.
WARNING / CAUTION
An appropriate safety instruction should be followed or caution to a potential hazard
exists.
Refer to the relevant instructions detailed within the product manual.
HEAVY
If this product is heavy reference should be made to the safety instructions for
provisions of lifting and moving.
STATIC SENSITIVE
To indicate that static sensitive devices are present and handling precautions should
be followed.
!
kg
SAFETY SYMBOLS
PRODUCT SAFETY
The following safety symbols may be used on the product and throughout the product documentation.

Page (V)
PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
Copyright Statement ...................................................................II
Technical Support and Warranty................................................III
Product Safety .............................................................................IV
Contents (this page)....................................................................V
Warnings and Cautions ..............................................................VII
Section 1
Technical Specication...............................................................1.1
Section 2
Technical Description .................................................................2.1
Functional Description..........................................................2.1
Section 3
Installation....................................................................................3.1
Pre Operation Checks...........................................................3.1
Hardware Installation ............................................................3.2
Software Installation .............................................................3.2
Testing Operation ..................................................................3.3
Section 4
Programming Guide....................................................................4.1
Programming Options For Pickering PXI/PXIe Modules ...4.1
Module Architecture..............................................................4.2
Programming The Module ....................................................4.3
Section 5
Connector Information................................................................5.1
Section 6
Trouble Shooting .........................................................................6.1
Section 7
Maintenance Information............................................................7.1
Appendix A
Relay Dimensional Drawings .....................................................A.1
Appendix B
Mounting Bracket Information ...................................................B.1
Appendix C
Part Number List..........................................................................C.1
CONTENTS

Page (VI) PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
THIS PAGE INTENTIONALLY BLANK

Page (VII)
PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
Page (VII)
REED RELAY MODULE 40-110/115/120/125
pickering
WARNINGS AND CAUTIONS
WARNING - HAZARDOUS ENVIRONMENTS SYMBOL
atmospheres. If the product is to be used in hazardous environments we recommend that the user
ensures suitable protective measures are taken.
!
WARNING - DANGER OF ELECTRIC SHOCK SYMBOL
This module may contain hazardous voltages. Before removing the module from the rack remove all
supplies and disconnect user I/O signals.
Unused slots in the host chassis are populated with blanking plates to prevent access to user
I/O signals that may be present. Blanking panels are available to order from Pickering in a variety
of slot widths. If the product is not used in this manner for example by using an extender card then
additional care must be taken to avoid contact with exposed signals.
CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL
Certain semiconductor devices used in this equipment are liable to damage due to static voltage.
Observe the following precautions when handling these devices in their unterminated state, or
sub-assemblies containing these devices:
1. Persons removing sub-assemblies from equipment using these devices must be earthed by a
wrist strap and a resistor at the point provided on the equipment.
2. Soldering irons used during the repair operations must be low voltage types with earthed tips and
isolated from the mains voltage by a double insulated transformer.
3. Outer clothing worn must be unable to generate static charges.
4.
anti-static bags.
CAUTION - PRODUCT DOCUMENTATION SYMBOL
and understood before attempting to install or operate the product.
!
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O
signals (refer to the Maintenance Section).
• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or
the combined weight of the modules & chassis.
• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the
chassis and the user I/O signals.
• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.
• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on
the front of the unit.

Page (VIII) PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
THIS PAGE INTENTIONALLY BLANK

Page 1.1
PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering SECTION 1 - TECHNICAL SPECIFICATION
SECTION 1 - TECHNICAL SPECIFICATION
The 40-785C (PXI) and 42-785C (PXIe) range of PXI microwave
multiplexer modules are suitable for switching 50 Ω signals
up to 67 GHz. They are available in single or dual SP4T or
SP6T configurations with relays mounted on the front panel.
Remote versions are also available which can support up to
three multiplexers in a single slot.
The remote multiplexer versions, as well as occupying less
PXI panel space, allow the microwave relays to be placed
closer to the UUT and RF test equipment. This can shorten
the length of cables and improve system performance.
Remote versions are supplied with a 1.5 m interface cable.
The panel mounted 50 Ω terminated version occupies 3 slots
for the single version or 6 slots for the dual version. A 75 Ω
version is available with a bandwidth of 2.5 GHz and uses
Siemens 1.6/5.6 style connectors.
yAvailable as PXI or PXIe Modules
ySingle or Dual SP4T or SP6T Panel Mounted Multiplexer
yUp To 3 Remote SP4T or SP6T Multiplexers From Single
Slot Version
y50 Ω Versions With 3-67 GHz Bandwidth
y50 Ω Terminated and Unterminated Versions
y75 Ω Version With 2.5 GHz Bandwidth
yFailsafe & Latching Relay Options
yRelay Cycle Counting Included
yLED Indication (Failsafe Versions Only)
yVISA, IVI & Kernel Drivers Supplied for Windows
yPXI Version Supported by PXI or LXI Chassis
y3 Year Warranty
Microwave Multiplexer (Part No. 4x-785C) in
Single Unterminated Format
3
4C
5
6
1
2
off
3C
4
1
2
off
Single Unterminated SP6TSingle Unterminated SP4T
Single slot version
controls 1, 2 or 3
remotely mounted
microwave
multiplexers via
interface cables
The 4x-785C range is suitable for constructing complex
microwave switching networks and includes configurations
to suit most applications. Connection is by high performance
SMA, SMA 2.9, SMA 2.4, SMA 1.85 or N-type for 50 Ω versions.
These modules give you the highest RF and microwave
performance available within a Pickering switching system.
Although designed for microwave applications, they have
many uses in the RF spectrum where extremely low insertion
loss and ultra high isolation are critical.
Product Compatibility
The 4x-785C range has been introduced as an update to the
existing 40-785B family. These remain orderable but the new
4x-785C is recommended as it provides additional options
such as the PXIe control interface. The RF performance of the
4x-785C is identical to the 40-785B.
pickeringtest.com
4x-785C
PXI/PXIe Microwave Multiplexer
Issue 2.0 May 2022

Page 1.2 PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
SECTION 1 - TECHNICAL SPECIFICATION
3C
4
1
2
off
3C
4
1
2
off
MUX Bank 1
MUX Bank 2
3
4C
MUX Bank 1
5
6
1
2
off
3
4C
5
6
1
2
off
MUX Bank 2
3C
4
1
2
off
3C
4
1
2
off
MUX Bank 1
MUX Bank 2
3C
4
1
2
off
MUX Bank 3
3
4C
MUX Bank 1
5
6
1
2
off
3
4C
5
6
1
2
off
MUX Bank 2
3
4C
5
6
1
2
off
MUX Bank 3
Dual Unterminated SP6TDual Unterminated SP4T Triple Unterminated SP6TTriple Unterminated SP4T
3
C
6
1
2
off
Single Terminated SP6T
3
4
C
5
6
1
2
off
Single Terminated SP4T
3
C
6
1
2
off
Dual Terminated SP6T
3
4
C
5
6
1
2
off
Dual Terminated SP4T
3
C
6
1
2
off
3
4
C
5
6
1
2
off
MUX Bank 1
MUX Bank 2
MUX Bank 1
MUX Bank 2
3
C
6
1
2
off
Triple Terminated SP6T
3
4
C
5
6
1
2
off
Triple Terminated SP4T
3
C
6
1
2
off
3
4
C
5
6
1
2
off
MUX Bank 1
MUX Bank 2
MUX Bank 1
MUX Bank 2
3
C
6
1
2
off
3
4
C
5
6
1
2
off
MUX Bank 3 MUX Bank 3
4x-785C Terminated Multiplexer Range (triple versions are only available in remote mount format)
Relay Type
To provide maximum flexibility this range is available with either failsafe or
latching relays. For definition, the contacts of failsafe relays return to the
default state when the system power is removed whereas latching relay
contacts retain their last set state when the power is removed.
Relay Cycle Counting
To aid with module “health”
monitoring all versions are provided
with a relay cycle counting cycle
feature. The number of operations per
contact are stored on the module and
can be used to determine if a relay
is approaching EOL. This information
could allow system connections to
be revised so that signals applied to
heavily used contacts are swapped
with lightly used contacts to prolong
the working life of the relay(s). 4x-785C Unterminated Multiplexer Range (triple versions are only
available in remote mount format)
4x-785C
pickeringtest.com Page 2
PXI/PXIe Microwave Multiplexer

Page 1.3
PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering SECTION 1 - TECHNICAL SPECIFICATION
pickering
MUX BANK 1
Remotely Mounted Microwave Multiplexers
3 off Interface Cables 1.5m Length
4x-785C
Single Slot
Version
MUX BANK 2MUX BANK 3
6 45
123
6 4
5
123
6 4
5
123
Interconnection Between 4x-785C Single Slot Version
and Remotely Mounted Microwave Multiplexers
Remote Mount Microwave Multiplexer (18-67 GHz) Range:
• Upper left, unterminated (all frequencies) relay.
• Upper right, terminated 26.5 GHz, 40 GHz or 50 GHz relay.
• Lower left, unterminated (all frequencies) relay mounted to optional bracket.
• Lower right, terminated 26.5 GHz, 40 GHz or 50 GHz relay mounted to optional bracket.
Remotely Mounted Microwave Multiplexer Versions
4x-785C
pickeringtest.com Page 3
PXI/PXIe Microwave Multiplexer

Page 1.4 PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
SECTION 1 - TECHNICAL SPECIFICATION
General Multiplexer Information
Relay Manufacturer: Radiall
Configuration: SP6T or SP4T Microwave
MUX with 1, 2 or 3
independent banks.
LED Indicators: Multiplexers have blue LEDs
to indicate a closed RF path
(failsafe versions only).
Operate Time: Typically 15 ms
Maximum Cold Switch
Voltage: 100 V
Maximum Carry Current: 1 A
3 GHz Unterminated & Terminated Versions
Characteristic Impedance: 50 Ω
Connectors: N-type
Bandwidth DC to 3 GHz
Isolation: 80 dB (0-3 GHz)
Insertion Loss: 0.2 dB (0-3 GHz)
VSWR: 1.2:1 (0-3 GHz)
Maximum RF Carry Power: 400 W (0-3 GHz)
Termination Power Rating: 1 W per termination,
3 W total per 6 channel
multiplexer.
Expected Life (Low Power): 3 GHz option,
>2 million operations
3 GHz terminated option,
>2 million operations
Typical VSWR - 3 GHz Terminated
& Unterminated Versions
Typical Isolation (dB) - 3 GHz Terminated &
Unterminated Versions
Typical Insertion Loss (dB) - 3 GHz Terminated &
Unterminated Versions
4x-785C
pickeringtest.com Page 4
Specifications

Page 1.5
PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering SECTION 1 - TECHNICAL SPECIFICATION
18 GHz Unterminated & Terminated Versions
Characteristic Impedance: 50 Ω
Connectors: SMA
Bandwidth DC to 18 GHz
Isolation: 80 dB (0-3 GHz)
70 dB (3-8 GHz)
60 dB (8-12.4 GHz)
60 dB (12.4-18 GHz)
Insertion Loss: 0.2 dB (0-3 GHz)
0.3 dB (3-8 GHz)
0.4 dB (8-12.4 GHz)
0.5 dB (12.4-18 GHz)
VSWR: 1.2:1 (0-3 GHz)
1.3:1 (3-8 GHz)
1.4:1 (8-12.4 GHz)
1.5:1 (12.4-18 GHz)
Maximum RF Carry Power: 240 W (0-3 GHz)
150 W (3-8 GHz)
120 W (8-12.4 GHz)
100 W (12.4-18 GHz)
Termination Power Rating: 1 W per termination,
3 W total per 6 channel
multiplexer.
Expected Life (Low Power): 18 GHz option
>5 million operations
18 GHz terminated option
>2 million operations
Typical Insertion Loss (dB) - 18 GHz Terminated Versions
Typical VSWR -18 GHz Unterminated Versions
Typical Isolation (dB) - 18 GHz Unterminated Versions
Typical Insertion Loss (dB) - 18 GHz Unterminated Versions
Typical VSWR - 18 GHz Terminated Versions
Typical Isolation (dB) - 18 GHz Terminated Versions
4x-785C
pickeringtest.com Page 5
Specifications

Page 1.6 PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
SECTION 1 - TECHNICAL SPECIFICATION
26.5 GHz Unterminated Versions
Characteristic Impedance: 50 Ω
Connectors: SMA
Bandwidth DC to 26.5 GHz
Isolation: 80 dB (0-3 GHz)
70 dB (3-8 GHz)
60 dB (8-12.4 GHz)
60 dB (12.4-18 GHz)
50 dB (18-26.5 GHz)
Insertion Loss: 0.2 dB (0-3 GHz)
0.3 dB (3-8 GHz)
0.4 dB (8-12.4 GHz)
0.5 dB (12.4-18 GHz)
0.7 dB (18-26.5 GHz
VSWR: 1.2:1 (0-3 GHz)
1.3:1 (3-8 GHz)
1.4:1 (8-12.4 GHz)
1.5:1 (12.4-18 GHz)
1.7:1 (18-26.5 GHz)
Maximum RF Carry Power: 240 W (0-3 GHz)
150 W (3-8 GHz)
120 W (8-12.4 GHz)
100 W (12.4-18 GHz)
40 W (18-26.5 GHz)
Expected Life (low power): 5 million ops per position
Typical Insertion Loss (dB) - 26.5 GHz
Unterminated Versions
Typical VSWR - 26.5 GHz
Unterminated Versions
Typical Isolation (dB) - 26.5 GHz
Unterminated Versions
4x-785C
pickeringtest.com Page 6
Specifications

Page 1.7
PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering SECTION 1 - TECHNICAL SPECIFICATION
26.5 GHz Terminated Versions
Characteristic Impedance: 50 Ω
Connectors: SMA
Bandwidth DC to 26.5 GHz
Isolation: 80 dB (0-3 GHz)
70 dB (3-8 GHz)
60 dB (8-12.4 GHz)
60 dB (12.4-18 GHz)
55 dB (18-26.5 GHz)
Insertion Loss: 0.2 dB (0-3 GHz)
0.3 dB (3-8 GHz)
0.4 dB (8-12.4 GHz)
0.5 dB (12.4-18 GHz)
0.7 dB (18-26.5 GHz
VSWR: 1.2:1 (0-3 GHz)
1.3:1 (3-8 GHz)
1.4:1 (8-12.4 GHz)
1.5:1 (12.4-18 GHz)
1.7:1 (18-26.5 GHz)
Maximum RF Carry Power: 240 W (0-3 GHz)
150 W (3-8 GHz)
120 W (8-12.4 GHz)
100 W (12.4-18 GHz)
40 W (18-26.5 GHz)
Termination power rating: 1 W per termination,
3 W total per 6 channel
multiplexer
Expected Life (low power): >2 million ops per position
Typical VSWR - 26.5 GHz
Terminated Versions
Typical Isolation (dB) - 26.5 GHz
Terminated Versions
Typical Insertion (dB) Loss - 26.5 GHz
Terminated Versions
4x-785C
pickeringtest.com Page 7
Specifications

Page 1.8 PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
SECTION 1 - TECHNICAL SPECIFICATION
40 GHz Unterminated & Terminated Versions
Characteristic Impedance: 50 Ω
Connectors: SMA 2.9
Bandwidth DC to 40 GHz
Isolation: 70 dB (0-6 GHz)
60 dB (6-12.4 GHz)
60 dB (12.4-18 GHz)
55 dB (18-26.5 GHz)
50 dB (26.5-40 GHz)
Insertion Loss: 0.2 dB (0-6 GHz)
0.4 dB (6-12.4 GHz)
0.5 dB (12.4-18 GHz)
0.7 dB (18-26.5 GHz)
1.1 dB (26.5-40 GHz)
VSWR: 1.3:1 (0-6 GHz)
1.4:1 (6-12.4 GHz)
1.5:1 (12.4-18 GHz)
1.7:1 (18-26.5 GHz)
2.2:1 (26.5-40 GHz
Maximum RF Carry Power: 40 W (0-6 GHz)
30 W (6-12.4 GHz)
25 W (12.4-18 GHz)
15 W (18-26.5 GHz)
5 W (26.5-40 GHz)
Termination power rating: 1 W per termination,
3 W total per 6 channel mux
Expected Life (Low Power): >2 million ops per position
Typical VSWR - 40 GHz Terminated Versions
Typical Isolation (dB) - 40 GHz Terminated Versions
Typical Insertion (dB) Loss - 40 GHz Terminated Versions
Typical Isolation (dB) - 40 GHz Unterminated Versions
Typical Insertion Loss (dB) - 40 GHz Unterminated Versions
Typical VSWR - 40 GHz Unterminated Versions
4x-785C
pickeringtest.com Page 8
Specifications

Page 1.9
PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering SECTION 1 - TECHNICAL SPECIFICATION
50 GHz Unterminated & Terminated Versions
Characteristic Impedance: 50 Ω
Connectors: SMA 2.4
Bandwidth DC to 50 GHz
Isolation: 70 dB (0-6 GHz)
60 dB (6-12.4 GHz)
60 dB (12.4-18 GHz)
55 dB (18-26.5 GHz)
50 dB (26.5-40 GHz)
50 dB (40-50 GHz)
Insertion Loss: 0.2 dB (0-6 GHz)
0.4 dB (6-12.4 GHz)
0.5 dB (12.4-18 GHz)
0.7 dB (18-26.5 GHz)
0.9 dB (26.5-40 GHz)
1.2 dB (40-50 GHz)
VSWR: 1.3:1 (0-6 GHz)
1.4:1 (6-12.4 GHz)
1.5:1 (12.4-18 GHz)
1.7:1 (18-26.5 GHz)
1.9:1 (26.5-40 GHz)
2.2:1 (40-50 GHz)
Maximum RF Carry Power: 40 W (0-6 GHz)
30 W (6-12.4 GHz)
25 W (12.4-18 GHz)
15 W (18-26.5 GHz)
5 W (26.5-40 GHz)
3 W (40-50 GHz)
Termination power rating: 1 W per termination,
3 W total per 6 channel
multiplexer
Expected Life (Low Power): >2 million operations per
position
Typical VSWR - 50 GHz Terminated &
Unterminated Versions
Typical Isolation (dB) - 50 GHz
Terminated & Unterminated Versions
Typical Insertion Loss (dB) - 50 GHz
Terminated & Unterminated Versions
4x-785C
pickeringtest.com Page 9
Specifications

Page 1.10 PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
SECTION 1 - TECHNICAL SPECIFICATION
67 GHz Unterminated Versions
Characteristic Impedance: 50 Ω
Connectors: SMA 1.85
Bandwidth DC to 67 GHz
Isolation: 70 dB (0-6 GHz)
60 dB (6-12.4 GHz)
60 dB (12.4-18 GHz)
55 dB (18-26.5 GHz)
50 dB (26.5-40 GHz)
50 dB (40-50 GHz)
50 dB (50-65 GHz)
50 dB (65-67 GHz)
Insertion Loss: 0.3 dB (0-6 GHz)
0.4 dB (6-12.4 GHz)
0.5 dB (12.4-18 GHz)
0.7 dB (18-26.5 GHz)
0.9 dB (26.5-40 GHz)
1.2 dB (40-50 GHz)
1.2 dB (50-65 GHz)
1.7 dB (65-67 GHz)
VSWR: 1.3:1 (0-6 GHz)
1.4:1 (6-12.4 GHz)
1.5:1 (12.4-18 GHz)
1.7:1 (18-26.5 GHz)
1.9:1 (26.5-40 GHz)
2.2:1 (40-50 GHz)
2.2:1 (50-65 GHz)
2.2:1 (65-67 GHz)
Maximum RF Carry Power: 40 W (0-6 GHz)
30 W (6-12.4 GHz)
25 W (12.4-18 GHz)
15 W (18-26.5 GHz)
5 W (26.5-40 GHz)
3 W (40-50 GHz)
1 W (50-65 GHz)
1 W (65-67 GHz)
Expected Life (Low Power): >2 million operations per
position
Typical VSWR - 67 GHz Unterminated Versions
Typical Isolation (dB) - 67 GHz Unterminated Versions
Typical Insertion Loss (dB) - 67 GHz Unterminated Versions
4x-785C
pickeringtest.com Page 10
Specifications

Page 1.11
PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering SECTION 1 - TECHNICAL SPECIFICATION
67 GHz Terminated Versions
Characteristic Impedance: 50 Ω
Connectors: SMA 1.85
Bandwidth DC to 67 GHz
Isolation: 70 dB (0-6 GHz)
60 dB (6-12.4 GHz)
60 dB (12.4-18 GHz)
55 dB (18-26.5 GHz)
50 dB (26.5-40 GHz)
50 dB (40-50 GHz)
50 dB (50-65 GHz)
50 dB (65-67 GHz)
Insertion Loss: 0.3 dB (0-6 GHz)
0.4 dB (6-12.4 GHz)
0.5 dB (12.4-18 GHz)
0.7 dB (18-26.5 GHz)
0.9 dB (26.5-40 GHz)
1.2 dB (40-50 GHz)
1.4 dB (50-65 GHz)
1.7 dB (65-67 GHz)
VSWR: 1.3:1 (0-6 GHz)
1.4:1 (6-12.4 GHz)
1.5:1 (12.4-18 GHz)
1.7:1 (18-26.5 GHz)
1.9:1 (26.5-40 GHz)
2.2:1 (40-50 GHz)
2.2:1 (50-65 GHz)
2.2:1 (65-67 GHz)
Maximum RF Carry Power: 40 W (0-6 GHz)
30 W (6-12.4 GHz)
25 W (12.4-18 GHz)
15 W (18-26.5 GHz)
5 W (26.5-40 GHz)
3 W (40-50 GHz)
1 W (50-65 GHz)
1 W (65-67 GHz)
Termination power rating: 1 W per termination,
3 W total per 6 channel
multiplexer
Expected Life (Low Power): >2 million operations per
position
Typical VSWR - 67 GHz Terminated Versions
Typical Isolation (dB) - 67 GHz Terminated Versions
Typical Insertion Loss (dB) - 67 GHz Terminated Versions
4x-785C
pickeringtest.com Page 11
Specifications

Page 1.12 PXI/PXIe MICROWAVE MULTIPLEXER MODULES 40/42-785C
pickering
SECTION 1 - TECHNICAL SPECIFICATION
2.5 GHz Unterminated Version
Characteristic Impedance: 75 Ω
Connectors: 1.6/5.6
Bandwidth DC to 2.5 GHz
Isolation: 80 dB (0-1 GHz)
70 dB (1-2.5 GHz)
Insertion Loss: 0.2 dB (0-1 GHz)
0.3 dB (1-2.5 GHz)
VSWR: 1.2:1 (0-1 GHz)
1.3:1 (1-2.5 GHz)
Maximum RF Carry Power: 400 W (0-1 GHz)
240 W (1-2.5 GHz)
Expected Life (Low Power): >2 million operations per
position
Typical VSWR - 2.5 GHz 75 Ω Versions
Typical Isolation (dB) - 2.5 GHz 75 Ω Versions
Typical Insertion Loss (dB) - 2.5 GHz 75 Ω Versions
4x-785C
pickeringtest.com Page 12
Specifications
