MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
Issue 4.2 May 2017
User Manual
MEMS Fiber Optic Switch Module
(Model No. 40-855)
pickeringtest.com pickering
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page (II)
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
Page (II) REED RELAY MODULE 40-110/115/120/125
pickering
© COPYRIGHT (2017) PICKERING INTERFACES. ALL RIGHTS RESERVED.
No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by
any means without the written permission of Pickering Interfaces.
Technical details contained within this publication are subject to change without notice.
ISO 9001
Reg No. FM38792
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page (III)
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
Page (III)
REED RELAY MODULE 40-110/115/120/125
pickering
TECHNICAL SUPPORT
For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.
WARRANTY
All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of
three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be
defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.
Products serviced and repaired outside of the warranty period are warranted for ninety days.
Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.
ENVIRONMENTAL POLICY
Pickering Interfaces operates under an environmental management system similar to ISO 14001.
Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the
environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and
safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can
be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
Worldwide Technical Support and Product Information
pickeringtest.com
Germany
Tel: [phone]
E-mail: [email protected]
Sweden
Tel: [phone]
E-mail: [email protected]
USA
Tel: (West) [phone]
Tel: (East) [phone]
E-mail: [email protected]
Czech Republic
Tel: [phone]
E-mail: [email protected]
France
Tel [phone]
E-mail [email protected]
Pickering Interfaces Headquarters
Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom
Tel: [phone]
E-Mail: [email protected]
China
Tel: [phone]
E-mail: [email protected]
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page (IV)
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
Page (IV) REED RELAY MODULE 40-110/115/120/125
pickering

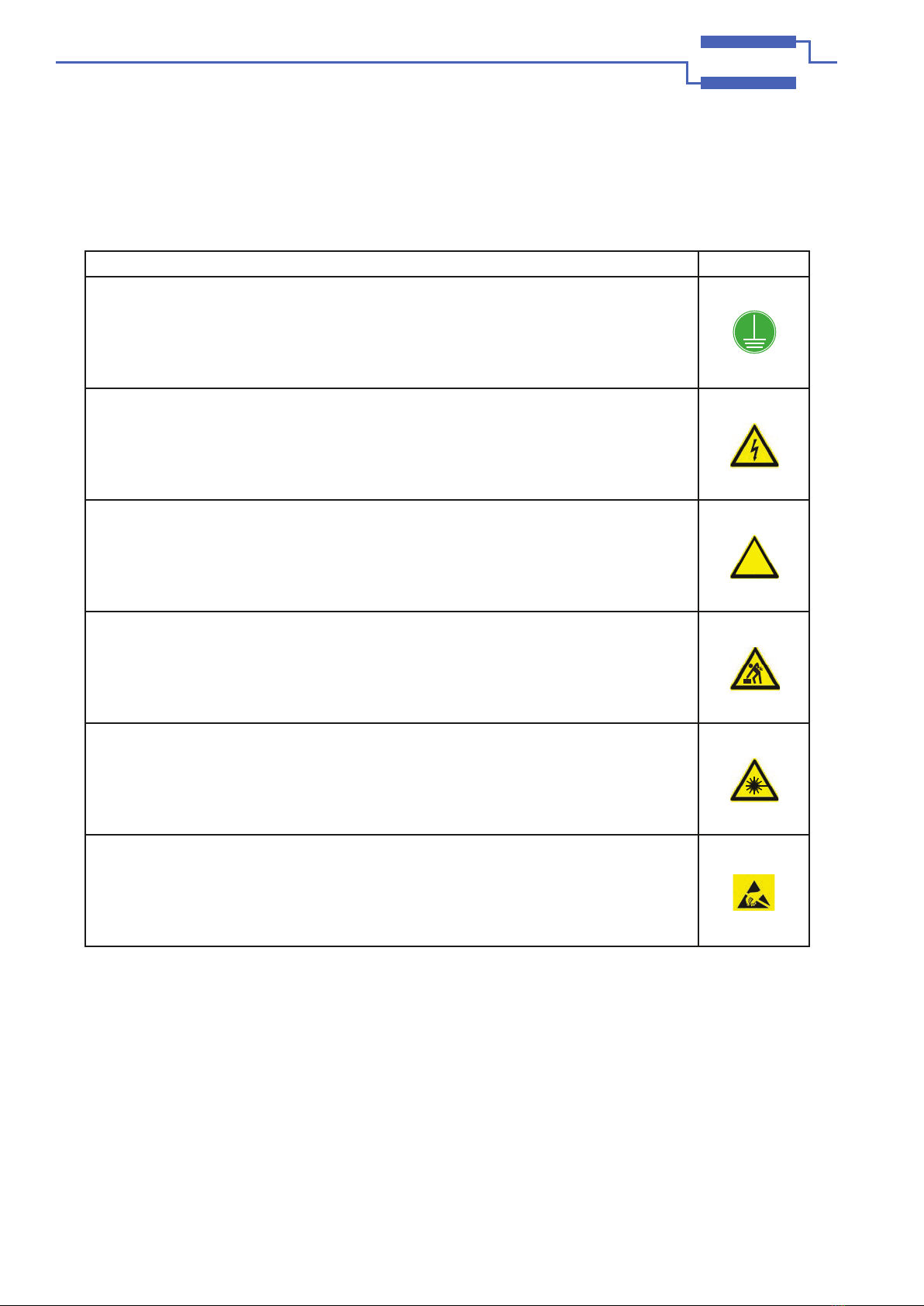

MEANING / DESCRIPTION SYMBOL
PROTECTIVE EARTH (GROUND)
To identify any terminal which is intended for connection to an external conductor for
protection against electric shock in case of a fault, or the terminal of a protective earth
(ground) electrode.
DANGEROUS VOLTAGE
To indicate hazards arising from dangerous voltages.
WARNING / CAUTION
An appropriate safety instruction should be followed or caution to a potential hazard
exists.
Refer to the relevant instructions detailed within the product manual.
HEAVY
If this product is heavy and reference should be made to the safety instructions for
provisions of lifting and moving.
LASER PRODUCT
This product is capable of switching laser optical signals.
STATIC SENSITIVE
To indicate that static sensitive devices are present and handling precautions should
be followed.
!
kg
SAFETY SYMBOLS
PRODUCT SAFETY
The following safety symbols may be used on the product and throughout the product documentation.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page (V)
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
Copyright Statement ...................................................................II
Technical Support and Warranty................................................III
Product Safety .............................................................................IV
Contents (this page)....................................................................V
Warnings and Cautions ..............................................................VII
Section 1
Technical Specication...............................................................1.1
Section 2
Technical Description .................................................................2.1
Functional Description..........................................................2.1
Section 3
Installation....................................................................................3.1
Pre Operation Checks...........................................................3.1
Hardware Installation ............................................................3.2
Software Installation .............................................................3.2
Testing Operation ..................................................................3.3
Section 4
Programming Guide....................................................................4.1
Programming Options For Pickering PXI Cards.................4.1
Module Architecture 40-855.................................................4.3
Programming The Module 40-855.......................................4.4
Section 5
Connector Information................................................................5.1
Section 6
Trouble Shooting .........................................................................6.1
Section 7
Maintenance Information............................................................7.1
Relay Lookup Tables.............................................................7.1
Component Layout................................................................7.2
CONTENTS
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page (VI)
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
THIS PAGE INTENTIONALLY BLANK
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page (VII)
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
Page (VII)
REED RELAY MODULE 40-110/115/120/125
pickering
WARNINGS AND CAUTIONS
WARNING - HAZARDOUS ENVIRONMENTS SYMBOL
This product is not specically designed for use in hazardous environments, for example in explosive
atmospheres. If the product is to be used in hazardous environments we recommend that the user
ensures suitable protective measures are taken.
!
WARNING - DANGER OF ELECTRIC SHOCK SYMBOL
This module may contain hazardous voltages. Before removing the module from the rack remove all
supplies and disconnect user I/O signals.
Unused slots in the PXI/LXI chassis are populated with blanking plates to prevent access to user
I/O signals that may be present. Blanking panels are available to order from Pickering in a variety
of slot widths. If the product is not used in this manner for example by using an extender card then
additional care must be taken to avoid contact with exposed signals.
CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL
Certain semiconductor devices used in this equipment are liable to damage due to static voltage.
Observe the following precautions when handling these devices in their unterminated state, or
sub-assemblies containing these devices:
1. Persons removing sub-assemblies from equipment using these devices must be earthed by a
wrist strap and a resistor at the point provided on the equipment.
2. Soldering irons used during the repair operations must be low voltage types with earthed tips and
isolated from the mains voltage by a double insulated transformer.
3. Outer clothing worn must be unable to generate static charges.
4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in
anti-static bags.
CAUTION - PRODUCT DOCUMENTATION SYMBOL
Suitably qualied & trained users should ensure that the accompanying documentation is fully read
and understood before attempting to install or operate the product.
!
WARNING - RISK OF INJURY SYMBOL
This product may be specically designed to switch optical signals. Under no circumstances look
into the end of an optical output or an optical cable attached to an optical output. LASER RADIATION
CAN SERIOUSLY DAMAGE YOUR EYESIGHT.
Read and understand the safety information of the laser source connected to the optical switch.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page (VIII)
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
Page (VIII) REED RELAY MODULE 40-110/115/120/125
pickering
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user
I/O signals (refer to the Maintenance Section).
• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or
the combined weight of the modules & chassis.
• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the
chassis and the user I/O signals.
• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.
• Modules are not accessed to EN 60825, users should observe the safety instructions and laser
class for the 3rd party laser source.
• The module may be capable of switching optical signals from a laser device; do not stare directly
at the user I/O ports.
• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on
the front of the unit.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 1.1
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering SECTION 1 - TECHNICAL SPECIFICATION
SECTION 1 - TECHNICAL SPECIFICATION
pickeringtest.com
40-855
MEMS Fiber Optic Switch
●Single, Dual, Triple or Quad 2 to 1 Fiber Optic
Multiplexer
●High Density 1, 2 or 3 Slot Width Modules
●FC/APC, FC/PC or SC/PC Connectors
●Small Form Factor Connectors LC
or MU (mini SC)
●1240 to 1640nm Single Mode
●700 to 1700nm Multi-Mode
●Return Loss >55dB
●Long Operating Life >109Operations with High
Repeatability ± 0.01dB and Good Temperature
Stability
●Crosstalk -60dB Typical
●1ms Typical Switching Time
●VISA, IVI & Kernel Drivers Supplied for
Windows
●Supported by PXI or LXI Chassis
●3 Year Warranty

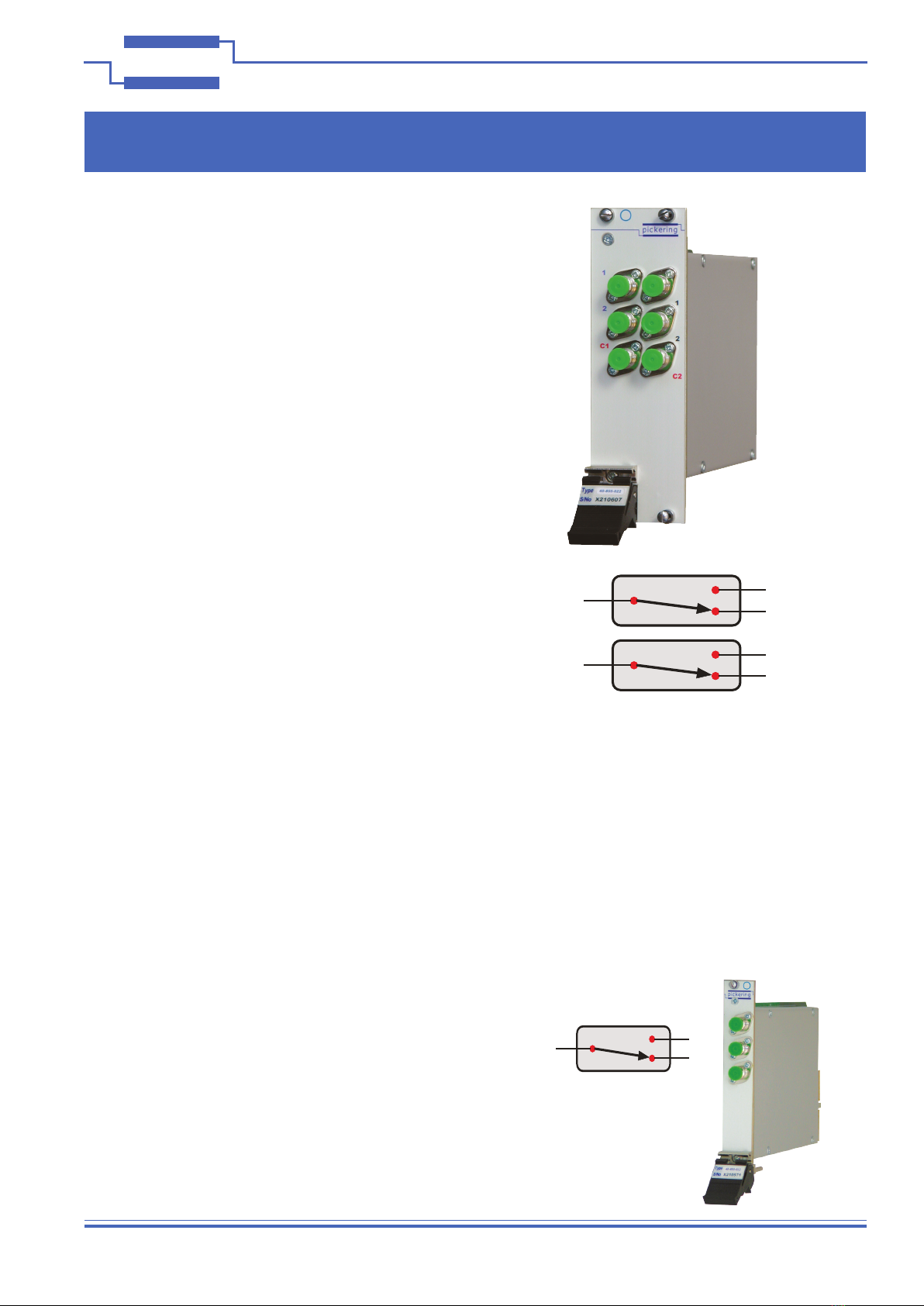

Pickering PXI Fiber Optic MEMS Switching modules are
available in many high density formats with a choice of
5 different connector styles to suit most applications:
FC/APC (for optimal performance), FC/PC and SC/PC
for general applications and LC and MU for high density
applications.
The fiber optic multiplexers connect the optical channel
by redirecting the optical signal into a selected output
fiber. This is achieved using Micro-Mechanical Mirrors
driven by a highly precise mechanism and activated via
an electrical control signal.
The range of MEMS (Micro-Electro-Mechanical-Systems)
based optical switches is:
40-850 – Single or Dual 4 Channel Multiplexer
40-852 – Single 8 Channel Multiplexer
40-855 – Single, Dual, Triple or Quad 2 Channel
Multiplexer
Pickering will construct custom optical systems to
customers precise requirements. We have a large
range of electrical switching modules which can form a
complete PXI based telecom switching solution.
MEMS technology offers many advantages over
traditional Optical Prism Technology as used in module
types 40-810/815/820. MEMS offer similar optical
performance but with lower price, higher packing density,
faster operate time and much longer operating life.
Block Diagram of Dual 2 Channel Fiber Optic
Multiplexer
Key Features
• Very fast operate time <1ms
• Very long life >109operations
• Return loss greater than 55dB
• High repeatability over a broad range of
environmental conditions
• High density
Applications
• Optical signal routing
• Fiber network configuration
• Fiber Optic Component Test
Common
Channel 1
Channel 2
Common
Channel 1
Channel 2
Channel 3
Channel 4
Common
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
Channel 1
Channel 2
Set State
1
2
3
4
Reset State
1
2
3
4
ISSUE 5.1 MAY 2017
40-855-012
2 Channel
Fiber Optic
Multiplexer
Common
Channel 1
Channel 2
Common
Channel 1
Channel 2
Channel 3
Channel 4
Common
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
Channel 1
Channel 2
Set State
1
2
3
4
Reset State
1
2
3
4
Common
Channel 1
Channel 2
Common
Channel 1
Channel 2
Channel 3
Channel 4
Common
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
Channel 1
Channel 2
Set State
1
2
3
4
Reset State
1
2
3
4
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 1.2
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
SECTION 1 - TECHNICAL SPECIFICATION
pickeringtest.com
Power Requirements
+3.3V +5V +12V -12V
0300mA (typ 220mA) 0 0
Mechanical Characteristics
All modules are either 1 or 2 slot as indicated in model list.
Module weight: 420g (40-855-222)
3D models for all versions in a variety of popular file formats
are available on request.
Connectors
PXI bus via 32-bit P1/J1 backplane connector.
Signals via front panel fiber optic connectors (choice of FC/
APC, FC/PC,SC/PC, MU or LC types).
Other Fiber Connector Styles
Pickering can manufacture Fiber Optic Switch modules with
other connector styles, please contact sales office for further
information.
General Specification (All Versions)
Fiber Switch Type:
Internal Fiber Type:
MEMS
SM 9/125
Wavelength:
Insertion loss (4 channel versions):
Return loss (APC version):
Return loss (other versions):
Polarization dependent loss (PDL):
Repeatability:
Crosstalk:
Optical Input Power:
1240 to 1640nm
0.8dB Typ
60dB Min
55dB Min
0.05dB Max
±0.01dB Max
-60dB Max
300mW Max
Thermal Stability:
(-10 to 75°C insertion loss variation)
0.2dB Max
Expected Life: >>109operations
Maximum Switching Time:
Cycle Rate:
1ms
500/sec
Module Weight: <0.8Kg typ.
Additional Specification (MM Versions)
Fiber Switch Type:
Internal Fiber Type:
MEMS
MM 62.5/125
Wavelength:
Insertion loss (4 channel versions):
Return loss (other versions):
Polarization dependent loss (PDL):
700 to 1700nm
0.8dB Typ
55dB Min
0.05dB Max
Product Order Codes
2 Channel Multiplexer Versions
FC/APC, 1240 to 1640nm, Single-Mode
Single 2 Channel Fiber MUX, 1 slot
Dual 2 Channel Fiber MUX, 2 slot
40-855-012
40-855-022
FC/PC, 1240 to 1640nm, Single-Mode
Single 2 Channel Fiber MUX, 1 slot
Dual 2 Channel Fiber MUX, 2 slot
40-855-112
40-855-122
SC/PC, 1240 to 1640nm, Single-Mode
Single 2 Channel Fiber MUX, 1 slot
Dual 2 Channel Fiber MUX, 2 slot
40-855-212
40-855-222
MU (mini SC), 1240 to 1640nm, Single-Mode
Single 2 Channel Fiber MUX, 1 slot
Dual 2 Channel Fiber MUX, 1 slot
Triple 2 Channel Fiber MUX, 1 slot
Quad 2 Channel Fiber MUX, 1 slot
40-855-312
40-855-322
40-855-332
40-855-342
LC, 1240 to 1640nm, Single-Mode
Single 2 Channel Fiber MUX, 1 slot
Dual 2 Channel Fiber MUX, 1 slot
Triple 2 Channel Fiber MUX, 1 slot
Quad 2 Channel Fiber MUX, 1 slot
40-855-412
40-855-422
40-855-432
40-855-442
SC, 700 to 1700nm, Multi-Mode
Single 2 Channel Fiber MUX, 1 slot
Dual 2 Channel Fiber MUX, 2 slot
40-855-212-M
40-855-222-M
ST, 700 to 1700nm, Multi-Mode
Single 2 Channel Fiber MUX, 1 slot
Dual 2 Channel Fiber MUX, 2 slot
40-855-512-M
40-855-522-M
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 1.3
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering SECTION 1 - TECHNICAL SPECIFICATION
pickeringtest.com
Programming
Pickering provide kernel, IVI and VISA (NI & Keysight) drivers
which are compatible with all Microsoft supported versions of
Windows and popular older versions. For a list of all supporting
operating systems, please see: www.pickeringtest.com/os
The VISA driver is also compatible with Real-Time Operating
Systems such as LabVIEW RT. For other RTOS support
contact Pickering. These drivers may be used with a variety of
programming environments and applications including:
Pickering Interfaces Switch Path Manager
MTQ Testsolutions Tecap Test & Measurement Suite
National Instruments products (LabVIEW, LabWindows/
CVI, Switch Executive, MAX, TestStand, VeriStand, etc.)
Microsoft Visual Studio products (Visual Basic, Visual C+)
Keysight VEE Mathworks Matlab Marvin ATEasy
Drivers for popular Linux distributions are available, other
environments are also supported, please contact Pickering
with specific enquiries.
Operating/Storage Conditions
Operating Conditions
Operating Temperature:
Humidity:
Altitude:
0°C to +55°C
Up to 90% non-condensing
5000m
Storage and Transport Conditions
Storage Temperature:
Humidity:
Altitude:
-20°C to +75°C
Up to 90% non-condensing
15000m
PXI & LXI Chassis Compatibility
Compatible with all chassis conforming to the 3U PXI and
3U cPCI specification. Compatible with Legacy and Hybrid
peripheral slots in a 3U PXI Express chassis.
Compatible with Pickering Interfaces LXI Modular Chassis.
For information on driving your switching solution in an LXI
environment refer to the LXI Product Guide.
PXI & CompactPCI Compliance
The module is compliant with the PXI Specification 2.2. Local
Bus, Trigger Bus and Star Trigger are not implemented.
Uses a 33MHz 32-bit backplane interface.
Safety & CE Compliance
All modules are fully CE compliant and meet applicable EU
directives: Low-voltage safety EN61010-1:2001,
EMC Immunity EN61000-6-1:2001, Emissions EN55011:1998.
Please refer to the 200 page
Pickering Interfaces “Connection
Solutions” catalog for the full list
of connector/cabling options,
including drawings, photos and
specifications. Available in either
print or as a download.
Alternatively our web site has
dynamically linked connector/
cabling options, including pricing,
for all Pickering PXI modules.
Ever wondered what PXI is all
about?
Pickering Interfaces’ “PXImate”
explains the basics of PXI
and provides useful data for
engineers working on switch
based test systems.
The PXImate is available free
on request from the Pickering
website.
“The Big PXI Catalog” gives
full details of Pickering’s entire
range of PXI switch modules,
instrument modules and
support products.
At over 500 pages, the Big
PXI Catalog is available on
request or can be downloaded
from the Pickering website.
The “PXI
Module Map”
- a simple fold-
out selection
guide to all
Pickering’s
1000+ PXI
Modules.
The “Cables &
Connectors
Map” - outlines
the cable and
connector
options
available
for all PXI
Modules.
Latest Details
Please refer to our Web Site for Latest Product Details.
www.pickeringtest.com
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 1.4
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
SECTION 1 - TECHNICAL SPECIFICATION
THIS PAGE INTENTIONALLY BLANK
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 2.1
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering SECTION 2 - TECHNICAL DESCRIPTION
SECTION 2 - TECHNICAL DESCRIPTION
FUNCTIONAL DESCRIPTION
Functional block diagrams for the 40-855 are provided in Figures 2.1 and 2.2. The Fiber Optic Switch Module is
powered by a +5V input via Compact PCI connector J1. The module comprises Fiber Optic switches which connect
an optical channel by redirecting the optical signal received at the common input into a selected output bre. This is
achieved using Micro-Mechanical Mirrors driven by a highly precise mechanism. These are activated by electrical
control signals via buffers from driver devices. The registers of the drivers are addressed by PCI bridge U1 to output
the required signal. PCI Bridge U1 is congured by EEPROM U2.
SW1
MODULE
CONFIGURATION
U5, U6 AND U7
PCI BRIDGE
U1
PCI BRIDGE
CONFIGURATION
U2
TERMINATING
RESISTORS
R4 TO R15
COMPACT PCI
BUS
CONNECTOR
J1
0V
DRIVER
U8
+5V
CHANNEL 1
CHANNEL 2
COMMON
OUTPUT
BUFFER
U10
SW3
CHANNEL 1
CHANNEL 2
COMMON
Figure 2.2 - Dual Fiber Optic Switch Module 40-855: Functional Block Diagram
SW2
MODULE
CONFIGURATION
U5, U6 AND U7
PCI BRIDGE
U1
PCI BRIDGE
CONFIGURATION
U2
TERMINATING
RESISTORS
R4 TO R15
COMPACT PCI
BUS
CONNECTOR
J1
0V
DRIVER
U8
+5V
CHANNEL 1
CHANNEL 2
COMMON
OUTPUT
BUFFER
U10
Figure 2.1 - Single Fiber Optic Switch Module 40-855: Functional Block Diagram
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 2.2
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
SECTION 2 - TECHNICAL DESCRIPTION
THIS PAGE INTENTIONALLY BLANK
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 3.1
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering SECTION 3 - INSTALLATION
Page 3.1
REED RELAY MODULE 40-110/115/120/125
pickering SECTION 3 - INSTALLATION
kg
PREOPERATION CHECKS (UNPACKING)
1. Check the module for transport damage and report any damage immediately to Pickering Interfaces.
Do not attempt to install the product if any damage is evident.
2. Position the chassis relative to any other equipment the module(s) will connect with. Ensure the chassis is not
connected to the electrical supply.
3. Ensure that the designated area for the chassis containing the module is of at and solid construction to
withstand and support the combined weight of the module(s) and chassis.
SECTION 3 - INSTALLATION
!
Refer to the Warnings and Cautions at the front of this manual
Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only.
Figure 3.1 - Installing the Module into a PXI/cPCI/LXI Chassis
PXI / LXI Chassis
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 3.2
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
SECTION 3 - INSTALLATION
Page 3.2 REED RELAY MODULE 40-110/115/120/125
pickering
SECTION 3 - INSTALLATION

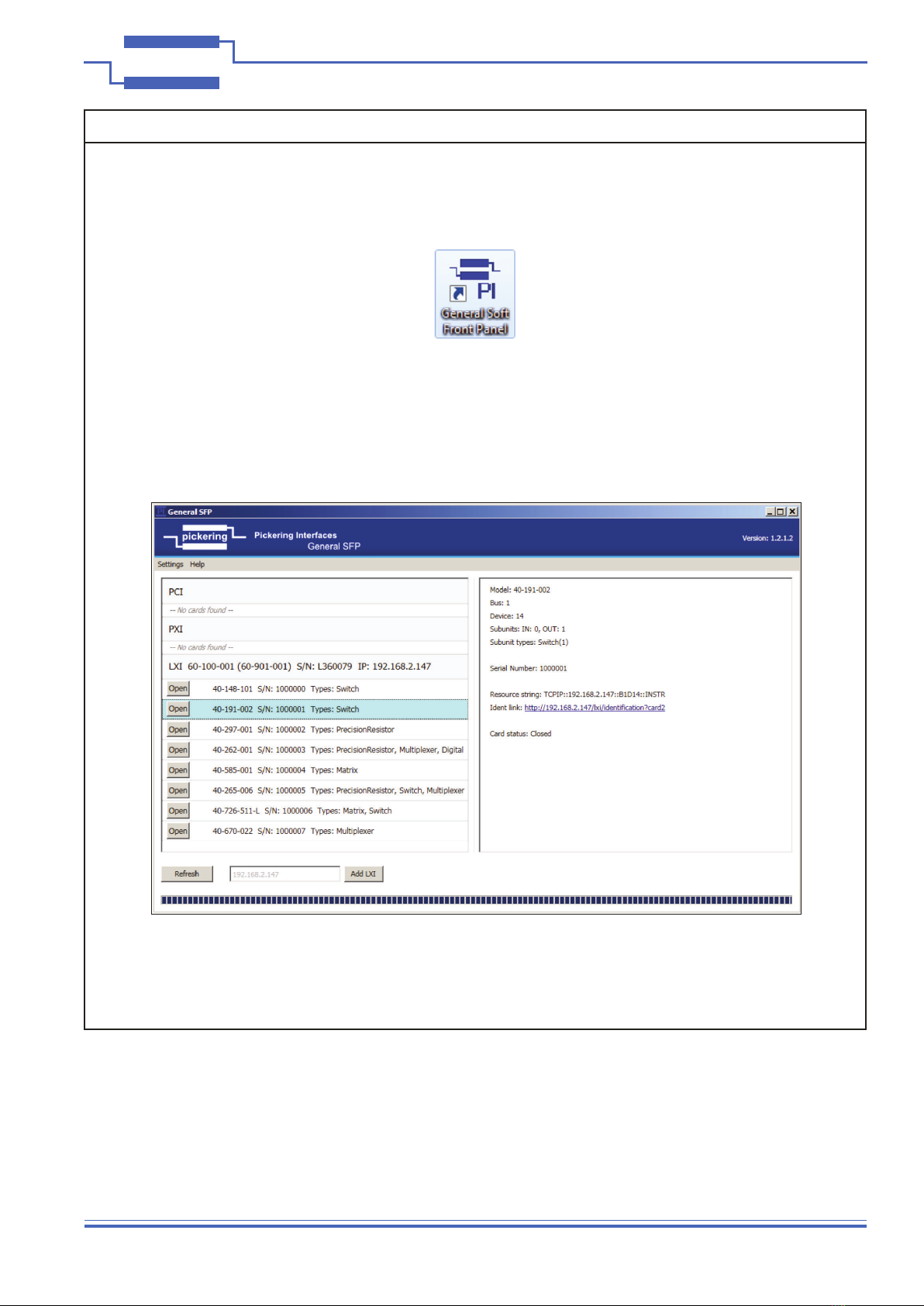

SOFTWARE INSTALLATION
First install the appropriate Pickering PXI switch card drivers by running the installer program Setup.exe (provided
in a compressed zip le), either from the CD-ROM supplied, or by downloading the latest version from our website
pickeringtest.com - the recommended method. Setup is accompanied by a ReadMe le containing
additional installation information. A single installation covers all cards in the System 40, System 45 and System
50 ranges.
When installation completes, the installed drivers’ ReadMe le is offered for display. It can also be displayed
later using a shortcut on the Programs>>Pickering menu.
If you are not a LabVIEW user you should choose the “full” version, and once that has been installed run
the LabVIEW Runtime Engine installer via the shortcut on the Programs>>Pickering menu. In the absence of
LabVIEW the Runtime Engine is required to support the Pickering Test Panels application.
!
HARDWARE INSTALLATION
ELECTRICAL CONNECTION (CHASSIS)
1. The chassis must be electrically installed in accordance with local regional electrical codes by a qualied
engineer.
2. The chassis must be grounded.
Electrostatic discharge can damage the components on the module. To avoid such damage in handling the
board refer to page VII.
Ensure that there is adequate ventilation.
The module should be installed in accordance with the following procedure:
1. Ensure that the system is turned OFF but still connected to mains so that it remains grounded.
2. Choose an appropriate slot in the rack.
3. Remove the blanking plate for the chosen slot.
4. Ensure that the injector/ejector handle is in its downward position. Align the module with the card guides on
the top and bottom of the slot.
Do not raise the injector/ejector handle whilst inserting the module as the module will not insert properly.
5. Hold the handle whilst slowly sliding the module into the card guides until the handle catches on the injector/
ejector rail (refer to Figure 3.1).
6. Raise the injector/ejector handle until the module rmly seats into the backplane. The front panel of the
module should be ush with the front panel of the chassis.
7. Secure the front panel of the module using both screws to the chassis front panel mounting rails.
8. In a system employing a remote control interface to connect an external controller to a PXI chassis or to link
multiple chassis, power-up the system as follows:
a. For a system comprising an external controller and one chassis, power up the chassis before powering up
the external controller.
b. For a system comprising more than one chassis, turn ON the last chassis in the system followed by the
penultimate, etc, and nally turn ON the external controller or chassis containing the system controller.
9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up
sequence.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 3.3
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering SECTION 3 - INSTALLATION
Page 3.3
REED RELAY MODULE 40-110/115/120/125
pickering SECTION 3 - INSTALLATION
Figure 3.3 - General Soft Front Panel Selector
TESTING OPERATION
After installation of the hardware and Pickering PXI Driver software package start the General Soft Front
Panel (GSFP) using the desktop icon or via the Start menu (Start Menu-> Pickering Interfaces Ltd ->
General Soft Front Panel).
A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click
on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
Panels can be opened simultaneously for all the installed cards.
More details how to use the GSFP can be found in the manual, via menu Help\Manual
Figure 3.2 - General Soft Front Panel Icon
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 3.4
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering
SECTION 3 - INSTALLATION
THIS PAGE INTENTIONALLY BLANK
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 4.1
MEMS FIBER OPTIC SWITCH MODULE 40-855
pickering SECTION 4 - PROGRAMMING GUIDE
SECTION 4 - PROGRAMMING GUIDE
PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI CARDS
Software drivers are supplied for Microsoft Windows operating systems, with specic support for the following
development environments:
●Microsoft Visual Studio (VB, C++, C#)
●Borland C++
●National Instruments LabWindows/CVI
●National Instruments LabVIEW and LabVIEW RT
Windows drivers are supplied in the form of Dynamic Link Libraries, which should also be usable in any other
development environment that supports them.
Some recent drivers developed for the LXI platform are capable of addressing both PXI and LXI domains. Such
duality may be of help to users considering future migration from PXI based systems to LXI based systems, or
indeed systems containing both PXI and LXI components.
Programming for PXI
A number of different Windows drivers are available to meet particular system requirements, and should none of
these be suitable there is also the option of register-level programming. Drivers are generally ‘universal’, handling all
models in the System 40, 45 and 50 ranges; however some models that are not compliant with the Ivi Swtch class
cannot be used with the pi40iv IVI driver. The pipx40 and Pilpxi drivers are also applicable to certain models in the
System 41 (PXI Instruments) range - see these drivers’ System 41 support list.
Please note that this documentation is available in its most up-to-date form as HTML help les, fully hyperlinked for
easy access - both pipx40 and Pilpxi documents are included in the Pipx40vpp software installation.
IVI Driver for Windows - pi40iv
The pi40iv IVI (Interchangeable Virtual Instrument) driver supports all Pickering Interfaces PXI switch cards that
are consistent with the Iviswtch class model - as are the great majority of cards in the System 40/45/50 ranges. It
integrates well with LabWindows/CVI and LabVIEW, and is fully compatible with Switch Executive. It is also usable
in general-purpose programming environments such as Visual C++ and Visual Basic.
Prior installation of the VISA and IviEngine from National Instruments are required for the correct installation and
operation of this driver.
VISA Driver for Windows - pipx40
The pipx40 driver conforms to the VISA (Virtual Instrument Software Architecture) standard for programmable
instrumentation. Instrument control environments such as LabVIEW and LabWindows/CVI are based on VISA, and
pipx40 support libraries are provided for them.
Prior installation of VISA from National Instruments is required for the operation of this driver.
Where VISA is available, pipx40 can also be used in general-purpose programming environments such as Visual
C++ and Visual Basic. When IVI is not a system requirement this driver will often yield faster operation than the
pi40iv driver.
Direct I/O Driver for Windows - Pilpxi
The Pilpxi driver accesses cards directly, without using the VISA software layer, while offering similar overall
functionality to pipx40. It is most commonly used in general-purpose programming environments such as Visual
C++ and Visual Basic. Operating speed of the VISA and Direct I/O drivers is generally comparable.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
