Pico Macom PM-SE User manual

Installation and
Operation Manual
PM-SE
BTSC Stereo Encoder
Operation
Manual
Rev. 02/04
Ph: 800-421-6511 www.picomacom.com

PM-SE
Controls/Operation
BTSC Stereo Encoder
2
Rev. 02/04
Ph: 800-421-6511 www.picomacom.com
1 4 5
6
8
7
9
10
2
3

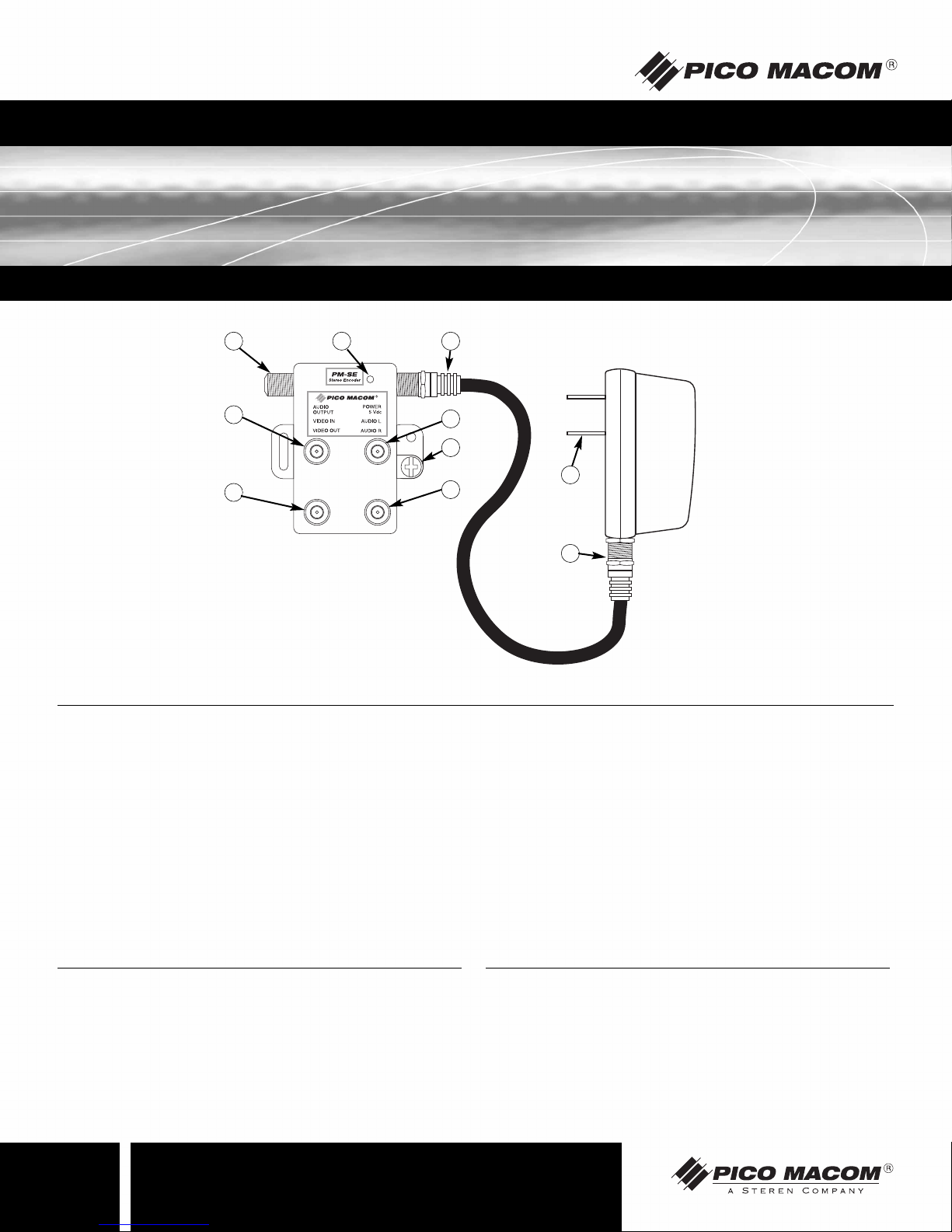

1. BTSC Audio Output: The BTSC multiplexed stereo signal is available
at this F connector.
2. Video Input: The source video should be connected to this F connector.
3. Video Output: Connect a cable between the video output of the
receiver and the video input of the PM-SE.
4. LED Power Indicator: Connect a cable between the left audio output
of the receiver and the left audio input of the PM-SE.
5. Power Input: Connect a cable between the power output of the
AC/DC adaptor and the dc power input of the PM-SE.
6. Left Audio Input: Plug the AC/DC adaptor into a stable power receptacle.
7. Right Audio Input: Connect a copper ground wire between the
ground lug of the PM-SE and a common earth ground.
8. Ground Lug: Connect a copper ground wire between the ground lug
of the PM-SE and a common earth ground.
9. Power Output: Connect a copper ground wire between the ground lug
of the PM-SE and a common earth ground.
10. Power Plug: Connect a copper ground wire between the ground lug
of the PM-SE and a common earth ground.
•Always operate in a cool well-ventilated environment.
•Always provide a stable, conditioned power source.
• Heed all safety warnings and obey all environmental and electrical
operating requirements.
•To clean, use a damp cloth only and clean only with mild soap.
•Do not use solvents or harsh detergents.
• Do not use this product for purposes other than intended.
Front Panel Controls
Do’s & Don’ts Operation & Care

PM-SE
Installation
3
Rev. 02/04
Ph: 800-421-6511 www.picomacom.com
BTSC Stereo Encoder
OUTPUT
RL
VIDEO AUDIO
INPUT
SATELLITE ANT IN
PCM55SAW Modulator
Satellite Receiver
RF OUT 120VAC
60Hz 10W
AUDIO IN
VIDEO IN
600 VA MAX
+++
+
++
+
Ground Connection
Power
Ordering Information
PM-SE BTSC Stereo Encoder
1. Disable or bypass the audio preemphasis circuit of the modulator and remount in rack before connecting the PM-SE.*
2.Connect a cable between the BTSC audio output of the PM-SE and the audio input of the modulator.
3. Connect a cable between the video output of the receiver and the video input of the PM-SE.
4.Connect a cable between the video output of the PM-SE and the video input of the modulator.
5. Connect a cable between the left audio output of the receiver and the left audio input of the PM-SE.
6. Connect a cable between the power output of the AC/DC adaptor and the dc power input of the PM-SE.
7. Plug the AC/DC adaptor into a stable power receptacle.
8. Connect a copper ground wire between the ground lug of the PM-SE and a common earth ground.
* Note: Refer to the modulator owner’s manual or contact the manufacturer for help completing this step.
