Pinell Supersound II User manual

Pinell Supersound II
DAB+/DAB/FM/Internet Radio
Instruction Menu

Safety Information
9. Do not defeat the safety purpose of the polarized
or grounding - type plug. a polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
The lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus. If the power cord is damaged, it
must be repaired by a qualified repairer.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
16. The mains plug or an appliance coupler is used
as the disconnect device, the disconnect device
shall remain readily operable.
17. Please read Rating Labels at the bottom of the
Sender and Receiver for power input and other
safety information.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of electrical shock, fire, etc.:
1. Read these instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth. For stubborn stains,
use a soft cloth dampened with a weak solution of
mild detergent and water. Dry the apparatus
immediately afterwards with a clean cloth. Do not
use abrasive clothes, thinners, alcohol, or other
chemical solvents, because they may damage the
finish or remove the panel lettering.
7.Do not block any ventilation openings. The
ventilation shall not be impeded by covering the
ventilation openings with items, such as
newspapers, table clothes, curtains, etc.
8.Do not install near any heat source such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.

FCC Information
FCC part 15.19
This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC part 15.21
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC part 15.105
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to connect the
interference by one or more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
 Consult the dealer or an experienced radio TV technician for help.
This device complies with Part 15 of the FCC Rules, Operation is subject to the condition that this
device not cause harmful interference.

Contents
Safety Information 2
Package Content 2
Internet Radio Quick start Guide 3
What you need before you can use your Internet Radio ...................................................... 3
Controls Overview (a) ......................................................................................................... 4
Controls Overview (b) ......................................................................................................... 5
Setup Wizard ....................................................................................................................... 6
Select a station through Podcasts ....................................................................................... 15
Get Access Code ................................................................................................................ 15
Add Station to ‘My favourites’ .......................................................................................... 16
Add Station to ‘My Added Stations’ ................................................................................. 17
Changing the Station Information ...................................................................................... 18
Station Updates .................................................................................................................. 18
Music Player Mode ............................................................................................................ 1 9 
DAB Mode ........................................................................................................................ 20
FM Mode ........................................................................................................................... 23
Setting Station Presets ....................................................................................................... 25
Selecting a Preset station ................................................................................................... 2 5 
AUX IN Mode ................................................................................................................... 26
Sleep Function ................................................................................................................... 27
Setting Clock ..................................................................................................................... 28
Daylight Savings ................................................................................................................ 29
Setting Alarm ..................................................................................................................... 30
General Operation 33
Return to Main Menu ......................................................................................................... 33
Adjust Volume level .......................................................................................................... 3 3 
Browse Station Information ............................................................................................... 33
System settings 34
Equaliser ............................................................................................................................ 34
Network setup .................................................................................................................... 35
Language ........................................................................................................................... 35
Factory reset ...................................................................................................................... 36
Software Updates ............................................................................................................... 37
Enter Setup wizard ............................................................................................................. 38
SW Version and Radio ID ................................................................................................. 38
Backlight ............................................................................................................................ 39
Appendix 40
Step 1: Set Up Media Sharing in WMP 11 ........................................................................ 40
Step 2: Play Music on the Internet Radio .......................................................................... 41
Set Up Media Sharing in MAC OS .................................................................................... 42
Troubleshooting 43
Specification 44

2
Package Content
Main unit
Instruction
Manual

3
Internet Radio Quick start Guide
What you need before you can use your Internet Radio
 Thanks for your buying! Before use it, you need to know followings:
Wireless LAN Setting:
 A broadband Internet connection.
 A wireless access point (Wi-Fi) connected to your broadband Internet, preferably via a router.
 If your wireless network is configured to use Wired Equivalent Privacy (WEP) or Wi-Fi Protected
Access (WPA) data encryption then you need to know the WEP or WPA code so you can get the
Internet Radio to communicate with the network.
 If your wireless network is configured for trusted stations you will need to enter the Radio’s MAC
address into your wireless access point. To find the Radio’s MAC address use menu items as
follows:
Main menu  System settings Network  View settings MAC address
Before you continue, make sure that your wireless access point is powered up and connected to your
broadband Internet. To get this part of the system working, read the instructions supplied with the
wireless access point is highly recommending!

4
Controls Overview (a)
Unit Front Overview
Control Internet DAB + FM Media Player AUN in
STANDBY/ON
Press to turn on/off Radio
When alarm is coming, press to turn it off.
MODE
Press to convert among Internet, Music player, DAB (DAB+), FM and AUX IN mode in turn.
 Note: Media player, AUX in mode use only.
Press to previous track, press to play/pause, press to next track
PRESET
 Note: Internet, DAB+ and FM mode use only, for detail please refer page 26.
Press and hold to store preset stations, Press to load the station have been stored.
INFO
Press to display queue information
No function
BACK
Press to goes back
MENU
Press to Main menu or other options
Turn to adjust volume level
a. Turn to browse options, press to confirm
b. FM mode: press to searching active station
c. When alarm is coming, press it to postpone alarm between 5-30minutes.

5
Controls Overview (b)
Unit Back Overview
Earphone
socket:
a. A 3.5mm Headphone Socket is provided for use with either headphones or an
earpiece.
b. Inserting a plug automatically mutes the internal loudspeaker.
AUX IN
socket: a. Connects to the external audio device

6
Setup Wizard
Step 1 - Power up
1. Connect to your Internet Radio adapter and ensure the power LED is lighting up.
2. In use, it can be switched on or off by pressing STANDBY/ON. For initial use, it will ask you ‘Setup
wizard’.
Step 2 – Setup wizard
1. Continue above, press the SCROLL knob to confirm ‘YES’, and then turn this knob to your ideal
‘hour format’, press it to confirm.
2. Press the SCROLL knob to confirm ‘Update from Network’.
3. Turn the SCROLL knob to your local ‘timezone’, and then press it to confirm.


7
4. Turn the SCROLL knob choose ‘Daylight saving’ status, and then press it to confirm.

5. Turn the SCROLL knob to your local ‘Wlan region’, and then press it to confirm.

6. Turn the SCROLL knob to your prefer ‘SSID’, press it to confirm. Radio will save it in memory.
 Note: In some cases radio may find more than one network. Turn the SCROLL knob to your favorite one, press
it to confirm.
7. If your network is not configured to request a password (WEP/WPA), radio will connect to the network
and display:
8. If a WEP/WPA key (password) is required, radio will ask you to input the WEP/WPA code and display
the password entry screen as follows:



8
 Turn the SCROLL knob to cycle through the alpha-numeric character list, press it to select an
appointed character.

 Note: WEP/WPA pass codes are case-sensitive.
 If you make a mistake while entering your password, select ‘ ’ to delete this
character.
 Note: a.> The full name of is Backspace.
b.> The method of select ,or : while cursor point to ‘ ’, then anti-
clockwise turning the SCROLL knob , you will get it.

c.> Select will be returned to previous track.
d.> After selecting the final character of your password, turn the SCROLL knob to , and then
press it to confirm.
e.> Radio will automatically save the WEP/WPAyou’ve input, so no bother to re-enter these codes.

9. Press the SCROLL knob to exit.
The setting is OK now!

9
Access wireless network
1. After successfully ‘Setup wizard’, press the SCROLL knob to enter ‘Internet radio’ mode.
 Note: Or, you may also press MODE repeatedly until ‘Internet radio’ shows up, then stop pressing.



Later, it will say:

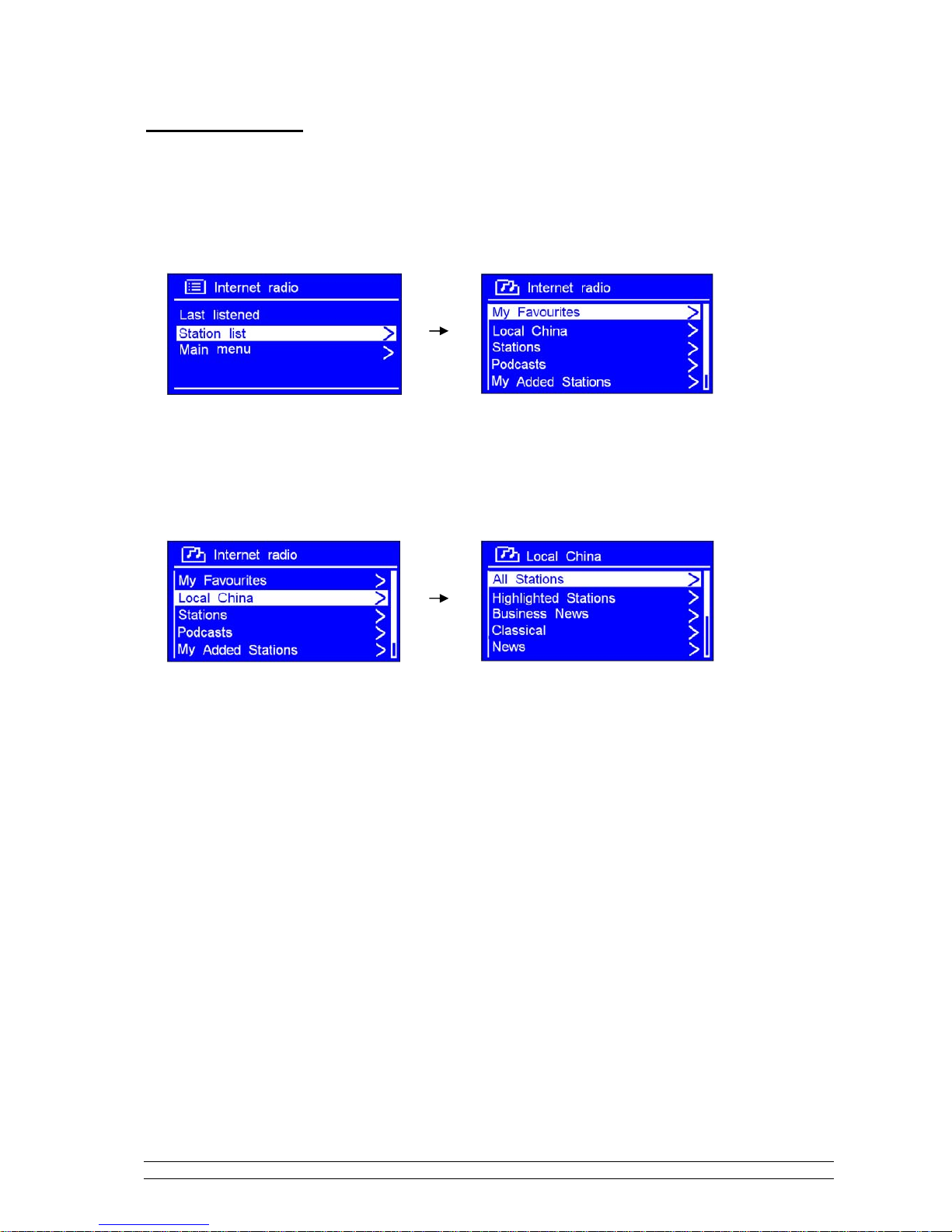

2. While cursor point to < Station list >, press the SCROLL knob to confirm.

After trying to connect to network, if it says:
Please follow:
a. Check your router, see it working normally or not;
b. Relocate your radio to a stronger signal position is necessary!
c. Make sure your password is correct input.

10
Local stations
 Note: make sure your radio already connected to network.
1. While cursor point to < Station list >, press the SCROLL knob to confirm.

2. Turn the SCROLL knob to < Local China >, and then press it to confirm.
 Note: ‘Local China’ is, can be changeable according to your current location, for instance, it can be local US,
or local UK, etc. In a word, it’s a very easy way for you to find your local programs.

3. Turn the SCROLL knob to your favourite item, press it to confirm, and then step to step to the program
you desired.

11
Choosing a station
 Note: ensure your radio has already connected to network.
1. While cursor point to < Station list >, press the SCROLL knob to confirm.

2. Turn the SCROLL knob to < Stations >, and then press it to confirm.

3. There are five options are available for you to choose a station as above photo show.
 ‘LOCATION’enables you to choose from the radio stations provided by any country which you choose from
a list.
a. While cursor point to < Location >, press the SCROLL knob to confirm.
b. Turn the SCROLL knob to the region you wanted, press it to confirm.
c. Using the same method to choose country, station in turn, radio will now loading.

12
 GENRE’ enables you to choose radio stations according to their content, for example Classic Rock,
Sport, News, etc.
a. Turn the SCROLL knob to < Genre >, press it to confirm.

b. Turn the SCROLL knob to your favorite type of content, press it to confirm.
c. Turn the SCROLL knob to the station you wanted, press it to confirm.
 Note: a. Some radio stations do not broadcast 24 hours per day, and some stations are not always on-line.
b. If this station has on-demand content, that is, it gives an option of listening the old programs which
have already been broadcast.

13
Connecting to wired network

Step 2 – Enter Internet Radio mode
1. Press MENU, then turn the SCROLL knob to ’Main menu’, press it to confirm
2. While cursor point to ‘Internet radio’, press the SCROLL knob to confirm.
Or, press MODE repeatedly until < Internet Radio > is showing up, stop pressing.
or

14
How to shift to wireless network
 Note: to make this order works, you can either do a ‘factory reset’, or follow below steps:
1. Refer ‘choose LAN setting’, which you can find at page 13, and then turn the SCROLL knob to <
Wireless >, press it to confirm.

2. While cursor point to < DHCP enable >, press the SCROLL knob to confirm, and then step by step to
enter wireless network.

 Now, setting to wireless is OK!

15
Select a station through Podcasts
1. After your radio has successfully connected to network, turn the SCROLL knob to < Podcasts >.

2. Press the SCROLL knob to confirm, and then turn the SCROLL knob to your favorite option.
3. Press the SCROLL knob to confirm, and then step by step to your purpose program.
Get Access Code
1. After your radio connected to network, turn the SCROLL knob to < Help >, and then press it to
confirm.
 Note: at this step, you can also listening radio FAQ solutions.
2. While cursor point to < Get access code >, press the SCROLL knob to confirm, then you get it.

16
Add Station to ‘My favourites’
 1. visit website: http://www.wifiradio-frontier.com
 2. Click on the register link.
 3. Create account login, you need an Access code to complete it, which refer to page 16.
 Note: want to a member login? Therefore you need to remember your registered ‘Email address’ and
‘Password’.
 4. You will able to take advatage of the various additional features and services offered by
the Frontier internet Radio Portal.
 5. How to play ‘My favourites’? Your need two steps:
a. While cursor point to < My favourites >, press the SCROLL knob to confirm.
b. Turn the SCROLL knob to your favourite station, and then press it to loading…
 Note: You added ‘my favourites’ stations will shows up at ‘my favourites’ subdirectory. Doing a ‘factory
reset’ cannot erase them.

17
Add Station to ‘My Added Stations’
 1. Visit website: http://www.wifiradio-frontier.com
 2. Login as a member(at previous page, you registered).
 3. You will able to take advatage of the various additional features and services offered by the
Frontier internet Radio Portal.
 4. How to play ‘My added stations’? Your need two steps:
a. When cursor point to < My added stations >, press the SCROLL knob to confirm.
b. Turn the SCROLL knob to your favourite station, and then press it to loading…
 Note: Your added stations will show up at ‘my added stations’’ subdirectory. Doing a ‘factory reset’ cannot
erase them.
