PCTV Sat Pro PCI
Hardware

PCTV Sat Pro PCI Hardware
GB February 2006
© Pinnacle Systems GmbH 2006
All rights reserved.
No part of this manual may be reproduced or transferred to other media without
explicit written permission from Pinnacle Systems GmbH, Braunschweig,
Germany.
All brand or product names are trademarks or registered trademarks of their
respective holders.
Pinnacle Systems GmbH has written this manual to the best of its knowledge,
but does not guarantee that the programs/systems will fulfill the users’ intended
applications.
The feature descriptions are not to be understood as a warranty.
Pinnacle Systems GmbH retains the right to make alterations to the contents of
this manual without obligation to inform third parties.
All quotes, sales, supply and manufacturing contracts from Pinnacle Systems
GmbH, including consulting, installation and other contractual services are
subject exclusively to the General Sales and Delivery Terms of Pinnacle
Systems GmbH.
Disposal and Recycling
Do not dispose of electric components in the garbage. Either return defective or
unwanted devices to the retailer or take them to an appropriate recycling station
for environmentally friendly disposal!

i
Table of Contents
Introduction ...........................................................................................................1
Package Contents ..................................................................................................2
System Requirements............................................................................................3
Operating System...............................................................................................3
Processor............................................................................................................3
Working Memory...............................................................................................3
Hard Disk...........................................................................................................3
Graphics Card ....................................................................................................3
Sound Card.........................................................................................................3
Expansion Slot...................................................................................................3
CD-ROM / DVD-ROM Drive or Recorder.......................................................3
For Your Own Safety............................................................................................4
Hardware Installation............................................................................................5
Preparing for Installation...................................................................................5
PCTV Sat Pro PCI Hardware Installation .........................................................6
After Installation................................................................................................6
Connections...........................................................................................................7
Technical Data.......................................................................................................8
Bus System.........................................................................................................8
LNB Input..........................................................................................................8
Tuner..................................................................................................................8
Demodulator ......................................................................................................8
TV Format..........................................................................................................8
DiSEqC ..............................................................................................................8
LNB Feed...........................................................................................................8
Declaration of conformity in accordance with ISO/IEC Guide 2.........................9

1
Introduction
Congratulations on your purchase of PCTV Sat Pro PCI!
From your PC you can receive TV, radio and data signals via satellite (DVB-S)
with your PCTV Sat Pro PCI:
Because PCTV Sat Pro PCI has a digital satellite tuner which allows reception
via a digital satellite system (satellite dish and universal LNB) of any decoded
TV and radio stations using the DVB-S standard.
Depending on the selected software, PCTV Sat Pro PCI not only offers you live
TV and radio but also timeshift TV and radio, as well as quality program
recording to your hard disk and DVD recorder.
You also get access to the free information services, teletext and the electronic
program guide (EPG). These services allow simple and easy access to the
desired information at any time, as well as scheduling of the shows you wish to
record.
And now have fun with your PCTV Sat Pro PCI!

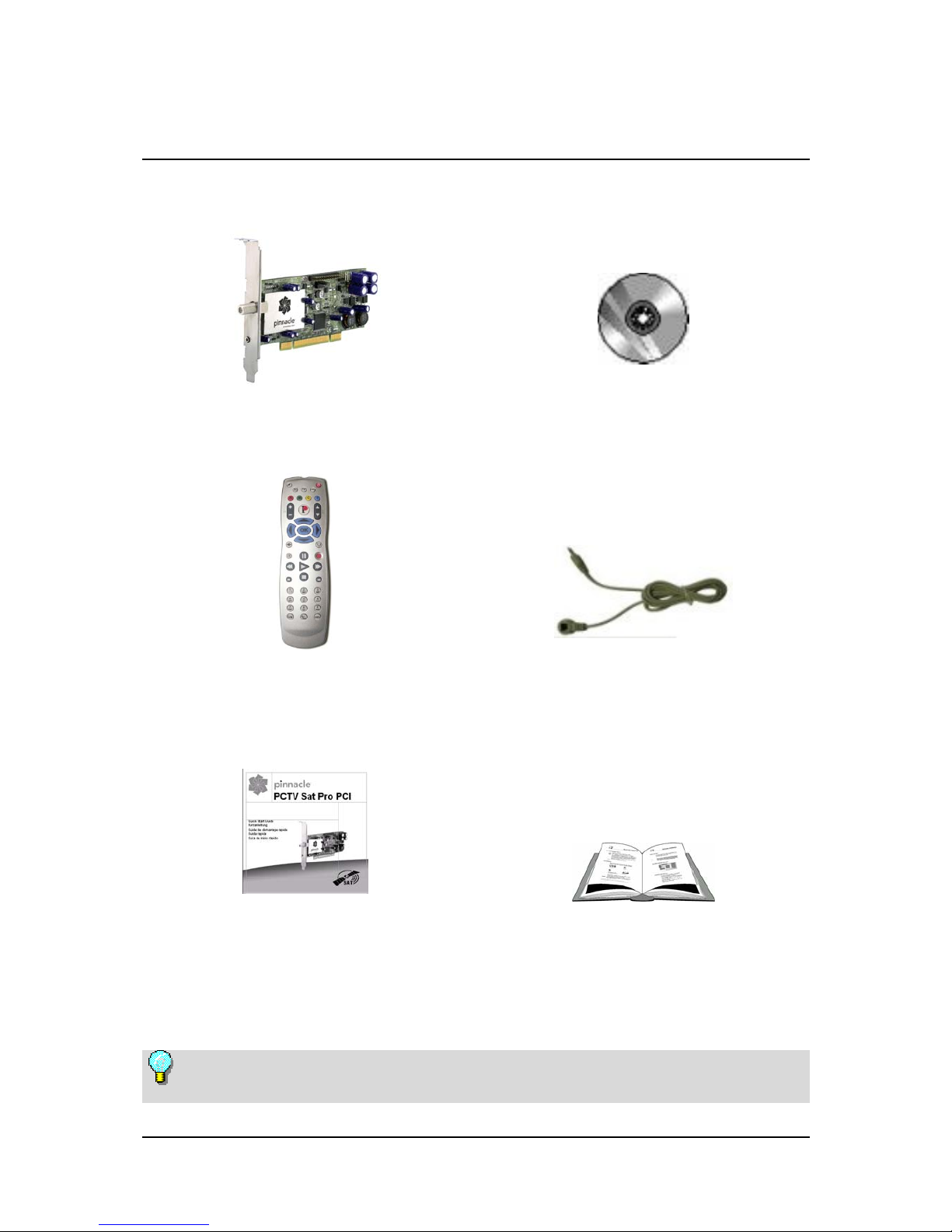

Package Contents
PCTV Sat Pro PCI
Installation CD
Remote control with batteries and receiver
(images are samples)
Quick Install Guide
PDF files on the CD:
user manual,
hardware operating instructions,
remote control operating instructions
Depending on the version of your product, package contents may vary.
2

3
System Requirements
Your system must fulfill the following requirements if you want to guarantee
proper PCTV Sat Pro PCI function:
Operating System
Windows XP (Home, Professional or Media Center Edition 2005) with the latest
service pack
Processor
Minimum: Pentium IV 1.8 GHz or equivalent AMD Athlon XP
Recommended: Pentium IV 2.8 GHz or equivalent AMD Athlon 64
(SD and HD)
Working Memory
Minimum: 256 MB RAM
Recommended: 512 MB RAM
Hard Disk
Minimum: IDE hard disk with master mode drivers and 5 GB free disk space
Recommended: U-DMA hard disk with 20 GB free disk space
Graphics Card
Minimum: DirectX 9-compatible graphics card
Sound Card
Minimum: DirectX 9-compatible sound card
Expansion Slot
PCI 2.3-compatible expansion slot
CD-ROM / DVD-ROM Drive or Recorder
Minimum: CD-ROM or DVD-ROM drive
Recommended: CD or DVD recorder

For Your Own Safety
If you purchased your PCTV Sat Pro PCI together with a PC and it is
already installed, skip the following sections and continue with the section
“Connecting the Equipment”.
In the interest of your own safety and the flawless functioning of your new
PCTV Sat Pro PCI and computer system, note the following before installing
any hardware:
Computer components are sensitive to static charge. Divert any electro-static
charge from your body before touching the components with your hands or
any tools.
Before opening the computer, make sure that the power plug is disconnected
from the wall outlet.
4

Hardware Installation
Preparing for Installation
You will need a screwdriver to install your hardware.
Divert any possible electro-static charge from your body by touching the
casing of your PC.
Turn off your computer and all peripheral devices. Disconnect computer
from the power supply and all necessary components.
Loosen the computer cover screws and remove the cover.
Select a free PCI (busmaster) slot. Remove the slot cover at the back of the
computer. Be sure to keep the screws in a safe place.
5

PCTV Sat Pro PCI Hardware Installation
Plug the card into the selected PCI slot. To do so, hold the card at the top and
push it down into the slot while applying even pressure at both ends. Press
down on the upper edge so that the card fits firmly in the slot.
If you cannot easily insert the card into the slot, do not use force since this
may bend the contact springs on the socket connector. Instead, remove the
card and try to insert it again.
After Installation
After you have inserted the hardware, firmly tighten the card retaining
bracket on the back of the computer.
Now place the cover back onto your computer and reconnect the peripherals
and the power supply.
6

Connections
Remote control
receiver
(optional)
Connect
antenna
input
with LNB
for auto wake-up
(internal, optional)
from PC
power switch
to motherboard
