Pioneer WYT-19 Series Instruction Manual

CS78421-548-754
DUCTLESS MINI SPLIT SYSTEM AIR CONDITIONER / HEAT PUMP
IMPORTANT NOTICE:
Please read this manual carefully before installing
or operating your new air conditioning system.
Be sure to save this manual for future reference.
Installation &
User’s Manual
WYT-19 Inverter Series
For 9,000-36,000 BTU/hr Systems
REV111521

Table of Contents
Installation Manual
Operating Instructions.........
9
1. Remote Buttons Overview.............................. 9
2. Remote Controller LED Screen And Icons.... 10
3. Handling the Remote Controller................... 11
4. Controlling the System’s Airflow.................... 12
5. Indoor Unit Mode Settings............................ 13
6. Extra Options and Settings............................. 15
7. Managing the Timer Features........................ 17
8. Other Features................................................ 18
9. Operating Temperature Notes....................... 20
7
1. Indoor Unit Installation Location Selection.................. 22
2. Pre-Mounting Instructions............................................. 23
3. Preparing the Refrigerant Piping................................... 26
4. Preparing the Drain Line...............................................
5. Preparing the Signal Cable.............................................
6. Routing the Copper Lines and Mounting the Unit.......
27
28
29
Safety Precautions...........................
40
1 System Components........................
6
2
4
Indoor Unit Overview.....................
8
3
Included Accessories......................
21
5
Indoor Unit Installation.................
22
6
Maintenance Instructions...............

41
9Troubleshooting..............................
42
AAppendix.........................................
Leak Check/Test Run.......
39
1. Electrical and Gas Leak Check............... 39
2. Test Run................................................. 40
2. Guidelines for Drilling the Wall Hole.... 43
3. Simplified Wiring Diagram.................... 44
4. European Disposal Guidelines............... 45
1. Anchoring the Outdoor Unit Guide...... 42
8
MC MC
1. Outdoor Unit Installation Location Selection............... 30
2. Mounting Instructions.................................................... 31
3. Electrical Wiring of the Outdoor Unit............................ 32
4. Connection of Refrigerant Piping..................................
5. Evacuating the Lineset....................................................
34
37
Outdoor Unit Installation..............
30
7

Page 4 
This symbol indicates that ignoring the related instructions may cause death, or
serious
injury.
This symbol indicates that ignoring the related instructions may cause moderate
injury to nearby persons, and/or damage to your appliance or other property.
Safety Precautions
Read and Understand All Safety Precautions Prior to Installation
Improper installation due to negligence of instructions may result in serious damage or injury.
The magnitude of potential damages or injuries is classified as either a WARNING or a CAUTION.
WARNING
CAUTION
DANGER
WARNING
Do not power the system using an extension cable or with wiring smaller than the specified gauge.
Do not share the electrical circuit with other appliances. Improper or insufficient power supply
can cause undesirable operation, fire, or electrical shock.
Do not allow children to play with or around the air conditioner. Children near the unit must be
supervised at all times.
When connecting refrigerant piping, do not let any substances or gases other than the specified
refrigerant enter the unit. The presence of other gases or substances will lower the unit’s capacity,
and can cause abnormally high pressure in the refrigeration cycle. This can also cause explosion and
injury, as well as permament equipment failure. Remember: No dust, humidity or air is allowed to enter.
1.
Installation must be performed by a licensed and trained technician. Defective installation can
cause water leakage, electrical shock, or fire. The usage of proper tools is a requirement.
2. Installation must be performed according to the installation instructions. Improper installation can
cause water leakage, undesired performance, electrical shock, or fire.
(In North America, installation must be performed in accordance with the requirements of NEC and
CEC, by authorized personnel only.)
3.
Contact a qualified and licensed HVAC technician for any repairs or maintenance of this unit.
4.
Only use the included accessories, parts, and specified items for installation. Using non-standard
parts can cause water leakage, electrical shock, fire, and can cause total unit failure.
5. Install the unit on top of a firm structure that can fully support its weight. If the chosen location
cannot support the unit’s weight, or the installation is not done properly, the unit may fall and
cause serious injury and damage.
This symbol indicates that you must never perform the action shown.

Page 5 
6. For all electrical work, follow all local and national wiring standards, regulations, and especially this
Installation Manual. You must use an independent circuit and a dedicated breaker to supply power.
Do not connect other appliances to the same circuit. Insufficient electrical capacity or defects in
electrical work can cause electrical shock or fire.
7. For all electrical work, use the specified cables. Connect cables tightly, and clamp them securely to
prevent external forces from damaging the terminals. Improper electrical connections can overheat
and cause fire, and may also cause shock.
8.
9.
10.
11.
All wiring must be properly arranged to ensure that the control board cover can close properly. If
the control board cover is not closed properly, it can lead to corrosion and cause the connection
points on the terminal to heat up, catch fire, or cause electrical shock.
This appliance can be used by children aged 8 years and above, as well as persons with reduced
physical, sensory, or mental capabilities, or lack of experience or knowledge, if they have been given
supervision or instruction concerning use of the appliance in a safe way, and understand the hazards
involved. Children shall not play with or near the appliance. Cleaning and user maintenance shall
not be done or attempted by children or untrained personnel without proper supervision.
CAUTION
For units that have an auxiliary electric heater, do not install the unit within 1 meter (3 feet) of
any combustible materials.
Do not install the unit in a location that may be exposed to combustible gas leaks. If combustible
gas accumulates around the unit, it may cause fire.
Do not operate your air conditioner in a highly humid space, such as bathrooms or laundry rooms.
Exposure to high humidity or water can cause electrical components to short circuit.
1. The product must be properly grounded at the time of installation, else electrical shock may occur.
2. Install drainage piping according to the instructions in this manual. Improper drainage may cause
water damage to your home and property.
Note about Fluorinated Gasses
1. This air-conditioning unit contains fluorinated gasses. For specific information on the type of gas
and the amount, please refer to the relevant label on the unit itself.
2. Installation, service, maintenance, and repair of this unit must be performed by a certified HVAC
technician.
3. Product uninstallation and recycling must be performed by a certified HVAC technician.
4.
If the system has a leak-detection feature installed, it must be checked for leaks at least every 12
months.
5. When the unit is being checked for leaks, proper logging and record-keeping of all checks is strongly
recommended.
In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed
air-conditioning units is highly recommended. This is intended as a general comfort cooling system.
If the supply cord is damaged, it must be replaced by a certified service agent or similarly qualified
technicians, in order to avoid a hazard.
WARNING

1
System Components
High Wall-Mounted Air Conditioner
The system is made up of two or more units connected together via insulated copper pipes
and an electrical communication cable. The indoor unit is mounted onto one of the walls in
the room that is to be conditioned. The outdoor unit is installed on the ground outside or on
the wall of the dwelling using suitable mounting brackets.
Note: The illustrations above are only intended to be a simple diagram of the appliance, and may not fully
correspond to the actual appearance of the system. Technical data is printed on the system’s labels.
Page 6 
1234
5
6
7
8
910
11
12
13
14
15
INDOOR UNIT
OUTDOOR UNIT
No. Description
1
2
3
4
5
Front Panel
Air Filters
LED Display
Signal Receiver
Indoor Unit Rating Label
6
7
8
9
10
Terminal Block Cover
Emergency (Manual) Button
Ionizer Generator (Optional)
Deflectors
Airflow Direction Louver
No. Description
11
12
13
14
15
Air Outlet Grille
Outdoor Unit Nameplate
Terminal Block Cover
Gas (Suction) Line Valve
Liquid Line Valve
Note: Serial Numbers are typically located behind the
electronic control box cover cap of either unit.

2

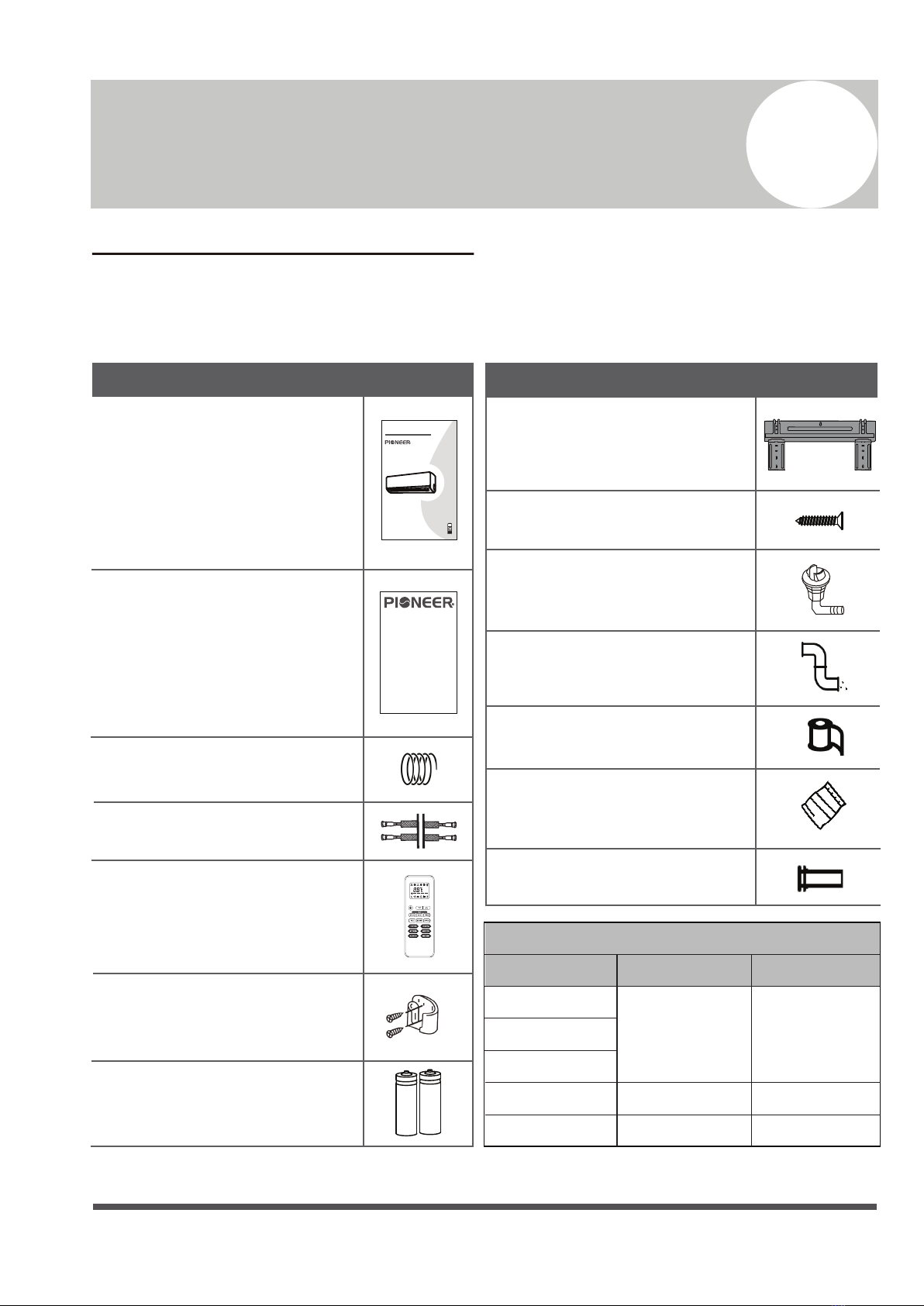

Included Accessories
1x Installation and Owner’s Manual
1x 16 ft. Communication Cable
SPLIT-TYPEROOM AIR CONDITIONER
CS78421-548-754
IMPORTANTNOTE:
Readthis manual carefully before installing
oroperating your new air conditioning
unit.Make sure to save this manual for
futurereference.
Installation and
Owner’s Manual
Page 7 
Name Appearance
1x 16 ft. Insulated Copper Pipe
1x Remote Controller
1x Remote Controller Holder
2x Remote Controller Batteries
1x Warranty Card
1x Indoor Unit Mounting Plate
1x Condensate Drain Hose
Name Appearance
1x Wrapping Tape
1x Wall-Hole Packing Sealant
1x Wall Sleeve
1x Set of Mounting Plate Screws
1x Plastic Drain Joint Plug
Connecting Pipe Diameters
9000
12000
18000
24000
36000
BTU Capacity Liquid Line Gas Line
1/4”3/8”
1/2” 1/4”
5/8” 1/4”
Accessories and Components:
The air conditioning system comes with the following accessories. Use all of the installation
parts and accessories to install the air conditioner. Improper installation may cause the
equipment to fail, or result in water leakage, electrical shock, or fire.
1.Unless this high quality product is registered properly as soon as it is put in service, all referencesmade in this document to the term “warranty” solely refer
tothe Basic Warranty,as further dened below. If this high quality product is registered properly as soon as it is put in service, all references made in
thisdocument to the term“warranty ”refer to the Standard Warranty,also as further dened below.
2.Warrantyis provided by Parker Davis HVAC International, Inc. (hereinafter referredto as PD), the supplier of Pioneer® branded Split System Heat
PumpProducts (hereinafter referred to as Products),covering all parts of the Products, subject to the following details:
a.Typesof I nstallations:Warranty applies to all Products, installed in a residence. Warranty also applies to Productsclassied as light
commercialProducts, installed in commercial properties.
b.Product Registration: Registration is not requiredfor the availability of the Basic Warranty. Warrantyregistration is strongly urged and required
forthe validity of the Standard Warranty.To register the Product, withinone week after the Product is properly installed, ll out the warranty
registrationcard packed with the Product and send it in as instructed in the form OR convenientlyregister online at www.pdhvac.com and use the
registrationlink.
c.Exclusions to WarrantyCoverage: Warranty does not apply to any Product that:
i.Are installed outside the United States of America.
ii.Are operated in unoccupied structures or used for purposes other than comfort cooling / heating.
iii.Are residential Products, but installed or used for commercialpurposes.
iv.Has been removed fromthe place it was originally installed and reinstalled at another place.
d.WarrantyCoverage: The warranty covers the parts of the Products, which may become defective due to the quality of the materials or
workmanship,under normal use and proper maintenance.
e.WarrantyD oes not Cover:PD is not responsible for any warranty claim due to:
i.Damages or repairs arising as a result of a faulty installation or wrong application.
ii.Damages or repairs arising from any external perils, out of PD’scontrol, such as res, storms, accidents, oods, broken or frozen water
pipes,electrical surges, input power with under or overvoltage, lightening or existenceof corrosive substances nearby.
iii.Damages or repairs arising from use of non-compatible parts, alterations, modications or improper applications.
iv.Necessary maintenance required for the properoperation of the equipment, such as cleaning of all air lters, heat exchangers, fans and
blowers,any necessary lubrication of internal components and maintenance of external accessories.
v.Damages or repairs needed because of using parts, supplies or other add-on components that are not supplied by or approvedfor use by
PD.
vi.Damages or repairs as a result of improper use, poor maintenance, wrongoperation or improper service.
vii.Changes that can be considered cosmetic, not aecting the systems performance, including but not limited to small n damages.
viii.Resetting of power or the circuit breakers and replacement of other types of fuses, both internal and external.
ix.Any damages of repairs caused by the use of dirty, recycled, wrong type or unapprovedrefrigerants and lubricants.
x.Damages or repairs due to moisture, air,dust, sand, dirt, etc., that have been allowed into the system by improper handling of system parts
andcomponents during installation.
xi.Damages or repairs caused by continuing use the Product, after a malfunction has been noticed or indicated at the display module,
throughan error code.
xii.Damages or performance issues due to improper matching, Product selection, under-sizing, over-sizing,improper installation or misuse.
f.WarrantyBegin Date: Warranty begins on the date of installation and commissioning of the Product, in existing residences and commercial
buildingsand on the date of sale of the dwelling, for the new residential construction to the rst buyer.However, the warranty beginning date cannot
exceeda date, further than 6 months following the manufacturing date of the Product as coded in the serial number.Warranty is provided only to the
rstoriginal owner of the Product, where it is originally installed, and is not transferableto the subsequent owners.
g.WarrantyEnd Date: Products that have not been registered as instructed above are covered under the Basic Warranty.The Basic Warranty lasts
fora period of up to one year.Products that have been properly registered as instructed above will be covered under Standard Warranty.The
StandardWarrantylasts for a period of up to ve years as further explained below in detail and only as long as the original registered owner, own
andreside in the dwelling, or operate the business in the property,in which the Product had been originally installed.
h.Remaining Warranty: Any part, component or Product that was replacedunder the terms of the warranty will be covered under the same
warrantyand only for the duration in which the original warranty for the Product is applicable,as commenced on its begin date.
i.Warranty Procedure:PD will furnish a new or remanufactured replacement part, without any charge for the part itself, for the replacement of any
partthat has been determined to have failed, by PD at its sole discretion, due to defects in its materials or workmanship under standard use and
propermaintenance. Associated shipping costs forthe replacement parts may also be covered at PD’s expense, at its own discretion and under
certainconditions, while the shipping method used will be solely determined by PD. Otherwise, the payment of the shipping costs for the part will be
thesole responsibility of the owner of the Product. PD reserves the right to ask the owner of the Product to return thefailed par t to PD,before
orafter a replacement part may be sent out.
j.Labor cost, materials and other costs: Any labor costs and/or the costs for the supplies or materialsused or purchased in the eld for the
replacementof the defective part, remain the responsibility of the owner.No other costs, involved in diagnosis, lodging, transportation, servicing, repair,
replacement,installation, removal, shipping,etc., are to be covered under the warranty.
k.Refrigerant: Any costs related to charging, recharging,adjustment, or removal of the refrigerant, and the cost of the refrigerant itself, are not
coveredunder any circumstances.All Products go through vigorous quality controls at various stations and leave the factory in perfect working
andsealed condition. Products are individually tested in highly sensitive helium vacuum chambers forexistence of refrigerant leaks. Therefore PD
doesnot cover any claims related to the lack of refrigerantin new Products, discovered upon arrival, or during installation, as well as subsequent
refrigerantlosses occurring at any time afterward
LIMITED PARTS WARRANTY
Pioneer® Brand Split System Heat Pump Products
© 2019, PARKER DAVIS HVAC INTERNATIONAL INC.

Page 8 
Indoor Unit Overview 3
Owner’s
Manual
3
1254
4
2
3
No. Description
SymbolLED Icon
1
2
3
4
5
Indicates that the unit is currently powered onPOWER
SLEEP
TIMER
RUN
Temp. Display
Indicates that the system is currently in SLEEP mode
Displays the current set temperature or any error codes
Indicates that the TIMER function has been set
Indicates that the fan is currently on and running
The shape and position of switches and indicators may vary according to the model, however the functions remain the same.
There may be variances between the amount of digits that are shown on the remote (3) vs. the amount on the indoor unit (2).
Front Panel Display
Emergency Manual Button And Auto-Restart Function
Emergency
Button
Front Panel
Emergency Manual Button
If the remote controller fails to operate the system, proceed as follows:
• Open and lift the front panel up at an angle to gain access to the
emergency button.
• Press the manual button once to start the unit in COOL mode.
• Press the button again within 3 seconds to start the unit in HEAT mode.
• Press a 3rd time within 5 seconds to turn off the unit.
Auto-Restart Feature
This appliance is programmed with an auto-restart function.
In case of sudden power failure, the control module will remember the
settings configured before power loss.
When power is restored, the unit will restart automatically, and will be
set to the previous settings, which were preserved with this memory
function.
The emergency button is located at
the terminal block cover of the unit
under the front panel.

Page 9 
Owner’s
Manual
Operating Instructions
The display and some features of the remote control may
vary according to the model of the system.
The shape and positions of the buttons and indicators may
vary according to the model of the system, but the features
and functionality would remain the same.
The unit will confirm the successful reception of each button
command with a beep.
4
Remote Buttons Overview
Button Description
Turns the air conditioner on or off
Activates/deactivates the ECO feature
Configures the automatic on/off times
Toggles the system’s Sleep Mode
Turns the LED display on or off
Activates the up-down louver motor
Activates the left-right louver motor
Puts the system into silent mode
Press MODE+TIMER for child-lock
Activates the system’s Follow Me mode
Long press to activate the 46°F “Away
from Home” freeze protection setting.
Decreases set temperature, set timing,
or navigates the functional menu
Increases set temperature, set timing,
or navigates the functional menu
Selects the mode of operation (Auto,
Cool, Dry, Fan, and Heat modes)
Configures the fan speed
(Auto, Low, Mid, and High)
Activates/deactivates the TURBO
feature, which allows the system to
reach set temperatures quicker
MODE
TEMP
TEMP
DISPLAY
SWING
MUTE
LOCK
I FEEL
TURBO
FAN
TIMER
SLEEP
ECO
SWING

Page 10
4
NOTE ON ILLUSTRATIONS
The illustrations in this manual are strictly for explanatory purposes. The actual display and some
functions of the remote controller may vary according to the model purchased.
Operating Instructions
No. Description
Icon
10
3
4
5
6
Auto Mode
Cooling Mode
Signal Transmit Indicator
Dry Mode
Fan Only Mode
7
8
9Heating Mode
ECO Mode
Unit of Temperature (°C/°F)
Remote Controller LED Screen and Icons
Owner’s
Manual
No. Description
Icon
2
112
11
Temperature Indicator
Battery Level Indicator
Mute Function
Turbo Mode
Child Lock Indicator
15
16
18
17
13
14
21
22
19
20
Directional Swing Indicators
Timer Active Indicator
LED Display On/Off
Health Funct. (Some Models)
Anti-Mildew (Some Models)
Sleep Function
I Feel/Follow Me Mode
Gentle Wind (Some Models)
Fan Speed (Auto or Fixed)
45678910
1
2
3
11
12
13
14
15
16
192021 1718
22

Depending on the system, the control type (Cooling Only or Heat Pump) and the unit of
Temperature (°C or °F) can be configured using the manual dip-switches below the battery
compartment. Operate as below:

Page 11

4
Operating Instructions
Owner’s
Manual
Replacement of Batteries
Remove the battery cover from the rear of the remote controller, by sliding it downward in
the direction of the arrow as depicted below. Install batteries according to the depicted
directions (+ and -) as shown on the remote controlller. The cover then slides back into place.
Configuring Remote Controller Settings (some models)
Use 2x AAA batteries. Do not use re-chargeable batteries. Replace old batteries with new ones of the same type when the
display is no longer legible. Do not dispose of batteries as unsorted municipal waste. Disposal of such waste separately
for special treatment is necessary. If the system will not be used for a long time, remove batteries to prevent leakage.
Note
Please remove batteries to avoid
leakage damage when not
being used for a long time.
Signal
receptor
DISPLAY 3D HEALTHY
ON/OFF
SWING
FAN
TIMER SUPE R
SLEE PMODE
ECO
CLOCK
Operating the Remote Controller Sucessfully and Safely
• Ensure no objects come between the remote controller and signal
receptor of indoor unit.
• Keep the remote at least 3 ft away from televisions and other
electrical appliances.
• Always direct the remote controller toward the air conditioner.
• Don’t leave the remote exposed to sunrays.
Switch Position
°C
°F
COOL
HEAT
Functional Result
Temp. Units are Celsius
Temp. Units are Fahrenheit
Cooling Only Operation
Heating + Cooling Operation

4
Operating Instructions
Page 12 
CAUTION
Regarding the Airflow of the Indoor Unit
The air that is pulled in by the fan (the “return air”) enters the
grille and is passed through the filter. It is then
cooled/dehumidified/heated through the heat exchanger.
The direction of the air output is manipulated up and down by the
motorized louver, and left to right via manually controlled vertical
deflectors. Some models may come with “dual-swing” capability,
which offers both a horizontal and vertical motorized air flow swing.
Controlling the System’s Airflow
1. Pressing the SWING buttons activates the louver.
• Press the Swing button to trigger the horizontal
flaps to swing up and down. Press this button again
to stop swing movement at the current angle.
• Press the Swing button to trigger the vertical
flaps to swing left and right. Press this button again
to stop swing movement at the current angle.
2. If the vertical deflectors (which are located
underneath the flaps) are adjusted manually,
they can be used to fix the airflow in a certain
vertical position before turning the system on.
Owner’s
Manual
Filter
Heat
Fan
•Do not manipulate the louvers themselves
manually, or serious damage may occur.
•Deflector adjustments should be made
only when the system is switched off.
•Never poke fingers, sticks, or other
objects into the air inlet/outlet vents.
Horizontal
Flaps
Flap
Movement Vertical
Deflectors
Note: Some models possess a self-clean mode which is activated
by pressing and holding these two buttons together.

Page 13 
COOLING Mode
Cooling mode allows the air conditioner
to cool the room while also reducing
the humidity of the air in the room.
To put the system into cooling mode,
press the button until the symbol
appears on the remote’s display.
The and buttons can then be used to
set a temperature lower than that of the room.
4
Operating Instructions
Owner’s
Manual
HEATING Mode
Heating mode allows the air conditioner
to heat the room.
To put the system into heating mode,
press the button until the symbol
appears on the remote’s display.
The and buttons can then be used to
set a temperature higher than that of the room.
NOTE
In heating mode, the appliance will periodically enter a defrost cycle, which is essential in order to clean frosting
off the condenser and recover heat exchange capability. This process is normal and lasts for 2-10 minutes.
During defrosting, the indoor unit’s fan will cease operation. After the cycle is completed, the system will resume
its normal heat mode operation automatically. Press ECO 10 times within 8 seconds to trigger a forced defrost.

Page 14 
DRY Mode
Dry mode is a limited function that can rapidly
reduce the humidity/moisture of the room.
To put the system into dry mode, press the
button until the symbol appears on the
remote’s display.
An automatic preset of this mode is then
activated.
4
Operating Instructions
Owner’s
Manual
FAN-ONLY Mode
Fan-only mode is used to set the system to use
only air ventilation and no heating or cooling.
To put the system into fan-only mode, press
the button until the symbol
appears on the remote’s display.
Use the button to then set the desired fan
speed.
AUTO Mode
Auto mode will let the system determine the
running configuration based on the set
temperature and the current room temperature.
To put the system into AUTO mode, press the
button until the symbol appears on the
remote’s display.

Page 15 
Turning the Display On or Off
The LED display on the front panel of the
system can be turned on or off as desired.
To do so, press the button in order to
switch off the LED display on the front panel.
This button can be pressed again to turn the
LED display back on.
4
Operating Instructions
Owner’s
Manual
SLEEP Mode
Sleep mode is generally meant for periods of lower
cooling requirements, such as during typical sleeping
hours. This mode will result in decreased energy use,
and can only be activated via remote control.
After 10 hours in sleep mode, the air conditioner will
revert back to the previously set mode.
To put the system into sleep mode, press the
button, and the symbol will appear on the display.
Press this button again to exit from this mode.
Changing the Fan Speed
The fan speed can be changed between AUTO, LOW, MID,
and HIGH speeds.
To do so, press the button. The running fan speed can
then be set. It follows the cycle of:
Auto>Mute>Low>Low-Mid>
Mid>Mid-High>High>Turbo
(Flash)

Page 16 
Energy Saver (ECO) Option
In this mode, the appliance will automatically
manage the operation in order to save energy.
To turn the ECO feature on, press the
button on the remote, and the icon will
appear. The system is now running in ECO,
and the process can be repeated to turn it off.
4
Operating Instructions
Owner’s
Manual
NOTE
The ECO feature is available in both COOLING
and HEATING modes.
TURBO Option
Child-Lock Function
In this mode, the appliance will operate using the
highest fan speed in order to maximize output
and reach the set temperature the quickest.
To turn the TURBO feature on, press the
button on the remote, and the icon will
appear. The system is now running in TURBO,
and the process can be repeated to turn it off.
Pressing and buttons together will acti-
vate the child-lock function. When this function is
active, the icon will be displayed, and no single
button will be active. Press the and buttons
together once more to de-activate the child-lock
function.

Page 17 
NOTE Regarding Timers
•Press the button to cancel
at any time in Timer Off.
•The programming will cancel
if no buttons are pressed after
5 seconds. This may require
restarting the process.
Using the Timer - TIMER ON
The TIMER feature allows you to set a time delay for
the system to turn itself on or off.
To set a time delay for the system to turn itself on in X
amount of hours:
1. Begin by pressing the button while the
system is powered off. The symbol will then
display flashing. The default setting is 6.0 hours.
2. Use the Temp and buttons to set the
needed time delay in 30 minute increments.
3. Press the button a second time to confirm.
4. Press the button to select the desired
operating mode that the unit should start up in.
5. Set the desired fan speed that the unit should
start up in by pressing the button.
6. Use the and buttons to set the desired
operation temperature. The unit is now primed.
Using the Timer - TIMER OFF
The TIMER OFF feature allows the appliance to
turn itself off after X amount of hours have passed.
The symbol will appear. To set a time delay for
the system to turn itself off in X amount of hours:
1. Confirm that the appliance is on and running.
2. Press the button to enter the prompt for
switching off the system. Use the and
buttons to configure the time delay setting.
3. Press the button again to confirm. It can
also be pressed once more to cancel the setting.
4
Operating Instructions
Owner’s
Manual

Page 18 
4
Operating Instructions
Owner’s
Manual
46°F Freeze Protection Function
This feature is meant to be used to prevent
freezing while the user is away from home. When
turned on, it sets the system to keep a temperature
of 46°F. If the unit is in standby, then the setting
will automatically start the heating mode when the
room temperature is equal to or lower than 46°F.
It will set the system back to standby when the
room temperature reaches 48°F.
If the room temperature is ever 64°F or higher,
then the appliance will cancel or prevent this
feature automatically.
Press and hold the button for 3 seconds to
activate this feature. Repeat this to de-activate.
MUTE Mode
When the system is muted, the remote controller will
display AUTO fan speed, and the indoor unit will
operate at its lowest fan speed in order to
minimize operation noise.
Press the button in order to activate this mode.
The icon will display to indicate that the system is
muted.
This mode can be cancelled by pressing either the
FAN, TURBO, or SLEEP buttons.
Note: The MUTE feature cannot be activated when the
system is in DRY mode.
Note: Some models come equipped with a “Gentle Wind”
function, where the unit will auto-close the vertical
louver, and provide a softer air breeze. Activate this
by pressing the and buttons together for 3
seconds.

Page 19 
I FEEL - To Ensure Comfort
The I FEEL feature enables the remote to act as
the temperature sensor and relay the current air
temperature of where the remote is physically
placed within the room. In some cases, this can
aid with reducing thermal drift between the set
temperature and the actual room temperature.
In order to activate this feature, press the
button, and the icon will appear on the display.
Note: The I FEEL feature will automatically de-activate
itself 2 hours later.
SELF-CLEAN Feature
This feature helps carry away accumulated dust,
dirt, bacteria, and other microbial contents away
from the indoor evaporator.
To activate this feature, press the Swing and
buttons together until a beep is heard from the unit,
and AC is displayed on the unit and remote.
This procedure will run for approximately 30
minutes, before returning to the preset mode.
The button can be pressed to cancel this feature
during the process. Two beeps will be emitted from
the machine when it is finished, or cancelled.
This procedure can result in some uncommon noise
coming from the machine. This noise is normal as a
side effect of the plastics expanding and contracting
due to reactions with heat and cold.
It is recommended to use this function only when
indoor temperature is under 86°F and outside
temperature is between 41°F and 86°F.
It is suggested to run this feature once every 3 months.
4
Operating Instructions
Owner’s
Manual

Page 20 
NOTE
After stopping and restarting the air conditioner, or after the mode is changed during operation, the system does
not restart immediately, and will come on when three minutes have elapsed (as a protection for the compressor).
4
Operating Instructions
Owner’s
Manual
An Important Note Regarding Operating Temperatures
The system is designed to run within a certain range of temperatures, which are listed below.
There are built-in protections with the system that may stop the appliance when the ambient
temperatures goes outside of these ranges.
Inverter Air Conditioner
Temperature
Operating
Mode
Current Room Temperature
Ambient Outdoor Temperature
COOLING Mode
63°F - 89°F
5°F - 127°F -13°F - 86°F
59°F - 127°F
32°F - 86°F 63°F - 89°F
HEATING Mode DRYING Mode
Full system-rated capacity and efficiency is obtained at the standard rating conditions as developed by
the testing and rating agencies. Deviations from the rating conditions, especially the atmospheric
conditions, will be compensated by the variable speed compressor, within certain limitations.
Heat pump systems function by exchanging energy, in the form of heat, between the indoor air and
the outdoor ambient air (atmospheric). The system’s net cooling or heating capacities and efficiencies
change by atmospheric conditions, as well as the indoor air conditions (such as temperatures and
humidity levels).
Capacity of the system required for a specific area or application must be determined professionally
using detailed calculations, which are based on several internal and external factors.
To further optimize the performance of your unit, be sure to do the following:
• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
• Regularly inspect and clean air filters.
