Piranha VU32W-09P User manual

Piranha Striker
Vacuum Cleaner
For Household Use Only
Model No.: VU32W-09P
Item No.: 900551
Rev 6
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If any Accessories should fail during use, please call 1800 079 124 for an immediate replacement. This will
save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us

Page 2 of 24
1Warnings..................................................................................3
2Safety Direction.......................................................................3
3Transporting your Vacuum ....................................................6
4Assembly Method ...................................................................6
4.1 Unfolding and Folding the Handle..............................................6
4.2 Fitting the Tool Holder ................................................................7
4.3 Tools.............................................................................................7
4.4 Fitting Tools to Tool Holders......................................................8
4.5 Using the Extension Tube and Accessories..............................9
5Power Switch.........................................................................11
6Floor Head .............................................................................11
7Safety Devices Operation.....................................................12
8Emptying the Dust Canister.................................................12
9User Maintenance .................................................................13
9.1 Cleaning Filters..........................................................................13
9.1.1 Dust Separation Unit......................................................................13
9.1.2 Pre Motor Filter...............................................................................16
9.2 Replacing the Floor Brush Rubber Drive Belt .........................18
9.3 Cleaning the Vacuum Cleaner Body and Tools.......................20
10 Troubleshooting....................................................................20
11 Warranty Against Defect ......................................................21

Page 3 of 24
1 Warnings
Before using this appliance, read and follow all warnings and instructions in
this manual, even if you are familiar with this product.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the
appliance.
2 Safety Direction
Please read this instruction manual carefully before first use. It is advisable to
keep this instruction manual for future reference.
DO NOT vacuum water, wet objects, liquids, ashes, hot coals, cigarette butts,
matches or any hot, smoking or burning objects, etc.
DO NOT pick up flammable or combustible materials (i.e. lighter fluid, petrol,
kerosene, etc.) or use in the presence of explosive liquids or vapour.
DO NOT pick up toxic material (i.e. chlorine bleach, ammonia, drain cleaner,
etc.)
DO NOT vacuum Toner (for laser printer, copy machines etc.) as there is a risk
of fire and explosion.
DO NOT vacuum plaster, cement etc. as the filter can become blocked.
DO NOT use the vacuum without all the filters fitted.
DO NOT store or use the appliance near high temperature areas.
DO NOT run over the power cord with the vacuum cleaner.
DO NOT use the vacuum cleaner if it is blocked. Turn off and clear all
blockages before continuing.
DO NOT use the vacuum cleaner with blocked filters. Clean or replace filters
before continuing. (refer to User Maintenance section).

Page 4 of 24
DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal
noise, smell, smoke, is dropped or damaged in any manner or any breakage is
found during operation.
Return appliance to the nearest authorised service agent or similarly qualified
person for a thorough examination, repair, electrical or mechanical adjustment.
DO NOT misuse the cord. Never pull the appliance by the cord or pull to
disconnect it from the outlet. Instead, grasp the plug and pull to disconnect.
DO NOT use the vacuum cleaner to pick up large objects, hard or sharp
objects such as glass, nails, screws, coins, etc. that are likely to cause
damage.
DO NOT Leave Unattended when plugged in and / or switched on.
DO NOT use vacuum cleaner if it has been dropped, damaged, left outdoors,
or dropped into liquid (water etc.)
DO NOT close door on cord, or pull cord around sharp edges or corners.
DO NOT handle the plug or vacuum cleaner with wet hands.
DO NOT put any objects into openings.
DO NOT use with any openings blocked and do not restrict airflow.
DO NOT operate the appliance with a damaged cord or plug.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
DO NOT use without filters in place.
DO NOT attempt to modify this product in any way.
DO empty the Dust Canister and clean the filters regularly for optimal
operation of the vacuum.
DO keep hair, loose clothing, fingers, feet and body parts away from openings
or moving parts.
DO disconnect the appliance from the mains supply before connecting the
flexible suction hose.

Page 5 of 24
DO turn off controls before you connect or disconnect the appliance to or from
the mains supply.
DO disconnect the appliance from the power supply when not in use, before
changing the filters, cleaning the filters or connecting / disconnecting the
accessories.
DO use only on dry, indoor surfaces.
DO use only as described in this manual. Use only manufacturer's
recommended attachments.
DO Keep cord away from heated surfaces.
DO Keep all openings free of dust, lint. hair, and anything that may reduce
airflow.
DO use extra care when vacuuming on stairs.
DO keep your work area well lit.
DO store your appliance indoors in a cool. dry area.
DO ensure children and babies cannot play with plastic bags or any packaging
materials.
DO operate the appliance from a power source of the same voltage, frequency
and rating as indicated on the product identification plate
If this appliance is used by a third party, DO supply the instruction manual with
it.
No liability can be accepted for any damage caused by non-compliance with
these instructions or any other improper use or mishandling of appliance.
This product has not been designed for any uses other than those specified in
this manual.
ONLY for domestic use. Industrial or commercial use invalidates the warranty.
Read and Save These Instructions

Page 6 of 24
3 Transporting your Vacuum
To move your vacuum cleaner from room to room, unplug the unit and either
push the appliance or carry using the carry handle.
Never pull or carry the vacuum cleaner by its cord.
Never carry or pull the vacuum cleaner by the flexible hose.
4 Assembly Method
Please Note: Always remove the plug from the power socket before fitting or
removing accessories.
Ensure all Filters are fitted, and fitted correctly before using.
4.1 Unfolding and Folding the Handle
The vacuum cleaner comes packed with the handle in the folded position.
To raise the handed to the working position, rotate the locking knob anti-
clockwise to Unlock and lift the handle all the way up.
The handle will lock into position. If the handle does not lock automatically,
rotate the locking knob clockwise to lock.
To lower the handle, rotate the locking knob anti-clockwise to Unlock and
lower the handle all the way down.

Page 7 of 24
4.2 Fitting the Tool Holder
The Rotary Floor Brush Holder will need to be attached to the front of the
handle. To do this, remove the screw with a Phillips or flat blade
screwdriver.
Place the holder over the location and then using the screw which you just
removed, screw the holder into position.

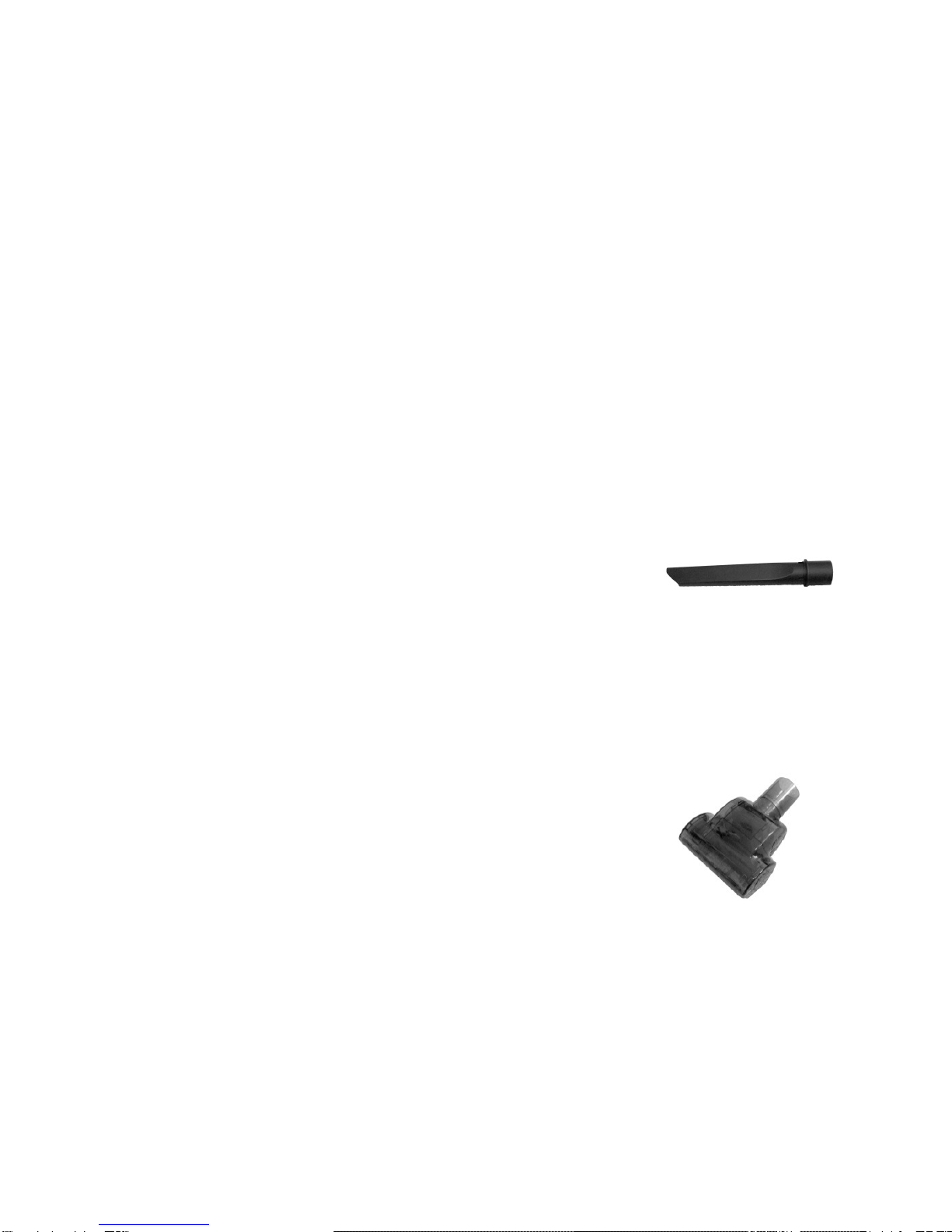

4.3 Tools
The Crevice tool is used for cleaning down the side
of sofas and into corners, etc.
The brush is used for cleaning grilles and vents, etc.
The Rotary Brush Head is used for cleaning in tight
places and can be used for picking up pet hair etc.
The Extension Tube is used to extend the reach of
the tools.

Page 8 of 24
4.4 Fitting Tools to Tool Holders
Crevice Tool
First, the Extension tube needs to be placed in its holder on the side of the
appliance. Place the small end over the location at the bottom, and then
clip the top end into the clip. Next, insert the Crevice tool into the end of the
extension tube as shown, or you can insert the nozzle end first.
Brush Tool
The brush tool holder is located on the opposite side of the appliance to the
Crevice tool on the side of the handle. Place the tube end over the
location, and push on.

Page 9 of 24
Rotary Brush Head Tool
The Rotary Brush Head Tool holder is located on the front of the handle.
Place the brush opening lip on the rest and then roll over into the clip as
shown.
4.5 Using the Extension Tube and Accessories
Remove the flexible hose by pulling the end of the hose up and off the
connecting tube as shown

Page 10 of 24
Insert the small end of the Extension tube into the end of the hose and
push in as shown.
To Use the Crevice tool, push this into the end of the Extension Tube as
shown.
To Use the Brush tool, push this into the end of the Extension Tube as
shown.
To Use the Rotary Brush Tool, push this into the end of the Extension
Tube as shown.
To Use the vacuum cleaner normally again, remove all the tubes and
tools and refit the hose to the appliance.

Page 11 of 24
5 Power Switch
The On / Off switch is located on the back of the floor head as shown.
Press the On / Off button with your foot to start the motor.
Press again to turn off.
6 Floor Head
The floor head is adjustable in height to suit low to high pile carpets.
Setting “0” for Short pile carpet through to setting “4” for High Pile Carpet.
To Adjust, turn the knob on the top of the floor head.
The Floor head also locks when the handle is stood upright. To release the
head for normal use, press the release peddle with your foot.

Page 12 of 24
7 Safety Devices Operation
NOTE: The motor has an overheating protection device built in.
It will automatically switch off power to the motor if it overheats. e.g. from
blocked nozzles, full dust Canister or uncleaned blocked filters.
If this happens, turn off the vacuum and unplug from power socket, clean
blockage and / or filters and allow to rest for at least 60 minutes which should
be enough time for the motor to cool down.
Important: If the over-temperature device activates and turns the motor off,
and you do not switch off and unplug the appliance from the power point, the
motor will restart automatically after it has cooled down enough to reset the
safety device.
NOTE: NEVER BLOCK ANY VENTS OR OPENINGS.
8 Emptying the Dust Canister
Empty the Dust Canister and clean the filters as frequently as possible or
when the suction power is reduced.
•To remove the Dust Canister, turn off the power and
unplug.
•Grip the handle on the Dust Canister, press the Dust
Canister Release Button and pull the Dust Canister forward
and out of the housing.
•Take the dust Canister to a dustbin.
•Press the Trap Door release button on the lower part
and the trap door will swing open emptying the
contents into the bin.
To close the trap door, close it manually until it clips
shut.
•Brush the inside of the dust canister with a small brush
or wash Refer to section “Cleaning Filters”.
•To refit the Dust Canister in to the vacuum cleaner, simply align the
dust canister into its position and push in until it locks in place.

Page 13 of 24
9 User Maintenance
WARNING: The plug must be removed from the power socket before any
maintenance or replacement.
NOTE: To maximise the performance of your vacuum cleaner, you should
clean your filters regularly.
If the filters are broken or worn, replace them before continuing to use the
vacuum.
Filters can be purchased from our Customer Service. You can call our
customer service toll free number: 1800 079 124 or via email
[e-mail]
9.1 Cleaning Filters
Important Note – the Filters must be cleaned regularly for best suction
performance and to prevent over-heating and damage to your vacuum
cleaner.
Cleaning is best done at the same time when emptying the dust Canister
after you have finish vacuuming for the day.
NOTE: Never use the vacuum cleaner with wet or damp filters or without
ALL filters fitted.
Using wet or damp filters will damage the filters, may cause serious
damage to the vacuum cleaner and will void your warranty.
9.1.1 Dust Separation Unit
Remove the Dust Canister as described previously.
There is a Mesh Filter is located inside the internal
housing. To access this filter for cleaning (or
replacement) first remove the lid of the dust canister by
holding the dust canister body firmly and rotate the lid
anti-clockwise then lift the lid off.

Page 14 of 24
Grasp the Cap of the internal housing unit and pull straight up and out.
Whilst holding Cap still, rotate the middle section to unlock the two
components and then pull apart.
Locate the mesh filter inside the housing body and rotate anticlockwise
to unclip. Then Pull straight out.
Note: Only wash the filter if it is very dirty, otherwise just tap the edge of
the filter on a hard surface to dislodge any dust and remove any large
debris.
If washing, wash the filter in warm mild soapy water, rinse in clean fresh
cold water and let completely dry.

Page 15 of 24
DO NOT scrub the filter or place in a dishwasher.
DO NOT use a hair drier to dry the filter.
NOTE: Never use the vacuum cleaner with wet or damp filters. Using
wet or damp filters will damage the filters, may cause serious damage to
the vacuum cleaner and will void your warranty.
At the same time this filter has been removed for
cleaning (or replacing), the filter assembly can also
cleaned.
For further ease of cleaning, the centre tube can
be disassembled. To remove, hold the upper
section and rotate the centre tube anticlockwise
and pull straight out.
Refit the Centre Tube, Filter (or replace with a new one) and the Cap in
the reverse method used for disassembly.
To refit the Internal Housing to the Dust Canister, line up the three lugs
with the slots on the side of the dust canister. Note: it can only be fitted
in one position, so if the lugs do not line up, continue to rotate the
Internal Housing until the lugs line up hen push in all the way down.
The refit the Canister lid
It is recommended to replace the filter every 3 – 6 months, or
sooner, if required.
Lugs

Page 16 of 24
9.1.2 Pre Motor Filter
The pre-motor foam filter is located in the bottom section where the dust
canister locates.
To Access and Remove this filter, first rotate the cover anticlockwise
and lift straight up and off to expose the filter.

Page 17 of 24
To remove the filter, grasp with your fingers and pull straight up and out.
Wash the foam filter in warm mild soapy water, rinse in clean fresh cold
water and let completely dry.
DO NOT scrub the filters or place in a dishwasher.
DO NOT use a hair drier to dry the filters.
NOTE: Never use the vacuum cleaner with wet or damp filters. Using
wet or damp filters will damage the filters, may cause serious damage to
the vacuum cleaner and will void your warranty.
Refit the Filter (or replace with a new one) by pushing back into the
holder.Note, the courser black face of the filter must be at the bottom.
It is recommended to clean this filter every week or sooner if required.
Refit the cover and rotate clockwise to lock in place. Refer to the
Locking Symbols moulded into the cover and side of the filter housing.
Refit the Dust canister to the vacuum cleaner and now you are ready to
use.

Page 18 of 24
9.2 Replacing the Floor Brush Rubber Drive Belt
Should the Floor Brush rubber drive belt break or become worn, it can be
replaced as follows:
Call the customer service department to order your new drive belt.
Switch off and unplug the vacuum cleaner from the power point.
Lay the vacuum cleaner down on its back so that you can access the
bottom of the cleaner head.
Using a Philips screw driver, unscrew the four screws and keep in a safe
place. Refer Fig 1
Next, remove the frame and belt cover by pulling forward and lift away.
Refer Fig 2
Fig 1
Fig 2
Grasp the Brush Bar and pull straight out. Refer Fig 3
Discard the broken or worn belt.
Fig 3

Page 19 of 24
Place the new belt around the motor spindle as shown in Fig 4
Feed the Brush Bar through the belt as shown in Fig 5
Fig 4
Fig 5
Raise the brush Bar up to its working position and push the right side of the
bar into its slot as per fig 6
Note: You will have to pull hard enough to stretch the rubber belt to reach.
Ensure the end of the Brush Bar on the left is rotated to that the flats on the
end are horizontal as shown in Fig 7, then push straight in.
Fig 6
Fig 7
Refit the frame and belt cover and screw back in place.
The belt replacement is now completed.

Page 20 of 24
9.3 Cleaning the Vacuum Cleaner Body and Tools
Do not clean the vacuum cleaner, components or accessories using petrol
or any other flammable liquid or solvents, etc.
Clean only the outside of the vacuum cleaner.
Use only a moist cloth and mild detergent for cleaning the vacuum cleaner,
components and accessories.
After cleaning, wipe off the moisture on vacuum cleaner, components and
accessories with a dry cloth.
Do Not place accessories, tools or components in a dishwasher.
10 Troubleshooting
Noisy operation Clean the Filters and empty the Dust Canister
Check for partial blockages and unblock.
Suction Not Strong
Clean or replace
the Filters and empty the Dust
Canister.
Check for blockages and unblock.
Unsure the flexible hose has been reconnected
properly to the floor head.
Over-heating / Stopping Clean or replace the Filters, empty the Dust Canister, check for blockages and unblock then allow it to cool
for up to hour before trying to restart.
Hard to Push If vacuuming long pile carpet, the floor head needs to
be raised. Refer to section “Floor Head” for
instructions.
