Power Magic Ultra Battery B-124X
User Manual
ENGLISH / 한국어 / 中文 /
ESPAÑOL / 日本語 / FRANÇAIS
www.blackvue.com

BLACKVUE
POWER MAGIC ULTRA BATTERY B-124X
For the latest version of the manual and customer support go to www.blackvue.com
최신 사용자 설명서나 문의사항은 BLACKVUE 홈페이지에서 확인 하실 수있습니다.
www.blackvue.co.kr
如需最新版本的用户手册和客户支持，请访问网址 www.blackvue.com
Para consultar la última versión del manual y obtener soporte al cliente, vaya a www.blackvue.com
取扱説明書の最新版やカスタマーサポートについては www.blackvue.com をご覧ください。
Pour obtenir la dernière version du manuel et contacter le service client, rendez-vous sur www.blackvue.com

Power Magic Ultra Battery B-124X 3
FCC Compliance Information
FCC Part 15.19 Statements
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Part 15.105 Statement (Class B)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Part 15.21 Statement
Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
MPE
The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between the radiator
(antenna) and all persons at all times. This device must not be co-located or operating in conjunction with any other antenna
or transmitter.

4BLACKVUE
BlackVue Power Magic Ultra Battery B-124X
The Power Magic Ultra Battery is designed to power your BlackVue dashcam in Parking Mode for extended periods of time
without using your vehicle’s battery.
or
Hardwiring
power cable
Cigarette lighter plug power cable
Safety instructions
Incorrect use of the Power Magic Ultra Battery can lead to poor performance and may cause overheating, ignition, explosion,
etc. To use the product correctly please observe the following directions:
yFamiliarize yourself with the contents of the user manual before using the product.
yOnly use original BlackVue cables provided by the manufacturer. For replacements contact customer support or your
nearest distributor.
yOnly use the product to power a dashcam.
yDo not expose the product to direct sunlight or heat.
yDo not expose to high temperatures.
yDo not use a cigarette lighter multi-socket splitter (adapter) with the product.
yDo not put the product in a microwave oven or place it in a high-pressure environment.
yDo not repair or modify the product yourself.
yDo not throw the battery or subject it to any physical shock.
yDo not disassemble, compress or puncture the product.
yDo not use the product in an electrostatic environment as it can aect the operation of the battery protection circuitry.
yIf the product emits an unusual odor during use, unplug it immediately and contact customer support or your nearest
distributor.

ENGLISH
Power Magic Ultra Battery B-124X 5
yIf the battery swells up, immediately discontinue using the product. Contact customer support or your nearest distributor.
yKeep the product away from children and pets.
yDo not allow metal objects to contact the terminals of the power and output cables.
yEnsure the battery does not come into contact with water or other liquids.
yPittasoft Co., Ltd. is not liable for damage resulting from disassembling, opening or modifying the product.
Disposal of your battery pack
1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated
collection facilities appointed by the government or the local authorities. Contact local authorities to learn about disposal
and recycling options available in your area.
2. Do not incinerate or expose to re. Exposure to excess heat may result in re or an explosion.
Componets
Check the box for each of the following items before installing the Power Magic Ultra Battery B-124X.
Power Magic Ultra
BatteryB-124X User Manual
XT60
Cigarette lighter
plug power cable
Output cable for dashcam
(Cigarette lighter socket)
XT60
Hardwiring power cable Fuse tap kit (3 types)
Velcro strips (2 EA)
Note
The Power Magic Expansion Battery B-124E comes with a connector cable in place of the above cables/fuse tap kit.

6BLACKVUE
At a glance
157 mm (W)
171 mm (L)
39.5 mm (H)
Dashcam (Output
to cigarette lighter
socket for dashcam)
USB output
Port for Expansion
Battery (sold separately) DC in (power cable
connection)
LEDs
: Charging battery
: Fully-charged battery
: Bluetooth on
Power switch
yCigarette: Select this when the Ultra Battery is powered from a cigarette
lighter socket using a cigarette lighter plug power cable (standard 5 A
charging)
yHardwire: Select this when the Ultra Battery is hardwired to the vehicle’s
fuse panel using a hardwiring power cable (rapid 9 A charging)
yOFF: Turn o the Ultra Battery

ENGLISH
Power Magic Ultra Battery B-124X 7
LED indicators and beeps
LEDs Beep*
Powered on All 3 LEDs turn on together and then
turn o one by one.
Beeps four times
Started charging Red LED blinks for 5 seconds Beeps once
Charging Red LED is on
Fully charged Green LED is on
Bluetooth connected Blue LED is on
Low input voltage
warning/High input
voltage warning
Red and Green LED blink together
Overheated warning Red LED and Green LED blink one
after another
Beeps every second
* Beeping can be disabled over Bluetooth using the BlackVue Battery manager app.
Product features
Charges while driving. Powers your dashcam while parked.
yApproximately 25 hours 35 mins of power from 40 minutes of charging (based on a dashcam that uses 3 W and a
hardwired installation).
yCompatible with 2 installation methods:
ū DIY installation – standard cigarette lighter socket and plug (standard 5 A charging); or
ū Hardwired installation – standard cigarette lighter socket and hardwiring cable (rapid 9 A charging)
yEasily double usage time by plugging in an Expansion Battery (sold separately)
yCongure settings via Bluetooth using the companion smartphone app
yCompatible with both car (12 V) and heavy vehicle (24 V) electrical systems
yBattery protection circuitry for increased safety and extended battery life.
ySimultaneously charge your Ultra Battery and power your dashcam while driving.
yPower output automatically switches to draw power from the Ultra Battery when the engine is o.
yBattery cycle life: Rated for 1,500 full charge/recharge cycles before battery capacity falls under 80% of its original capacity.
yHigh temperature cut-o function shuts down the battery if the internal temperature reaches 80 °C (176 °F).
yWhen switched OFF the Ultra Battery retains its charge for more than 1 year.
y1 USB port (5 V) allows you to simultaneously charge another device (smartphone, mobile Wi-Fi hotspot, etc.) while
powering the dashcam

8BLACKVUE
Installation guide
1. Set the power switch to the OFF position.
Expansion Dashcam DC in
OFF
Cigarette Hardwire

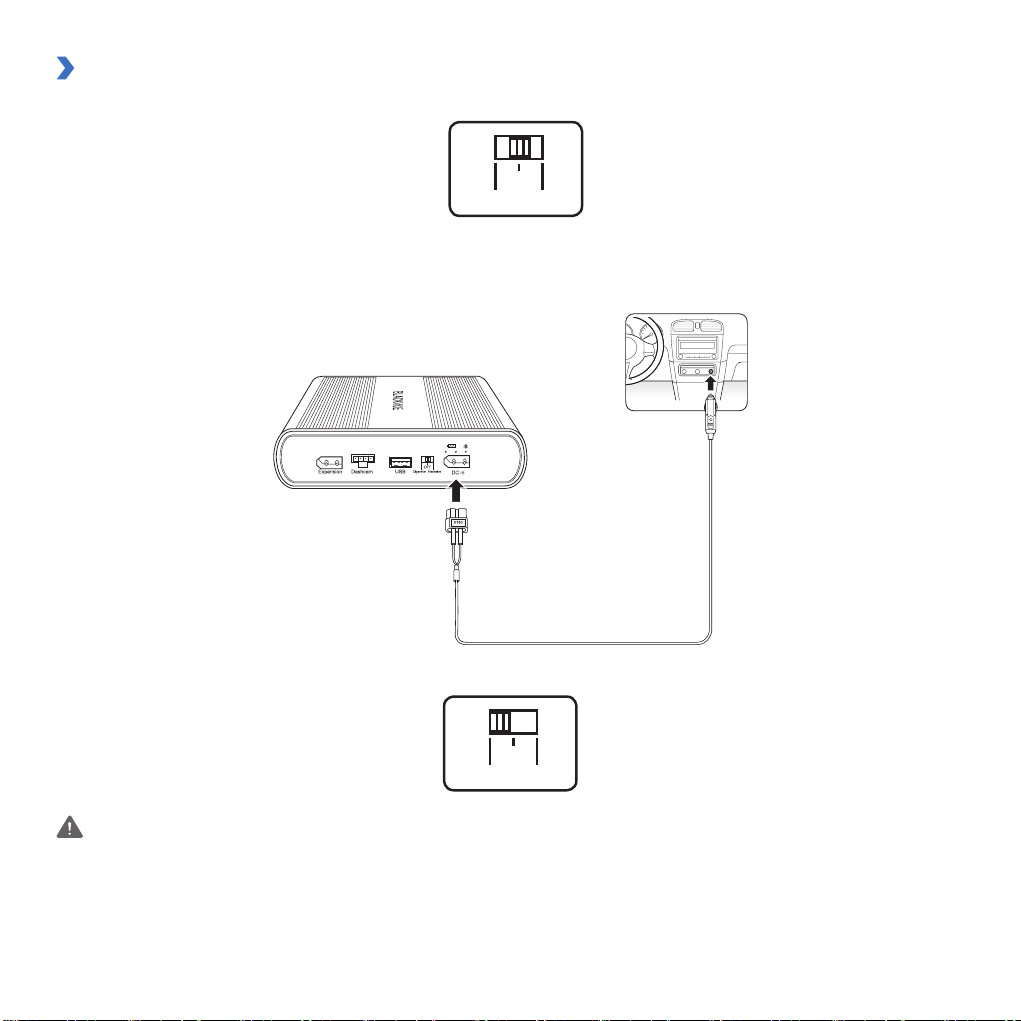

2. For DIY installation using a cigarette lighter plug power cable:
a. Plug the cigarette lighter plug power cable into the Ultra Battery’s DC in port. Plug the other end of the power cable
into the vehicle’s cigarette lighter socket.
Cigarette lighter plug power cable
b. Set the power switch to the Cigarette position. Proceed to step 3.
Expansion Dashcam DC in
OFF
Cigarette Hardwire
Caution
When using a cigarette lighter plug power cable you must set the switch to Cigarette. If you set the switch to the Hardwire position when
using a cigarette lighter plug power cable it may result in product failure, overheating, ignition, etc.
or

ENGLISH
Power Magic Ultra Battery B-124X 9
2. For a hardwired installation using a hardwiring power cable:
a. Plug the hardwiring power cable into the Ultra Battery’s DC in port.
Hardwiring
power cable
b. Referring to your vehicle Owner’s Manual, identify a Switched (accessory power) fuse of 10A or less in your interior
fuse panel. Typical examples are the cigarette lighter and car stereo fuse slots.
Caution
If you connect the Ultra Battery to a Constant Power (BATT) fuse it may result in depletion of your vehicle’s
battery.
c. Remove the identied Switched fuse and match its type with one of the 3 fuse taps.
d. Insert the ACC wire into the connector end of the fuse tap. Use a crimping tool or pliers to crimp the connector onto
the wire.
ACC
Ground wire
(ring)
To Ultra Battery

10 BLACKVUE
e. Insert the fuse you removed from the fuse panel into the slot closest to the blades on the fuse tap.
Note
If the original fuse is a low-prole mini type, use the new 10A mini type fuse instead (included).
f. Insert a new 20A fuse into the slot furthest away from the fuse tap blades.
Power input
e.
f.
Output to factory
accessory
Output to B-124X
g. Insert the fuse tap into the empty Switched fuse slot in the fuse panel.
Caution
Refer to the diagram and insert the fuse tap in the correct orientation. In the correct orientation the new fuse (f.) gets
power directly from the fuse slot without putting an additional load on the original fuse (e.). If you insert the fuse tap
in the reversed orientation the additional load on the original fuse may cause it to blow.
h. Connect the ground wire (ring) to a ground point, such as a bolt, that is
directly on a bare metal part of the vehicle's frame. Secure the ground
wire to the bare metal frame (for example by securing it under the bolt).
i. Set the power switch to the Hardwire position.
GND
Expansion Dashcam DC in
OFF
Cigarette Hardwire

ENGLISH
Power Magic Ultra Battery B-124X 11
3. Plug the‘Output cable’into the port labeled Dashcam on the Ultra Battery.
4. Plug your dashcam’s power plug into the cigarette lighter socket on the Ultra Battery’s ‘Output cable’.
Note
To ensure good electrical contact you can use electrical tape to tape the plug and socket together.
5. Use a pry tool to lift the edges of the windshield trim/molding and tuck in the power cord. Use the supplied Velcro strips to
x the Ultra Battery in place
Caution
Do not expose the product to direct sunlight and/or heat.

12 BLACKVUE
BlackVue Battery Manager App
Download the BlackVue Battery manager app from the Google Play Store (Android) or the Apple App Store (iOS) to manage
power and settings.
Connecting to the Ultra Battery via Bluetooth
1. Turn on the Ultra Battery.
ū If you are using the cigarette lighter plug power cable set the power switch to the Cigarette position.
ū If you are using the hardwiring power cable set the power switch to the Hardwire position.
2. Go to your smartphone’s Settings and turn on Bluetooth .
3. Open the BlackVue Battery manager app. Select your Ultra Battery from the list. If your Ultra Battery is not shown tap Scan
to refresh the list.
ū A sticker with the unique Bluetooth ID is attached to each Ultra Battery.

ENGLISH
Power Magic Ultra Battery B-124X 13
Battery information screen
Settings
* Some USB cables may not be detected
Battery’s Bluetooth ID
Device plugged into
USB port*
Current battery status
Current charge state
Battery temperature
Real-time input voltage and current
Real-time output voltage and current
Total battery capacity available for use (set by user)
Estimated time to full charge (hours: mins) at
the present power input level
Estimated usage time (hours: mins) at
the present power draw level
Model
Battery settings screen
Back/cancel
Reset to the default factory settings
Turn beep alerts on or o
Set the total available battery
capacity. See table below for
recommended settings.
Save changes
This setting only applies to newer
luxury vehicles (in particular BMWs
manufactured for use in Korea) with
an in-built dashcam that limits the
time in parking mode.
You can turn this setting o if you are
using an aftermarket dashcam such
as a BlackVue dashcam.

14 BLACKVUE
Battery capacity
No. of battery packs Recommended battery capacity setting
1 (Ultra) 6,000 mAh
1 (Ultra) + 1 (Expansion) 12,600 mAh
1 (Ultra) + 2 (Expansion) 19,200 mAh
1 (Ultra) + 3 (Expansion) 25,800 mAh
1 (Ultra) + 4 (Expansion) 32,400 mAh
1 (Ultra) + 5 (Expansion) 39,000 mAh
For each additional expansion battery we recommend incrementing by 6,600 mAh.
Power Magic Expansion Battery B-124E (sold separately)
Easily double usage time by plugging in a Power Magic Expansion Battery B-124E (6,600 mAh / 84.5 Wh). When the Ultra Battery
and 1 Expansion Battery are fully charged they can supply power for approximately 53 hours 45 mins in total (based on a
single dashcam that consumes 3 W). Charging time is approximately 2 hour 30 mins (Cigarette lighter plug) / 1 hour 20 mins
(Hardwired).
When you add 1 or more expansion batteries please adjust the total available battery capacity using the BlackVue Battery
manager app.
Multiple expansion batteries can be connected together in sequence to extend usage time even further. Please note charging
time will also increase accordingly.
The connector cable
can be plugged into
either port on the
expansion battery.

ENGLISH
Power Magic Ultra Battery B-124X 15
Product specications
Model Power Magic Ultra Battery B-124X
Color / Size / Weight Black / 157 mm (W) x 171 mm (L) x 39.5 mm (H) / 1.4 kg
Battery Cell Type LiFePO4
Input Voltage / Current
12V system:
- Cigarette lighter plug: 12 V–17 V / 6.5 A (max)
- Hardwired: 12 V–17 V / 13.5 A (max)
24V system:
- Cigarette lighter plug: 23 V–30 V / 3.4 A (max)
- Hardwired: 23 V–30 V / 7.1 A (max)
Charging Voltage / Current Cigarette lighter plug: 14.2 V / 5 A
Hardwired: 14.2 V / 9 A
Charging Time Cigarette lighter plug (standard 5 A charging): Approx. 80 mins
Hardwired (rapid 9 A charging): Approx. 40 mins
Hours of Use Approx. 25 hours 35 mins (based on a single dashcam that consumes 3 W)
Operating Temperature
Charging Temperature: 0 °C − 45 °C (32 °F − 113 °F)
Discharging Temperature: -10 °C − 60 °C (14 °F − 140 °F)
Storage Temperature: -20 °C − 45 °C (-4 °F − 113 °F)
High Temperature Cut-O Approx. 80 °C (176 °F)
Capacity 12.8 V / 6,000 mAh / 76.8 Wh
Output Voltage / Current Dashcam port: 11 V–14.2 V / 2 A (max)
USB port: 4.75 V–5.25 V / 2 A (max)
Customer Support
For customer support, manual and any updates please visit www.blackvue.com .
You can also email a Customer Support expert at [email protected] .
Limited Warranty
yThe warranty period of this product is 1 year from the purchase data.
yIf the product fails during normal and correct use within the warranty period, our service center will repair the product free
of charge.
yAny disassembly, modication or alteration of the product will void the warranty.
yThe cost to repair or x any malfunction or problem caused by incorrect usage during the warranty period may be charged
to the consumer.
yThe manufacturer shall not be responsible or liable for any loss or damage caused by incorrectly using the product.

16 BLACKVUE
BlackVue Power Magic Ultra Battery B-124X
차량의 배터리를 보호하면서 블랙박스의 주차모드를 장시간 사용 할수있습니다.
또는
전원 케이블
(퓨즈박스 배선
연결 케이블)
전원 케이블 (시가잭 케이블)
안전 설명
Power Magic Ultra Battery을올바르게 사용하지 않으면 성능이 저하되고 과열, 화재, 폭발의 위험이 있습니다. 다음의 설명에 따라 제
품을 올바르게 사용하십시오.
y제품을 사용하기에 앞서 사용자 설명서의 내용을 숙지하십시오.
y차량에 설치 시제조사에서 제공한 정품 케이블만을 사용하십시오. 케이블 불량 시당사 고객만족센터에 문의하십시오.
y본제품을 블랙박스 사용 목적 외의 다른 용도로 절대 사용하지 마십시오.
y제품을 직사광선 또는 열에 노출시키지 마십시오.
y온도가 높은 장소에 보관하지 마십시오.
y다른 제품과 함께 차량용 멀티 소켓에 연결하여 사용하지 마십시오.
y제품을 전자레인지나 압력이 높은 곳에 넣지 마십시오.
y제품을 직접 수리하거나 개조하지 마십시오.
y배터리를 던지거나 기타 강한 충격을 가하지 마십시오.
y배터리를 분해하거나 압착 또는 날카로운 물건 등으로 구멍을 내지 마십시오.
y배터리의 보호회로의 성능에 영향을 줄수있는 정전기 등이 발생할 수있는 장소에서는 사용하지 마십시오.
y사용 중제품에서 이상한 냄새가 날경우 사용을 중단하고 당사 고객만족센터에 문의하십시오.
y배터리 사용 중배부름 현상이 발견되면 사용하지 마시고 새제품으로 교환하십시오.

Power Magic Ultra Battery B-124X 17
한국어
y아이들 또는 애완동물이 제품을 만지지 못하도록 하십시오.
y배터리 충전케이블의 연결단자에 금속 등도체성 물체가 닿지 않도록 주의하십시오.
y배터리를 물또는 기타 액체 등에 젖지 않도록 주의 하십시오.
y(주)피타소프트는 제품 분해, 개조로 인해 발생하는 피해에 대해 그어떤 책임도 지지 않습니다.
배터리 폐기지침
1. 다쓴배터리는 함부로 버리지 마세요.
배터리 폐기 방법은 나라 및지역에 따라 다를 수있으므로, 각국가 또는 지역의 규정에서 지정한 수거 시설을 통해 처리하시기
바랍니다.
2. 배터리를 폐기할 경우 소각 및불속에 넣지 마십시요. 열로 인해 폭발 및화재가 발생할 수있습니다.
패키지 구성품
Power Magic Ultra Battery B-124X을설치하기에 앞서 구성품을 확인하여 주시기 바랍니다.
Power Magic
Ultra Battery B-124X 사용자 설명서
XT60
전원 케이블
(시가잭 케이블)
블랙박스 연결케이블
(시가소켓 케이블)
XT60
전원 케이블
(퓨즈박스 배선
연결 케이블)
퓨즈탭 (3개종류)
벨크로 테이프 (2개)
참고
Power Magic Expansion Battery (B-124E)의경우 구성품이 다를 수있습니다.

18 BLACKVUE
Power Magic Ultra Battery B-124X 살펴보기
157 mm (W)
171 mm (L)
39.5 mm (H)
USB 출력단자
Dashcam
(블랙박스와 연결)
확장형 배터리 연
결단자 (별매품)DC in
(차량 전원에 연결 )
LEDs
: 배터리 충전 중
: 배터리 완충
: 블루투스 동작 중
차량 전원 공급 옵션
yCigarette (5 A): 시가잭 충전 케이블을 이용한 배터
리충전모드
yHardwire (9 A): 퓨즈박스용 케이블을 이용한 배터
리충전모드
yOFF: 배터리 충전 중단

Power Magic Ultra Battery B-124X 19
한국어
LED 동작사양
LEDs Beep*
전원이 켜질 때3개의 LED가동시에 켜진 후에 빨간
색, 초록색, 파란색 순서로 꺼짐
경고음 4번
충전이 시작될 때 빨간색LED가5초간 점멸 경고음 1번
충전 중빨간색LED가점등
충전이 완료
되었을 때
초록색LED가점등
블루투스가
연결되었을 때
파란색LED가점등
입력 전압이 낮을 때/
입력 전압이 높을 때
빨간색LED 및초록색 LED가동시에
점멸
고온 경고 빨간색LED 및초록색 LED가교차로
점멸
매초마다 경고음 발생
* 경고음은 BlackVue Battery App 접속 후설정을 통해서 비활성화 할수있습니다.
제품 특징
y시동이 켜진 상태에서 블랙박스의 전원은 배터리팩을 우회하여 공급됩니다.
y시동이 꺼진 상태에서는 출력이 자동으로 전환되어 배터리팩의 전원을 사용합니다.
y40분급속 충전으로 약25시간 35분사용이 가능합니다. (퓨즈박스 케이블을 통해 배터리 충전모드 사용 및12V /3W의에너지
를소비하는 블랙박스기준)
y2가지 배터리 장착 방법 지원:
괊 간단 설치: 표준 시가소켓 케이블 및시가잭 케이블을 이용합니다 (일반 5 A 충전 시)
괊 퓨즈박스 배선설치–표준 시가소켓 케이블 및퓨즈박스 연결 케이블을 이용합니다. (급속 9 A 충전 시)
y확장 배터리를 연결해서 사용시간을 두배이상 연장가능(별매)
y블루투스 App을통해서 배터리 상태 확인 및설정 가능
y승용차(12 V) 및화물차(24 V) 배터리와 호환이 가능합니다.
y과열방지 기능 및기타 안전장치가 배터리 보호회로에 내장되어, 안전성 및배터리 수명을 연장.
y차량운행 시충전과 출력을 동시에 실행.
y시동이 꺼진 상태에서는 출력이 자동으로 전환되어 배터리팩의 전원을 사용합니다.
y배터리 수명 보장 : 1500회완전 충전.방전 시80% 이상의 용량 유지.
y과열방지 기능을 내장하여 배터리 내부 온도가 80℃이상 상승 시배터리 동작 정지.
y동작 스위치를 OFF로설정 시누설전류을 차단함으로서 배터리 자가방전 기간이 1년이상 유지 가능.

20 BLACKVUE
yUSB 소켓(5 V) 1개를 통해 휴대용 장치(스마트폰, 휴대용 Wi-Fi 핫스팟등)를충전하면서 동시에 블랙박스에 전원을 공급할 수있
습니다.
제품설치방법
1. 전원 입력 스위치를 O로설정합니다.
Expansion Dashcam DC in
OFF
Cigarette Hardwire
2. 시가잭 충전 케이블을 이용한 설치방법
a. 시가잭 충전 케이블을 배터리팩의 “DC in” 포트에 연결하십시오. 전원케이블의 다른 쪽끝(시가잭 케이블)을차량 시가
소켓에 연결 하십시오.
전원 케이블 (시가잭 케이블)
b. 충전 전류 전환 스위치를 Cigarette 방향으로 설정하십시오.
Expansion Dashcam DC in
OFF
Cigarette Hardwire
주의
차량 시가잭 전원 케이블 사용시에는 충전 전류 스위치 방향을 Cigarette 로설정하십시오. 만약 스위치를 Hardwire
방향으로 설정할 경우, 과전류로 인하여 시가잭 전원 케이블의 발열, 발화등의 문제가 발생할 수있습니다.
또는
