Pittsburgh Automotive 69814 Assembly instructions

!"#"$%&'(%)*+#"$*%,$-%.$$/-00)))1.,(+&(2(*"3.$14&5
65,"7%&'(%$*4.8"4,7%#'//&($%,$-%/(&9'4$#'//&($:.,(+&(2(*"3.$14&5
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 20g
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2013 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 ;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1 Item 69814
EF;6GH IJ6KFGLIM NFLMG6MFMO6E6GPJ
G,+7*%&2%O&8$*8$#
Safety ......................................................... 2
Specifications ............................................. 5
Setup .......................................................... 6
Operation .................................................... 9
Maintenance .............................................. 10
Parts List and Diagram .............................. 11
Warranty .................................................... 12
QFKMLMR%EHNSITE%FMU%U6;LMLGLIME
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
LNJIKGFMG%EF;6GH%LMEGKPOGLIME
LMEGKPOGLIME%J6KGFLMLMR%GI%F%KLEV%I;%;LK6=%
6T6OGKLO%EWIOV=%IK%LMXPKH%GI%J6KEIME
QFKMLMR – When using tools, basic precautions should always be followed, including the following:
R*8*(,7
G&%(*9'4*%$.*%("#Y#%&2%*7*4$("4%#.&4Y=%
2"(*=%,89%"8Z'([%$&%/*(#&8#=%(*,9%,77%$.*%
"8#$('4$"&8#%+*2&(*%'#"83%$.*%$&&71
Q&(Y%F(*,
1. V**/%$.*%)&(Y%,(*,%47*,8%,89%)*77%7"3.$*91%%
Cluttered benches and dark areas increase the
risks of electric shock, fire, and injury to persons.
2. U&%8&$%&/*(,$*%$.*%$&&7%"8%*\/7&#"]*%
,$5&#/.*(*#=%#'4.%,#%"8%$.*%/(*#*84*%
&2%27,55,+7*%7"<'"9#=%3,#*#=%&(%9'#$1
The tool is able to create sparks resulting
in the ignition of the dust or fumes.
3. Keep bystanders, children, and visitors away
while operating the tool. Distractions are
able to result in the loss of control of the tool.

Page 3;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 69814
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
J*(#&8,7%E,2*$[
1. Stay alert. Watch what you are doing and
use common sense when operating the tool.
Do not use the tool while tired or under the
influence of drugs, alcohol, or medication.%%
A moment of inattention while operating the
tool increases the risk of injury to persons.
2. U(*##%/(&/*(7[1%%U&%8&$%)*,(%7&&#*%
47&$."83%&(%Z*)*7([1%%O&8$,"8%7&83%.,"(1%%
V**/%.,"(=%47&$."83=%,89%37&]*#%,),[%2(&5%
5&]"83%/,($#1%%Loose clothes, jewelry, or long
hair increases the risk of injury to persons as
a result of being caught in moving parts.
3. U&%8&$%&]*((*,4.1%%%
V**/%/(&/*(%2&&$"83%,89%+,7,84*%,$%,77%$"5*#1%%
Proper footing and balance enables better
control of the tool in unexpected situations.
4. F7),[#%)*,(%*[*%/(&$*4$"&81
Wear ANSI-approved safety goggles.
G&&7%P#*%,89%O,(*
1. U&%8&$%2&(4*%$.*%$&&71 Use the correct tool for the
application. The correct tool will do the job better
and safer at the rate for which the tool is designed.
2. U"#4&88*4$%$.*%$&&7%2(&5%$.*%,"(%#&'(4*%
+*2&(*%5,Y"83%,8[%,9Z'#$5*8$#=%4.,83"83%
,44*##&("*#=%&(%#$&("83%$.*%$&&71 Such preventive
safety measures reduce the risk of starting the
tool unintentionally. Turn off and detach the air
supply, safely discharge any residual air pressure,
and release the throttle and/or turn the switch to
its off position before leaving the work area.
3. Store the tool when it is idle out of reach
of children and other untrained persons.
A tool is dangerous in the hands of untrained users.
4. O.*4Y%2&(%5"#,7"385*8$%&(%+"89"83%&2%5&]"83%
/,($#=%+(*,Y,3*%&2%/,($#=%,89%,8[%&$.*(%4&89"$"&8%
$.,$%,22*4$#%$.*%$&&7^#%&/*(,$"&81%%If damaged,
have the tool serviced before using. Many accidents
are caused by poorly maintained tools.
There is a risk of bursting if the tool is damaged.
5. P#*%&87[%,44*##&("*#%$.,$%,(*%"9*8$"2"*9%+[%$.*%
5,8'2,4$'(*(%2&(%$.*%#/*4"2"4%$&&7%5&9*71 Use of
an accessory not intended for use with the specific
tool model, increases the risk of injury to persons.
E*(]"4*
1. Tool service must be performed only
by qualified repair personnel.
2. Q.*8%#*(]"4"83%,%$&&7=%'#*%&87[%"9*8$"4,7%
(*/7,4*5*8$%/,($#1%%P#*%&87[%,'$.&("_*9%/,($#1
F"(%E&'(4*
1. M*]*(%4&88*4$%$&%,8%,"(%#&'(4*%%
% $.,$%"#%4,/,+7*%&2%*\4**9"83%%
% `aa%/#"1 Over pressurizing the
tool may cause bursting, abnormal
operation, breakage of the tool or
serious injury to persons. Use only clean, dry,
regulated compressed air at the rated pressure
or within the rated pressure range as marked on
the tool. Always verify prior to using the tool that
the air source has been adjusted to the rated air
pressure or within the rated air-pressure range.
2. Never use oxygen, carbon dioxide, combustible
gases or any bottled gas as an air source
for the tool. Such gases are capable of
explosion and serious injury to persons.
%EF!6%GW6E6%LMEGKPOGLIME1

Page 4 ;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1 Item 69814
EF;6GH IJ6KFGLIM NFLMG6MFMO6E6GPJ
E[5+&7#%,89%E/*4"2"4%E,2*$[%L8#$('4$"&8#
E[5+&7%U*2"8"$"&8#
E[5+&7 J(&/*($[%&(%#$,$*5*8$
JEL Pounds per square inch of pressure
O;N Cubic Feet per Minute flow
EO;N Cubic Feet per Minute flow
at standard conditions
MJG National pipe thread, tapered
E[5+&7 J(&/*($[%&(%#$,$*5*8$
MJE National pipe thread, straight
WARNING marking
concerning Risk of Eye Injury.
Wear ANSI-approved eye protection.
WARNING marking concerning
Risk of Explosion.
E/*4"2"4%E,2*$[%L8#$('4$"&8#
1. Use as intended only. Do not
use for any other liquid.
2. Vehicle must be safely supported by a
proper vehicle lift before service.
3. Use on flat, hard, level surface only.
4. Do not use near open flame or heat
sources. Do not smoke during use.
5. Prior to using the Drain, read and understand all
warnings, safety precautions, and instructions
as outlined in the vehicle manufacturer’s and
the support device’s instruction manuals.
6. Do not use the Drain with the
vehicle’s engine running.
7. Keep bystanders away during use.
8. Avoid burns. Allow the engine oil to completely
cool before draining the oil into the Drain.
9. Do not leave unattended when
operating or evacuating oil.
10. Remove the Drain before lowering the vehicle.
11. Recycle used oil according to regulations.
12. Install an in-line shutoff valve to allow
immediate control over the air supply in an
emergency, even if a hose is ruptured.
13. U&%8&$%*\4**9%$.*%/(&9'4$b#%
)&(Y"83%/(*##'(*%&2%>a%JEL1
14. Wear heavy-duty work gloves during use.
15. If used oil does not evacuate the Tank upon
pressurization, close the Ball Valve fully with the
handle in the horizontal position.
If this does not correct the problem,
remove the unit from service immediately and
contact a qualified service technician for repair.
16. The warnings and precautions discussed in this
manual cannot cover all possible conditions and
situations that may occur. It must be understood
by the operator that common sense and caution
are factors which cannot be built into this
product, but must be supplied by the operator.
%EF!6%GW6E6%LMEGKPOGLIME1

Page 5;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 69814
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
;'84$"&8,7%U*#4("/$"&8
E/*4"2"4,$"&8#
Capacity 20 Gallons
Working Air Pressure 10 PSI
Air Inlet 1/4 IN. - 18 NPT
O&5/&8*8$#%,89%O&8$(&7#
;'88*7
V8&+ S,77%
!,7]*
W,897*
M&__7*
R,'3*
E,2*$[%
!,7]*
K*3'7,$&(%
V8&+
F"(%
L87*$

Page 6 ;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1 Item 69814
EF;6GH IJ6KFGLIM NFLMG6MFMO6E6GPJ
L8"$",7%G&&7%E*$%P/0F##*5+7[
%K*,9%$.*%6MGLK6%LNJIKGFMG%EF;6GH%LM;IKNFGLIM%#*4$"&8%,$%$.*%+*3"88"83%&2%$."#%
5,8',7%"847'9"83%,77%$*\$%'89*(%#'+.*,9"83#%$.*(*"8%+*2&(*%#*$%'/%&(%'#*%&2%$."#%/(&9'4$1
M&$*- For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
M&$*- This air tool may be shipped with a protective plug covering the air inlet. Remove this plug before set up.
F##*5+7[
1. Assemble the Drain on flat, hard level surface.
2. Slide one Wheel (21) onto each end of the
axle of the Tank (15). Attach Wheels using
Washers (22) and Retaining Rings (23).
3. If Casters are not already attached to Tank,
fasten one Caster (20) to each bracket on the
base of the Tank. Slide on Washer (19), and
then use Acorn Nut (18) to attach it in place.
4. Insert Handle (10) into slot on the Tank.
Fasten in place using Screws (12).
5. Thread Ball Valve (7) into top of Tank.
6. Thread Connector (5) into top of Ball Valve (7)
and thread Sleeve (3) into Connector.
7. Thread Funnel (1) onto Drain Tube (2)
until fastened securely.
8. Insert Drain Tube, with Funnel fastened to
other end, into Sleeve. Adjust to required height
and lock Drain Tube in place using Knob (4).
F"(%E'//7[
GI%JK6!6MG%E6KLIPE%LMXPKH%;KIN%6cJTIELIM-%
P#*%&87[%47*,8=%9([=%(*3'7,$*9=%4&5/(*##*9%,"(%$&%/&)*(%$."#%$&&71%%%
U&%8&$%'#*%&\[3*8=%4,(+&8%9"&\"9*=%4&5+'#$"+7*%3,#*#=%%
&(%,8[%&$.*(%+&$$7*9%3,#%,#%,%/&)*(%#&'(4*%2&(%$."#%$&&71
1. Incorporate a filter, regulator with pressure gauge,
oiler, in-line shutoff valve, and quick coupler for

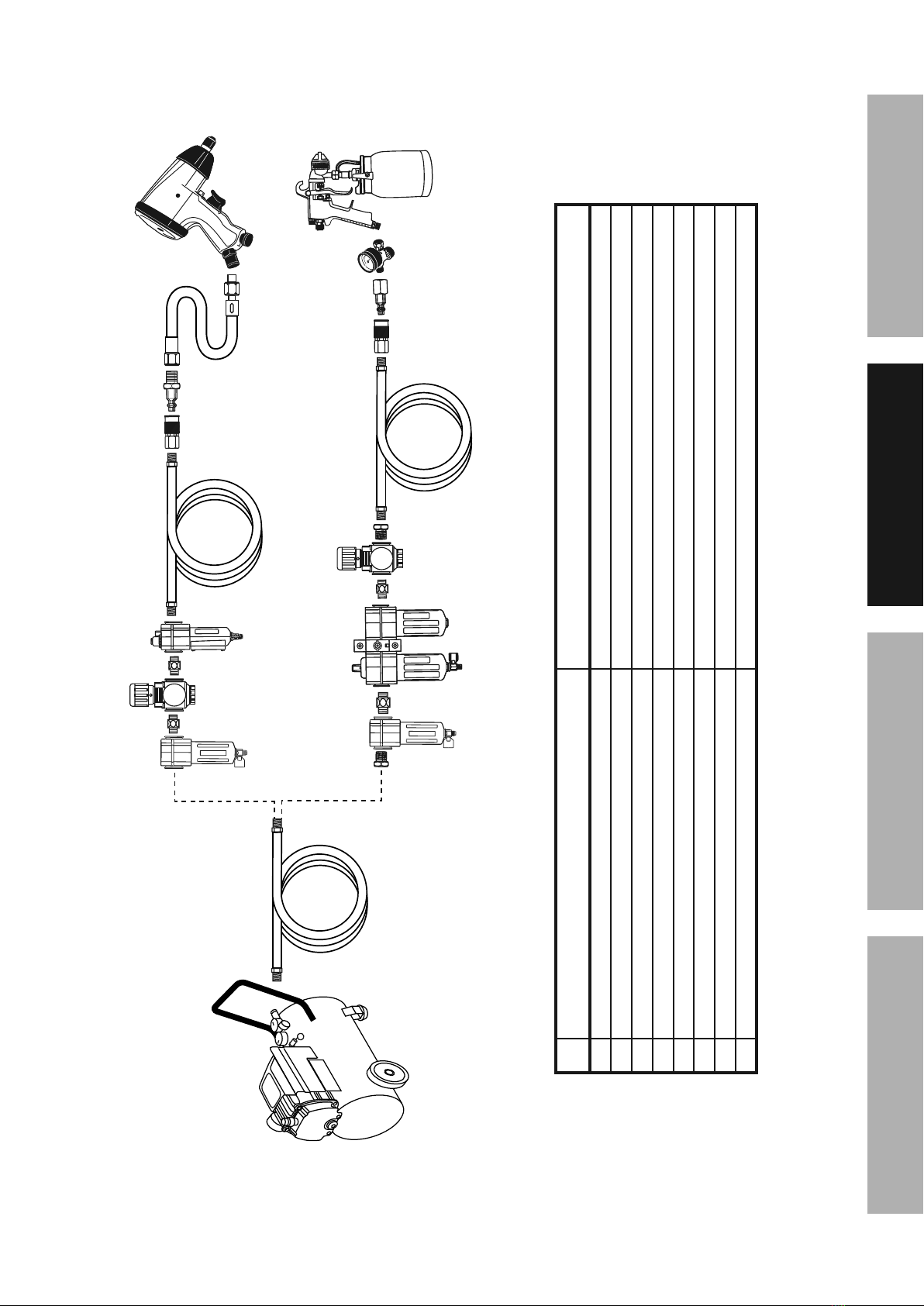

best service, as shown on Figure A on page 7
and Figure B on page 8. %F8%"8?7"8*%#.'$&22%
+,77%],7]*%"#%,8%"5/&($,8$%#,2*$[%9*]"4*%+*4,'#*%
"$%4&8$(&7#%$.*%,"(%#'//7[%*]*8%"2%$.*%,"(%.&#*%
"#%('/$'(*91%%G.*%#.'$&22%],7]*%#.&'79%+*%,%
+,77%],7]*%+*4,'#*%"$%4,8%+*%47&#*9%<'"4Y7[1
M&$*-%If an automatic oiler system is not used,
add a few drops of Pneumatic Tool Oil to the airline
connection before operation. Add a few more drops
after each hour of continual use.
2. Attach an air hose to the compressor's air outlet.
Connect the air hose to the air inlet of the tool.
Other components, such as a coupler plug
and quick coupler, will make operation
more efficient, but are not required.
M&$*-%Air flow, and therefore tool performance,
can be hindered by undersized air supply components.
The air hose must be long enough to reach
the work area with enough extra length to
allow free movement while working.
3. Close the in-line shutoff valve between
the compressor and the tool.
4. Turn on the air compressor according to
the manufacturer's directions and allow it
to build up pressure until it cycles off.
5. Adjust the air compressor's output regulator
so that the air output is enough to properly
power the tool, but the output will not exceed
the tool's maximum air pressure at any time.
Adjust the pressure gradually, while checking the
air output gauge to set the right pressure range.
6. Inspect the air connections for leaks.
Repair any leaks found.
7. If the tool will not be used at this time,
turn off and detach the air supply.
M&$*- Residual air pressure should not be present
after the tool is disconnected from the air supply.
However, it is a good safety measure to attempt to
discharge the tool in a safe fashion after disconnecting
to ensure that the tool is disconnected and not powered.

Page 7;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 69814
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
;"3'(*%F-%%J&($,+7*%F"(%E'//7[%E*$'/
!
"
#
#
$
%
&
'()*+,-./0123455 6((+7 8,-./012345 6((+7
"
&
9
9
:"
U*#4("/$"&8 ;'84$"&8
A Air Hose Connects air to tool
B Filter Prevents dirt and condensation from damaging tool or workpiece
C Regulator Adjusts air pressure to tool D Lubricator (optional) For air tool lubrication
E Coupler and Plug Provides quick connection and release
F Leader Hose (optional) Increases coupler life
G Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
H Air Adjusting Valve (optional) For fine tuning airflow at tool

Page 8 ;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1 Item 69814
EF;6GH IJ6KFGLIM NFLMG6MFMO6E6GPJ
;"3'(*%S-%%E$,$"&8,([%F"(%E'//7[%E*$'/
!
"
" #
$%%%
& &
!'()*+,-./0123%4''*5
"+,-./0123% 4''*5
6
7
7
8
896
:
;
<
=*'>2
:
:
?
?
@
@
&A%
U*#4("/$"&8 ;'84$"&8
A Vibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Ball Valve Isolates sections of system for maintenance D Isolation Hose For vibration reduction
EMain Air Line - 3/4″ minimum recommended Distributes air to branch lines
F Ball Valve To drain moisture from system
GBranch Air Line -1/2″ minimum recommended Brings air to point of use
H Air Hose Connects air to tool
I Filter Prevents dirt and condensation from damaging tool or workpiece
J Regulator Adjusts air pressure to tool
K Lubricator (optional) For air tool lubrication
L Coupler and Plug Provides quick connection and release
M Leader Hose (optional) Increases coupler life
N Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
O Air Adjusting Valve (optional) For fine tuning airflow at tool

Page 9;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 69814
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
I/*(,$"83%L8#$('4$"&8#
%K*,9%$.*%6MGLK6%LNJIKGFMG%EF;6GH%LM;IKNFGLIM%#*4$"&8%,$%$.*%+*3"88"83%&2%$."#%
5,8',7%"847'9"83%,77%$*\$%'89*(%#'+.*,9"83#%$.*(*"8%+*2&(*%#*$%'/%&(%'#*%&2%$."#%/(&9'4$1
L8#/*4$%$&&7%+*2&(*%'#*=%7&&Y"83%2&(%9,5,3*9=%7&&#*=%,89%5"##"83%/,($#1%%
L2%,8[%/(&+7*5#%,(*%2&'89=%9&%8&$%'#*%$&&7%'8$"7%(*/,"(*91
Q&(Y/"*4*%,89%Q&(Y%F(*,%E*$%P/
1. Designate a work area that is clean and well-lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the air hose along a safe route to reach
the work area without creating a tripping hazard
or exposing the air hose to possible damage.
The air hose must be long enough to reach
the work area with enough extra length to
allow free movement while working.
3. There must not be hazardous objects
(such as utility lines or foreign objects) nearby
that will present a hazard while working.
R*8*(,7%I/*(,$"83%L8#$('4$"&8#
;"77"83%G,8Y%Q"$.%I"7
1. Open the Ball Valve by turning Valve’s
handle to a vertical position.
2. Loosen Knob and lower Funnel to lowest position.
3. Move the Drain under the raised vehicle, and
position the Funnel directly below the oil drain plug.
4. Raise the Funnel until the Funnel is
approximately 4″ below the oil drain plug.
Then, tighten Knob to hold the Funnel in place.
5. Remove oil pan plug to drain the oil.
M&$*-%Do not fill the Tank beyond its 20-gallon capacity.
The hose is clear, so the oil in the tube
will indicate the reservoir fill level.
When oil level nears the top, drain the oil.
6. Before transporting the Oil Lift, open the Knob
and lower the Drain Tube all the way. Then lock
Drain Tube in place by turning the Lock Knob.
7. Use the Handle when moving the Oil Lift
from one location to another. Only transport
Oil Lift along flat, hard, level surfaces.
J'5/"83%I"7%;(&5%G,8Y
1. Raise Drain Tube to above Ball Valve.
Rotate Ball Valve to horizontal position.
2. Place Nozzle securely in
a used oil collection receptacle.
3. J'77%&8%$.*%E,2*$[%!,7]*%+("*27[%+*2&(*%*]*([%'#*%
$&%5,Y*%#'(*%"$%&/*(,$*#%#5&&$.7[1%%%
The Safety Valve helps to relieve pressure
if the tank is over-pressurized.
4. Connect the compressor’s air supply hose
to the Air Inlet. Turn on the air compressor,
making sure it is set between 7-10 PSI.
QFKMLMRd%%GI%JK6!6MG%E6KLIPE%LMXPKH-%U&%8&$%
7*,]*%I"7%T"2$%'8,$$*89*9%)."7*%"$%"#%*],4',$"83%&"71
5. Close Regulator by pulling out the knob and rotating
counterclockwise. Pull Regulator’s cap out and
slowly turn it in a clockwise direction while observing
the Pressure Gauge. UI%MIG%6cO66U%>a%JEL1
6. The oil will be pushed from the Tank out the Nozzle.
7. Once oil is no longer being discharged from the
Nozzle, turn off air compressor. Disconnect
compressor air supply hose from the Air Inlet.
M&$*-%Oil discharge rate will be affected by the
ambient temperature and the viscosity of the oil.
8. Clean external surfaces of the tool with
clean, dry cloth. Then store the tool
indoors out of children's reach.

Page 10 ;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1 Item 69814
EF;6GH IJ6KFGLIM NFLMG6MFMO6E6GPJ
P#*(?N,"8$*8,84*%L8#$('4$"&8#
%J(&4*9'(*#%8&$%#/*4"2"4,77[%*\/7,"8*9%"8%$."#%5,8',7%5'#$%
+*%/*(2&(5*9%&87[%+[%,%<',7"2"*9%$*4.8"4",81
GI%JK6!6MG%E6KLIPE%LMXPKH%;KIN%FOOLU6MGFT%IJ6KFGLIM-%
G'(8%&22%$.*%$&&7=%9*$,4.%$.*%,"(%#'//7[=%#,2*7[%9"#4.,(3*%,8[%(*#"9',7%,"(%/(*##'(*%
"8%$.*%$&&7=%,89%(*7*,#*%$.*%$.(&$$7*%,890&(%$'(8%$.*%#)"$4.%$&%"$#%&22%/&#"$"&8%+*2&(*%
/*(2&(5"83%,8[%"8#/*4$"&8=%5,"8$*8,84*=%&(%47*,8"83%/(&4*9'(*#1
GI%JK6!6MG%E6KLIPE%LMXPKH%;KIN%GIIT%;FLTPK6-%
U&%8&$%'#*%9,5,3*9%*<'"/5*8$1%%L2%,+8&(5,7%8&"#*=%]"+(,$"&8=%
&(%7*,Y"83%,"(%&44'(#=%.,]*%$.*%/(&+7*5%4&((*4$*9%+*2&(*%2'($.*(%'#*1
O7*,8"83=%N,"8$*8,84*=%,89%T'+("4,$"&8
M&$*- These procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the air-operated tool.
1. I84*%,%[*,(%,2$*(%9"#4.,(3"83%4&8$*8$#%&2%
$.*%G,8Y=%(*5&]*%$.*%U(,"8%J7'3%e`fg%$&%9(,"8%
,44'5'7,$*9%#7'93*1%%
G&%(*,$$,4.%$.*%U(,"8%J7'3%e`fg=%
)(,/%$.(**%$'(8#%&2%$.(*,9%#*,7%$,/*%
e8&$%"847'9*9g%&8%$.*%U(,"8%J7'3%$.(*,9%,89%
#*4'(*%"8%/7,4*1%%U&%8&$%&]*($"3.$*8.
2. Keep the outside of the Tank free of oil or grease.
Use only a mild soap and damp cloth when cleaning.
Do not use flammable or combustible solvents.
3. Before and during each use,
inspect the Hose for damage.
4. After use, store in a dry, secure
area out of reach of children.
G(&'+7*#.&&$"83
J(&+7*5 J&##"+7*%O,'#*# T"Y*7[%E&7'$"&8#
Decreased output. 1. Not enough air pressure and/
or air flow.
2. Blockage of hose.
3. Accumulated sludge.
1. Check for loose connections and make sure that
air supply is providing enough air flow (CFM)
at required pressure (PSI) to the tool’s air inlet.
U&%8&$%*\4**9%5,\"5'5%,"(%/(*##'(*1
2. Gently blow air from Nozzle into Tube.
3. After draining the oil, remove Plug and drain out sludge.
Housing heats
during use.
1. Incorrect lubrication or
not enough lubrication.
2. Worn parts.
1. Lubricate using air tool oil according to directions.
2. Have qualified technician inspect internal mechanism
and replace parts as needed.
Severe air leakage.
(Slight air leakage
is normal,
especially on
older tools.)
1. Cross-threaded housing
components.
2. Loose housing.
3. Damaged valve or housing.
4. Dirty, worn or damaged valve.
1. Check for incorrect alignment and uneven gaps.
If cross-threaded, disassemble and
replace damaged parts before use.
2. Tighten housing assembly. If housing cannot tighten
properly, internal parts may be misaligned.
3. Replace damaged components.
4. Clean or replace valve assembly.
;&77&)%,77%#,2*$[%/(*4,'$"&8#%).*8*]*(%9",38&#"83%&(%#*(]"4"83%$.*%$&&71%%%
U"#4&88*4$%,"(%#'//7[%+*2&(*%#*(]"4*1

Page 11;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 69814
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
JT6FE6%K6FU%GW6%;ITTIQLMR%OFK6;PTTH
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
J,($#%T"#$%,89%U",3(,5
J,($ U*#4("/$"&8 h$[
1 Funnel 1
2 Drain Tube 1
3 Sleeve 1
4 Knob 1
5 Connector 1
6 Pressure Gauge 1
7 Ball Valve 1
8 Tube Connector 1
9 Regulator 1
10 Handle 1
11 Bleeding Valve 1
12 Screw 3
13 Loop Clamp 1
14 Hose/Nozzle Asm. 1
15 Tank 1
16 Loop Clamp 2
17 "Barbed" Fitting 1
18 Acorn Nut 2
19 Washer 2
20 Caster 2
21 Wheel 2
22 Washer 4
23 Retaining Ring 2
24 Drain Plug 1
K*4&(9%J(&9'4$^#%E*(",7%M'5+*(%W*(*-%
%
M&$*- If product has no serial number,
record month and year of purchase instead.
M&$*- Some parts are listed and shown
for illustration purposes only, and are not
available individually as replacement parts.
Specify UPC 193175323569 when ordering parts. 21
15
24
2
0
1
9
18
12
10 9
6
8
11
5
7
23
22
12
13
14
16
17
4
2
1
3

T"5"$*9%Da%U,[%Q,((,8$[
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
`ABf>%F3&'(,%K&,9%%i%%O,7,+,#,#=%OF%D>ja`%%i%%>?@@@?@AA?BCDC
