Planet ICA-500 User manual

ICA-500
Pan/Tilt Internet Camera
Key Feature
Data Sheet
1
As broadband communication gets more and more popular, it becomes
easier to transfer video and audio through network. Traditional
surveillance system is gradually evolving to be deployed in packet switching
TCP/IP network. PLANET ICA-500 provides an advanced digital solution of
Internet Camera with pan and tilt capability to meet more application
demands. It supports wired Ethernet networking. ICA-500 can be placed
either in a LAN or an available xDSL/Cable modem connection. ICA-500
also supports DDNS. With its Plug-N-Watch capability, a network
administrator or system operator can seamlessly complete network
deployment in simply minutes.
Combining 1/4 inch color CCD sensor with the advanced motion JPEG
video compression technology, sharp, high-quality video is digitized and
delivered by the advanced microcomputer in ICA-500. The high quality of
M-JPEG files brings vivid images, which are suitable for surveillance
applications.
Motion detection is a powerful function enhanced in ICA-500. If a motion
is detected in surveillance spot, this function will capture images, attach
them in an email, and alert the system administrator via pop-up message.
With bundled camera utility, centralized management (up to 16 cameras)
can be fulfilled to save TOC for enterprise users.
• Pan and Tilt capability
ICA-500 is able to perform PAN (0°~325°) and tilt (10°~90°)
adjustment, which brings more convenience and flexibility in
network deployment
• Simple to use
Plug-N-Watch capability to simplify system integration in an
existing network environment
• Meeting SOHO, business, or public facilities
surveillance needs
ICA-500 can be deployed in many different situations, such as
library, train station or factory production line to provide
efficient, human-resource reducing, and offers flexibility,
affordability, and reliability for the proper surveillance of
manufacturing facilities
• Multi-Platform support
Supporting TCP/IP networking, SMTP e-mail, and HTTP public
network standards, ICA-500 can be applied and utilized to a
mixed IP network environment
• Easy configuration
The network administrator can configure and manage ICA-500
via Windows-based utility or web interface
• Bundled recording utility
Provides the convenience to schedule your recording plan
• Audio Recording
With built-in microphone, the voice around can be recorded
with live image
• Image flip
When ICA-500 is in an upside-down installation site, the image
can be reversed for proper viewing
• Motion Detection
Monitors any suspicious movement in specific area
• DDNS support
In order to view video over Internet, user must know the
Internet IP address of the gateway used by ICA-500. An easy-
to-remember DDNS (Dynamic DNS) name will help you
memorize your site more easily

PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property or
their respective owners. Copyright©2006 PLANET Technology Corp. All rights reserved.
02-06 C-ICA500-2
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Tawian R.O.C.
Tel: [phone]  Fax: [phone]
Email: [email protected] www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Pan/Tilt Internet Camera (RJ-45, NTSC)
Pan/Tilt Internet Camera (RJ-45, PAL)
ICA-500-NT
ICA-500-PA

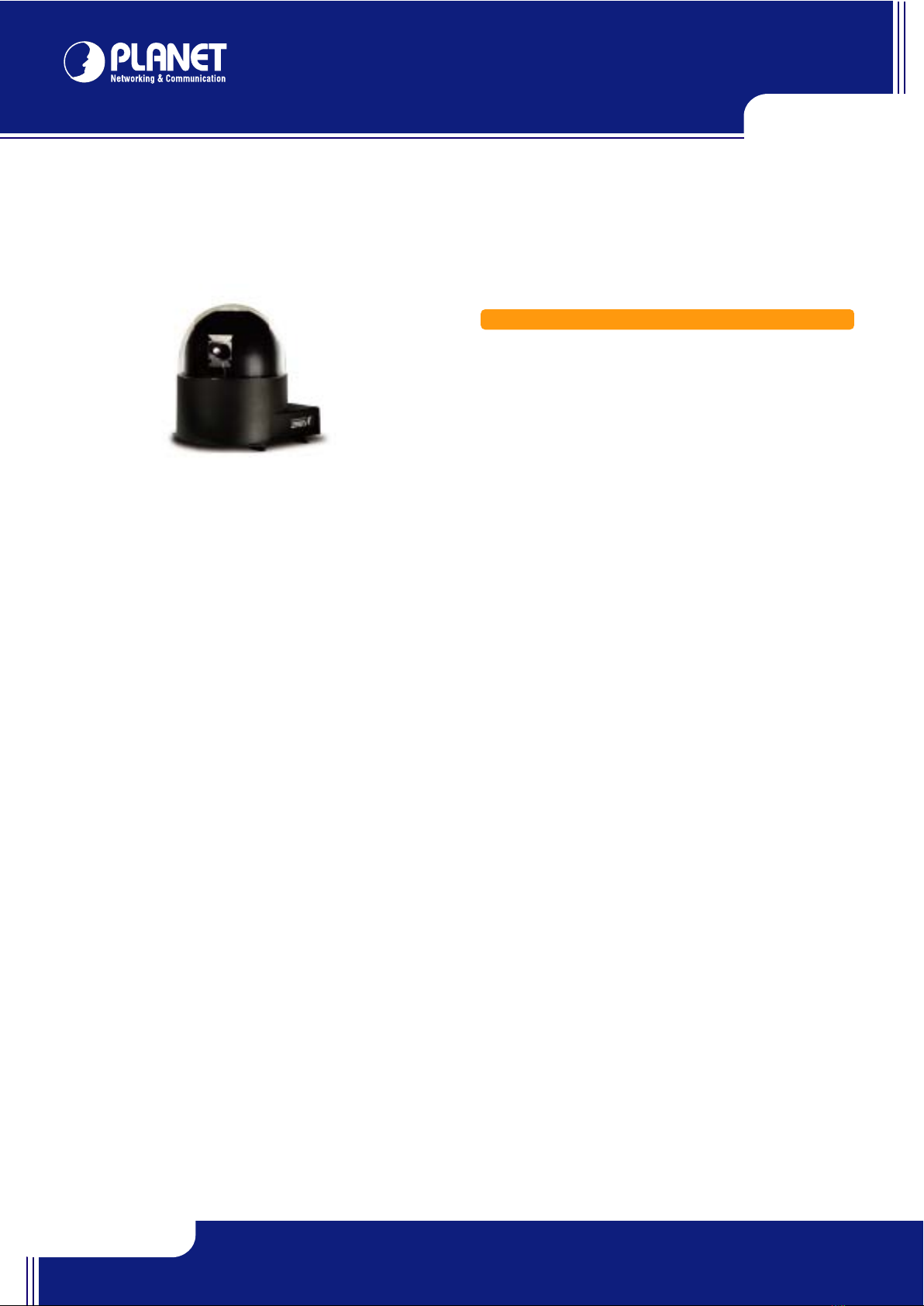

Pan/Tilt Internet Camera
Product
Specification
Applications
Ordering Information
Data Sheet
2
ICA-500
Model
Hardware
Sensor
Electronic shutter
Iris control
Gain control
White balance
Focus
Minimum Illumination
PAN (Horizontal Rotation)
Tilt (Vertical Rotation)
Network
Generic I/O port
Video interface
Audio interface
Image (Video setting)
Image compression
Video Resolution and Frame Rate
Environment
Operating Temperature
Power Requirement
EMC/EMI
Network and Configuration
Connection type
Management
ICA-500
1/4” SONY CCD sensor
NTSC: Electronics 1/60 ~ 1/100,000 sec, on/off switchable
PAL: 1/50s~1/110,000s, on/off switchable
Video-drive iris control
High/Low switchable
Indoor, outdoor, auto mode (color temperature: 2500˚K~9000˚K)
Auto
[email protected]
0°~325°
10°~90°
1 x 10/100 Base-TX RJ-45 Port
2 x I/O ports, one for input and one for output
BNC connector for monitoring
Built-in microphone for audio recording
JPEG, 3 levels
640 x 480 (20fps), 352 x 288 (30fps), 320 x 240 (30fps), 176 x 144 (30fps)
0~50 Degree C, 10~90% Humidity
12V DC
CE, FCC
Static IP, PPPoE, DHCP
Web, CamView
Warehouse Production Area
Headquarter
ICA-500
IVS-100
Internet
