User’s Manual
www.PLANET.com.tw
3 Mega-Pixel Vandal Proof
IR IP Camera
ICA-5350V

Copyright
Copyright ©2012 by PLANET Technology Corp. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Any software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not PLANET, its distributor, or
its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or
consequential damages resulting from any defect in the software. Further, PLANET reserves the
right to revise this publication and to make changes from time to time in the contents hereof
without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or
registered trademarks of their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance. (example-use only shielded interface cables when connecting
to computer or peripheral devices). Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two
conditions: (1) This device may not cause harmful interference, and (2) this Device must accept
any interference received, including interference that may cause undesired operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled environment.
In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human
proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity
1

when working with electrical equipment. All guidelines of this and of the computer manufacture
must therefore be allowed at all times to ensure the safe use of the equipment.
CE Mark Warning
This is a Class Aproduct. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users
of electrical and electronic equipment should understand the meaning of the
crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal
waste and have to collect such WEEE separately.
Revision
User’s Manual for PLANET 3 Mega-Pixel Vandal Proof IR IP Camera
Model: ICA-5350V
Rev: 1.0 (May. 2012)
Part No. EM-ICA5350V_v1.0
2

Table of Content
1. Introduction......................................................................................................5
1.1 Overview .................................................................................................5
1.2 Features ..................................................................................................5
1.3 Package Contents ...................................................................................6
2. Basic Setup .....................................................................................................7
2.1 System Requirement...............................................................................7
2.2 Physical Description ................................................................................7
2.2.1 Identification of ICA-5350V physical detail........................................ 7
2.2.2 I/O Control Instruction........................................................................... 9
2.3 Hardware Installation............................................................................. 11
2.4 Initial Utility Installation ..........................................................................12
2.5 Preparation............................................................................................14
2.5.1 Search and View by PLANET IP Wizard II...................................... 14
2.5.2 Configure Network by PLANET IP Wizard II................................... 16
2.6 Using UPnP of Windows XP or Vista.....................................................18
2.6.1 Windows XP......................................................................................... 18
2.6.2 Windows Vista ..................................................................................... 22
2.6.3 Windows 7............................................................................................ 23
2.7 Setup ActiveX to use the Internet Camera ............................................24
2.7.1. Internet Explorer 6 for Windows XP ................................................. 24
2.7.2. Internet Explorer 7 for Windows XP ................................................. 25
2.7.3. Internet Explorer 7 for Windows Vista.............................................. 26
3. Web-based Management ..............................................................................28
3.1 Introduction............................................................................................28
3.2 Connecting to Internet Camera .............................................................28
3.3 Live View ...............................................................................................30
3.4 ActiveX Control......................................................................................32
3.4.1. Digital Zoom ......................................................................................... 32
3.4.2. Record................................................................................................... 33
3.4.3. Snapshot............................................................................................... 33
3.4.4. Volume .................................................................................................. 34
3.4.5. About ..................................................................................................... 34
3.5 Network Configuration...........................................................................35
3.5.1. Network................................................................................................. 35
3.5.2. IPv6........................................................................................................ 37
3.5.3. HTTPS .................................................................................................. 37
3.5.4. DDNS server........................................................................................ 38
3.5.5 PPPoE................................................................................................... 39
3.5.6 Streaming ............................................................................................. 40
3.5.7 UPnP ..................................................................................................... 41
3.5.8 Bonjour.................................................................................................. 42
3.5.9 ONVIF ................................................................................................... 43
3.5.10IP Filter.................................................................................................. 43
3.5.11 IP Notification....................................................................................... 44
3.6 Camera Configuration ...........................................................................46
3

4
3.6.1. Picture ................................................................................................... 46
3.6.2. Privacy Mask........................................................................................ 48
3.6.3. PTZ Setting .......................................................................................... 49
3.6.4. Preset Setting ...................................................................................... 50
3.6.5. Tour Setting .......................................................................................... 50
3.7 System ..................................................................................................52
3.7.1. System .................................................................................................. 52
3.7.2. Date & Time.......................................................................................... 53
3.7.3. Maintenance......................................................................................... 54
3.8 Video .....................................................................................................56
3.8.1. Common ............................................................................................... 56
3.8.2. Overlay Image ..................................................................................... 56
3.8.3. Video Profile......................................................................................... 57
3.8.4. ROI ........................................................................................................ 58
3.9 Audio Configuration...............................................................................59
3.10 User Privilege Access Configuration ...................................................61
3.11 E-Mail Configuration ...........................................................................62
3.12 Object Detection .................................................................................63
3.13 Storage Configuration .........................................................................64
3.13.1 SD Card............................................................................................... 64
3.13.2 SAMBA Server.................................................................................... 64
3.14 Continuous Recording ........................................................................65
3.15 Recording List.....................................................................................66
3.16 Event Server Configuration.................................................................66
3.16.1 FTP Server ....................................................................................... 67
3.16.2 TCP Server........................................................................................ 67
3.16.3 HTTP Server ..................................................................................... 68
3.16.4 SAMBA Server.................................................................................. 69
3.17 Event Schedule Configuration ............................................................71
3.17.1 Setting.................................................................................................. 71
3.17.2 Record Configuration ........................................................................ 75
3.17.3 Port Status........................................................................................... 75
Appendix A: PING IP Address ...........................................................................76
Appendix B: 3GPP Access.................................................................................77
Appendix C: Bandwidth and Video Size Estimation ...........................................78
Appendix D: DDNS Application ..........................................................................79
Appendix E: Configure Port Forwarding Manually .............................................80
Appendix F: Power Line Frequency...................................................................83
Appendix G: Troubleshooting & Frequently Asked Questions............................84
Appendix H: Product Specification .....................................................................89

1. Introduction
PLANET announces new H.264 3 Mega-Pixel outdoor infrared vandal proof Internet Camera, the
ICA-5350V, for meeting the next generation demands in worldwide market. The ICA-5350V can
simultaneously provide H.264, MPEG-4 and M-JPEG video streaming in small video size;
therefore it saves you lots of bandwidth usage. Through high performance 3 Mega-Pixel CMOS
sensor, the ICA-5350V delivers high quality image at maximum 2048 x 1536 (QXGA) resolutions
for color images. It is also equipped with 3.0mm to 9.0mm Vari-focal auto iris lens allowing easy
installation and camera angle adjustment for different installed sites.
With built-in 12 IR LED around the lens and the IR-cut filter, the ICA-5350V can provide good
video quality in both day and night surveillance up to 20 meters. The network and analog video
output interfaces are also provided in the ICA-5350V for flexible viewing and recording
implementations.
The ICA-5350V complies with IEEE 802.3af PoE interface for flexible and easy installation in the
ceiling without concerning the outlet / socket locations and thus it further eliminates the need of
power cables and installation costs. In addition, the ICA-5350V supports 2-Way audio that enables
audio communication between local and remote ICA-5350V installed sites by using the external
microphone and adding an external speaker.
The ICA-5350V is the perfect choice for outdoor surveillance system by providing IP-66 certified
water-proof protection. It is designed with vandal-proof and IP66 weather-proof case that can
shield 400 pounds of impact. The vandal-proof design with die-cast aluminum body prevents the
intentional destruction. Water-resistant construction with weather-proof solid housing performs
reliable operation in any environment.
The ICA-5350V can be managed by PLANET Cam Viewer Three, the professional IP-Surveillance
management software that provides monitoring, recording and event management functions for
multi-camera video surveillance applications. The Cam Viewer 3 enables you to setup a
comprehensive and effective surveillance system quickly and easily to protect your property and
life.
1.1 Overview
This user’s guide explains how to operate this camera from a computer. User should read this
manual completely and carefully before you operate the device
1.2 Features
Camera
3 Mega-Pixel CMOS sensor Built in
12 IR LEDs support up to 20 meters visible distance at night
Vari-Focal Lens: f 3.0-9.0mm with auto Iris and ICR
40 ~ 97 degree horizontal / 30 ~ 81 degree vertical angle of view
High Resolution Video Preview: QXGA (2048 x 1536) pixels
Min Illumination : 0.5 lux @ F1.2
Intelligent motion detection up to 10 zones
ICR for day and night sharp vision surveillance
Video
5

Multi-Profile encoder supports H.264 / MPEG-4 and M-JPEG video compression simultaneously
Supports Variable Bit Rate and Constant Bit Rate and Enhanced Variable Bit Rate
3MP resolution or 1080p mode selectable
Up to 30fps for all resolutions
Digital WDR to provide clear images even under back light circumstances
3D de-noise to improve picture quality at low Lux
Audio
2-Way Audio and 3GPP for Real Time surveillance communication
Sensor input and alarm output
Network and Configuration
Gigabit 1000Base-T Ethernet
Easy configuration and management via Windows-based utility or web interface
Compliant with IEEE 802.3af PoE interface for flexible deployment
20-profile encoder simultaneously
UDP / TCP / HTTP / HTTPS protocols selectable
Cam Viewer Three Central management software supported
System Integration
Store-To-NAS function enables video files saved without operating software
DDNS, PPPoE and FTP uploading support more alternatives in surveillance network
ONVIF standard supported
3GPP for 3G mobile remote applications
UPnP device discovery and NAT router transversal for easy installation
IP66 outdoor classifications with fan for rigorous environment
SD Card Local Video Recording Supported
Environment
Vandal-proof glass, alloy metal base
RS485 interface for P/T scanner control
Analog video (BNC) output, works with conventional video devices such as TV Monitors, analog
DVRs
1.3 Package Contents
User can find the following items in the package:
Camera unit x 1
Power Adapter x 1
Accessory Kit x 1
User’s Manual CD x 1
Quick Installation Guide x 1
NOTE: 1. If any of the above items are missing, please contact your dealer immediately.
2. Using the power supply that is not the one included in Internet Camera packet
will cause damage and void the warranty for this product.
6

2. Basic Setup
This chapter provides details of installing and configuring the Internet Camera.
2.1 System Requirement
The Internet Camera can be monitoring on all of Windows operating system that suggest with
system requirment below in order to got better video performance.
CPU Intel Dual Core 2.4GHz or higher
RAM 2GB (above Recommended)
Video RAM 256MB (above Recommended )
Display Resolution 1280x1024 24bits or above
Operating System Windows XP / Vista / Win7
DirectX 10 or above
Network Wired Ethernet 100Base-TX
NOTE: 1. The listed information is minimum system requirements only. Actual
requirement will vary depending on the nature of your environment.
2. The ICA-5350V series can be managed by PLANET IP Wizard II if you want
to configure more detail information and settings of PLANET IP Wizard II
software please refer to the CD-ROM folder
“D:\Utility\IPWizardII\setup.exe”, assume D is your CD-ROM drive.
2.2 Physical Description
2.2.1 Identification of ICA-5350V physical detail

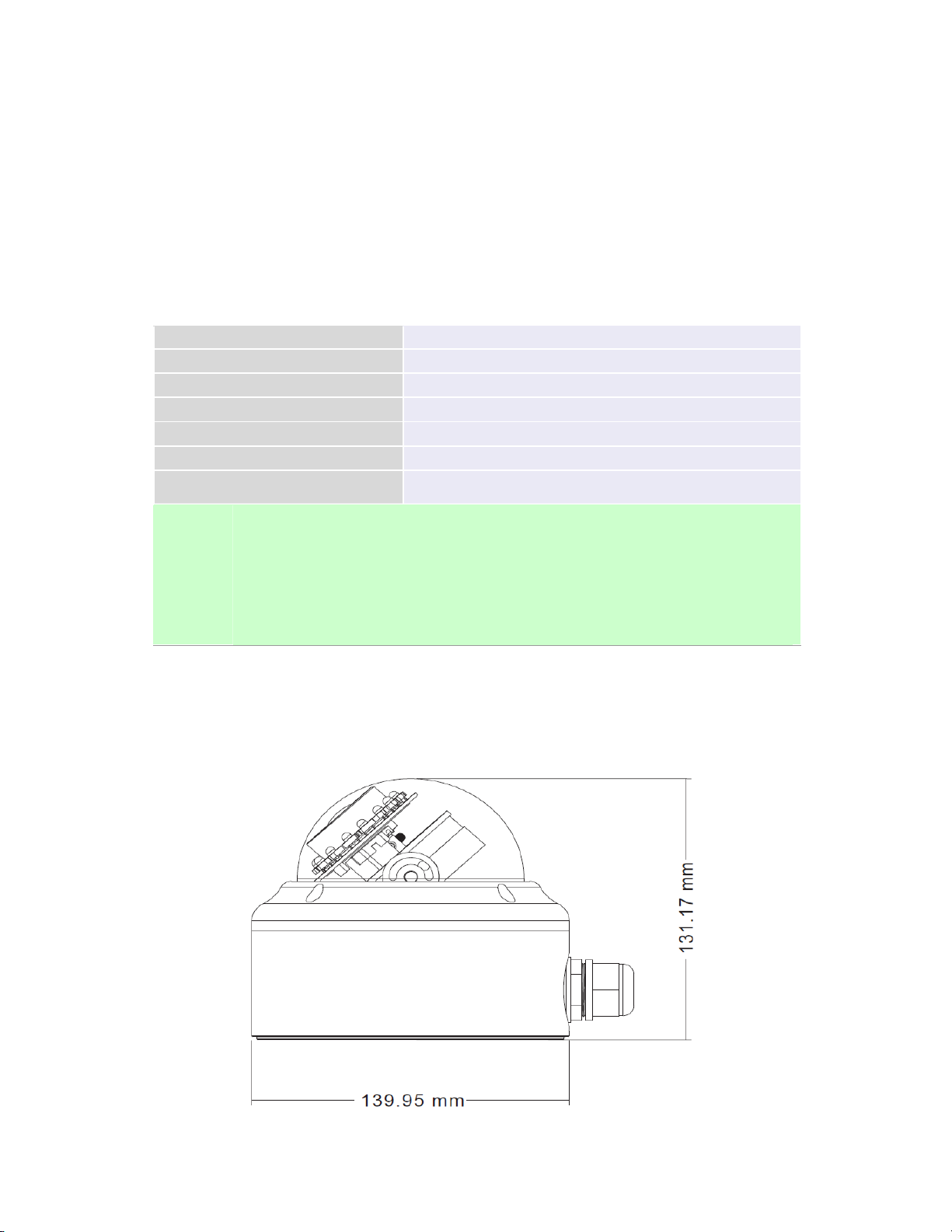

Front View
7

8
IR LEDs x 12
Lens
Light Sensor
Item Description
Lens Lens set. Keep this area clean to keep excellent video quality.
IR LEDs Emits infrared light to provide light source in dark places
Light sensor
Detects the illumination level or the place where this IP
camera is installed, and switches IR LEDs on when it’s
required.
NOTE:
When IR LEDs are switched on, this IP camera
will switch to black and white video mode to
enhance video quality. Do not cover light sensor
or this IP camera will work in black and white
mode only.

2.2.2 I/O Control Instruction
Descriptions for I/O cable set:
Interface Description
RJ45 LAN
socket
Connects to your local area network by Ethernet cable
LAN LED (green color)
This LED will be flashing while network accessing via Ethernet
Power LED (orange color)
This LED is used to indicate whether DC power is on or not
DC-in Jack
DC power input, connect to AC power adapter
Note: that supply the power to the Network Camera with the power
adapter included in package
RS-485 &
digital I/O
RS-485：Connect to a local keyboard controller
DI/ DO: Connect to sensor in and alarm out devices
Cable for I/O connectors:
Name Number Function
12VDC 1 DC 12V (50mA maximum)
DI 2 Digital signal input
GND 3 GND
DO 4 Digital signal output
9

485+ 5 RS485 data +
485- 6 RS485 data -
MIC in
(Audio
in)
Connect a microphone to the network camera
Audio out Connect a loud speaker to the network camera. This function is for voice alerting
and two-way audio
Video out
(BNC
connec
tor)
The Network Camera also provides composite video output. The video output
function is only for easy installation to check view angle and focus. The output is
not a Mega-pixel resolution. Furthermore, only “720p Mode” supports this
function. “2 Mega Mode” does not support it. Please refer to Setting \ Video \
Common chapter
Reset
This button is used to restore the all factory default settings. Sometimes
restarting the device will make the system back to a normal state. However, if
the system still got problems after restart, user can restore the factory default
settings and install it again.
Restore the device:
1. While the Camera is ready and then press the button down continuously
2. Hold the button at least 5 seconds and release it. Then the device has been
restored to default settings and reboot again
Note: Restoring the factory default setting will lose the all previous settings
included IP address forever. User needs to run the IPWizard II program to
search the device and configure it to let the device work properly again
10

2.3 Hardware Installation
1. Use the provided L-wrench, loosen the tamper-resistant housing cover (with screws
still attached on the cover). The unit has a factory installed side conduit entry and one
may adjust the cables to back conduit entry according to installation requirement.
2. Set the mounting base onto the wall or ceiling and center it over the mounting hole,
using the supplied two retaining screws to secure the main body.
3. Set the proper image by moving the camera body (some model may be limited by the
PCB board to180°rotational adjustment) and set the focus by turning the lens to the left or
right direction.
4. Connect video output cable (BNC) to a TV monitor. Once the picture appears on the
monitor, adjust the lens wrench to “TELE←→WIDE” of the lens, get the view zoom that
you desire, and then adjust the focus wrench to “NEAR←→FAR” of the lens to obtain the
best clear picture. After adjustment, tighten both wrenches.
11

5. When the camera focus adjustment has been completed, use the provided L-wrench to
fasten the tamper-resistant housing to the main body.
6. Connect the LAN cable to Ethernet’s switch or hub and the DC-Jack to the power
source. And connect the other cables and connectors if necessary.
NOTE: If there has an IEEE802.3af PoE switch in your network, you can connect the
camera LAN cable to this PoE switch to obtain power. The power adapter is
unnecessary when Internet camera is connected to a PoE switch.
NOTE: 1. Only use the power adapter supplied with Internet camera Otherwise, the
product may be damaged.
2. The power adapter is unnecessary when Internet camera is connected to a
PoE switch. Otherwise, the product may be damaged when Internet camera
is connected to a PoE switch and power adapter simultaneously.
7. Done
2.4 Initial Utility Installation
This chapter shows how to quick set up your H.264 camera. The camera is with the default
settings. However to help you find the networked camera quickly the windows utility PLANET IP
Wizard II can search the cameras in the network that shall help you to configure some basic
setting before you started advanced management and monitoring.
1. Insert the bundled CD into the CD-ROM drive to launch the auto-run program. Once
completed, a welcome menu screen will appear.
2. Click the “IP Wizard II” hyperlink; you will see the dialog box as below.
NOTE: If the welcome screen does not appear, click “Start” at the taskbar. Then, select
“Run” and type “D:\Utility\IPWizard II\setup.exe”, assume D is your CD-ROM drive.
12

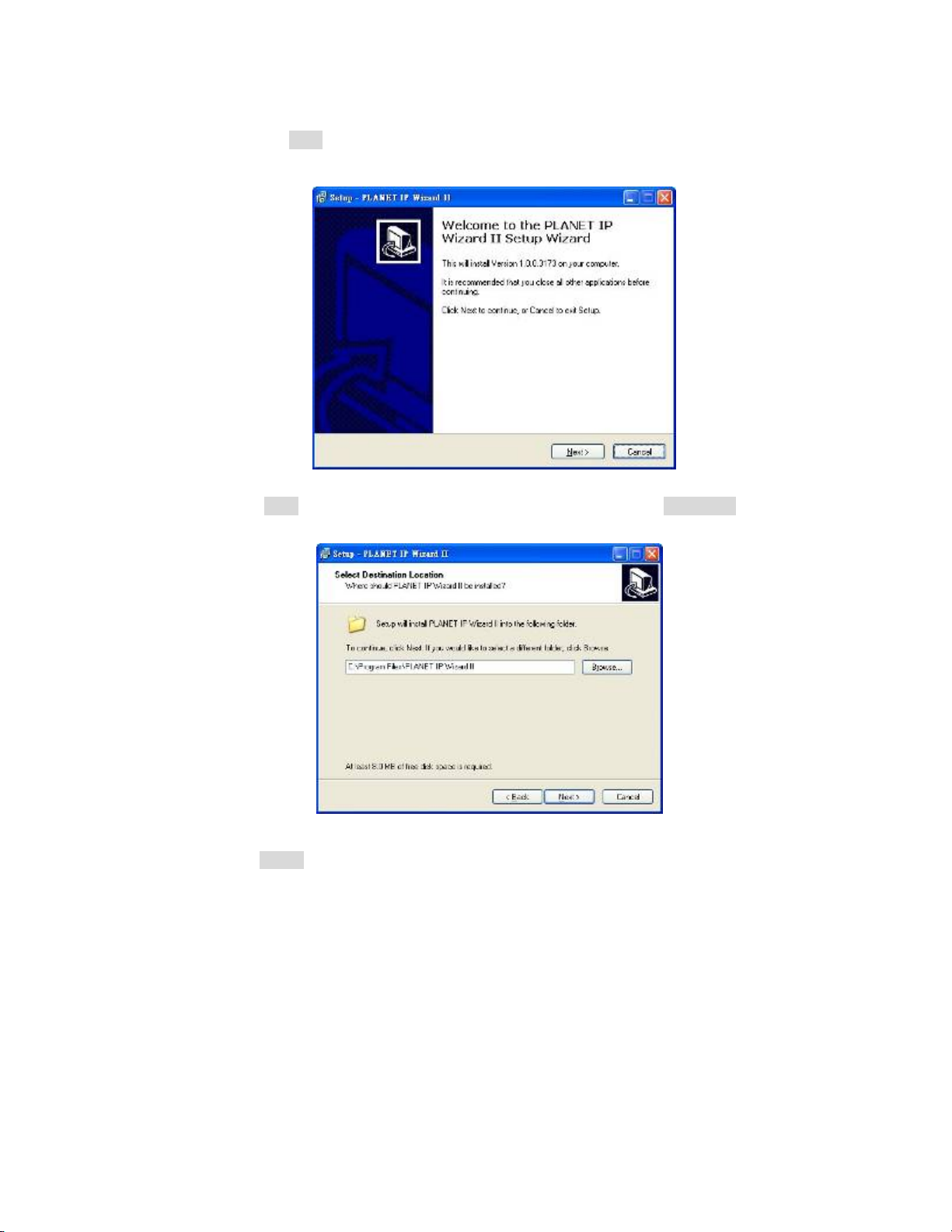

3. The “Welcome to the InstallShield Wizard for PLANET IP Wizard II” prompt will display on the
screen and click “Next” to continue.
4. Please click “Next” to install with original settings, or you may click “Change…” button to
modify the install folder then press “Next” to continue.
5. Please click “Install” to start the installation.
13

6. Please click “Finish” to complete the installation and launch program immediately.
2.5 Preparation
When you installed the Internet Camera on a LAN environment, you may execute PLANET IP
Wizard II to discover camera’s IP address and set up related parameters in the camera.
2.5.1 Search and View by PLANET IP Wizard II
When you installed the Internet Camera on a LAN environment, you have two easy ways to search
your cameras by PLANET IP Wizard II or UPnP discovery. Here is the way to execute PLANET IP
Wizard II to discover camera’s IP address and set up related parameter in a camera.
Search
14

When launch the Planet IP Wizard II, a searching windows will pop up. Planet IP Wizard II is
starting to search Internet Cameras on the LAN. The existed devices will be listed as below.
15

View
If Planet IP Wizard II finds Internet Camera, View button will be available. Please
select the camera you want to view and click the View button. Then you could see
the Video from camera directly. Furthermore you could double click the left button
of mouse to link to the Internet Camera by browser.
2.5.2 Configure Network by PLANET IP Wizard II
In case you want to change the IP related parameters of wired interface, please
select the Internet Camera you want to configure and click the LAN button.
Relative settings will be carried out as below.
16

17
In case, you do not want to change username and/or password, then just click “Submit” button to
perform your setting accordingly. Click “<<” button will go back to previous page.

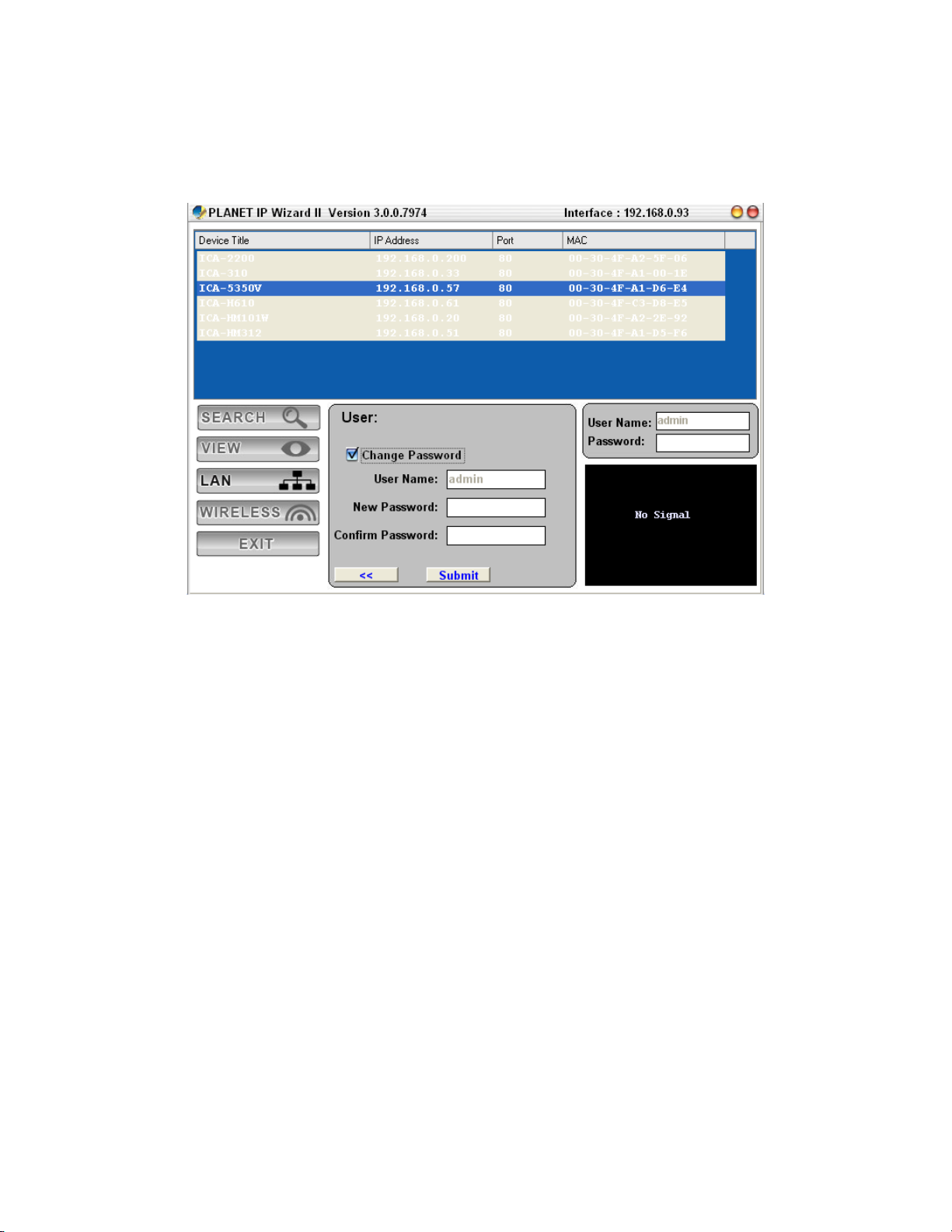

If you like to change username and/or password of the device, just click the check button. Then,
the related fields will show up as below.
After keying in new username and password, click “Submit” button to perform your setting
accordingly. Click “<<” button will go back to previous page.

2.6 Using UPnP of Windows XP or Vista
2.6.1 Windows XP
UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides
compatibility among networking equipment, software, and peripherals. This device is an UPnP
enabled device. If the operating system, Windows XP, of your PC is UPnP enabled, the device will
be very easy to configure. Use the following steps to enable UPnP settings only if your operating
system of PC is running Windows XP.
NOTE: Please notice that MS Windows 2000 does not support UPnP feature.
Go to Start > Settings, and Click Control Panel.
The “Control Panel” will display on the screen and double click “Add or Remove Programs” to
continue.
The “Add or Remove Programs” will display on the screen and click Add/Remove Widows
Components to continue.
18

The following screen will appear, select “Networking Services” and click “Details” to continue.
The “Networking Services” will display on the screen, select “Universal Plug and Play” and click
“OK” to continue.
19
