Planet IPOE-162 User manual

Industrial IEEE 802.3at/af
Gigabit PoE+ Injector
IPOE-162
User’s Manual

Table of Contents
1. Package Contents...................................................................... 3
2. Product Features ....................................................................... 4
3. ProductSpecications ................................................................ 6
4 Hardware Description................................................................. 8
4.1 Physical Dimensions ............................................................ 8
4.2 Product Outlook.................................................................. 9
4.3 Industrial PoE+ Injector Upper Panel ...................................10
4.4 Wiring the Power Inputs.....................................................10
4.5 Wiring the Fault Alarm Contact ...........................................11
5. Mounting Installation ................................................................13
5.1 DIN-rail Mounting ..............................................................13
5.2 Removal of Device .............................................................14
5.3 Wall-mount Plate Mounting .................................................15
6. Hardware Installation................................................................16
7. Customer Support ....................................................................19

3
1. Package Contents
Thank you for purchasing PLANET Industrial IEEE 802.3at High Power
over Ethernet Injector, IPOE-162. The “802.3at PoE+ Injector”
mentioned in this User’s Manual refers to the IPOE-162.
Open the box of the Industrial IEEE 802.3at High Power over Ethernet
Injector and carefully unpack it. The box should contain the following
items:
IPOE-162:
lIndustrial IEEE 802.3at Gigabit High Power over Ethernet Injector x 1
lUser’s Manual x 1
lDIN-rail Kit x 1
lWall-mount Kit x 1
lDust Cap x 2
If any of these are missing or damaged, please contact your dealer
immediately; if possible, retain the carton including the original packing
material, and use them again to repack the product in case there is a
need to return it to us for repair.

4
2. Product Features
Interface
l2 RJ45 interfaces
1-port Data + Power output
1-port Data input
lOne terminal block for master and slave power input. (Power
Range: 12 ~ 48V DC / 24V AC redundant power.)
PoE
lGigabit High Power over Ethernet mid-span PSE
lIEEE 802.3at/802.3af PoE compliant
lIEEE 802.3at/802.3af splitter devices compatible
lSupports PoE Power up to 30 watts for the PoE port
lProvides DC 56V power over RJ45 Ethernet cable to device with
Ethernet port
lAuto-detection of PoE IEEE 802.3at/802.3af devices
lRemote power feeding up to 100m
Hardware
lIP30 slim metal case
lLED indicators for power LED and PoE-in-use
Industrial Case and Installation
lDIN-rail and wall-mount design
lSupports 6000 VDC EFT protection for power line
lSupports 6000 VDC Ethernet ESD protection
l-40 to 75 degrees C operating temperature

5
Note
PDs (powered devices) are PoE-enabled terminals,
such as IP phones, network cameras, wireless access
points, etc., powered by PSE.
PSE (power sourcing equipment) is a device (switch,
or hub for instance) that provides power in a PoE setup.
The allowed maximum continuous output power per
device is 15.4W for the IEEE 802.3af standard, and 30W
for the IEEE 802.3at standard.

6
3.ProductSpecications
Product IPOE-162
HardwareSpecications
Hardware Version 2
Interface
Input Port 1 x RJ45 STP (Data In)
Output Port 1 x RJ45 STP (Data + Power Out)
Input Power
Terminal Block 1
LED Indicator
System:
Power 1 (Green),
Power 2 (Green),
Fault (Red)
PoE Port:
PoE-in-use x 1 (Orange)
Network Cable
10BASE-T: UTP Cat. 3, 4, 5, up to 100m
(328ft)
100BASE-TX: UTP Cat. 3, 4, 5, up to 100m
(328ft)
1000BASE-T: UTP Cat. 5, 5e, 6 up to 100m
(328ft)
EIA/TIA- 568 100-ohm STP (100m)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 135 x 97 x 32 mm
Weight 473g
Unit Input Voltage 12 ~ 48V DC / 24V AC
Power Consumption 30 watts max.
Number of devices can be
powered 1
Installation DIN-rail kit and wall-mount ear
Alarm
Provides one relay output for power failure;
alarm relay current carry ability: 3A @ DC
24V
Enclosure IP30 slim metal case

7
Power over Ethernet
PoE Standard IEEE 802.3at High Power over Ethernet /
mid-span PSE
PoE Power
Output
DC 24~48V
Input 30 watts
DC 12V Input 25 watts
PoE Power Supply Type Mid-span
Power Pin Assignment 4/5(+), 7/8(-)
Standards Conformances
Standards Compliance
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
FCC FCC Part 15B Class A
CE
EMI
EN 55022
EN 61000-3-2
EN 61000-3-3
EMS
EN 61000-4-2 (ESD)
EN 61000-4-3 (RS)
EN 61000-4-4 (EFT)
EN 61000-4-5 (Surge)
EN 61000-4-6 (CS)
EN 61000-4-8 (PFMF)
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
Note
The PoE power output ability will depend on the
distance.

8
4 Hardware Description
4.1 Physical Dimensions
32.00
135.00
87.80
97.10
48.8046.50 39.70
28.00
48.80
53.50 53.50
18.00
15.20
30.00
9.20
135.00
87.80
87.80
87.80
40.00
28.0018.00
28.00
18.0028.00
28.00
40.00
28.00
Top View
Side View
Front View
Mounting Kit Mounting KitDIN-Rail Kit
Side View
Rear View
Dimensions ( unit = mm )
Bottom View

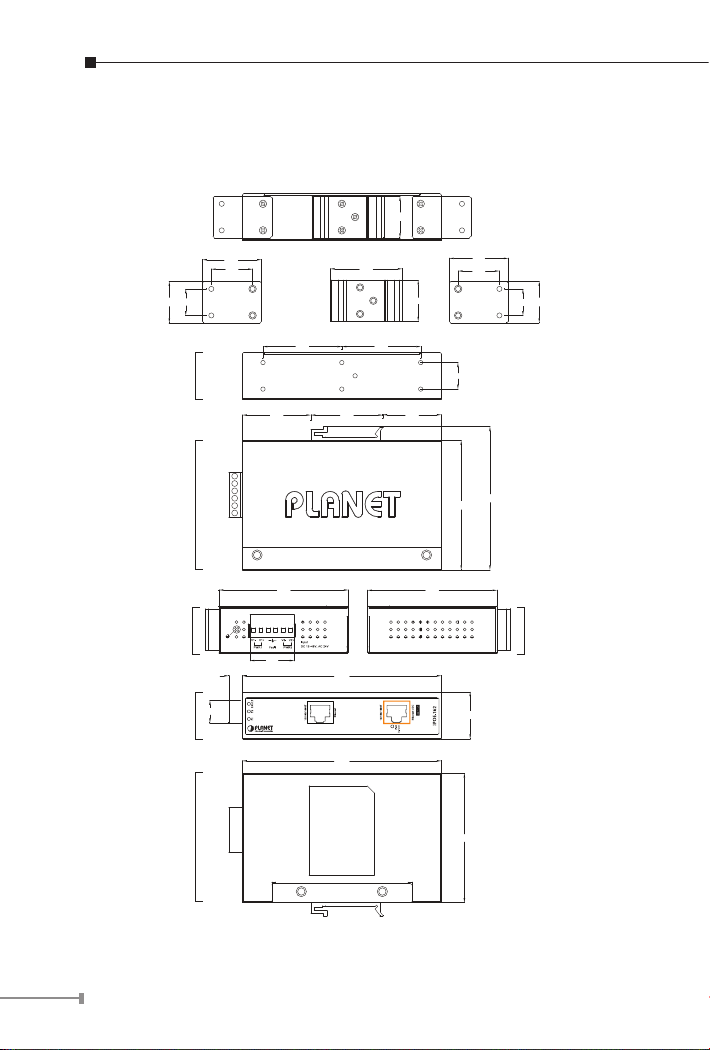

Figure 4-1 IPOE-162 dimensions

9
4.2 Product Outlook

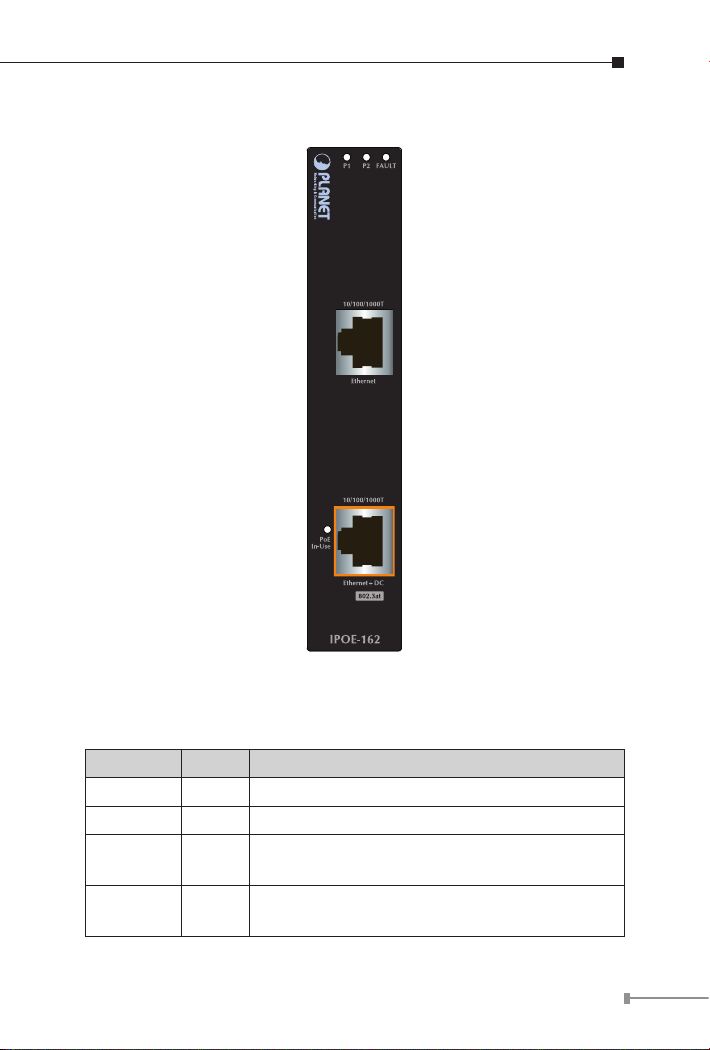

Figure 4-2 IPOE-162 outlook
LED Indicators
LED Color Function
P1 Green Indicates Power 1 has power.
P2 Green Indicates Power 2 has power.
FAULT Red Indicates either Power 1 or Power 2 has no
power.
PoE in-Use Orange Indicates the port is providing 56V DC in-line
power.

10
4.3 Industrial PoE+ Injector Upper Panel
The upper panel of the Industrial PoE+ Injector consists of one
terminal block connector within two DC/AC power inputs. Figure 1
shows the upper panel of the Industrial PoE+ Injector.
1 2 3 4 5 6

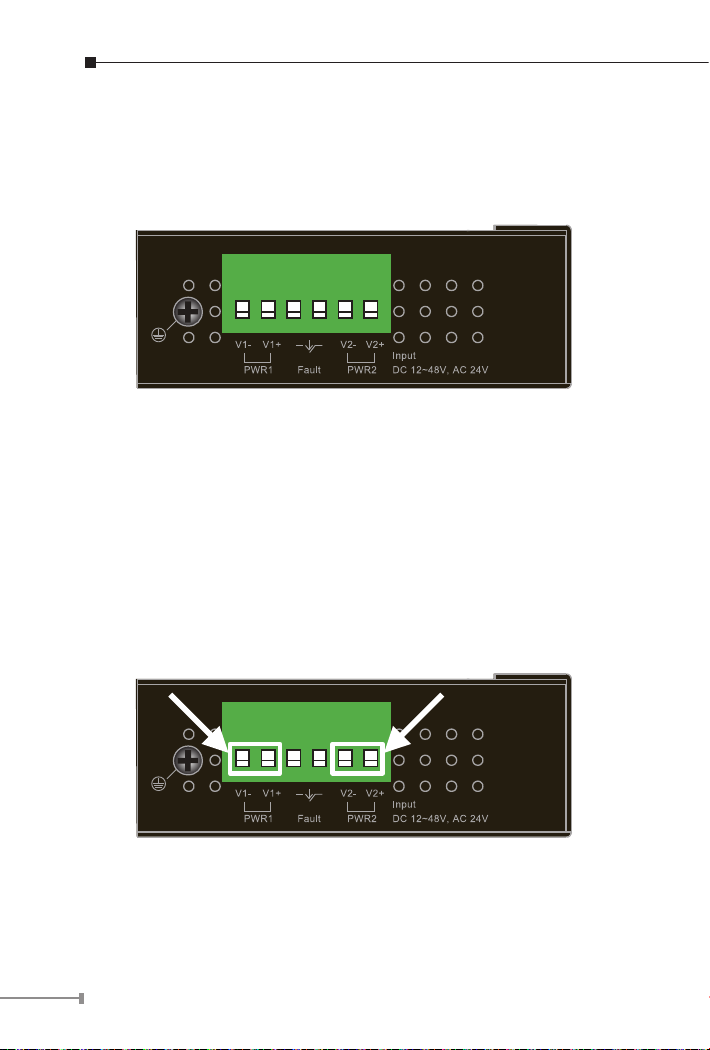

Figure 4-3: Industrial PoE+ Injector Upper Panel
4.4 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial
PoE+ Injector is used for two DC/AC redundant power inputs. Please
follow the steps below to insert the power wire.
1. Insert the positive and negative DC power wires or neutral/Line AC
power wires into Contacts 1 and 2 for Power 1, or 5 and 6 for Power
2.
1 2 3 4 5 6

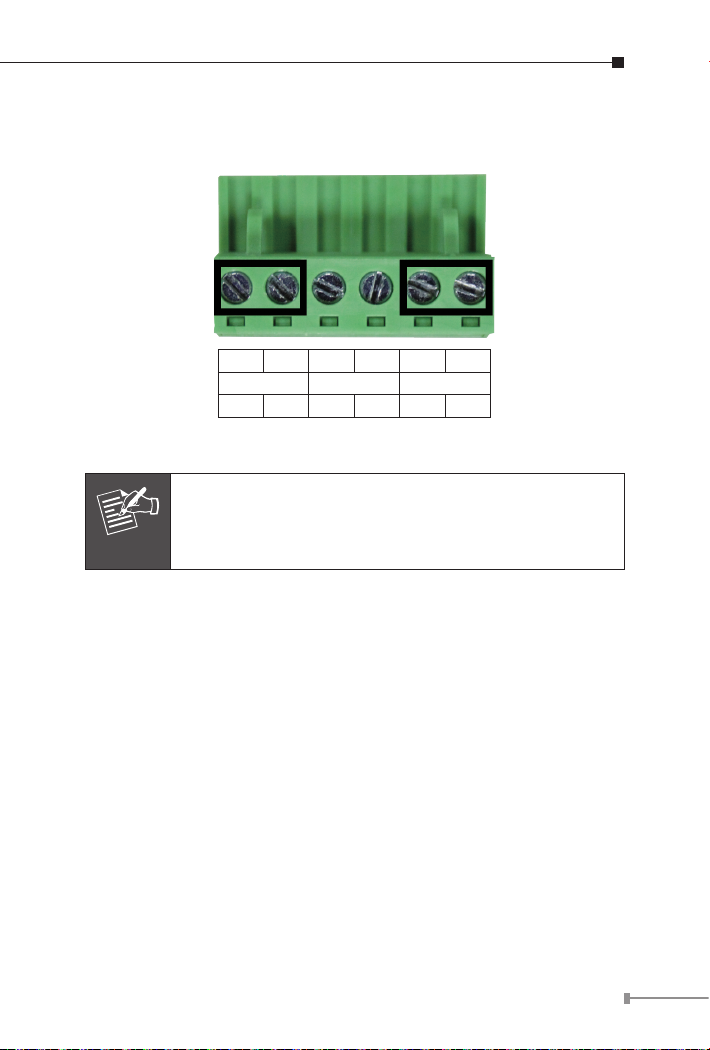

Figure 4-4: Power Input Pins

11
2. Tighten the wire-clamp screws for preventing the wires from loos-
ening.
1 2 3 4 5 6
Power 1 Fault Power 2
- + - +
Figure 4-5: PWR1 & PWR2 Pin of Terminal Block
Note
The wire gauge for the terminal block should be in the
range of 12 to 24 AWG.
4.5 Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of the terminal block
connector as the picture shows below. Inserting the wires, the
Industrial PoE+ Injector will detect the fault status of the power failure
and then forms an open circuit. The following illustration shows an
application example for wiring the fault alarm contacts.

12
Insert the wires into the fault alarm

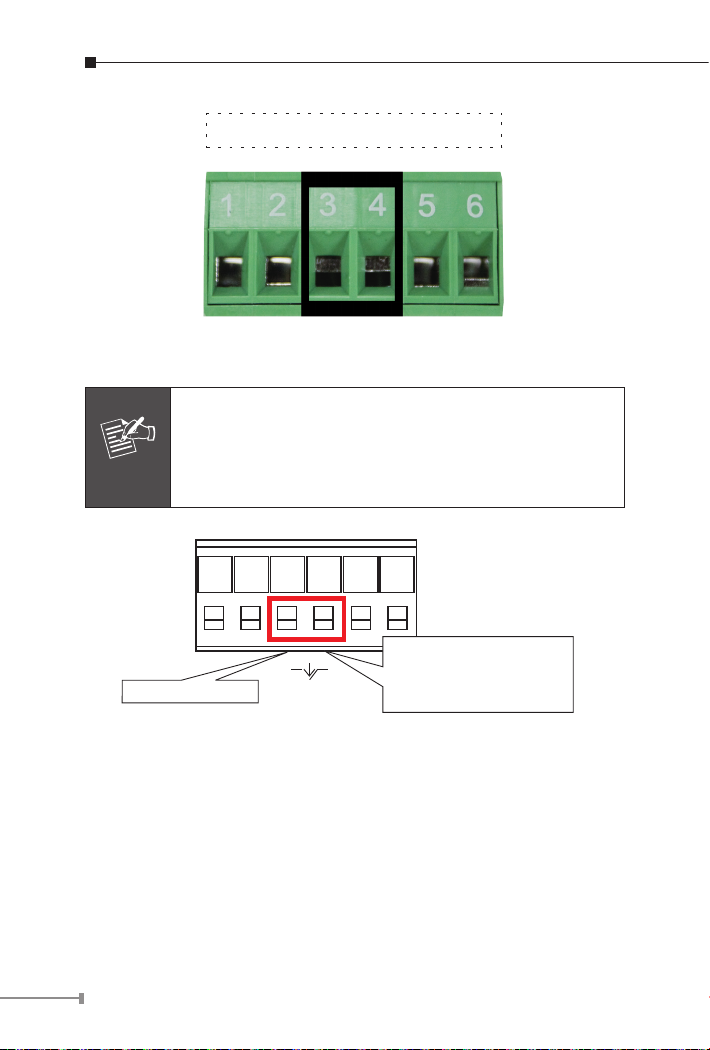

Figure 4-6: Fault Pin of Terminal Block
Note
1. The wire gauge for the terminal block should be in
the range of 12 to 24 AWG.
2. Alarm relay circuit accepts up to a maximum of 30V,
3A currents.
Fault Alarm Contacts
The Fault Alarm Contacts are
energized (CLOSE) for normal
operation and will OPEN when
failure occurs
Fault
Figure 4-7: Fault Alarm Contact

13
5. Mounting Installation
This section describes how to install the Industrial Equipment and make
connections to it. Please read the following topics and perform the
procedures in the order being presented.
Note
In the installation steps below, this Manual uses the
IGS-801 (PLANET 8-port Industrial Gigabit Switch) as an
example. However, the steps for PLANET industrial slim
switch, industrial media/serial converter and Industrial
PoE equipment are similar.
5.1 DIN-rail Mounting
The DIN rail is already screwed on the industrial device. Please refer to
thefollowing guresforhangingthedevice:
Step 1: PlacetheupperDIN-railbracketintothetrackrst.
1
2
Figure 5-1: DIN-rail mounting

14
Step 2: The lower DIN-rail bracket is then placed into the track.
Figure 5-2: Complete DIN-rail mounting
5.2 Removal of Device
Step 1: Please refer to following procedure to remove the device from
the track.
1
2
Figure 5-3: Removal of Device from Track

15
Step 2: Reverse the mounting steps to remove the device from the
track.
5.3 Wall-mount Plate Mounting
To install the industrial device on the wall, please follow the instructions
described below:
Step 1: Remove the DIN-rail bracket from the industrial device by
using a screwdriver.
Step 2: Then screw the wall-mount plate on the rear panel of the
industrial device.
Figure 5-4: Placing Wall-mount Plate on Industrial Device
Step 3: Use the holes in the corners of the wall-mount plate to hang
the industrial device on the wall.
Step 4: To remove the wall mount plate, reverse steps above.

16
6. Hardware Installation
This Industrial IEEE 802.3at Gigabit High Power over Ethernet Injector
provides three different running speeds – 10Mbps, 100Mbps and
1000Mbps in the same device and automatically distinguishes the
speed of the incoming connection. Please refer to following sections for
detailed information about Industrial IEEE 802.3at Gigabit High Power
over Ethernet Injector.
Before Installation
Before your installation, it is recommended to check your network
environment. If there is no electrical outlet in a remote setting, the
IPOE-162 injector is available to solve the problem. If a longer distance
is needed to install PDs, PLANET POE-162S/IPOE-162S splitter can be
used to supply power to the PDs conveniently.
Note
The IPOE-162 with IPOE-162S/POE-162S is installed
in pair. However, the use of the third-party device is
allowed if the device is compliant with the IEEE 802.3at
Power over Ethernet.
IPOE-162 Injector Installation
1. Connect the power (AC 24V or DC 12 ~ 48V) to the 6-pin terminal
block of the IPOE-162. The power LED will be steadily on.
2. Connect a standard network cable from a switch / workstation to
“Ethernet” port of the IPOE-162.
3. Then connect the long cable to the “Ethernet + DC” port of a
remote device.
4. Due to the capability of the IEEE 802.3at Power over Ethernet, the
IPOE-162 can directly connect with any IEEE 802.3at/IEEE 802.3af
end-nodes such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ
speed dome cameras, color touch- screen Voice over IP (VoIP) tele-
phones and multi- channel wireless LAN access points.

17
Power Line
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
IPOE-162
Industrial
Switch
Power
Supply
AC 24V/DC 12~48V
IPOE-162 Installation
-40
℃
75
℃
Power
Data PoE
PTZ Camera
PoE
Power
Data
100 meters
Once the IPOE-162 detects the existence of an IEEE 802.3at device,
the POE-in-use LED indicator will be steadily on to show it is providing
power.
Note
1. As the IPOE-162 PoE port supports 56V DC PoE
power output, make sure PDs accept DC power
ranging from 52 to 56V DC. Otherwise, it will damage
the PDs.
2. If the connected PDs do not fully comply with IEEE
802.3at Power over Ethernet or in-line power device,
the IPOE-162 might encounter the incompatible issue
and thus fails to power up the devices
IPOE-162 Injector and IPOE-162S Splitter Installation
1. Connect the power (AC 24V or DC 12 ~ 48V) to the 6-pin terminal
block of the IPOE-162. The power LED will be steadily on.
2. Connect a standard network cable from the “Ethernet+DC” port of
IPOE-162 to the “PoE In” port of the IPOE-162S. The POE-in-use
LED of the IPOE-162/IPOE-162S will then light up continuously.
3. Connect a standard network cable from a switch/workstation to the
“Ethernet” port of the IPOE-162.

18
4. Then connect the UTP cable from the “Ethernet” port of the IPOE-
162S to the RJ45 port of a remote device.
5. Adjust the proper DC voltage power output and connect the DC plug
from the “Power Output” of the IPOE-162S to a remote device.
6. Power on the remote device and its power LED indicator will remain
on.
Power Line
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
IPOE-162
Industrial
Switch
Power
Supply
AC 24V/DC 12~48V
IPOE-162 + IPOE-162S Installation
-40
℃
75
℃
802.3at
PoE Splitter
Power
Data
Power
DC
PTZ Camera
12V/24V DC Output
PoE
Power
Data
Data
100 meters
Note
1. The IPOE-162 injector will not inject power over the
cable to non-IEEE 802.3at devices.
2. Please ensure the output voltage is correct before
applying power to a remote device. Otherwise, it will
damage the PD.

19
7. Customer Support
Thank you for purchasing PLANET products. You can browse our online
FAQ resource at PLANET Web site rst to check if it could solve you
issue. If you need more support information, please contact PLANET
switch support team.
PLANET online FAQs:
http://www.planet.com.tw/en/support/faq.php?type=2
Switch support team mail address:
[email protected]
Copyright © PLANET Technology Corp. 2018.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners

PLANET TECHNOLOGY CORPORATION
e-mail: [email protected] http://www.planet.com.tw
10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:[phone] Fax:[phone]
EC Declaration of Conformity
For the following equipment:
*Type of Product : Industrial IEEE 802.3at High Power over Ethernet Injector
*Model Number : IPOE-162
* Produced by:
Manufacturer‘s Name :Planet Technology Corp.
Manufacturer‘s Address : 10F., No.96, Minquan Rd., Xindian Dist.,
New Taipei City 231, Taiwan, R.O.C.
is herewith confirmed to comply with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to Electromagnetic Compatibility
Directive on (2014/30/EU).
For the evaluation regarding the EMC, the following standards were applied:
EN 55032 (2015 + AC:2016)
EN61000-3-2 (2014)
EN61000-3-3 (2013)
EN 55035 (2017)
Responsible for marking this declaration if the:
Manufacturer Authorized representative established within the EU
Authorized representative established within the EU (if applicable):
Company Name: Planet Technology Corp.
Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan,R.O.C.
Person responsible for making this declaration
Name, Surname Kent Kang
Position / Title : Director
Taiwan
June 12, 2018
Place
Date
Legal Signature
