Planet POE-171A-60 User manual

Single-Port 10/100/1000Mbps
802.3bt PoE Injector
POE-171A Series
User’s Manual

Copyright
Copyright © 2018 by PLANET Technology Corp. All rights
reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any
form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written
permission of PLANET.
PLANET makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and
specically disclaims any warranties, merchantability or tness
for any particular purpose. Any software described in this
manual is sold or licensed “as is”. Should the programs prove
defective following their purchase, the buyer (and not PLANET,
its distributor, or its dealer) assumes the entire cost of all
necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software. Further,
PLANET reserves the right to revise this publication and to
make changes from time to time in the contents hereof without
obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are
trademarks and/or registered trademarks of their respective
holders.
Trademarks
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.

Disclaimer
PLANET Technology does not warrant that the hardware will
work properly in all environments and applications, and makes
no warranty and representation, either implied or expressed,
with respect to the quality, performance, merchantability, or
tness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual
is accurate; PLANET disclaims liability for any inaccuracies
or omissions that may have occurred. Information in this
User’s Manual is subject to change without notice and does
not represent a commitment on the part of PLANET. PLANET
assumes no responsibility for any inaccuracies that may be
contained in this User’s Manual. PLANET makes no commitment
to update or keep current the information in this User’s Manual,
and reserves the right to make improvements to this User’s
Manual and/or to the products described in this User’s Manual,
at any time without notice. If you nd information in this
manual that is incorrect, misleading, or incomplete, we would
appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
Instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.

CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference, in which case the user
may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment
and human health as a result of the presence of
hazardous substances in electrical and electronic
equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted
municipal waste and have to collect such WEEE separately.
Revision
PLANET POE-171A Series User’s Manual
Model: POE-171A-60, POE-171A-95
Revision: 1.0 (January, 2018)
Part No.: 2350-AF0620-000

Table of Contents
1. Package Contents ............................................................. 6
2. Product Features............................................................... 7
3. Product Specications ....................................................... 9
4. Product Outlook.............................................................. 11
5. Hardware Installation ...................................................... 15
5.1 Before Installation.................................................... 15
5.2 POE-171A series Installation ..................................... 15
5.3 POE-171A series and POE-172S Installation ............... 16
5.4 POE-171A series and POE-E304 Installation................ 17
Customer Support............................................................... 19

6
1.Package Contents
Thank you for purchasing PLANET POE-171A Single-port
10/100/1000Mbps series
Model LAN Port Speed PoE Standard PoE Budget
POE-171A-60 10/100/1000Mbps IEEE 802.3af/at/bt 60 watts
POE-171A-95 10/100/1000Mbps IEEE 802.3af/at/bt 95 watts
Please unpack the box of the device carefully, and the box
should contain the following items:
802.3bt PoE injector x 1 User’s manual x 1
Power adaptor x 1 AC power cord x 1
If any of these are missing or damaged, please contact your
dealer immediately; if possible, retain the carton including the
original packing material, and use them again to repack the
product in case there is a need to return it to us for repair.

7
2.Product Features
Interface
2 RJ45 interfaces
¾1-port Data + Power output
¾1-port Data input
1 DC 52~56V input power socket
1 PoE mode (Standard/Legacy) DIP switch
Power over Ethernet
Complies with IEEE 802.3af/at/bt PoE end-span/mid-span
PSE
Supports PoE power up to 60/95 watts for PoE port
Auto-detection of PoE IEEE 802.3af/at/bt equipment and
devices from being damaged by incorrect installation
Monitor the status of the total PoE usage in real time
Remote power feeding up to 100m
Auto-detection of DC input voltage
Standard Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE -TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bt 4-pair Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
FCC Part 15 Class A, CE

8
Note
PSE (Power Sourcing Equipment) is a device
(switch, or hub for instance) that will provides
power in a PoE setup. Maximum allowed contin-
uous output power per such device in IEEE
802.3af is 15.4W, and in IEEE 802.3at is 30W.
PD (Powered Device) is a PoE-enabled terminal
by PSE and thus consumes energy, such as PoE
IP phones, PoE IP cameras, PoE wireless access
points, etc.

9
3.ProductSpecications
Product POE-171A-60 POE-171A-95
Hardware Specications
Interface
Input Port 1 x RJ45 STP
Data In
Output Port 1 x RJ45 STP
PoE (Data + Power) Out
DC Socket 1 x 52~56V DC input socket
Network Cable
Twisted-pair cable up to 100 meters
(328ft)
10BASE-T: 4-pair UTP Cat3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat5, 5e, 6
1000BASE-T: 4-pair UTP Cat5e, 6
IEEE 802.3bt device will
provide high power, please use
high quality network cable.
LED Indicator
System: Power x 1 (Green)
PoE Port: PoE in-Use x 1 (Orange)
Legacy mode: Legacy x 1 (Orange)
PoE Usage: PoE Usage x 3 (Orange)
Data Rate 10/100/1000Mbps
Dimensions
(W x D x H) 94 x 70.3 x 26.2 mm
Weight 200g 250g
Unit Output Voltage DC 52~56V
Power Requirements DC 52-56V, 1.4A
max.
DC 52-56V, 2.5A
max.

10
Power Consumption 72 watts max. 130 watts max.
No. of devices that can
be powered 1
Power over Ethernet
PoE Standard IEEE 802.3af/at/bt Ultra PoE PSE
PoE Power Output
Budget
DC 54V / 60-watt
PoE via 4-pair
DC 54V / 30-watt
PoE via 2-pair
DC 54V / 95-watt
PoE via 4-pair
DC 54V / 30-watt
PoE via 2-pair
PoE Power Supply Type End-span + Mid-span
Power Pin Assignment Pair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
Standards Conformance
Standards Compliance
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit
Ethernet
IEEE 802.3bt 4-pair Power over
Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -10 ~ 70 degrees C
Operating Humidity 5 ~ 90%, Relative Humidity,
non-condensing
Storage Humidity 5 ~ 90%, Relative Humidity,
non-condensing

11
4.Product Outlook
Standard Legacy
PoE Mode
Ethernet+DC
10/100/1000T
60W+
40W 20W
PoE Usage
PWR PoE-in-Use Legacy
802.3bt Power over Ethernet Injector
POE-171A-60
802.3bt PoE++ Injector
Ethernet
10/100/1000T
52~56V DC IN
Figure 1: POE-171A-60 outlook
Ethernet+DC
10/100/1000T
90W+
60W 30W
PoE Usage
POE-171A-95
802.3bt PoE++ Injector
PWR PoE-in-Use Legacy
802.3bt Power over Ethernet Injector
Ethernet
10/100/1000T
52~56V DC IN
Standard Legacy
PoE Mode
Figure 2: POE-171A-95 outlook

12
LED Indicators:
LED Color Function
PWR Green Lights to indicate the 802.3bt PoE injector
has power.
PoE-in-Use Orange Lights to indicate the device is providing
PoE power.
Legacy Orange Lights to indicate the device is working in
Legacy mode.
PoE Usage Orange PoE Usage LED can monitor the DC input
voltage or the status of the power usage.
Detect DC input voltage of POE-171A series:
When user powers on POE-171A series injector by DC adapter,
the injector will detect the DC input voltage and then PoE Usage
LED will ash three times.
LED Description
20W/30W Flashing three times means the DC input voltage
is 48~51V.
40W/60W Flashing three times means the DC input voltage
is 52~54V.
60W+/90W+ Flashing three times means the DC input voltage
is 55~56V.

13
Monitor power usage of POE-171A-60:
LED Description
20W
1. Off to indicate the PoE usage is less than 9W.
2. Blinks to indicate that the PoE usage is around 10W
to 19W.
3. Lights to indicate the PoE usage is around 20W to
29W.
40W
1. Blinks to indicate that the PoE usage is around 30W
to 39W.
2. Lights to indicate the PoE usage is around 40W to
49W.
60W+
1. Blinks to indicate that the PoE usage is around 50W
to 59W.
2. Lights to indicate the PoE usage is maximum.
Monitor power usage of POE-171A-95:
LED Description
30W
1. Off to indicate the PoE usage is less than 14W.
2. Blinks to indicate that the PoE usage is around 15W
to 29W.
3. Lights to indicate the PoE usage is around 30W to
44W.
60W
1. Blinks to indicate that the PoE usage is around 45W
to 59W.
2. Lights to indicate the PoE usage is around 60W to
74W.

14
90W+
1. Blinks to indicate that the PoE usage is around 75W
to 89W.
2. Lights to indicate the PoE usage is maximum.
PoE Mode:
PoE Mode Description
Standard Fully conforms to the IEEE 802.3af/at/bt standard.
Legacy
The legacy detection is to identify the PD devices
that did not fully follow the IEEE 802.3af/at/bt
standard, their unique electrical signatures, in
order for the PoE injector to provide the power to
those PD devices.
Note
After changing the PoE mode, please power off
and then on the PoE injector to make the change
effective.

15
5.Hardware Installation
The following section describes the hardware features of
POE-171A series. Before connecting any network device to it,
please read this chapter carefully.
5.1 Before Installation
Before your installation, it is recommended to check your
network environment. If there is any IEEE 802.3bt device that
needs to be powered on and works normally, the POE-171A
series provides you with a way out to supply power to this
Ethernet device conveniently and easily. The POE-171A series is
equipped with a power adaptor which is 100-240V AC input and
injects DC 52V~56V power into the pin of the twisted pair cable
(pair 1/2 [-], 3/6 [+] and pair 4/5 [+], 7/8 [-]).
5.2 POE-171A series Installation
1. Connect the AC power adaptor to “52-56V DC IN” of POE-
171A series; the “PWR” LED will be steadily on.
2. Connect a standard Ethernet cable from an Ethernet switch or
PC workstation to “Ethernet” port of POE-171A series.
3. Connect the long cable to “Ethernet+DC” port.
4. Connect with IEEE 802.3af/at/bt devices. Due to the capa-
bility of IEEE 802.3af/at/bt Power over Ethernet, the POE-
171A series can directly connect with any IEEE 802.3af/at/bt
end-nodes, such as PTZ (Pan, Tilt & Zoom) network cameras,
PTZ speed dome, color touch screen, Voice over IP (VoIP)
telephones and multi-channel wireless LAN access points
which support IEEE 802.3af/at/bt In-line Power over Ethernet
port. The screen in Figure 3 appears.

16
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
PoE
Power
Data
PoE PTZ
IP Camera
100 meters
802.3bt PoE Injector
POE-171A-60
Switch
Data
Power
AC-to-DC Adapter
110-240V AC

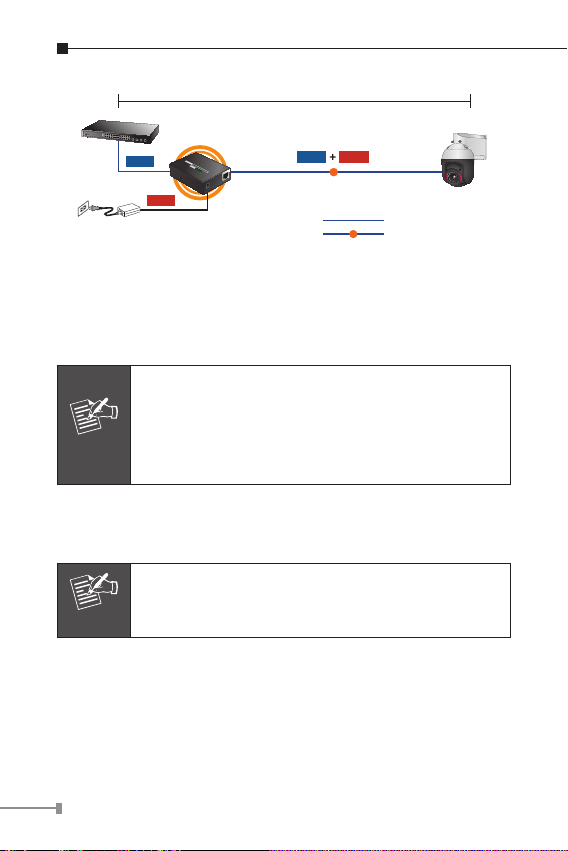

Figure 3: Connecting architecture with IEEE 802.3af/at/bt device
Once POE-171A series detects the existence of an IEEE 802.3af/
at/bt device, the PoE-in-Use LED indicator will be steadily on
to show it is providing power.
Note
Since the PoE port of POE-171A series supports
52-56V DC PoE power output, please check and
assure the powered device (PD) accepts DC power
range of 52-56V DC. Otherwise, it will damage the
powered device (PD).
5.3 POE-171A series and POE-172S Installation
Note
Please turn off POE-172S before you switch to DC
power output mode.
1. Adjust proper DC power output and connect DC plug from
“DC OUT” of POE-172S to remote device.
2. Connect the power adaptor to “52-56V DC IN” of POE-171A
series; the “PWR” LED will be steadily on.
3. Connect a standard Ethernet cable from “Ethernet+DC”
port of POE-171A series to “PoE In” port of POE-172S. The

17
“30W” and “60W+” LED of POE-172S and the “PoE-in-
Use” of POE-171A series will light up continuously.
4. Connect a standard Ethernet cable from an Ethernet switch or
PC workstation to “Ethernet” port of POE-171A series.
5. Connect a standard Ethernet cable from “Ethernet” port of
POE-171S to the remote Ethernet device.
6. The remote device will be turned on.
12V/19V/24V
100 meters
Power
Data
PoE
Power
Data
DC
Digital
Signage
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
DC
Power Line (DC)
Ultra PoE Splitter
802.3bt PoE Injector
60 watts
POE-171A-60
POE-172S
Switch
Data
Power
AC-to-DC Adapter
110-240V AC
Figure 4: Connected Architecture over POE-171A series and POE-172S
Note
1. According to IEEE 802.3af/at/bt Power over
Ethernet, the POE-171A series will not inject
power to the cable if not connected to IEEE
802.3af/at/bt device.
2. Please ensure the POE-172S output voltage is
correct before applying power to remote device.
The POE-172S provides DC12V/19V/24V power
output.
5.4 POE-171A series and POE-E304 Installation
1. Connect the power adaptor to “52-56V DC IN” of POE-171A
series; the “PWR” LED will be steadily on.

18
2. Connect a standard Ethernet cable from “Ethernet+DC” port
of POE-171A series to the “PoE IN” port of POE-E304.
3. The POE-171A series delivers both Ethernet Data and PoE
power over UTP cable to the POE-E304 and the POE-in-Use
LED of POE-171A series and “PWR” LED of POE-E304 will
light up continuously.
4. Connect the additional standard Ethernet cable that will be
used for connecting to the remote powered device (PD) to the
“PoE OUT” port of POE-E304.
5. The “PoE OUT” port is also the power injectors which
transmit DC Voltage to the standard network cable and
transfer data and power simultaneously between the POE-
171A series and PD.
6. Once POE-E304 detects the existence of an IEEE 802.3af/at
device, the “PoE OUT” LED indicator will be steadily ON to
show it is providing power.
Ultra
PoE Extender
PoE
+
Power
Data
+
Power
Data
100 meters
100 meters
200 meters
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
PoE IP Camera
Switch
Data
POE-171A-60
Power
PoE
PoE
PoE
PoE
AC-to-DC Adapter
110-240V AC

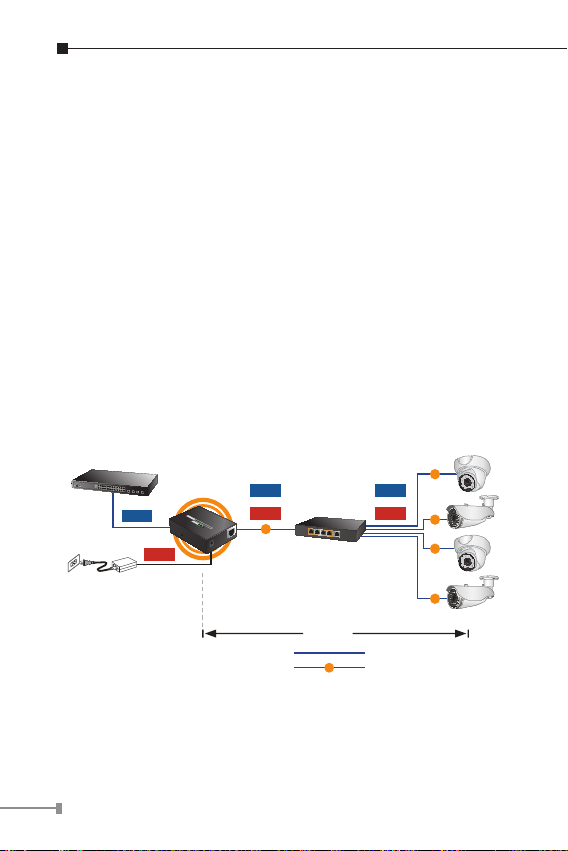

Figure 5: Connected Architecture over POE-171A series and POE-E304

Note
1. If the connected device is not fully complied
with IEEE 802.3af/at standard or in-line power
device, the PoE OUT LED indicator of POE-E304
will not be steadily on.
2. According to IEEE 802.3af/at standard, the
POE-E304 will not inject power to the cable if
not connected to a standard IEEE 802.3af/at
device.
Customer Support
Thank you for purchasing PLANET products. You can browse our
online FAQ resource at the PLANET Web site rst to check if it
could solve your issue. If you need more support information,
please contact PLANET switch support team.
PLANET online FAQs:
http://www.planet.com.tw/en/support/faq.php?type=2
Switch support team mail address:
[email protected]
Copyright © PLANET Technology Corp. 2018.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other
trademarks belong to their respective owners.

PLANET TECHNOLOGY CORPORATION
e-mail: sale[email protected]m.tw http://www.planet.com.tw
10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan Tel :[phone] Fax:[phone]
EC Declaration of Conformity
For the following equipment:
*Type of Product : Single-Port 10/100/1000Mbps 802.3bt PoE Injector
*Model Number : POE-171A-60, POE-171A-95
* Produced by:
Manufacturer‘s Name :Planet Technology Corp.
Manufacturer‘s Address : 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan
is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of
the Laws of the Member States relating to Electromagnetic Compatibility Directive on 2014/30/EU.
For the evaluation regarding the EMC, the following standards were applied:
EN55032 (2015)
EN 61000-3-2 (2014)
EN 61000-3-3 (2013)
EN55024 (2010+A1:2015)
IEC 61000-4-2 (2008)
IEC 61000-4-3 (2006+A1:2007+A2:2010)
IEC 61000-4-4 (2012)
IEC 61000-4-5 (2014)
IEC 61000-4-6 (2013)
IEC 61000-4-8 (2009)
IEC 61000-4-11 (2004)
Responsible for marking this declaration if the:
Manufacturer Authorized representative established within the EU
Authorized representative established within the EU (if applicable):
Company Name: Planet Technology Corp.
Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan
Person responsible for making this declaration
Name, Surname Jonas Yang
Position / Title : Product Manager
Taiwan
Oct. 19, 2016
Place
Date
Legal Signature
