Planet WGS3-2820 User manual

24-Port 10/100Mbps TP + 4-Port Gigabit TP/2-Port mini-GBIC
Layer 3 Managed Ethernet Switch
Data Sheet
1
Cost-Effective Solution
The PLANET WGS3-2820 is a 24-Port 10/100Mbps Layer 3 Managed
Ethernet Switch. Its essentials Layer 3 functionality of multimedia switch
brings high-end security and traffic control to the edge of the network.
With IP routing capability and flexible management tools, the PLANET
Managed Multi-Layer Switch Solution performs a cost-effective way for
today with the ability to expend as the growing of network demands.
High Performance
PLANET WGS3-2820 boasts the high performance switch architecture that
is capable of providing non-blocking switch fabric and wire-speed
throughput as high as 12.8Gbps. Its two built-in Fiber uplink ports also
offer incredible extensibility, flexibility and connectivity to the other core
switches or Servers.
Excellent Traffic Control
PLANET WGS3-2820 is loaded with powerful traffic management and QoS
features to enhance services offered by telecoms. The functionality includes
QoS features such as wire-speed Layer 4 traffic classifiers, bandwidth
limiting, Policy-Based DiffServ that are particular useful for multi-tenant
units, multi business units, Telco, or Network Service Provide applications.
It also empowers the enterprises to take full advantages of the limited
network resources and guarantees the best performance of VoIP and
Video conferencing transmission.
Powerful Security
PLANET WGS3-2820 offers comprehensive Access Control List (ACL) for
enforcing security to the edge. Its protection mechanisms comprises of
port-based 802.1x user and device authentication. The port-security is
effective in limit the numbers of clients pass through. The administrators
can now construct highly secured corporate networks with time and effort
considerably less than before.
Flexibility and Extension Solution
The two mini-GBIC slots are compatible with 1000Base-SX / LX and WDM
SFP (Small Factor Pluggable) fiber-optic modules. The distance can be
extended from 550 meters (Multi-Mode fiber), up to above 10/50/70/120
kilometers (Single-Mode fiber or WDM fiber). They are well suited for
usage within the enterprise data centers and distributions.
Efficient Management
With its built-in web-based management, the PLANET WGS3-2820 offers
an easy-to-use, platform-independent management and configuration
facility. The PLANET WGS3-2820 supports standard Simple Network
Management Protocol (SNMP) and can be managed via any standard-
based management software. For text-based management, the WGS3-
2820 can also be accessed via Telnet and the console port. For remote
secured management, the WGS3-2820 supports SSL and SSH connection
which encrypt the packet content at each session.
WGS3-2820

Data Sheet
2
WGS3-2820
Layer 2 Features
• The 10/100Base-TX ports support auto-sensing and auto-negotiation
• Supports Jumbo frame up to 9K bytes on 10/100/1000Base-T ports
• Provides wire speed of L2 switching performance
• Supports up to 16K MAC address entries
• IEEE 802.3x Flow Control for Full-Duplex mode and Back-Pressure of
Half-Duplex mode
• Provide Store-and-Forward forwarding scheme
• Provides Broadcast storm protection
• Supports IGMP snooping v1, v2 and V3
• Supports 802.1Q Tagged VLAN, Protocol-Based VLAN and GVRP
protocol for dynamic VLAN Management
• Supports double-tagged for Q-in-Q VLAN tag frame
• Supports Spanning Tree Protocol with 802.1d STP, 802.1w RSTP and
802.1s MSTP
• Link Aggregation bandwidth gathering supports 802.3ad LACP and
Static Port Trunk
• Provides Port Mirror (many-to-1)
IP Routing Features
•IP Routing protocol supports RIP v1 / v2, OSPF v2
•Routing interface provides per-Port routing and VLAN routing mode
•Supports router discovery (IRDP)
•VRRP protocol for redundant routing deploy
•Supports route redistribution
Multicast Routing Features
•Supports PIM-DM and PIM-SM
•Supports DVMRP
•Supports IGMP v1 / v2 / v3
Security
• User / Password protected system management
• L2 / L3 / L4 ACL (Access Control List)
• RADIUS and TACACS client
• IEEE 802.1x Port-Based Authentication for network access control
• Port MAC lock Security
Quality of Service
• IEEE 802.1p based CoS
• IP TOS / Precedence and DSCP based CoS
• 8 priority queues per port
• Policy based DiffServ per port
• Supports for strict priority and Weighted Round Robin (WRR) CoS
policies
Management
• Provides 1 male DB9 RS-232 console interface
• Supports Command Line Interface of switch management
• Supports Web management for switch
• Supports SNMP v1, v2c, and v3 switch management
• Supports BOOTP and DHCP for IP address assignment
• Supports software and configuration upload/download via XMODEM or
TFTP
• Supports SSH v1 / v2 and SSL v3 / TLS v1 switch management and
security network login
• Supports SSH / SSL / TLS keys download via TFTP
• Supports SNTP (Simple Network Time Protocol)
• Supports Ping and telnet function
• Supports message / event / error / trap logs
• Supports logging to local file and Syslog server
• Supports Private Enterprise MIB
• Supports RMON groups 1, 2, 3 and 9
Key Feature

WGS3-2820
24-Port 10/100Mbps TP + 4-Port Gigabit TP/2-Port mini-GBIC
Layer 3 Managed Ethernet Switch
Product
Specification
Model
Hardware Specification
10/100Base-TX Ports
10/100/1000Base-T Ports
SFP / mini-GBIC Slots
Switch Architecture
Switch Fabric
Switch Throughput
Address Table
Layer 3 Routing Table
Buffer Memory
Flow Control
LED
Layer 2 Function
Management Interface
Port Configuration
Port Status
VLAN
Port Trunking
QoS
IGMP Snooping
IP Routing Protocol
Multicast Routing Protocol
Standards Conformance
Regulation Compliance
Standards Compliance
Physical Specifications
Dimensions (W x H x D)
Weight
Environment Specifications
Operating
Storage
WGS3-2820
24 RJ-45 Auto-MDI / MDI-X ports
4 RJ-45 Auto-MDI / MDI-X ports
2 SFP interfaces
Store-and-Forward
12.8Gbps Capacity
9.5Mpps
16K MAC address table with Auto learning function
2048
2Mbits for packet buffer
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex
Power, Link / Act- for per port status definition
Console. Telnet, SSH, Web, SSL, SNMP
Port disable / enable. Auto-negotiation 10/100Mbps full and half duplex mode selection Flow
Control disable / enable. Bandwidth control on each port
Display each port's speed duplex mode, link status and Flow control status. Auto negotiation
status and trunk status
IEEE 802.1Q Tagged Based VLAN ,up to 4041 VLAN groups
Supports 10 groups of 8-Port trunk
Traffic classification based on Port Number, 802.1p priority and DS / TOS field in IP Packet
Allow to be disabled or enable.
Static Route, RIPv1 / v2, OSPFv2, IRDP, VRRP
DVMRP, PIM-DM / SM
FCC Part 15 Class A, CE
IEEE 802.3  10BASE-T
IEEE 802.3u 100BASE-TX / 100BASE-FX
IEEE 802.3z Gigabit SX / LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control
IEEE 802.3ad Port trunk with LACP
IEEE 802.1d Spanning tree protocol 
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
430 x 44.5 x 350 mm, 1U height
4.5 KG
Temperature 0°C ~ 50 Degree C
Relative Humidity  20% ~ 85% (non-condensing)
Temperature  -40°C ~ 70 degree C
Relative Humidity  20% ~ 90% (non-condensing)
Data Sheet
3

PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property or
their respective owners. Copyright©2007 PLANET Technology Corp. All rights reserved.
05-07 C-WGS32820-1
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan R.O.C.
Tel: [phone]  Fax: [phone]
Email: [email protected] www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
4
Data Sheet
WGS3-2820
24-Port 10/100Mbps TP + 4-Port Gigabit TP/2-Port mini-GBIC Layer 3 Managed Ethernet Switch
WGS3-2820

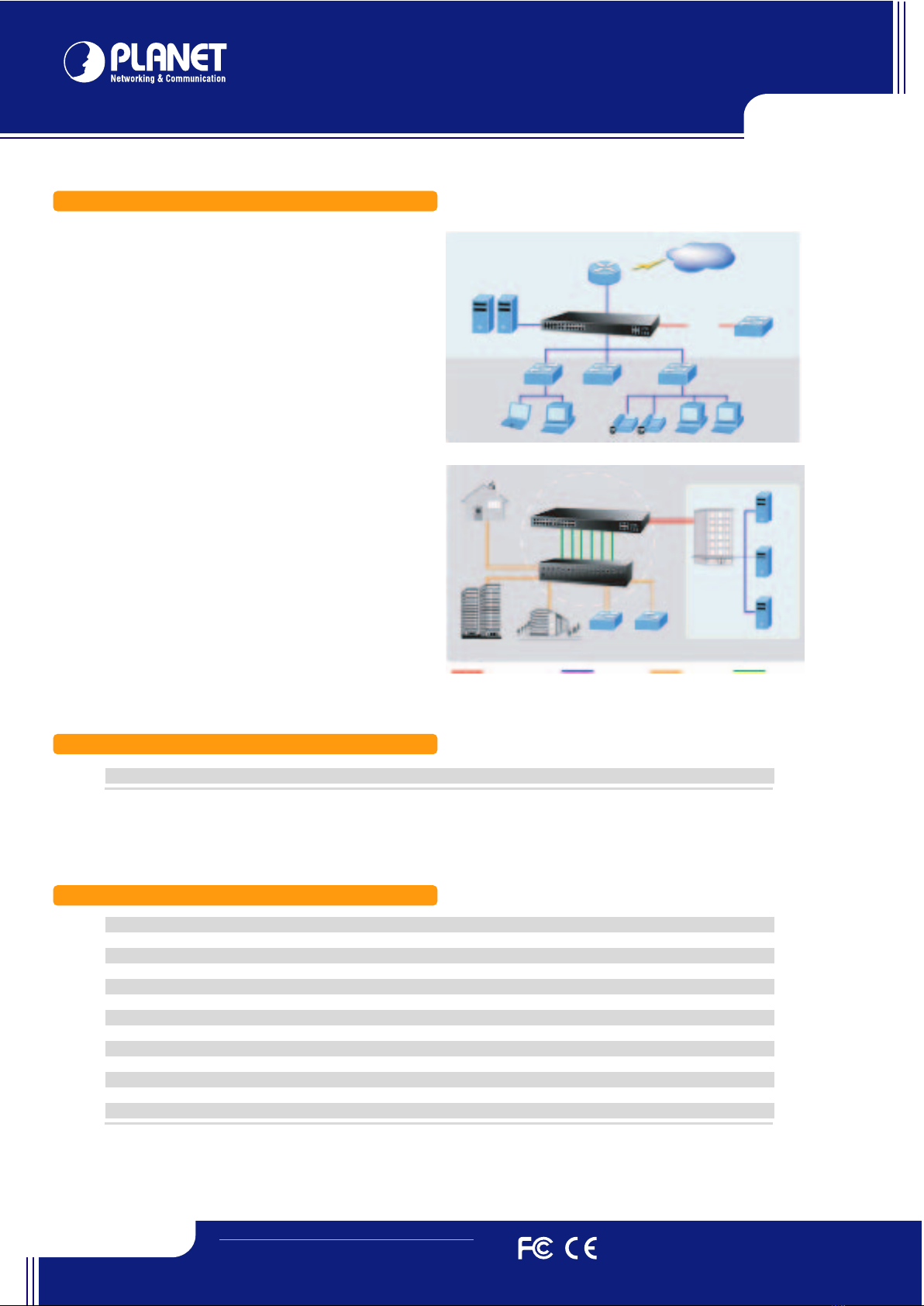

Applications
Ordering Information
SFP-Port 1000Base-T Module
SFP-Port 1000Base-SX mini-GBIC module
SFP-Port 1000Base-LX mini-GBIC module
SFP-Port 1000Base-LX mini-GBIC module-30km
SFP-Port 1000Base-LX mini-GBIC module-50km
SFP-Port 1000Base-LX mini-GBIC module-70km
SFP-Port 1000Base-LX mini-GBIC module-120km
SFP-Port 1000Base-LX (WDM, TX:1310nm) mini-GBIC module-10km
SFP-Port 1000Base-LX (WDM, TX:1550nm) mini-GBIC module-10km
SFP-Port 1000Base-LX (WDM, TX:1310nm) mini-GBIC module-20km
SFP-Port 1000Base-LX (WDM, TX:1550nm) mini-GBIC module-20km
SFP-Port 1000Base-LX (WDM, TX:1310nm) mini-GBIC module-40km
SFP-Port 1000Base-LX (WDM, TX:1550nm) mini-GBIC module-40km
MGB-GT
MGB-SX
MGB-LX
MGB-L30
MGB-L50
MGB-L70
MGB-L120
MGB-LA10
MGB-LB10
MGB-LA20
MGB-LB20
MGB-LA40
MGB-LB40
Available Modules
Core Routing Switch
With 24 10/100Mbps ports and 4 Gigabit TP with 2 shared SFP fiber
interfaces and Layer 3 IP/Multicast Routing capability, the WGS3-2820
provides a cost-effective and high-performance solution for Telecom,
Network Service Provider and enterprise.
1000 SX / LX 100 FX 100 TX1000 T
Department Security and QoS Switch
With its 12.8 Gigabits per second and non-blocking switch fabric, the
WGS3-2820 can easily provide a local, high bandwidth, and Gigabit
Ethernet network for backbone of your department. With the two
SFP ports, the WGS3-2820 provides the uplink to the backbone
network through Gigabit Ethernet LX/SX SFP modules. With the
security and QoS features, it improves the network efficiency and
protects the network clients.
ISP / Telecom Backbone Routing Switch
With build-in robust Layer 3 IP and Multicast routing protocols, the
WGS3-2820 ensures reliable routing between VLANs and network
segmentation. The routing protocols can be applied by per-port or
VLAN interface with up to 2K routing entries, and the high-density
routing interfaces provide expandability to meet the growing needs of
networks. Moreover, with the hot VLAN feature,Q-in-Q (VLAN
stacking) supported, it allows the service providers to offer certain
services, such as Internet access on specific VLANs for specific
customers, and it still allows them to provide other types of services
for their other customers on other VLANs.
Switch Converter
Video
Data
Voice
WGS3-2820 10 Km
2 Km
20 Km
2 Km
40 Km 20 Km
FTTH
FTTPFTTB
ISP
Internet
Edge Switch
Other L3 Switch
WGS3-2820
10km
Server Farm
Router
