Planet ICA-HM351 User manual

2 Mega-pixel 35M IR Outdoor
Box PoE IP Camera
ICA-HM351

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
2
Copyright
Copyright 2016 by PLANET Technology Corp. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written
permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect
to the contents hereof and specifically disclaims any warranties, merchantability or fitness for
any particular purpose. Any software described in this manual is sold or licensed "as is".
Should the programs prove defective following their purchase, the buyer (and not PLANET,
its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the software. Further,
PLANET reserves the right to revise this publication and to make changes from time to time
in the contents hereof without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered
trademarks of their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Any changes or modifications not expressly approved by the

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
3
party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal
operation.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity
when working with electrical equipment. All guidelines of this and of the computer
manufacture must therefore be allowed at all times to ensure the safe use of the equipment.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of
the presence of hazardous substances in electrical and electronic equipment, end
users of electrical and electronic equipment should understand the meaning of the
crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and
have to collect such WEEE separately.
Revision
User’s Manual of PLANET 2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
Model: ICA-HM351
Rev: 2.10 (January, 2016)
Part No. EM-ICA-HM351_v2.1

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
4
Table of Contents
Chapter 1. Product Introduction............................................................................................7
1.1 Package Contents........................................................................................................7
1.2 Overview.......................................................................................................................8
1.3 Features .....................................................................................................................12
1.4 Product Specifications................................................................................................13
Chapter 2. Hardware Interface ...........................................................................................15
2.1 Physical Descriptions .................................................................................................15
2.1.1 Identification of ICA-HM351 Physical Details...................................................15
2.1.2 I/O Control Instruction ......................................................................................16
2.2 Hardware Installation..................................................................................................17
2.3 Initial Utility Installation...............................................................................................18
2.4 Preparation.................................................................................................................20
2.4.1 Search and View by PLANET IP Wizard II.......................................................21
2.4.2 Configuring Network by PLANET IP Wizard II.................................................24
2.5 Using UPnP of Windows XP or 7...............................................................................25
2.5.1 Windows XP.....................................................................................................25
2.5.2 Windows 7........................................................................................................30
2.6 Setting Up ActiveX to use the Internet Camera..........................................................31
2.6.1 Internet Explorer 6 for Windows XP.................................................................32
2.6.2 Internet Explorer 7 for Windows XP.................................................................33
2.6.3 Internet Explorer 7 for Windows Vista..............................................................33
Chapter 3. Web-based Management..................................................................................35
3.1 Introduction.................................................................................................................35
3.2 Connecting to Internet Camera..................................................................................35
3.3 Live View....................................................................................................................37
3.4 ActiveX Control...........................................................................................................38
3.4.1 Digital Zoom.....................................................................................................39
3.4.2 Snapshot..........................................................................................................39
3.4.3 Record..............................................................................................................40
3.4.4 Volume .............................................................................................................41
3.4.5 About................................................................................................................41
3.5 Network Configuration................................................................................................41
3.5.1 Network............................................................................................................42
3.5.2 IPv6..................................................................................................................44
3.5.3 HTTPS..............................................................................................................44
3.5.4 DDNS server....................................................................................................44

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
5
3.5.5 PPPoE..............................................................................................................46
3.5.6 Streaming.........................................................................................................47
3.5.7 UPnP................................................................................................................48
3.5.8 Bonjour.............................................................................................................49
3.5.9 IP Filter.............................................................................................................49
3.5.10 IP Notification.................................................................................................50
3.5.11 Qos.................................................................................................................51
3.6 Camera Configuration ................................................................................................51
3.6.1 Picture..............................................................................................................51
3.6.2 Exposure Control .............................................................................................54
3.6.3 Privacy Mask....................................................................................................55
3.7 System Configuration.................................................................................................55
3.7.1 System .............................................................................................................56
3.7.2 Date & Time .....................................................................................................57
3.7.3 Maintenance.....................................................................................................58
3.8 Video Configuration....................................................................................................59
3.8.1 Common...........................................................................................................60
3.8.2 Overlay Image..................................................................................................61
3.8.3 Video Profile.....................................................................................................62
3.8.4 ONVIF Profile...................................................................................................64
3.8.5 ROI...................................................................................................................66
3.8.6 AOI ...................................................................................................................67
3.8.7 Pixel Counter....................................................................................................68
3.9 Audio Configuration....................................................................................................68
3.10 User Configuration ...................................................................................................69
3.11 Protocol Configuration..............................................................................................70
3.11.1 ONVIF.............................................................................................................70
3.11.2 SNMP .............................................................................................................70
3.12 E-mail Configuration.................................................................................................71
3.13 Event Detection Configuration..................................................................................72
3.13.1 Motion Detection ............................................................................................72
3.13.2 Camera Tampering.........................................................................................73
3.13.3 Audio Detection..............................................................................................74
3.14 Storage Configuration...............................................................................................74
3.14.1 SAMBA Server ...............................................................................................75
3.15 Continuous Recording Configuration .......................................................................76
3.16 Recording List Configuration....................................................................................77
3.16.1 Recording List ................................................................................................77
3.16.2 Continuous Recording List.............................................................................78

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
6
3.17 Event Server Configuration......................................................................................79
3.17.1 FTP Server.....................................................................................................79
3.17.2 TCP Server.....................................................................................................80
3.17.3 HTTP Server ..................................................................................................81
3.17.4 SAMBA Server ...............................................................................................82
3.18 Event Schedule Configuration..................................................................................82
3.18.1 Setting............................................................................................................83
3.18.2 Record............................................................................................................86
3.18.3 Port Status......................................................................................................86
Appendix A: Ping IP Address ................................................................................................87
Appendix B: Bandwidth and Video Size Estimation..............................................................88
Appendix C: DDNS Application .............................................................................................89
Appendix D: Configuring Port Forwarding Manually .............................................................90
Appendix E: Power Line Frequency......................................................................................93
Appendix F: Troubleshooting & Frequently Asked Questions...............................................95

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
7
Chapter 1. Product Introduction
1.1 Package Contents
The package should contain the following:
IP Camera Unit x 1
Power Adapter x 2
Camera Wall-mount Kit x 1
6P Terminal block x 1
User’s Manual CD-ROM x 1
Quick Installation Guide x 1
1.
If any of the above items are missing, please contact your dealer
immediately.
2. Using the power supply that is not the one included in Internet Camera
packet will cause damage and void the warranty for this product.

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
8
1.2 Overview
High Resolution Surveillance in Day and Night
PLANET ICA-HM351 Network Camera with IR Illuminator is a high-resolution camera for the
round-the-clock surveillance over IP networks. It supports H.264 and JPEG compression
formats and delivers excellent picture quality in Full HD resolutions at 30 frames per second
(fps). Incorporating the new CMOS image sensor, which is specially designed for surveillance
applications, the ICA-HM351 provides high-quality images under all lighting conditions. Its
IP65 and -30 to 60 degrees C operating temperature features help to protect the camera body
against rain and dust, thus ensuring operation under extreme weather conditions, which make
it an ideal solution for outdoor applications, e.g., surveillance of buildings, roads, parking areas,
garages, railway stations and airports.

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
9
Day & Night Functionality
To adapt to constantly changing lighting conditions, the ICA-HM351 comes with a removable
IR-cut filter and built-in low IR illuminators, which enable the camera to provide color video
when there is sufficient light, and black/white video in dark conditions. The ICA-HM351 is able
to maintain clear images 24 hours a day.
Exceptional Image quality
Together with powerful image processing attributes like Wide Dynamic Range and 3D Digital
Noise Reduction (3DNR) technology, the ICA-HM351 is able to filter the intense backlight
surrounding a subject and remove noises from video signal. It brings an extremely clear and
exquisite picture quality even under any challenging lighting conditions.

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
10
Camera Tampering and Audio Detection
Provided with three individually configurable motion detection zones, the ICA-HM351 can
record video or trigger alarms and alerts when motion is detected in a designated area. Also,
its built-in microphone enables the system to record the sound that is within the camera’s
surveillance range. The system will trigger the audio detection alarm when sounds like
screams, glass breaking, etc. are detected.
Defog Video Enhancement for Better Video Quality
Defog can be used to restore clear image in poor weather conditions such as sandstorm, rain,
or fog. The visibility of the cameras can be enhanced in any weather condition.
Advanced Event Management
To enhance surveillance flexibility and event management capabilities, the ICA-HM351
supports a number of advanced features including auto-iris to avoid overexposure, and AV out
to perform the two-way audio function.
Flexible Installation and Power Functionality
The ICA-HM351, incorporating IEEE 802.3af Power over Ethernet standard, is able to be
powered via the network cable from a PoE power sourcing equipment such as PoE switch and

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
11
PoE injector. It thus eliminates the need for extra power cables and reduces installation costs
while increases the deployment flexibility. The ICA-HM351 is ONVIF compliant and therefore
interoperable with other manufacturers’ products. It also includes 64-CH central management
software for ease of maintenance and remote monitoring. The ICA-HM351 is indisputably the
top choice for reliable and high performance surveillance.

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
12
1.3 Features
Camera
1/2.7" 2 mega-pixel progressive scan CMOS sensor
0.5 lux minimum illumination at F1.2
Built-in 86 IR illuminators, effective up to 35 meters
Removable IR-cut filter for Day & Night function
Video/Audio
H.264 and MJPEG video compression simultaneously
Simultaneous multi-stream support
H.264 high profile, main profile and baseline
Max. resolution 1080p at 30fps
3DNR to improve picture quality at low lux
WDR Enhancement for enhancing visibility under extremely bright or dark environments
Two-way audio support with enhanced audio quality
Tamper and audio detection for unauthorized changes
Network and Configuration
Compliant with IEEE 802.3af PoE interface for flexible deployment
Auto MDI/MDI-X supported
Supports both IPv6 and IPv4
Built-in Samba client for NAS
RTSP / UPnP / HTTP / HTTPS protocols selectable
Easy Installation & Management
ONVIF compliant for interoperability
IP65 rating for rigorous environment
Built-in fan and heater with fully automatic intelligent control
Industrial design with -30 to 60 degrees C operating temperature
Intelligent motion / tampering / audio detection alarm triggers
Digital Input/Output for integration with sensors and alarms

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
13
1.4 Product Specifications
Model
ICA-HM351
Camera
Image device
1/2.7" 2 mega-pixel progressive scan CMOS sensor
Lens
3.6mm, fixed lens
Mechanical IR-cut filter
Angle of view:
Horizontal: 74 degrees
Vertical: 57 degrees
Min Illumination
0.5 Lux (Color) @ F1.2
0.1 Lux (B/W)
IR Illuminations
IR LED x 86, 850nm
Built-in IR illuminators, effective up to 35 meters
*The IR distance is based on the environment
Effective Pixels
1920 x 1080 pixels
Video Compression
H.264 / MJPEG
Video Resolution
1080p / 720p / 640 x 360 / 320 x 180
Frame Rate
Up to 30fps for all resolutions
Image Setting
AE, AWB
3D noise reduction
WDR
Color, hue, brightness, sharpness, contrast
Mirror/Flip
90orotation
De-fog
Anti-false color
Lens distortion correction
10 privacy masks
Text, time and date overlay
Overlay image on video
Streaming
Simultaneous multi-profile streaming
Streaming over UDP, TCP, HTTP, or HTTPS
MJPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264)
AOI
ROI
Audio
Audio Streaming
Two-way audio
Audio Compression
RTSP: G.711 64kbps, G.726 32kbps
Microphone
External microphone input
Audio Output
Adjustable audio output gain
Network and Configuration
Standard
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
Protocol
IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS,
DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP,
PPPoE, Samba, ICMP, SNMP, QoS

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
14
Security
Password protection, IP address filtering, HTTPS encrypted data
transmission, user access log
Users
8 clients on-line monitoring at the same time
System Integration
Application
Programming Interface
Open API for software integration
ONVIF Compliant
Alarm Triggering
Intelligent Motion / Tampering / Audio Detection / Network
Disconnect and External Input
Alarm Events
File upload via FTP, Samba to NAS, and email
Notification via email, HTTP, and TCP
External output activation
Audio alerting output
Video Buffer
Pre- and post-alarm buffering
General
Power Requirement
12V DC, 1A
IEEE 802.3af Class 3
Fan / Heater Control
Temperature
Heater: On: 15 / Off: 25 degrees C
Fan: On: 37 / Off: 25 degrees C
Power Consumption
9W max.
Operating Temperature
-30 ~ 60 degrees C
Operating Humidity
5 ~ 95% (non-condensing)
Protection Rating
IP65 classification with weatherproof feature
Weight
1335g
Dimensions (W x D x H)
141 x 310 x 120 mm
Emission
CE, FCC
Connectors
10/100 Mbps Ethernet, RJ45
DC power jack
Terminal block for 1 alarm input and 1 output
External mic input
Audio out
Composited video out (max. resolution: D1 720 x 480 pixel))
Factory default reset button

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
15

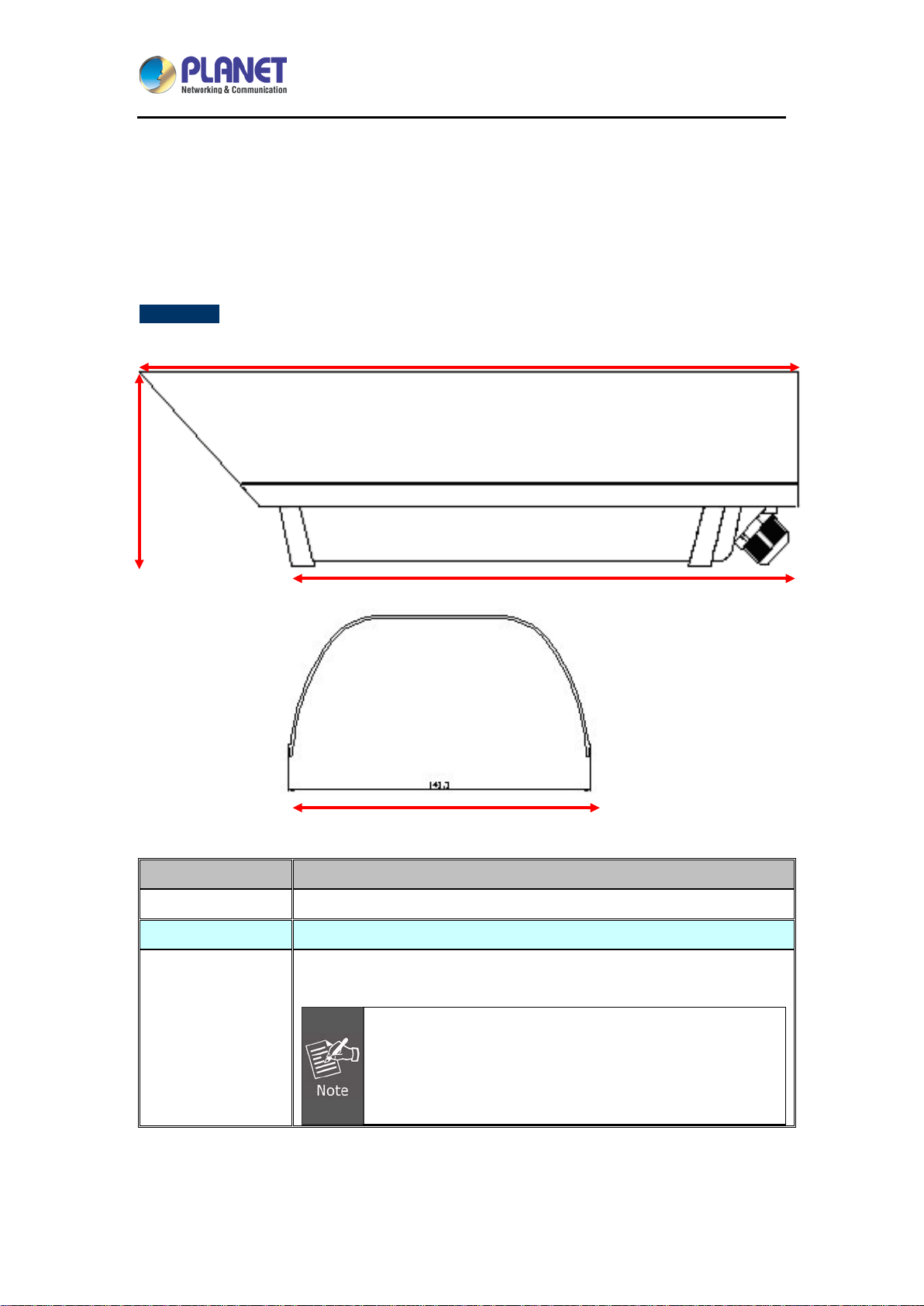

Chapter 2. Hardware Interface
2.1 Physical Descriptions
2.1.1 Identification of ICA-HM351 Physical Details
Rear Panel
Item Description
Lens Keep the lens clean for an excellent video quality.
IR LED Emits infrared light to provide light source in dark places
Light Sensor
Detects the illumination level or the place where this IP camera is
installed, and switches IR LEDs on when it’s required.
When IR LEDs are switched on, this IP camera will switch
to black and white video mode to enhance video quality. Do
not cover light sensor or this IP camera will work in black
and white mode only.
120 mm
262 mm
141 mm

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
16
2.1.2 I/O Control Instruction
Description of I/O Cabling:
Interface Description
DC Power
The input power is 12V DC, 1A.
ONLY use the power adapter supplied in the
package. Otherwise, the product may be
damaged.
RJ45
(LAN Socket, PoE )
Connecting to PC or Hub/Switch
For connection to 10BASE-T Ethernet or 100BASE-TX or
Fast Ethernet cabling, this Ethernet port built
auto-negotiation protocol can detect or negotiate the
transmission speed of the network automatically. Please
use Cat 5 cable to connect the Network Camera to a
100Mbps Fast Ethernet network switch or hub.
LAN LED (green color)
This LED will be flashing while network is accessing via
Ethernet.
Power LED (orange color)
This LED is used to indicate whether DC power is on or not.
In addition, this LED will be flashing while the wireless is
accessing the Camera.

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
17
ONLY use one power source, either from DC or
from 802.3af Power over Ethernet.
Audio Output
(Green, Line Out) Connect a loud speaker to the IP camera. This is for voice
alert and two-way audio.
Microphone Input
(Pink, Audio In) Connect a microphone to the IP camera.
Reset
(Factory Default) This button is used to restore to all the factory default
settings.
DI/DO The 6 pin terminal block includes 1 input port and 1 output
port.
Video Output
(BNC)
The Network Camera also provides composite video
output. The video output function is only for easy installation
to check viewing angle and focus. The output is not a
mega-pixel resolution. Furthermore, the video output is off
by default. To turn on video, please refer to
Setting\Camera\Picture chapter.
Terminal Block for I/O Connectors:
Name Cable Color Function
12V DC 1 12V DC, 50mA (maximum)
DI 2 Digital signal input
GND 3 GND
DO 4 Digital signal output
2.2 Hardware Installation
1. Attach the Camera to the included stand
2. Place the Camera on the ceiling or fix it onto wall
Use three screws to fix the Network Camera onto the ceiling or wall.
3. Plug an Ethernet cable into the Camera
Connect an Ethernet cable to the LAN socket located on the Network Camera’s bottom and
attach it to the network.
4. Connect the external power supply to Camera
Connect the attached power adapter to the DC power jack of the IP Camera.

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
18
Use the power adapter, 12VDC, included in the package and connect it to
wall outlet for AC power.
5. Done
Once you have installed the IP Camera well and powered it on, the network accessing type
LED will turn on. It means the system is booting up successfully. Furthermore, if you have a
proper network connection, and access to the IP Camera, the LED will flash green under wired
mode or orange under wireless mode.
2.3 Initial Utility Installation
This chapter shows how to quickly set up your IP camera. The camera is with the default
settings. However to help you find the networked camera quickly, the windows utility PLANET
IP Wizard II can search the cameras in the network that can help you to configure some basic
settings before you start advanced management and monitoring.
1. Insert the bundled CD into the CD-ROM drive to launch the auto-run program. Once
completed, a welcome menu screen will appear.
2. Click the “IP Wizard II” hyperlink and a dialog box will appear as shown below:
If the welcome screen does not appear, click “Start” at the taskbar. Then,
select “Run” and type “D:\Utility\IPWizard II\setup.exe”, assuming D is your
CD-ROM drive.

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
19

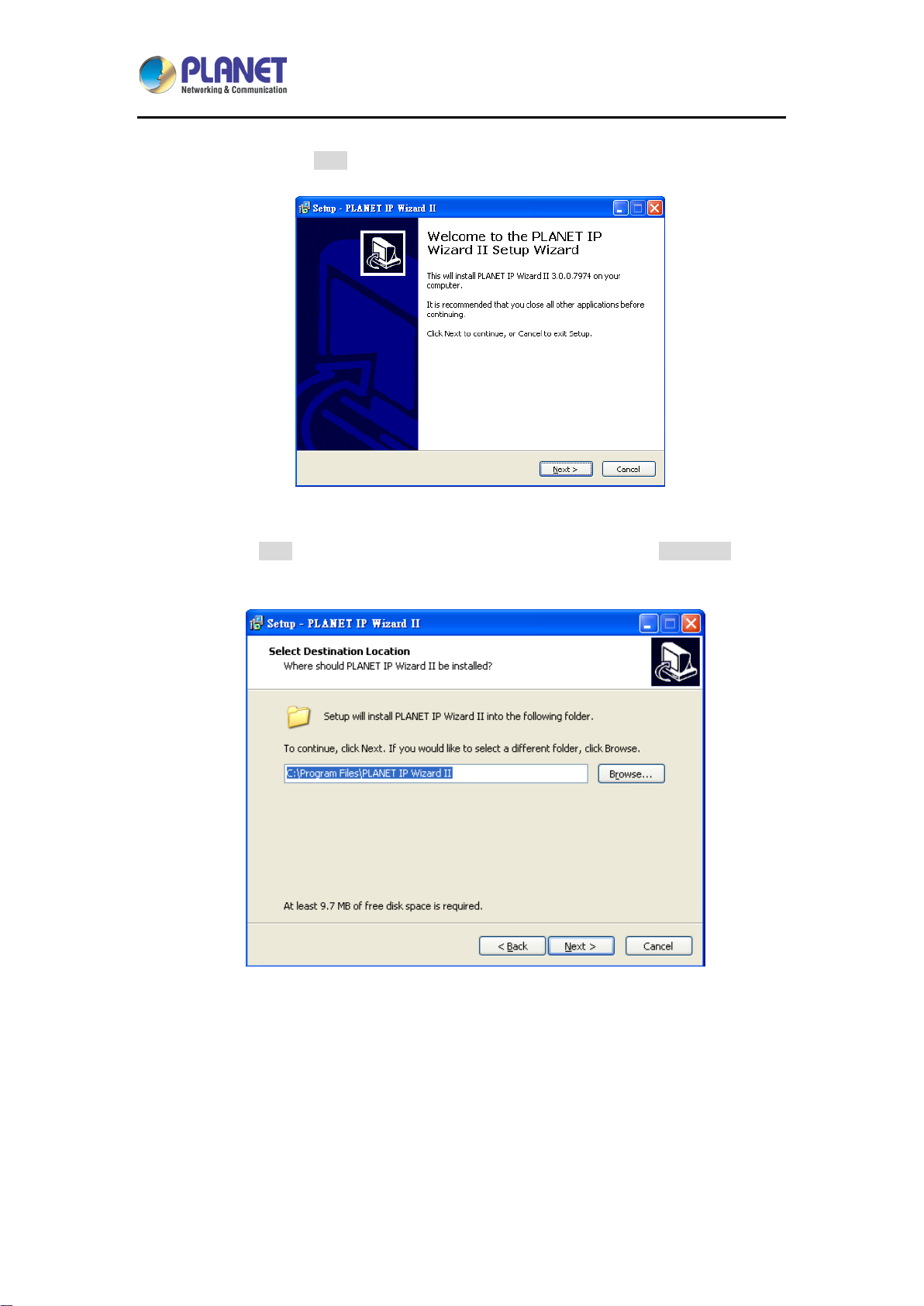

3. The “Welcome to the Install Shield Wizard for PLANET IP Wizard II” prompt will display on
the screen and click “Next” to continue.
4. Please click “Next” to install with original settings, or you may click the “Change…” button
to modify the install folder and then press “Next” to continue.

2 Mega-pixel 35M IR Outdoor Box PoE IP Camera
ICA-HM351
20
5. Please click “Install” to start the installation.
6. Please click “Finish” to complete the installation and launch program immediately.
2.4 Preparation
When you install the Internet camera in a LAN environment, you may execute PLANET IP
Wizard II to discover camera’s IP address and set up related parameters in the camera.
