1. Package Contents
Thank you for purchasing PLANET L3 Multi-Gigabit/10Gigabit Industrial
Managed Switch, IGS-6325-4T2X/IGS-6325-4UP2X/IGS-6325-5X1T.
“Industrial Managed Switch” mentioned in this Quick Installation Guide
refers to the above models.
The descriptions of these models are shown below:
IGS-6325-4T2X IndustrialL34-Port2.5GBASE-T+2-Port10GSFP+
ManagedEthernetSwitch
IGS-6325-4UP2X IndustrialL34-Port2.5GBASE-T802.3btPoE+2-Port
10GSFP+ManagedEthernetSwitch
IGS-6325-5X1T IndustrialL35-Port10GBASE-XSFP++1-Port10GBASE-T
ManagedEthernetSwitch
Open the box of the Industrial Managed Switch and carefully unpack it. The
box should contain the following items:
IGS-6325-4T2X IGS-6325-4UP2X IGS-6325-5X1T
The Industrial
Managed Switch 
DB9toRJ45Interface
RS232 Console Cable 
Quick Installation
Guide sheet 
Wall Mounting Kit 
RJ45DustCap 552
SFPDustCap 225
If any of these are missing or damaged, please contact your dealer
immediately. If possible, retain the carton including the original packing
materials to enable you to repack the product in case there is a need to return
it to us for repair.

4
2. Requirements
The Industrial Managed Switch provides remote login interface for
management purposes. The following equipment is necessary for further
management:
Workstations running Windows XP/2003/2008/Vista/7/8/10/11, MAC OS X
or later, Linux, UNIX, or other platforms are compatible with TCP/IP Proto-
cols.
 WorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard).
Serial Port Connection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
The above Workstations have been installed with terminal emulator,
such as Hyper Terminal included in Windows XP/2003, putty or Tera
Term.
Serial cable -- one end is attached to the RS232 serial port, while the
other end to the console port of the Industrial Managed Switch.
Ethernet Port Connection
Network cables -- Use standard network (UTP) cables with RJ45
connectors.
The above PC is installed with Web browser.
It is recommended to use Chrome 98.0.xxx or above to access
the Industrial Managed Switch.

5
3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch indicates an inlet power
socket and consists of one green terminal block connector with 6 contacts.
Please follow the steps below to insert the power wire.
1.Insert positive/negative DC power wires into Contacts 1 and 2 for Power 1,
or Contacts 5 and 6 for Power 2.
 DC9-48V,AC24V(IGS-6325-4T2X &IGS-6325-5X1T)
Max. Fault Alarm Loading: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1 PWR2Alarm
DC Input: 9-48V , 4A max.
AC Input: 24V , 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-1: IGS-6325-5X1T Upper Panel
(Wiring methods also apply to IGS-6325-4T2X except di󰀨erent max. input current values)
Refer to the table below for the Input Voltage and Current Values for each
model
IGS-6325-4T2X IGS-6325-5X1T
DCInputVoltage 9-48VDC 9-48VDC
Max. DC Input Current 3A 4A
ACInputVoltage 24VAC 24VAC
Max.ACInputCurrent 1.5A 2A

6
2.Insert positive/negative DC power wires into Contacts 1 and 2 for Power 1,
or Contacts 5 and 6 for Power 2.
 DC48-54V(IGS-6325-4UP2X)
DI1 DO0 DO1DI0 GNDGND
DC Input:
48-54V , 8.3A max.
Dual power input is required
for maximum PoE loading.
Refer to user’s manual for
more details.
PWR1 Alarm PWR2
V1+ V2+
Max. Fault Alarm Loading: 24V, 1A
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-2: IGS-6325-4UP2X Upper Panel
IGS-6325-4UP2X
DCInputVoltage 48-54VDC
Max. DC Input Current 8.3A
PWR1 and PWR2 must provide exactly the same DC voltage
for power load balance while operating with dual power input.
3.Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
123456
V1+ V1-V2+ V2-
Power 1 Power 2
Figure 3-3: Power 1 & 2 Pins of Terminal Block Connector

7
1. The wire gauge for the terminal block should be in the range
from 12 to 24 AWG.
2.Please check the AWG Ampere specification before connecting
PLANETIndustrialManagedSwitch.
3.1 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a sudden
lightning could cause fatal damage to the device.
Max. Fault Alarm Loading: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1 PWR2Alarm
DC Input: 9-48V , 4A max.
AC Input: 24V , 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Earth Ground
Figure 3-4: Grounding Method (applies to all three models)
LIGHTNINGDAMAGEISNOTCOVEREDUNDERWARRANTY.

8
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebook computer and to RJ45 type serial (console) port of the Industrial
Managed Switch.
PC/Workstation with
Terminal Emulation Software
Serial Port
Console Port
115200,N,8,1
IGS Industrial Managed Switch
Console
115200,N,8,1
RJ45 to DB9 RS232 Cable
A terminal program is required to make the software connected to the Indus-
trial Managed Switch.
1. Run terminal program on the OS.
2. When the following screen appears, make sure that the COM port should be
conguredas:
 Baud:115200
 Parity:None
 Data bits: 8
 Stop bits: 1
 Flowcontrol:None

9
4.1 Logging on to the Console
Once the terminal has been connected to the device, power on the Industrial
Managed Switch and the terminal will display “running testing procedures”.
Then, the following message asks to log in user name and password. The
factory default user name and password are shown as follows as the login
screeninFigure4-1appears.
IGS-6325-5X1T is used as a representative in all the following
console screens.
Username:admin
Password: admin
Figure 4-1: Console Login Screen
The user can now enter commands to manage the Industrial Managed Switch.
For a detailed description of the commands, please refer to the following
chapters.
1.For security reason, please change and memorize the
new password after this first setup.
2.Only accept command in lowercase letter under console inter-
face.

10
4.2 ConguringIPAddressviaConsole
The Industrial Managed Switch is shipped with default IP address shown
below:
IPAddress:192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or assign a new IP address to the Switch,
please use the commands as follows
Display of the Current IP Address
1.Atthe“#” prompt, enter “show ip interface brief”.
IGS-6325-Series#show ip interface brief
2.ThescreendisplaysthecurrentIPaddressshowninFigure4-2.
Figure 4-2: IP Information Screen
 Conguration of the IP Address
3.At the “#” prompt, enter the following command and press <Enter> as
showninFigure4-3.
IGS-6325-Series#congure terminal
IGS-6325-Series(cong)#interface vlan 1
IGS-6325-Series(cong-if-vlan)#ip address 192.168.1.100 255.255.255.0
The previous command would apply the following settings for the Industrial
Managed Switch.

11
IPAddress:192.168.1.100
Subnet Mask: 255.255.255.0
Figure 4-3: Conguring IP Address Screen
4.Enter“exit”commandtwicetoreturntotheglobalcongurationmode.
5. Repeat step 1 to check if the IP address has changed.
4.3 Storingthecurrentswitchconguration
1.Atthe“#” prompt, enter the following command and press <Enter>.
# copy running-cong startup-cong
Figure 4-4: Saving Current Conguration Command Screen
If the IP is successfully congured, the Industrial Managed Switch will apply
the new IP address setting immediately. You can access the Web interface of
the Industrial Managed Switch through the new IP address.
If you are not familiar with the console command or the related
parameter, enter “help” anytime in console to get the help
description.

12
5. Starting Web Management
The following shows how to start up the Web Management of the Industrial
Managed Switch. Note the Industrial Managed Switch is congured through an
Ethernet connection. Please make sure the manager PC must be set to the
same IP subnet address.
For example, the default IP address of the Industrial Managed Switch is
192.168.0.100, then the manager PC should be set to 192.168.0.x(wherex
is a number between 1 and 254, except 100), and the default subnet mask is
255.255.255.0.
IP Address: 192.168.0.x
IP Address: 192.168.0.100
IGS Industrial Managed Switch
RJ45/UTP Cable
Figure 5-1: IP Management Diagram
5.1 Logging in to the Industrial Managed Switch
1.Use Chrome 98.0.xxx or above for Web browser and enter IP address
https://192.168.0.100 (the factory-default IP address) to access the Web
interface.

13

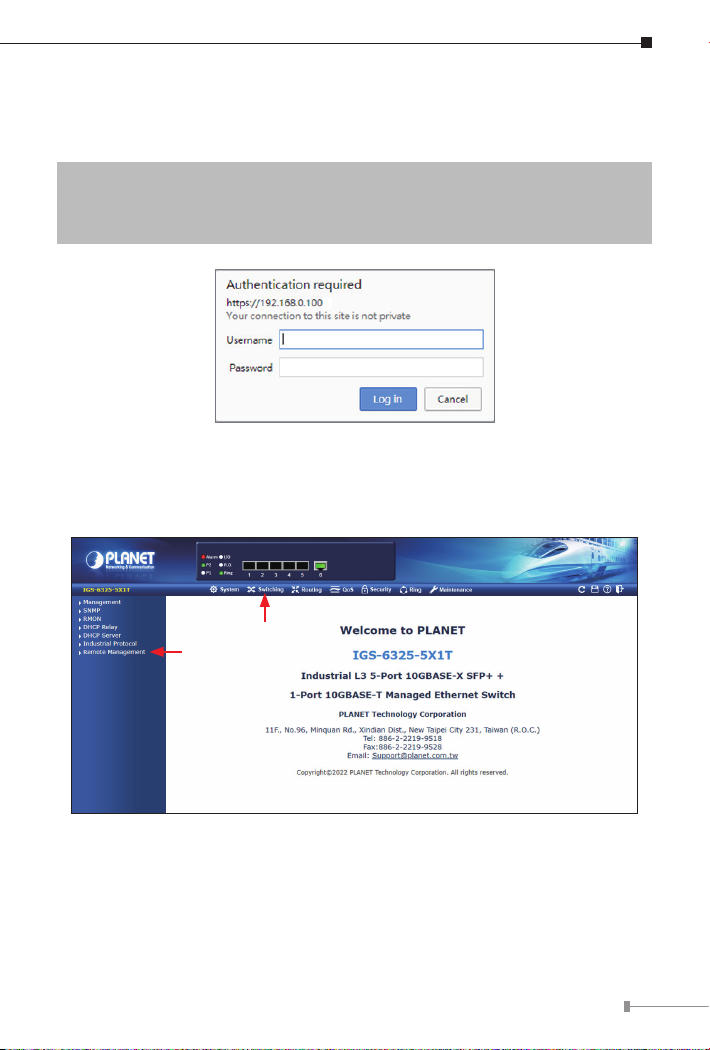

2. When the following dialog box appears, please enter the default user name
“admin” and password “admin” (or the password you have changed
before)asshowninFigure5-2.
DefaultIPAddress:192.168.0.100
DefaultUsername:admin
Default Password: admin
Figure 5-2: Login Screen
3.After entering the password, the main screen appears as shown in Figure
5-3.
Sub-menu
Switch-Menu
Figure 5-3: Web Main Screen of Industrial Managed Switch

14
The Switch Menu on the top of the Web page lets you access all the
commands and statistics the Industrial Managed Switch provides. The Switch
Menu always contains one or more buttons, such as “System”, “Switching”,
“Routing”, “QoS”, “Security”, “Ring” and “Maintenance”.
Figure 5-4: Switch Menu
Figure 5-5: Switch Sub-menu
Figure 5-6: Switch Sub-menu
In addition to the menu items that IGS-6325-4T2X/IGS-6325-5X1T presents
above, the IGS-6325-4UP2X which supports IEEE 802.3bt PoE also provides a
specicmenuitemforrelatedPoEfunctionalsettings.

15

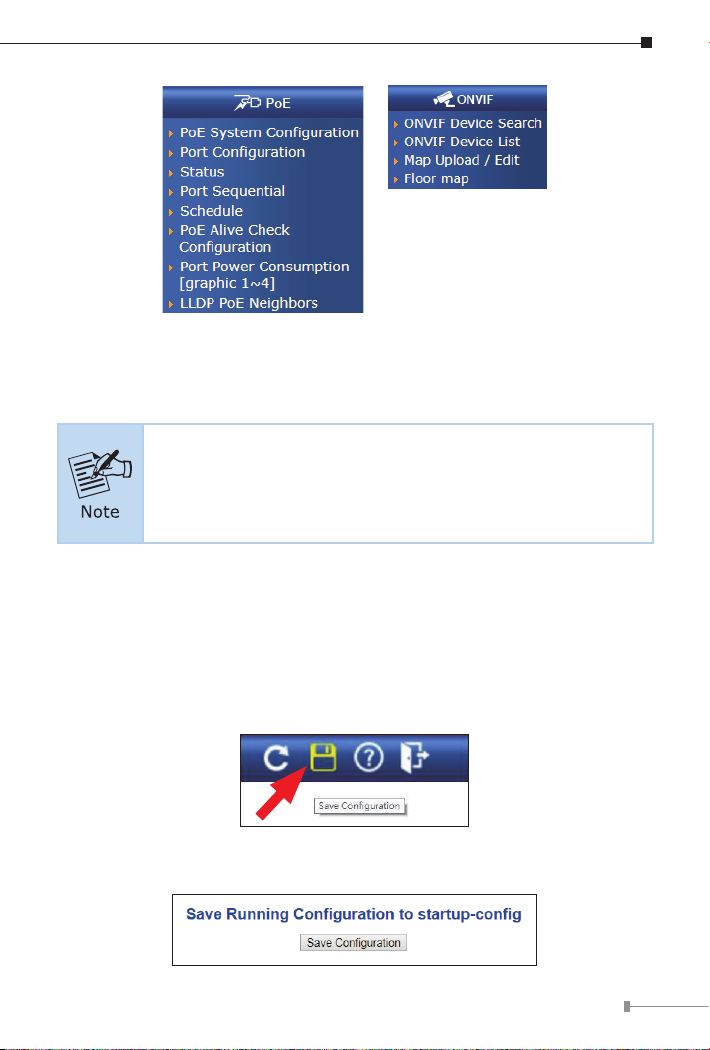

Figure 5-6: Switch Sub-menu (ONLY for IGS-6325-4UP2X)
Now, you can use the Web management interface to continue the Switch
management.
IfyouarenotfamiliarwithSwitchfunctionsortherelatedpara-
meter, press “Help icon” anytime on the Web page to get the
help description.
5.2 SavingCongurationviaWeb
To save the current conguration as a startup conguration, click the “Save”
icon,andthenthe startup congurationlewillbeloadedautomatically across
a system reboot.
1. Click the Save icon on the top Switch Menu bar.
2. Press the “Save Conguration” button.

16

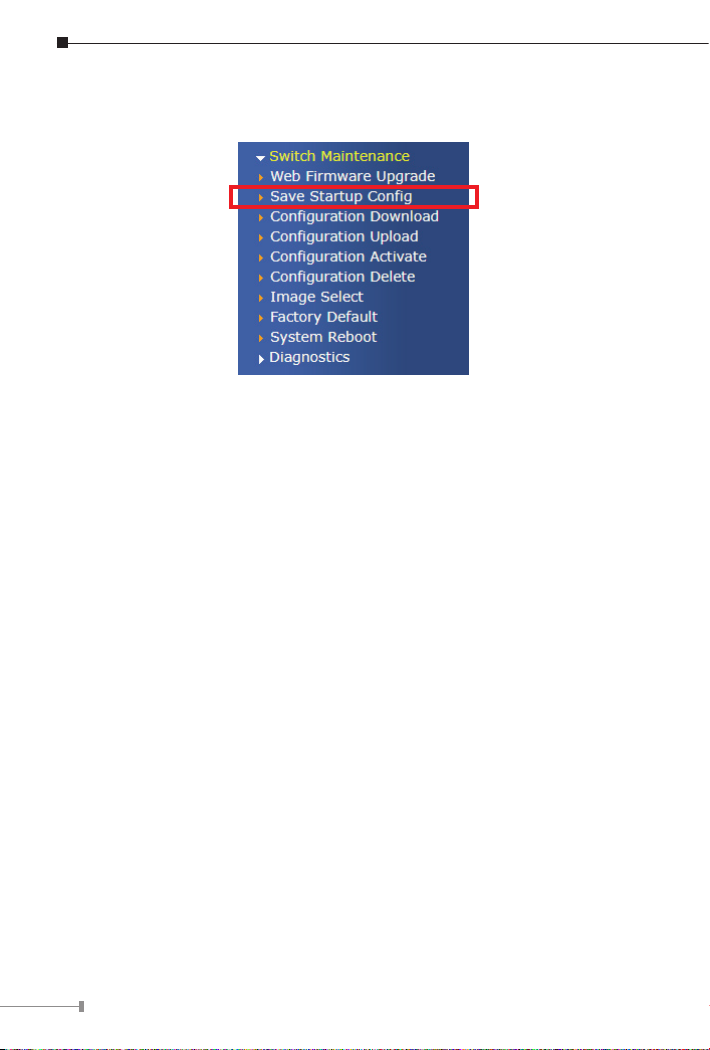

3. Or the other way to save the setting is to Click Maintenance, and Save
Startup Cong.

17
6.RestoringDefaultConguration
IP address has been changed or admin password has been forgotten –
To reset the IP address to the default IP address “192.168.0.100” and the
user password to factory default (default password is admin), press the
recessed reset button on the front panel for about 10 seconds. After the
device reboots, you can log in the management Web interface within the
same subnet of 192.168.0.xxx with default password. Please note that all the
previous settings will disappear after resetting the switch to factory default.
P2
R.O.
P1
Ring
Alarm
I/O
IGS-6325-5X1T
Console
115200,N,8,1
10GBASE-T
Reset
5
6
4
3
2
1
5
4
3
2
1
2.5G
10G/1G
5G/100
LNK
LNK
LNK
2.5G
10G/1G
LNK/ACT
LNK/ACT
Reset Button
Figure 6-1: IGS-6325-5X1T Reset Button

18
2.5GBASE-T
5
6
1
2
3
4
P2
R.O.
P1
Ring
Alarm
I/O
Console
115200,N,8,1
Reset
IGS-6325-4T2X
1G/2.5G LNK/ACT
10/100 LNK/ACT
1G/2.5G LNK/ACT
10G LNK/ACT
Reset Button
Figure 6-2: IGS-6325-4T2X Reset Button
P1 P2 Alarm
120W 240W 360W
I/O
Ring R.O.
Console
115200,N,8,1
Reset
IGS-6325-4UP2X
2.5GBASE-T
PoE
Usage
1
2
3
4
5
6
10/100
1G/2.5G
LNK/ACT
LNK/ACT
802.3at PoE+
802.3bt PoE++
10G
1G/2.5G
LNK/ACT
LNK/ACT
Reset Button
Figure 6-3: IGS-6325-4UP2X Reset Button

19
7. Customer Support
Thank you for purchasing PLANET products. You can browse our online
FAQ resource on PLANET web site to check if it could solve your issue. If you
needmoresupportinformation,pleasecontactPLANETswitchsupportteam.
PLANETonlineFAQs:
https://www.planet.com.tw/en/support/faq
Switch support team mail address:
[email protected]
IndustrialUser’sManual:
https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword
=IGS-6325&view=3#list
(Please select your switch model name from the Product Model drop-down
menu)
Copyright © PLANET Technology Corp. 2023.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
