Plantronics DUOSET 2 User manual

Plantronics Ltd, Interface Business Park, Bincknoll Lane, Wootton Bassett,
Wiltshire SN4 8QQ. ENGLAND
www.plantronics.com
Plantronics, the Plantronics name, logo design and StarBase®are Registered Trademarks
of Plantronics, Inc. AirSet, DuoSet and Quick Disconnect are Trademarks of Plantronics, Inc.
© 1999 Plantronics, Ltd. All rights reserved.
Printed in the U.K.
Plantronics Ltd
Interface Business Park
Bincknoll Lane
Wootton Bassett
Wiltshire
SN4 8QQ
ENGLAND
Tel: + 44 1793 842200
Fax: + 44 1793 848853
Plantronics Denmark
Anderson Nexø vej 29
2860 Søborg
Denmark
T: [phone]
F: [phone]
Plantronics B.V.
Antareslaan 9
NL 2132 Je Hoofddorp
Netherlands
Tel: 0800 PLANTRONICS
0800 7526876
Fax: + 31 2356 48015
Plantronics France
424, La Closerie Mont d’Est
93194 Noisy-le-Grand Cedex
Tel: + 33 (0)1 41 67 41 41
Fax: + 33 (0)1 41 67 41 40
Plantronics GmbH
Gildenweg 7
50354 Hürth
Germany
Tel: + 49 22 33 3990
Fax: + 49 22 33 399399
Plantronics Acoustics Italia S.R.L.
Palazzo G/2, Via Roma 108
20060 Cassina dé Pecchi MI
Tel: + 39 02 9511900
Fax: + 39 02 9511903
Plantronics Spain
Europa Empresarial
Ctra. de la Coruña Km. 24
Edifcio Londres, Of. 7
Las Rozas 28230
Madrid, Spain
Telf: + 34 91 640 47 44
Telf: + 34 902 41 51 91
Fax: + 34 91 640 47 46
Plantronics Nordic Region
Oskarsvägen 10
S-702 14 Örebro
Sweden
Tel: + 46 19 121930
Fax: + 46 19 121933
34372-11 Rev. D
4757 Duoset II Rev C 8/9/00 3:20pm Page 1

User Guide
Brugsanvisning
Gebruiksaanwijzing
Käyttöopas
Notice d’utilisation
Benutzerhinweise
Manuale d’istruzioni
Brukerveiledning
Manual del usuario
Guia do utilizador
Bruksanvisning
DUOSET™II
4757 Duoset II Rev C 8/9/00 3:20pm Page 2

DIAGRAM KEY
Adjustable Headband
Justérbar hovedbøjle
Verstelbare
hoofdbeugel
Säädettävä sanka
Serre-tête réglable
Verstellbarer Kopfbügel
Archetto regolabile
Justerbar Hodebøyle
Diadema ajustable
Banda de cabeça
ajustável
Justerbar huvudbygel
T-Bar
T-stang
T-stuk
T-kappale
Stabilisateur
T-Bügel
Barra a T
T-Stang
Soporte en
forma de T
Barra-T
T-stycke
Receiver
Modtager
Ontvanger
Kuuloke
Ecouteur
Lautsprecher
Ricevitore
Mottaker
Receptor
Receptor
Receptor
Hörkapsel
Ear Cushion
Ørepude
Oorkussen
Korvatyyny
Oreillette
Ohrkissen
Cuscinetto
Ørepute
Almohadilla
Almofada de orelha
Öronkudde
Clothing Clip
Tøjklemme
Kledingclip
Vaatepidike
Pince à vêtement
Kabelzug-Entlastung
Clip fermacavetto
Klesklype
Pinza para la ropa
Clip para a roupa
Klädesklämma
Headset Cable
Hovedsætkabel
Headset kabel
Korvakuulokkeiden
johto
Cordon de
raccordement
Headset-Kabel
Cavetto
Hodesettkabel
Cable de los auriculares
Cabo do auscultador
Headset kabel
6
5
4
3
2
1

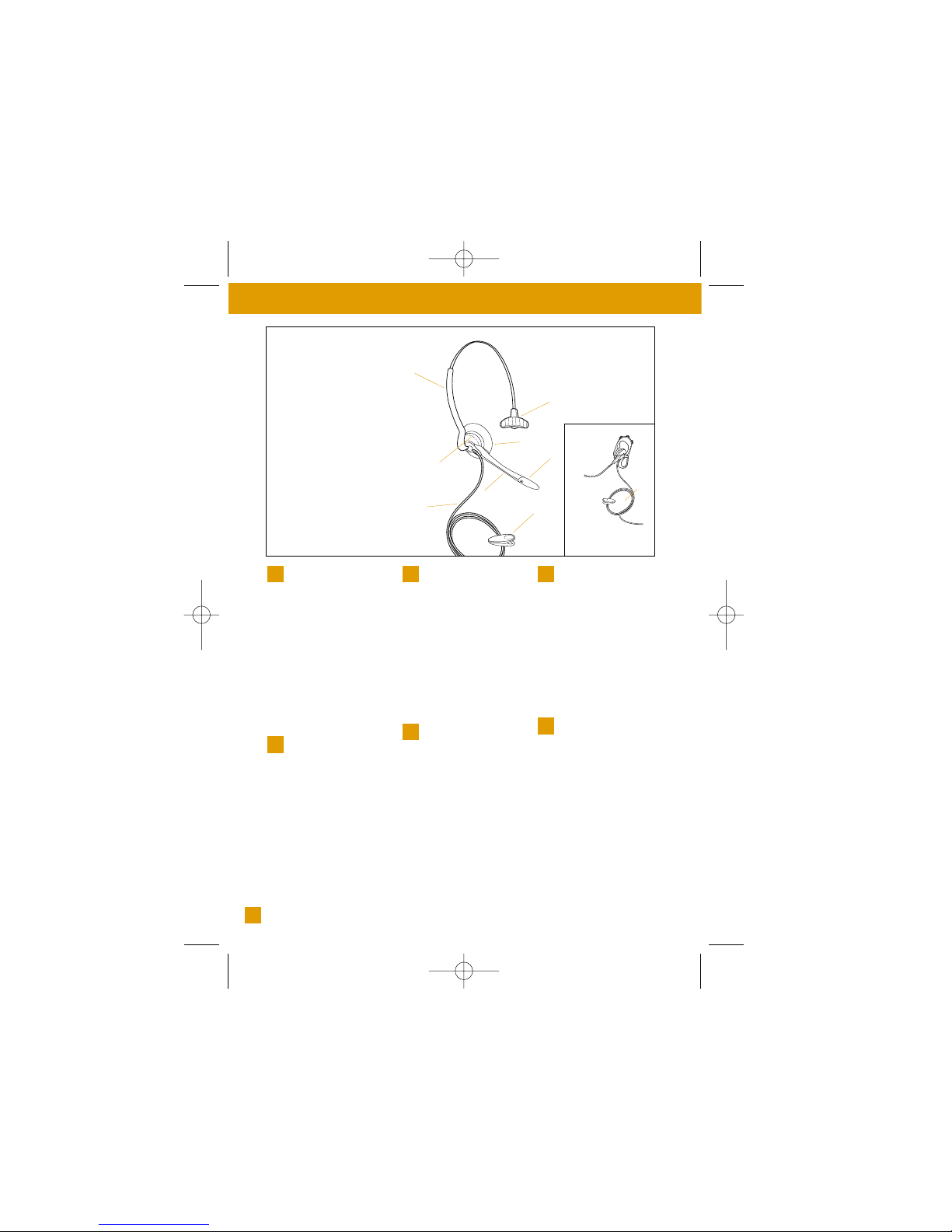

OVER-THE-HEAD
OVER HOVEDET
HOOFDBEUGEL
MODEL
PÄÄSANGALLA
SERRE-TÊTE
KOPFBÜGEL-MODELL
MODELLO AD
ARCHETTO
MED HODEBØYLE
MODELO DIADEMA
MED HUVUDBYGEL
2
9
8
5
7
3
6
1
4
1
4757 Duoset II Rev C 8/9/00 3:20pm Page 3

DIAGRAM KEY
Boom
Mikrofonarm
Microfoon
Varsi
Perche microphone
Mikrofonarm
Portamicrofono
Mikrofon
Brazo del micrófono
Boom do microfone
Mikrofonbom
Noise Cancelling
Microphone
Støjannulleringsmikrofon
Noise cancelling
microfoon
Melunpoistomikrofoni
Microphone directionnel
Noise Cancelling
Mikrofon (mit
Ausnahme einiger
DECT-Headsets)
Microfono a
cancellazione di rumore
Støydempingsmikrofon
Micrófono con
cancelación de ruidos
Microfone com
supressão de ruído
Bullerdämpande
mikrofon
Voice Tube
Mikrofonrør
Spreekbuis
Mikrofoniputki
Tube vocal
Sprechröhrchen
Tubo vocale
Talerør
Tubo de voz
Tubo de voz
Talrör
Earhook
Ørekrog, størrelse
Oorhaakje
Korvakoukku
Contour d'oreille
Ohrbügel
Supporti per l'orecchio
Ørekrok
Gancho
Gancho de orelha
Öronkrok
Earhook Cable
Retainers
Ledningsklips på
ørekrog
Kabelvoering aan het
oorhaakje
Anneau support contour
d’oreille
Kabelführung am
Ohrhaken
Supporti per l’aggancio
all’orecchio
Kabelfeste pa orekrok
Supores do gancho de
orelha
Soportes para el cable
Kabelränna
Pivot Ball Ring
Gummiring
Draaikogelring
Korvatyynyn Pidin
Pivot d’attache à rotule
Kugelgelenk-Ring
Lo snodo d’aggancio
dell’auricolare
Festering for orekrok
Aro para gancho
Aro de rotação
Öronkroks ring
12
11
10
9
8
7

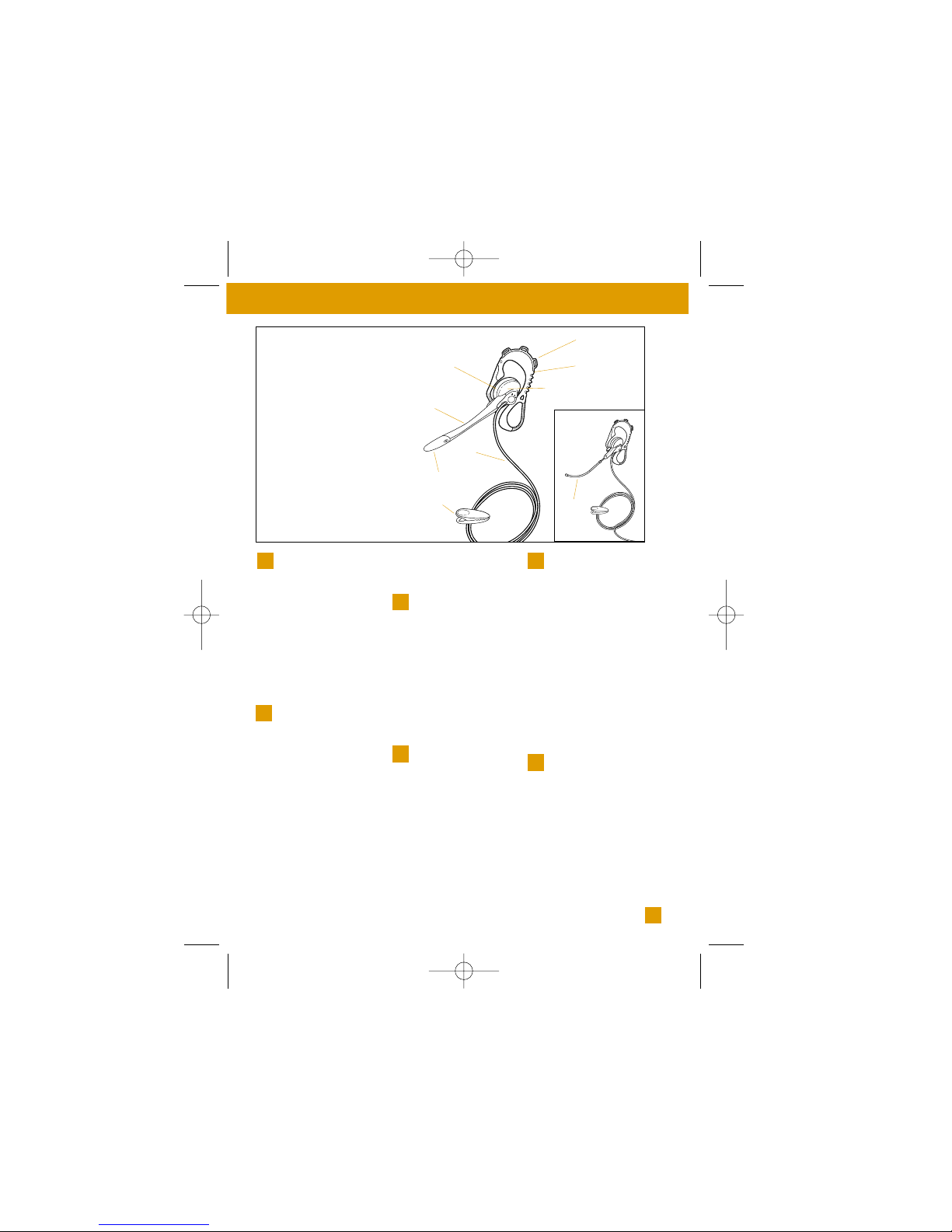

OVER-THE-EAR
OVER ØRET
OVER HET OOR MODEL
KORVAN YLLÄ
CONTOUR D’OREILLE
OHRBÜGEL-MODELL
MODELLO AD
AGGANCIO AURICOLARE
OVER ØRET
MODELO GANCHO
MODELO SOBRE A ORELHA
ÖVER ÖRAT
7
1
3
1
1
6
5
8
9
2
4757 Duoset II Rev C 8/9/00 3:20pm Page 4

3
Fig. 1 Fig. 2
Fig. 3 Fig. 4
OVER-THE-HEAD
Fig. 5
Fig. 6 Fig. 7
Fig. 9
Fig. 8
3
4757 Duoset II Rev C 8/9/00 3:20pm Page 5

OVER-THE-EAR
Fig. 1 Fig. 2
Fig. 3 Fig. 4b
Fig. 5 Fig. 6
Fig. 8 Fig. 9
4
Fig. 4a
Fig. 7
4757 Duoset II Rev C 8/9/00 3:21pm Page 6

33
GB DIAGRAM KEY
PREPARING THE HEADSET FOR OVER-THE-HEAD USE:
Fig.1 Remove the earhook and pivot ball ring from the headset.
Fig.2 Fit both the foam ear cushion and the ear cushion holder onto
the receiver. There are notches on the ear cushion which should
be aligned with the boom.
Fig.3 Insert the ball joint of the headband into the socket on the back
of the receiver.
Fig.4 Place the headband over the top of your head, with the cushion
resting comfortably on your ear. The T-Bar should be positioned
above your other ear. If necessary, the length of the headband
can be extended.
The headset can be worn with the receiver on either ear.
Simply rotate the receiver on the headband to suit.
Fig.5 Noise Cancelling Models
Angle the boom towards your mouth.
Fig.6 Voice Tube Models
Hold the headset securely against your ear with one hand. With your
other hand, adjust the voice tube so that the tip sits two finger-
widths from the corner of your mouth. Your voice will sound clearer
if you avoid positioning the voice tube in front of your mouth.
Polaris Models
The Polaris models are fitted with a standard modular connector. To
use this model, simply insert the connector into the headset port of a
compatible telephone.

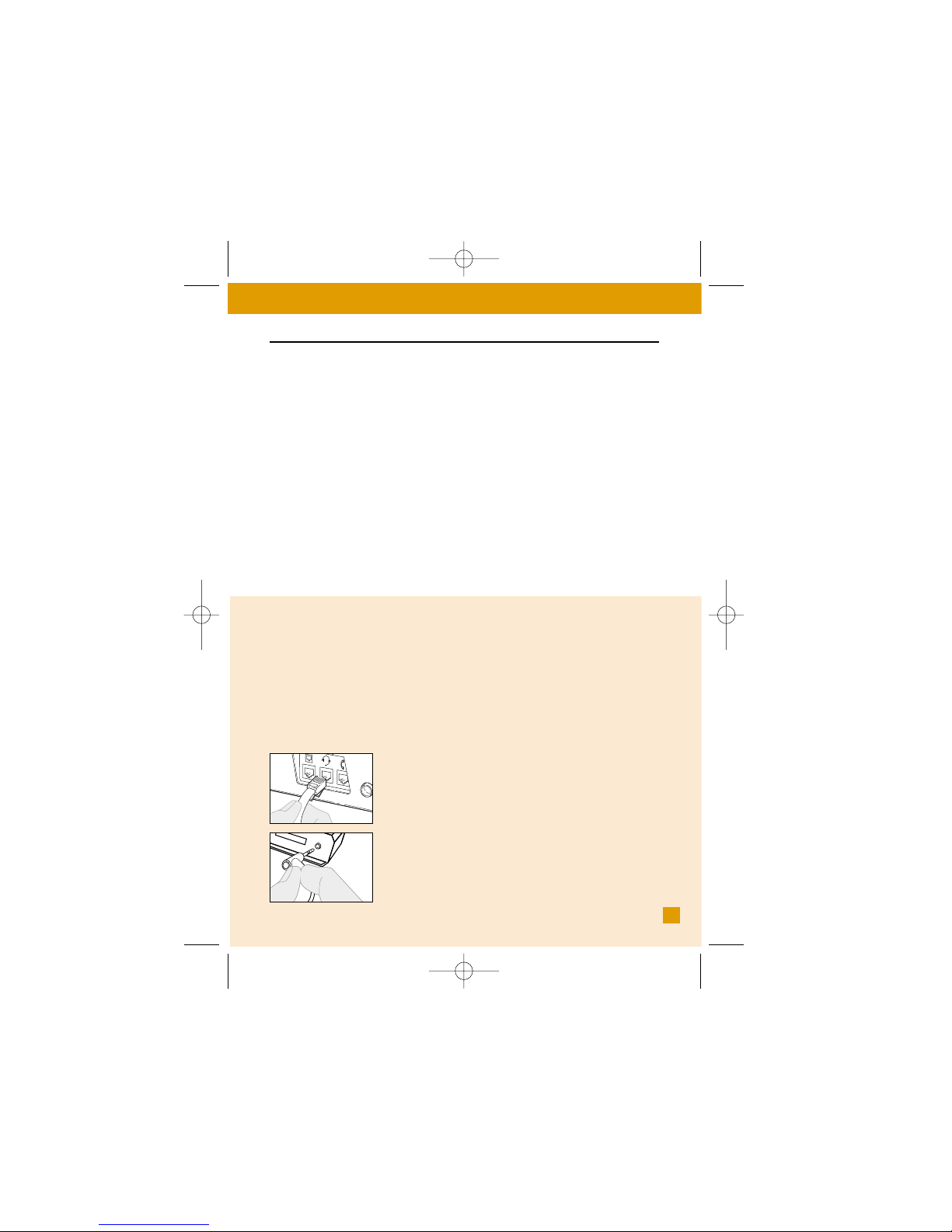

StarBase®2000/2010 Models
Plug the headset modular connector into the headset
socket of the StarBase 2000/2010 telephone.
DECT&GSM Models
If you are using a DECT or GSM telephone, plug the
2.5mm connector into the headset port of the
telephone or adapter.
AirSetTM Models
Plug the 3.5mm connector into the AirSet remote unit.
▼
5
4757 Duoset II Rev C 8/9/00 3:21pm Page 7

33
DIAGRAM KEY GB
PREPARING THE HEADSET FOR OVER-THE-EAR USE:
Fig.1 Unsnap the headband from the back of the receiver.
Fig.2 Remove both the foam ear cushion and the moulded cushion
holder from the receiver. They can be removed as one item.
Fig.3 Press the pivot ball ring onto the headset, aligning it with the
microphone boom. Insert the earhook into either the left or right
hand side of the pivot ball ring, depending which ear the headset
is to be worn on.
Fig.4 Place the headset over your ear as shown in the diagram and
a&b gently press the receiver against your ear for a comfortable fit.
Adjust the conformable earhook around your ear in order to
obtain a comfortable fit.
The headset cable can be slotted over the top of the earhook,
for greater ease of use and comfort.
Fig.7 Clothing Clip
The clothing clip helps to keep the headset free from the weight
of the headset cable. Attach the clip to your clothing at a
comfortable level.
Fig.8 Quick DisconnectTM Connector
Some headset models are equipped with a Quick Disconnect
Connector. When you separate the Quick Disconnect, you place
an on-going conversation 'on hold' without removing the headset.
Before using your headset, join the Quick Disconnect to the
mating connector of your adapter cable. To put your call 'on hold',
grasp the Quick Disconnect as shown, and pull straight apart. To
resume your conversation, reconnect the two halves.
Fig.9 Hook Switch Control
For certain DECT applications, the headset is available with an in-
line hook switch control. You can use this switch to answer
or end a call.
▼
6
4757 Duoset II Rev C 8/9/00 3:21pm Page 8

GB TROUBLESHOOTING
MAINTENANCE HINTS FOR OPTIMUM PERFORMANCE
Replace the foam ear cushion every 6 months.
Replace the voice tube every six months.
Clean cable and headset with a moist cloth once a month
or when necessary.
PROBLEM
Callers cannot hear me
Items to check
Make sure that the boom is facing your mouth.
Check that the headset is correctly plugged into your telephone
or amplifier.
For voice tube models, determine if the voice tube is blocked, by
removing it and speaking into the silver tube. If your caller can
now hear you, simply replace the voice tube with a new one.
Check that the Quick Disconnect is connected correctly.
PROBLEM
I cannot hear callers
Check that the headset is correctly plugged into your telephone
or amplifier.
Make sure that the receiver is correctly placed against your ear.
Check that the Quick Disconnect is connected correctly.
PROBLEM
Headband is uncomfortable
Adjust the headband by lengthening or shortening the band.
PROBLEM
Earhook is uncomfortable
Try adjusting the conformable earhook to suit your ear.
7
4757 Duoset II Rev C 8/9/00 3:21pm Page 9

8
SÅDAN FORBEREDES HOVEDSÆTTET TIL BRUG OVER HOVEDET
Fig. 1 Afmontér ørekrog og gummiring.
Fig. 2 Tilpas både skumørepude og ørepudeholderen på højttaleren.
Afmærkningerne på ørepuden skal bringes på linie med
mikrofonarmen.
Fig. 3 Sæt hovedbøjlens kugletap ind i hullet på højttalerens bagside.
Fig. 4 Sæt hovedbøjlen over hovedet, og indstil bøjlen indtil puden
hviler komfortabelt på øret. T-stangen skal placeres over dit øre.
Hvis det er nødvendigt, kan hovedbøjlen forlænges.
Hovedsættet kan anvendes med højttaleren på hvilket som helst
øre. Højttaleren på hovedsættet kan drejes efter behov.
Fig. 5 Modeller med Støjannullering
Sæt mikrofonarmen ved munden.
Fig. 6 Modeller med standard mikrofonrør
Hold hovedsættet fast mod dit øre med den ene hånd. Justér
mikrofonrøret med den anden hånd, således at spidsen af
mikrofonrøret sidder to fingerbredder fra mundvigen. Undgå at
placere mikrofonrøret foran munden, da dette vil forringe
lydkvaliteten.
Fig. 7 Polaris modeller
Polaris hovedsæt er udstyret med et standard modularstik. For at
bruge denne model, tilsluttes hovedsættets
modularstik til hovedsæt indgangen på telefonen.
DECT & GSM modeller
Hvis du bruger en DECT eller GSM telefon tilsluttes
et 2,5 mm. jackstik til telefonens hovedsæt indgang
eller til adapteren.
AirSet™ modeller
Tilslut et 3,5 mm. jackstik kabel til AirSet remote
enheden.
▼
OVERSIGT DK
4757 Duoset II Rev C 8/9/00 3:21pm Page 10
