Welcome 3
System Requirements 3
Computer 3
Connecting the Cables 4
Speakerphone and
Microphone Basics 5
Speakerphone 5
Microphone 5
Set up your speakerphone 6
Accessories 6
Set Up Your Calisto 6
Get to Know Your Calisto 8
Screen 9
Outgoing Line 10
Menu 10
Use Call Features 11
Make a Call 11
Answer or Ignore a Call 11
Answer a Second Incoming Call 11
Switch Between Calls 12
Mute a Call 12
End a Call 12
Use Other Call Options 12
Special Features for Using Your
P830 & P835 Calisto with a Landline 13
Use the Call Log 14
Enter/Edit Favorites 15
Create a Favorite 15
Access Voicemail 19
Use Your Calisto with a Headset 20
Switch Call Audio Between Your
Calisto and a Headset 20
Use Your Calisto with a Wireless Mic 22
Setup 22
Pairing (if not pre-paired) 22
Wearing and Use 22
Features 23
Wireless Mic Usage 24
Light Indicators 25
Disconnect from/Reconnect to a Mobile Phone
or Bluetooth Headset 26
Customize Your Calisto Settings 28
Basic Setup 28
Plantronics Spokes Software 31
Spokes Software Highlights 31
Softphone Support 31
Calisto 800 Application Support
and Features 32
Plantronics Control Panel 34
Plantronics Update Manager 35
Troubleshooting - General 36
Troubleshooting - Software 38

3
Welcome
Congratulations on purchasing your new Plantronics product. This user guide
contains instructions for setting up and using your Calisto Speakerphone
(Speakerphone + PA50 Microphone) System.
The Calisto comes in several models:
• The P820 model connects to mobile phones and PC softphones.
• The P825 model connects to mobile phones and PC softphones, and includes a PA50 wireless
mic accessory (see Use Your Calisto with a Wireless Mic on page 22).
• The P830 model connects to mobile phones, softphones, and analog landlines.
• The P835 model connects to mobile phones, softphones, analog landlines and includes a PA50
Wireless Mic accessory
The Calisto offers:
• Full duplex wideband audio with advanced noise cancellation
• A 2.4” color display and dial pad for easy caller ID viewing, dialing, answering, switching, and
muting across devices
• Support for Bluetooth and wired headsets and headphones (2 x 3.5mm jack)
• Many convenient features including integration with top Unified Communications client
applications and softphones, and media players. Please see the Plantronics Spokes Software
section for a complete list of supported features and more details
With the Calisto, you can:
• Make and answer calls for any of your connected phone lines.
• Manage and switch among multiple calls, even from different phones.
• Easily switch call audio between the built-in speakerphone, a wired headset/headphones/
earbud, or a wireless Bluetooth headset.
• Use the Call Log and Favorites to quickly view and dial numbers.
• Customize settings to make your Calisto work best for you.
Please refer to the separate safety instructions for important product safety information prior
to installation or use of the product.
System Requirements
Computer
• Supported Operating Systems: Windows XP®, Windows Vista®, Windows® 7
• Microsoft Windows XP-Service Pack 3 (SP3) or later (Recommended)
Microsoft Windows Vista-Service Pack 1 (SP1) or later (Recommended)
• Microsoft Windows 7-Service Pack 1 (SP1) or later (Recommended)

4
Connecting the Cables
*
*Landline on P830 & P835 only

Speakerphone
Microphone
5
Speakerphone and Microphone Basics

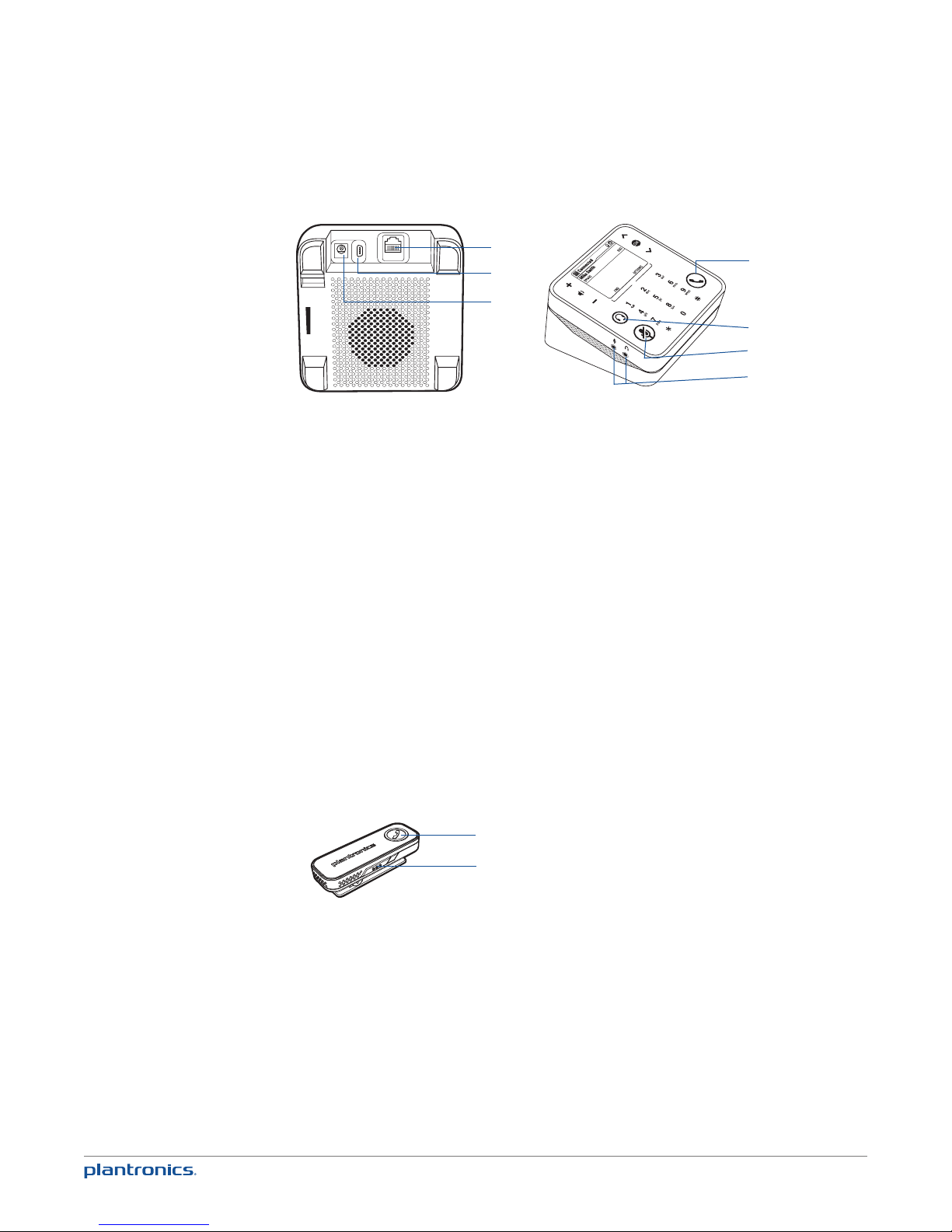

1 Analog landline telephone port (P830 & P835 models only); P820 & P825
have a standard Kenington receptacle.
2 USB port to computer
3 AC adapter (P830 & P835 models only; available as an optional accessory
for P820 & P835 models)
4Talk/End key
5Audio key. Switches from the speakerphone to a headset (or wireless mic)
and back.
6Mute key
73.5 mm headset/headphone jacks
1 Talk/End key: Press with one tap to answer or end a call. The key is green
when you have an incoming call, red when you are on a call.
2 Mute/Unmute keys: Press red key on both sides. The keys light up red
when a call is muted
1
2
3
4
5
6
7
1
2

6
Set up your speakerphone
Accessories
The following optional accessories are sold separately:
• PA50 Microphone clip: Enjoy freedom of movement and exceptional transmit quality for the
ultimate speakerphone experience (included with P825 & P835).
• Plantronics H-Top adapter cable: Connect Plantronics H-Tops with QD directly to the dual
3.5mm headset jack.
• 2.5mm-to-3.5mm adapter: Convert 2.5mm corded headsets to connect to the dual 3.5mm
headset jack.
• Headset charging cable: Charge a Plantronics Bluetooth headset with micro USB ports directly
from your Calisto
• Carrying case.
For more information on accessories, visit plantronics.com.
Set Up Your Calisto
Follow the instructions on the Calisto screen to complete setup.
The setup includes the following steps. Most steps are optional.
NOTE If you skip any part of setup, you can access the setup screens later by selecting Menu >
Settings > Advanced Setup > Setup Assistant.
Basic setup: Enter your preferred language and your country.
Language
English
Français
Español
Deutsch
Português
NEXT
If you live within the U.S. and are required to dial 10 Digits for
local calls, select “Other” as your Country setting (not “United
States”).
Area Code setup: If you select United States or Canada as
your country, enter your 3-digit landline phone area code. This
enables your Calisto to automatically add a “1,” if required, when
you dial a number from your call log (see Use the Call Log on
page 14).
If you enter an incorrect digit, press OK to delete the last digit
you entered.
Press Next (right softkey) if you do not want to enter an area
code. Note that this may result in incorrect dialing if you dial a
number from your call log.
Spokes software can be installed at anytime to enhance your
user experience with Calisto 800 and industry-leading Unified
Communications clients and softphone applications, with many
other features available.
www.plantronics.com/software
Please refer to the Plantronics Spokes Software section of this
guide for details.
NEXTBACK
Setup Assistant
The next few screens will guide
you through the setup process

7

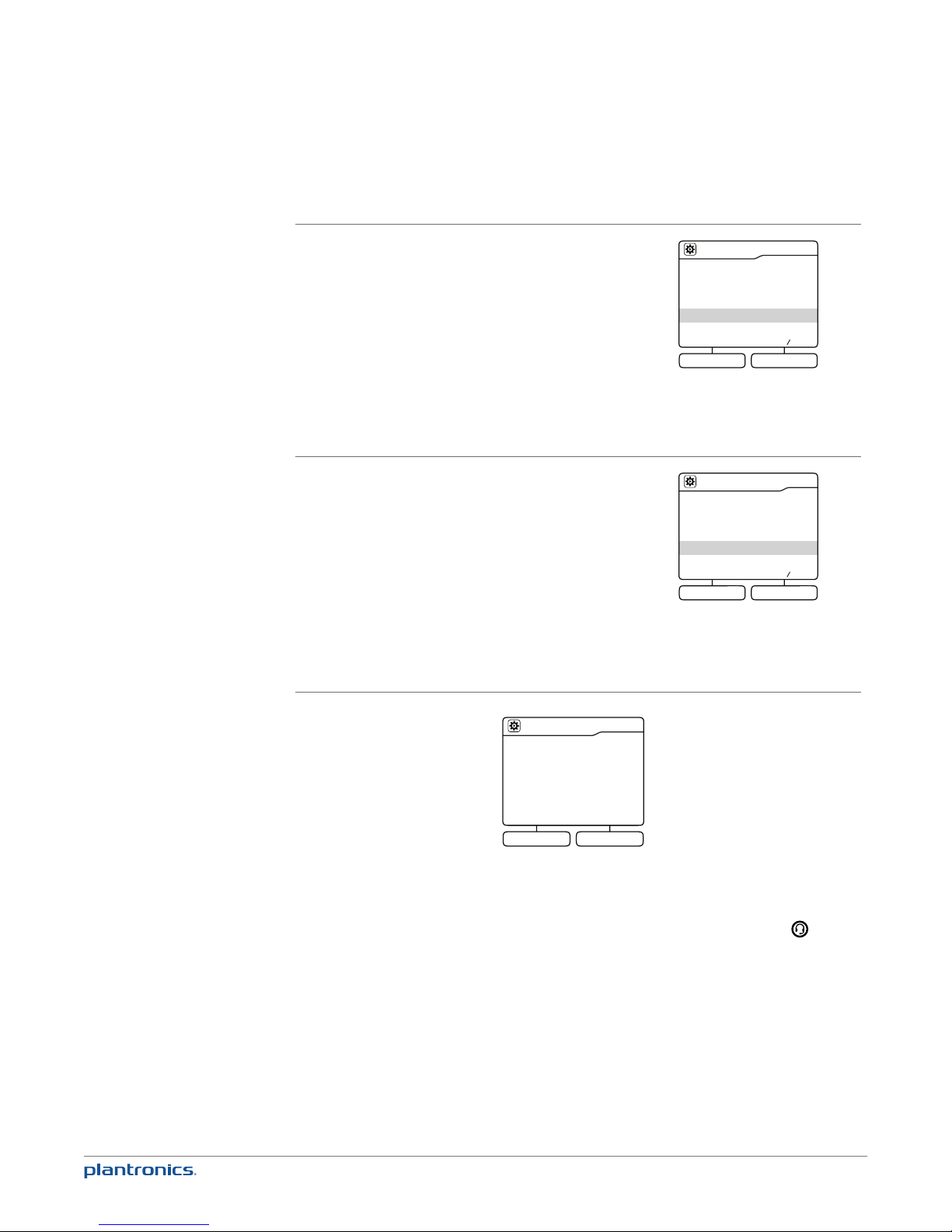

Mobile phone setup (optional): When you connect your Calisto
to a mobile phone that supports Bluetooth, call audio from that
phone is automatically routed to your Calisto. To connect to a
mobile phone, do the following:
1 On the Mobile Phone setup screen, make sure Yes is
highlighted, and press OK .
NOTE Do not press Next/Skip (right softkey). This skips the phone
setup process.
2 Follow the onscreen instructions. If prompted, enter 0000 as
the passkey on your phone.
NOTE To access mobile phone setup later—for example, if you
want to pair with a second mobile phone—select Menu > Settings >
Bluetooth Setup.
NEXT SKIPBACK
Mobile Phone
Do you want to setup a mobile
phone to use with Calisto?
Yes(Press OK)
Bluetooth headset setup (optional): When you connect your
Calisto to a Bluetooth headset, you can route call audio to
the headset directly from your Calisto. This lets you use your
Bluetooth headset for landline, mobile, and softphone calls. To
connect to a mobile phone, do the following:
1 On the Headset setup screen, make sure Yes is highlighted,
and press OK .
NOTE Do not press Next/Skip (right softkey). This skips the phone
setup process.
2 Follow the onscreen instructions.
NOTE To access Bluetooth headset setup later, select Menu >
Settings > Bluetooth Setup .
NEXT SKIPBACK
Bluetooth Headset
Do you want to setup a Bluetooth
headset to use with Calisto?
Yes(Press OK)
FINISH
Setup Complete
You are now ready to make and
receive calls.
After setup, call audio from any phone line you have connected to your Calisto—mobile,
softphone, or analog landline (P830 & P835 models only)—is automatically routed to your
Calisto speakerphone. If you connected a headset to your Calisto, you can route the audio from
any call connect to the speakerphone from the headset and back via the Audio Key .

8
1
2
3
4
5
6
78
9
10
11
1Talk/End: Press to dial a number you entered, to answer an incoming call, or to end a call. The
key is green when you have an incoming call, red when you are on a call.
2Mute: Press to mute the currently active call. (Red when on, white when off and in a call)
3Dual 3.5mm headset/headphone/earbuds jack (on side of device): Insert headphones or earbuds
into the jack. For headsets with microphones, insert the microphone into the jack and the
speaker into the jack.
4Audio Key: Press to switch from your Calisto speakerphone to a headset or wireless mic
accessory and back. If you have more than one headset (wired or wireless) connected to your
Calisto, pressing Audio Key displays a list of all your audio options. Highlight the option you
want to switch to, and press OK When the microphone in the base is active you will see a white
LED lit on the front side of the unit. .
51 key: If you entered a voicemail access number, press and hold 1 from the Main Menu or the
Dial screen to dial it (see Enter Your Voicemail Access Number on page 29).
6Volume Up/Down: When you are on a call, press +/- to adjust the call volume. When you’re not
on a call, press +/- to adjust the ringer volume. When a call is ringing, press +/- to silence the
ringer for that call only.
7Screen: Use the Control and OK keys on the right to select onscreen items.
8Softkeys: Press to access the option shown onscreen above the softkey.
9Control Up: Press to scroll up a list or to increase an onscreen control, such as screen
brightness.
10 OK: Press to select a highlighted item or accept the control setting.
11 Control Down: Press to scroll down a list or to decrease an onscreen control, such as screen
brightness.
Get to Know Your Calisto

9
Screen
Idle Screen Notifications

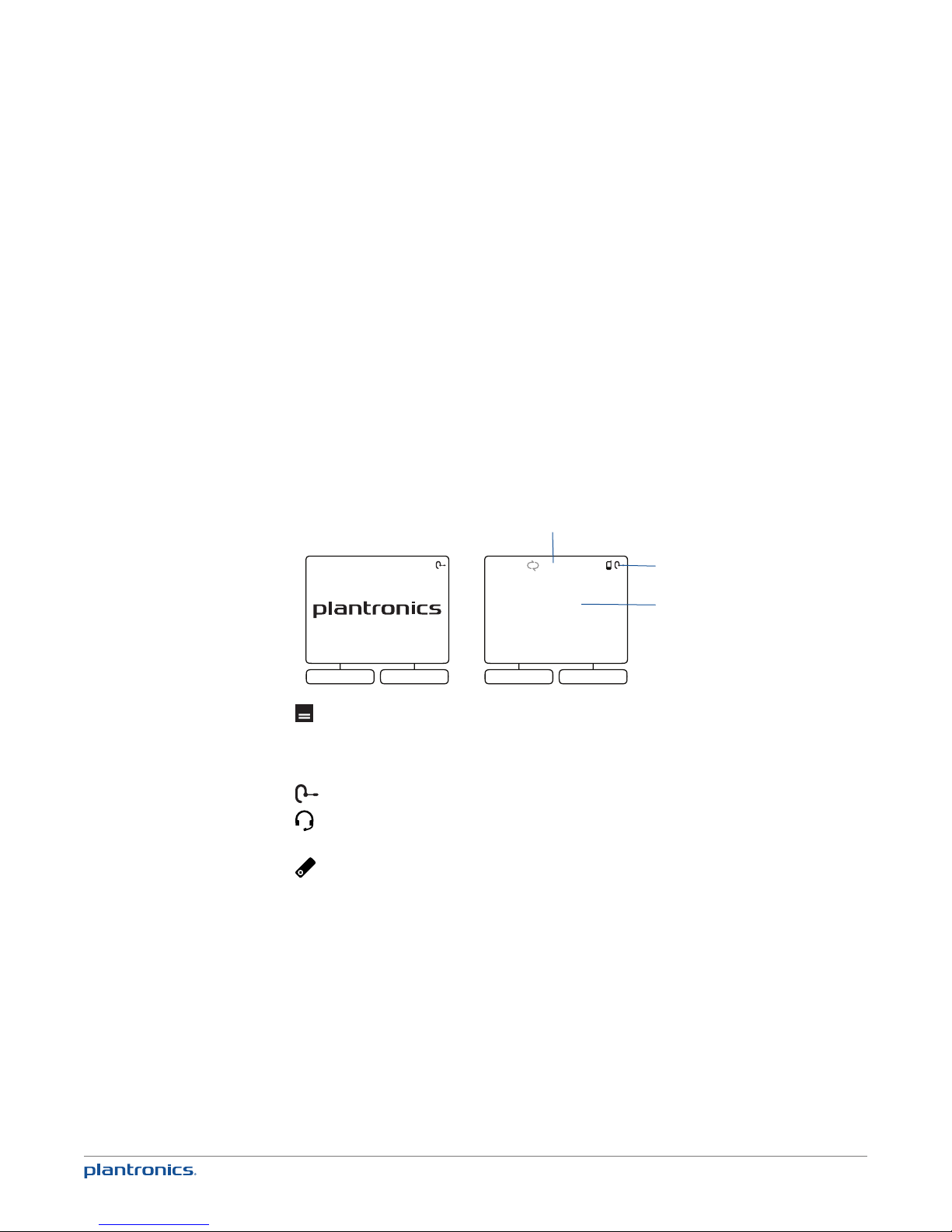

When you are not on a call, the screen displays either the Plantronics logo or some or all
of the following information, depending on the connected phone line, the services you have
subscribed to (such as voicemail), and/or the softphone you are using:
Status Bar Icons
The status bar is the row of icons at the top of most screens.
1Your online status, as shown in your softphone*
2Connected Bluetooth mobile phone or headset status
3Current time based on your PC clock
4Missed calls (total for all connected landline, mobile, and softphones*) (not shown)

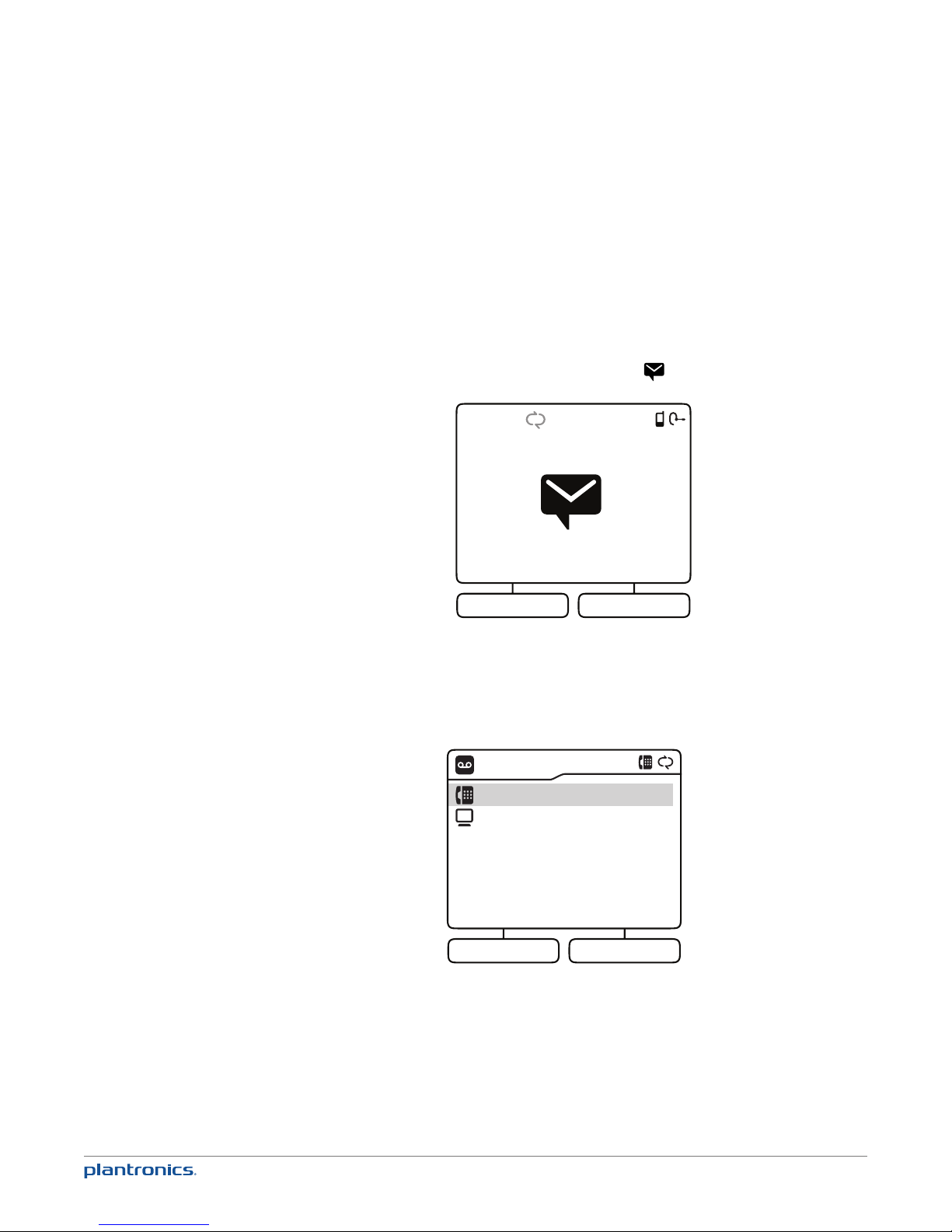

5New voicemail (for connected landline and softphones*) (not shown)
*If supported by your softphone. Check the features available for your softphone.
MENUDIAL
MENUDIAL
Available
9:20 AM
1
2
3
: Shows the level of voice activity during a call. If the call is muted, the indicator displays no
bars.
Headset/headphone/earbud connection indicators
: Your Calisto is connected to a Bluetooth headset. Call audio is routed to the headset.
: Your Calisto is connected to a wired headset, headphones, or earbuds. Call audio is routed
to the headset, headphones, or earbuds.
: You are in a call and your PA50 wireless mic is active.

10
Outgoing Line
Outgoing phone line indicators
When you make an outgoing call, the call is made by default using the last line you selected on
the Dial screen (see Make a Call on page 11). To choose a different line, simply highlight the line
of your choice on the Dial screen. If the last line used is unavailable, outgoing calls are made
over the first available line, in this order: softphone, landline (P830 & P835 models only), mobile
phone. Note that you can answer incoming calls from any connected phone line on your Calisto.
: Outgoing calls are made over your default softphone line.
: Outgoing calls are made over your analog landline (P830 & P835 models only).
: Outgoing calls are made over your connected mobile phone line.
Online status indicators (if supported by your softphone application)
If supported by your softphone, your Calisto displays your online status, such as available, busy,
away, and so on. Actual icons vary according to the softphone.
Menu
The menu gives you access to many Calisto features. To display the menu, do one of the
following:
• When the idle screen is displayed, press Menu (right softkey) or any key on your Calisto.
• When you are working with a feature within a menu, press and hold Back (left softkey) to
return directly to the main menu.
• Call Log: See Use the Call Log on page 14.
• Favorites: See Enter/Edit Favorites on page 15.
• Bluetooth: See Disconnect from/Reconnect to a Mobile Phone or Bluetooth Headset on page 26
• Settings: See Customize Your Calisto Settings on page 28.
Optimal Audio Performance
Your Calisto is optimized for personal use. To minimize background noise, the microphone pick-
up range is limited. This illustration shows ideal placement of your Calisto to optimize voice
pick-up:
If you require 360-degree room coverage to handle multi-party calls, consider using the
Plantronics PA50 wireless mic as an alternative. You can place the wireless mic on a table for
full 3600coverage (see Use Your Calisto with a Wireless Mic on page 22).
