Plantronics CALISTO P825-M User manual

Getting started:
The Plantronics Calisto speakerphone is ready to use with your
computer and Microsoft® Office Communicator 2007.
1. Connect your speakerphone to the computer. If this is the
first time you are connecting, wait for the installation
process to complete. Restart the computer if directed to
do so.
Configuring Office Communicator to always route call audio to
the speakerphone:
2. Click the drop down arrow icon in the upper left corner of
the Office Communicator window.
3. Select the Tools option.
4. Then select Set Up Audio and Video.
5. The first screen will be Setup for Handset or Headset.
Verify that your Plantronics speakerphone is selected in
the drop down menu. Click Next.
6. This screen is Setup for Speakers/Microphone or
Speakerphone. Select Custom in the main drop down
menu.
7. Make sure your Plantronics speakerphone is listed as your
speaker and microphone in the two drop down lists.
8. Click Next.
9. In the next screen, you will set the audio output for your
sounds (for example: incoming call or new IM message
alerts). We recommend that you use your PC speakers for
this setting (if you have a sound card and speakers
available). After making your selection click Finish.
Note: USB configuration settings are unique for each USB port. If you
connect the speakerphone to a different port you will need to make
these changes again to set behavior for that USB port.

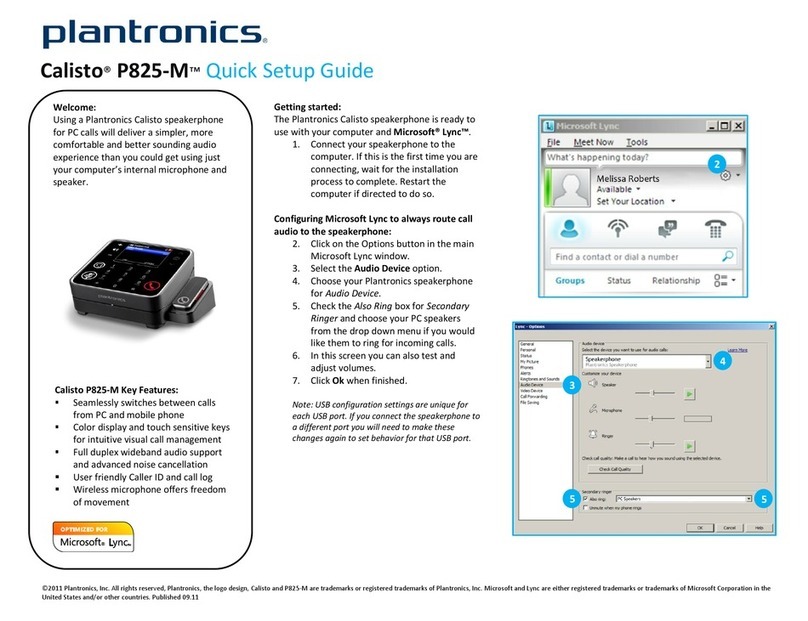

Calisto®P825-M™Quick Setup Guide
Welcome:
Using a Plantronics Calisto speakerphone
for PC calls will deliver a simpler, more
comfortable and better sounding audio
experience than you could get using just
your computer’s internal microphone and
speaker.
Plantronics Speakerphone
Plantronics Speakerphone
9
©2011 Plantronics, Inc. All rights reserved, Plantronics, the logo design, Calisto and P825-M are trademarks or registered trademarks of Plantronics, Inc. Microsoft is a registered trademark of Microsoft Corporation in the United States and/or other
countries. Published 01.11
2
3
4
6
7
7
8
Calisto P825-M Key Features:
Seamlessly switches between calls
from PC and mobile phone
Color display and touch sensitive keys
for intuitive visual call management
Full duplex wideband audio support
and advanced noise cancellation
User friendly Caller ID and call log
Wireless microphone offers freedom
of movement

Making and Receiving Calls with Microsoft Office Communicator 2007
To MAKE a call:
To call an existing contact, select the
contact you would like to call (1) and
click the call button next to their name
(2). To call other numbers for that
contact, click the calling options arrow
(3) to the right of the call button.
You can also enter a phone number
manually using the search box located at
the top of the Office Communicator
screen.
When a call is placed, a call window will
open, and the audio will be routed to
your speakerphone.
To RECEIVE a call:
When you receive a call, a notification
window will appear in the lower right
hand corner of your computer screen (4).
To answer the call, use the controls on
your speakerphone or click the left pane
(5) of the call notification window.
To REDIRECT a call:
If it’s not convenient to take the call, you
can click Redirect (6) and choose one of
the available options (7).
1
2
3
5
7
4
©2011 Plantronics, Inc. All rights reserved, Plantronics, the logo design, Calisto and P825-M are trademarks or registered trademarks of Plantronics, Inc. Microsoft is a registered trademark of Microsoft Corporation in the United States and/or other
countries. Published 01.11
6
