Plantronics Vista m22 amplifier User manual

VISTA

TM M22

USER GUIDE

UNIVERSAL MODULAR AMPLIFIER

WELCOME

TO THE VISTATM M22 UNIVERSAL MODULAR AMPLIFIER FROM

PLANTRONICS

The Vista M22 Universal Modular Amplifier adapts your

telephone to a Plantronics headset and provides control of the

sound through your headset. The Vista M22 Ampliﬁer has built-

in sound conditioning and protection.

The Vista M22 Ampliﬁer is not designed to work with tele-

phones that have the dial pad in the handset or with cordless

telephones.

Features

•Sound Compression which protects your ears from harsh

noises, such as fax tones

•Audio compensation which improves listening and speaking

sound

•Easy switching between handset and headset

•Listening and speaking volume control and a mute option

•Echo management for VoIP applications

•Supports wideband audio

>>PLEASE READ IMPORTANT SAFETY INFORMATION FIRST

CONTENTS

Welcome .........................................................................................2

Important Safety Information - READ FIRST................................4

Battery Safety..............................................................................4

AC Adapter Safety .......................................................................5

Components of the Vista M22 ........................................................6

Setting up the Vista M22 ................................................................7

Installing the Batteries ...............................................................7

Attaching the Vista M22 to Your Telephone and Headset ...........7

Conﬁguring the Vista M22 to Your Telephone.............................8

Using the Vista M22 and Your Headset..........................................9

Making and Receiving Calls with Your Headset.........................9

Adjusting the Volume for Calls ................................................10

Muting a Call ............................................................................11

Making and Receiving Calls with the Handset ........................11

Using the Optional AC Power Adapter.........................................12

Warranty and Service ..................................................................13

Regulatory Information ...............................................................14

IMPORTANT SAFETY

INFORMATION

WARNING: To reduce the risk of ﬁre or injury to persons,

read and follow these instructions.

• This product is not a toy, never allow children to play with the

product. Small parts may be a choking hazard.

• Unplug the product from the wall outlet before cleaning.

Clean with damp cloth only.

• As with all corded products, there is a danger of strangulation

if the cord should become wrapped around your neck.

BatterY WarNINGs

• Remove batteries when they are discharged and when the

equipment will not be used for an extended period of time.

Dispose of batteries according to local environmental laws.

• Do not disassemble, heat, crush, deform, or puncture

batteries.

• Do not attempt to charge non-rechargeable batteries.

• Keep batteries out of the reach of children.

aC aDaPter WarNINGs

• Avoid contact with liquids. Do not locate base unit near water,

for example, near a bathtub or sink, in a wet basement, or

near a swimming pool.

• This product should be operated only from the type of power

source indicated on the marking label. If you are not sure

of the type of power supply to your home, consult your local

power company.

• Do not allow anything to rest on the power cord or locate

this product in an area where the power cord is likely to be

damaged by furniture or foot trafﬁc.

• Do not overload outlets and extension cords as this can result

in the risk of ﬁre or electric shock.

• Do not attempt to open the AC Adapter, there are potentially

dangerous voltages inside, and there are no serviceable

parts.

• Avoid using telephone equipment during an electric storm.

There may be a remote risk of electric shock from lightning.

• If the AC Adapter is used, this product is intended to be

supplied by a Listed Class 2 Direct Plug-In Power Unit,

Plantronics Part No. 26503-01, rated at an input voltage of

120 VAC, 60 Hz and an output voltage of 9 VDC at 800mA.

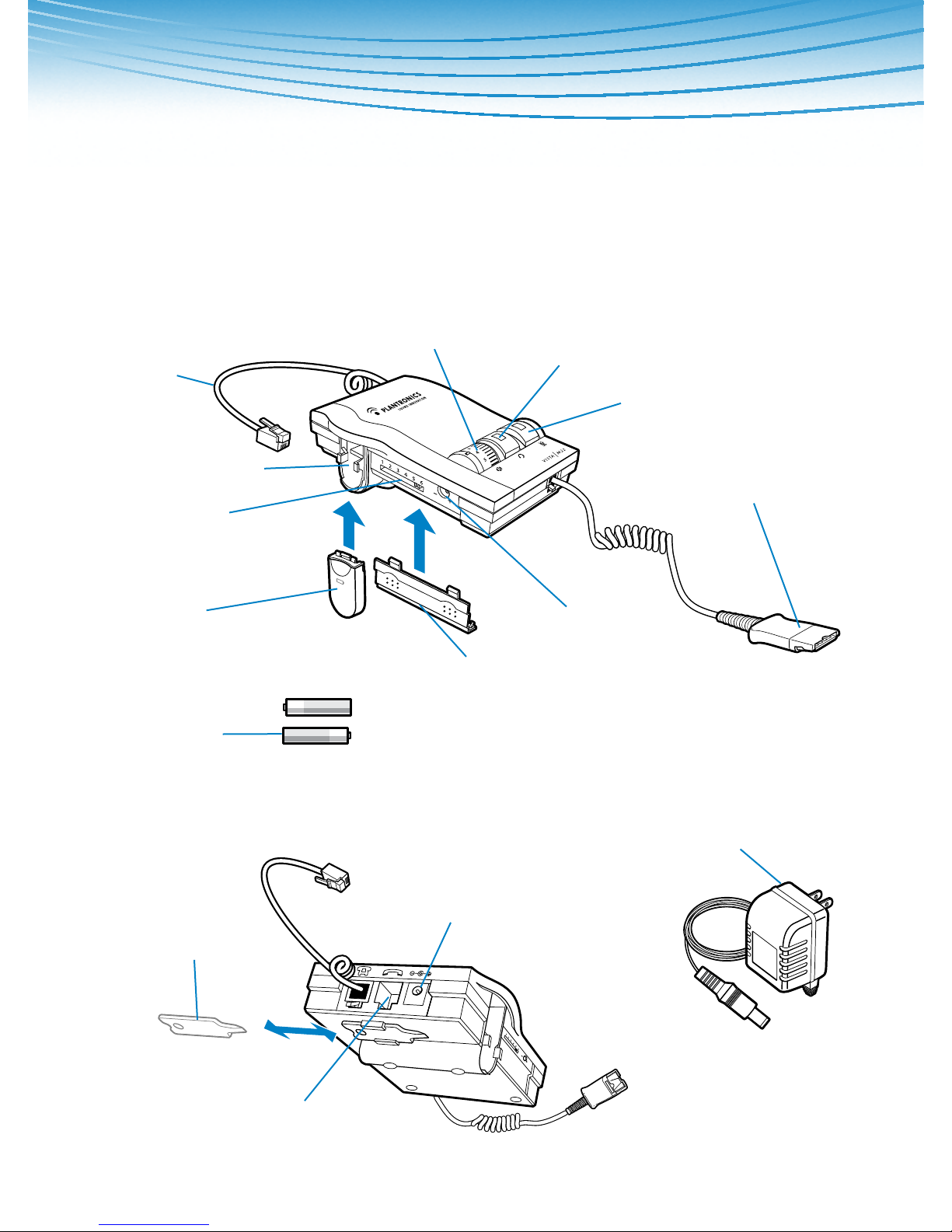

COMPONENTS OF THE

VISTA

™M22

Short

Telephone

Cord

Battery

Access

Door

AC Power

Adapter

(not supplied)

Speaking

Volume

Control

Handset

Jack

Plastic

Screwdriver

AC Power

Adapter Jack

Battery

Compartment

Telephone

Compatibility

Switch

Listening Volume

Thumbwheel Headset/Handset

Button

Quick

DisconnectTM

Mute Button

BOTTOM/REAR VIEW

TOP/FRONT VIEW

Cover

AA Alkaline

Batteries

SETTING UP THE VISTA M22

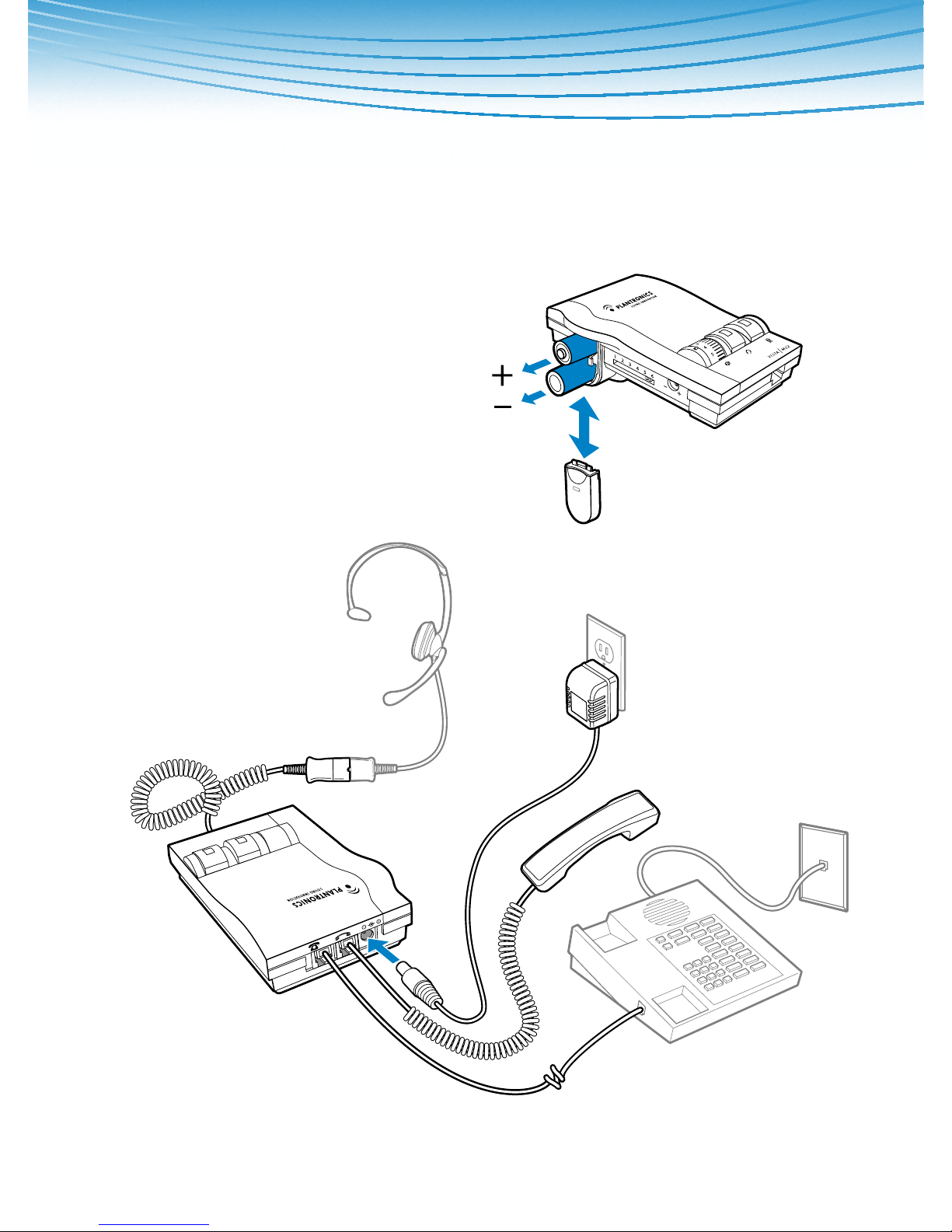

INstaLLING tHe BatterIes

Install the two AA batteries

in the Battery Compartment

matching the + and – symbols

inside the compartment.

Install the Battery Cover by

sliding the cover up into place.

NOTE: You will hear three “beeps” through the headset when the

batteries are low.

attaCHING tHe VIsta M22 tO YOur teLePHONe

aND HeaDset

Unplug the handset from

the telephone and plug

the handset into the

Handset Jack on

the Vista M22.

Connect

the Short

Telephone

Cord to

the handset

jack on the

telephone.

Plug your headset

(not supplied) into

the Quick Disconnect™

cord from the

Vista M22.

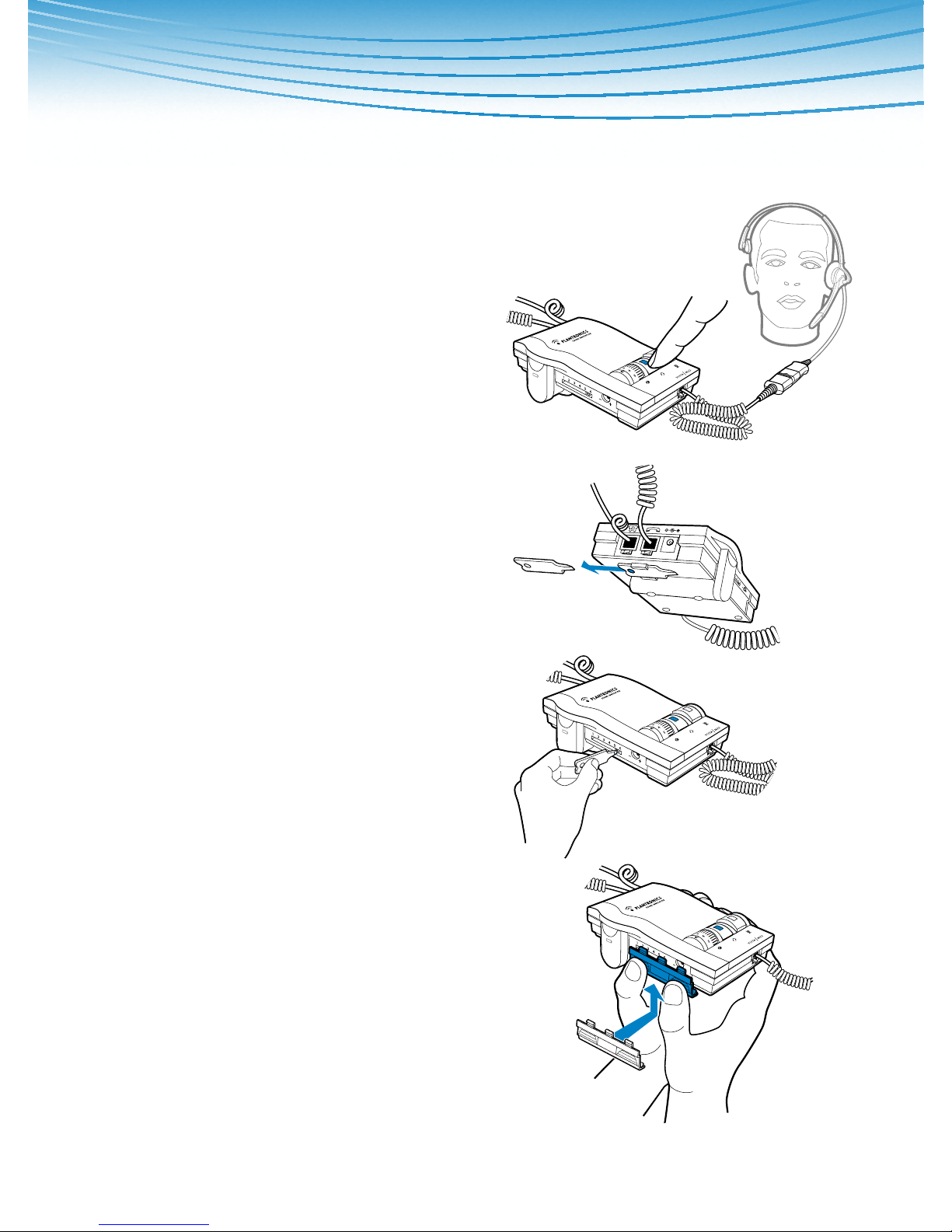

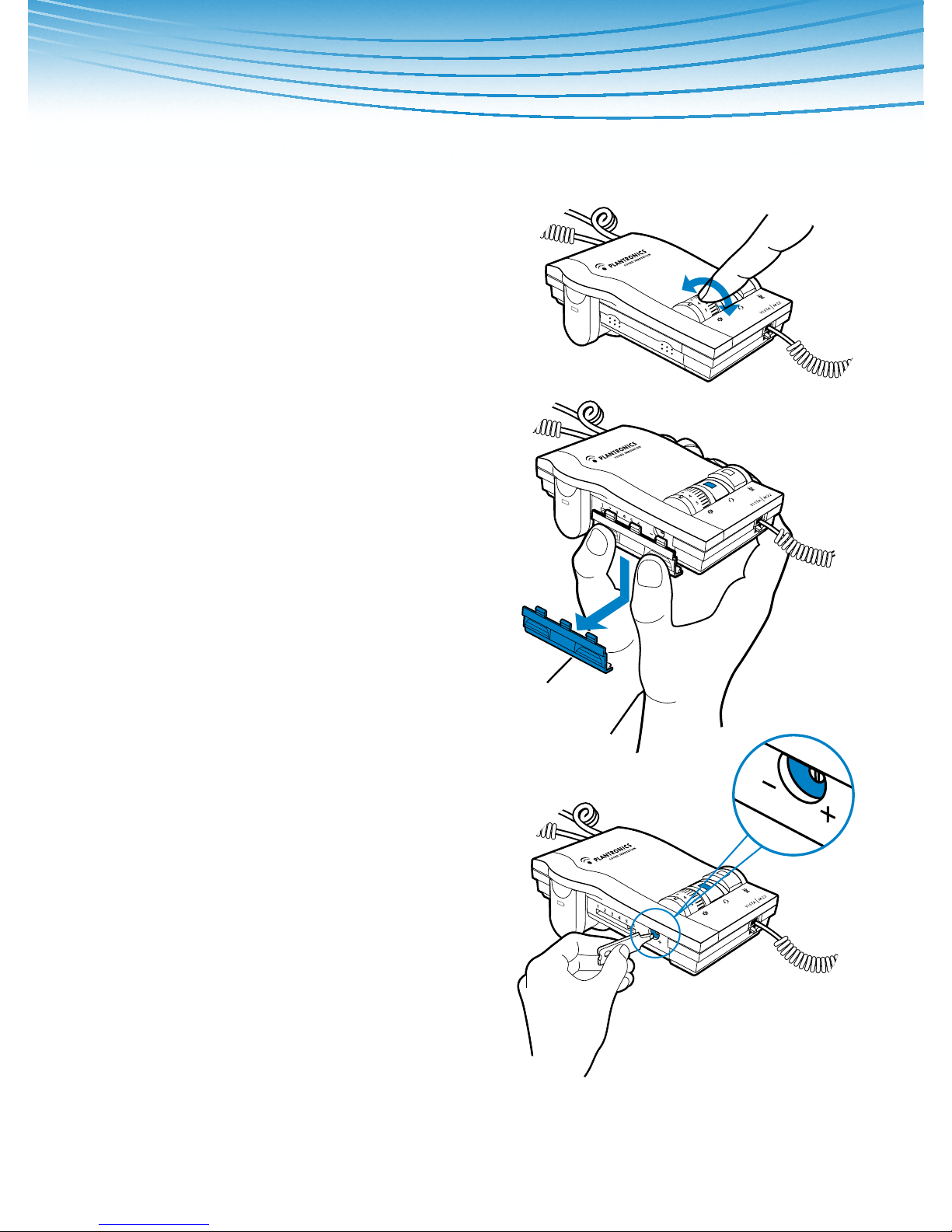

CONFIGurING tHe VIsta M22 tO YOur teLePHONe

While wearing your headset,

lift the handset from

the telephone. If you

do not hear a dial tone,

the Vista M22 must be

conﬁgured to be compatible

with your telephone.

1. Press the Headset/

Handset Button down to

show the green indicator.

2. Slide the Plastic

Screwdriver from its

storage location on

the underside of the

Vista M22.

3. Use the Plastic

Screwdriver to slide the

Telephone Compatibility

Switch to the left or right

until you hear a clear

dial tone.

4. Return the Plastic

Screwdriver to its

storage place.

5. Install the Cover by inserting

the cover prongs into the slots

on the Vista M22. Place your

thumbs on the raised bumps.

Press the Cover down and then

push it up into place.

USING THE VISTA M22 and

YOUR HEADSET

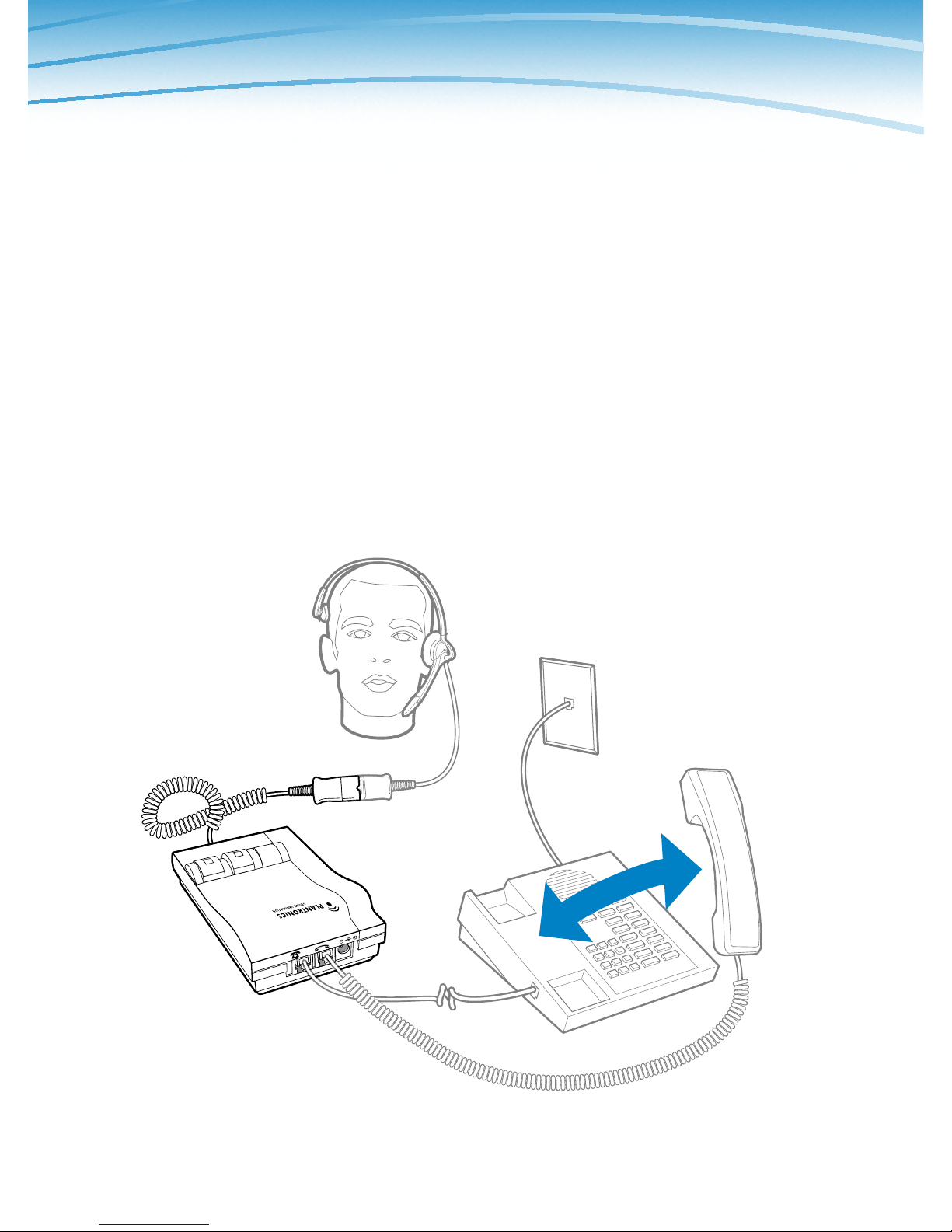

MaKING aND reCeIVING CaLLs WItH YOur HeaDset

Press the Headset/Handset Button (green).

• To make a call while wearing the headset. Lift the handset

from the telephone. Listen for a dial tone and dial.

• To receive a call, lift the handset from the telephone and

speak into your headset.

• To disconnect a call, return the handset to the telephone.

aDJustING tHe VOLuMe FOr CaLLs

To adjust your listening

volume, rotate the Listening

Volume Thumbwheel from 1

(quietest) to 9 (loudest).

To adjust your speaking

volume, remove the Cover

from the Vista M22.

1. Use the Plastic

Screwdriver to adjust the

Speaking Volume Control.

• Turn the control

clockwise to make your

voice louder.

• Turn the control counter-

clockwise to make your

voice softer.

2. Replace the Cover and

Plastic Screwdriver.

MutING a CaLL

To turn on the mute,

press the Mute Button to

show the green indicator.

To turn off the mute,

press the Mute Button

again.

MaKING aND reCeIVING CaLLs WItH tHe HaNDset

To turn off the headset,

press the Handset/Headset

Button to show the black

indicator.

Use the handset and

telephone to make

your calls.

usING tHe OPtIONaL aC POWer aDaPter (not supplied)

Using the AC Power Adapter is recommended

for uninterrupted operation.

1. Remove the batteries from

the Battery Compartment.

2. Connect the AC Power

Adapter to the AC Power

Adapter Jack on the

Vista M22.

3. Plug the AC Power

Adapter into

your power

source.

WARRANTY AND SERVICE

LIMITED WARRANTY for Plantronics Commercial Products

Purchased in the US and Canada

• This warranty covers defects in materials and workmanship

of Commercial Products manufactured, sold or certiﬁed by

Plantronics which were purchased and used in the United

States and Canada.

• This warranty lasts for two years from the date of purchase

of the Products.

• This warranty extends to you only if you are the end user with

the original purchase receipt.

• We will, at our option, repair or replace the Products that

do not conform to the warranty. We may use functionally

equivalent reconditioned/refurbished/remanufactured/pre-

owned or new Products or parts.

• To obtain service in the U.S., contact Plantronics at

(800) 544-4660 ext. 5538 and in Canada call (800) 540-8363.

If you need additional information, please contact our service

centers at the numbers provided.

• THIS IS PLANTRONICS’ COMPLETE WARRANTY FOR THE

PRODUCTS.

• This warranty gives you speciﬁc legal rights, and you may also

have other rights which vary from state to state or province to

province. Please contact your dealer or our service center for

the full details of our limited warranty, including items not

covered by this limited warranty.

The PLANTRONICS TECHNICAL ASSISTANCE CENTER (TAC)

is ready to assist you! Dial 800 544 4660 ext. 5538 or visit the

support section of our website at www.plantronics.com.

For accessibility information, also call the Technical Assistance

Center.

FCC REQUIREMENTS

This equipment complies with Part 68 of the FCC rules and

the requirements adopted by ACTA. On the exterior of this

equipment is a label that contains a product identiﬁer in the

format US:AAAEQ##TXXXX. If requested, this information must

be provided to your telephone company.

A plug and jack used to connect this equipment to the premises

wiring and telephone network must comply with the applicable

FCC Part 68 rules and requirements adopted by ACTA. A

compliant telephone cord and modular plug is provided with

this product. It is designed to be connected to a compatible jack

that is also compliant. See installation instructions for details.

The REN is useful to determine the quantity of devices you

may connect to your telephone line. Excessive RENs on a

telephone line may result in the devices not ringing in response

to an incoming call. In most, but not all areas, the sum of the

RENs should not exceed ﬁve (5.0). To be certain of the number

of devices you may connect to your line, as determined by

the REN, contact your local telephone company. For product

approved after July 23, 2001, the REN for this product is part of

the product identiﬁer that has the format US:AAAEQ##TXXXX.

The digits represented by ### are the REN without the decimal

point. (For example, 03 represents a REN of 0.3.) For earlier

producers, the REN is separately shown on the label.

If this telephone equipment causes harm to the telephone

network, the telephone company will notify you in advance that

temporary discontinuance of service may be required. But if

advance notice isn’t practical, the telephone company will notify

the customer as soon as possible. Also, you will be advised of

your right to ﬁle a complaint with the FCC if you believe it is

necessary.

The telephone company may make changes in its facilities,

equipment, operations, or procedures that could affect the

proper functioning of your equipment. If they do, you will

be notiﬁed in advance in order for you to make necessary

modiﬁcations to maintain uninterrupted service.

If trouble is experienced with this unit, for repair or warranty

information, please contact customer service at (800) 544-4660.

If the equipment is causing harm to the network, the telephone

company may request that you disconnect the equipment until

the problem is resolved.

DO NOT DISASSEMBLE THIS EQUIPMENT: it does not contain

any user serviceable components.

We recommend the installation of an AC surge arrester in the

AC outlet to which this equipment is connected. Telephone

companies report that electrical surges, typically lighting

transients,arevery destructive tocustomerterminal equipment

connected to AC power sources.

www.plantronics.com

345 ENCINAL STREET I SANTA CRUZ, CA 95060 USA I PHONE: 800 544 4660

Innovation, Quick Disconnect, and Vista are trademarks or registered trademarks of

Plantronics, Inc.

Patents US 5,229,721 and 5,259,780

Printed in USA 74781-01 (10.06)

VISTA

TM M22

USER GUIDE

GUIDE DE L'UTILISATEUR

GUÍA DEL USUARIO

GUIA DO USUÁRIO

UNIVERSAL MODULAR AMPLIFIER

AMPLIFICATEUR MODULAIRE UNIVERSEL

AMPLIFICADOR MODULAR UNIVERSAL

WELCOME

TO THE VISTATM M22 UNIVERSAL MODULAR AMPLIFIER FROM

PLANTRONICS

The Vista M22 Universal Modular Amplifier adapts your

telephone to a Plantronics headset and provides control of the

sound through your headset. The Vista M22 Ampliﬁer has built-

in sound conditioning and protection.

The Vista M22 Ampliﬁer is not designed to work with tele-

phones that have the dial pad in the handset or with cordless

telephones.

Features

•Sound Compression which protects your ears from harsh

noises, such as fax tones

•Audio compensation which improves listening and speaking

sound

•Easy switching between handset and headset

•Listening and speaking volume control and a mute option

•Echo management for VoIP applications

•Supports wideband audio

>>PLEASE READ IMPORTANT SAFETY INFORMATION FIRST

CONTENTS

Welcome .........................................................................................2

Important Safety Information - READ FIRST................................4

Battery Safety..............................................................................4

AC Adapter Safety .......................................................................5

Components of the Vista M22 ........................................................6

Setting up the Vista M22 ................................................................7

Installing the Batteries ...............................................................7

Attaching the Vista M22 to Your Telephone and Headset...........7
