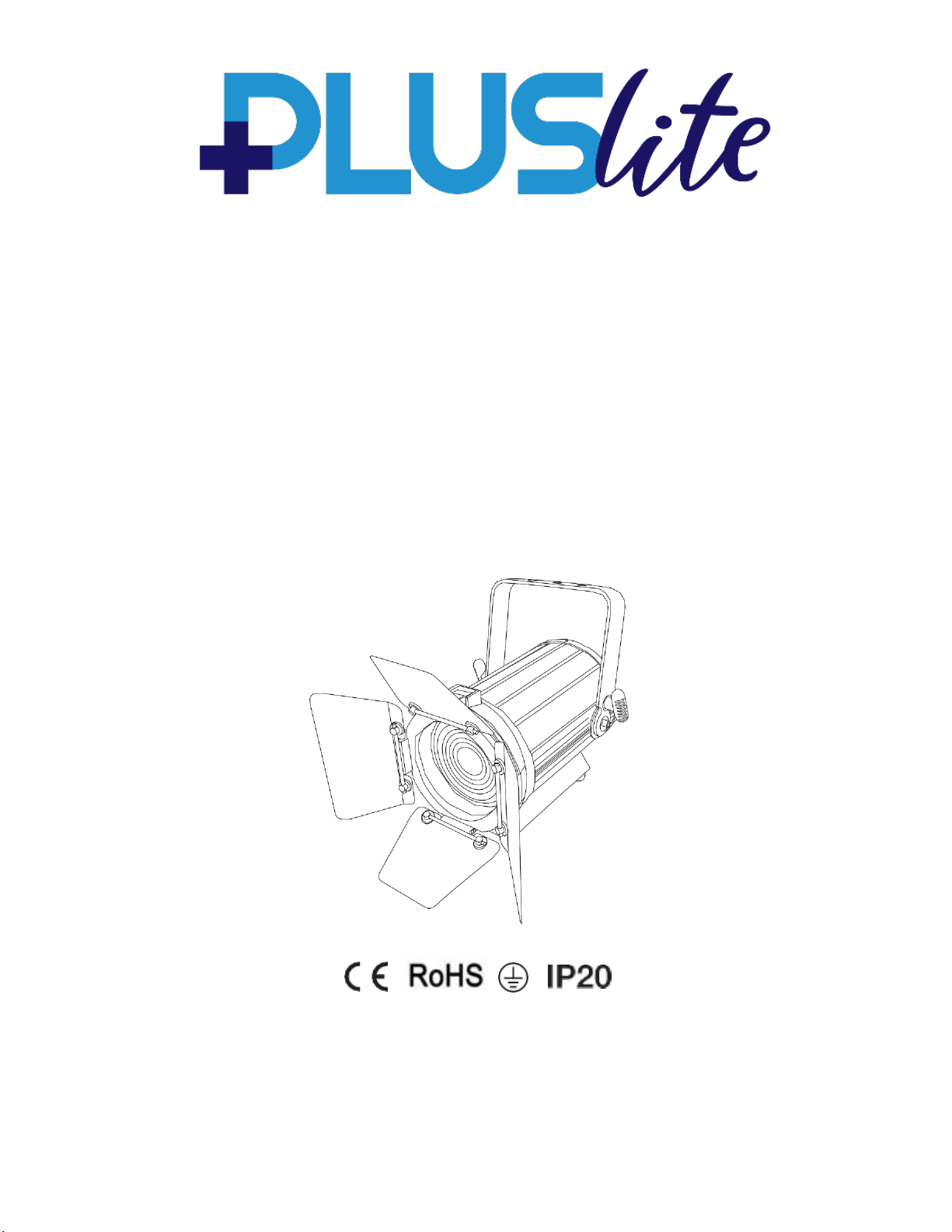

PLUSLITE FRESLED 100 User manual

①
User Manual
FRESLED 100
User Instructions
FRESNEL PL100 Manual Zoom

②
SAFETY INSTRUCTIONS
CAUTION
Be careful with your operations.With a dangerous voltage you can suffer
a dangerous electric shock when touching wires!
This device has left the factory in perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental changes, do
not switch it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person. The device shall only be used
with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be
the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does
not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance
with wall for smooth air flow, so there should be no shelter for fans and ventilation for heat
radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order to
avoid a hazard.
1
IMPORTANT
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.
FRESLED-PL100

③
Unpacking
Thank you for choosing our FRESLED 100. For your own safety, please read this manual before
installing the device. This manual covers the important information on installation and
applications. Please install and operate the fixture with following instructions. Meanwhile, please
keep this manual well for future needs.
The FRESLED 100 is made of a new type of high temperature strength of Aluminum Alloy with
nice outlook. The fixture is designed and manufactured strictly following CE standards, complying
with international standard DMX512 protocol. It's available independently controlled and
linkable with each other for operation. And it is applicable for large-scale live performances,
theater, studio, nightclubs and discos.
The FRESLED 100adopts 1PC 100W COB LED (available for WW) which features high brightness
and stability. Please carefully unpack it when you receive the fixture and check whether it is
damaged during the transportation. And please check whether the following items are included
inside the box:
1②
USA Standard Euro Standard UK Standard
④
①
FRESLED100
1PC
② Signal Cable
1PC
③Power Cable
1PC
④User Manual
1PC
2
③
③
FRESLED-PL100

④
FEATURES & SPECIFICATIONS
● 1*100W COB LED (Warm White)
● 50,000 hours life span and low power consumption
● Color Rendering Index(CRI): Ra≥90
● High efficiency fresnel lens
● Flat and even spot image with soft edge
● Manual zoom system from 15°-50°
● Housing made by rugged, aluminum alloy
● High-strength single handle design
● Barn door included
● Color frame as optional
● 0-100% Smooth and precise linear dimmer
● Two dimmer modes available
● 25T/sec high speed shutter/strobe effect with variable speed
● Preset variable/random strobe and dimming pulse effect
● 1/2DMX channels USITT DMX-512
● DMX512, master-slave, and sound control or auto operation
● 4-Button LCD display
● POWRECON connector IN/OUT
● Power switch available with fuse
● 3-Pin XLR connectors IN/OUT
● Low noise fan integrated with copper liquid cooling system
● -10~40℃Max ambient temperature
● IP20 protection rating
Specifications
Input Voltage:AC100-240V 50/60Hz
LED Quantities:1*100W COB LED (Warm White)
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 1/2 DMX channels USITT DMX-512
Max. Power: 100W
Dimensions:220(D)*283(W)*220(H)mm
Packing size: 320(D)*365(W)*320(H)mm
Net Weight: 5.39kg
Gross Weight: 6.5kg
3
220.50
283.30
FRESLED-PL100

⑤

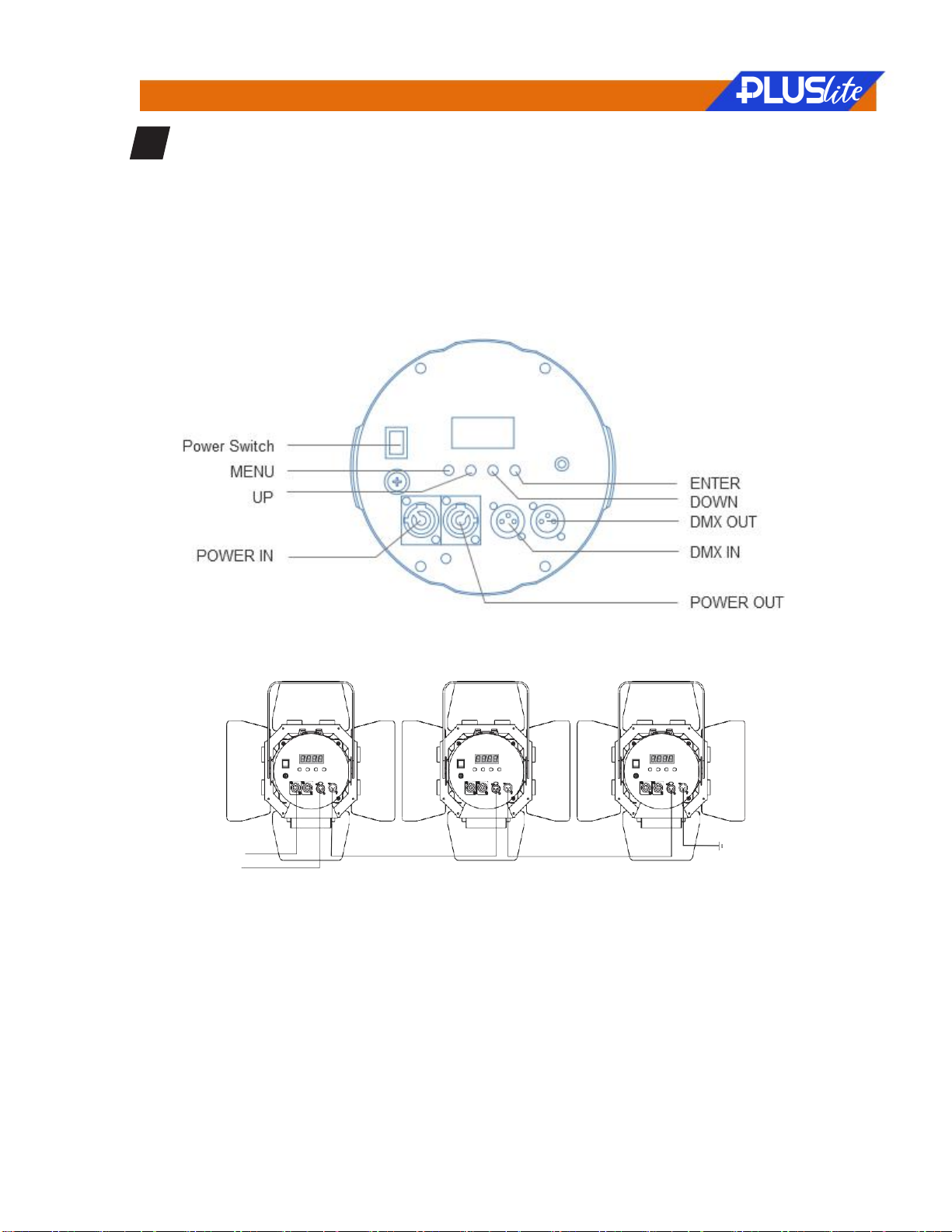

DMX-512 CONTROL CONNECTIONS
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other
side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core, screened
cable with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator
4
POWER IN
DMX IN
FRESLED-PL100

⑥
DMX Output
3-Pin XLR Socket
DMX Input
3-Pin XLR Socket
1:Ground
2:Data(-)
3:Data(+)
COMMON
DMX+
DMX-
DMX 512 OUT
3-PIN XRL
DMX 512 IN
3-PIN XRL
120Ω
Pin2
Pin3
For installations where the DMX cable has to run a long
distance or is in an electrically noisy environment, such as
in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the digital
control signal by electrical noise. The DMX terminator is
simply an XLR plug with a 120 Ω resistor connected
between pins 2 and 3,which is then plugged into the output
XLR socket of the last fixture in the chain. Please see
illustrations below.
FRESLED-PL100

⑦
MENU OPERATIONS
5.1. Key operation
Menu：
The first list is the main menu (press MENU to
exchange), the second list is submenu (press
ENTER to get in or exchange)
If the menu include the decimal point, that’s the
data, and it can be set by the Key of Up/Down.
Key operation：
Key of “MENU” (Press it and can save the data)
If it’s the main menu, it will exchange to next
main menu.
If it’s the submenu , it will back to main menu.
Key of “ENTER” (Press it and can save the data)
If it’s the main menu and it have submenu, it will
enter the submenu.
If it’s the submenu, it will exchange to the next
submenu
Key of “UP/DOWN”
It’s no function if the menu not include the
decimal point.
If the menu include the decimal point, it can set
the data after the decimal point. And it need to
press “ENTER” to save the data.
5.2.Menu Data
Menu
Vice Menu
Display
Key operation
DMX Mode
no
DMX(1CH)
[001]
UP/DOWN: Change the ID address
static mode
no
Dimmer：
[00000]
UP/DOWN: Dimmer
Running mode
no
Run Mode
[1CH]
UP/DOW N: Change the running mode (1 CH or 2 CH)
5
FRESLED-PL100

⑧
DMX CHANNELS
Standard channel model
Chanel Model 1 (1 CH)
Channel
Data
Function
1
0~255
Dimmer
Chanel Model 2 (2 CH)
Channel
Data
Function
Remark
1
0~255
Dimmer
2
0~10
Default dimmer delay
11~15
No dimmer delay
16~255
Dimmer delay option
16 is the shortest delay, 255 is the longest
delay
6
FRESLED-PL100

⑨
OPERATION INSTRUCTIONS
·The FRESLED100 is an LED stage light for on-site decoration purpose.
·Don't turn on the fixture if it's been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the
fixture until it is in normal temperature.
·This light should be keep away from strong shaking during any transportation or movement.
·Don't pull up the light by only the head, or it might cause damages to the mechanical parts.
·Don't expose the fixture in overheat, moisture or environment with too much dust when installing
it. And don't lay any power cables on the floor. Or it might cause electronic shock to the people.
·Make sure the installation place is in good safety condition before installing the fixture.
·Make sure to put the safety chain and check whether the screws are screwed properly when
installing the fixture.
·Make sure the lens are in good condition. It's recommended to replace the units if there are any
damages or severe scratch.
·Make sure the fixture is operated by qualified personnel who knows the fixture before using.
·Keep the original packages if any second shipment is needed.
·Don't try to change the fixtures without any instruction by the manufacturer or the appointed
repairing agencies.
·It is not in warranty range if there are any malfunctions from not following the user manual to
operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.
INSTALLATIONS
For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas
were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device's weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept at
least 0.5m (1.5 ft) away from any flammable materials (decoration etc.).
7
8
FRESLED-PL100

⑩
Please ensure that the led fresnel spotlight is hung using the appropriate "C" clamp or half
cheeseboro. A safety chain or cable should also be used as a secondary point of holding the
fixture in case the clamp comes loose. Never hang the fixture without a safety chain or cable.
There is an eye-bolt on the back of the fixture to which the safety chain or cable can threaded
through and then hung from the secondary point. Make sure the Gel frame (Gel holder) is clipped
into position correctly and cannot come loose.
If you are not qualified or have any doubts about hanging the led fresnel spotlight then do NOT
hang it.
Do not clamp the safety cable to the U bracket or clamp. That is not a secondary safety point.
A secondary safety point is any point that will adequately hold the led fresnel spotlight if the "C"
clamp or half cheesboro fails.
Then the safety cable would be the backup and stop the fixture from falling to the ground. So do
NOT fix the safety cable to the same place that the "C"clamp is attached
Satety Clamp
Safety Cable
Truss installing
Floor Projection
FRESLED-PL100

⑪
Photographic Chart
Cleaning and maintenance
Now ignoring maintenance and cleaning is very good way of creating problems "down the
road" and many companies and installations do just that. However the net result is, no
matter what the fixture, premature failure!
Changing the oil in a car, most people do on a regular basis.
So with the fixtures, regular maintenance it an excellent practice, if you want the fixtures
to last.
So what is the maintenance for the fixture?
10
9
Spectrogram
CRI
FRESLED-PL100

⑫
Clean the fans!
Turn off the led fresnel spotlight.
Using a small vacuum cleaner, suck the dust and “fur balls” out.
Do not use a can of co². That will just blast the dust and dirt everywhere!
The fans keep the LED cool and keep the electronics cool too.
Without the fan working efficiently and dust free, the fixtures will fail and that will be a lot
more costly than having someone
vacuum the fixtures on a regular basis.
How often should the fans be cleaned? It depends on where the fixtures are; in a very
dusty atmosphere once a week. So
check the fans on a regular basis, they may not need cleaned every week but a quick
“visual inspection” should be done.
The front lens should be cleaned so the light output is maintained.
The shutter blades sometimes require cleaning as well.
With the led fresnel spotlight turned off, use only a moist lint-free cloth. Never use alcohol
or solvents to clean the fixture.
Never spray anything onto the fixture at the front or in any place on the fixture.
FRESLED-PL100

⑬
FRESLED-PL100
Please Note: Specifications and improvements in the design of this unit and this
manual are subject to change without any prior written notice.
Model: FRESLED-PL100
Voltage:
LEDs:
IP Rating:
T.Color :
Beam Angle:
CRI:
Housing:
Cooling System:
DMX Control:
DMX Channels
Weight:
Dimension:
Warranty:
100V ~ 240V/50~60Hz
100W COB LED
IP20
Warm White
Manual Zoom 15°-50°
>90
Aluminium Alloy
No noise fan of PCcooler
DMX512, master/slave, autorunning, sound mode
2/5 CH AUTO ZOOM 15-50°
8.5Kgs
39,7*21,1*37,8cm
2 Year
https://www.piu39av.com/pluslite-lighting/
