PLUSLITE MINI P 20W PROFILE User manual

User Manual
MINIP
MINI P 20W PROFILE
1

SAFETY INSTRUCTIONS
CAUTION
Be careful with your operations.With a dangerous voltage you can suffer
a dangerous electric shock when touching wires!
This device has left the factory in perfect condition. In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety
instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental changes, do
not switch it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person. The device shall only be used
with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be
the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does
not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance
with wall for smooth air flow, so there should be no shelter for fans and ventilation for heat
radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order to
avoid a hazard.
1
IMPORTANT
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.
2

Unpacking
Thank you for choosing our MINI P 20W Profile. For your own safety, please read this
manual before installing the device. This manual covers the important information on installation
and applications. Please install and operate the fixture with following instructions. Meanwhile,
please keep this manual well for future needs.
The MINI P 20W Profile is made of a new type of high temperature strength of die-casting
aluminum with nice outlook. The fixture is designed and manufactured strictly following CE
standards, complying with international standard DMX512 protocol. It's available independently
controlled and link able with each other for operation. And it is applicable for
Museum, Retail store, Restaurant, Children theater, Gallery.
The MMINI P 20W Profile adopts 1PCS 20W COB LED (WW) which features high brightness and
stability. Please carefully unpack it when you receive the fixture and check whether it is
damaged during the transportation. And please check whether the following items are included
inside the box:
1②
④
①
MINI P 20W
1PC
② Signal Cable
1PC
③Power Cable
1PC
④User Manual
1PC
2
③
③
3
14

FEATURES & SPECIFICATIONS
• 1*20W COB LED ( Warm white)
• 50,000 hours life span and low power consumption
• Color Rendering Index(CRI): Ra≥90
• Optimized high definition optical system for improved photometric performance and field
uniformity
• Projector-quality, high reflector
• Glass reflector that removes greater than 90% infrared radiation (heat) and reflects greater than
95% of visible light
• Power Max: 20W
• Housing made by rugged, die-casting aluminum
• Flat and even spot image
• Ease of use, superior optics, crystal-clear image projection
• Beam edge continually adjustable hard-to-soft
• High-quality dimming, and even beam field
• High-strength single handle design
• Metal gobo slot as optional
• Color frame as optional
• 4 Metal spot cutting slots
• 0-100% Smooth and precise linear dimmer
• 25T/sec high speed shutter/strobe effect with variable speed
• 1/3 DMX channels USITT DMX-512
• DMX512, master-slave, and sound control or auto operation
• 4-Button digital display
• 3-Pin XLR connectors IN/OUT
• Fanless cooling system
• -10~40°C Max ambient temperature
• IP20 protection rating
Specifications
Input Voltage:AC100-240V 50/60Hz

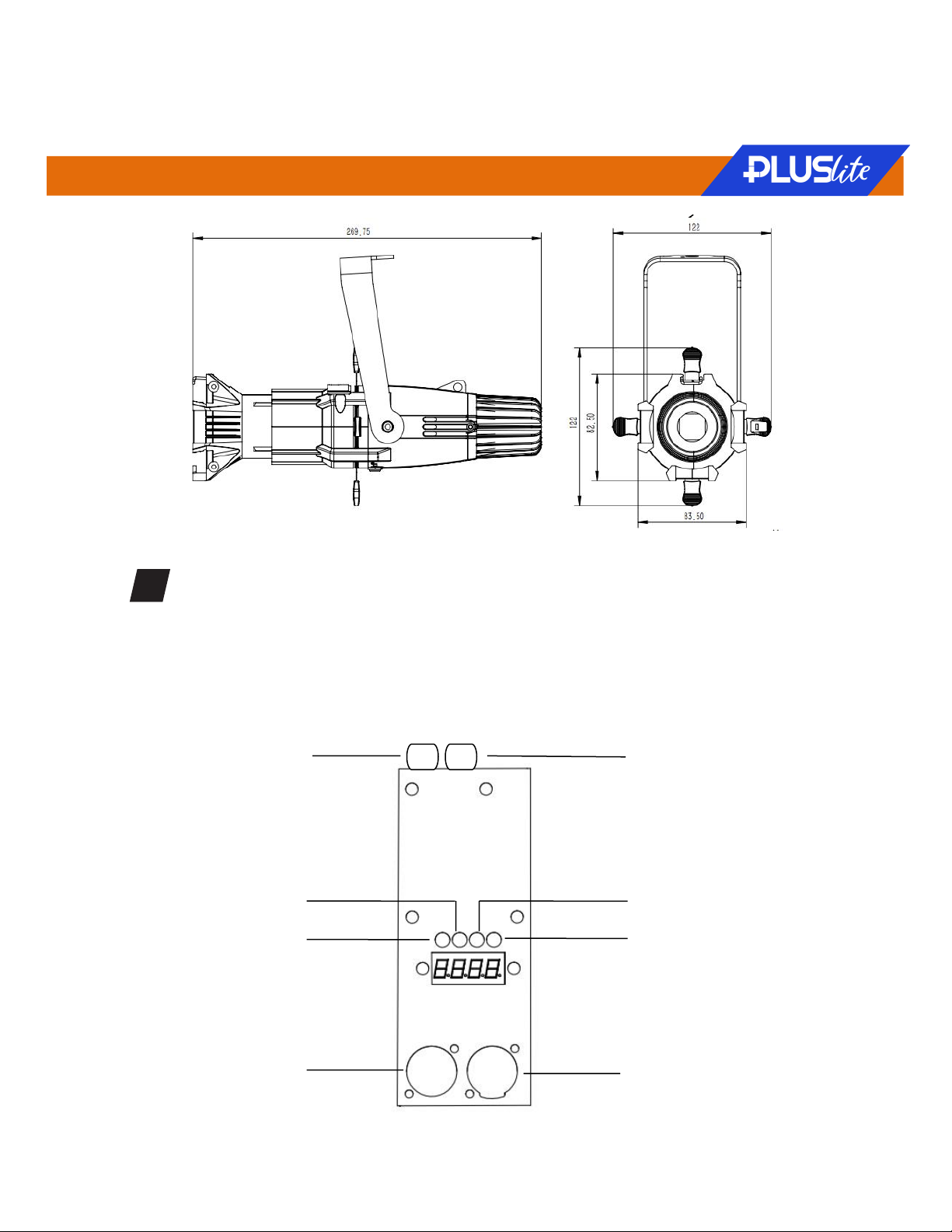

Dimensions: 269.75*122*122mm
Packing size: 340*160*145mm (1pc/carton)
540*370*320mm (6pc/carton)
Net Weight: 2.0kg
Gross Weight: 2.5kg
3
4

DMX-512 CONTROL CONNECTIONS
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other
side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core, screened
cable with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator
0
4
DMX IN
UP
ENTER
DMX OUT
DOWN
MENU
DC OUT
AC90-240V
5

DMX Output
3-Pin XLR Socket
DMX Input
3-Pin XLR Socket
1:Ground
2:Data(-)
3:Data(+)
COMMON
DMX+
DMX-
DMX 512 OUT
3-PIN XRL
DMX 512 IN
3-PIN XRL
120Ω
Pin2
Pin3
For installations where the DMX cable has to run a long
distance or is in an electrically noisy environment, such as in
a discotheque, it is recommended to use a DMX terminator.
This helps in preventing corruption of the digital control
signal by electrical noise. The DMX terminator is simply an
XLR plug with a 120 Ωresistor connected between pins 2
and 3,which is then plugged into the output XLR socket of
the last fixture in the chain. Please see illustrations below.
6

MENU OPERATIONS

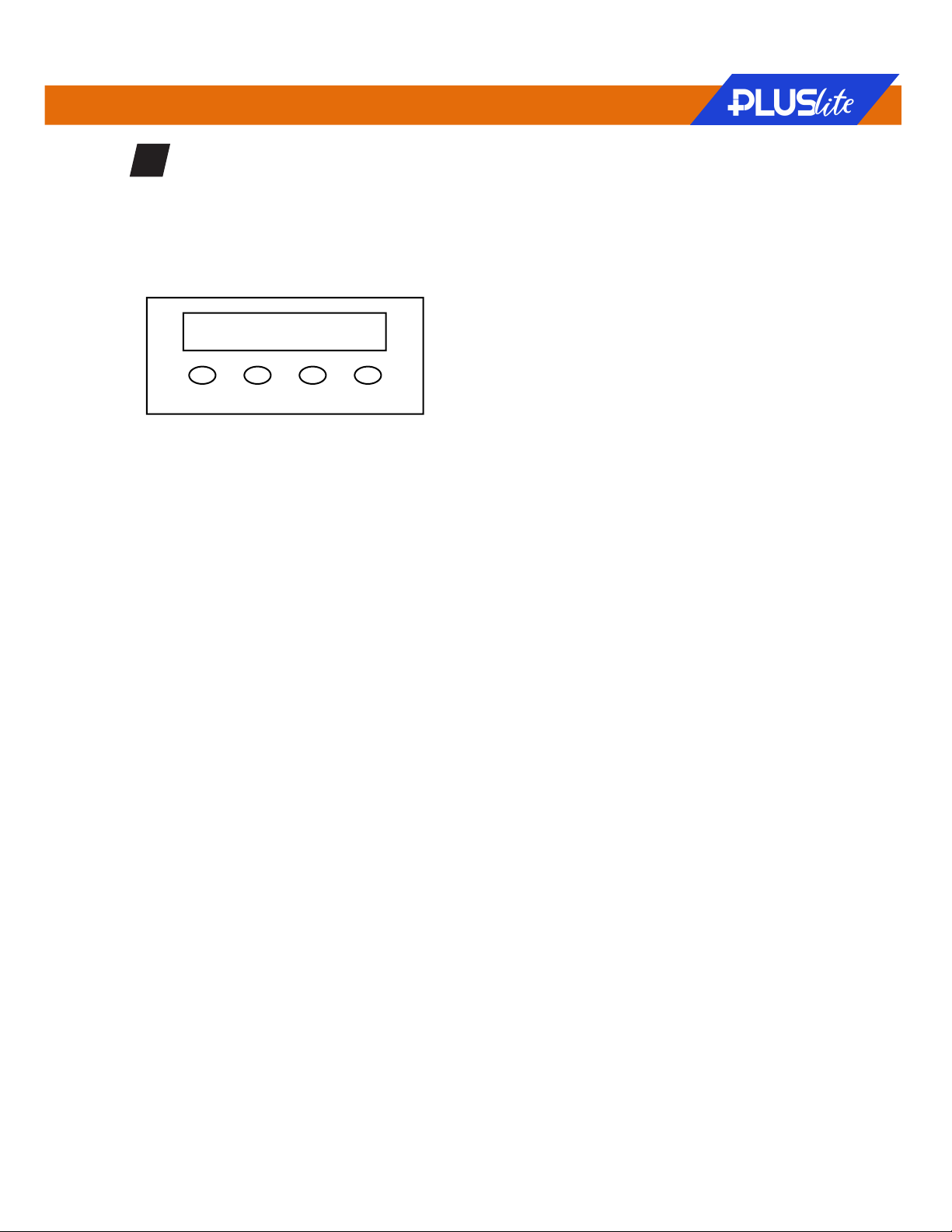

5.1 Key operation
Main key
【MENU】Main menu or back the last menu
【UP】Choosing data value
【DOWN】Choosing data value
【ENTER】Enter, choose the vice menu or end edit.
5
MENU UP DOWN ENTER
7

5.2. Menu description
5.2.1. Main menu
Press MENU key to change the menu
LED show
English word/function
key operation
description
Advanced DMX
UP/DOWN key to choose the
address code (1~512)
ENTER key to save
check “channel
data”
Advance DMX controller
state
dMX
normal DMX controller
state
SLAve
equal“d001”
Above is the slave mode, attention:
1、Make sure there is only a signal (controller or master light)
2、The light will be turn off if the signal is cut down. (turn off the controller or
master light)
Cool white
(0~255)ENTER to choose the led
group
UP/DOWN to choose the bright of
the led group
Change color
Strobe
UP/DOWN key to choose the
speed (1~50)
ENTER to save.
Strobe
Sound
Sound model
Above is the master state, the light will send the data automatically. (the
slave light should set “d001” or “SLAv”)
8

5.2.3. Set Menu
In the “Sound” menu, long press “ENTER” to set the menu.
Press MENU to change the menu option.
LED show
English Word/function
key operation
Description
LED waiting time
UP/DOWN choose the waiting
time
0 = no screen
protect
Screen protect time
High Power
UP/DOWN choose high power
or not
On = 100%
off = 33.3%
Power choose
dMX-controller delay
UP/DOWN choose use the
controller delay or not
controller delay
Synchronization
UP/DOWN choose
usemulti-light synchronization
or not
Multi-light
synchronization
LoAd
Long press ENTER until it
shows “LdEd”(loaded)
reset
rEturn
Press ENTER to save the data
and back to main menu.
Back to function menu
9

DMX CHANNELS
Channel
Data
Function
1
0~255
Dimmer
2
0~5
No function
6~255
Strobe: 6 is slowest, 255 is fastest
3
0~25
Turn on “delay by controller”
26~200
Turn off “delay by controller”
251~255
Sound mode: the changing of the light depends on the MIC of each light
Channel
Data
Function
1
0~255
Dimmer
6
10

OPERATION INSTRUCTIONS
·The MINI P 20W Profile is an LED profile light for on-site decoration purpose.
·Don't turn on the fixture if it's been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the
fixture until it is in normal temperature.
·This light should be keep away from strong shaking during any transportation or movement.
·Don't pull up the light by only the head, or it might cause damages to the mechanical parts.
·Don't expose the fixture in overheat, moisture or environment with too much dust when installing
it. And don't lay any power cables on the floor. Or it might cause electronic shock to the people.
·Make sure the installation place is in good safety condition before installing the fixture.
·Make sure to put the safety chain and check whether the screws are screwed properly when
installing the fixture.
·Make sure the lens are in good condition. It's recommended to replace the units if there are any
damages or severe scratch.
·Make sure the fixture is operated by qualified personnel who knows the fixture before using.
·Keep the original packages if any second shipment is needed.
·Don't try to change the fixtures without any instruction by the manufacturer or the appointed
repairing agencies.
·It is not in warranty range if there are any malfunctions from not following the user manual to
operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.
INSTALLATIONS
For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas
were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device's weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept at
least 0.5m (1.5 ft) away from any flammable materials (decoration etc.).
7
8
11

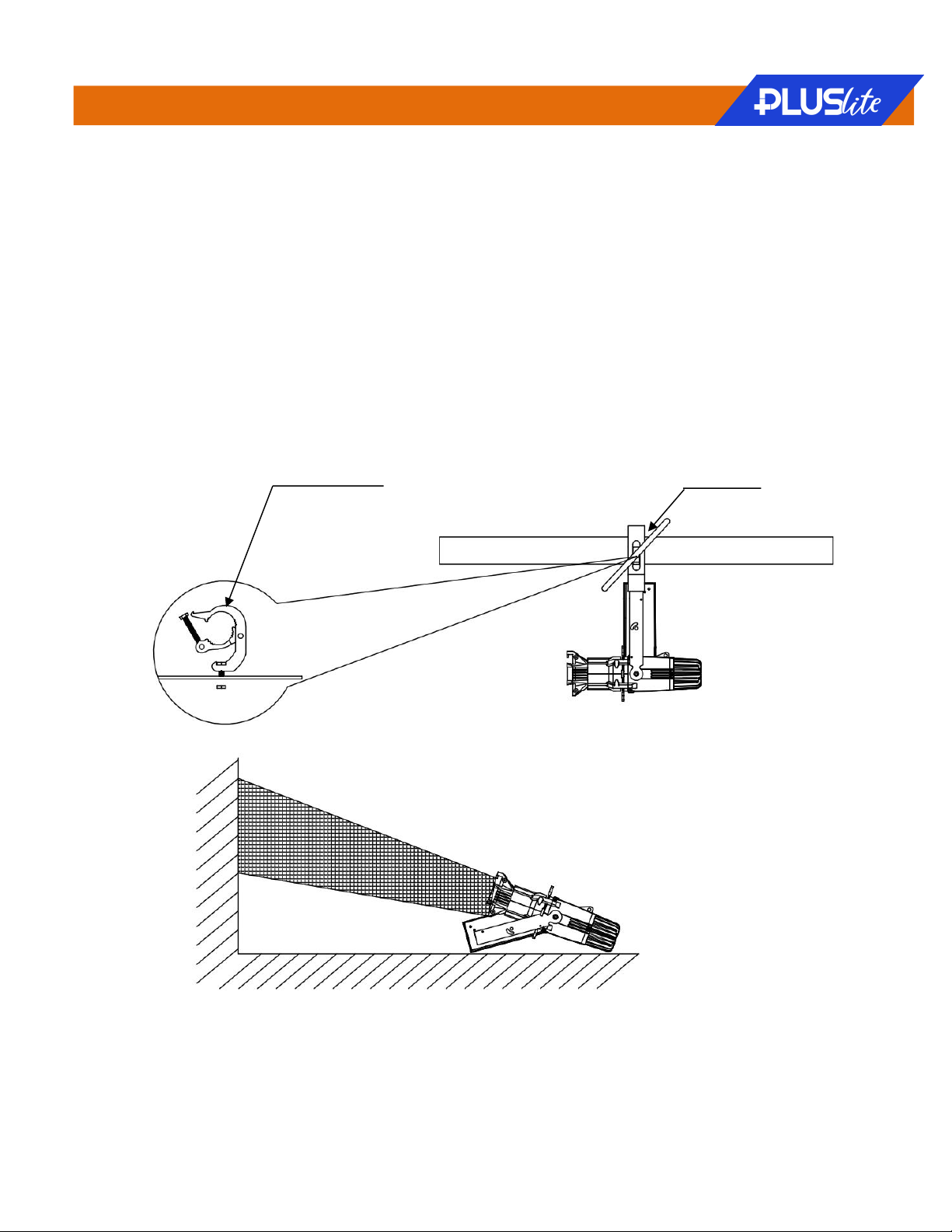

Please ensure that the led profile spotlight is hung using the appropriate "C" clamp or half
cheeseboro. A safety chain or cable should also be used as a secondary point of holding the
fixture in case the clamp comes loose. Never hang the fixture without a safety chain or cable.
There is an eye-bolt on the back of the fixture to which the safety chain or cable can threaded
through and then hung from the secondary point. Make sure the Gel frame (Gel holder) is clipped
into position correctly and cannot come loose.
If you are not qualified or have any doubts about hanging the led profile spotlight then do NOT
hang it.
Do not clamp the safety cable to the U bracket or clamp. That is not a secondary safety point.
A secondary safety point is any point that will adequately hold the led profile spotlight if the "C"
clamp or half cheesboro fails.
Then the safety cable would be the backup and stop the fixture from falling to the ground. So do
NOT fix the safety cable to the same place that the "C"clamp is attached
Floor Projection
Satety Clamp
Safety Cable
12

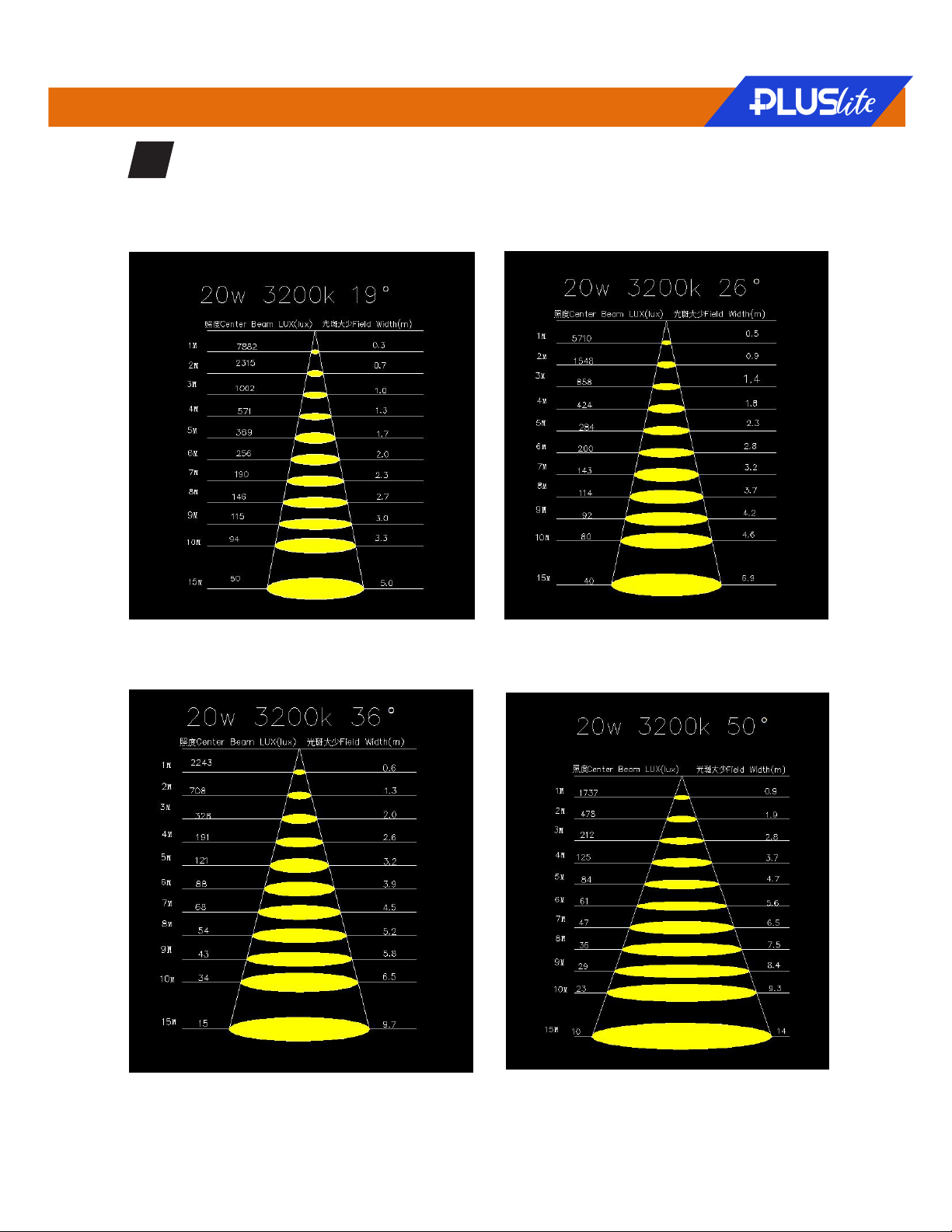

Photographic Chart
9
19 degree
26 degree
36 degree
50 degree
13

Cleaning and maintenance
Now ignoring maintenance and cleaning is very good way of creating problems "down the
road" and many companies and installations do just that. However the net result is, no
matter what the fixture, premature failure!
Changing the oil in a car, most people do on a regular basis.
So with the fixtures, regular maintenance it an excellent practice, if you want the fixtures
to last.
So what is the maintenance for the fixture?
10
14

15
Please Note: Specifications and improvements in the design of this unit and this
manual are subject to change without any prior written notice.
Model: MINIP
Voltage:
LEDs:
IP Rating:
T.Color :
Working Position:
CRI:
Housing:
Cooling System:
DMX Control:
DMX Channels
Weight:
Dimension:
Warranty:
100V ~ 240V/50~60Hz
20W COB LED WW
IP20
Warm White
Any safe working position
>90
Die casting aluminum housing design
Low noise fan integrated, copper liquid cooling system
DMX512, master-slave, or auto operation
1/3DMX channels USITT DMX-512
2.0Kgs
269,75(D)*122(W)*122(H)mm
2 Year
https://www.piu39av.com/pluslite-lighting/
