PNJ DR-Wing HD User manual

Share your vision
Thank you for choosing a PNJ product. This manual describes how to prepare and use your product. It’s also
providing information about the utilization and safety precautions, the regulations, compliance and technical
specications of the device. Please read completely, carefully and regularly before use, become familiar
with all the feature of the device and ensure safety use of your drone to enjoy fully with it. Keep this manual
for future use. The manual is also available on our website www.pnj.fr under the heading «User manuals».
USER MANUAL
www.pnj.FR
DR-WING HD

-1-
Table of contents
Li-po battery
- By owning, charging or using the LiPo battery, you assume all risks associated with the use of lithium batteries.
- Always keep out of reach of children.
- Never leave the battery unattended while charging.
- Never leave the battery charged for more than 1 hour.
- Use only the USB charger provided in the pack. Never use a Ni-Cd or Ni-Mh charger.
- Before charging the battery, check that it is not damaged. Check that the battery has not swollen or that the battery
compartment is not punctured. If you notice any of these situations: DO NOT CHARGE THE BATTERY!
- A used battery must be removed from the unit and replaced.
- If you notice that the battery starts to swell during charging, disconnect the battery immediately and do not use it again.
Continued use of an inated or deteriorated battery may cause an explosion.
- Make sure that the output voltage of the charger matches the battery voltage. Do not charge at a higher current than
Table of contents........................................................................................................................................1
Li-po battery..............................................................................................................................................1
ATTENTION / WARNING / WAARCHUWING .....................................................................................................2
Precautions for use.....................................................................................................................................2
Warning ....................................................................................................................................................3
Flight Environment......................................................................................................................................3
Download the app .......................................................................................................................................3
Included in the pack....................................................................................................................................3
Drone parts................................................................................................................................................4
2.4GHZ Radiocontroller ...............................................................................................................................4
How to install and charge the battery.............................................................................................................5
Warning ....................................................................................................................................................6
How to Install propellers and propellers guards ...............................................................................................6
Start to y .................................................................................................................................................7
Automatic take off and landing .....................................................................................................................8
Manual Take off..........................................................................................................................................8
Emergency stop and vertical crash ................................................................................................................8
Return button.............................................................................................................................................9
Headless mode ..........................................................................................................................................9
Speed Selector......................................................................................................................................... 10
360˚Flip .................................................................................................................................................. 10
Gyroscopic and joystick calibration ............................................................................................................. 10
How to use joysticks ................................................................................................................................. 11
Flight adjustments.................................................................................................................................... 12
Photos & Videos....................................................................................................................................... 13
Import photos & Vidéos ............................................................................................................................. 13
App - Control interface .............................................................................................................................. 14
How to use virtual joysticks........................................................................................................................ 15
App - Flight adjustments............................................................................................................................ 16
Gyroscopic control.................................................................................................................................... 17
Maintenance............................................................................................................................................ 17
Warranty ................................................................................................................................................. 18
French legislation..................................................................................................................................... 18
Recycling ................................................................................................................................................ 19
Declaration of conformity .......................................................................................................................... 19
Trademarks ............................................................................................................................................. 20
Modications........................................................................................................................................... 20
Notebook ................................................................................................................................................ 20
Notebook ................................................................................................................................................ 21
Notebook ................................................................................................................................................ 22

-2-
precautions for use
When using your drone, be sure to observe the following precautions:
- Suitable indoor and outdoor use in very windstill conditions.
- Not suitable for persons under 14 years of age.
- Minors must pilot under the supervision of an adult.
- Caution: risk of ingestion of small parts.
- Never use the appliance near children or pets.
- Be sure to use this product in a safe and responsible manner to avoid personal injury and / or property damage.
- Make sure that your use is in accordance with the legal provisions of the country where you are located.
- Find out about restrictions on the use of Wi-Fi frequencies in your ight location.
- check the weather conditions before use.
- Do not y in rain, fog, wind or snow.
ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION
Utilisez toujours un
chargeur compatible
Li-Po.
Chargez toujours à
distance de matériel
inammable.
Ne laissez jamais
en charge sans
surveillance.
Ne jamais modier
ou transformer une
batterie.
N’utilisez jamais de
batterie chaude.
Ne chargez jamais une
batterie
endommagée.
FR
EN
NL
ATTENTION / WARNING / WAARCHUWING
Veuillez lire le “Mode d’Emploi” entièrement et attentivement avant toute utilisation
Le manuel mis à jour est disponible sur notre site: www.pnj.fr/modes-demploi/
ATTENTION: Toutes les précautions d’utilisation concernant les batteries Li-Po doivent être suivies rigoureuse-
ment. Une mauvaise manipulation de la batterie peut provoquer un incendie, une explosion, des blessures
personnelles ou des dégâts matériels.
Please read the operation manual carefully before using the product
The english User Manual can be downloaded on our website: www.pnj.fr/en/user-manuals/
WARNING : LiPo batteries are dangerous, please follow the instructions to avoid injuries or damages.
Lees de instructies in de bedieningshandleiding zorgvuldig door voordat u onze producten gebruikt
De bedieningshandeleiding kunt u downloaden vanaf onze website: www.pnj.fr/en/user-manuals/
WAARSCHUWING : LiPo baterijen zijn gevarlijk, het niet opvolgen van de gebruikshandekeiding kan verwondingen
en schaden veroorzaken.
recommended. Use only the charger provided in the pack.
- Disconnect the battery from the charger if it becomes too hot (Never exceed 49 ° C / 120 ° F) or swells. If the battery
becomes hot, disconnect the charger immediately.
- Charge only on non-ammable surfaces. Never charge inside a vehicle!
- Do not expose the battery to any source of heat or high temperature.
- Never put the battery in contact with water or immerse it in any other liquid.
- Improper use of the battery may cause re, explosion or other hazards.
- In case of re caused by the battery, do not use water to extinguish the re (sand is recommended).
- Do not carry unwrapped batteries in your pocket or bag, as the shock of the batteries against each other could cause a
short circuit.
- Store the battery in a dry place at room temperature.

-3-
Warning
The law requires you to use this drone in a sensible and responsible manner to avoid human or material damage. In the
case of unauthorized use or for unlawful purposes, you will be held fully responsible for any damage caused. Be sure
to respect the law, without infringing the privacy of others. PNJ assumes no liability for damage resulting directly or
indirectly from the use of the product, any part of this product or this manual. PNJ cannot be held responsible for any
accident, injury, death, loss or other claim of any nature whatsoever related to or resulting from the use of this product.
All users must comply with the regulations of international organizations such as the International Civil Aviation Organi-
zation (ICAO) and the regulations of their own national airspace. To learn more about the rules in force in your country,
visit the following sites:
ICAO - www.icao.int
PNJ - www.pnj.fr
Flight Environment
1. Outdoor Flight (recommended): Because of its size and performance, the Dr-Wing HD is ideal for outdoor flying
and large spaces. Pilot at medium temperature, in sunny weather or without wind.
2. Flying indoors (not recommended): The Dr-Wing HD is difficult to navigate in tight spaces, not suitable for
indoor flying.
Remarks:
-Do not use in extreme temperatures (very cold or very hot), as this may damage or impair the flight performance of the
drone.
-Do not fly in windy weather, flight performance and control of the aircraft may be altered due to wind. It could also take
away or damage the drone.
Download the app
Please search "PNJ AIR" on the Apple Store or Google
Play Store to download the mobile app. Control and set
the drone, enjoy real-time video feedback. The PNJ AIR
download is required to use the CVR 360 with the DR-
WING HD.
Included in the pack
- Avoid contact with sand, dust, water, liquid substances or heat, it could cause irreversible damage.
- Keep away from obstacles, people, animals, dwellings, vehicles, high voltage cables or trees.
- Keep clear of the propellers. They can cause material or physical damage.
- Not suitable for people with epilepsy.
- Avoid excessive ying (risk of eyestrain or physical fatigue).
- Observe the safety instructions in this manual.
- Use only the accessories supplied by the manufacturer.
- Before each ight, check that the batteries are fully charged.
PNJ AIR
1x Dr-Wing HD
1x 2.4 GHz Radiocontroller
2x Batteries Li-Po 3.7V 1200mAh
1x PNJ CVR360
1x Smartphone holder
4x Helix protections
4x Replacement propellers
4x 1.5V AAA batteries
1x USB charger
1x Screwdriver
1x Dr-Wing HD User Manual
1x CVR360 User Manual

-4-
1x Smartphone holder
2x Batteries Li-Po 3.7V 550mah 4x Batteries 1.5V AAA
4x Propellers protection
1x USB charger 1x Screwdriver
Elevation / Rotation Joystick
CF mode (long pressure)
Indicator light
Speed selector
30%/60%/100%
Trim/Correction:
Rotate left / right
Fire control (LED) Bouton On/
Off (long press)
extensible smartphone
stand
1. Joystick movement / directional
2. Back (long pressure)
3. Flip 360˚ (short pressure + direction)
Trim / Correction: Movement forward /
backward
Frequency: 2416 MHz - 2475 MHz
Maximum power: -1.93dbm
Takeoff / Automatic Landing (Long
Pressure)
Trim / Correction: Left / Right
Movement
Photos(up)
Videos (down)
Camera
Front
Back
Battery cover
SD card port
Propellers
Landing gear
A B
B A On/Off button
Lock
Battery
compartiment

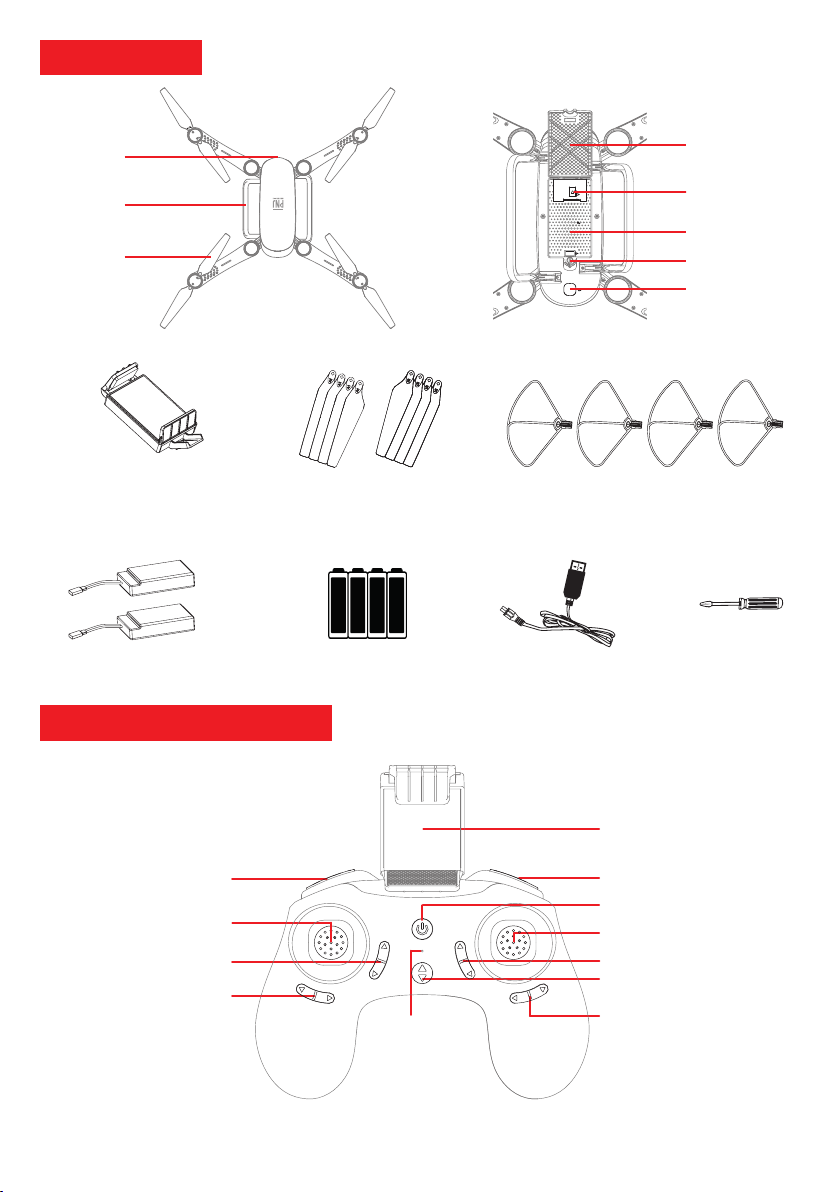

DRONE PARTS
2.4GHZ radiocontroller
* The functions in red above make it possible to rebalance the drone
by adjusting the power delivered by each of the motors (Page 12).
Emergency stop: Simultaneously press both triggers on the upper part of
the remote control
A
B
4x Spare propellers

-5-

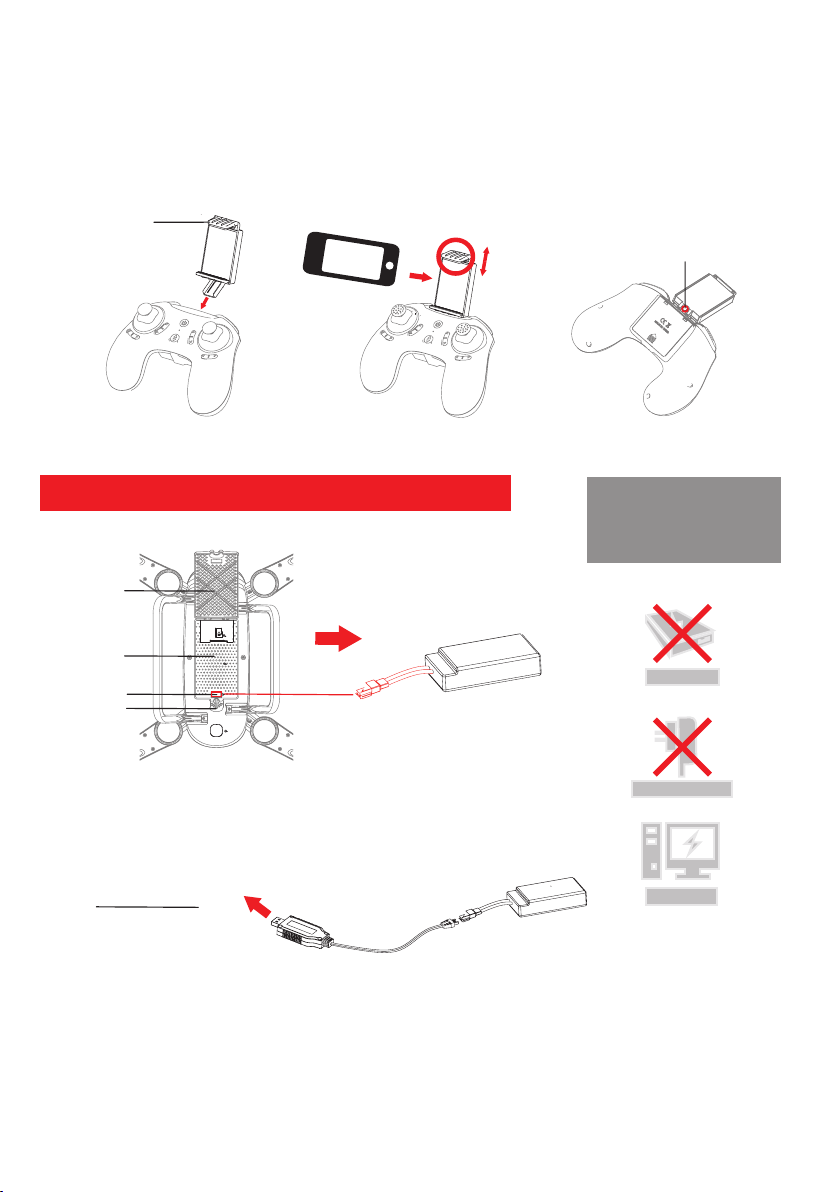

How to remove or install the battery:
1. Remove: Open the battery compartment by turning the lock and then disconnect the battery connector (Figure1).
2. Install: The battery installs in one direction only. Make sure the (male) connector inside the drone is securely
connected to the (female) battery connector. Then insert the battery into the compartment without damaging the cable.
Then close the hood and turn the lock to safely drive.
How to charge the battery:
1. Connect the charging cable to the battery connector (Figure 2).
2. Insert the USB cable into your computer (Figure 2). The LED (red LED) on the USB connector lights up when the battery
is fully charged (or not connected).
WARNING !
Do not leave the batteries
charged unattended.
(2)
(1)
How to install and charge the battery
Figure 1: Installing the support Figure 2: Installing the smartphone Figure 3: Remove the support
How to install / remove smartphone support:
The expandable radio remote control bracket adjusts to different smartphone sizes (Figure 2). To safely install or
remove the radio control holder, please refer to the diagrams below.
1. Install the stand: Insert the stand on the top of the remote control (in stop).
2. Install the smartphone: Gently pull on the extensible bracket mount and insert your smartphone (Figure 2).
3. Remove the bracket: After removing your smartphone from the bracket, press and hold the locking clip on the back of
the bracket to remove it from the remote control (Figure 3).
Note: Check that your smartphone is correctly installed and that it does not move to avoid any risk of breakage.
Computer
Powerbank
Wall charger
Extensible attachment
Clip de verrouillage
USB port
Lock
Connector
Battery
Compartiment
Hood

-6-
1. Assurez-vous que le voltage requis pour le chargement USB correspond à la source de courant utilisée: 5V / 0.75A max
2. Si la prise de chargement ou la batterie surchauffe pendant la charge, interrompez immédiatement la charge.
3. Ne jamais laisser la batterie charger sans surveillance.
4. N’utilisez pas un autre chargeur ou câble de chargement que celui fourni avec le drone.
5. Attendez 30 minutes après le vol que la batterie refroidisse avant de la recharger.
6. Ne pas exposer la batterie à toute source de chaleur, feu ou flamme, au soleil ou à des environnements trop
chauds.
7. Ne pas court-circuiter la batterie.
8. Toujours tenir la batterie à l’écart de pièces en métal ou d’aimants.
Warning

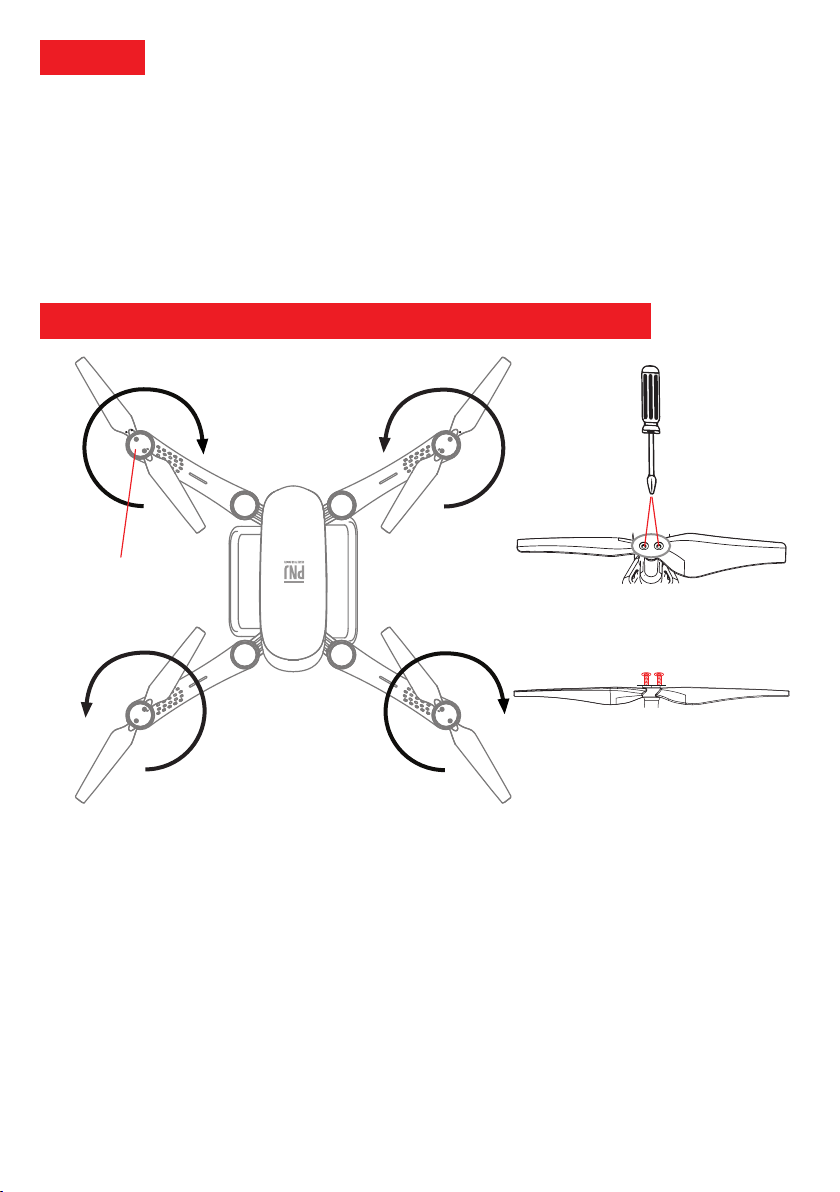

How to Install propellers and propellers guards
The folding propellers of the drone are provided with marks A and B and are diagonally opposite.
Each helix is divided into two parts (half helix) and fits on the rotor in one direction only.
1. Clockwise rotating propellers (A on the diagram) on the front left engine and the right rear engine.
2. Anti-clockwise rotation propellers (B on the diagram) on the right front engine and the left rear engine.
3. To replace the propellers first unscrew the screws on the top of the rotor (Figure 1 and 2).
4. After removing the protective cover, pull the two damaged propellers upwards to change them.
5. Replace the two damaged propellers with two new half propellers of the same type (A or B).
6. New propellers must be fully depressed. Then replace the protective cover and tighten again.
Note:
Any maintenance or repair work on the drone must be done with the battery disconnected. Broken or damaged
propellers must be replaced by new propellers, to ensure optimal operation, always use original propellers.
Figure 1: Locate the screws
Figure 2: Unscrew
Back
Front
Camera
Protective cover
BA
B A

-7-
Figure 3: Install the propeller
protectors
Figure 2: Engine ignition Figure 3: Manual engine stop
Figure 5: Photos and Videos
Photos (up)
Vidéos (down)

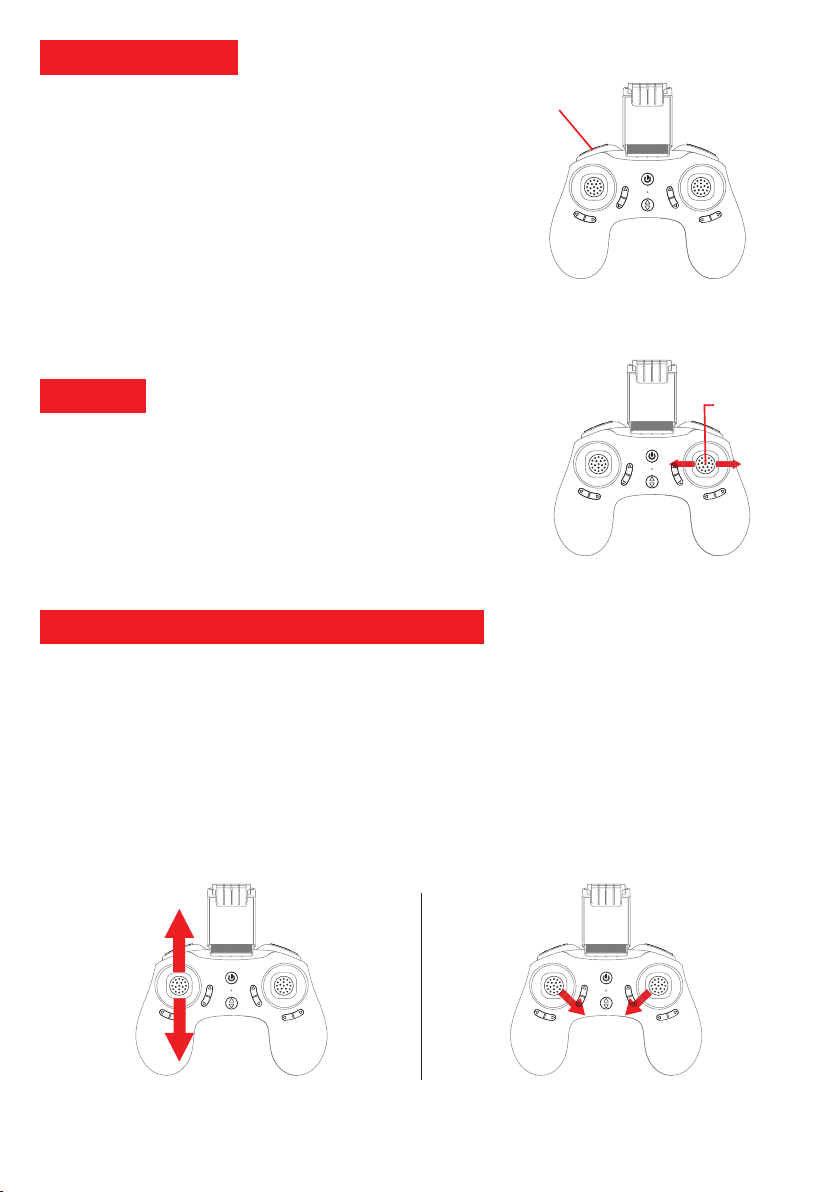

Figure 1: Pairing
STart to fly
1. Initialization (radio control off): Place the drone on a flat surface and press the On / Off button for a long time, the
indicator lights of the drone will flash slowly indicating the pairing search.
2. Pairing: Turn on the remote control by pressing and holding the ON / OFF button. This will sound an audible alarm
(beep) indicating the frequency search, its indicator light will begin to flash. Push the joystick left up (beep) then down
(beep) to connect / pair the radio control to the drone (Figure 1)
3. Indicator: Once the connection is established the lights of the drone and the remote control will stop flashing.
4. Ignition: To start the drone engines, please simultaneously orient the two joysticks diagonally outward (Figure 2). The
engines come on and the propellers start to turn slowly, the drone is ready to take off.
5. Takeoff: To take off the drone manually, gently move the joystick left up (Figure 3). You can also use the autostart /
landing button, the drone will rise to an altitude of 2m.
6. Landing: To land hold the left joystick down until the drone lands on the ground (Figure 3). You can also use the
autostart / landing button, the drone will land regardless of its altitude.
7. Photo / Video: To take a photo press the top of the Photo / Video button. To start / stop a video recording press the
bottom of the Photo / Video button (Figure 5).
8. Emergency stop: In the event of an in-flight collision or loss of control of the UAV: Use the emergency stop function
while simultaneously holding the two triggers on the top of the radio remote control (Figure 3).
9. Manual Engine Shutdown: When the drone is on a level surface and the engines are unlocked (started), you can stop
the engines by simultaneously pointing the left joystick on the lower right and the right joystick on the lower left. (Figure 5)
10. Battery: When the lights on the drone start flashing quickly: land and charge the battery.
Note: Please always keep your drone on view. In case of low battery level or loss of signals with the radio control, the
drone will land automatically. PNJ does not guarantee the loss of your drone.
Note: To ensure your safety and that of those around you, always drive with the propeller protections.
Figure 4: Décollage / Atterrissage
Auto takeoff
Auto landing
Emergency stop (gachettes)
Manual takeoff
Manual landing

-8-
Figure 1: Engine ignition
2m
2m
The drone rises 2m regardless
of its starting altitude.
Takeoff
Landing
Automatic take off and landing
1. Take-off: After the automatic take-off / landing button has been pressed for a long time, the drone rises and
stabilizes at an altitude of 2m above its starting position.
2. Landing: After the automatic take-off / landing button has been pressed for a long time, the drone will automatically
descend to the vertical position until it lands on the ground.
After turning on the engines (Figure 1) you can manually lift the drone by holding the left joystick up (Figure 2).
Caution :
1. Always place the drone on a flat surface before pressing the autostart button.
2. You can still maneuver the drone during the take-off and auto landing phases.
3.Too fast acceleration can cause air depression around the sensor and cause altitude losses.
4.Manual Take off
Figure 2: Manual Takeoff
Emergency stop button
Figure 1: Emergency stop Figure 3: Resume the flightFigure 2: Vertical Crash
! Warning
!
Emergency stop and vertical crash
1. Emergency stop: In the event of a collision or loss of control, you must immediately stop the drone's engines. To do
this, simultaneously press the two emergency stop buttons (Figure 1).
2. Vertical Crash: If the drone crashes in a vertical position it will automatically shut down its engines for safety
to protect the rotors and your environment from damage (Figure 2).
3. Resume the flight: After using the emergency stop function or having crashed into a vertical position, please check
the condition of the drone and then place it on a flat surface. To relaunch, simply press the automatic take-off / landing
button or simultaneously hold both joysticks down and out to unlock the engines.
(Figure 3).

-9-
Return button
Return activated
Back button
(joystick pressure)
(3)
(1) Initialization of the drone (2) Activation of Return
(longue pression)
How the Back Button Works:
During its initialization, the drone detects its orientation and memorizes it (North for example). By pressing
the return button the drone will automatically move in the opposite direction to the one memorized (so South).
The DR-Wing HD is not equipped with a GPS function, so it is necessary to regain control in order to land it at
the desired location. The drone is always controllable during the return phase.
The drone detects its starting
orientation and memorizes it
(North).
Long press the Back button to
activate the function.
The drone automatically returns
in the opposite direction (South).
!

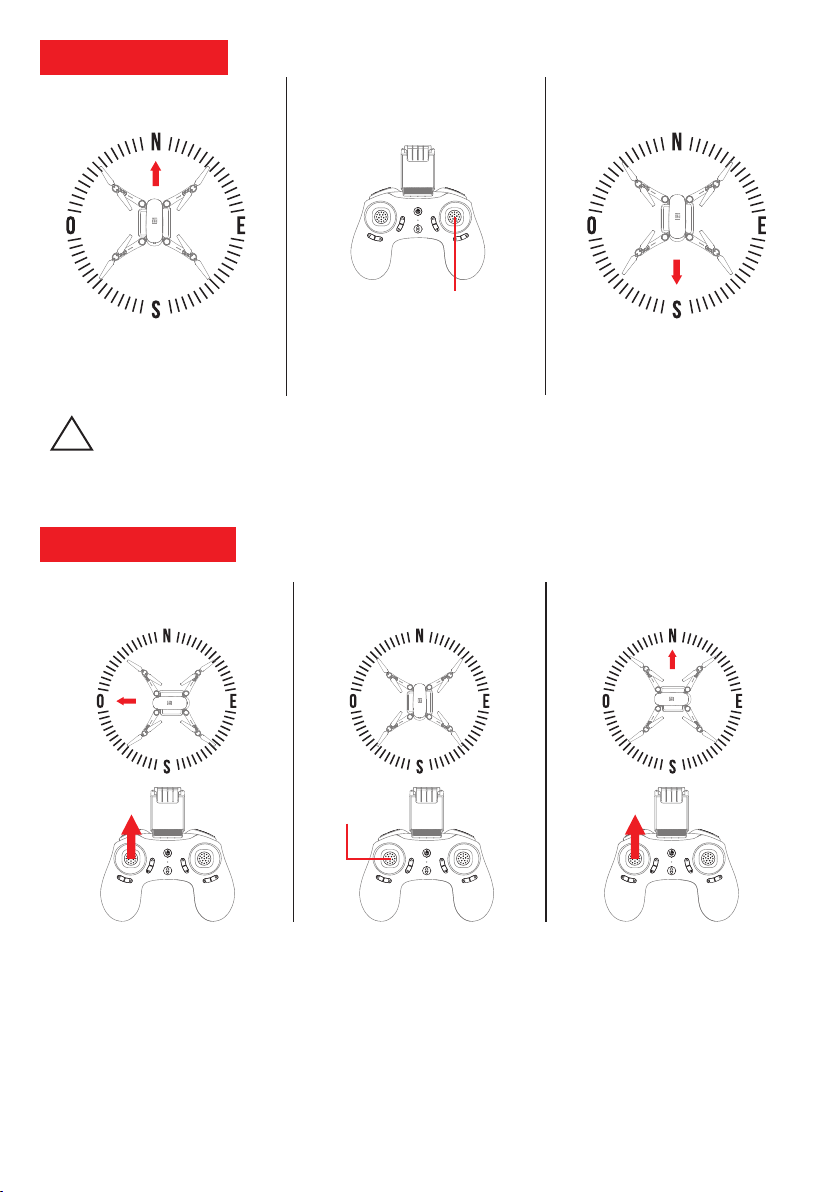

Headless mode
Activation: At the time of the command the drone saves its orientation and memorizes it (Figure 2: North).
Long press the "CF Mode" button (Figure 2) to activate the direction / orientation lock (Figure 2: North). The radio control
will beep (beep) and the 4 LEDs of the drone flash simultaneously when you activate the CF Mode function.
Explanation: This mode allows you to control the drone without worrying about its direction of flight. If you point the right
joystick forward the drone will go north regardless of its orientation (North / South / East / West) flying at the time of
command (Figure 3). When the CF mode is off, you must always worry about the flight direction / orientation of the drone
(Figure 1). CF mode is ideal for learning to fly.
Mobile App: The CF mode can also be activated from the "AIR PNJ" application and works in the same way.
Caution : If a collision occurs it is possible that the CF mode is no longer functioning properly. In this case, set the drone
immediately and reset the gyroscope and the trimmers (see page 10).
CF mode enabled(1) CF mode disabled CF mode activation
(long pressure)
(2) (3)
CF mode
(joystick pressure)

-10-
Speed selection
button
The drone has three movement speeds:
When you turn on the drone the first time, it is set by default in
slow speed (30%).
1. Press the speed button once to switch to Medium Speed
(70%). You will then hear: "beep beep".
2. Press the speed button again to change to Fast Speed (100%).
You will hear: "beep beep beep".
3. Press the speed button again to return to Slow Speed (30%).
You will hear a single "beep"
Speed Selector
Tip: To learn to drive, we advise you to stay slow and increase speed as you train. You can change gears on the ground
as well as in full flight. We recommend driving at 3 speed (100%) in windy weather.
360˚ Flip
(short press)
Your DR-Wing HD is able to perform acrobatics like Flip 360˚. To make a Flip
360˚ please:
360˚Flip
1. Check the surroundings (large spaces required) then take off.
2. Press the "Flip 360˚" button on the remote control (short press).
3. Move the movement joystick left or right to flip 360˚ in the selected
direction.
Gyroscopic and joystick calibration
We recommend to regularly recalibrate the joysticks of the radio control and the gyroscope of the drone. After modifying
the flight adjustments via the trim / correction or if you notice a lack of precision during the piloting please follow the
following steps to recalibrate the radio control:
1. Position the drone on a flat surface and turn it on. Turn on the radio control.
2. Connect the radio control to the drone by pushing the left joystick up and down (Figure 1).
3. Then simultaneously hold the two joysticks for 3 seconds diagonally inward (Figure 2).
4. The indicator lights on the top of the drone flash during calibration.
5. Once the calibration is complete, the light indicators of the drone will stop flashing.
You are ready to take off!
Figure 1: Pairing Figure 2: Calibration

-11-
ELEVATION
• LEFT JOYSTICK
- Tilt up to ride
- Tilt down to go down
Note: Always handle the elevation
joystick with caution.
ROTATION
• LEFT JOYSTICK
- Tilt left to turn left
- Tilt right to turn right
MOUVEMENTS LONGITUDINAUX
• RIGHT JOYSTICK
- Tilt up to move forward
- Tilt down to move back
Note: Always handle the motion
joystick with care
MOUVEMENTS LATERAUX
• RIGHT JOYSTICK
- Tilt to the left to fly to the left
- Tilt to the right to fly to the right
Descent
Elevation
Back
Front
Fly to the
left
Fly to the
right
How to use joysticks
Rotate to
the right
Rotate to
the left

-12-
The drone turns on its left:
Press the trim / correction button
turn to the right.
The drone turns on itself to the right:
Press the trim / correction button
turn to the left.
The drone drifts forward:
Press the trim / motion control button
to the rear.
The drone drifts backward:
Press the trim / forward motion
button.
The drone drifts to the left:
Press trim / motion button to the
right.
The drone drifts to the right:
Press trim / motion button to the
left.

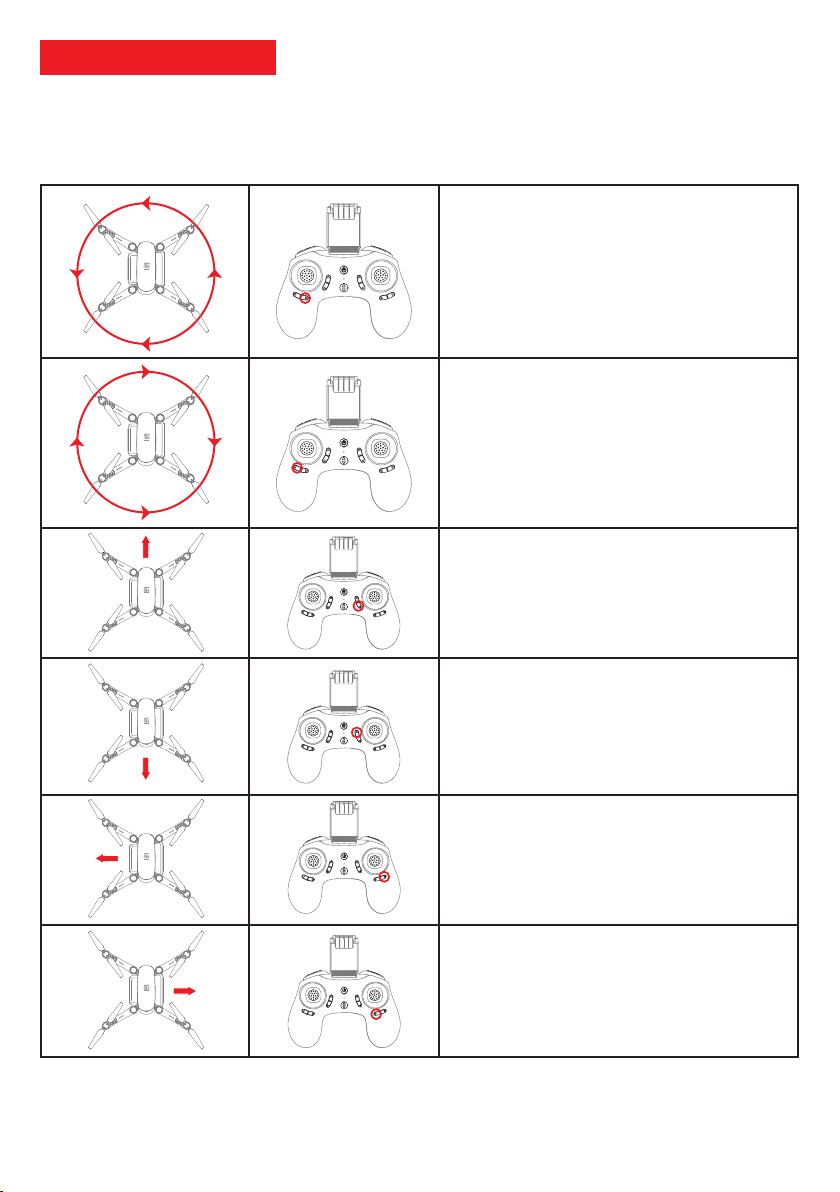

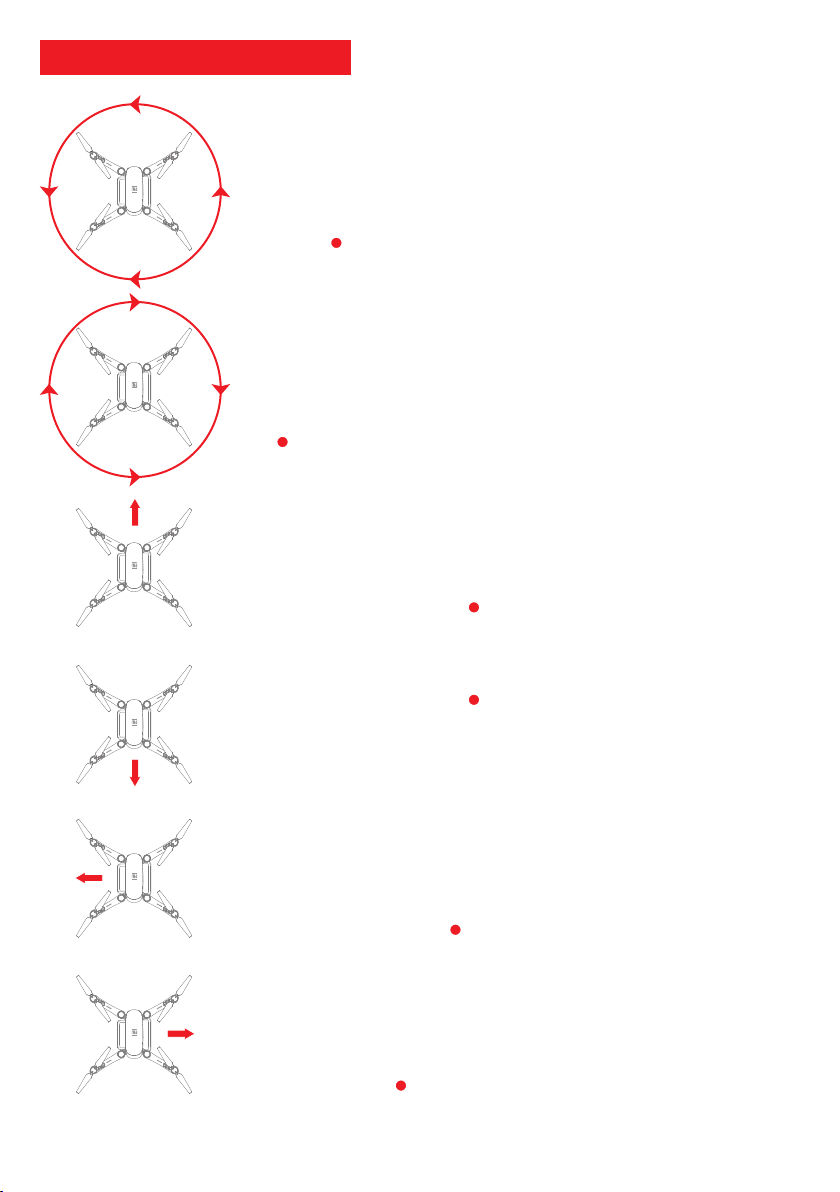

Flight adjustments
Trim / correction button operation: The trim / correction buttons allow you to rebalance the drone by adjusting the power
delivered by each of the motors. The trims have several levels / intensity of correction, each time you press a trim / correction
button you will increase the power delivered by one of the motors of 1. Please first reset the trimmers (default) by
simultaneously pointing both joysticks in the lower left then right (see page 10).
Note: After many crashes or shocks your drone can be damaged and lose stability. To rebalance your drone optimally,
please take off in a windless environment and analyze the failure / weakness. The trim / correction buttons are sensitive
to use with care, one by one. We recommend that you note the number of presses made on each of the trims buttons.

-13-
Import photos & Vidéos
1. Remove the SD card located in the battery compartment of the drone (Figure 1).
2. Insert the SD card into the card reader (not included) (Figure 2).
3. To import your files from the SD card to your computer please follow these steps:
Windows: My Computer → Removable Disk (SD Card) → Video or Photo Files → Copy / Paste
Mac: Finder → Removable Disk (SD Card) → Video files or photos → Copy / Paste
Figure 1: Remove the SD card Figure 2: Card reader (not included) Figure 3: Importation
Carte SD
(Non incluse)
SD
4G
B
Photo: Upward
Vidéo: Downward
Radio control: Photos and videos are recorded on the SD card. To import them, you must extract the SD card (not
included) from the drone, by pressing it and then insert it into a card reader (not included). You can then insert this Micro
SD card reader to a computer to import your files.
Mobile Application (PNJ AIR): Photos taken from the mobile application are automatically saved in the photo gallery of
your smartphone or tablet.
Photos & Videos
Make sure you have correctly installed the Micro SD card at the bottom of the drone then:
1. Radio control: Press the photo / video button on the remote control to take a photo or
video.
2. Mobile App (AIR PNJ): Touch the 2 or 3 icons to take a photo or video (circled in red).
(1) (2)

-14-
CONNECTING THE TELEPHONE TO THE DRONE - via the WiFi network of the drone
WiFi Name: DR WING HD-XXXXXX
App - Control interface
Commands:
Activation of the function 6 is required in order to control the drone via the mobile application.
1. Back
2. Taking a photo: Touch to start taking a photo. The photo will be saved directly to your mobile.
3. Video recording: Touch to start / stop a video recording, the video will be recorded directly on your smartphone
4. Preview photos / videos: View recorded photos and videos.
5. Shift: Touch to change flight speed (3 different speeds: Slow, Medium and Fast). .
6. Show / Hide Control Interface: Displays touch joysticks, trimmers and functions 15 and 16.

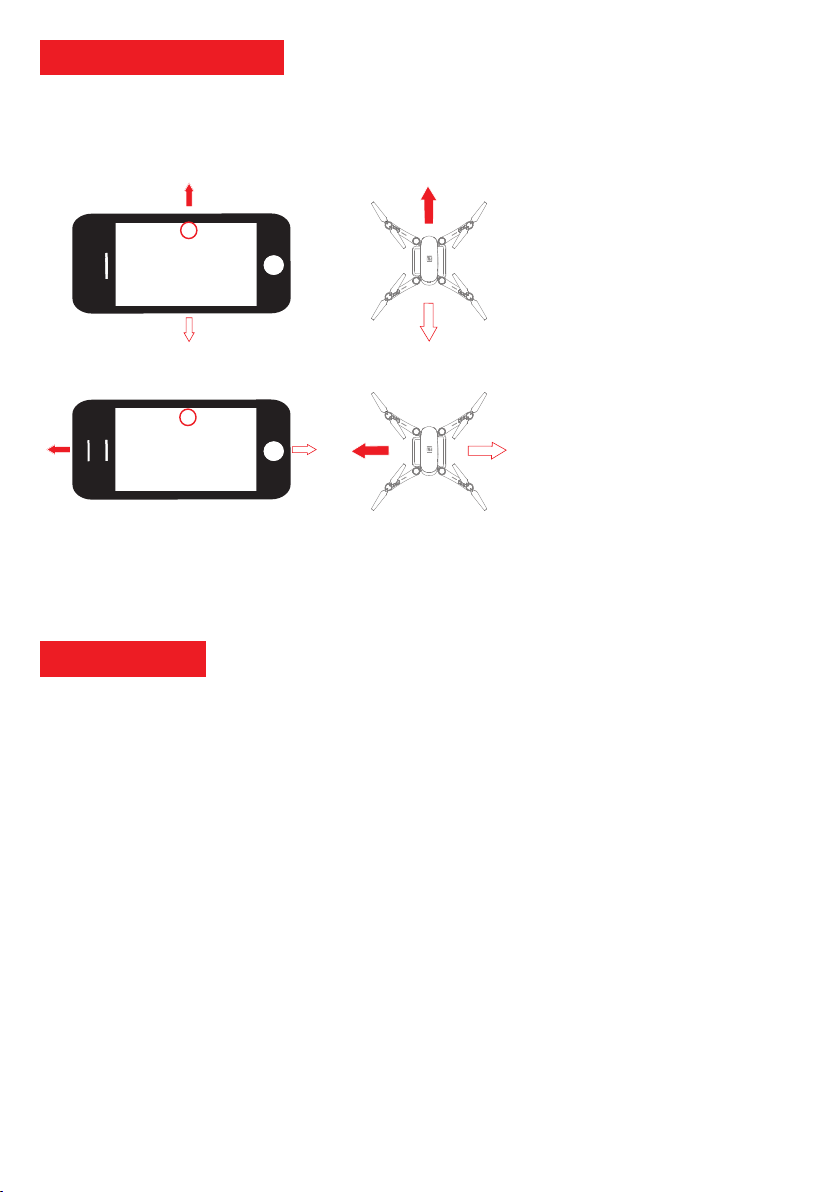

7. Tilt Control: Refer to "Tilt Control" on page 17.
8. CF Mode: Enables / Disables CF Mode. Refer to "CF Mode" on page 9.
9. VR Mode - Immersion Control: Touch this button to split the screen in half to use the PNJ CVR360 headset.
Touch the icon again to exit.
10. Inverting the screen: Touch to reverse the screen, touch again to exit.
11. Flip 360˚: Touch the icon and move the right touch joystick to the desired direction to make a Flip 360˚. Refer
to "Flip 360 °" on page 10.
12. Emergency stop button: Touch to immediately shut down the drone's engines (be careful).
13. Automatic take-off: Touch to activate the automatic take-off. The drone rises 1m.
14. Auto Landing Button: Touch to activate Auto Landing.
15. Elevation / rotation joystick
16. Motion joystick
Note: In the event of an update to the AIR PNJ mobile application, some of the above explanations may become
obsolete. Please refer to the help menu of the application, available from the main menu.

-15-
Tip: Instructions for using the "PNJ AIR" application are also available in the help menu of the app. To access the help
menu, go to the main menu and then touch the question mark: "?".
Rotation to
the right
Rotation to
the left
PNJ AIR
Figure 1: Icon of the App Figure 2: Main menu
How to use virtual joysticks
ELEVATION
• LEFT JOYSTICK
- Touch up to go up
- Touch down to go down
Note: Always gently manipulate
the elevation joystick
Descent
Elevation
ROTATION
• LEFT JOYSTICK
-Touch to the left to turn left
- Touch to the right to turn right
LONGITUDINAL MOVEMENTS
• RIGHTJOYSTICK
- Touch up to move forward
- Touch down to go back
Note: Always gently manipulate
the motion joystick
Back
Front
LATERAL MOVEMENTS
• RIGHT JOYSTICK
- Touch to the left to fly to the left
- Touch to the right to fly to the
right
Fly to the
left
Fly to the
right

-16-
The drone turns on its left:
Press the trim / correction right rotation.
The drone turns on its right:
Press the trim / correction left rotation.
The drone drifts backwards:
Press the trim / correction forward
movement to adjust the drone.
The drone drifts forward:
Press the trim / correction backward
movement, to adjust the drone.
The drone drifts to the left:
Press the trim / correction right
movement to adjust the drone.
The drone drifts to the right:
Press the trim / correction left
movement to adjust the drone.
App - Flight adjustments

-17-
To activate the tilting of the smartphone please touch the icon 7. The right joystick will then follow the inclinations of
your smartphone. You must control the left joystick with one hand and tilt your smartphone according to the direction
you want to follow.
Gyroscopic control
Fly to the back
Fly to the front
LONGITUDINAL INCLINATION
•Tilt of the smartphone:
- Tilt forward to advance
- Tilt backward to back up
LATERAL INCLINATION
•Tilt of the smartphone:
- Tilt left to fly left
- Tilt to the right to fly right
- The battery should be kept in a dry, ventilated place. The storage temperature is between 18 ° C and 25 ° C. Avoid
excessive charging and discharging to prolong battery life. Be sure to charge the battery before storing it, if it is left
unused for a long time.
- To avoid any problems, we strongly advise you to take the habit of also removing the battery of the drone when not in
use.
- Keep your equipment in a dry place, away from water and heat. Do not place the drone on a wet surface or in the vicinity
of liquid substances. This could cause irreversible damage.
- Maintenance can only be carried out by the After Sales Service of the warehouse or distributor. If you have a problem
with your drone, please contact us directly. It is not recommended to change the engine or the motherboard on your
own.
- Use only accessories specied by the manufacturer.
- Find all our products and accessories on our website www.pnj.fr
Maintenance

-18-
This product is warranted for a period of 24 months from the date of original purchase by the consumer, except for certain
wear parts, against manufacturing defects, upon presentation of proof of purchase (receipt with date, place of purchase,
name of the product).
During the contractual warranty period, the defective product must be returned in its original packaging to the retailer’s
service center or to the www.pnj.fr website, depending on the place of purchase. After inspection of the
product, the after-sales service will repair or replace the defective part or product, to the exclusion of any other compen-
sation, if the product has been used correctly.
The warranty does not cover:
- The hull of the drone, propellers, propeller shields, landing gears, buttons, throttle and
radio-control antenna, damaged or deteriorated as a result of a fall or accident, voluntary or
involuntary.
- The battery charger when connected to a wall power supply (voltage too high).
- Products that have undergone unauthorized alterations, modications, customizations or other assembly.
- Damage resulting from accidents, normal wear and tear, contact with liquid (rain, water, etc.).
- Defects due to alteration or deterioration of the product caused by a fall, accidental shock or
immersion, voluntary or involuntary.
- Defects due to abnormal use of the product, installation of spare parts not in accordance with
instructions in this manual or at www.pnj.fr.
- Damage resulting from a repair performed by the user themself or an unauthorized third party, excluding exchange
of spare parts provided by PNJ.
- Defects caused by parts not supplied by PNJ, including a battery not approved by PNJ. All products found to be defec
tive after analysis will be returned to the shipper at their expense.
The spare parts necessary for the use of the product are available for 12 months, from the date of rst commercialization
of the product. Wear parts: Battery: 6 months / ESC: 6 months / Engines: 6 months
While using the drone the safety of people and other aircraft is your responsibility. If you use your drone in France, as
part of leisure activities, we remind you that it is essential to respect the following 10 principles to y in accordance with
the law:
1. I do not y over people.
2. I respect the maximum ight heights.
3. I never lose my sight of the drone and I do not use it at night.
4. I do not y my drone over public space in built-up areas.
5. I do not use my drone near aerodromes.
6. I do not y over sensitive sites.
7. I respect the privacy of others.
8. I do not broadcast my footage without the agreement of the persons concerned and I do not use it
commercially.
9. I verify under what conditions I am insured for the practice of this activity.
10. In case of doubt, I inquire.
Consult the guide on model aircraft on the website of the Civil Aviation Directorate General for more information on the
conditions of use of recreational drones. For more information:
FR: https://www.ecologique-solidaire.gouv.fr/sites/default/les/R%C3%A8gles%20ofuse%20%20drone%20de%20loisir.
pdf
EN: https://www.ecologique-solidaire.gouv.fr/sites/default/les/Rules%20for%20the%20proper%20use%20of%20a%20
recreational%20drone.pdf
The usage of a drone not complying with the rules enacted to ensure safety is punishable by one year of imprisonment
and a ne of 75,000 euros under Article L. 6232-4 of transport code.
Warranty
French legislation

-19-
Declaration of conformity
SAS PNJ, 110, Esplanade du Général de Gaulle 92400 Courbevoie, France,declares under its sole responsi-
bility that the product described in this manual complies with the requirements of the RED 2014/53/EU et
RoHS 2011/65/EU.
Reference: DRO-DR-WING-HD
Batch no.: 2018 060 001
A copy of the Declaration of Conformity is available at the following address:
www.pnj.fr/certications
Date: 15/09/2018
Christian Pouthier, directeur produits SAS PNJ
Recycling
These symbols indicate that this product should not be disposed of with other household waste. Selective
collection of electrical and electronic waste: Electrical products should not be disposed of with household
products. According to the European Directive 2012/19 / EC for the disposal of electrical and electronic equip-
ment and its execution in national law, used electrical products must be collected separately and arranged at
collection points provided for this purpose. Consult local authorities or your dealer for recycling advice.
Flying association
BELGIQUE FRANCE HOLLANDE
AAM
Rue Montoyer, 1, boîte 1 1000 –
Bruxelles
FFAM
108 rue Saint Maur 75011 PARIS
Tél. [phone]
KNVvL
Houttuinlaan 16A 3447 GM Woerden
Tél. [phone]
http://www.aamodels.be/ http://www.ffam.asso.fr/ http://www.knvvl.nl/
Aeromodelling clubs are privileged places to use the ying miniature models. They are grouped together in national
federations, where you can nd more information on clubs near your home.
