Thank you for choosing a PNJ product. This manual describes how to prepare and use your product. It’s also

providing information about the utilization and safety precautions, the regulations, compliance and technical

specications of the device. Please read completely, carefully and regularly before use, become familiar

with all the feature of the device and ensure safety use of your drone to enjoy fully with it. Keep this manual

for future use. The manual is also available on our website www.pnj.fr under the heading «User manuals».

User Manual

www.pnj.FR

-1-

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Baterrie Li-po . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

ATTENTION / WARNING / WAARSCHUWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Précautions d’utilisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Avertissement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Download the app. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Flight environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Drone parts name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Remote parts name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

How to install and charge Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Battery warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Precautions for user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

How to install SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

How to Download from SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Emergency Stop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Automatic Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Automatic Take off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Manual landing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Return Home Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Headless mode Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control of the drone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control of the drone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Flight adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Photo and video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Application interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Fly with joystick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Fly with Gyroscopic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

French legislation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Flying association . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

TRADEMARKS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Modications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table of Contents

Baterrie Li-po

- By holding, charging or using the LiPo battery, you assume all risks related with the use of lithium batteries.

- Always keeps the device out of the reach of children.

- Never leave the battery unattended while charging.

- Never leave the battery charging more than 1 hour.

- Use only the USB charger provided in the pack. Never use a Ni-Cd or Ni-Mh charger.

- Before charging the battery, check that it is not damaged. Check that the battery has not inated or that the battery

compartment is not punctured. If you notice any of these situations: DON’T CHARGE THE BATTERY !

- A used battery should be removed from the device and replaced.

- If you notice that the battery starts to inate during the charging, disconnect the battery immediately and never use it

again. The continued use of an inated or damaged battery may cause an explosion.

- Always ensure that the output voltage of the charger matches with the battery voltage. Do not charge at a higher volt-

age than recommended. Only use the charger supplied in the pack.

- Disconnect the battery from the charger if it becomes too hot (never exceed 49°C / 120°F) or inates. if the battery

becomes hot, disconnect the charger immediately.

batterie devient chaude, déconnecter le chargeur immédiatement.

- Only charge on a non-afamable surface. Do not charge inside a vehicle

-2-

- Do not exposed the battery to a heat source or high temperature.

- Do not put the battery in contact with water or immersed in any other liquids.

- Improper use of the battery may cause res, explosions or others danger.

- In case of re caused by the battery, do not use water to extinguish the re (sand recommended).

-Do not carry batteries without packaging in your pocket or bag, because the shock of the batteries against each other

could cause a short circuit.

- keep the battery in a dry place at room temperature

FR

EN

NL

ATTENTION / WARNING / WAARSCHUWING

Veuillez le lire le “User Manual” entièrement et attentivement avant toute utilisation

Le manuel mis à jour est disponible sur le site www.pnj.fr/modes-demploi/

ATTENTION: Toutes les précautions d’utilisation concernant les batteries LiPo doivent être suivies rigoureuse-

ment. Une mauvaise manipulation de la batterie peut provoquer un incendie, une explosion, des blessures

personnelles ou des dégâts matériels.

Please read the operation manual carefully before using the product

The english User Manual can be downloaded on our website: www.pnj.fr/modes-demploi/

WARNING : Lipo batteries are dangerous, please follow the instructions to avoid injuries or damages

Lees de instructies in de bedieningshandleiding zorgvuldig door voordat u onze producten gebruikt

De bedieningshandeleiding kunt u downloaden vanaf onze website: www.pnj.fr/modes-demploi/

WAARSCHUWING : LiPo baterijen zijn gevarlijk, het niet opvolgen van de gebruikshandekeiding kan blessures en

schaden veroorzaken.

Précautions d’utilisation

When using your drone, please respect the following precautions:

- Using the drone indoor is recommended and outdoor if there is light wind.

- Not suitable for children under 14 years old.

- Minors (under 18 years old) must y under adult supervision.

- Warning: Risk of ingestion of small parts, prohibited for children under 3 years old.

- Never use the device near children or animals.

- Be sure to use this product carefully and responsibly to avoid all kind of injury and/or material damage.

- Make sure that the use of the device is accordance with the legal disposal of the country where you are located.

- Find out about the restrictions for using the Wi-Fi frequencies of where you y.

- Check the weather conditions before use. Do not y in rainy weather, fog, windy or in snow.

- Avoid all contact with the following elements: sand, dust, water, liquid substance, sun, heat. Otherwise, it could cause

irreversible damage.

- Not suitable for people with epilepsy, unless otherwise medically prescribed.

- Avoid to y excessively (risk of eye or physical fatigue).

- Respect the safety instructions in this manual.

- Only use accessories provided by PNJ.

- Before each ight, check that the batteries are fully charged.

ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION

Always use a charger

suitable for Lipo

Always charging

away from ammable

materials.

Never leave the battery

unattended while

charging.

Never change or

transform a battery Never use a hot battery

Never charge a damaged

battery

-3-

R-Falcon HD

Falcon HD

Please scan the QR code on the packaging or here below to access in our website and download the App.

You can also search for ‘‘R-Falcon HD’’ in Google Play Store or Apple App Store for downloading the App to control the

drone.

Avertissement

The law required to use this drone in prudent and responsible manners to avoid all human or material damage.

In case for unauthorized use or for illicit purposes, you will be fully responsible for any damage causes. Be sure to

respect laws, without violating the privacy of other people. PNJ assumes no responsibility in case of damage resulting

directly or indirectly from the use of this device, any parts of this device or the manual. PNJ is not responsible for any

accident, injury, death, loss or other claim of any kind related or resulting the use of this product. All the tele pilot must

respect the regulations of international organizations such as ICAO (International Civil Aviation Organization) and the

regulations of their own national airspace. For more information about the regulations in France, please take a look at

the following websites:

DGAC - www.developpement-durable.gouv.fr

PNJ - www.pnj.fr

Download the app

Flight environment

1. Outdoor ight (recommended): Fly in average temperature, in sunny weather and windless (max 4).

2. Indoor ight (not recommended): Choose a spacious place, without obstacles or people or animals.

Note:

- Do not y in extreme temperatures (very cold or very hot), otherwise it could effect on the ight performance of the

drone.

- Do not y in windy weather, the ight performances and the device control may altered due to the wind. This might

take away or damage the device.

- Avoid the rain, water could damage the drone and the electrical circuits.

-4-

Camera

Battery back

cover Propeller

LED

BA

AB

3.7V Li-Poly-

mer battery

Directional joystick

(foward, backward, tilt on

the left, right)

No fonctions

Acceleration joystick

(rotateon the right/left)

Takeoff button

Power On/Off

Turn left trimming

Backward

trimming

Left sideward

trimming

Turn right

trimming

Landing button

Speed button

(low, medium, highspeed)

Forward trimming

Right sideward trimming

Emergency stop

Photos/videos

Lights control

Return button

Multidirectional mode (headless)

Upper cover

(A) (B)

Drone parts name

Propellers

Ax2

Bx2

Charger

Propellers

protection x 2

Remote parts name

1. The remote control can be adjusted for phones or tablets of different sizes. (Figure A, B)

2. Pull on the lock extension button, on the back of the remote control (gure A) then adjust the remote control (gure B).

The controller can easily adapt for small tablets.

-5-

1. Put the battery in his cover and make sure that the connections are correct. (Figure L)

2. Insert the battery in his cover. (Figure M)

3. Press on the top and bottom cover to jam the battery. (Figure N)

4. Insert the battery and his cover into the back of the drone in the battery placement. (Figure O)

Warning : Make sure that the connection port is facing up (Figure O).

1. Connect the Li-Po battery or the charging port of the drone to a computer with the USB cable.

2. The LED light of the USB will stay on while charging and turn off when the charging is completed.

The charging takes about 120 minutes.

WARNING !

Do not charge the battery

unattended

Charging via the drone Charging the battery directly

(L) (M)

(O)(N)

How to install and charge Battery

1. Make sure that the voltage of the USB charger ts the local electricity supply.

2. The charging plug will overheat if overcharged. In this case unplug the battery immediatly to avoid accident.

3. Do not charge the battery unattended.

4. Do not use others charger other than the one supplied with the drone.

5. Wait 30 minutes after the y in other to let the battery cool down before recharging it.

6. Do not leave the battery in the re, sunlight or in environment too hot.

7. Do not short circuit the battery.

8. Keep the battery away from metal parts or magnets.

Battery warning

-6-

Precautions for user

While using your drone, be sure to respects the following precautions:

1. Place the drone on a at ground, and hold the drone button On/Off, the drone light will ash slowly.

2. Open the controller switch. It will make an alert sound while searching for the frequency, and a red indicator light on

the controller ashes slowly. Once the connection is successful, a green indicator light will appear on the controller

and the drone will stay on.

3. Please operate as below after connecting the drone and the controller.

-Re-calibrate the gyroscope : Start by pulling the two joysticks inward diagonally together (Figure C), the lights ash

several times and then stay on;

-Unlock the drone by pulling the two joysticks outward diagonally together (Figure D). The propellers rotate slowly now.

-Press the acceleration joystick to y the drone normally.

Note: If the drone power wire is disconnected, you will have to pair the controller again. The drone communicates on a

2.4 GHz frequency and can be operated in long distance.

4. Multidirectional mode (headless): when you activate the multidirectional mode (headless) the drone will take your

orientation as a reference. In this case, if you order the drone to turn right, it will turn in your right direction, whatever the

direction of its ight at the moment of the instruction.

5. One-key return: By pressing the automatic return button, you order the drone to y back at it starting position.

Push the left joystick forward or push the return button again to stop the order.

6. The drone is equipped with an altitude hold system and stabilized at his altitude. Pushing the throttle too fast would

cause slow response of air pressure detection and drone jumps. In this case, slowly reduce the speed.

7. For landing, pull the left throttle in minimum until the drone lands. When the propellers are totally stopped, loose the

joystick.

8. In case of collision while ying or loss control of the drone: use the emergency stop button.

9. When the battery is low, the drone’s lights will ash quickly: land and recharge the battery.

(C) (D) (E)

1. Remove the SD card from the bottom of the drone (Figure 3).

2. Insert the SD card into the card reader (Figure 4).

3. Insert the card reader into the computer USB port (Figure 5), the sequence is as follow :

My computer →Removable disk → Video or image Folders

Voice control

How to install SD Card

You have the possibility to control the drone with the 4 following injunctions in English

- “Forward” : go forward

-”Backward” :go backward

-Left” : turn left

-”Right” -turn right

-7-

4GB

SD CARD

(Not Included)

(F)

(G)

1M

! !

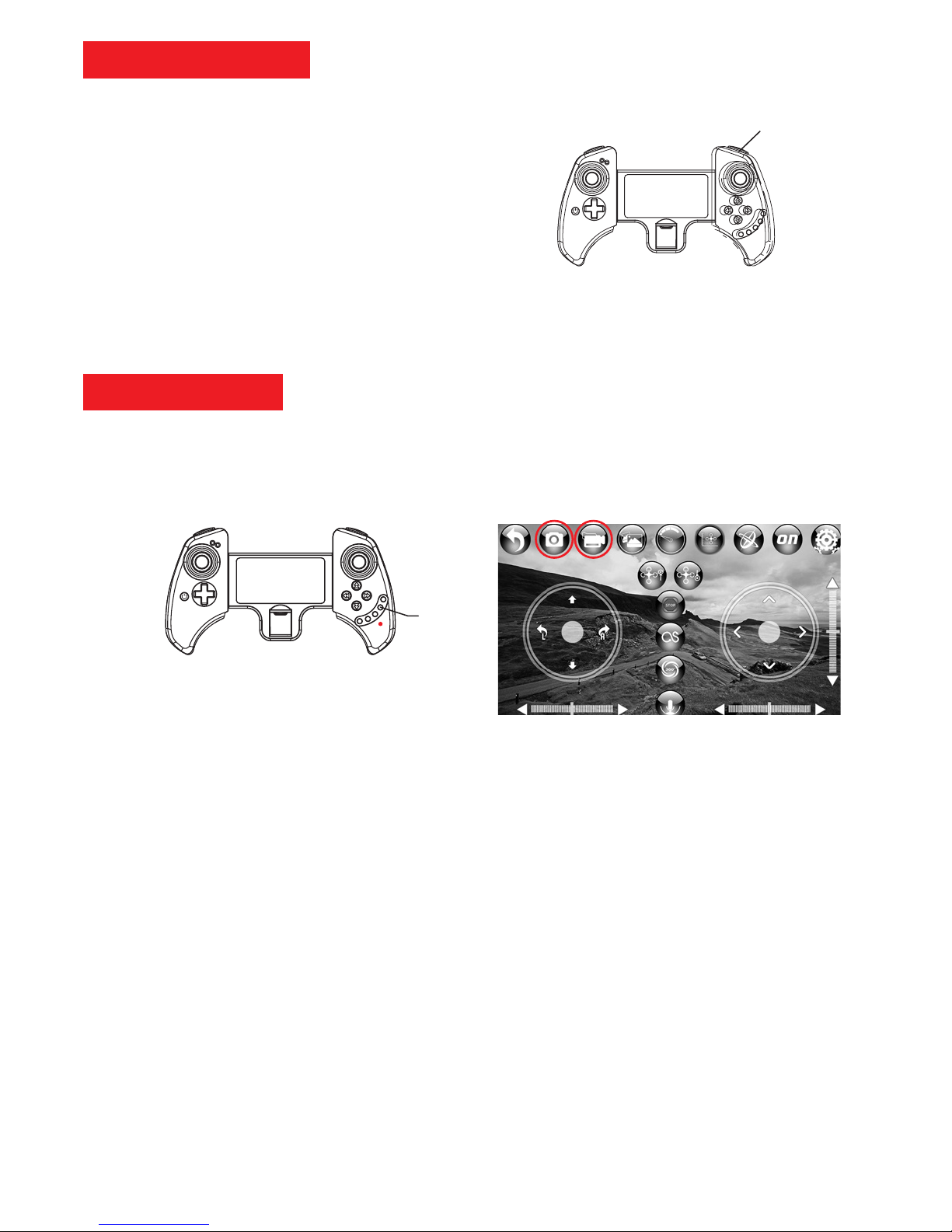

In case of collision or loss

control, you must immedi-

ately stop the drone engines.

You can press the emergen-

cy stop button as indicated

on the graphic (Figure F)

Emergency stop

Warning

The drone will ascend to the

height of about 1 meter in any

take-off point at any attitude.

One-key take off

One-key landing

If the drone crashes in a vertical position, it will automatically turn off the power to protect the

propellers blades.

in this case, to regain control of the drone:

- Hold the left joystick backward to reset the controller (Figure E)

-Then pull down the two joystick outward (Figure D) for unlock the drone to make it y normally

How to Download from SD Card

1. Remove the SD card from the bottom of the drone (Figure

3).

2. Insert the SD card into the card reader (Figure 4).

3. Insert the card reader into the computer USB port (Figure

5), the sequence is as follow :

My computer →Removable disk → Video or image Folders

Emergency Stop

Automatic Stop

Automatic Take off

1. After that the one-key take off has been pressed, the drone will ascend automatically to the height of about 1 meter.

2. After that the one-key landing has been pressed, the drone will automatically descend to the vertical of his position for

3-5 second.

Warning: You can always operate the drone during the take off and the landing.

-8-

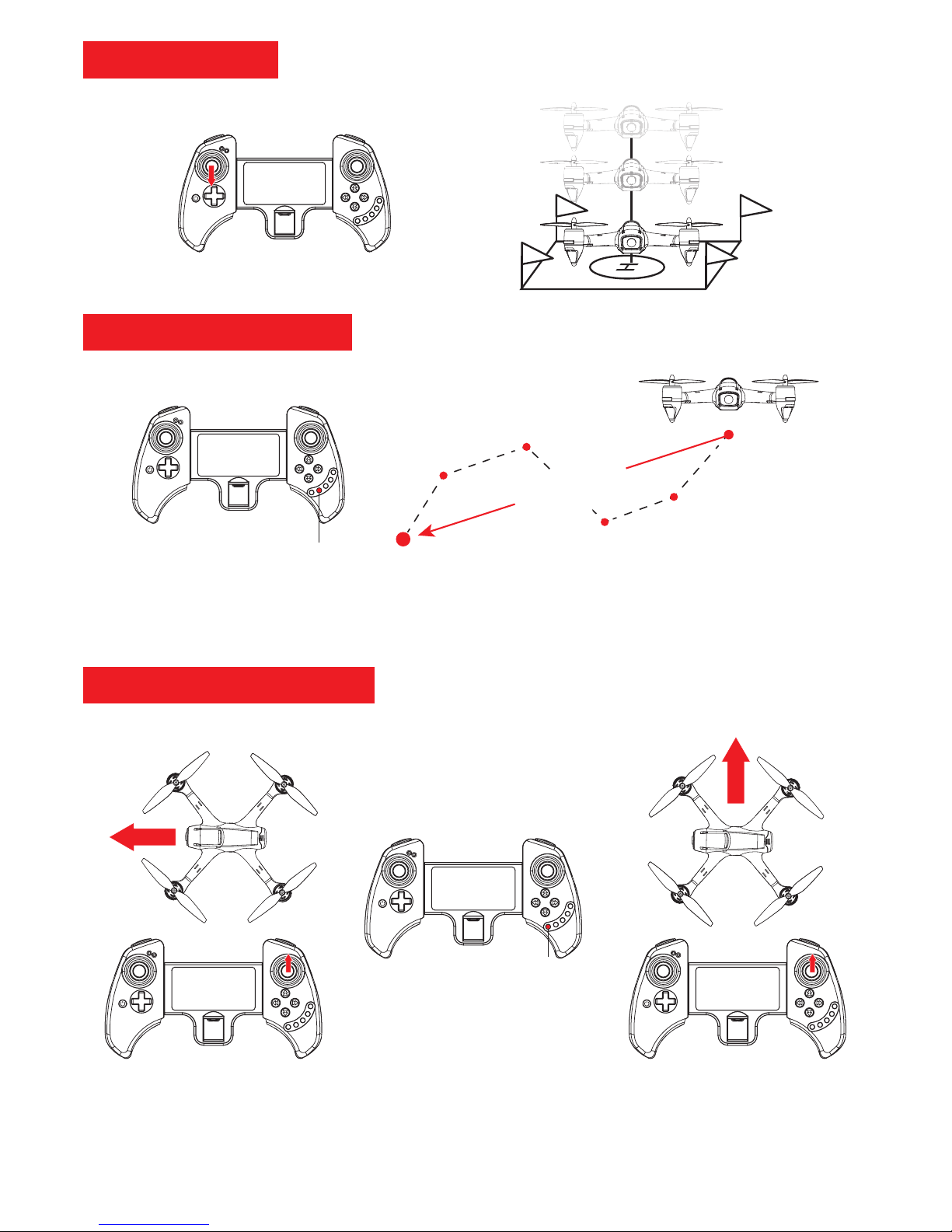

One-key retn

One-key return

Start

Return button

With multidirecional mode

Headless mode

Multidirectional mode

Without multidirectional mode

(H)

(I) (J)

Manual landing

Return Home Function

Headless mode Function

Without the multidirectional mode, you must permanently worry about the drone ight direction when you direct the

drone (Figure I).

Press the headless mode button for activate the multidirectional mode (Figure H).

This mode allows to control the drone without worrying its ight direction. If you press the right joystick forward, the

drone will move away from you whatever its ight direction at the moment of the command (Figure J).

The drone will return automatically to the controller when the return button has been pressed.

The front lights of the drone will stay on, but the back lights will ash quickly until the drone landed.

-9-

Warning: If a collision occurs, it is possible that the multidirectional mode doesn’t work correctly. In this case, put

the drone immediately on the ground and reset the gyroscope by pulling down both joysticks inward. (Figure K)

ELEVATION (gas)

Left joystick

- Push upward to ascend

- Push downward to descend

Always manipulate gently the

elevation joystick

ROTATION (lace)

Left joystick

-Push to the left to turn left

-Push to the right to turn right

LONGITUDINAL INCLINATION

(pitch)

Right joystick

-Push upward to y forward

-Push downward to y backward

Always manipulate gently the

pitch joystick.

LATERAL INCLINATION (roll)

Right joystick

-Push left to y sideward to the

left

-Push right to y sideward to the

right

If the drone is rotating in the air uncontrollably, adjust the rubber trimming buttons until the drone is stable.

Right side-

ward y

Backward

Forward

Turn rightTurn left

Descending

Ascending

Left side-

ward y

(K)

Control of the drone

!

-10-

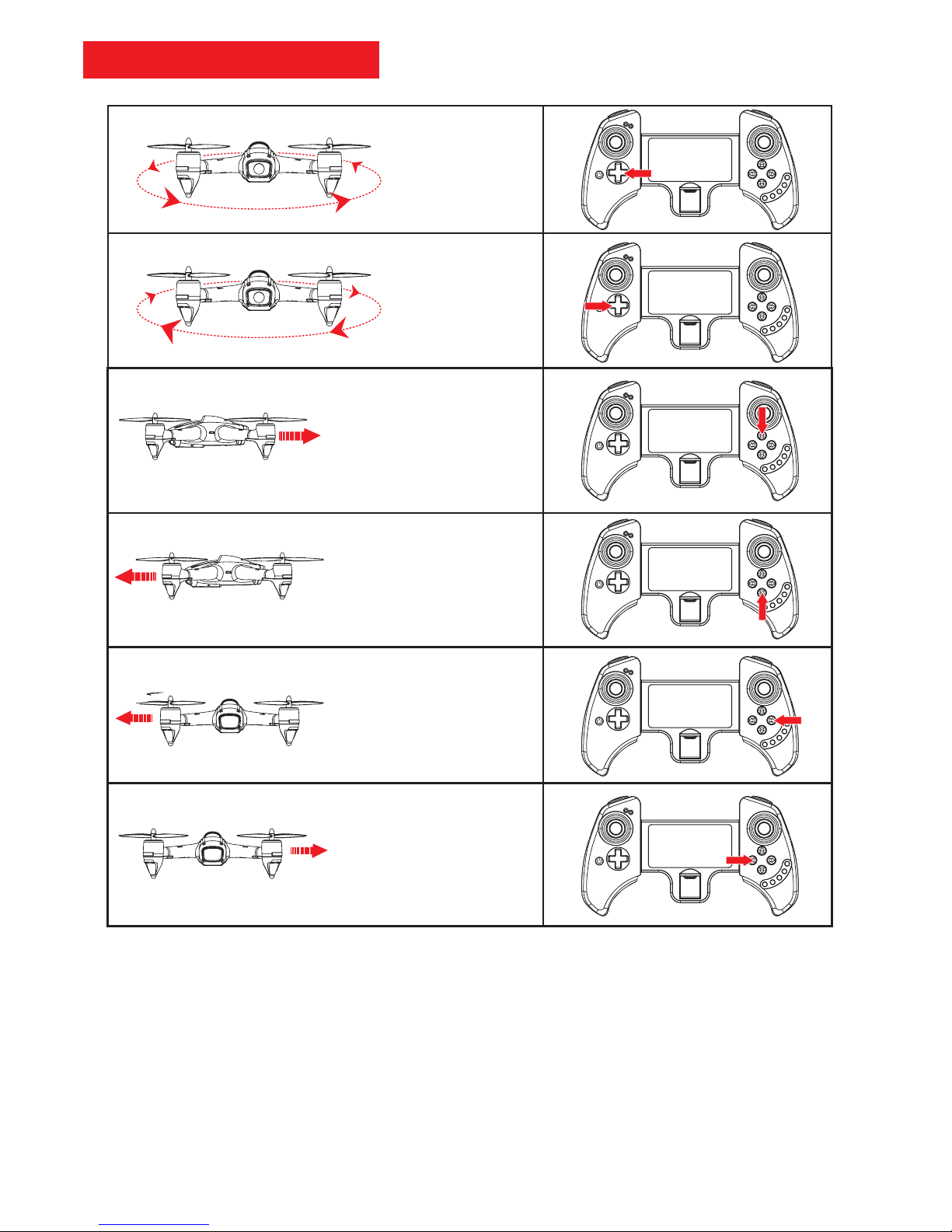

If the drone spins on

itself to the left :

Push the trim A left/

right to the right.

If the drone spins

on itself to the

right :

Push the trim A

left/right to the left.

If the drone moves backward,

push the shift trim C forward/

backward, forward.

If the drone moves forward,

push the shift trim C forward/

backward, backward.

If the drone moves sideward to

the left, push the shift trim B

left/right to the right.

If the drone moves sideward to

the right, push the shift trim B

left/right to the left.

Control of the drone

-11-

Vitesse

Photos

Videos

The drone has three movement speeds :

- When you turn on the drone for the rst time, it is congured to

low speed (40%)

- Press once on the speed button to change to medium speed

(70%). You will hear 2 sounds <<bip bip>>.

-Press again on the speed button to change to high speed (100%).

You will hear 3 sounds <<bip bip bip>>.

-Repress the speed button, to return to low speed (40%). you will

hear one sound <<bip>>.

Flight adjustment

To learn how to y, we suggest you to stay at low speed and increase it progressively during the trainings.

Photos and videos are saved on the Micro SD card. To retrieve them, you must remove the Micro SD card (not included)

from the drone (press on it to extract) and insert into a SD card reader (not included).

You can then connect the Micro SD card reader to a computer to access your les.

Photo and video

Make sure that you have install the Micro SD card in the

drone.

2. Press the photos/videos button from the controller to

take a photo.

3. Hold the photos/videos button from the controller to

record a video.

-12-

1. Return

2. Take a photo: press this button to take a photo.

The icon turns red for 1s.

3. Recording and stopping video on a Micro SD card:

Press on this button to record a video directly in the

SD card, then repress to stop. The recording time is

scrolled and the icon turns red during the recording.

4. Photos and videos playback: Enter the gallery to view

the photos and videos recorded in the application (all

default photos and recorded videos by pressing the

button 4). You can click on the 3D icon to split the

screen in two and watch the photo/video in a VR mask.

5. Changing speed: press this button to change the y speed (3 different speed, low, medium, high). The icon indicates

the speed level.

6. Altitude hold

7. Gravity sensor mode: Cf paragraph << Control for the drone>> page 11.

8. Show/ hide control interface

9. Show/ hide setup menu

10. Headless mode

11. Gyro Calibrate

12. Camera inversion: allows to reverse the screen direction. The icon turns red when the inversion is effective.

13. VR mode - immersion control: click on this button to split the screen in two, in order to have two similar screens and

be able to insert your smartphone inside the VR mask (optional).

14. One-key unlock/ take-off

15. One-key landing

16. Emergency stop button

17. Flight path: allow to program a ight path for the drone intuitively

18. No function

19. Voice control: allow to control the drone by voice orders (orders in English)

CONNECTING THE PHONE TO THE DRONE - connect your smartphone to the drone’s wi

Wi Name : R-Falcon HD_XXXXXX

Password : 1234567890

Application interface

-13-

Ascending

Descending

Photos and videos are saved on the Micro SD card. To retrieve them, you must remove the Micro SD card (not included)

from the drone (press on it to extract) and insert into a SD card reader (not included).

You can then connect the Micro SD card reader to a computer to access your les.

Fly with joystick

ELEVATION (gas)

Left joystick

- Push upward to ascend

- Push downward to descend

Always manipulate gently the elevation

joystick

LONGITUDINAL INCLINATION

(pitch)

Right joystick

-Push upward to y forward

-Push downward to y backward

Always manipulate gently the pitch

joystick.

ROTATION (lace)

Left joystick

-Push to the left to turn left

-Push to the right to turn right

LATERAL INCLINATION (roll)

Right joystick

-Push left to y sideward to the left

-Push right to y sideward to the right

-14-

Forward

Backward

Left side-

ward y

Right side-

ward y

LONGITUDINAL INCLINATION

(pitch)

By the smartphone’s inclination

- Tilt forward to move forward

- Tilt backward to move backward

LATERAL INCLINATION (roll)

By the smartphone’s inclination

-Tilt to the left to go left

-Tilt to the right to go right

Make sure that the n°10 icon is red (selected). When the tilt control is activated (icon n°7 in red), the right joystick switch

automatically to tilt control of the smartphone. You have to control the left joystick with one hand and tilt your smart-

phone depending on the inclination that you want for the drone.

Fly with Gyroscopic

Maintenance

- The battery should be stored in a dry and ventilated area. The storage temperature range is between 18°C

and 25°. Avoid to charge and uncharged excessively to extend its life. Ensure to charge it before storing it, if it won’t be

use for a long period.

- If the radio control won’t be use for a long period, be sure to remove the batteries from the bottom compartment.

Battery leakage may damage the radio control and may cause a re. Once used, ensure to throw the batteries according

the legal regulations in order to preserve the environment.

- To avoid any problems, we strongly advise you to have the habit to remove the drone battery when you are not using it.

- Make sure to store your materials in a dry place, away from water and the heat. Do not put the drone on a damp surface

or a proximity of liquid substances. This could cause irreversible damage.

- The maintenance can only be carried out by the After-sell Service from the shop or from the distributor. If you nd a

problem with your drone, be sure to call them directly. It’s not recommended to change by yourself the engine or the

motherboard for example, because its requires technical knowledge.

- Use only the accessories specied by the manufacturer.

- Find out all our products and accessories in our website www.pnj.fr

Guarantee

This product is guaranteed for a period of 24 months from the date of the original purchase date by the consumer, ex-

cept for certain worn pieces* (cf below), against all manufacturing defects, upon presentation of the proof of purchase

(receipt with date, place of purchase, product name).

During the contractual warranty, the defective product must be returned in its original packing to the retailer’s service

center or to the www.pnj.fr website, depending on the place of purchase. after inspection of the product, the retailer’s

-15-

service will proceed for the reparation or the replacement of the part or of the defective product, excluding any other

compensation, if the product has been used correctly.

The guarantee does not cover:

-the drone frame, the propellers, the propeller’s protection, the landing gear, the buttons, the controllers and the radio

control antenna, damaged or deteriorated from a fall or an accident, voluntary or involuntary

-The battery charger in case of power outlet (voltage too high)

-Products that have undergone unauthorized transformations, modications, customizations or other assembly

-Damage resulting from accident, normal wear and tear of the product, contact with a liquid (rain, water, etc.)

-Defects due to alteration or deterioration of the product caused by a fall, accidental shock or immersion, voluntary or

involuntary,

-Defects due to abnormal use of the product, installation of spare parts not in accordance with the instructions stipu-

lated in these operating instructions or on the website www.pnj.fr

-Damages resulting from a repair performed by the user himself or an unauthorized third party, exchange of spare parts

not provided by PNJ

-Defects caused by parts not supplied by PNJ, including a battery not approved by PNJ

Any product found to be defective after analysis will be returned to the shipper at its expense.

The spare parts required for the product utilization are available for 12 months from the date of rst purchase of the

product. Wear parts: Battery: 6 months / ESC: 6 months / Engines: 6 months

French legislation

Ensuring the safety of individuals and other aircraft, is your responsibility. If you use your drone in France, as part of lei-

sure activities, we remind you that it is essential to respect the following 10 principles to y in accordance with the law:

1. I do not y over people

2. I respect the maximum ight heights

3. I never lose my sight of my drone and I do not use it at night

4. I do not y my drone over public space in built-up areas

5. I do not use my drone near aerodromes

6. I do not y over sensitive sites

7. I respect the privacy of others

8. I do not spread my footage without the agreement of the individuals concerned and I do not use it commercially

9. I verify under what conditions I am insured for the practice of this activity

10. In case of doubt, I inquire

Consult the guide on aeromodelism on the website of the Civil Aviation Directorate General for more information on the

conditions for the use of recreational drones. For more information:

- http://www.developpement-durable.gouv.fr/-Drones-aeronefs-telepilotes-.html

The utilization of a drone under the conditions of use not complying with the rules enacted to ensure safety is punish-

able by one year of imprisonment and a ne of 75,000 euros under the Article L. 6232-4 of Transport code.

-16-

Flying association

BELGIQUE FRANCE HOLLANDE

AAM

Rue Montoyer, 1, boîte 1 1000 –

Bruxelles

FFAM

108 rue Saint Maur 75011 PARIS

Tél. 01 43 55 82 03

KNVvL

Houttuinlaan 16A 3447 GM Wo-

erden Tél. 0348-437060

http://www.aamodels.be/ http://www.ffam.asso.fr/ http://www.knvvl.nl/

Aeromodelling clubs are a privileged place to use ying models in the rules. They are reunited together in national

federations, where you can nd information about clubs near your home.

Recycling

These symbols indicated that this product should not be eliminated at the end of his life with the other house-

hold waste. Selective collect of electrical and electronic waste. Electrical products should not be disposed of

with household products. According to the European Directive 2012/19 /EC for the scrapping of electrical and

electronic materials and its execution in national law, used electrical products must be collected separately

and placed at collection points provided for this purpose. Contact your local authority or your dealer for

recycling advice.

Declaration of conformity

SAS PNJ, 110, Esplanade du Général de Gaulle 92400 Courbevoie, France,declares under its sole respon-

sibility that the product described in this manual complies with the requirements of the Directives

R&TTE 1999/5/CE et RoHS 2011/65/EU.

A copy of the Declaration of conformity is available in the following website:

www.pnj.fr/certications

Date: 25/09/2018

Christian Pouthier, product manager SAS PNJ

TRADEMARKS

All brands or product names are or may be trademarks of their respective owners. Pictures and specications are

not contractual. 1 year warranted. Made in PRC. Les marques citées sont des marques déposées par leur fabricant

respectif. Photos et caractéristiques non contractuelles. Garantie : 1 an. Fabriqué en RPC. De vermelde merken zijn

gedeponeerde merken door hun respectievelijke producent. Foto’s en kenmerken niet contractueel. Geproduceerd

in China. Garantie: 1 jaar. Die zitierten Marken sind durch die jeweiligen Hersteller eingetragene Marken. Fotos und

technische Daten sind unverbindlich. Hergestellt in China. Garantie: 1 Jahr.

-17-

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Modifications

The explanations contained in this User Manual are provided for information purposes only and may be subject to

modication, without prior notice. PNJ SARL cannot be held responsible directly or indirectly for any prejudice or loss

of data resulting from an error or omission from this document. PNJ SARL reserves the right to modify the product

and its operating instructions without any restriction or obligation to inform the user. Thus, the purchased product may

differ somewhat from the one described in this document. The latest version of the online User Guide prevails over this

one. To obtain it, go to: www.pnj.fr

Notebook

-18-

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Notebook

PNJ R-Falcon HD User manual

Popular Drone manuals by other brands
