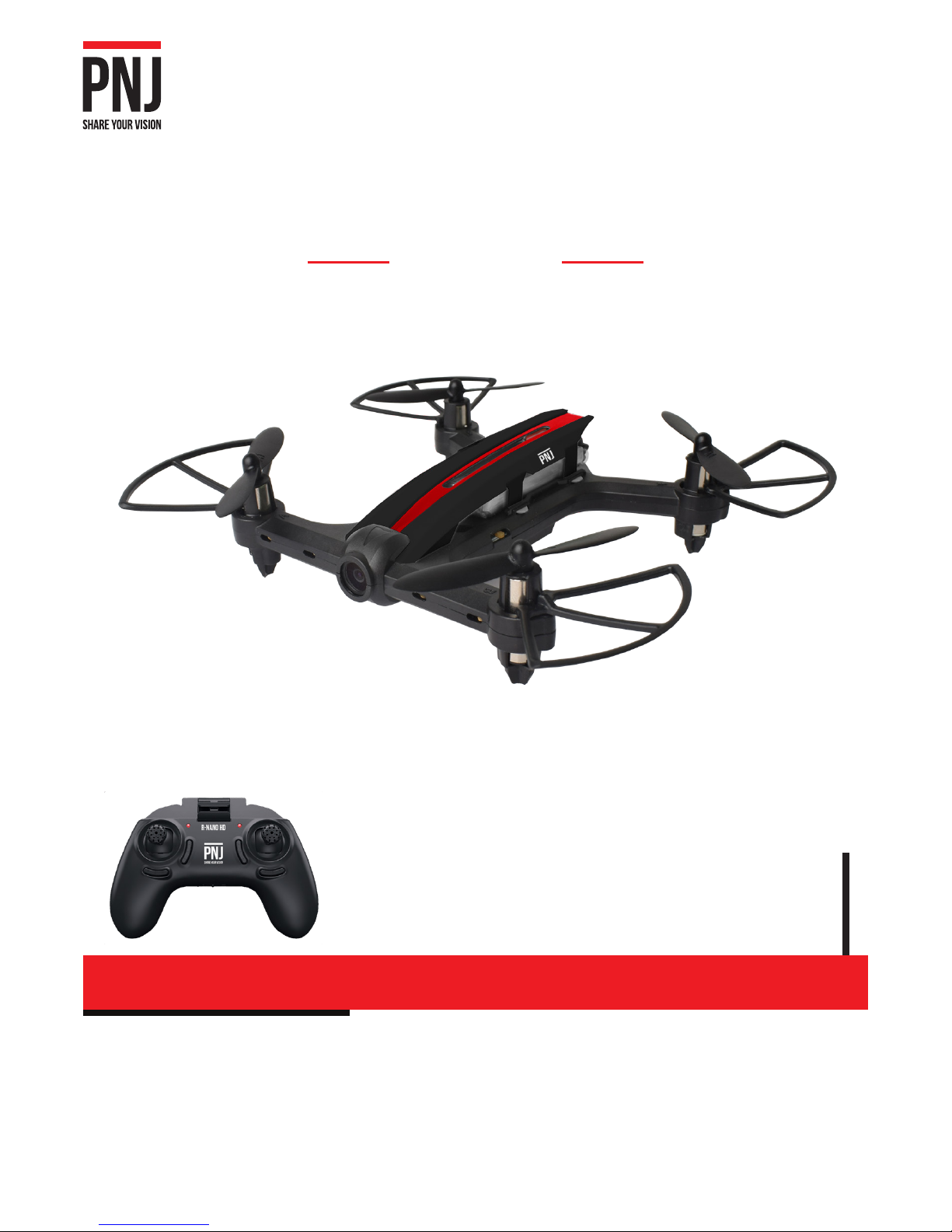

Pnj R-nano hd User manual

R-Nano HD

Share your vision

Thank you for choosing a PNJ product. This manual describes how to prepare and use your drone. It also pro-

vides information on the use and safety precautions, regulations, compliance and technical specications

of the drone. Please read it carefully and thoroughly before use, to familiarize yourself with all the features

of the unit, to ensure the safe use of your drone and to take full advantage of it. Keep the manual for future

reference. This manual is also available on the website www.pnj.fr under the category “User Manual”.

User Manual

www.pnj.FR

-1-

TABLE DES MATIÈRES

Batterie Li-po

- By owning, charging or using the LiPo battery, you assume all risks associated with the use of lithium batteries.

- Always keep out of reach of children.

- Never leave the battery unattended while charging.

- Never leave the battery charged for more than 1 hour.

- Use only the USB charger provided in the pack. Never use a Ni-Cd or Ni-Mh charger.

- Before charging the battery, check that it is not damaged. Check that the battery has not swollen or that the battery

compartment is not punctured. If you notice any of these situations: DO NOT CHARGE THE BATTERY!

- A used battery must be removed from the unit and replaced.

- If you notice that the battery starts to swell during charging, disconnect the battery immediately and do not use it again.

Continued use of an inated or deteriorated battery may cause an explosion.

- Make sure that the output voltage of the charger matches the battery voltage. Do not charge at a higher current than

recommended. Use only the charger provided in the pack.

- Disconnect the battery from the charger if it becomes too hot (Never exceed 49 ° C / 120 ° F) or swells. If the battery

becomes hot, disconnect the charger immediately.

- Charge only on non-ammable surfaces. Never charge inside a vehicle!

- Do not expose the battery to any source of heat or high temperature.

- Never put the battery in contact with water or immerse it in any other liquid.

- Improper use of the battery may cause re, explosion or other hazards.

- In case of re caused by the battery, do not use water to extinguish the re (sand is recommended).

- Do not carry unwrapped batteries in your pocket or bag, as the shock of the batteries against each other could cause a

short circuit.

- Store the battery in a dry place at room temperature.

TABLE DES MATIÈRES ...............................................................................................................................................1

Batterie Li-po ...........................................................................................................................................................1

ATTENTION / WARNING / WAARCHUWING..................................................................................................................2

Précautions d’utilisation ...........................................................................................................................................2

Avertissement ..........................................................................................................................................................3

Conditions optimales de vol ......................................................................................................................................3

Contenu du pack.......................................................................................................................................................3

Radio-commande .....................................................................................................................................................3

Comment charger la batterie .....................................................................................................................................4

Avertissement .........................................................................................................................................................4

Calibration gyroscope ...............................................................................................................................................4

Installation des hélices .............................................................................................................................................5

Changement de vitesse .............................................................................................................................................5

Mode acrobatique.....................................................................................................................................................5

360˚Flip ..................................................................................................................................................................5

Mode CF...................................................................................................................................................................5

Commencer à piloter.................................................................................................................................................6

Utilisation des joysticks............................................................................................................................................6

Ajustements de vol ...................................................................................................................................................7

Photo et vidéo ..........................................................................................................................................................8

Maintenance.............................................................................................................................................................8

Garantie...................................................................................................................................................................9

Législation Française................................................................................................................................................9

Clubs d’aeromodélisme...........................................................................................................................................10

Recyclage ..............................................................................................................................................................10

Déclaration de conformité .......................................................................................................................................10

Marques déposées..................................................................................................................................................10

Modications .........................................................................................................................................................11

Carnet de notes .....................................................................................................................................................11

-2-

ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION

Only use a compatible

LiPo Charger

Always charge away from

ammable materials

Don’t charge without

supervision

Do not try to modify the

batteries Never use a hot battery

Don’t charge damaged

batteries

When using your drone, be sure to observe the following precautions:

- Suitable indoor and outdoor use in very windstill conditions.

- Not suitable for persons under 14 years of age.

- Minors must pilot under the supervision of an adult.

- Caution: risk of ingestion of small parts.

- Never use the appliance near children or pets.

- Be sure to use this product in a safe and responsible manner to avoid personal injury and / or property damage.

- Make sure that your use is in accordance with the legal provisions of the country where you are located.

- Find out about restrictions on the use of Wi-Fi frequencies in your ight location.

- check the weather conditions before use.

- Do not y in rain, fog, wind or snow.

- Avoid contact with sand, dust, water, liquid substances or heat, it could cause irreversible damage.

- Keep away from obstacles, people, animals, dwellings, vehicles, high voltage cables or trees.

- Keep clear of the propellers. They can cause material or physical damage.

- Not suitable for people with epilepsy.

- Avoid excessive ying (risk of eyestrain or physical fatigue).

- Observe the safety instructions in this manual.

- Use only the accessories supplied by the manufacturer.

- Before each ight, check that the batteries are fully charged.

WARNING / ATTENTION / WAARCHUWING

NL

FR Veuillez lire le “Manuel d’utilisation” entièrement et attentivement avant toute utilisation. Le manuel mis à jour est

disponible sur notre site: www.pnj.fr/modes-demploi/

ATTENTION: Toutes les précautions d’utilisation concernant les batteries LiPo doivent être suivies rigoureusement.

Une mauvaise manipulation de la batterie peut provoquer un incendie, une explosion, des blessures personnelles

ou des dégâts matériels.

EN Please read the operation manual carefully before using the product

The english User Manual can be downloaded on our website: www.pnj.fr/en/user-manuals/

WARNING : LiPo batteies are dangerous, please follow the instructions to avoid injuries or damages.

Lees de instructies in de bedieningshandleiding zorgvuldig door voordat u onze producten gebruikt

De bedieningshandeleiding kunt u downloaden vanaf onze website: www.pnj.fr/en/user-manuals/

WAARSCHUWING : LiPo baterijen zijn gevarlijk, het niet opvolgen van de gebruikshandekeiding kan verwondingen

en schaden veroorzaken.

Precautions for use

Warning

The law requires you to use this drone in a sensible and responsible manner to avoid human or material damage. In the

case of unauthorized use or for unlawful purposes, you will be held fully responsible for any damage caused. Be sure

to respect the law, without infringing the privacy of others. PNJ assumes no liability for damage resulting directly or

indirectly from the use of the product, any part of this product or this manual. PNJ cannot be held responsible for any

accident, injury, death, loss or other claim of any nature whatsoever related to or resulting from the use of this product.

All users must comply with the regulations of international organizations such as the International Civil Aviation Organi-

zation (ICAO) and the regulations of their own national airspace. To learn more about the rules in force in your country,

visit the following sites:

ICAO - www.icao.int

PNJ - www.pnj.fr

Flight environment

Included in the pack

Remote Control

-3-

Specications:

Signal: 2.4 GHz

Range: 60m

Batteries:

Batteries: 4 x 1.5V AAA (included in the pack).

1.Remove the back cover using the included screwdriver.

2. Insert 4 AAA batteries, pay attention to the polarity

and replace the battery cover.

1x R-Nano HD

1x 2.4 Ghz Remote

2x Batterie 3.7V/450mAh

1.Outdoor ight (not recommended): Fly at medium temperature, in sunny and windstill conditions.

2. Indoor ight (recommended): Ideal for indoor ight, choose a spacious place without obstacles, people or

 animals.

Note:

• Do not y in extreme temperatures (very cold or very hot) as this could affect the ight performance of the drone.

• Do not y in windy weather, ight performance and control of the aircraft may be impaired due to the wind. This could

cause damage to you or to the unit.

Controls:

1. Speed Selector: 30% / 60% / 100% / Acrobatic Mode

2. Smartphone holder

3. Camera Button

4. Power Indicator

5. Left Joystick

6. Trim A

7. Return Home / Headless mode

8. LED Camera indicator

9. Right Joystick / Depress 360 Flip

10. Trim B

11. Trim C

1x Extra canopy

4x Exra propeller

4x AAA battery

1x USB charging cable

1x Screwdriver

1x Card Reader

1x Manual

Ne laissez pas les batteries

charger sans surveillance.

ATTENTION !

-4-

How to charge THE Battery

1. Make sure the voltage required for USB charging corresponds to the power source used.

2. The charger plug may overheat if overloaded. In this case disconnect the battery immediately to avoid an accident.

3. Do not let the battery charge unattended.

4. Do not use any charger or charging cable other than the one supplied with the drone.

5. Wait 30 minutes after a ight for the battery to cool before recharging.

6. Do not leave the battery in a re, in the sun or in environments that are too hot.

7. Do not short-circuit the battery.

8. Keep the battery away from metal parts or magnets.

WARNING

1. Disconnect the battery from the R-Nano HD.

2. Gently pull out the battery.

3. Connect the USB Charger with the battery and connect the charger with a USB port or USB charging adapter.

4. Once successfully connected a red LED light will turn on indicating that charging is in progress.

5. The charging process is complete when the LED light switches off. (Charging time depends on charge level of the

battery and output Voltage / Amperage of the power supply

Gyroscopic calibration

The R-Nano HD is equipped with an auto-trim system whereby its initial settings can

be restored.

To recalibrate the drone gyroscope please follow the following steps:

1. Turn on the drone then the remote control.

2. Place the drone on a at surface.

3. Incline simultaneously both joysticks to the left bottom position as shown on the

diagram

4. After 10 seconds return both joystick their initial position

Install the propellers

Please make sure to install the propeller correctly, the propellers are marked “A” and “B”refer to the picture below to learn

the proper location of each propeller.Gently ease the propeller off of the metal shaft. Carefully push the replacement

propeller onto the steel shaft and ensure that it is installed rmly. Be careful not to use too much force, which could

damage the propeller or the drone.

-5-

Caméra

Avant

B

A1

A

Arrière

DroiteGauche

To select the ying speed of the Drone press the speed selector button on the remote control, you will hear a beep sound

indicating which mode the drone is in. Available modes are: 30% (1 Beep) / 60% (2 Beeps) / 100% (3 Beeps) and Acrobat-

ic mode (constant beeping).

While in acrobatic mode the remote will beep continously. In this mode you can press the right joystick fully in any

direction to perform a 360˚ ip.

To perform a 360˚ ip in the other speed modes depress the right joystick until you hear an audible “click”, then press the

right joystick in any direction to perform a ip in the chosen direction.

Press the Headless mode button to activate “Headless mode”. In this mode if you press “Back” on the right joystick the

drone will y backwards in reference from when it started you no matter which way the drone is facing.

Speed Selector

Acrobatic Mode

360˚Flip

Headless Mode

A

A B

B

-6-

1. Place the drone on a at surface and connect the battery, the LED light on the drone should start ashing.

2. Turn on the remote control.

3. Press the left joystick all the way to the front, then all the way to the back. The remote will beep and the drone lights

will stop ashing.

4. The drone is now ready to take off.

5. Press the left joystick slightly to the front and the motors will start.

6. Control the altitude carefully of the drone with the left joystick.

Start to fly

Piloting using Joysticks

LEFT JOYSTICK / Gas (elevation):

- Push up to climb

- Push down to go down

RIGHT JOYSTICK / Movement:

- Push up to move forward

- Push down to move backwards

- Press for Flip 360˚

LEFT JOYSTICK / Rotation:

- Push left to rotate left

- Push right to rotate right

RIGHT JOYSTICK / Sideways Move-

ment:

- Push left to move sideways to the left

- Push right to move sideways to the

right

- Press for Flip 360˚

-7-

Flight Adjustments

If the drone spins on itself to the left :

Push the trim A to the right.

If the drone spins on itself to the right :

Push the trim A to the left.

If the drone moves backward.

Push the trim B forward.

If the drone moves forward, push the

trim B backward.

If the drone moves sidewards to

the left.

Push the trim C to the right.

If the drone moves sidewards to the

right.

Push the trim C to the left.

-8-

Photos:

Short press the Camera Button (below picture) to take pictures. The LED Camera indicator will blink on the remote as

well as on the drone.

Videos:

Press the Camera button for 3 seconds to start taking videos. The LED Camera indicator will blink continously on the

remote as well as on the drone. To stop recording press the Camera button again for 3 seconds until the LED Camera

indicator stops blinking.

Tip: The SD Card slot is located under the drone. All photos and videos are saved on the SD Card (not included)

Photo And vidEo

Maintenance

- The battery should be kept in a dry, ventilated place. The storage temperature is between 18 ° C and 25 ° C. Avoid

excessive charging and discharging to prolong battery life. Be sure to charge the battery before storing it, if it is left

unused for a long time.

- To avoid any problems, we strongly advise you to take the habit of also removing the battery of the drone when not in

use.

- Keep your equipment in a dry place, away from water and heat. Do not place the drone on a wet surface or in the vicinity

of liquid substances. This could cause irreversible damage.

- Maintenance can only be carried out by the After Sales Service of the warehouse or distributor. If you have a problem

with your drone, please contact us directly. It is not recommended to change the engine or the motherboard on your

own.

- Use only accessories specied by the manufacturer.

- Find all our products and accessories on our website www.pnj.fr

-9-

FRENCH LEGISLATION

While using the drone the safety of people and other aircraft is your responsibility. If you use your drone in France, as

part of leisure activities, we remind you that it is essential to respect the following 10 principles to y in accordance with

the law:

1. I do not y over people.

2. I respect the maximum ight heights.

3. I never lose my sight of the drone and I do not use it at night.

4. I do not y my drone over public space in built-up areas.

5. I do not use my drone near aerodromes.

6. I do not y over sensitive sites.

7. I respect the privacy of others.

8. I do not broadcast my footage without the agreement of the persons concerned and I do not use it

commercially.

9. I verify under what conditions I am insured for the practice of this activity.

10. In case of doubt, I inquire.

Consult the guide on model aircraft on the website of the Civil Aviation Directorate General for more information on the

conditions of use of recreational drones. For more information:

FR: https://www.ecologique-solidaire.gouv.fr/sites/default/les/R%C3%A8gles%20ofuse%20%20drone%20de%20loisir.

pdf

EN: https://www.ecologique-solidaire.gouv.fr/sites/default/les/Rules%20for%20the%20proper%20use%20of%20a%20

recreational%20drone.pdf

The usage of a drone not complying with the rules enacted to ensure safety is punishable by one year of imprisonment

and a ne of 75,000 euros under Article L. 6232-4 of transport code.

Garantie

This product is warranted for a period of 24 months from the date of original purchase by the consumer, except for certain

wear parts, against manufacturing defects, upon presentation of proof of purchase (receipt with date, place of purchase,

name of the product).

During the contractual warranty period, the defective product must be returned in its original packaging to the retailer’s

service center or to the www.pnj.fr website, depending on the place of purchase. After inspection of the

product, the after-sales service will repair or replace the defective part or product, to the exclusion of any other compen-

sation, if the product has been used correctly.

The warranty does not cover:

- The hull of the drone, propellers, propeller shields, landing gears, buttons, throttle and

radio-control antenna, damaged or deteriorated as a result of a fall or accident, voluntary or

involuntary.

- The battery charger when connected to a wall power supply (voltage too high).

- Products that have undergone unauthorized alterations, modications, customizations or other assembly.

- Damage resulting from accidents, normal wear and tear, contact with liquid (rain, water, etc.).

- Defects due to alteration or deterioration of the product caused by a fall, accidental shock or

immersion, voluntary or involuntary.

- Defects due to abnormal use of the product, installation of spare parts not in accordance with

instructions in this manual or at www.pnj.fr.

- Damage resulting from a repair performed by the user themself or an unauthorized third party, excluding exchange

of spare parts provided by PNJ.

- Defects caused by parts not supplied by PNJ, including a battery not approved by PNJ. All products found to be defec

tive after analysis will be returned to the shipper at their expense.

The spare parts necessary for the use of the product are available for 12 months, from the date of rst commercialization

of the product. Wear parts: Battery: 6 months / ESC: 6 months / Engines: 6 months

-10-

Flying association

BELGIUM FRANCE HOLLAND

AAM

Rue Montoyer, 1, boîte 1 1000 –

Bruxelles

FFAM

108 rue Saint Maur 75011 PARIS

Tél. 01 43 55 82 03

KNVvL

Houttuinlaan 16A 3447 GM Woerden

Tél. 0348-437060

http://www.aamodels.be/ http://www.ffam.asso.fr/ http://www.knvvl.nl/

Aeromodelling clubs are privileged places to use the ying miniature models. They are grouped together in national

federations, where you can nd more information on clubs near your home.

Recyclage

These symbols indicate that this product should not be disposed of with other household waste. Selective

collection of electrical and electronic waste: Electrical products should not be disposed of with household

products. According to the European Directive 2012/19 / EC for the disposal of electrical and electronic equip-

ment and its execution in national law, used electrical products must be collected separately and arranged at

collection points provided for this purpose. Consult local authorities or your dealer for recycling advice.

Déclaration of Conformity

SAS PNJ, 110, Esplanade du Général de Gaulle 92400 Courbevoie, France,declares under its sole respon-

sibility that the product described in this manual complies with the requirements of the R & TTE Directive

1999/5 / EC / RED 2014/53 / EU / RoHS 2011/65 / EU and Toy Safety Directive 2009/48 / EC.

A copy of the Declaration of Conformity is available at the following address:

www.pnj.fr/certications

Date: 24/08/2017

Christian Pouthier, Product Manager SAS PNJ

trademark

All brands or product names are or may be trademarks of their respective owners. Pictures and specications are not

contractual. 1 year warranted. Made in PRC. Les marques citées sont des marques déposées par leur fabricant respectif.

Photos et caractéristiques non contractuelles. Garantie : 1 an. Fabriqué en RPC. De vermelde merken zijn gedeponeerde

merken door hun respectievelijke producent. Foto’s en kenmerken niet contractueel. Geproduceerd in China. Garantie:

1 jaar. Die zitierten Marken sind durch die jeweiligen Hersteller eingetragene Marken. Fotos und technische Daten sind

unverbindlich. Hergestellt in China. Garantie: 1 Jahr.

-11-

Modifications

The explanations contained in this User Manual are provided for information purposes only and may be subject to

change without notice. SAS PNJ can not be held responsible directly or indirectly for any prejudice or loss of data

resulting from an error or omission in this document. SAS PNJ reserves the right to modify the product and its operating

instructions without any restriction or obligation to inform the user. Thus, the purchased product may differ somewhat

from that described in this document. The latest version of the online User Guide overrule over this one. To obtain it, go

to: www.pnj.fr

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Notebook

-12-

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

_ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Notebook

-13-

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Notebook

-14-

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Notebook

PNJ R-Nano HD User manual

Popular Drone manuals by other brands
