Pnj R-siyou hd User manual

R-Siyou HD

Share your vision

Thank you for choosing a PNJ product. This manual describes how to prepare and use your drone. It also pro-

vides information on the use and safety precautions, regulations, compliance and technical specications

of the drone. Please read it carefully and thoroughly before use, to familiarize yourself with all the features

of the unit, to ensure the safe use of your drone and to take full advantage of it. Keep the manual for future

reference. This manual is also available on the website www.pnj.fr under the category “User Manual”.

User MAnual

www.pnj.FR

-1-

TABLE of contents

Li-po battery

- By owning, charging or using the LiPo battery, you assume all risks associated with the use of lithium batteries.

- Always keep out of reach of children.

- Never leave the battery unattended while charging.

- Never leave the battery charged for more than 1 hour.

- Use only the USB charger provided in the pack. Never use a Ni-Cd or Ni-Mh charger.

- Before charging the battery, check that it is not damaged. Check that the battery has not swollen or that the battery

compartment is not punctured. If you notice any of these situations: DO NOT CHARGE THE BATTERY!

- A used battery must be removed from the unit and replaced.

- If you notice that the battery starts to swell during charging, disconnect the battery immediately and do not use it again.

Continued use of an inated or deteriorated battery may cause an explosion.

- Make sure that the output voltage of the charger matches the battery voltage. Do not charge at a higher current than

recommended. Use only the charger provided in the pack.

- Disconnect the battery from the charger if it becomes too hot (Never exceed 49 ° C / 120 ° F) or swells. If the battery

becomes hot, disconnect the charger immediately.

- Charge only on non-ammable surfaces. Never charge inside a vehicle!

- Do not expose the battery to any source of heat or high temperature.

- Never put the battery in contact with water or immerse it in any other liquid.

- Improper use of the battery may cause re, explosion or other hazards.

- In case of re caused by the battery, do not use water to extinguish the re (sand is recommended).

TABLE OF CONTENTS................................................................................................................................................1

Li-po Battery ............................................................................................................................................................1

ATTENTION / WARNING / WAARCHUWING..................................................................................................................2

Precautions for use...................................................................................................................................................2

Warning ...................................................................................................................................................................3

Download the application ..........................................................................................................................................3

Flight environment....................................................................................................................................................3

Included in the pack..................................................................................................................................................3

How to instal and charge the battery .........................................................................................................................4

Loading precautions .................................................................................................................................................4

Propellers Installation...............................................................................................................................................5

Fold the drone ..........................................................................................................................................................5

App instructions .......................................................................................................................................................5

Drone control interface.............................................................................................................................................5

Emergency stop........................................................................................................................................................6

Speed selector..........................................................................................................................................................6

Flight route ..............................................................................................................................................................6

Headless mode.........................................................................................................................................................6

Voice control ............................................................................................................................................................6

Star to fly.................................................................................................................................................................6

Joysticks commands ................................................................................................................................................7

Tilt control ...............................................................................................................................................................7

Flight ajustements....................................................................................................................................................8

Photos and videos ....................................................................................................................................................9

Maintenance.............................................................................................................................................................9

Warranty ................................................................................................................................................................10

French legistlation ..................................................................................................................................................10

Flying asociation ....................................................................................................................................................11

Recycling ...............................................................................................................................................................11

Declaration of conformity .......................................................................................................................................11

Trademark..............................................................................................................................................................11

Modications .........................................................................................................................................................12

Notebook ..............................................................................................................................................................12

-2-

ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION

Only use a compatible

LiPo Charger

Always charge away from

ammable materials

Don’t charge without

supervision

Do not try to modify the

batteries Never use a hot battery

Don’t charge damaged

batteries

When using your drone, be sure to observe the following precautions:

- Suitable indoor and outdoor use in very windstill conditions.

- Not suitable for persons under 14 years of age.

- Minors must pilot under the supervision of an adult.

- Caution: risk of ingestion of small parts.

- Never use the appliance near children or pets.

- Be sure to use this product in a safe and responsible manner to avoid personal injury and / or property damage.

- Make sure that your use is in accordance with the legal provisions of the country where you are located.

- Find out about restrictions on the use of Wi-Fi frequencies in your ight location.

- check the weather conditions before use.

- Do not y in rain, fog, wind or snow.

- Avoid contact with sand, dust, water, liquid substances or heat, it could cause irreversible damage.

- Keep away from obstacles, people, animals, dwellings, vehicles, high voltage cables or trees.

- Keep clear of the propellers. They can cause material or physical damage.

- Not suitable for people with epilepsy.

- Avoid excessive ying (risk of eyestrain or physical fatigue).

- Observe the safety instructions in this manual.

- Use only the accessories supplied by the manufacturer.

- Before each ight, check that the batteries are fully charged.

ATTENTION / WARNING / WAARCHUWING

Precautions for use

- Do not carry unwrapped batteries in your pocket or bag, as the shock of the batteries against each other could cause a

short circuit.

- Store the battery in a dry place at room temperature.

NL

FR Veuillez lire le “Manuel d’utilisation” entièrement et attentivement avant toute utilisation. Le manuel mis à jour est

disponible sur notre site: www.pnj.fr/modes-demploi/

ATTENTION: Toutes les précautions d’utilisation concernant les batteries LiPo doivent être suivies rigoureusement.

Une mauvaise manipulation de la batterie peut provoquer un incendie, une explosion, des blessures personnelles

ou des dégâts matériels.

EN Please read the operation manual carefully before using the product

The english User Manual can be downloaded on our website: www.pnj.fr/en/user-manuals/

WARNING : LiPo batteies are dangerous, please follow the instructions to avoid injuries or damages.

Lees de instructies in de bedieningshandleiding zorgvuldig door voordat u onze producten gebruikt

De bedieningshandeleiding kunt u downloaden vanaf onze website: www.pnj.fr/en/user-manuals/

WAARSCHUWING : LiPo baterijen zijn gevarlijk, het niet opvolgen van de gebruikshandekeiding kan verwondingen

en schaden veroorzaken.

WARNING / ATTENTION / WAARCHUWING

Warning

The law requires you to use this drone in a sensible and responsible manner to avoid human or material damage. In the

case of unauthorized use or for unlawful purposes, you will be held fully responsible for any damage caused. Be sure

to respect the law, without infringing the privacy of others. PNJ assumes no liability for damage resulting directly or

indirectly from the use of the product, any part of this product or this manual. PNJ cannot be held responsible for any

accident, injury, death, loss or other claim of any nature whatsoever related to or resulting from the use of this product.

All users must comply with the regulations of international organizations such as the International Civil Aviation Organi-

zation (ICAO) and the regulations of their own national airspace. To learn more about the rules in force in your country,

visit the following sites:

ICAO - www.icao.int

PNJ - www.pnj.fr

Download the app

Flight environment

Included in the pack

-3-

R-Siyou HD

Please scan the QR code below to access to our website and download the APP. You can also type “R-Siyou HD” in the

Google Play Store or the Apple Store to download the APP.

1.Outdoor ight (not recommended): Fly at medium temperature, in sunny and windstill conditions.

2. Indoor ight (recommended): Ideal for indoor ight, choose a spacious place without obstacles, people or

 animals.

Note:

• Do not y in extreme temperatures (very cold or very hot) as this could affect the ight performance of the drone.

• Do not y in windy weather, ight performance and control of the aircraft may be impaired due to the wind. This could

cause damage to you or to the unit.

1 x R-Siyou HD

2 X 3.7V 500mAh baterry

4 x Replacement propeller

1 x Wrench for Propellers

1 x User manual

1 x Transport and protection case

PNJ Website

Battery installation

1. Hold the battery lock clips on the sides of the battery.

2. Remove the battery carefully.

3. When installing the battery, make sure the red female connector of the battery is connected

to the male connector of the drone.

4. Replace the battery in the drone then push lightly until you hear the lock click.

Charging the battery

1. Connect the battery to the charger.

2. Connect the charger to a USB port or a USB adapter, the indicator light will come on to conrm that

the load of the drone is in progress.

3. The battery indicator light will turn off once the battery is fully charged. You can remove the

drums. Never leave the battery unattended for the duration of charging.

-4-

How to install and charge Battery

1. Make sure the voltage required for USB charging corresponds to the power source used.

2. The charger plug may overheat if overloaded. In this case disconnect the battery immediately to avoid an accident.

3. Do not let the battery charge unattended.

4. Do not use any charger or charging cable other than the one supplied with the drone.

5. Wait 30 minutes after a ight for the battery to cool before recharging.

6. Do not leave the battery in a re, in the sun or in environments that are too hot.

7. Do not short-circuit the battery.

8. Keep the battery away from metal parts or magnets.

Loading precautions

Chargement de la batterie en

CAUTION !

Do not leave the battery

charging unattended.

Install the propellers

fold the drone

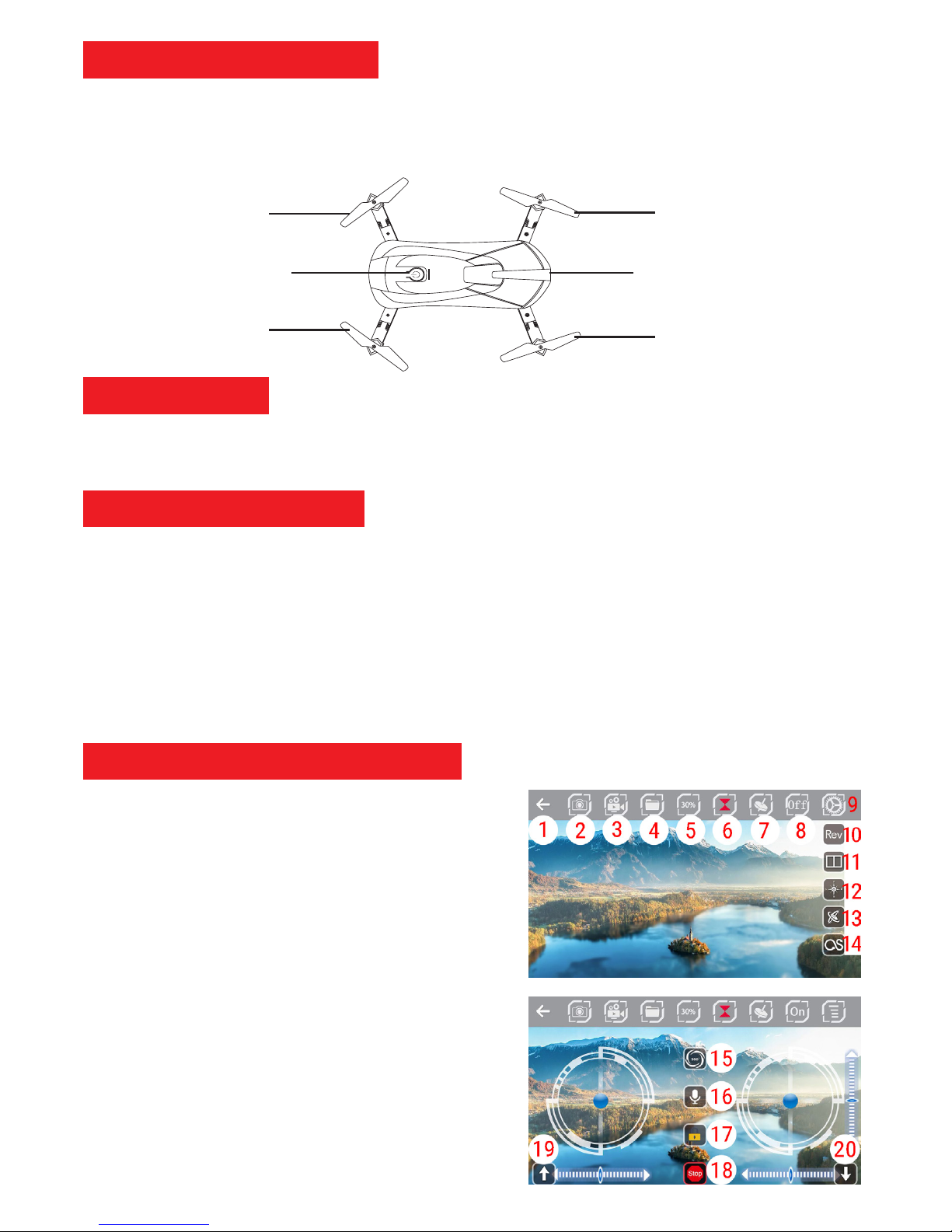

The propellers are differentiated by the letters “A” and “B” and are diagonally opposite. Please refer to the gure below to

install each propeller correctly. Use the tool included in the pack to facilitate disassembly of the propeller on the rotor. Be

careful not to force too much by inserting the propeller onto the rotor. Propellers A1 and A2 rotate clockwise. Propellers

B1 and B2 rotate counterclockwise. Be sure to install them correctly.

Caméra

Hélice A2

Hélice B2

Hélice A1

Propeller

Bouton On/Off

The arms of the drone must be folded in a precise order, to fold the drone:

1. Fold the front arms rst (those close to the camera).

2. Fold down the rear arms last. To unfold the drone, please start with the back arms.

1. To download the App please scan the QR code (page 3 of this manual) or type “R-Siyou HD” in the bar

Search the Google Play Store or the Apple Store.

2. Place the drone on a at surface and press the On / Off button (2 seconds).

3. Activate Wi on your smartphone and connect to the following Wi network:

Wi ID: R-SIYOUHD-XXXXXX

4. Once connected to the drone, please open the mobile app. From the main menu, you can access the Help menu, the

Settings or the pilot / control interface of the drone by pressing “PLAY” (bottom right of your screen).

1.Back

2.Take a picture

3.Save videos

4.Média

5.Speed: 30% / 60% / 100%

6.Maintenance of altitude (appearance of the buttons 17 to 20)

7.Gyroscopic control (by tilt)

8.Joysticks touch (start piloting mode)

9.Menu (displays buttons 10 to 14)

10.Inversion camera

11.VR Mode (FPV) (not available for this product)

12.Fashion CF

13.Gyroscopic calibration

14.Flight paths

15.Flip 360˚

16.Voice control (English only)

17.Unlock / Start the engines

18.Emergency stop

19.Auto take-off button

20.Automatic landing button

app instructions

drone control interface

-5-

R-SIYOU HD

SHAREYOUR VISION

PNJ

When you notice that the drone is too close to people or obstacles during the ight, you can press the emergency stop but-

ton: “STOP” to shut down the engines. The drone will immediately stop ying and avoid crashing into people or obstacles.

After activating the emergency stop, simply restart the drone normally to continue ying.

You can adjust the speed of the engines by using the button “Speeds” allowing you a quick grip of the drone. Once

accustomed to the product in slow speed do not hesitate to modify the speed of the engines for more exciting ights.

Press the “ight path” button, the right joystick will be deactivated. Use your index nger to draw the trajectory of the drone

on your smartphone. The drone will follow the desired trajectory.

Without the CF mode, you must constantly worry about the ight direction of the drone when ying or rotating it. Press the

CF mode button to activate the mode, the directions will then be locked.

This mode makes it easy to control the drone without worrying about its direction of ight and its rotation.

Example: If you press the right joystick forward the drone will move away from you regardless of its direction of ight at

the time of the command, if you press the right joystick to the rear the drone will approach you.

It is possible to control the drone by voice. Press the “voice control” button to activate this feature.

Voice commands are only available in English:

1. “Forward”

2. “Backward”

3. “Left side” (movement to the left)

4. “Right side” (movement to the right)

Press the On / Off button to turn on the drone. Make sure your phone is connected to the WIFI network of the drone and

launch the application.

1. Press the “Touch Joysticks” button (# 8 on page 5) to bring up the touch joysticks.

2. Press the button: Altitude Hold “(# 6 on page 5).

3. You can now press the “unlock / start motors” button (# 17 on page 5) to start

electric motors.

4. You can also take off using the button “auto takeoff” provided for this purpose, the drone will take off then

automatically and y at an altitude of about 1.2m.

5. Try Tilt Control by pressing button 7 (page 5 of this manual), the drone is tilting

from your smartphone or tablet. Once used to the drone, do not hesitate to change the speed (# 5) for more

sensations and fun of ying.

Emergency Stop

Speed Selector

Flight Route

Headless Mode

voice control

start to fly

-6-

LEFT JOYSTICK / Gas (elevation):

- Push up to climb

- Push down to go down

RIGHT JOYSTICK / Movement:

- push up to move forward

- push down to move backwards

LEFT JOYSTICK / Rotation:

- Push left to rotate left

- Push right to rotate right

RIGHT JOYSTICK / Sideways Movement:

- Push left to move sideways to the left

- Push right to move sideways to the right

Joystick commands

-7-

R-SIYOUHD

SHAREYOURVISION

PNJ

R-SIYOUHD

SHAREYOURVISION

PNJ

R-SIYOUHD

SHAREYOURVISION

PNJ

tilt control

2.GYROSCOPIC CONTROL (Movement)

Longitudinal inclination of your mobile

device:

- tilt forward to advance

- tilt backward to back up

1.JOYSTICK LEFT / Gas

- head upwards to go up

- go down to go down

3.GYROSCOPIC CONTROL (Movement)

Sideways inclination of your smartphone:

- tilted left to go to the left

- tilt right to go to the right

R-SIYOUHD

SHAREYOURVISION

PNJ

Flight Adjustments

If the drone spins on itself to the

left:

Push the trim A to the right.

If the drone spins on itself to the

right :

Push the trim A to the left.

If the drone moves backward,

Push the trim C forward.

If the drone moves forward.

Push the trim B backward.

If the drone moves sidewards to

the left

Push the trim B to the right.

If the drone moves sidewards to

the right.

Push the trim B to the left.

-8-

R-SIYOUHD

SHAREYOURVISION

PNJ

R-SIYOUHD

SHAREYOURVISION

PNJ

R-SIYOUHD

SHAREYOURVISION

PNJ

R-SIYOUHD

SHAREYOURVISION

PNJ

R-SIYOUHD

SHAREYOURVISION

PNJ

R-SIYOUHD

SHAREYOURVISION

PNJ

Photos and videos are saved directly to your mobile device and the App. Access your photos and videos directly from

your mobile device gallery or control interface by tapping the “Media” icon (# 4 on page 5 of this manual).

To save photos and videos, simply press button # 2 or # 3 on the control interface (see page 5 of this manual).

Photos and videos

Maintenance

- The battery should be kept in a dry, ventilated place. The storage temperature is between 18 ° C and 25 ° C. Avoid ex-

cessive charging and discharging to prolong battery life. Be sure to charge the battery before storing it, if it is left unused

for a long time.

- To avoid any problems, we strongly advise you to take the habit of also removing the battery of the drone when not in

use.

- Keep your equipment in a dry place, away from water and heat. Do not place the drone on a wet surface or in the vicinity

of liquid substances. This could cause irreversible damage.

- Maintenance can only be carried out by the After Sales Service of the warehouse or distributor. If you have a problem

with your drone, please contact us directly. It is not recommended to change the engine or the motherboard on your own.

- Use only accessories specied by the manufacturer.

- Find all our products and accessories on our website www.pnj.fr

-9-

FRENCH LEGISLATION

While using the drone the safety of people and other aircraft is your responsibility. If you use your drone in France, as

part of leisure activities, we remind you that it is essential to respect the following 10 principles to y in accordance with

the law:

1. I do not y over people.

2. I respect the maximum ight heights.

3. I never lose my sight of the drone and I do not use it at night.

4. I do not y my drone over public space in built-up areas.

5. I do not use my drone near aerodromes.

6. I do not y over sensitive sites.

7. I respect the privacy of others.

8. I do not broadcast my footage without the agreement of the persons concerned and I do not use it

commercially.

9. I verify under what conditions I am insured for the practice of this activity.

10. In case of doubt, I inquire.

Consult the guide on model aircraft on the website of the Civil Aviation Directorate General for more information on the

conditions of use of recreational drones. For more information:

FR: https://www.ecologique-solidaire.gouv.fr/sites/default/les/R%C3%A8gles%20ofuse%20%20drone%20de%20loisir.

pdf

EN: https://www.ecologique-solidaire.gouv.fr/sites/default/les/Rules%20for%20the%20proper%20use%20of%20a%20

recreational%20drone.pdf

The usage of a drone not complying with the rules enacted to ensure safety is punishable by one year of imprisonment

and a ne of 75,000 euros under Article L. 6232-4 of transport code.

warranty

This product is warranted for a period of 24 months from the date of original purchase by the consumer, except for

certain wear parts, against manufacturing defects, upon presentation of proof of purchase (receipt with date, place of

purchase, name of the product).

During the contractual warranty period, the defective product must be returned in its original packaging to the retailer’s

service center or to the www.pnj.fr website, depending on the place of purchase. After inspection of the

product, the after-sales service will repair or replace the defective part or product, to the exclusion of any other compen-

sation, if the product has been used correctly.

The warranty does not cover:

- The hull of the drone, propellers, propeller shields, landing gears, buttons, throttle and

radio-control antenna, damaged or deteriorated as a result of a fall or accident, voluntary or

involuntary.

- The battery charger when connected to a wall power supply (voltage too high).

- Products that have undergone unauthorized alterations, modications, customizations or other assembly.

- Damage resulting from accidents, normal wear and tear, contact with liquid (rain, water, etc.).

- Defects due to alteration or deterioration of the product caused by a fall, accidental shock or

immersion, voluntary or involuntary.

- Defects due to abnormal use of the product, installation of spare parts not in accordance with

instructions in this manual or at www.pnj.fr.

- Damage resulting from a repair performed by the user themself or an unauthorized third party, excluding exchange

of spare parts provided by PNJ.

- Defects caused by parts not supplied by PNJ, including a battery not approved by PNJ. All products found to be defec-

tive after analysis will be returned to the shipper at their expense.

The spare parts necessary for the use of the product are available for 12 months, from the date of rst commercializa-

tion of the product. Wear parts: Battery: 6 months / ESC: 6 months / Engines: 6 months

-10-

-11-

Flying association

BELGIUM FRANCE HOLLAND

AAM

Rue Montoyer, 1, boîte 1 1000 –

Bruxelles

FFAM

108 rue Saint Maur 75011 PARIS

Tél. 01 43 55 82 03

KNVvL

Houttuinlaan 16A 3447 GM Woerden

Tél. 0348-437060

http://www.aamodels.be/ http://www.ffam.asso.fr/ http://www.knvvl.nl/

Aeromodelling clubs are privileged places to use the ying miniature models. They are grouped together in national

federations, where you can nd more information on clubs near your home.

Recycling

These symbols indicate that this product should not be disposed of with other household waste. Selective

collection of electrical and electronic waste: Electrical products should not be disposed of with household

products. According to the European Directive 2012/19 / EC for the disposal of electrical and electronic equip-

ment and its execution in national law, used electrical products must be collected separately and arranged at

collection points provided for this purpose. Consult local authorities or your dealer for recycling advice.

Declaration of Conformity

SAS PNJ, 110, Esplanade du Général de Gaulle 92400 Courbevoie, France,declares under its sole respon-

sibility that the product described in this manual complies with the requirements of the R & TTE Directive

1999/5 / EC / RED 2014/53 / EU / RoHS 2011/65 / EU and Toy Safety Directive 2009/48 / EC.

A copy of the Declaration of Conformity is available at the following address:

www.pnj.fr/certications

Date: 24/08/2017

Christian Pouthier, directeur produits SAS PNJ

trademark

All brands or product names are or may be trademarks of their respective owners. Pictures and specications are not

contractual. 1 year warranted. Made in PRC. Les marques citées sont des marques déposées par leur fabricant respectif.

Photos et caractéristiques non contractuelles. Garantie : 1 an. Fabriqué en RPC. De vermelde merken zijn gedeponeerde

merken door hun respectievelijke producent. Foto’s en kenmerken niet contractueel. Geproduceerd in China. Garantie:

1 jaar. Die zitierten Marken sind durch die jeweiligen Hersteller eingetragene Marken. Fotos und technische Daten sind

unverbindlich. Hergestellt in China. Garantie: 1 Jahr.

-12-

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Modifications

The explanations contained in this User Manual are provided for information purposes only and may be subject to

change without notice. SAS PNJ can not be held responsible directly or indirectly for any prejudice or loss of data

resulting from an error or omission in this document. SAS PNJ reserves the right to modify the product and its operating

instructions without any restriction or obligation to inform the user. Thus, the purchased product may differ somewhat

from that described in this document. The latest version of the online User Guide overrule over this one. To obtain it, go

to: www.pnj.fr

Notebook

-13-

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Notebook

-14-

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Notebook

PNJ R-Siyou HD User manual

Popular Drone manuals by other brands
