Podab ProLine TS 43 E User manual

Only use appliance after rst
reading these instructions!
Warning! Use safety glasses
when building this equipment.
Drying Cabinet ProLine TS 43 E
USER MANUAL

2©PODAB Inc.
DEAR CUSTOMER
We are pleased that you have chosen a PODAB drying cabinet.
Your new drying cabinet embodies the culmination of extensive years of renement, characterized
by uncompromising excellence throughout its development and manufacturing processes.
Its design meets all the demands of modern laundry care and offers you both automatic and
manual programs.
Please read these instructions carefully to enable you to use all the possibilities and advantages of
your new drying cabinet. Please pay extra attention the safety information.
We hope you will be very happy with your new drying cabinet.
Your
PODAB Group

3©PODAB Inc.
CONTENTS
IMPORTANT SAFETY INFORMATION 5
Important safety instructions 6
Installation and connection 9
FOR A GOOD ENVIRONMENT 10
Packaging materials 10
Management of end-of-life drying cabinet 10
COMPONENTS 11
Control panel 12
Language 13
Unpacking 14

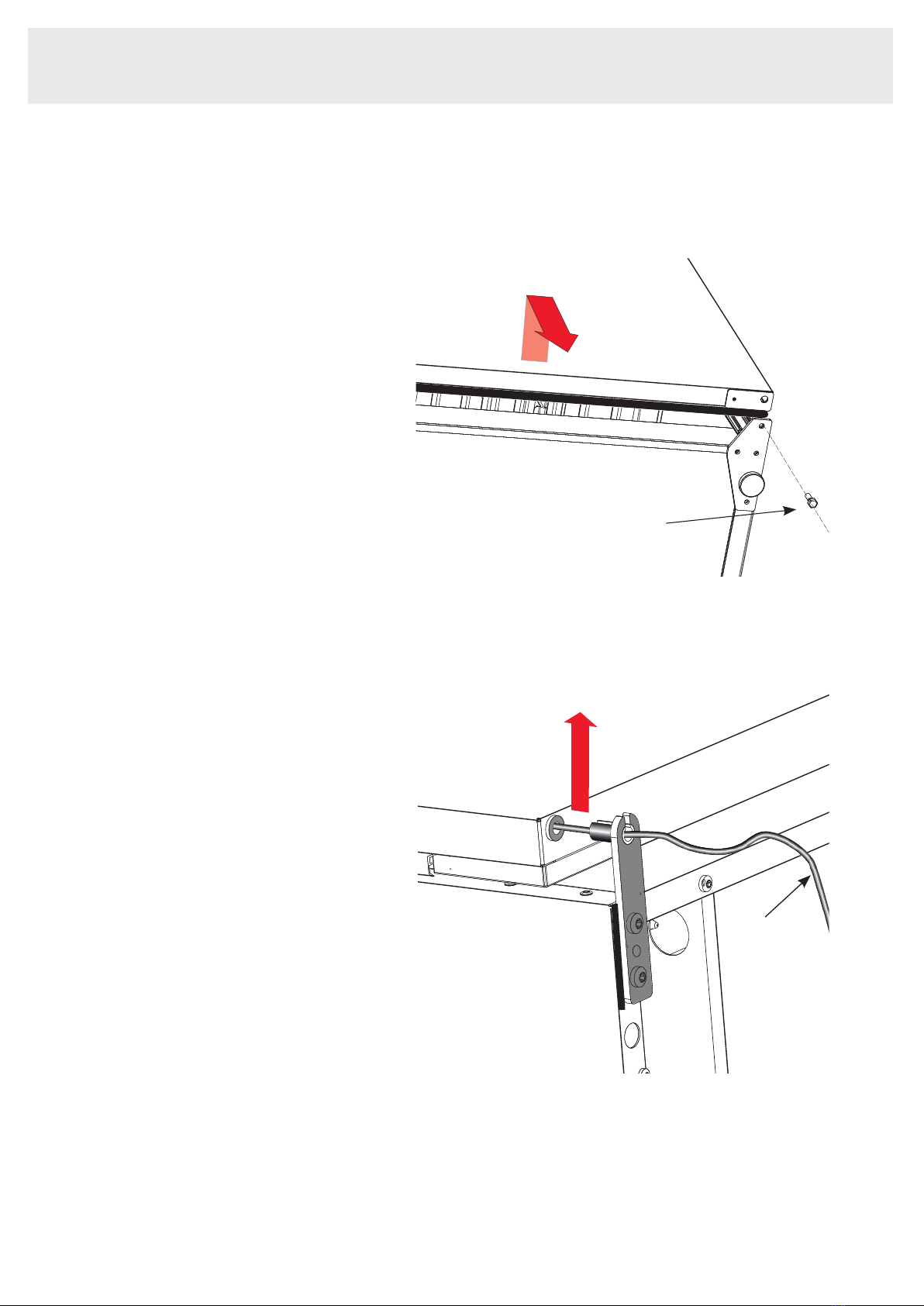

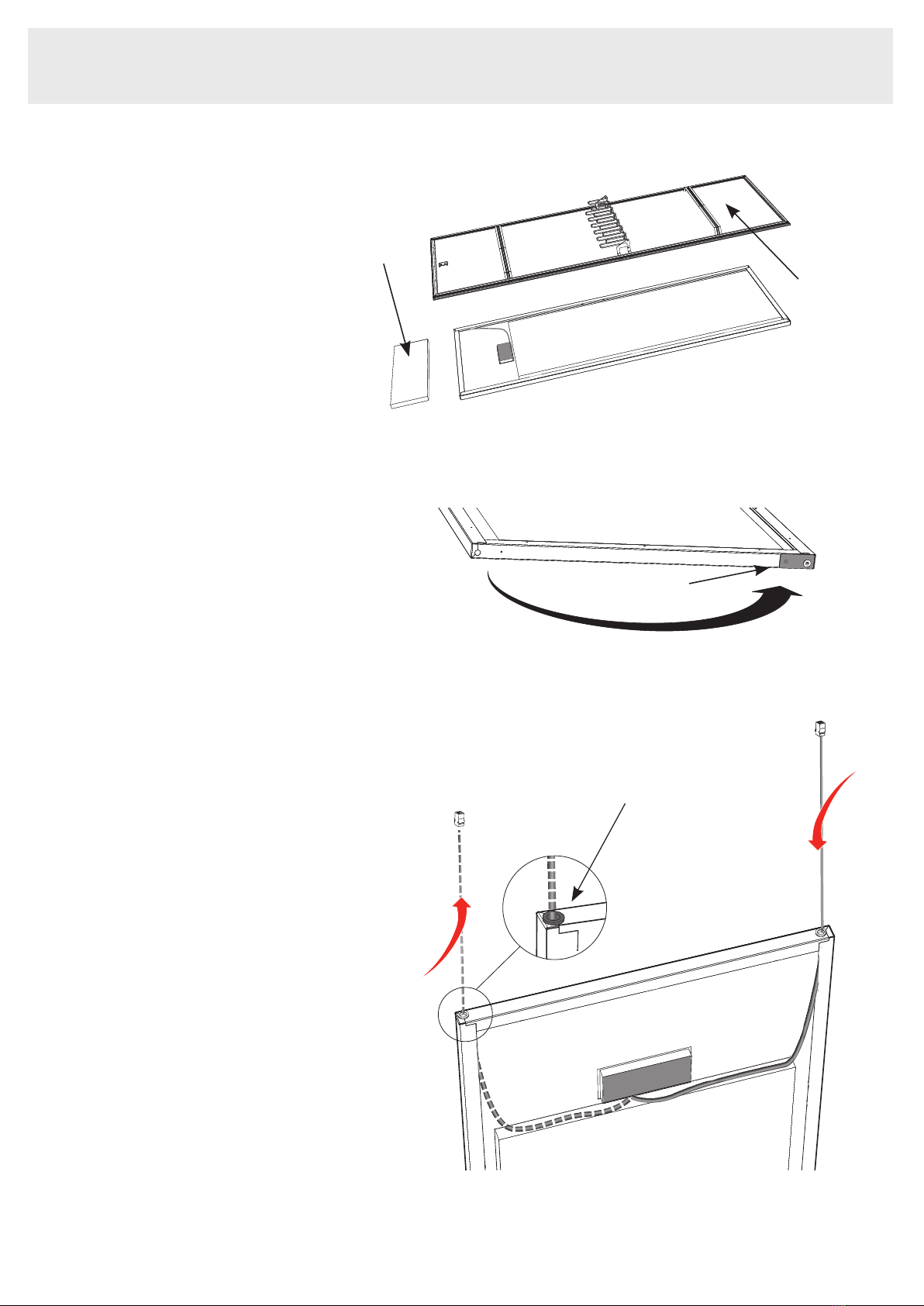

DOOR REVERSING 15
INSTALLATION 20
Location requirements 20
Installation instruction 21
Mounting into custom cabinetry 22
Ventilation connection 25
Ventilation requirements 26
Evacuation / air supply 27
Connection to evacuation 27
Electrical connection 29
BEFORE USING THE DRYING CABINET 30
OPERATION 31
Arranging laundry for drying 31
Cabinet equipped with coat hanger rack and shoe rack 31
User advice 31
Air ow 32
Drying programs 33
Child lock 34
Start automatic program 35
Starting a manual program 35
User advice 36
SETTING DRYING PROGRAMS 37
Programming mode 37
Parameter list 38
Adjustment 40
Procedure 41
Restoring to factory setting 41
CARE 42
Cleaning 42
Replacement part 42
OVERHEAT CUT-OUT 43
TROUBLESHOOTING 44
SERVICE AND WARRANTY 45
Service 47
TECHNICAL DATA 48
Energy consumption and drying times 48

4©PODAB Inc.
THIS USER MANUAL
The contents of this user manual describe the function and operation of the
drying cabinet, as well as instructions for installation and maintenance.
The following symbols are used throughout the manual and they have the
following meanings:
Information, advice, tip, or recommendation Warning – danger of hot surface
Warning – general danger Warning – danger of fi re
Warning – danger of electric shock

5©PODAB Inc.
IMPORTANT SAFETY INFORMATION
This drying cabinet meets applicable safety requirements. Incorrect use may,
however, lead to injuries and damage to objects.
The advice and caution notices in this manual have been written to enable you
to avoid incorrect use and unnecessary risks of accidents, and should be read
before installing and using the drying cabinet.
CAUTION: This equipment is intended only to be used to dry fabrics washed
in water.
• The appliance is not intended for use by persons (including children) with
various disabilities or inadequate experience and knowledge.
They may use the appliance only under supervision or if they have received
instructions on how to use the appliance form a person who is responsible
for their safety.
Children must be supervised to ensure that they do not play with the appli-
ance.
• The drying cabinet must be installed and kept indoors. If the power cord
is damaged, it must be immediately replaced, and this must be done only
by the manufacturer, the manufacturer’s service agent or similarly qualied
persons in order to prevent danger.
Follow PODAB instructions in repair and replacement of parts.

6©PODAB Inc.
IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce the risk of re, electric shock, or injury to persons
when using your appliance, follow basic precautions, including the following:
1. Read all instructions before using the appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked
in, or spotted with gasoline, drycleaning solvents, or other ammable or
explosive substances, as they give off vapors that could ignite or explode.
3. Risk of suffocation and injury from entrapment: Do not allow children to
play on or in the appliance. Close supervision of children is necessary
when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the
door to the drying compartment.
5. Do not install or store this appliance where it will be exposed to the weath-
er.
6. Do not tamper with controls.
7. Do not repair or replace any part of the appliance or attempt any servicing
unless specically recommended in the user-maintenance instructions or in
published user-repair instructions that you understand and have the skills
to carry out.
8. Do not use heat to dry articles containing foam rubber or similarly textured
rubber-like materials.

7©PODAB Inc.
9. Keep area around the exhaust opening and adjacent surrounding areas free
from the accumulation of lint, dust, and dirt.
10. The interior of the appliance and exhaust duct should be cleaned peri-
odically.
11. Do not place items exposed to cooking oils in your drying cabinet. Items
contaminated with cooking oils may contribute to a chemical reaction that
could cause a load to catch re. To reduce the risk of re due to contam-
inated loads, the nal part of a drying cabinet cycle occurs without heat
(cool down period). Avoid stopping a drying cabinet before the end of the
drying cycle unless all items are quickly removed and spread out so that
the heat is dissipated.
12. Do not use replacement parts that have not been recommended by the
manufacturer (e.g. parts made at home using a 3D printer).

8©PODAB Inc.
For a grounded, cord-connected appliance:
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least re-
sistance for electric current. This appliance is equipped with a cord having an
equipment grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING - Improper connection of the equipment grounding conduc-
tor can result in a risk of electric shock. Check with a qualied electrician or
service representative or personnel if you are in doubt as to whether the appli-
ance is properly grounded.
Do not modify the plug provided with the appliance: if it will not t the
outlet, have a proper outlet installed by a qualied electrician.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!

9©PODAB Inc.
INSTALLATION AND CONNECTION
WARNING!
Install the drying cabinet according to the
manufacturer’s instructions and local codes.
WARNING!
Drying cabinet installation must be performed
by a qualified installer.
WARNING!
To reduce the risk of severe injury or death,
follow all installation instructions.
WARNING!
Save these instructions.
WARNING!
Do not install a drying cabinet with flexible
plastic venting materials. If flexible metal (foil
type) duct is installed, it must be of a specific
type identified by the appliance manufacturer
as suitable for use with drying cabinets. Flexi-
ble venting materials are known to collapse, be
easily crushed, and trap lint. These conditions
will obstruct drying cabinet airflow and increase
the risk of fire.
WARNING!
• The appliance shall not be exhausted into a
chimney, a wall, a ceiling, an attic, a crawl spa-
ce, or a concealed space of a building;
• Only rigid or flexible metal duct shall be used
for exhausting;
• Maximum duct length shall be 8 feet (2.4 m)
and maximum number of bends shall be 4;
• The total length of flexible metal duct shall not
exceed 8 feet (2.4 m);
• The duct shall not be assembled with screws
or other fastening means that extend into the
duct and catch lint.
WARNING!
Do not install a booster fan in the exhaust duct.

10©PODAB Inc.
FOR A GOOD ENVIRONMENT
PACKAGING MATERIALS
The packaging that protects the drying cabi-
net against damage in transit has been chosen
with concern for the environment in mind and is
therefore recyclable.
Packaging that is returned to the material cycle
means reduced consumption of raw materials
and a smaller volume of waste.
MANAGEMENT OF END-OF-LIFE
DRYING CABINET
When the drying cabinet has reached the
end of its useful life, it must be taken to a
recycling center for disposal.
Many parts of the drying cabinet can be re-
used, but it also contains other material that
must be handled correctly.
You should therefore never leave the drying
cabinet or parts of the cabinet for collection
with household waste, as this may lead to
risks to health and cause damage to the
environment.
The end-of-life drying cabinet should in-
stead be taken to a recycling center. Check
with your dealer if necessary.
All the plastic parts of the drying
cabinet are marked with internationally
standardised symbols.
The parts of the drying cabinet can therefore
be recycled in an environmentally sound
manner by waste separation.

11 ©PODAB Inc.
COMPONENTS
Power Cord
Air Inlet
Moist air outlet
Heating and fan components are
combined in the top of the cabinet in a
Fan Unit.
Clothes hanger rack
(Optional Accessory)
Door hanger bars
Three extendible hanging sections
(The illustration shows extended
sections)
Glove hangers / door hooks
Door “handle”, right or left-hand version
Ventilated shoe rack
(Optional Accessory)
Adjustable feet (x4)
Control panel

12©PODAB Inc.
CONTROL PANEL
The drying cabinet is equipped with four automatic and four manual drying programs suited to
different types of clothing. The programs are set using the buttons on the menu panel.
Four languages can be chosen.
BUTTONS
ON/OFF
START
STOP
OK
Starts and
Stops the drying program
Conrms the selection of programs, functions and settings
UP ARROW, increase values or browse between programs.
DOWN ARROW, reduce values or browse between programs.
DISPLAY
The display has two rows with 6 characters on each row. During the drying process the selected
drying program and a rolling bar indicating that the process is in progress are shown.

13 ©PODAB Inc.
SETTING
1. Make sure that the ON/OFF switch on the
drying cabinet is off. The display is unlit.
2. Hold down the UP ARROW and DOWN
ARROW buttons and press the ON/OFF
switch to the “ON” position. The display
lights up and on the top row shows “P105”
ashing, which is the parameter for lan-
guage setting. If a different value is shown,
use the UP ARROW or DOWN ARROW
buttons to browse to the correct parameter.
LANGUAGE
The following languages can be chosen: English, Swedish, Norwegian, Danish, Finnish, Italian,
French, German, Spanish, Portuguese and Dutch.
3. Press START/STOP to conrm. The row for
current language now ashes. The languag-
es have a numerical symbol as shown in the
list below.
4. Browse to the desired language with the UP
ARROW or DOWN ARROW buttons.
5. To save the set value, press START/ STOP.
6. To return to operating mode, press DOWN
ARROW and START/STOP.
Language symbol Display Language
0 English
1 Swedish
2 Norwegian
3 Danish
4 Finnish
5 Italian
6 French
7 German
8 Spanish
9 Portuguese
10 Dutch

14©PODAB Inc.
UNPACKING

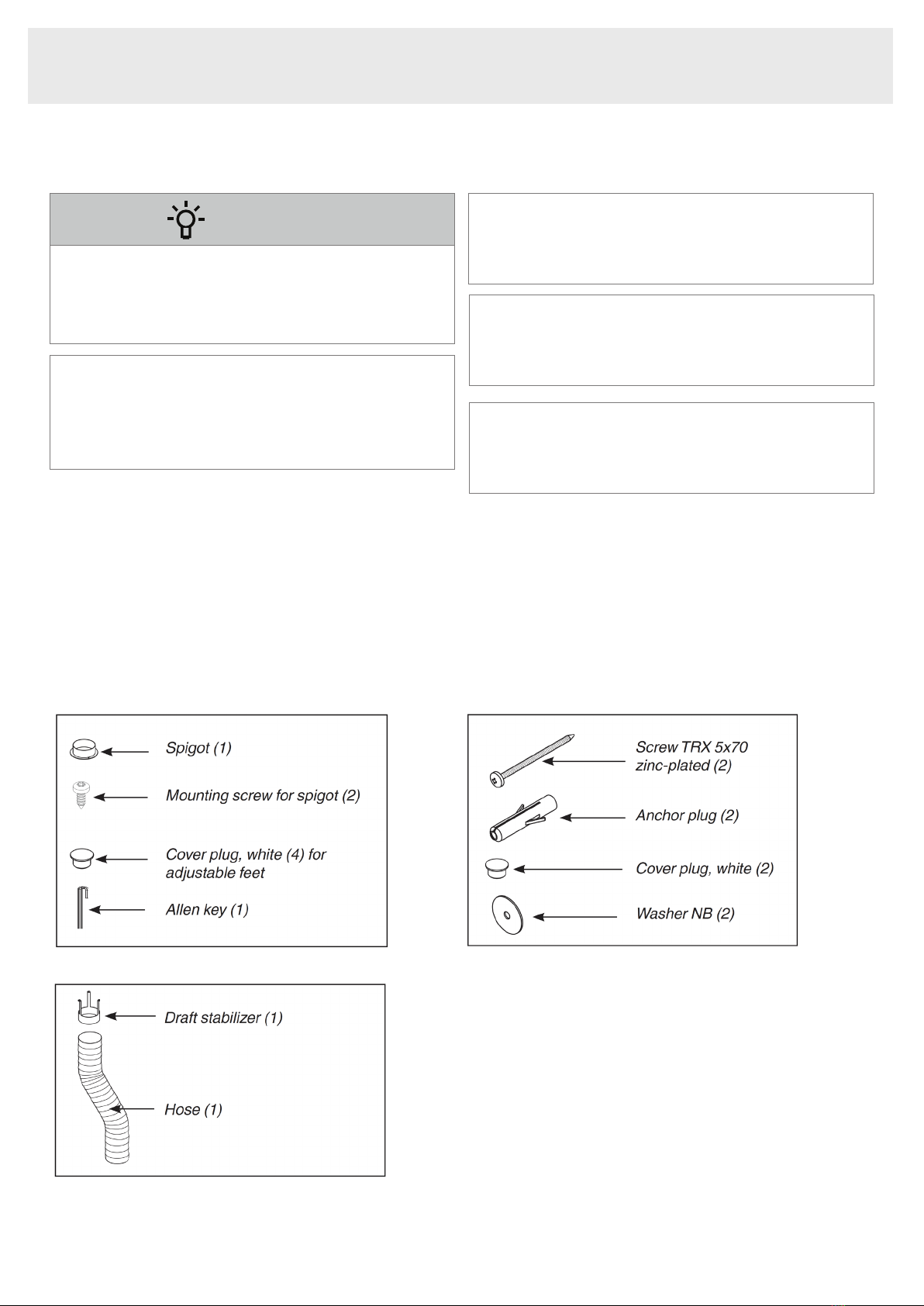

ASSEMBLY KIT
CAUTION!
The drying cabinet must be handled carefully if
it is standing unsupported on its pallet.
RISK OF TIPPING OVER
Make sure that the product has not been
damaged in transit. Any damage incurred in
transit must be reported to the dealer within 7
days.
After unpacking, check that the product is
intact. Damage, defects and any missing parts
must be reported to the dealer immediately.
Check that all transport securing devices have
been removed before connecting the drying
cabinet.
Packaging materials such as plastic and styro-
foam should be kept out of the reach of child-
ren.
Complete delivery must include:
• Cabinet with installed fan unit
• Assembly kit
• User Manual
- for cabinet - for attachment to wall
- not supplied with a drying cabinet

15 ©PODAB Inc.
DOOR REVERSING
The pictures below illustrate reversing the door from right to left hinge.
Contact your dealer to order a door reversing kit
For reversing, a door reversing kit must be ordered from the supplier of the cabinet. The kit con-
sists of a new upper hinge, as the left and right hinges are not interchangeable. The kit also in-
cludes a control cable for tting in the door with associated hinge bushing.
2
1
3
4
Fan unit
Lay the cabinet down carefully on its back.
1. Remove the cover in the top
of the drying cabinet. This is
attached with ve screws at
the marking arrows.
2. Remove the protective cover
(1) of the upper hinge and
release the control cable (2).
3. Separate the control cable
from the fan unit with the quick
connector (3) and pull the
cable through the hole (4).

16©PODAB Inc.
6
5
4. Unscrew the lower hinge pin (5).
Raise the door slightly from the
bottom edge and detach it from the
upper hinge, to the extent that the
hinge pin is visible. The pin has a
recess for the control cable.
5. Carefully pull the control cable (6)
out of the recess in the hinge pin.
6. The door, together with the control
cable, is now free and can be set
aside.
Upper hinge joint with the door pulled down so that
the hinge pin is freed

17 ©PODAB Inc.
7
8
7. Detach the upper hinge (7) with
hinge washer (8). Discard the
hinge.
8. Install the new replacement hinge
on the opposite side and move the
hinge washer across.
The hinge forms part of the door
reversing kit, which can be or-
dered from the dealer of the
drying cabinet.

18©PODAB Inc.
9. Lay the door down with the inside
facing up on a non-damaging
surface.
10.Detach the inner plate (9) with
magnetic strip, door hangers/
door bar and glove hangers/
door hooks. Screws are beneath
the magnetic strips.
Remove the insulation (10).
11.Detach and transfer the rein-
forcement panel and lower
hinge bushing (11) in the door to
the opposite side.
12.Detach existing control cable
from control panel and pull ca-
ble out with hinge bushing (12).
Discard the cable as there is a
new complete cable in the door
reversing kit.
Fit the new cable on the opposite
side - press the bushing rmly
into the hole and connect the ca-
ble to the control panel outlet.
13.Move back the insulation and
inner plate with magnetic strips
and, if applicable, hangers.
12
10
9
11

19 ©PODAB Inc.
13
14
14.Introduce the operating cable
through the recess in the new upper
hinge and slide the door up on
the hinge pin.
15.Install the lower hinge pin.
Make sure that the hinge pin is
tightened firmly.
16.Connect the control panel (13) to
the connector in the upper part of
the drying cabinet.
17.Ret the drying cabinet cover which
was removed under 1.
18.Transfer the handle (14) to the other
side. Fit the cover plugs for the old
holes by hand. Cover plugs are sup-
plied in the assembly kit.
19.Raise the cabinet and place it in position and
secure the cabinet to the wall.
Fan unit
The control cable
must be pulled
through the hole.
New hinge

20©PODAB Inc.
INSTALLATION
LOCATION REQUIREMENTS
• If the drying cabinet is to be installed
connected to air exhaust ventilation, this
must be available in the room.
• There must be a grounded outlet socket
within a distance of 78¾” (2 m) from the
upper part of the drying cabinet. The
drying cabinet has a 78¾” (2 m) long
grounded outlet lead with a plug con-
nected.
• The power cord should be located such
that there is no need for an extension
cable.
• It must be possible to reach the outlet
easily after the drying cabinet has been
installed.
• This must also be kept in mind if the
drying cabinet is built into woodwork or
similar. See also the section on ‘Electri-
cal connection’.
• The oor where the cabinet is locat-
ed must withstand a weight of around
132.28 lbs (60 kg).
• The oor must be level with a max drop
of 63/64” (2.5 cm) under the cabinet.
• The drying cabinet is intended only for
installation indoors with a temperature
above 32°F (0°C).
• The drying cabinet must not be placed
in an environment in which high-pres-
sure water is used for cleaning.
Dimensions in inches,
mm in brackets ( )
Cabinet designation A inch (mm)
235001 727⁄16” (1840 mm)
A
23 7/16"
(595 mm)
11 3/4"
(298 mm)
3 15/16"
(100 mm)
23 15/16"
(608 mm)
25"
(635 mm)
