OPERATING MANUAL

CONDENSER DRYER

DH 145 S

TRT-BA-DH145S-TC-004-EN

1Operating manual — Condenser dryer DH 145 S EN

Notes regarding the operating manual ............................... 01

Information about the device.............................................. 02

Safety ................................................................................ 04

Transport ........................................................................... 05

Operation........................................................................... 05

Errors and faults ................................................................ 09

Maintenance...................................................................... 10

Disposal............................................................................. 13

Declaration of conformity ................................................... 13

Symbols

Hazardous electric current!

Warns about hazards from electric current which can

lead to injuries or even death.

Danger!

Warns of a hazard which can lead to personal injury.

Caution!

Warns of a hazard which can lead to damage to

property.

The current version of the operating manual can be found at:

www.trotec.de

Legal notice

This release replaces all previous versions. No part of this

publication may be reproduced without written permission from

Trotec. The same applies for electronically processing,

duplicating or spreading the publication. Subject to technical

guarantee that they may be used freely and primarily following

the spelling of the manufacturer. Product names are registered.

Changes to construction in the interests of constant

improvements to the product, as well as changes to the shape

and colour are reserved.

The scope of delivery may vary from product images. This

document was created with all due care. Trotec accepts no

liability whatsoever for possible mistakes or omissions.

Table of contents

Notes regarding the operating manual

EN Operating manual — Condenser dryer DH 145 S 2

Description of the device

This device uses the principle of condensation to automatically

dehumidify rooms.

The fan sucks damp room air through the air inlet (2), the air

filter (9), the evaporator and the condenser located behind it. The

air is cooled at the cold evaporator until it is below the dew point.

Water vapour contained in the room air precipitates on the

evaporator fins as either condensation or frost. The dehumidified,

cooled air is rewarmed at the condenser and blown out at a

temperature of approx. 5 °C above room temperature. The drier

air which is prepared in this way mixes with the air in the room.

The humidity in the room where the device is positioned is

reduced as air constantly circulates through the device.

Depending on the air temperature and the relative humidity, the

condensed water either drops continuously or only during the

defrost phase into the condensation tray. The condensation is fed

through a pressure-resistant pipe connection and out of the

device by a condensate pump. To do so, a condensation drain

hose is connected to the hose connector (6) and the condensation

is diverted.

The device has a control panel (1) for operating and controlling

the functions.

Because of the heat radiation which is tied up in operation, the

room temperature can rise by approx. 1 to 3 °C.

Note!

The condensate pump is fitted with a float switch. It completely

switches off the condenser dryer when a critical filling level is

reached in the condensation tank (emergency shut-off). A beep is

emitted and the condensation tank indicator light (4) is lit. After

troubleshooting, the condenser dryer must be switched back on

by hand.

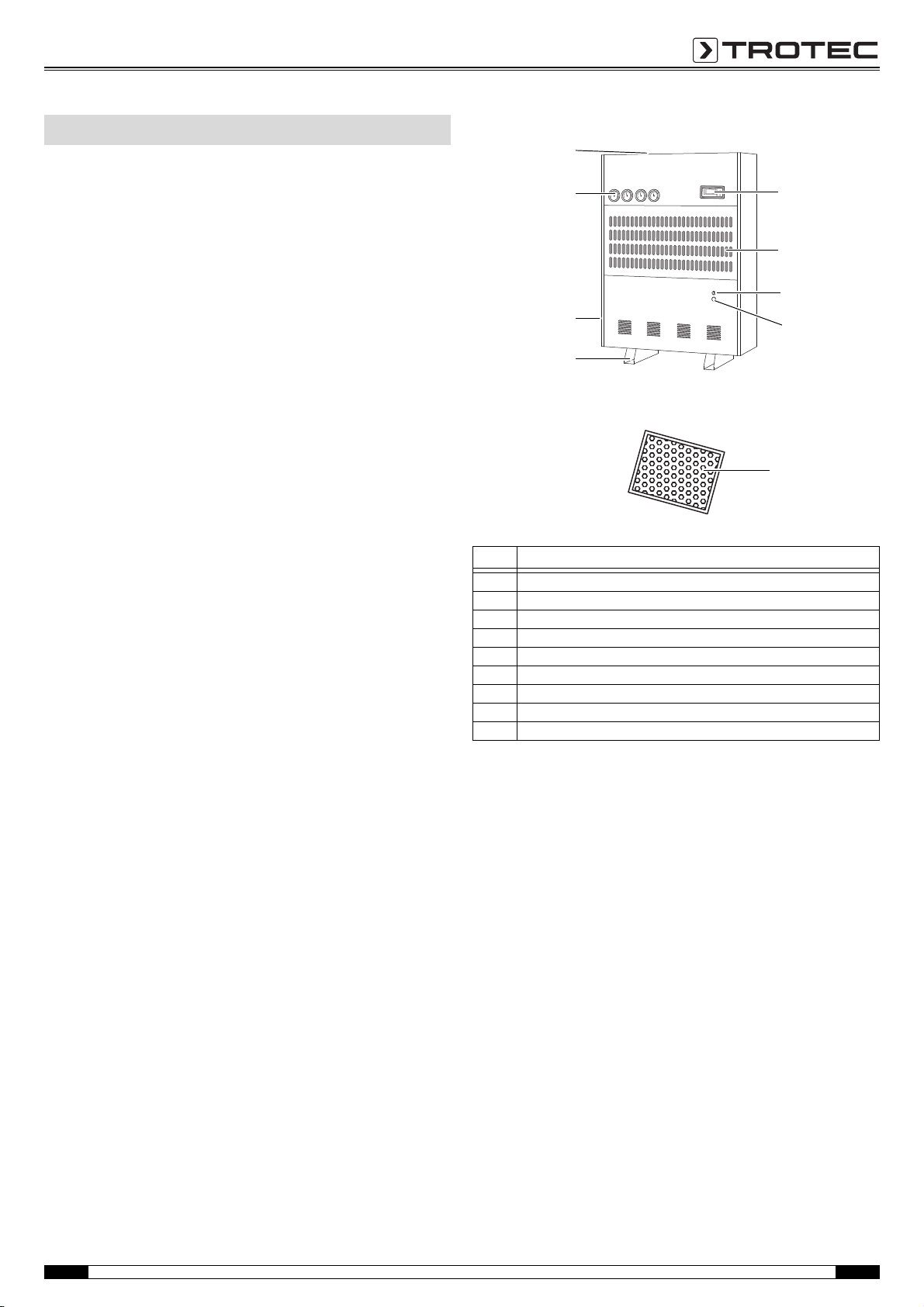

Device depiction

Information about the device

No. Designation

1 control panel

2 air inlet

3 push switch for draining residual water from the condensation tank

4 indicator light with buzzer for the condensation tank

5feet

6 hose connector for condensation drain hose

7 pressure indicator

8 air outlet

9 air filter

3Operating manual — Condenser dryer DH 145 S EN

Technical data

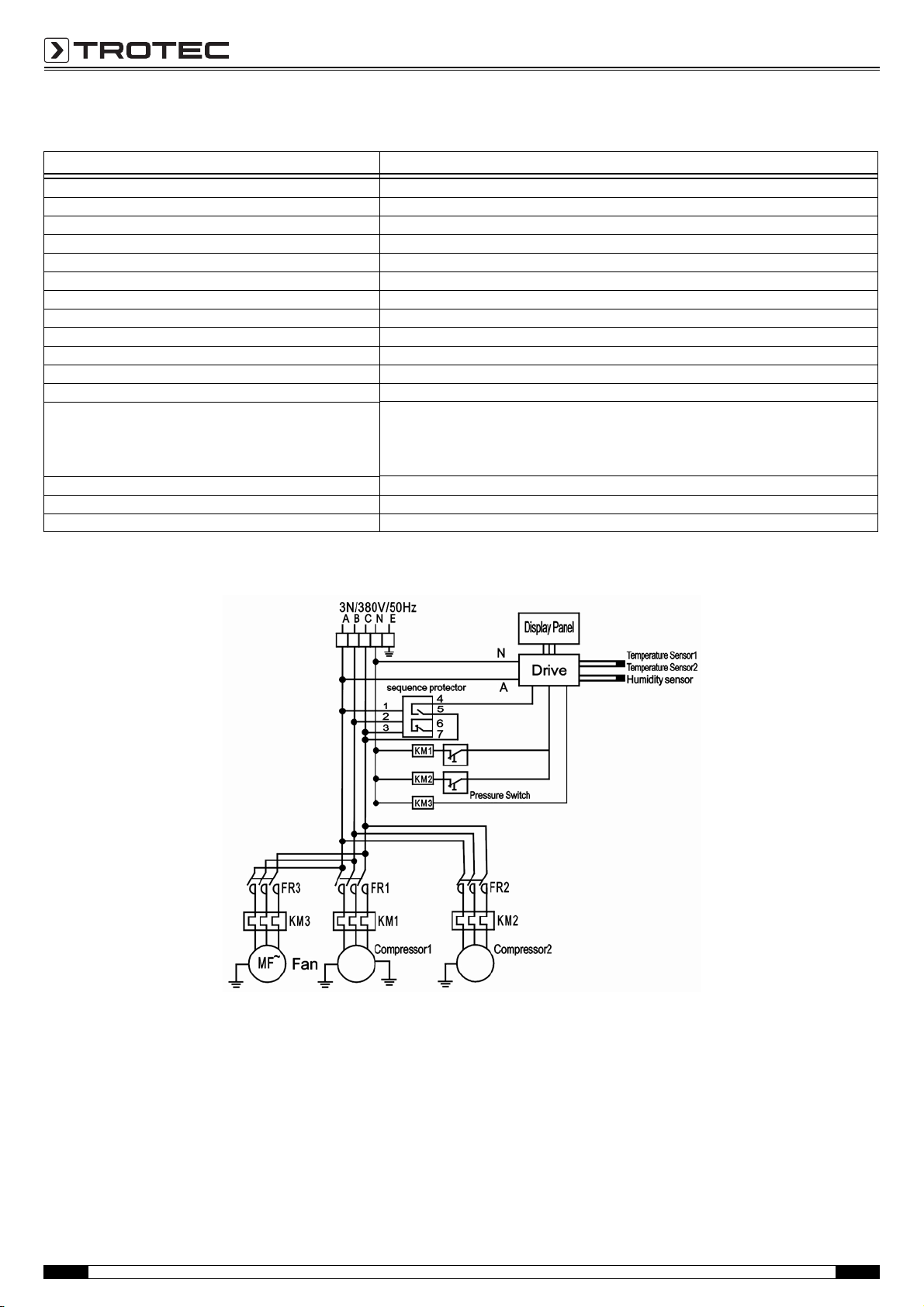

Circuit diagram

Parameter Value

Model DH 145 S

Dehumidifying capacity, max. 480 kg/24 h

Operating temperature 5 °C to 38 °C

Working range for relative humidity 40–90 %

Air flow rate, max. 5000 m³/h

Mains connection 3~/N/PE 400 V / 50 Hz with CEE phase inverter

Power input max. 10.1 kW

Nominal input current 15.3 A

Refrigerant R407C

Amount of cooling agent 4 kg

Weight 265 kg

Dimensions (depth x width x height) 470 x 1190 x 1755 mm

Minimum distance to walls and other objects A: Top: 50 cm

B: Rear: 10 cm

C: Side: 10 cm

D: Front: 50 cm

Suction pressure 1.0 MPa

Pressure outlet side 2.5 MPa

Noise level (distance 1 m) 70 dB(A)

EN Operating manual — Condenser dryer DH 145 S 4

Read this manual carefully before starting or using the

device. Store the manual near the device or its site of use!

• Do not use the device in potentially explosive rooms.

• Do not use the device in aggressive atmosphere.

• Set the device in an upright and stable position.

• The device is designed for indoor use.

• Ensure that the air inlet and outlet are not obstructed.

• Ensure that the side of the device where the air inlet is found

is kept free of dirt and loose objects.

• Never insert objects into the device. Never reach into the

device.

• Do not cover or transport the device during operation.

• Do not sit on the device.

• Ensure that all electric cables outside of the device are

protected from damage (e.g. from animals).

• Only use extensions to the connecting cable which are

appropriate to the device power consumption, the length of

its cable and its use. Avoid electrical overload.

• Only transport the device in an upright position with an

emptied condensate pump and tray.

• Dispose of the collected condensation. Do not drink it. Health

hazard!

Intended use

Only use the device DH 145 S as a stationary industrial dryer for

drying and dehumidifying room air, while adhering to and

following the technical data.

Intended use comprises:

• drying and dehumidifying:

– production plants, underground rooms

– store rooms, archives, laboratories

– rooms and areas after water damages from burst pipes or

flooding

• keeping dry of:

– instruments, devices and files

– electric control devices, boiler plants, turbines and pipe

systems in power plants

– moisture-sensitive goods, loads, etc.

Improper use

Do not place the device on wet or flooded ground. Do not use the

device outdoors. Do not lay any objects, e.g. wet clothing, on the

device for drying. Any unauthorised modifications, such as

alterations or structural changes to the device, are forbidden.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with

electric devices in damp areas.

• take measures to protect themselves from direct contact with

live parts.

• have read and understood the operating manual, especially

the Safety chapter.

Maintenance tasks which require the housing to be opened

must only be carried out by specialist companies for cooling

and air-conditioning or by Trotec.

Residual risks

Hazardous electric current!

Work on the electrical components must only be carried

out by an authorised specialist company!

Hazardous electric current!

Before any work on the device, remove the mains plug

from the mains socket!

Caution!

To avoid damages to the device, never operate the

device without an air filter inserted!

Danger!

Dangers can occur at the device when it is used by

untrained people in an unprofessional or improper way!

Observe the personnel qualifications!

Danger!

A toppling device can cause you injuries! Always

transport the device with the help of another person.

Never stand below the device when suspended in the

air.

Behaviour in the event of an emergency

1. Disconnect the device from the mains power in an

emergency.

2. Do not reconnect a defective device to the mains power.

Safety

5Operating manual — Condenser dryer DH 145 S EN

Always transport the device with the help of another person. To

lift the device, use a fork lift or an elevating truck.

Before transporting the device, proceed as follows:

1. Wait until the condensate pump stops pumping condensate.

2. Press the power button (11) to switch off the device.

3. Press the push switch for draining the condensation tank (3)

to drain the condensation tank.

4. Remove the mains plug from the mains socket. Do not use

the power cable to drag the device!

5. Detach the condensation drain hose and drain it.

After transporting the device, proceed as follows:

1. Set the device in an upright position after transport.

2. Wait one hour before switching the device on!

Storage

When out of use, store the device as follows:

•Dry,

• Under roof,

• In an upright position where it is protected from dust and

direct sunlight,

• With a plastic cover to protect it from invasive dust, if

necessary.

• The storage temperature is the same as the range given for

the operating temperature in the chapter Technical data.

• After being switched on, the device operates fully

automatically.

• The fan runs permanently until the set nominal value is

reached or the device switched off.

• Avoid open doors and windows.

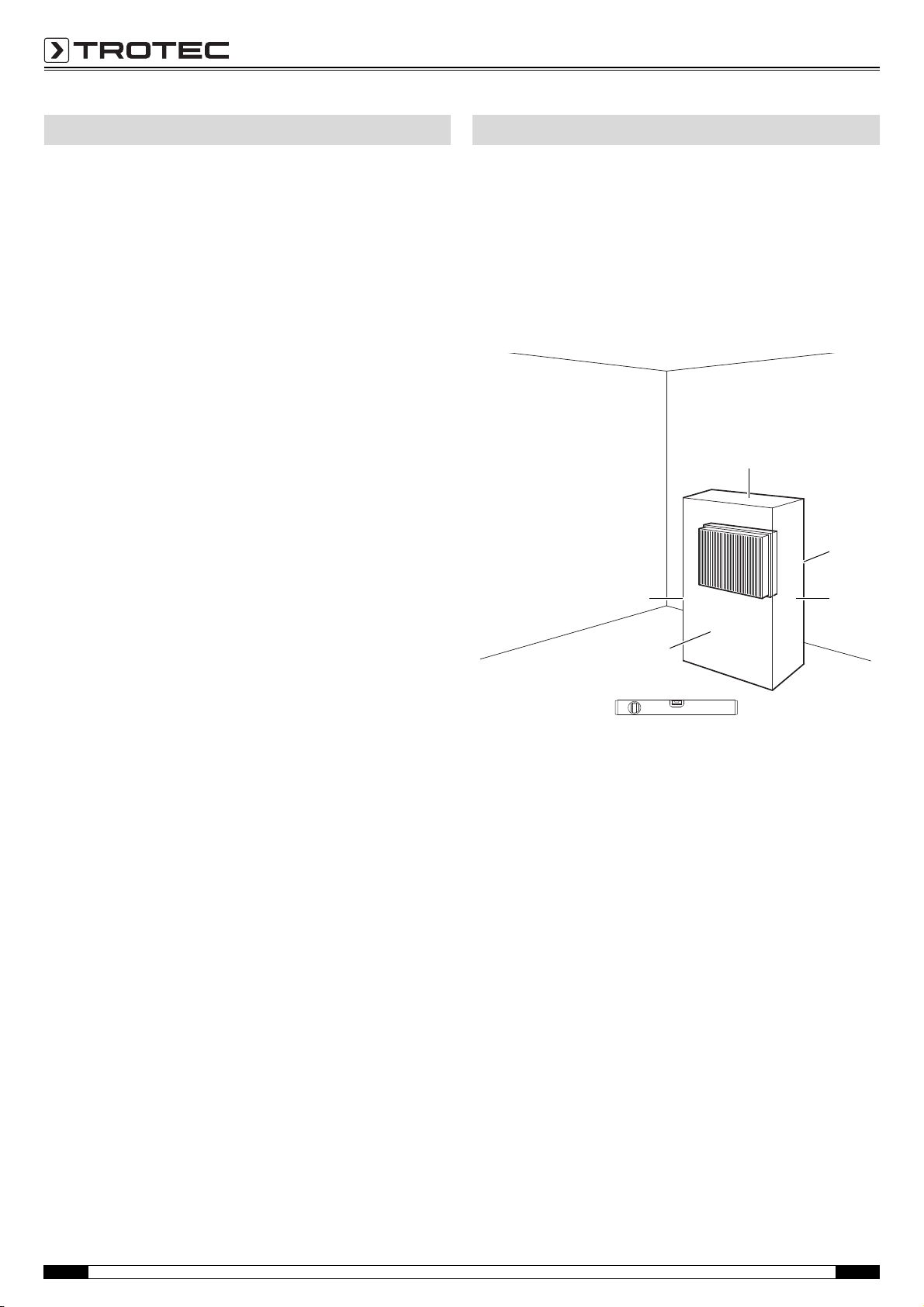

Positioning

When positioning the device, observe the minimum distance from

walls or other objects as described in chapter Technical data.

• Set the device in a level and stable position.

• When positioning the device, keep a sufficient distance away

from sources of heat.

• When positioning the device, particularly in wet areas, secure

it locally with an RCD (residual current device) which

complies with the respective regulations.

• Ensure that extension cords are completely unrolled.

Notes regarding the dehumidification performance

Dehumidification performance depends on:

• the spatial composition of the room

• the room temperature

• the relative humidity

The higher the room temperature and relative humidity, the

greater the dehumidification performance.

For use in living rooms, a relative humidity of approx. 50 to 60 %

is sufficient. In store rooms and archives, the humidity should not

exceed approx. 50 %.

Transport Operation

EN Operating manual — Condenser dryer DH 145 S 6

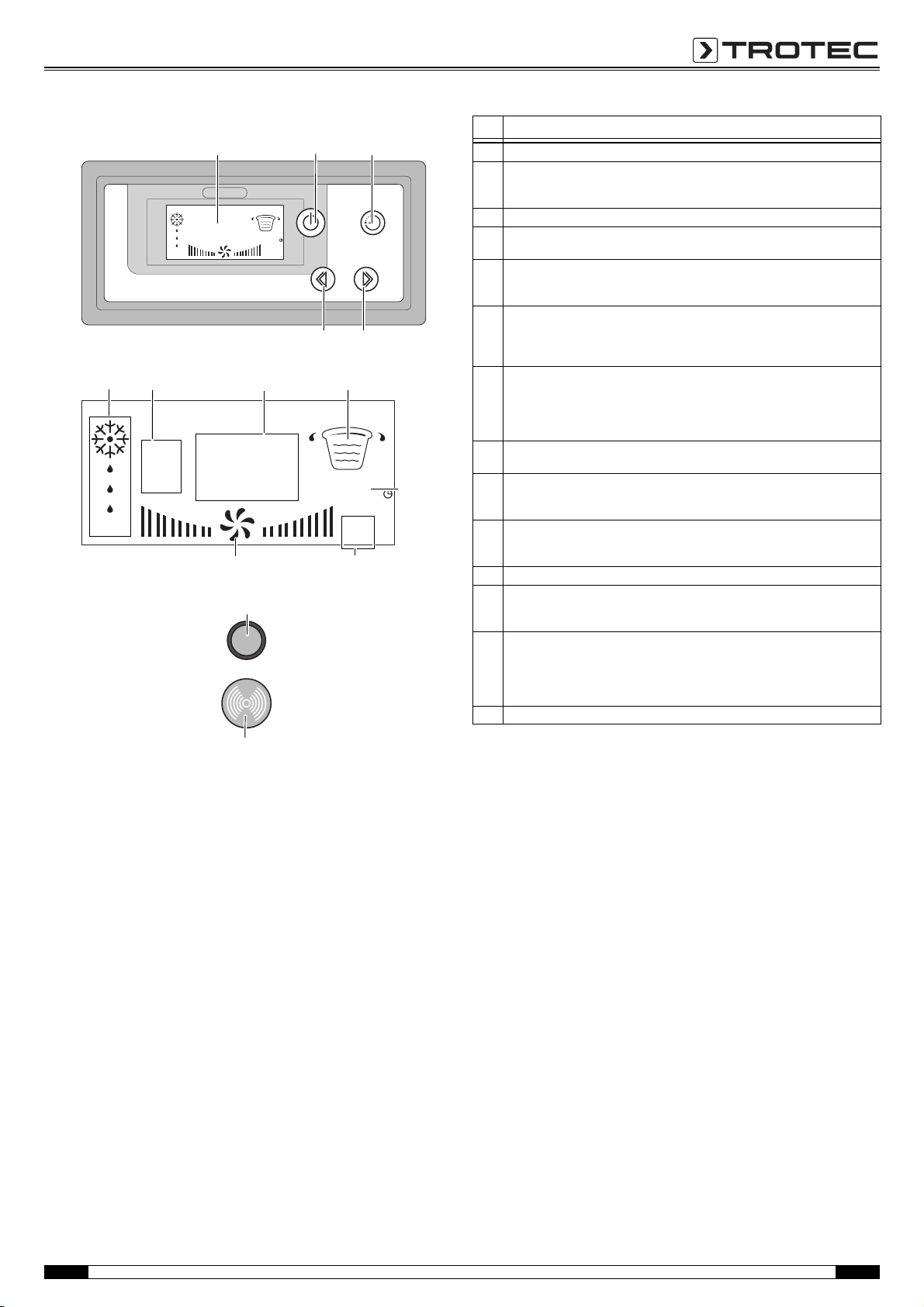

Operating elements 3

HUMI

RUN RH %

DEHU

DEFROST

FULL

TIME OFF

TIME ON

DEHUMIDIFIER

Power

HUMI

RUN RH %

DEHU

DEFROST

FULL

TIME OFF

TIME ON

DEHUMIDIFIER

Delay Start

Time

Humi.-Humi.+

Hour.+

Industrial Dehumidifier

Humidity%

1314

15 17

No. Operating elements

3 push switch for draining residual water from the condensation tank

4 condensation tank indicator:

Lights up and emits an acoustic signal when the condensation tank is

full.

10 display

11 power button:

Switches the device on or off and enables the automatic mode.

12 timer button:

Enables the programming mode for start and stop times of the

automatic mode.

13 minus button:

Decreases the nominal value for relative humidity in per cent.

In timer programming mode, start and stop times of the automatic mode

are decreased in steps of one hour.

14 plus button:

Increases the nominal value for relative humidity in steps of one per

cent.

In timer programming mode, start and stop times of the automatic mode

are increased in steps of one hour.

15 DEFROST icon:

Is permanently lit. Is animated if automatic defrost is enabled.

16 operation indicator:

RUN (yellow): The device is ready for operation.

HUMI (blue): The nominal dehumidification value has been reached.

17 display of relative humidity in per cent

nominal value: The display flashes during programming.

actual value: constant value

18 operation indicator dehumidification, animated

19 hours display:

Displays the programmed hours of start and stop times of the timer for

automatic mode.

20 timer on/of indicator:

TIME OFF: Lights up when the shut-off time for the automatic mode is

enabled.

TIME ON: Lights up when the switch-on time for the automatic mode is

enabled.

21 operation indicator fan, animated

7Operating manual — Condenser dryer DH 145 S EN

Mains connection

A 3/N/PE three-phase socket with clockwise rotating field is

required to connect the DH 145 S. The device is delivered with a

CEE phase inverter, 32 A, 6 h.

• Plug the plug into the respective CEE socket.

Should the device not start up automatically and the E3 — Wrong

rotating field error message reads on the display, proceed as

follows to correct the rotating field in the phase inverter:

1. Pull the plug from the mains socket.

2. Use a suitable flat-head screwdriver.

3. Turn the commutator slot in the CEE plug 180°.

– Phases are now inverted.

4. Plug the plug back into the socket.

Avoid trip hazards from the cable.

Start-up

Inserting the air filter

Connecting the condensation drain hose

• Plug the hose into the quick coupling.

– It automatically locks into place.

Removing the condensation drain hose

• Press the blue ring on the outside of the quick coupling

together and at the same time pull the hose.

Switch-on of the device

1. Ensure that the condensation drain hose has been laid and

connected properly. Do not create tripping hazards.

2. Ensure that the condensation drain hose is not bent or

jammed and that there are no objects on the condensation

drain hose.

3. Ensure that the condensation can run off properly.

4. Empty any condensate from the device by pressing the push

switch for draining residual water from the condensation

tank (3).

5. Press the power button (11) to switch on the device.

6. Check if the operation indicator RUN is illuminated.

– Should the E3 error be displayed, follow the instructions in

chapter Mains connection.

7. Adjust the room air humidity using the plus (14) and

minus (13) button.

180°

8 mm

EN Operating manual — Condenser dryer DH 145 S 8

Continuous operation mode

In continuous operation mode, the device continuously

dehumidifies the air — depending on the humidity, until

switch-off or until the programmed switch-off time.

To start continuous operation, set a humidity nominal value

<30%.

Setting the timer

There are two ways to use the timer:

• The device switches on automatically after a specified

operating time.

• The devices switches off automatically after a specified

operating time.

Proceed as follows if the device shall automatically switch on

after a set time:

1. Press the timer button (12) once.

2. Adjust the time until automatic switch-on in steps of one hour

using the plus (14) and minus (13) button.

3. Press the timer button again to program the automatic

switch-off time. Press again to exit the menu.

4. Press the power button (11) to switch over to automatic

mode.

5. After the set time, the device switches on. It runs until the set

time until switch-off is up or until the device is manually

switched off.

Proceed as follows if the device shall automatically switch off

after a set time:

1. Press the timer button (12) twice.

2. Adjust the time until automatic switch-off in steps of one hour

using the plus (14) and minus (13) button.

3. Press the timer button (12) again to exit the timer settings.

Automatic defrost

At low ambient temperatures, ice may form at the evaporator

during dehumidification. The device then carries out an automatic

defrost. The duration of the defrost can vary.

Do not turn off the device during the automatic defrost. Do not

remove the mains plug from the mains socket.

Memory function

During short power failures, the device memorises the

programmed nominal value for relative humidity.

Programmed start and stop times for the automatic mode are not

memorised.

Shutdown

1. Press the power button (11).

2. Press the push switch for draining the condensation tank (3).

3. Do not touch the mains plug with wet or damp hands.

4. Remove the mains plug from the mains socket.

5. Remove the condensation drain hose and any residual fluid

from it.

6. Clean the device, and especially the air filter, as described in

chapter Maintenance.

7. Store the device according to chapter Storage.

9Operating manual — Condenser dryer DH 145 S EN

The accurate functionality of the device was tested during

production a number of times. However, if functionality faults do

occur, then check the device according to the following list.

Note!

The device is provided with a safety timer. Switch-on and

switch-off can be up to 3 minutes delayed.

The device does not start:

• Check the power connection.

• Check the mains plug for damages.

• If the fault indicator for the condensate pump lights up or a

beep is emitted, have the error repaired by a specialist

company for cooling and air-conditioning or by Trotec.

• Have the electrics checked by a specialist company for

cooling and air-conditioning or by Trotec.

The device runs but forms no condensation:

• Check the condensation drain hose is positioned correctly.

• Check that the condensate pump functions properly. Check

for abnormal vibrations and sounds. Remove external dirt.

• Check the room temperature. Check the device's permissible

operating range complies with the technical data.

• Ensure that the relative humidity complies with the technical

data.

• Check that the selected relative humidity is realistic. Relative

humidity in the room where the device is positioned shall be

at least 3 % above the nominal value. If necessary, reduce

the set relative humidity.

• Check the air filter is not dirty. If necessary, clean or replace

the air filter.

• From the outside, check the condenser and the condensate

pump are not dirty (see Maintenance chapter). If the inside of

the device is dirty, have it cleaned by a specialist company for

cooling and air-conditioning or by Trotec.

The device is loud or vibrates; condensate is leaking:

• Check whether the device is standing upright and on an even

surface.

The device gets very warm, is loud or is losing performance:

• Check the air inlets and air filter are not dirty. Remove

external dirt.

• From the outside, check the inside of the device and

especially the fan, the fan housing, the evaporator, the

condenser and the condensate pump for dirt (see

Maintenance chapter). If the inside of the device is dirty, have

it cleaned by a specialist company for cooling and

air-conditioning or by Trotec.

Possible error numbers

Your device still does not operate correctly after these

checks? Is there an error number shown in the display for

your device?

Bring the device to a specialist company for cooling and

air-conditioning or to Trotec for repair.

Errors and faults

Error numbers Meaning

E1 Temperature error:

The temperature is outside the tolerances. The device

operates automatically in dehumidification and

defrosting cycle until the temperature is within the

tolerance range again.

E2 Error message of the humidity sensor:

The relative humidity is outside the specified values. The

device operates in continuous operation mode until the

value is within the tolerance range again.

E3 Wrong rotating field: Correct the rotating field on the CEE

phase inverter.

E4 Phase missing: Check mains voltage.

E5 Communication fault

E6 Undervoltage protection

Check mains voltage.

EN Operating manual — Condenser dryer DH 145 S 10

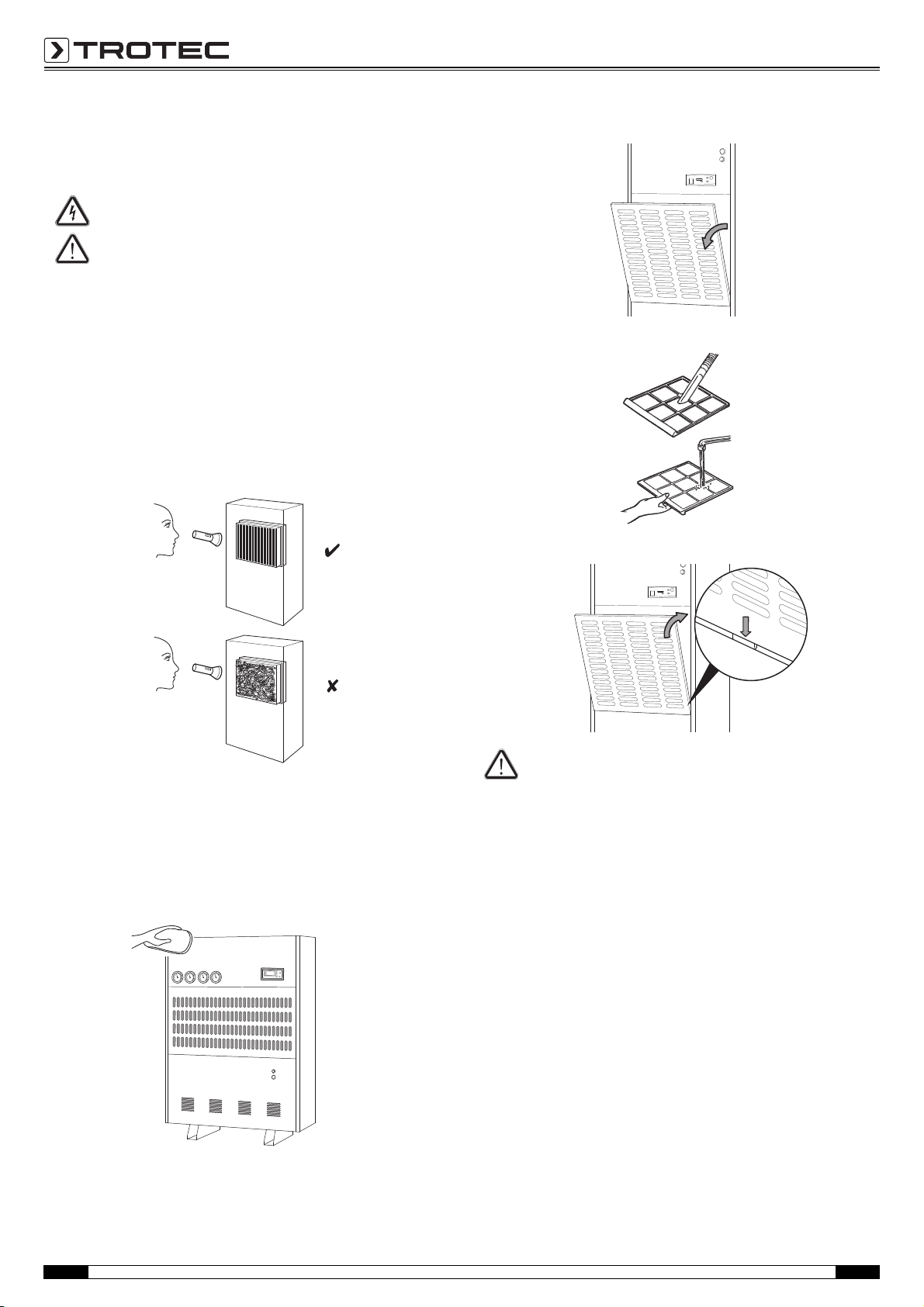

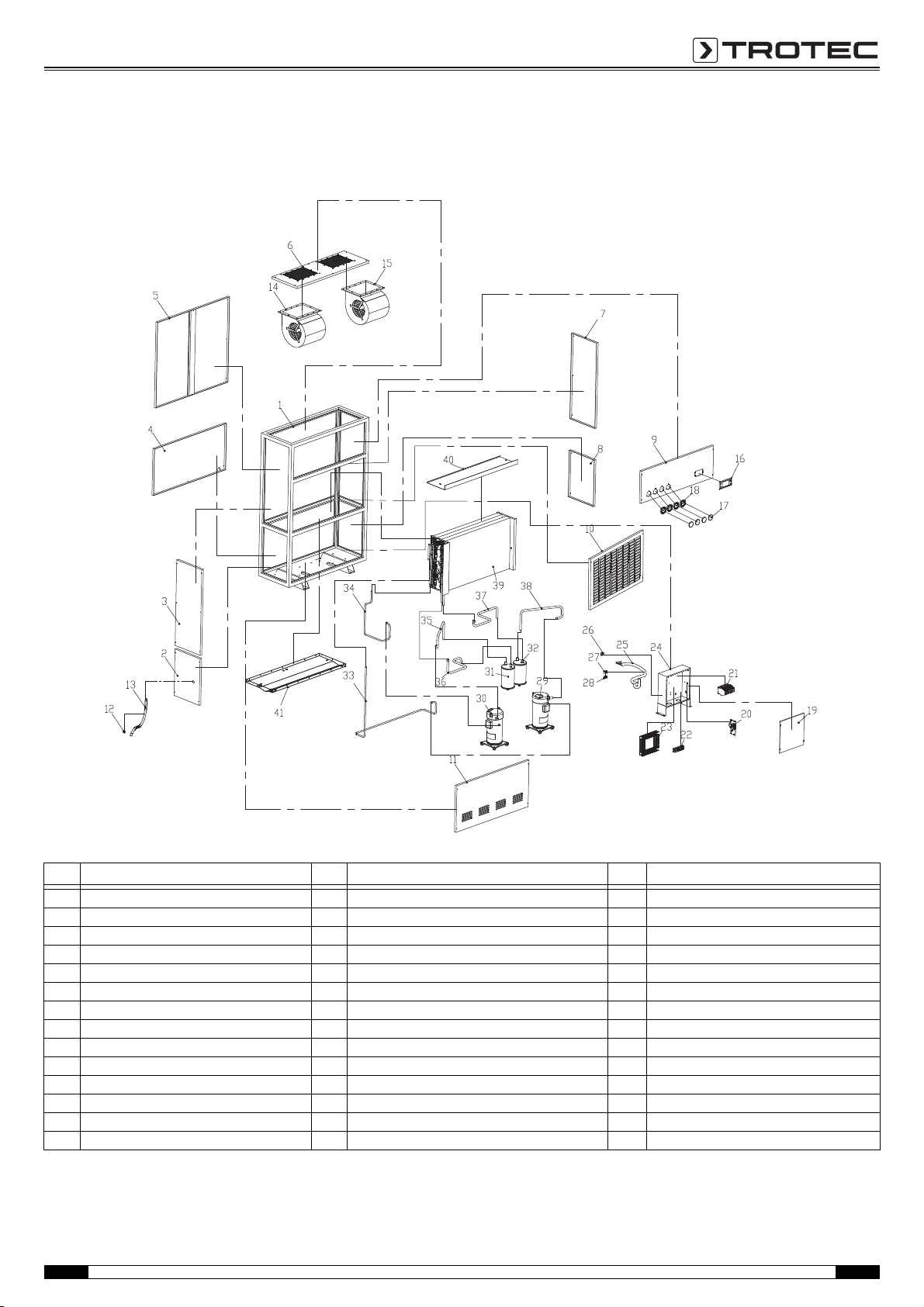

Maintenance intervals

Maintenance and care log

Device type: ........................................Device number: ........................................

Maintenance

Maintenance and care interval before every start as needed at least every

2 weeks

at least every

4 weeks

at least every

6 months

at least

annually

Emptying of condensate pump, condensation tray and/or

condenser dryer X

Check of air inlets and outlets for dirt and foreign objects

and cleaning if necessary XX

Cleaning of housing X X

Visual check of the inside of the device for dirt X X

Check of air inlet grid and air filter for dirt and foreign

objects and cleaning or replacement if necessary XX

Air filter replacement X

Check for damage X

Check of attachment screws X X

Test run X

Maintenanceandcareinterval 12345678910111213141516

Check air inlets and outlets for dirt and foreign objects

and clean if necessary

Clean housing

Visual check of the inside of the device for dirt

Check air inlet grid and air filter for dirt and foreign

objects and clean or replace if necessary

Replace air filter

Check for damages

Check attachment screws

Carry out a test run

Remarks:

1. Date: ...............................................
